TV One MX-65 Series User manual

Instruction Manual
MX-65xx Series
Small HDMI 2.0, 4k HDR Matrices

Table of Contents
1.0
Safety precautions
4
2.0 Introduction 5
3.0 Features 5
4.0 Operation Controls and Functions
Front Panels
Rear Panels
Routing
To route
To Mute video
To Clear a selection
To Save a Preset
To Load a Preset
To Lock the Front Panel
To Unlock the Front Panel
EDID Learning
Execute default EDID
IR Remote Functionality
Routing via IR Remote
Function Keys
IR Functions
6
6
7
7
7
8
8
8
8
8
8
8
8
9
9
10
10
5.0
MX-Tools
Choose Matrix Model
Icons
I/O routing Tab
I/O routing
Recall Presets
Save Preset
EDID Management Tab
Learn EDID from Default to Input
Learn EDID from Display to Input
Load EDID File to Input
Auto EDID
Read Button
View EDID
Rename Tab
Rename I/O
Rename Presets
11
11
12
12
12
12
13
13
13
13
13
14
14
14
14
14
14

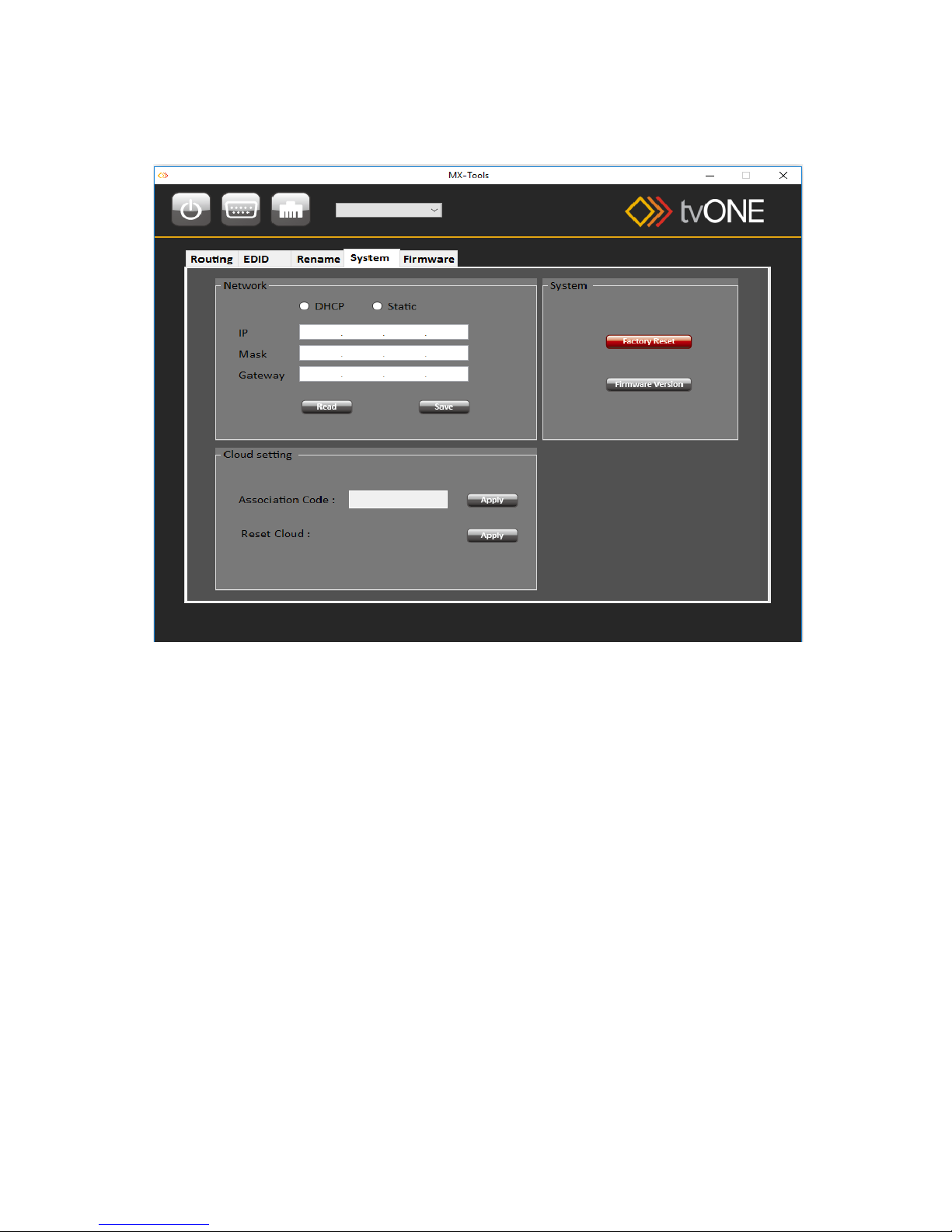

System Tab
Network-DHCP mode
Network-Static mode
‘Save’ Button
‘Read’ Button
System-Factory Reset
Firmware Version
Cloud setting-Association Code
Reset Cloud

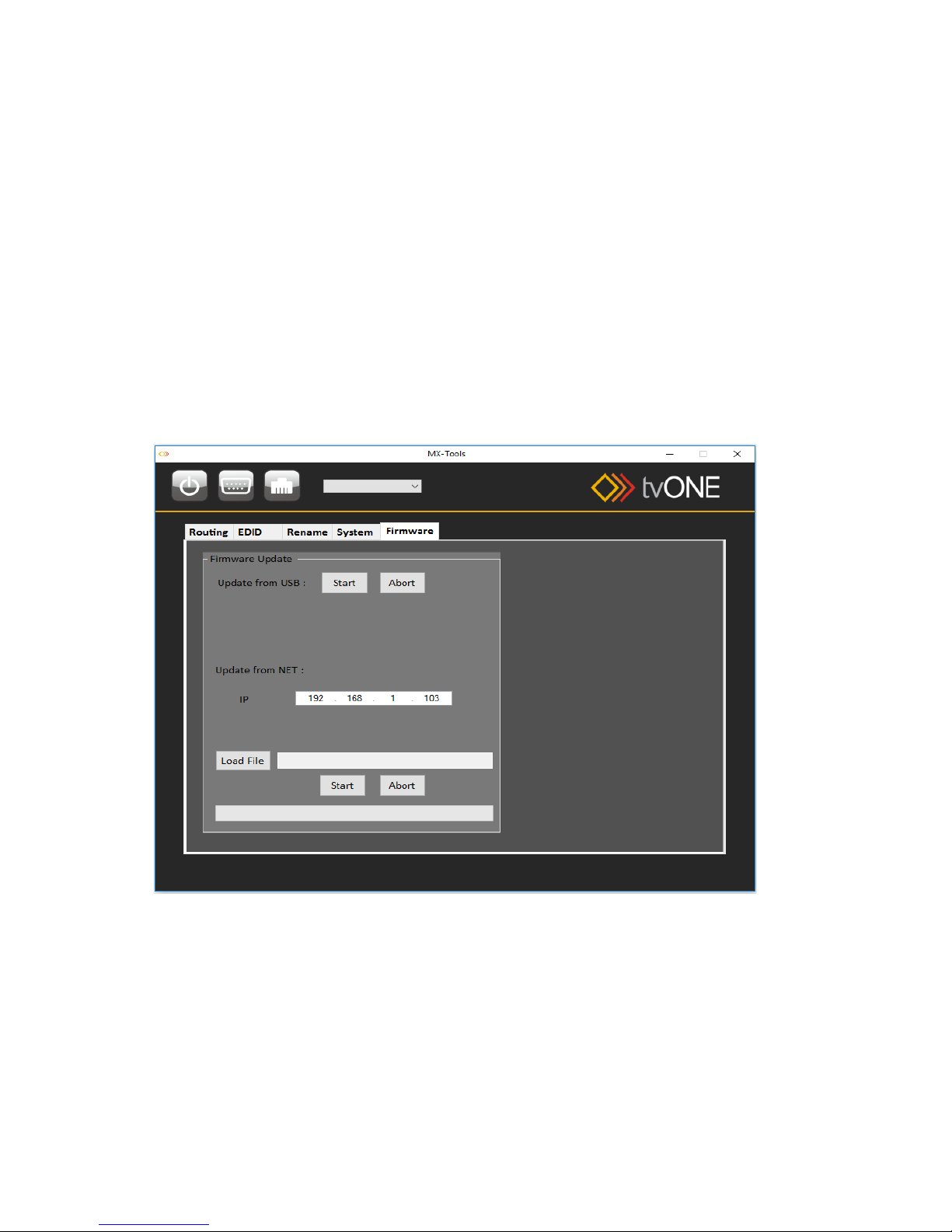

Firmware Tab
FW Update from USB
FW Update from NET
15
15
15
15
15
16
16
16
16
16
16
17
6.0 EDID Learning 17
7.0
Specifications
Technical Specifications
Mechanical
Ordering information
18
18
19
19
8.0 Limited warranty 20
9.0 Regulatory Compliance 22
10.0
Liability statement 22
11.0 Contact Information
tvONE NCSA
tvONE EMEA
23
23
23

4 MX-65xx Series
1.0 SAFETY PRECAUTIONS
Read all instructions before attempting to unpack, install or operate this
equipment, and before connecting the power supply.

•Unpack the equipment carefully and save the original box and
packing material for possible future shipment
•Follow basic safety precautions to reduce the risk of fire, electrical
shock and injury to persons.
•Do not dismantle the housing or modify the module. It may result in
electrical shock or burn.
•Using supplies or parts not meeting the products’ specifications may
cause damage, deterioration or malfunction.
•Refer all servicing to qualified service personnel.
•To prevent fire or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
•Do not put any heavy items on the extension cable in case of
extrusion.
•Do not remove the housing of the device as opening or removing
housing may expose you to dangerous voltage or other hazards.
•Install the device in a place with fine ventilation to avoid damage
caused by overheat.
•Keep the module away from liquids.
•Spillage into the housing may result in fire, electrical shock, or
equipment damage. If an object or liquid falls or spills on to the
housing, unplug the module immediately.
•Do not use liquid or aerosol cleaners to clean this unit. Always
unplug the power to the device before cleaning.
•Unplug the power cord when left unused for a long period of time.
•Information on disposal for scrapped devices: do not burn or mix with
general household waste, please treat them as normal electrical
wastes.

5 MX-65xx Series
2.0 INTRODUCTION
The MX-65xx Matrix Switcher Series is designed to allow the distribution of
HDMI 2.0a (with HDCP) sources to multiple display devices independently or all
at the same time using an intuitive front panel, infrared remote control or our
control software, MX-tools.
The MX-65xx series is the perfect solution for all your installations including
home theaters, classrooms or conference rooms that demand high levels of
performance and superior 4:4:4 4K/60 image fidelity.
The MX-6588 is HDMI 2.0a compliant with full support for 4K2K@60 4:4:4 8bit
and 10bit processing for superior deep color rendition. 3D signals are also
supported. Audio includes 7.1 audio capability including DTS-HD and
Dolby TrueHD.
3.0 FEATURES
•HDMI 2.0a compliant
•4K2K@60 4:4:4 processing with 8bit and 10bit color depth
•HDR for deep color resolution
•HDCP 2.2 compliant
•Save up to 16 Presets
•Control via Front panel buttons, RS-232, TCP/IP, InfraRed and MX-tools
•Supports 7.1 channel digital audio, DTS, Master and Dolby TrueHD
•Auto detect EDID learning and management
•Robust 1RU rack-mountable metal case

6 MX-65xx Series
4.0 OPERATION CONTROLS AND FUNCTIONS
FRONT PANELS
Name
Description
POWER
LED indicator ON when power is applied.
IR
Built-in IR sensor to receive IR signal from IR remote
IR EXT
3.5mm jack for external IR receiver
Inputs
Buttons with LED for routing inputs and Preset recalling and saving
Outputs
Buttons with LED for routing Outputs and Presets recalling and
saving
Mute Press to turn off all video and audio to all outputs
All
Press to select all outputs when routing
Take
Press to execute selected route or recalling a preset
Clear
Press to clear the selected inputs and outputs when routing
Lock
Press to lock all front panel buttons
Preset
Press to enter preset mode for saving or recalling presets

7 MX-65xx Series
REAR PANELS
Routing
Routing can be performed via several control methods, IR remote, Serial and
TCP/IP, MX-tools, and front panel buttons.
To route inputs to outputs via front panel buttons, follow these steps. First, select
an input by pressing and releasing the desired Input, the LED button will
illuminate. Then press and release the desired outputs. Each LED button will
illuminate when selected. Finally, press the ‘TAKE’ Button to execute the desired
routing. Once ‘TAKE’is pressed, all the LEDs will turn off.
Name
Description
Input
HDMI inputs
Output
HDMI outputs
F/W
This USB is for Firmware updates only
Ethernet
Control port for TCP/IP commands
System IR In
IR input for control via Infrared when using an IR extender
RS232
Serial port to control This device via RS232 commands.
DC 12V
Power input
Power Switch
Main power switch

8 MX-65xx Series
Other commands:
To ‘Mute’ video and audio
from a single output
Press ‘MUTE’ then press the
desired outputs, then press
‘TAKE’
Multiple outputs can
be cleared at once in
this way
To Mute video and audio
from all outputs
Press ‘MUTE’ and press ‘ALL’
then press ‘TAKE’
To Clear a selection
Press the ‘CLEAR’ button to
deselect all previously selected
buttons
To Save a Preset
Press ‘PRESET’, then press and
hold any input or output button
until the LED flashes
Use this after all
routing is complete.
The I/O button
chosen becomes the
new preset number
(1-16)
To Load a Preset Press ‘PRESET’, then choose the
desired Preset (1-16) by pressing
the corresponding I/O button.
Then press ‘TAKE’
In preset mode, the
I/O buttons represent
available preset slots.
To Lock the Front Panel
Press ‘LOCK’
All buttons will be
locked (except
‘LOCK’)
To Unlock the Front panel
Press ‘LOCK’
EDID Learning
Press and hold the desired output
button until it flashes, then select
the desired inputs (when pressing
the inputs, the selected output
stops flashing) and Press 'TAKE'.
The illuminated input buttons
darken one after another, then
the selected output starts
flashing, which means the
process is complete.
Execute default EDID
Press and hold 'MUTE' until it
flashes. Then press the desired
inputs (when pressing the inputs,
the 'MUTE' stops flashing). Then
press 'TAKE' and the LED of the
selected inputs darken one after
another and when 'ALL' starts
flashing, it means the process is
complete.

9 MX-65xx Series
IR Remote Functionality
Routing via IR Remote
To route with the Remote control, you must first select the output and then press
the input. Repeat this to make several routes.
IN/OUT Switch
Output Number (1~8) + Input Number (1~8)
Ex: Input 2
To Output 3
1. Press output number key “3” to select Output 3
2. Press input number key “2” to select Input 2

10 MX-65xx Series
Function Keys
Button
Function
OFF
Standby mode
ON
Power on the matrix switcher
MUTE
Turn off output’s video and audio
STATUS
Preset output status
SAVE
Preset Save
PRESET
Load Preset
DEFAULT EDID
Begin default EDID selection
LEARN EDID
Begin EDID learning from one output
CLEAR
Clear the previous IR operation procedure
TAKE
Trigger the previous setting
F1
Reserved
F2
Reserved
IR Functions
Operation
Procedure
Output Status
Status + Output Number (1~8) + Take
Ex: Output 4 (Input 2)
1. Press ‘STATUS’ button
2. Press output number key “4” to select Output 4
3. Press ‘TAKE’ button
Saving Preset
Save + Output Number (1-8 storage site) + Take
Ex: Save current routing
to Preset 5
1. Press ‘SAVE’ button
2. Press output number key “5” to select the storage site 5
3. Press ‘TAKE’ button
Preset loading
Preset + Output Number (1-8 storage site) + Take
Ex: Load Preset 5
1. Press ‘PRESET’ button
2. Press output number key “5” to select the storage site 5
3. Press ‘TAKE’ button
Learn default EDID
Default EDID + Output Number (1-8 default EDID) + Input
Number (input 1~8) + Take
Ex: Default EDID 2 Input 3
1. Press ‘DEFAULT EDID’ button
2. Press output number key “2” to select default EDID 2
3. Press input number key “3” to select Input 3
4. Press ‘TAKE’ button
Learn Output EDID
Learn + Output Number (Output 1~8) +Input Number
(input 1~8) + Take
Ex: Learn Output 4 Input 3
1. Press ‘LEARN’ button
2. Press output number key “4” to select Output 4
3. Press input number key “3” to select Input 3
4.Press ‘TAKE’ button
Mute Output
Mute + Output Number (1~8) + Take
Ex: Mute Output 3
1. Press ‘MUTE’ button
2. Press output number key “3” to select Output 3
3.Press ‘TAKE’ button

11 MX-65xx Series
5.0 MX-Tools
MX-Tools is the control software for the MX-65xx series and has the following
system requirements:
•OS Information: MS WinXP/7
•Software size: 1 MB
•Minimum RAM requirement: 256 MB
•Serial Com Port Baud rates: 9600
•TCP/IP
Choose Matrix Model
When you launch the MX-Tools software the first thing you need to do is choose
your matrix.

12 MX-65xx Series

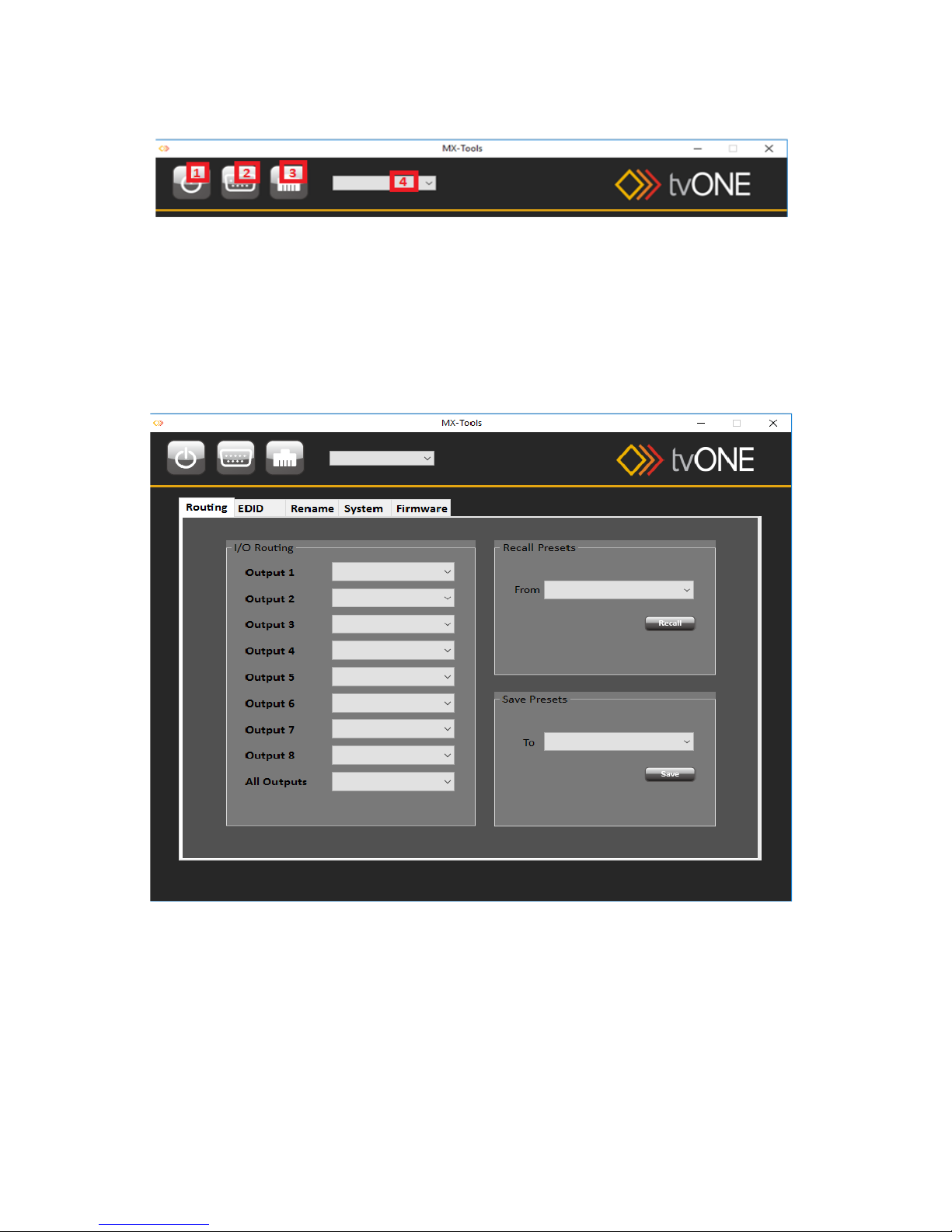

Icons
1. Power on/Standby mode
2. Connect and Control MX-Tools via RS-232
3. Connect and Control MX-Tools via TCP/IP
4. COM port selection (when using RS-232)
I/O Routing Tab
I/O routing
•Selecting the desired input for each available output
Recall Presets
•Select the stored Preset (1-16)
•Click ‘Recall’ button to recall previous Presets which are saved

13 MX-65xx Series
Save Preset
•Select Preset (1-16)
•Click ‘Save’ button to save current routing
EDID Management Tab
Learn EDID from Default to Input
•Select Default EDID (1-17 Default EDID)
•Select designated Input
•Click ‘Apply’ button to learn from default EDID
Learn EDID from Display to Input
•Select Display
•Select designated Input
•Click ‘Apply’ button to learn from display EDID
Load EDID File to Input
•Click ‘Load File’ button to select the EDID file
•Select designated Input
•Click ‘Apply’ button to load EDID File

14 MX-65xx Series
Auto EDID
•The matrix has an Automatic EDID learning function that generates the
correct EDID amongst the connected monitors.
View EDID
•Select Input or HDMI output
•Click ‘View’ button to read and analyze the EDID
Rename Tab
Rename I/O
•Rename the Inputs and Outputs, then click ‘Save’
•To Load previously saved I/O names from the matrix, click ‘Read’
Rename Presets
Rename the Presets, then click ‘Save’
To load previously saved preset names from the matrix, click ‘Read’

15 MX-65xx Series
System Tab
Network-DHCP mode
•Select DHCP and click ‘Read’ to automatically get the IP address
Information
Network-Static mode
•Click Static, then enter the ‘IP’, ‘MASK’ and ‘GATEWAY’ information.
After setting the IP address, click ‘Save’ to store the IP address
Information
‘Save’ Button
•Saves a manually entered IP address
‘Read’ Button
•Read the IP address from the device
Note: The default static IP address is 192.168.1.123)

16 MX-65xx Series
System-Factory Reset
•To perform a factory default reset
Firmware Version
•To get the F/W version information
Cloud setting-Association Code
•This feature is not yet available.
Reset Cloud
•This feature is not yet available.
Firmware Tab
FW Update from USB
•Please ensure the file of new firmware files are in the root directory of
USB Flash Drive and the file suffix is .bin.
•Connect the USB Flash Drive to the matrix USB interface.
•Click ‘Start’ to begin the FW update process
•This process will take approximately 5 minutes

17 MX-65xx Series
Firmware update from NET
•Enter the ‘IP’ address of the Matrix that you want to update the
firmware
•Click ‘Load file’ to select the new firmware file
•Click ‘Start’ to begin the FW update process
•This process will take approximately 5 minutes
Note: The PC & matrix must be on the same domain
6.0 EDID Learning
The EDID learning function is only necessary whenever you encounter any
display on the HDMI output port that cannot play audio and video properly.
Because the HDMI source devices and displays may have various level of
capability in playing audio and video, the general principle is that the source
device will output the lowest standards in audio format and video resolutions to
be commonly acceptable among all HDMI displays. For Example, a 720p stereo
HDMI signal output would be probably the safest choice. Nevertheless, the user
can force the matrix to learn the EDID of the lowest capable HDMI display
among others to make sure all displays are capable to play the HDMI signals
normally.
There are Three methods to do EDID Learning:
1. IR Remote Control: Please refer to the section entitled Operation
Controls and Functions, IR Remote Functionality.
2. Software Control: Please refer to the section entitled MX-Tools, EDID
Management Tab.
3. Front panel control: Please refer to the section entitled Operation
Controls and Functions, Routing.
This is a list of the available default EDID’s:
1. Full-HD(1080p@60)-24bit 2D & 2ch
2. Full-HD(1080p@60)-24bit 2D & 7.1ch
3. Full-HD(1080p@60)-24bit 3D & 2ch
4. Full-HD(1080p@60)-24bit 3D & 7.1ch
5. HD(1080i@60)(720p@60)-24bit 2D & 2ch
6. HD(1080i@60)(720p@60)-24bit 2D & 7.1ch
7. Full-HD(1080p@60)-36bit 2D & 2ch
8. Full-HD(1080p@60)-36bit 2D & 7.1ch

18 MX-65xx Series
9. Full-HD(1080p@60)-24bit 2D & 2ch & Dolby 5.1ch
10. 4k2k@30 2ch
11. 4k2k@30 7.1ch
12. 4k2k@30-3D-PCM2CH(2ch)
13. 4k2k@30-3D-BITSTR(7.1ch)
14. 4k2k@60-420-3D-PCM2CH(2ch)
15. 4k2k@60-420-3D-BITSTR(7.1ch)
16. 4k2k@60-3D-PCM2CH(2ch)
17. 4k2k@60-3D-BITSTR(7.1ch)
7.0 SPECIFICATIONS
TECHNICAL SPECIFICATIONS
HDMI compliance
HDMI 2.0a
HDCP compliance HDCP 1.4 / HDCP 2.2
Video bandwidth
Single-link 594MHz [18Gbps]
Video support
HDR 4K2K@60 (4:2:0 10bits)
4K2K@60 (4:4:4 8bits)
Audio support
Surround sound (up to 7.1 channels or
stereo digital audio
Input
8 x HDMI (MX-6588/6584)
4 x HDMI (MX-6544)
1 x 9-pin D-sub Female (RS-232)
1 x Ethernet
1 x 3.5mm IR receiver
1 x USB Type A (Firmware only)
Output
Control
8 x HDMI (MX-6588)
4 x HDMI (MX-6584/6544)
Via Front panel button, IR remote control,
RS-232 control, TCP/IP and MX-tools
Warranty
2 Ye a r s
MTBF (hrs)
MX-6588 51,000
MX-6584 61,500
MX-6544 103,000

19 MX-65xx Series
MECHANICAL
Enclosure
Metal case
Dimensions (H x W x D)
1.7" x 17.3" x 8.6"
(44 x 440 x 220mm)
1.6" x 17.3" x 6.9"
(42 x 440 x 177mm)
Weight (Net)
MX-6588/6584 2.7kg (5.9 lbs)
MX
-6544 2.4kg (5.2 lbs)
Power supply
MX-6588/6584 12V 7.5A DC
Replacement part;
PS-12-75-IEC-LK;
MX-6544 12V 2A DC
Replacement part; PS-12-20-IEC-C8-LK
Power Consumption
MX-6588/6584 60 Watts (max)
MX-6544 25 Watts (max)
Operating Temp
0° to 40°C (32° to 104°F)
Relative Humidity
20% to 90% Non-condensing
Storage Temp
-20° to 60°C (-4° to 140°F)
Regulatory compliance
FCC, CE, RoHS, UL
8.0 ORDERING INFORMATION
MX-6588
8x8 HDMI 2.0 HDR Matrix Switcher
MX-6584
8x4 HDMI 2.0 HDR Matrix Switcher
MX-6544
4x4 HDMI 2.0 HDR Matrix Switcher
PS
-12-75-IEC-LK Replacement PSU 12v 7.5A with IEC 3 pin connector
for MX-6588 and MX-6584 (6pin locking connector)
PS-12-20-IEC-C8-LK
Replacement PSU 12v 2A with IEC 2 pin connector
for MX-6544 (2pin screw locking connector)
IRC-6
Replacement 28 key IR Remote for the MX-6588,
6584, 6544
