Dear friend,
Thank you for choosing the all new very attractive TVS Radeon, the Strong Bike built for the confident and progressive
Indian Man.
As a proud owner of TVS Radeon, you are now a part of a family of millions of satisfied TVS customers.
Your Radeon now comes equipped with ETFI (Eco Tuned Fuel Injection) BSVI technology to give you a smoother ride,
improved mileage and an enjoyable riding experience.
The exciting TVS Radeon is specifically suited towards a multitude of use-cases which combine themes of comfort,
durability, practicality and style. The very attractive TVS Radeon boasts of multiple first-in-class features and usage-led
design, which never compromise on strength and reliability.
This manual explains the features and operations of your TVS Radeon. Please read it carefully and follow the
instructions to enjoy years of safe riding.
To ensure reliable performance, we urge you to get yourTVS Radeon serviced only atTVS Motor Company Authorised
Main Dealers / Authorised Dealers at specified regular intervals.
Happy Riding!
TVS MOTOR COMPANY LIMITED
FOREWORD

VI
Operating this vehicle safely is an important responsibility of the rider. To help you make decisions on safety, we
have provided necessary operating procedure and other information in this manual. This information alerts you on
potential hazards that could hurt you or others. Since it is not possible to warn you about all the hazards associated
with operating or maintaining the vehicle, you must use your own judgment.
You will find important safety information in following form in this manual.These words carry the following connotations:
Disregarding this message might result in injury to the rider or deadly accidents.
This message indicates special procedures or precautions to be followed to avoid damage to the vehicle.
This message provides further clarification for clear understanding of any particular information.
SAFETY INFORMATION

VII
All information, illustrations, photographs and specifications contained in this owner’s manual are based on the latest
product information available at the time of this publication. TVS Motor Company Limited may, however, incorporate
modifications or improvements on its vehicles at any time without notice, and therefore, in such events it is possible
that the relevant part of the owner’s manual does not apply to your vehicle.
Prior permission of TVS Motor Company Limited is required for quoting, copying or reproducing any part of this
owner’s manual.
Accessories shown in the picture may not be part of the standard equipment.
Your motorcycle is provided with the day time running lamp (DRL). The DRL glows automatically once the engine
is started.
Revision 2, Mar 2021
NOTICE
TVS Radeon comes with ‘SYNCHRONIZED BRAKING TECHNOLOGY - SBT’ which
offers superior braking control. This new braking feature automatically activates
front brake whenever the rear brake is used, thereby enhancing the braking
performance of the vehicle. SBT assures more safety, reduces force required while
braking and ensures lower changes of skidding.

VIII
CONTENTS
RUNNING-IN INFORMATION 01
SAFE RIDING TIPS 02
KNOW YOUR TVS RADEON 07
RIDING YOUR TVS RADEON 24
MAINTENANCE 29
WARRANTY AND SERVICES 51
SERVICE INFORMATION 55
EXPRESS SERVICE 56
EXPERT ON WHEELS 57
PICKUP AND DROP 58
TECHNICAL SPECIFICATIONS 59
GENERAL INFORMATION 62

1
The first 1000 km is a crucial part of your motorcycle. Proper running-in operation during this period helps in ensuring
a maximum life and smooth performance of your motorcycle.
The reliability and performance of your motorcycle depends on the special care and restrain exercised during the
running-in period. It is especially important that you avoid operating the engine in high speed (RPM), which could
expose the engine parts to excessive stress. Recommended speed during the running-in is:
Maximum 50 kmph speed upto 1000 km (vary the engine speed for better mating of parts).
The first free service at 500 ~ 750 km is most important. During running-in period all the engine components and
other parts will have set in. All adjustments to be restored, all fasteners to be tightened. Engine cum transmission oil
to be replaced. Timely performance of the first free service will ensure optimum service life and performance from
the engine.
RUNNING-IN INFORMATION
Replacing the engine cum transmission oil during first free service is most important for better life of engine. Always use TVS
TRU4 PREMIUM oil (SAE 10W30 SL-JASO MA2) for better performance and life.
Since your motorcycle is fitted with Evaporative Emission Control System, the motorcycle should not be laid on the floor
during water wash. Else it may lead to difficulty in starting and improper running of the motorcycle.

2
SAFE RIDING TIPS
SAFE RIDING RECOMMENDATIONS
Any two wheeler riding requires some precautions to be taken to ensure the safety of the rider, pillion and other road
users. These precautions are:
Familiarise yourself with newTVS Radeon
Riding skill and your mechanical knowledge form the foundation of safe riding practices. We suggest you to practice
riding TVS Radeon in a low-traffic condition until you are thoroughly familiar with your vehicle and its controls.
Remember practice makes you perfect.
Riding apparel
Loose, fancy clothing can be uncomfortable and unsafe when riding a two-wheeler. Choose good quality two wheeler
riding apparel.
Know your limits
Ride within the boundaries of your own skill at all times. Knowing these limits and staying within them will help you
to avoid accidents.
Two wheeler safety starts with wearing a good quality helmet. One of the most serious injuries that can happen is a
head injury. Always wear an ISI approved helmet that should fit your head comfortably and securely. You should also have
good quality goggles to protect your eyes and help your vision.
To prevent or minimize accident, never consume alcohol or drugs before or during the operation of your vehicle. Even minimal
consumption of these will affect the rider’s ability to control the vehicle.

3
Posture
Proper vehicle riding starts with proper posture.
1. Sit erect on the seat at the position which you
feel most comfortable.
2. Keep your arms relaxed to give extra cushion for
body on uneven road surfaces.
3. Keep right arm and foot close to the brake lever
and pedal, so as to enable fast action during panic
braking.
4. Look widely instead of gazing at one point.
5. Alter your sitting location/posture slightly at
intervals during long rides. This will reduce
fatigue.
Cornering
When cornering, centrifugal force works in a direction
perpendicular to the direction in which the vehicle
is moving. Centrifugal force increases in proportion
with speed and the radius of the corner.
During cornering, reduce speed so as to lessen the
effects of centrifugal force. By all means, avoid abrupt
application of brake or sudden steering.
One-hand riding is dangerous. Keep both hands firmly
on the handle bar and both feet securely on the floor
board. Under no circumstances should both the hands
be removed from the handle bar, as it is very dangerous.
Avoid use of mobile phones while riding as it could
lead to fatal accident.
Slow down to a safe speed before negotiating a corner.
If this is the first time that you are riding a vehicle of this
type, we suggest that you practice on a safe, open area
to become thoroughly familiar with the operation of the
vehicle.

4
Braking
For safe riding, it is very important to master the
braking techniques.
1. Close / release the throttle.
2. Hold the vehicle upright as you apply the brake.
3. Progressive application of brake is safer.
4. Never depress the clutch lever while braking at
higher speeds.
5. Apply both the brakes. ‘SBT’ provides
additional braking even when ‘Only Rear
brake’ is applied, But applying ‘Both the
brakes’ helps you use the full potential of the
brakes.
6. Riding down hills, while cornering and wet roads,
close the throttle and down shift the gear to take
advantage of gearbox and engine which acts as
an additional brake. This will avoid the loss of
control over the vehicle due to over speed.
As the vehicle speed increases, the stopping distance
also increases progressively. Be sure that, you have
sufficient distance between you and the vehicle or
obstruction ahead of you.
Using only the front or rear brake is dangerous and can
cause skidding and loss of control. Apply both the
brakes together and with great care on a wet road or
other slippery surfaces.
Any abrupt braking on slippery or irregular roads can
cause loss of rider control.
Causes for poor braking
1. If the brake shoes or drum are worn out or if there
is water or oil on them, sufficient friction does not
develop and brakes do not work well.
2. Even when the brake works normally, if the road
surface is wet or the tyre surface is worn-out,
tyres do not take a firm hold on the surface,
increasing the stopping distance.
3. Approximately 60% braking effect is from front
brake. Non-usage of front brake causes poor
braking.

5
ACCESSORY INSTALLATION AND SAFETY TIPS
Use extreme caution while selecting and installing
the accessories for your motorcycle.
The addition of unsuitable accessories can lead to
unsafe operating conditions. Your friendly Dealer
will assist you in selecting quality accessories and
installing them correctly.
While selecting the accessories, make sure
the accessories should not obstruct lighting,
steerability, suspension level and ground
clearance. Please ensure that, if the tank cover is
used, it is not getting en-trapped between fuel tank
and fuel tank cap.
Additional electrical equipment is not acceptable
as it will void the warranty terms of the vehicle.
EMISSION CONTROL
Exhaust emission control system
All the TVS vehicles are tested in the factory for
optimum fuel efficiency and CO levels.
If the vehicle needs any adjustments, please consult
nearest TVS Motor Company Authorised Main Dealer
or Authorised Dealer.
While adequate care is exercised at the factory
to ensure that the emissions are within the limits,
it is essential for the owner to always maintain the
motorcycle in good condition by getting it periodically
checked and serviced by TVS Motor Company
Authorised Main Dealer or Authorised Dealer so
that the emission and fuel consumption levels are
maintained as per norms.
Crankcase emission control system
The engine of TVS Radeon is equipped with a closed
crankcase system to prevent discharging crankcase
emissions into the atmosphere. Blow-by gas is
returned to the combustion chamber through the air
cleaner.

6
Evaporative Emission Control System
The TVS Radeon is equipped with an evaporative
emission control system which consists of a canister
and associated piping. This system prevents the
escape of fuel vapors from the fuel tank.
Your vehicle is tested and certified for emission
which meets BS VI emission norms and is valid for
initial 12 months from the date of purchase. Get
your vehicle certified by the Government authorised
emission testing station every year (after initial 12
months of usage).
If any abnormal jerk, startability issue are felt in the
vehicle or noise due to sudden escape of gas during
opening of fuel tank cap, immediately report to the TVS
Motor Company Authorised Main Dealer / Authorised
Dealer.

7
VEHICLE IDENTIFICATION NUMBER
Serial numbers of both frame and engine are required for vehicle identification. They are also required to assist your
Dealer for ordering parts or referring to special information.
KNOW YOUR TVS RADEON
The frame serial number is stamped on the right side
of the steering head tube.
Engine serial number is stamped on the top surface
of the left side crankcase assembly near cylinder
block.
Frame number
Engine number
Control key number
Please fill the above boxes now for future reference

8

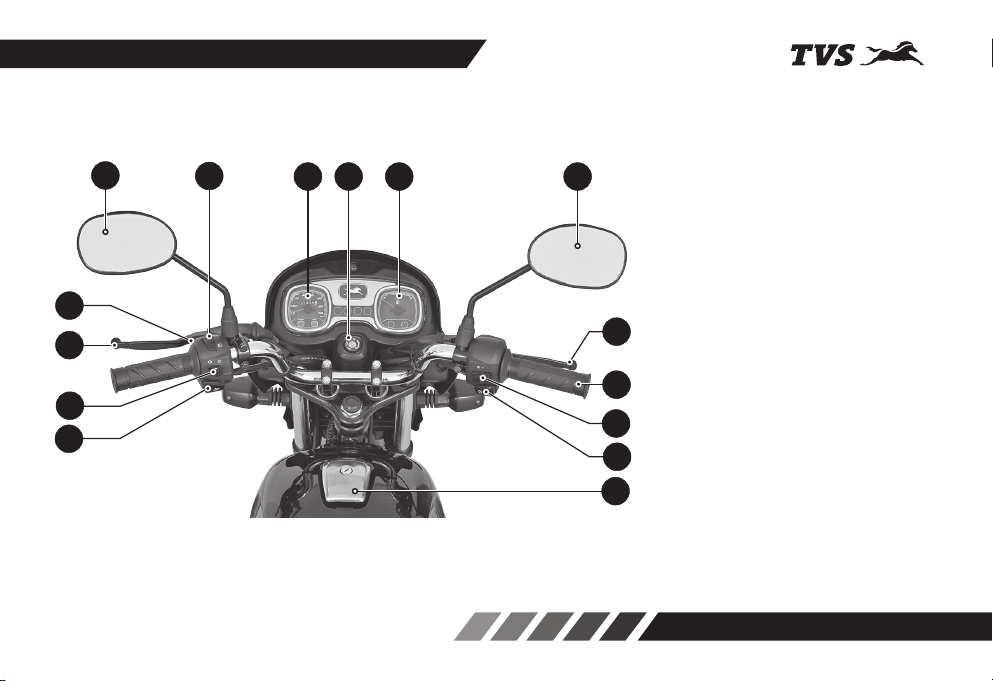

LOCATION OF PARTS - HANDLE BAR
1. Horn switch
2. Turn signal lamp switch
3. Clutch lever
4. Pass by switch
5. Rear view mirror L
6. Beam control switch
7. Speedometer
8. Ignition cum steering lock
9. Fuel gauge
10. Rear view mirror R
11. Front brake lever
12. Throttle grip
13. Head lamp switch
14. Electric starter switch
15. Fuel tank cap
7
7
7
7
7
7
7
3
4
510
11
12
13
14
67
87
9
7
1
7
2
7
15
7
7

9

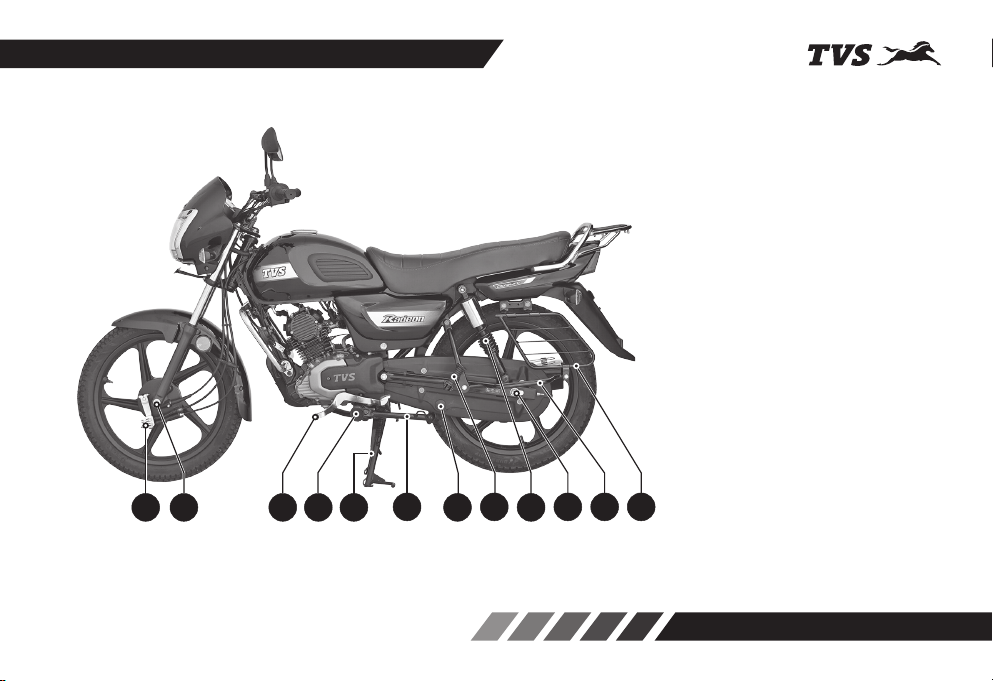

LOCATION OF PARTS - VEHICLE LEFT SIDE
1. Front brake adjusters
2. Front wheel axle
3. Gear shift lever
4. Rider foot rest L
5. Centre stand
6. Side stand
7. Chain inspection window
8. Pillion foot rest L
9. Rear shock absorber L
10. Rear wheel axle
11. Lady foot rest
12. Saree guard
* Mandatory and optional accessory will be charged extra
77 21 777 543 7
67
787 97
10 7 7 11 12

10
LOCATION OF PARTS - VEHICLE RIGHT SIDE
1. Front wheel axle nut
2. Spark plug
3. Gauge oil level
4. Rear brake pedal
5. Rider foot rest R
6. Kick starter lever
7. Pillion foot rest R
8. Rear shock absorber R
9. Muffler assembly
10. Cover carrier
11. Pillion handle
12. Lady Pillion Holder
7777
7
1578
10
7
2
7
3
7
4
7
6
7
7
11 7 12
9

11

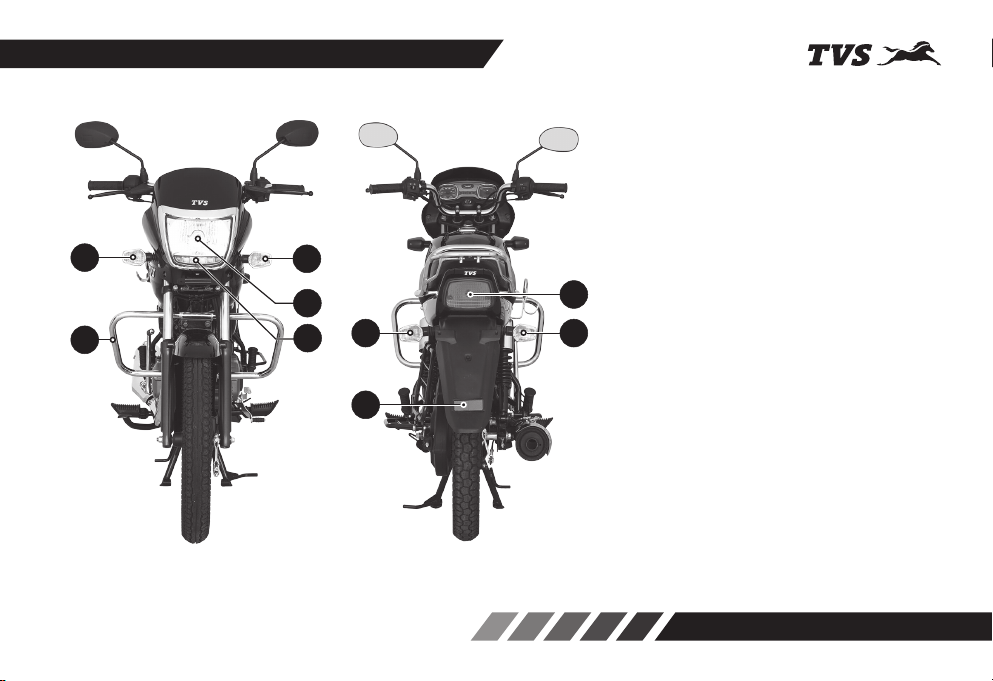

LOCATION OF PARTS - VEHICLE FRONT & REAR
FRONT
1. Turn signal lamp front L
2. Head lamp assembly
3. DRL (day running lamp)
4. Crash guard
5. Turn signal lamp front R
REAR
1. Tail lamp assembly
2. Turn signal lamp rear R
3. Reflex reflector
4. Turn signal lamp rear L
7
7
7
7
7
7
7
1
2
2
3
44
3
7
57
1

12
CONTROL KEY
TVS Radeon comes with pair of identical control
keys.These keys are to operate ignition cum steering
lock, fuel tank cap and seat lock.
IGNITION CUM STEERING LOCK
There are three positions in the ignition cum steering
lock. They are:
1. ‘OFF’ position
All the electrical circuits are turned ‘OFF‘ in this
position. Engine will not start. Key can be taken out.
2. ‘ON’ position
In this position, all the electrical circuits are turned
‘ON’ and the engine can be started now. Key cannot
be removed in this position.
3. ‘LOCK’ position
TVS Radeon’s steering can be locked in both ‘left’ and
‘right’ directions. To lock the steering, turn the handle
bar all the way to the ‘left’ or ‘right’.
Push the key in and turn it to the ‘LOCK’ position and
take out. All the electrical circuits are turned ‘OFF’ in
this position.
Insert the key into the lock and turn it to ‘OFF’ or ‘ON’
position to unlock the steering.
When you switch on ignition key, the pump priming
noise may be heard, which is normal. Avoid frequent
SWITCH-OFF & ON of ignition key, to avoid unnecessary
run of fuel pump.
DRL lamp, tail lamp and speedometer backlight glows
automatically once the engine is started without
activating any other switches.
Never attempt to move the vehicle when the steering is
locked, you may lose balance.
