TVS WEGO 110 Fi User manual

OWNER’S MANUAL
EXPORT

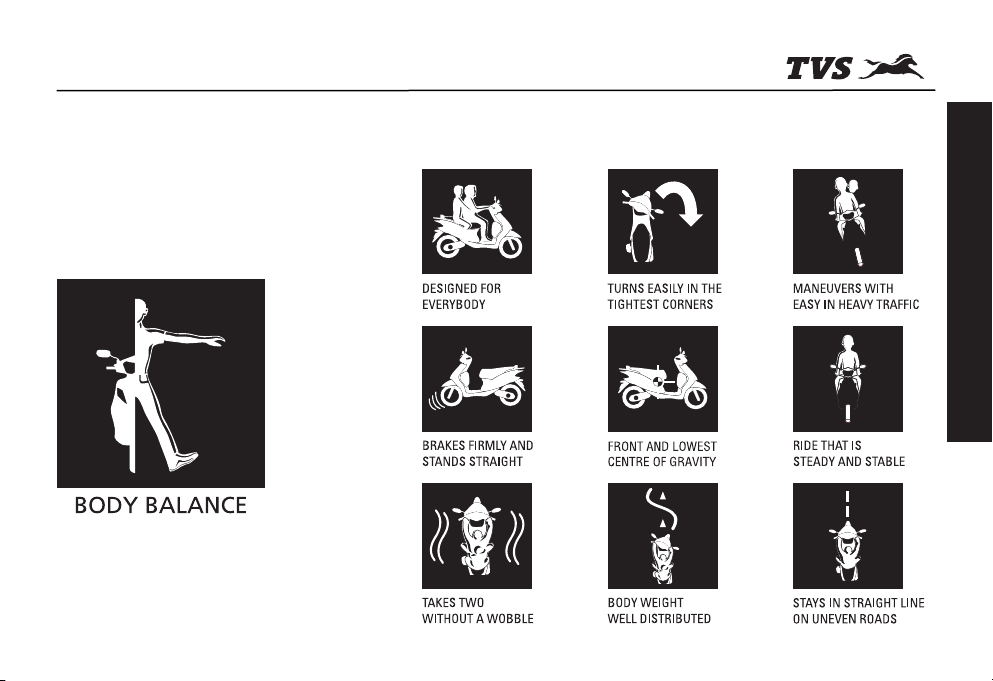

TVS WEGO Fi is equipped with a unique design technology, Body Balance, that suits him and her
easily and also offers a great ride experience.
UNIQUE DESIGN
UNIQUE DESIGN
-I-

S Y N C H R O N I S E D B R A K I N G
SYSTEM (SBS)
Synchronised Brake system reduces
the stopping distance, while keeping
the stability intact.
TUBELESS TYRES
Another important unique feature in
your scooter is “Tubeless Tyres”.
Tubeless tyres reduce the chances of
getting punctured. Even if there is a
puncture, sudden leakage of air is
avoided, thereby provide better
safety and convenience. It is also
very easy to repair the punctured
tyres.
ALL B L A C K LARGER ALLOY
WHEELS
All “B lack La rger Bla ck Allo y
Wheels” with high mechanical
advantage gives progressive braking
of your scooter, results in best-in-
class 'shortest distance' braking. It
also provide superior comfort in bad
road conditions.
UNIQUE FEATURES OF TVS WEGO Fi
UNIQUE FEATURES OF TVS WEGO Fi
PARKING BRAKE (REAR BRAKE
LOCK)
“Parking Brake” protects your
scooter from falling, while parked
with the side stand on a slope. It also
helps you relax while waiting in a
long traffic signal (or) a slope. Refer
page 15 for details.
BODY COLOURED PILLION GRAB
RAIL
The grab rail now comes in your
chosen colour of the body enhancing
the style and ensuring the safety of
the pillion rider.
ECU
Your scooter's fuel efficient engine
uses “Electronic control unit”
engine built with fuel injector, makes
sure that you get the best from your
engine.
-II-

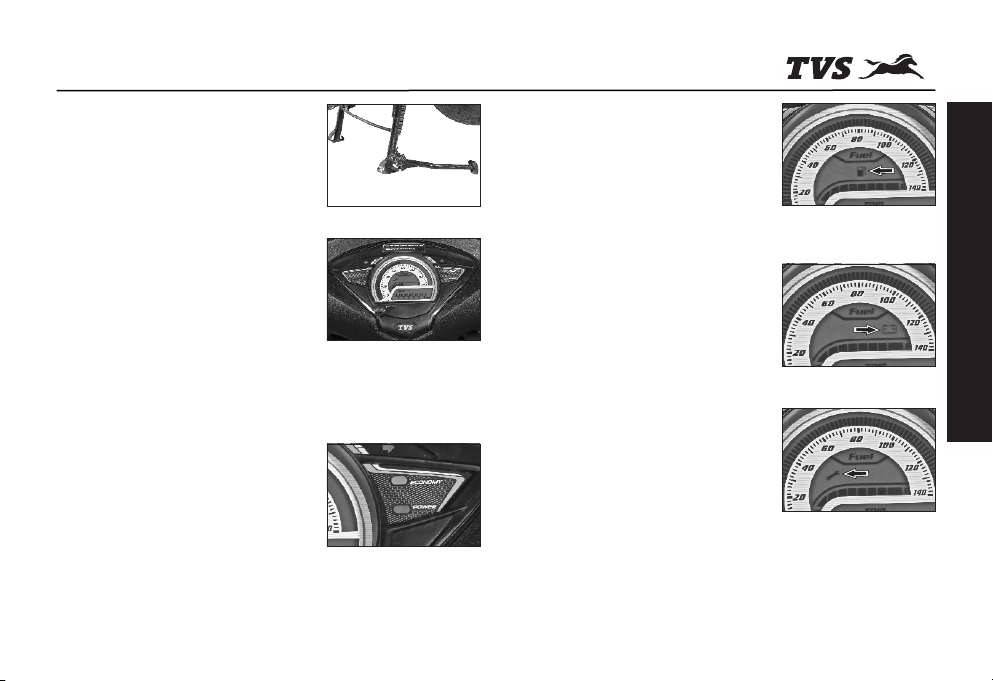

PATENTED E-Z CENTRE STAND
Your scooter is fitted with a unique
feature of “Patented E-Z Centre
Stand” which can be used as
convenient as side stand.
FULL DIGITAL SPEEDOMETER
Your TVS WEGO Fi is fitted with
“Full Digital Speedometer” which is
inspired by international automotive
t r e n d s . T h i s f i r s t - i n - c l a s s
speedometer housed perfectly in
the headlamp housing of your
scooter. Refer page no. 11 for
details.
®
ECONOMETER
Y o u r s p e e d o m e t e r h a s
®
“ECONOMETER ” which indicates
whether you are riding in Economy
Mode or Power mode. This is unique
feature of your scooter which guides
you to ride your scooter fuel
efficiently. Refer page 11 for details.
LOW FUEL INDICATOR
“Low Fuel Indicator”- is yet another
unique feature of your scooter which
indicates you to refill the fuel, when
the fuel in the tank goes below
minimum safe level. Refer page no.
14 for details.
LOW BATTERY INDICATION
“Low Battery Indication”- is yet
another unique feature of your
scooter which indicates when the
battery voltage is too low. Refer
page no. 14 for details.
SERVICE REMINDER
“Service Reminder”- is yet another
unique feature of your scooter which
indicates when it is time to give the
vehicle for service based on the km
schedule as mentioned in page no. 14.
UNIQUE FEATURES OF TVS WEGO Fi
UNIQUE FEATURES OF TVS WEGO Fi
-III-

TRIP METER
“Trip Meter”- is yet another unique
feature of your scooter using which
you can measure the exact trip
distance. Refer page no. 12 for
details.
DIGITAL CLOCK
“DIGITAL CLOCK”- is yet another
unique feature of your scooter .
Refer page no. 13 for details.
SMART PHONE CHARGER
A smart phone charger is provided
inside the utility box for charging
your smart phones even when you
are in travel. Refer page no. 22 for
usage details.
UNIQUE FEATURES OF TVS WEGO Fi
UNIQUE FEATURES OF TVS WEGO Fi
-IV-

Dear WEGO Owner,
Thank you for choosing TVS WEGO Fi, a Multi-User friendly, scooter with Body Balance Technology, Full Digital
Speedometer, new CVT-i Engine & many class-leading features. With its aerodynamic stance, unrivaled comfort
and best in class mileage, Wego represents a new direction in the class of scooters. Hand-crafted for dual usage
and urban mobility, Wego is the luxury scooter that adapts to your needs and personality.
It's more than a scooter. It is a statement, an intelligent choice. As a proud owner of TVS WEGO Fi, you are now
part of a family of millions of satisfied TVS customers.
This manual explains the features and operations of your TVS WEGO Fi. Kindly read it carefully and follow the
instructions to enjoy years of safe riding. To ensure reliable performance, we urge you to get your TVS WEGO Fi
serviced only at TVS Motor Company Authorised Distributor or Dealer / Authorised Service Centers at specified
regular periodic intervals.
We welcome you once more to a world of comfortable and easy riding!
TVS MOTOR COMPANY LIMITED
FOREWORD
FOREWORD
-V-

NOTICE
NOTICE
This manual should be considered as a permanent part of the scooter and should remain with the scooter when
resold or transferred to a new owner.
All information, illustrations, photographs and specifications contained in this owner’s manual are based on the
latest product information available at the time of this publication. TVS Motor Company Limited may, however,
incorporate modifications or improvements on its vehicles at any time without notice, and therefore, in such
events it is possible that the relevant part of the owner’s manual does not apply to your vehicle.
Prior permission of TVS Motor Company Limited is required for quoting, copying or reproducing any part of this
owner’s manual.
Note
Accessories shown in the picture may not be part of the standard equipment.
Part Number :- Revision 0, August 2017
-VI-

SAFETY INFORMATION
SAFETY INFORMATION
Operating this vehicle safely is an important responsibility of the rider. To help you make decisions about safety,
we have provided operating procedure and other information in this manual. This information alerts you on
potential hazards that could hurt you or others. Since it is not possible to warn you about all hazards associated
with operating or maintaining the vehicle, you must use your own judgement.
You will find important safety information in following form in this manual. These words carry the following
connotations:
Warning
Disregarding this message might result in injury to the rider.
Caution
This message indicates special procedures or precautions to be followed to avoid damage to the vehicle.
Note
This message provides further clarification for clearer understanding of any particular information.
-VII-

CONTENTS
CONTENTS
Running-in information 01
Safe riding tips 02
Know your TVS WEGO Fi 06
Riding your TVS WEGO Fi 24
Maintenance 28
Services record sheet 47
Technical specifications 49
-VIII-

Caution
Replacing the engine and transmission oil during first free service is most important for better life of engine.
Always use TVS TRU4 PREMIUM oil (SAE 10W30 SL-JASO MA2) for better performance and life.
RUNNING-IN INFORMATION
RUNNING-IN INFORMATION
The first 1000 km is a crucial part of your scooter. Proper running-in operation during this period helps in ensuring a
maximum life and smooth performance of your scooter.
The reliability and performance of your scooter depends on the special care and restraint exercised during the
running-in period. It is especially important that you avoid operating the engine in high speed (RPM), which could
expose the engine parts to excessive stress. Maximum recommended speed during the running-in is:
Maximum 50 kmph speed upto 1000 km (vary the engine speed for better mating of parts).
The first service at 500 ~ 750 km is most important. During running-in period all the engine components and other
parts will have set in. All adjustments to be restored, all fasteners to be tightened. Engine and transmission oil to
be replaced. Timely performance of the first free service will ensure optimum service life and performance from
the engine.
-1-

SAFE RIDING RECOMMENDATIONS
Any two wheeler riding requires some precautions to be taken to ensure the safety of the rider, pillion and other
road users. These precautions are:
Familiarise yourself with new TVS WEGO Fi
Riding skill and your mechanical knowledge form the foundation of safe riding practices. We suggest you to
practice riding TVS WEGO Fi in a low-traffic condition until you are thoroughly familiar with your vehicle and its
controls. Remember practice makes you perfect.
Riding apparel
Loose, fancy clothing can be uncomfortable and unsafe when riding a two-wheeler. Choose good quality two
wheeler riding apparel.
Know your limits
Ride within the boundaries of your own skill at all times. Knowing these limits and staying within the limits will
help you avoid accidents.
SAFE RIDING TIPS
SAFE RIDING TIPS
Warning
Two wheeler safety equipment starts with a safety helmet of good quality. One of the most serious injuries
that can happen is a head injury. Always wear good quality helmet. You should also have good suitable eye
protection.
To prevent or minimize accident, never consume alcohol or drugs before or during the operation of your vehicle.
Even minimal consumption of these will affect the rider’s ability to control the vehicle.
-2-

Posture
Proper vehicle riding starts with proper posture.
1. Keep your elbows relaxed and flexible.
2. Sit and adjust yourself on seat so that arms and
shoulders are relaxed.
3. Look widely instead of gazing at one point.
SAFE RIDING TIPS
-3-
Warning
One-hand riding is dangerous. Keep both hands
firmly on the handle bar and both feet securely on
the floor board. Under no circumstances should
both the hands be removed from the handle bar, as
it is very dangerous.
Avoid use of mobile phones while riding as it
could lead to fatal accident.
Slow down to a safe speed before negotiating a
corner. If this is the first time that you are riding a
vehicle of this type, we suggest that you practice
on a safe, open area to become thoroughly familiar
with the operation of the vehicle.
SAFE RIDING TIPS
Cornering
When cornering, centrifugal force works in a
direction perpendicular to the direction in which
the vehicle is moving. Centrifugal force increases
in proportion with speed and the radius of the
corner.
During cornering, reduce speed so as to lessen
the effects of centrifugal force. By all means,
avoid abrupt application of brake or sudden
steering.
Braking
For safe riding, it is very important to master the
braking techniques.
1. Close / release the throttle.
2. Hold the vehicle upright as you apply the
brake.
3. Progressive application of brake is safer.
4. Apply both the brakes.
5. Riding down hills, while cornering and wet
roads close throttle and come to a slower
speed to avoid the loss of control over the
vehicle due to skidding.

Causes for poor braking
1. If the brake shoes / pads or drum / disc are worn
out or if there is water or oil on them, sufficient
friction does not develop and brakes do not
work well.
2. Even when the brake works normally, if the
road surface is wet or the tyre surface is
worn-out, tyres do not take a firm hold on the
surface, increasing the stopping distance.
3. Approximately 60% braking effect is from front
brake. Non-usage of front brake causes poor
braking.
SAFE RIDING TIPS
-4-
SAFE RIDING TIPS
Warning
As the vehicle speed increases, the stopping
distance also increases progressively. Be sure
that, you have sufficient distance between you and
the vehicle or obstruction ahead of you.
Avoid directing the water jet directly towards brake
drums during water wash.
Using only the front or rear brake is dangerous and
can cause skidding and loss of control. Apply both
the brakes together and with great care on a wet
road or other slippery surfaces. Any abrupt
braking on slippery or irregular roads can cause loss
of rider control.
ACCESSORY INSTALLATION AND
SAFETY TIPS
Use extreme caution while selecting and installing
the accessories for your scooter.
The addition of unsuitable accessories can lead
to unsafe operating conditions. Your friendly
Dealer will assist you in selecting quality
accessories and installing them correctly.
While selecting the accessories, make sure the
accessories should not obstruct lighting,
steerability, suspension level and ground
clearance.
Additional electrical equipments and controls
should not exceed the specified electrical
system load of the vehicle (capacity of battery
and magneto).

EMISSION CONTROL
All the TVS vehicles are tested in the factory for
optimum fuel efficiency and CO levels.
If the vehicle needs any adjustments, please
consult nearest TVS Motor Company Authorised
Distributor or Dealer / Authorised Service Centers.
While adequate care is exercised at the factory to
ensure that the emissions are within the limits, it is
essential for the owner to always maintain the
scooter in good condition by getting it periodically
checked and serviced by TVS Motor Company
Authorised Distributor or Dealer / Authorised
Service Centers so that the emission and fuel
consumption levels are maintained as per norms.
SAFE RIDING TIPS
-5-
SAFE RIDING TIPS

VEHICLE IDENTIFICATION NUMBER
Serial numbers of both frame and engine are required for vehicle identification. They are also required to assist
your Dealer for operating parts or referring to special information.
Frame number
Engine number
Control key number
Please fill the above box now for future reference
KNOW YOUR TVS WEGO Fi

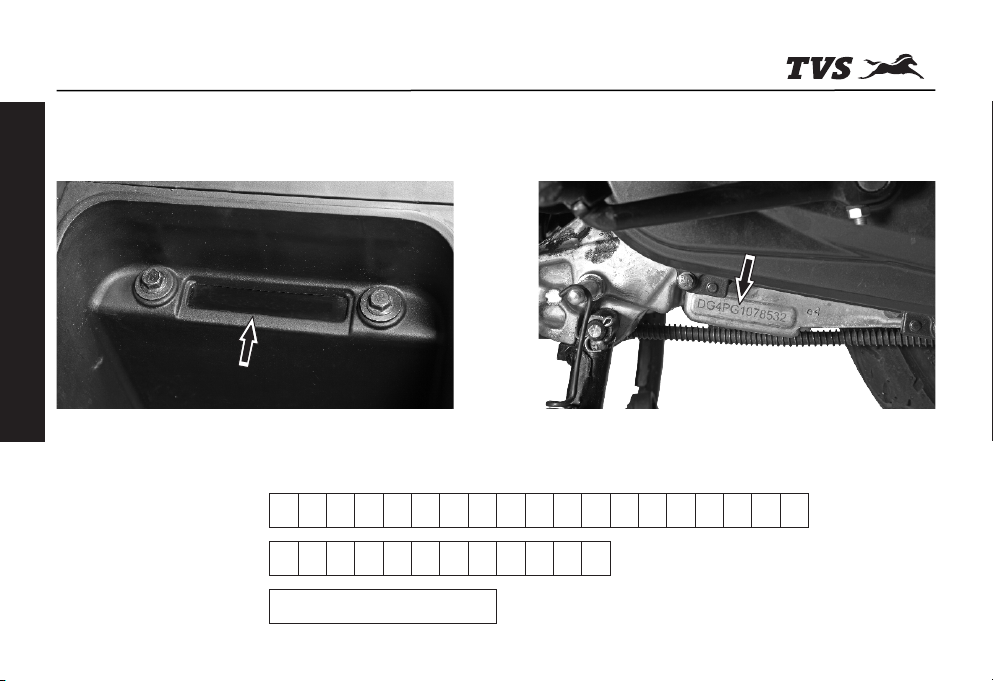

The frame serial number is stamped on the frame,
at the rear end below the seat assembly. Open the
seat assembly to read the frame number.
The engine serial number is stamped on the left
side of the engine, at bottom, near centre stand
mounting. See bottom to read serial number.
-6-
MD626DG40H1E26246
*
*
KNOW YOUR TVS WEGO Fi

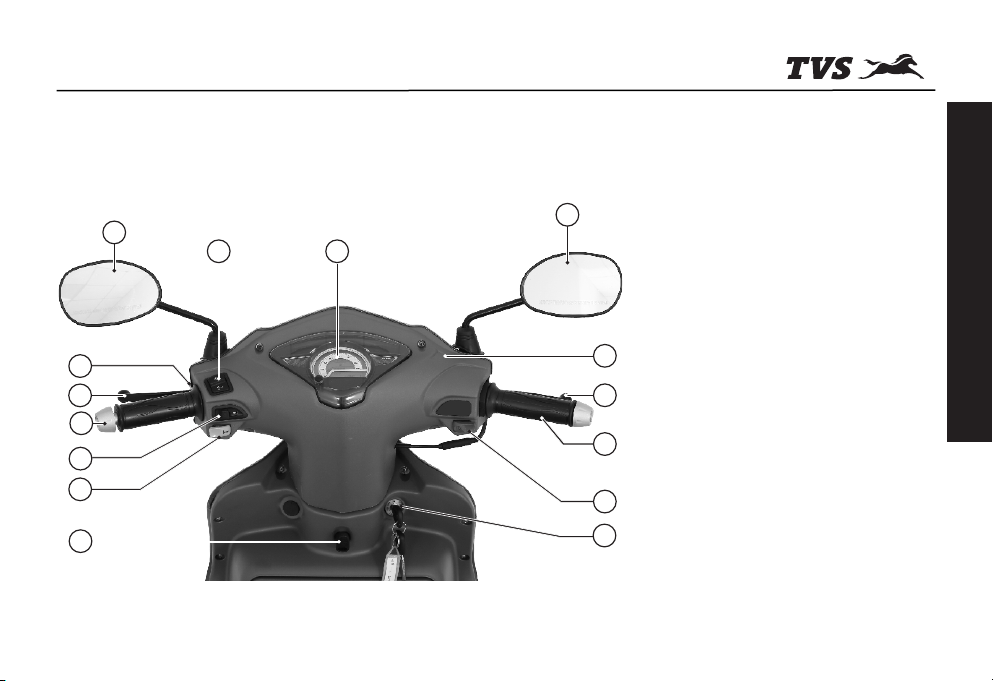

LOCATION OF PARTS - HANDLE BAR
1. Bag hook (front)
2. Horn switch
3. Turn signal lamp switch
4. Damper handle bar
5. Left hand brake lever (Rear brake
lever)
6. Parking brake (brake lock)
7. Rear view mirror L
8. High / low beam switch
9. Full digital speedometer
10. Rear view mirror R
11. Brake fluid inspection window
12. Right hand brake lever (front brake
lever)
13. Throttle grip
14. Electric starter switch
15. Ignition cum steering lock
KNOW YOUR TVS WEGO Fi
-7-
KNOW YOUR TVS WEGO Fi
7
8
9
10
13
14
12
11
15
1
4
5
6
3
2

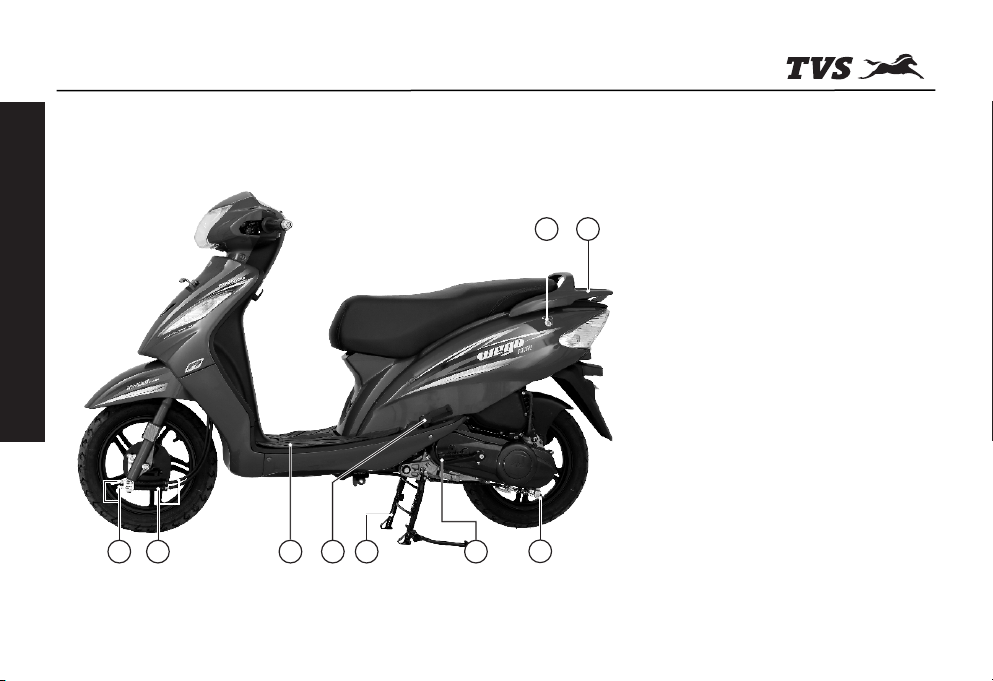

LOCATION OF PARTS - VEHICLE LEFT SIDE
1. Rear brake adjusting nut
2. Kickstarter lever
3. Patented E-Z centre stand
4. Pillion foot rest L
5. Floor mat
6. Front brake cables
7. Brake adjusting nuts
8. Seat cum fuel tank cap lock
9. Pillion handle
KNOW YOUR TVS WEGO Fi
-8-
KNOW YOUR TVS WEGO Fi
1
2
3
4
5
8 9
6
7

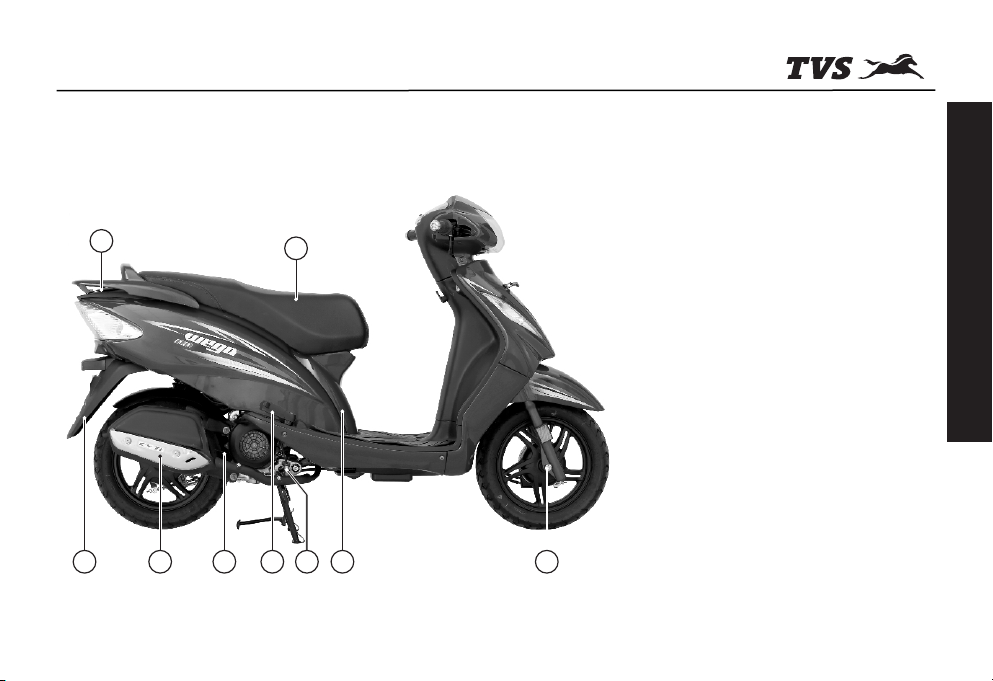

LOCATION OF PARTS - VEHICLE RIGHT SIDE
1. Front wheel axle nut
2. Cover front
3. O2 sensor
4. Pillion foot rest R
5. Gauge oil level
6. Muffler assembly
7. Rear fender
8. Fuel tank cap
9. Seat assembly
KNOW YOUR TVS WEGO Fi
-9-
1
2
4 3
5
76
89
KNOW YOUR TVS WEGO Fi

CONTROL KEY
TVS WEGO Fi comes with a pair of identical control
keys. These keys are to operate ignition cum
steering lock, seat lock, fuel tank cap and glove
box(optional).
IGNITION CUM STEERING LOCK
TVS WEGO Fi is provided with an self illuminating
ring (glow ring) around the ignition cum steering
lock, for better visibility of lock location in darkness.
There are three positions in the ignition cum
steering lock. They are:
1. ‘OFF’ position
All the electrical circuits are turned ‘OFF‘ in this
position. Engine will not start . Key can be taken out.
2. ‘ON’ position
In this position, all the electrical circuits are turned
‘ON’ and the engine can be started now. Key
cannot be removed in this position.
3. ‘LOCK’ position
TVS WEGO Fi steering can be locked in both ‘left’
and ‘right’ directions.
To lock the steering, turn the handle bar all the way
to the ‘left’ or ‘right’. Push the key in and turn it to
the ‘LOCK’ position and take out. All the electrical
circuits are turned ‘OFF’ in this position. Insert the
key into the lock and turn it to ‘OFF’ or ‘ON’ position
to unlock the steering.
KNOW YOUR TVS WEGO Fi
-10-
Caution
Leaving the ignition cum steering lock in ‘ON’
position will drain the battery when the vehicle is
not in use. So “Switch Off” and take the key out
when the vehicle is not in use.
KNOW YOUR TVS WEGO Fi

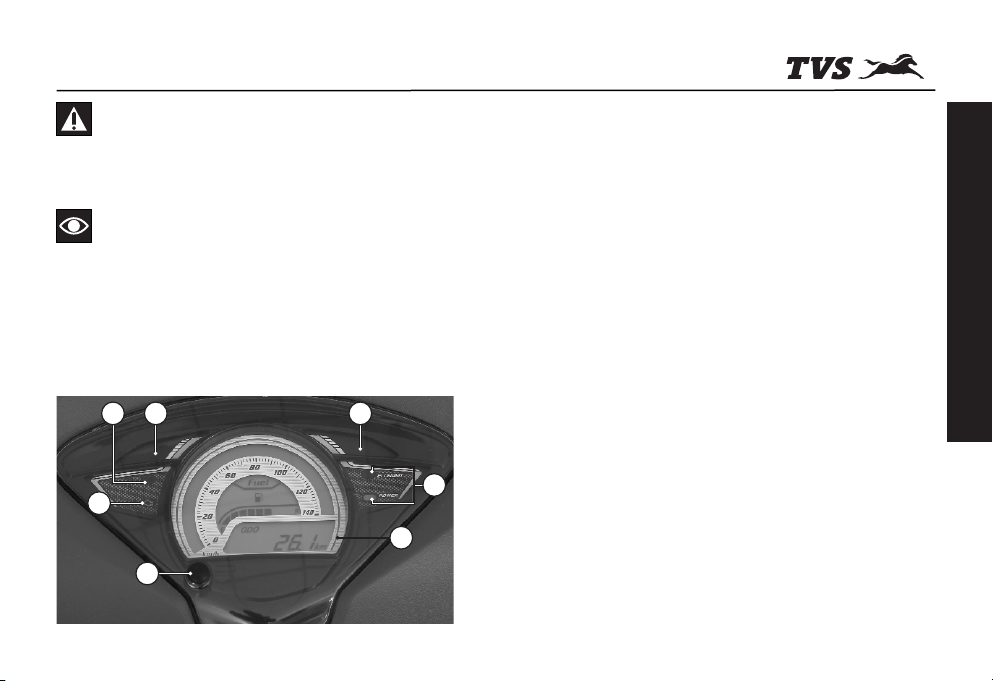

FULL DIGITAL SPEEDOMETER
1. Mode switch
Press the switch to change the display mode
(‘ODO’ or ‘TRIP’ or ‘CLOCK’).
2. High beam indicator lamp
Glows when the head lamp high beam is activated.
3. Turn signal indicator lamp left
Flashes when the left side turn signal indication is
activated.
4. Turn signal indicator lamp right
Flashes when the right side turn signal indication is
activated.
5. Economy and power indicators
Economy indicator (green lamp) indicates that the
vehicle is running in economy mode which gives
better fuel efficiency.
Power indicator (amber lamp) indicates that the
vehicle is running in power mode which results in
reduced fuel efficiency.
KNOW YOUR TVS WEGO Fi
-11-
Warning
Never attempt to move the vehicle when the
steering is locked, you may lose balance.
1
7
3 4
Note
When the ignition lock is turned ‘ON’, the
speedometer performs self test and the back light
of the speedometer glows continuously. Wait till
the self test cycle of speedometer gets over.
6
2
5
KNOW YOUR TVS WEGO Fi
