TVS NEO Series User manual

Owners Manual
NSE 0000001
PT TVS Motor Company Indonesia
SERIES
ENGLISH

OWNER’S IDENTITY
Customer Name :
Address :
Customer HP / Phone No. :
Frame No. :
Engine No. :
Type :
Color :
Purchase Date :
Signature and
dealer stamp
Owner signature
I

CONTENTS
CONTENTS
Preface
1. Specifications 1
New vehicle delivery certificate 6
Pre-delivery check 7
2. Important information 10
3. Know your NEO 14
4. Features & benefits 36
5. Maintenance 40
6. Service records 60
II

PREFACE
Dear NEO Owner
Congratulations!
Welcome to the family of millions of satisfied TVS Customers across the world by choosing TVS
NEO.
This manual explains about the features and benefits of your bebek along with the operating
procedures. Please thoroughly familiarize this manual before you start driving your bike.
Maintenance is extremely important to let your NEO deliver the maximum performance to
you. Please get your NEO maintained from any TVS Authorised Dealer/ PGM / Service outlets.
We are delightful to welcome you into our ever expanding happy family.
Wish you all the very best. Thank you for choosing TVS NEO.
Happy riding,
PT. TVS Motor Company Indonesia
III

SPECIFICATIONS
SPECIFICATIONS
1
1
GLOBAL DIMENSIONS NX XR & X3i
Total length
Total width (handlebars) 665 mm 662 mm
Total height 1090 mm 1360 mm
Seat height
Ground clearance 150 mm 140 mm
biodegradability
wheelbase 1260 mm 1245 mm
Unloaded weight 100 kg 96 Kg
Payload 132 Kg 130 Kg
ENGINE NX XR & X3i
Type
Bore x stroke
Piston displacement 109,7 cc 109,7 cc
Compression ratio
Carburetor VM 17 UCAL
Single cylinder 4 stroke air
cooled engine
53,5 x 48,8 mm
9,3:1
1940 mm
760 mm
18°
GLOBAL DIMENSIONS

SPECIFICATIONS
Air filter
Starter system
Lubricating System
Quality of engine oil
Maximum power in kW 6.25 Kw @7500 rpm (8.3 HP) 6.3 Kw @7500 rpm (8.5 HP)
Maximum torque in Nm 8,6 Nm @5500 rpm 8.5 Nm @5500 rpm
Slow engine speed
Candle
Candle gap
TRANSMISSION NX XR & X3i
Clutch
Transmission
Primary reduction (61/18) 3,388 (61/18) 3,388
Final reduction (39/15) 2,60 (39/14) 2.786
Transmission report:
1st speed
1400±100
BOSCH - UR5DC
0,6 mm
Centrifugal clutch - Auto
Constant mesh 4 speed gear box
(35/12) 2,917
Paper fi lter
Electri c start / Kick start
Trochoid oil pump
SAE 20W40 / TVS Tru4 Premium Engine Oil
2

SPECIFICATIONS
2nd gear
3rd gear
4th speed
Overall reduction (higher speed)
FRAME NX XR & X3i
Chassis type
Hunting angle
Trail
Steeri ng angle
brakes
Before:
Back:
TIRE NX XR & X3i
Tire Size
Before
74 mm
900
Disc 220 mm
Drum 110 mm
2,50 x 17“
(26/14) 1,857
(24/18) 1,333
(21/20) 1,050
9,9
Type Underbone
260
3

SPECIFICATIONS
Back
Tire Pressure kg / cm2 (PSI)
Before
Back
Suspension
Before
Back
ELECTRIC NX XR & X3i
Ignition system
Battery Type
Generator
Lighthouse
Tai l / brake light
Front flashing
Rear Blinker
Speedometer lamp
AC 90W Magneto
12V 30/30W
12V 18/5W
12V 10W (2 Nos)
12V 10W (2 Nos)
12V 3.4W
2,00 kg/cm2 (29 PSI)
2,25 kg/cm2 (32 PSI)
Telescopic shock absorbers
Swing arm with twin shock absorbers.
Digital CDI with twin curve
12V 4Ah
2.75 x 17”
4

SPECIFICATIONS
Fuel gauge lamp
Neutral Indicator Lamp
Indicator l amp Flashing
Indicator l amp High beam
Iecono mode indi cator x 12V 1.7W
Engine warm up indicator x 12V 1.7W
Speed ??position i ndicator 1-4
Horn
Position l amp
CAPACITY NX XR & X3i
Fuel tank capacity
Quantity of engine oil
When changing the oil
When overhauling the engine
Front fork oil quantity
12V 5W (2 Total)
4 l itres
1000 ml
1200 ml
55 ± 2 ml
12V 3.4W
12V 1.7W
12V 1.7W
12V 1.7W
12V 1,7W - 4 nos
12V DC horn - 2A
5

Herewith we certify that this vehicle has been checked before delivery by dealer through standard procedure which has been
specified by PT TVS MOTOR COMPANY INDONESIA to guarantee performance, vehicle appearance to achieve customer
satisfaction. Details of bike are as follows :
Customer Name :
Frame No. :
Engine No. :
Type :
Color : Telephone / HP
Purchase Date :
Warranty is valid for vehicle that always avail service periodically in TVS authorized outlet that is Regional Distributor /
Dealer / PGM and always using TVS Genuine Parts and recommended engine oil.
Thank you very much for showing trust and choosing our product.
Cordially yours,
 Note : To be sent to PT TVS MOTOR COMPANY INDONESIA
Signature and
dealer stamp
Owner signature
NEW VEHICLE DELIVERY CERTIFICATE
6

Explain to customer about the following:
1.
2.
3.
4. Charging the battery
5. Fuel tank capacity
6. Engine oil quantity - 1000 ml
Please make sure that Pre Delivery Check (PDC) is carried out
in your presence before taking delivery of TVS TVS Neo
The check consisting of:
1. Clean and check condition of physical vehicle
2. Check tyre air pressure
3. Check engine oil level
4. Check throttle and brake cable play and adjustment
5. Check drive chain slackness
6. Check Battery / Electrical
7. Start the vehicle and check acceleration
8. Check handle bar freeness
9. Check smoothness of throttle grip
10. Rear view mirror fitment
11. Tightness of bolts and nuts
Date:
Mechanic signature
Customer signature
PRE DELIVERY CHECK
(Only for XR & X3i)
(Only for XR & X3i)
7

NEW VEHICLE DELIVERY CERTIFICATE
Herewith we certify that this vehicle has been checked before delivery by dealer through standard procedure which has been
specified by PT TVS MOTOR COMPANY INDONESIA to guarantee performance, vehicle appearance to achieve customer
satisfaction. Details of bike are as follows :
Customer Name :
Frame No. :
Engine No. :
Type :
Color : Telephone / HP
Purchase Date :
Warranty is valid for vehicle that always avail service periodically in TVS authorized outlet that is Regional Distributor /
Dealer / PGM and always using TVS Genuine Parts and recommended engine oil.
Thank you very much for showing trust and choosing our product.
Cordially yours,
 Note : To be sent to REGIONAL DISTRIBUTOR
Signature and
dealer stamp
Owner signature
8

PRE DELIVERY CHECK
Explain to customer about the following:
1.
2.
3.
4. Charging the battery
5. Fuel tank capacity
6. Engine oil quantity - 1000 ml
Please make sure that Pre Delivery Check (PDC) is carried out
in your presence before taking delivery of TVS TVS Neo
The check consisting of:
1. Clean and check condition of physical vehicle
2. Check tyre air pressure
3. Check engine oil level
4. Check throttle and brake cable play and adjustment
5. Check drive chain slackness
6. Check Battery / Electrical
7. Start the vehicle and check acceleration
8. Check handle bar freeness
9. Check smoothness of throttle grip
10. Rear view mirror fitment
11. Tightness of bolts and nuts
Date:
Mechanic signature
Customer signature
(Only for XR & X3i)
(Only for XR & X3i)
9

IMPORTANT INFORMATION
IMPORTANT
INFORMATION
2
Usage
This bike is designed to use only on road. It is recommended to
use only good quality gasoline for your NEO.
Loading
This bike is intended to transport you and one pillion. The
designed capacity is :
It is strictly recommended not to overload by means of
additional pillion passenger, or any extra cargo into the bike.
Unlimited loading will affect your bike stability and reduce
performance significantly.
Modification
We have designed this bike with greater care which will
Maximum load of 130 kg
10

IMPORTANT INFORMATION
deliver optimum performance to you.
Modifying your bike is not recommended.
Any kind of modification in this bike will affect
the performance and may overrule statutory
requirements by the government and violate
warranty terms and conditions also.
Know the controls
Before you start driving your bike, we
recommend to read this manual carefully.
This will give you a very good understanding
about your bike and controls and other
instruments so that you never make any
mistake while driving. Once you read out the
manual, habituate yourself to the controls of
your bike.
Accessories
While fitting the accessories in your bike we
recommend to consult your friendly TVS
authorized service outlets who can guide you
to select the suitable accessory according to
the requirement. Unsuitable accessories
which will affect the bike performance is
strictly prohibited.
11

IMPORTANT INFORMATION
Item check list
Please check that all the following items
have been included in your bike. If anything
is missing please contact your friendly TVS
service outlets:
Item Qty
Control key 2q
Owners’ manual 1q
Rear view mirror 2q
Tool kit 1q
Date :
Pre delivery check
Please make sure that Pre Delivery Check (PDC) is
carried out in your presence before taking
delivery of TVS NEO.
Check points:
1. Clean and check condition of physical vehicle
2. Check tyre air pressure
3. Check engine oil level
4. Check throttle, brake cable play and
adjustment
5. Check drive chain slackness
6. Check Battery / Electricals
7. Start the vehicle and check acceleration
8. Check handle bar freeness
9. Check smoothness of throttle grip
10. Rear view mirror fitment
Customer signature Mechanic signature
12

IMPORTANT INFORMATION
In this manual, the following symbols are read as follows:
WARNING - Disregarding the message might result in serious injury to the rider
CAUTION - This message indicates special procedures or precautions to be
followed to avoid damage to the vehicle
NOTE - This provides further clarification for cleaner understanding of any
particular information
Important Information
We recommend you to carefully read this manual to get clear understanding of your NEO. This
manual is applicable for all the NEOmodels. Though most of the basic information is common
across all variants, differentiation will help in better understanding of both. So please read the
information with :
!
G

- For NEO NX - For NEO XR - For NEO X3i
13

KNOW ABOUT YOUR NEO
KNOW ABOUT
YOUR NEO
3
Frame Number
Frame number is located in
the rear side of the frame,
between pillion handle and
fuel tank. To read the frame
number clearly remove the
pillion handle by loosening
mounting bolts (4Nos).
Engine Number
Engine number is engraved
on the left side crankcase of
engine as shown in fig.
VEHICLE IDENTIFICATION NUMBER (VIN)
14

KNOW ABOUT YOUR NEO
LOCATION OF PARTS - HANDLE BAR
12
10
9
8
7
6
1
2
4
5
3
Description:
1. Socket mobile charger
2. Choke lever
3. Switch horn
4. Turn signal lamp switch
5. High / Low beam switch & Pass by
switch
6. Rear view mirror L
7. Speedometer
8. Rear view mirror R
9. Lever front brake
10.Headlamp /position lamp switch
11.Electric starter switch
12.Steering cum Ignition lock
15

10
3
9
2
1
86
7
54

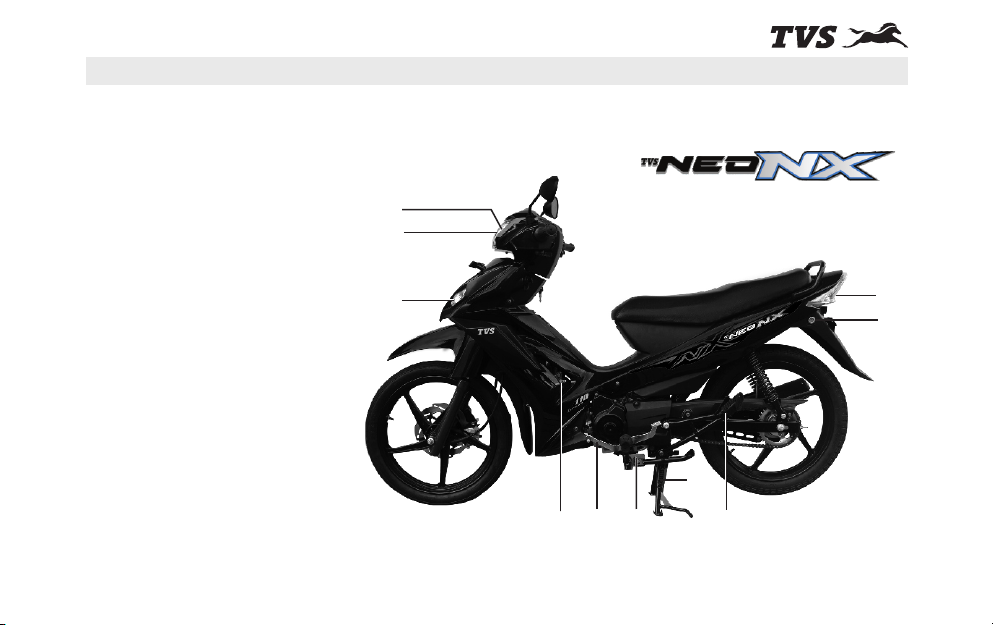

LOCATION OF PARTS - SIDE VIEW L
Description:
1. Position lamp
2. Head lamp assembly
3. Turn signal lamp L
4. Carburettor
5. Gear shifting lever
6. Side stand
7. Center stand
8. Pillion footrest L
9. Seat lock
10. RC lamp assembly
KNOW ABOUT YOUR NEO
16
