Twinkly Pro TWP-S-CA-4mx3k-STP-G User manual

1
Smart decoration solutions for professionals
USERGUIDE TWP-S-CA-4mx3k-STP-G
REV 1.200922

READ AND FOLLOW ALL SAFETY INSTRUCTIONS
1. Read and follow all safety instructions.
2. Do not use seasonal products outdoors unless marked suitable for indoor
and outdoor use. When products are used in outdoor applications, connect
the product to a Ground Fault Circuit Interrupting (GFCI) outlet. If one is not
provided, contact a qualied electrician for proper installation.
3. This seasonal use product is not intended for permanent installation or use.
4. Do not secure the wiring of the product with staples or nails, or place on
sharp hooks or nails.
5. Do not let lamps rest on the supply cord or on any wire.
6. This is an electric product - not a toy! To avoid risk of re, burns, personal
injury and electric shock it should not be played with or placed where small
children can reach it.
7. Do not use this product for other than its intended use.
8. Do not hang ornaments or other objects from cord, wire, or light string.
9. Do not cover the product with cloth, paper, or any material not part of the
product when in use.
10. Do not close doors or windows on the product or extension cords as this
may damage the wire insulation.
11. Read and follow all instructions that are on the product or provided with the
product.
12. Save these instructions.
USE AND CARE INSTRUCTIONS
a. When the product is placed on a live tree, the tree should be well maintained
and fresh. Do not place on live trees in which the needles are brown or
break o easily. Keep the live tree holder lled with water.
b. Once the product is placed, the installation should be well secured and
stable.
c. Before using or reusing, inspect product carefully. Discard any products
that have cut damaged, or frayed wire insulation or cords, cracks in the
lampholders or enclosures, loose connections, or exposed copper wire.
d. When storing the product, carefully remove the product from wherever it is
placed, including trees, branches, or bushes, to avoid any undue strain or
stress on the product conductors, connections, and wires.
e. When not in use, store neatly in a cool, dry location protected from sunlight.
ATTENTION – TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK
a. Do not install on surfaces having sharp edges, or coverings of metal or
materials which look like metal.
b. Do not mount or support wires in a manner that can cut or damage wire
insulation.

Class A Disclaimer: This equipment has been tested and found to comply
with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment o
and on, the user is encouraged to try to correct the interference by one or more
of the following measures:
i. Reorient or relocate the receiving antenna.
ii. Increase the separation between the equipment and receiver.
iii. Connect the equipment into an outlet on a circuit dierent from that to
which the receiver is connected.
iv. Consult the dealer or an experienced radio/television technician for help.
WARNING!
Do not connect the light string to the power supply while it is in the packaging.
The connecting cable cannot be repaired or replaced. THE LAMPS ARE NOT
REPLECEABLE. The lighting chain must not be used without all gaskets being
in place. Lighting chains not intended for interconnection. Do not connect
this light string electrically to devices from another manufacturer. CAUTION!
Strangulation hazard. Keep out of reach of young children.
The crossed-out wheeled bin symbol indicates that the item should be disposed
of separately from household waste. The item should be handed in for recycling
in accordance with local environmental regulations for waste disposal.
TECHNICAL SPECIFICATIONS
Height 4 m / 13.1 ft
Diameter 1.5 m / 5 ft
No. of frames 2
Material internal structure Aluminium frame
Foliage type Green spruce garland
Weight 90 kg
Bulb type Addressable LED
Bulb color RGB - Red, Green, Blue (+16 million colors)
No. of bulbs 3,000
Replaceable bulbs No
LED type F5 Capsule + Shrink Tube
Cable color Green
Cable type PVC UV protected
IP rating IP65
Works with Twinkly PRO Controller 1500 ETH
Connectivity Wi-Fi (page 13) | Ethernet (page 14)
Operating system Twinkly App available only on iOS 11 or newer
Power rating 300 W MAX
Adapter input voltage 120 - 240 VAC | MAX 50/60Hz
Temperature range -15°C / 40°C | 5°F / 104°F
Storage temperature range -20°C / 60°C | -4°F / 140°F
Lifespan Over 30,000 hours
Warranty 24 months (not applicable if <1% defective bulbs)

4
Introduction 5
Package Contents 6
ASSEMBLING PROCESS
Frame Assembling 8
Connection the Section A light strings 9
Power up the Cone Tree 10
ONBOARDING
Connect to the Twinkly App 12
Connect the Cone Tree’s router to Internet using a SIM card 13
Connect the Cone Tree’s router to Internet via Ethernet connection 14
Re-conguring the Cone Tree 15
TABLE OF CONTENTS

5
Introduction
Thank you for choosing Twinkly Pro for your lighting needs.
This manual will provide detailed instructions, guide you through the entire setup process, and assist you
with the recommended installation procedure for your device(s).
By reading this step-by-step guide you will:
• avoid making common installation mistakes;
• learn the technical and practical knowledge needed to operate and manage your device(s) properly;
• minimize the need for Technical Support;
• help create the best experience possible for you and your customers.
At the end of this manual you will be ready to decorate like a boss!
Sincerely,
THE TWINKLY PRO TEAM

6
Package Contents
5 Screw Kit
4 x Dado M8
4 x Vite M8x20
4 x Rosetta M8
1Cone Tree section A
2Cone Tree section B
32 x Twinkly PRO Controller 1500 ETH (already setup)
4Plug Cable
What is inside the box
A B
1 2
5
3
4

7
Assembling Process

8
STEP 1
Frame Assembling
ASSEMBLING PROCESS
NOTE: At least two persons are recommended for assembly.
Position section A over section B so that
the joints coincide, enter the appropriate
door and x the screws.
Make sure the red indicators are aligned.
A
B

9
STEP 2

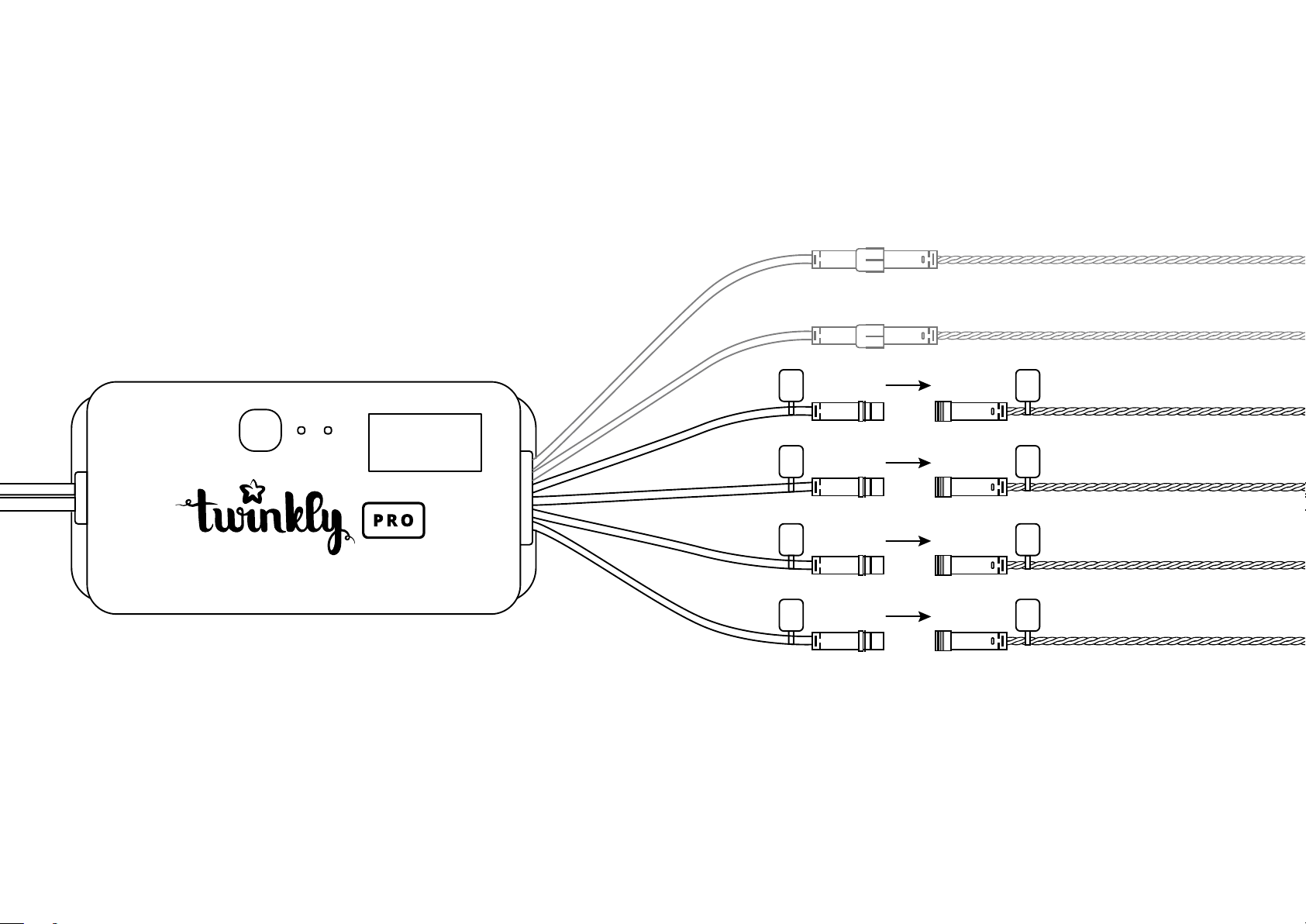

Connect the Section A light strings
ASSEMBLING PROCESS
Connect the strings from Section A to the
controller ports from Section B.
Follow the labels’ correspondence.
A
B
C
D
A
B
C
D

10
STEP 3
Power up the Cone Tree
ASSEMBLING PROCESS
Connect the cable from the IP65 box
inside the tree to the cable plug.
Ensure a tight t for waterproof. Connect the plug to a power socket to
power up the Cone Tree.
1 2 3

11
Onboarding

12
STEP 1
Connect to the Twinkly App
ONBOARDING
Twinkly
Download the Twinkly app
If you already have the Twinkly app, make
sure it is updated to the latest release.
Available for iOS 11 +
Log in
1. Press the LOG IN button
2. User: [email protected]
Password: Installer
3. The Cone Tree has already been
mapped. Follow the instructions
from Step 3 at page 15 in case of
troubleshooting.
1. Connect to the Cone Tree’s wi- router
2. SSID: Twinkly-4m_OV443_01
Password: Installer
3. Open back the app, you are now ready
to use the Gallery of eects.
Welcome to the
World of Twinkly!
Sign in with Faceboo k
L OG IN SIGN UP
Wi-F i
Wi-Fi
Twinkly-4m_OV443_01
NETWORKS
YourNetwork
CBCI-D9A7-2.4
CBCI-D9A7-5
CBCI-E6AD-2.4
Settings
i
i
i
i
i

13
STEP 2 CASE 1 — SIM CARD
Connect the Cone Tree’s router
to Internet using a SIM card
ONBOARDING
1. Make sure that the Cone Tree is powered o
2. Inside the Cone Tree, open the IP65 box where
the router resides
3. Insert the SIM card in the router’s SIM card slot
4. Power back on the Cone Tree
5. Connect the iPhone to the router and check
if there’s internet connection available (eg.
browsing on Safari), then proceed with Step 3 at
page 14. In case of missing connection, refer to
the TP-Link user manual (click the button below). ROUTER
1
2
3

14
STEP 2 CASE 2 — WLAN
Connect the Cone Tree’s router
to Internet via Ethernet connection
ONBOARDING
1. Make sure that the Cone Tree is powered o
2. Inside the Cone Tree, open the IP65 box where
the router resides
3. Connect your internet cable to the “LAN/WLAN”
port indicated on the router
4. Power back on the Cone Tree
5. Using your iPhone or PC (recomended for this
process) connect to the router browsing to the
address 192.168.1.1 (or 192.168.0.1) and access
with the password admin
6. Navigate to the section Advanced > Operation
Mode , and select Wireless Router Mode
7. Connect the iPhone to the router and check
if there’s internet connection available (eg.
browsing on Safari), then proceed with Step 3 at
page 14. In case of missing connection, refer to
the TP-Link user manual (click the button below).
1
2
3
LAN/WLAN
ROUTER

15
STEP 3
Re-conguring the Cone Tree
TROUBLESHOOTING
Twinkly Settings
RAINBOW
SNOW
VERTIGO
HEARTBEAT
Gallery
Twinkly discovered!
The following devices have been
discovered on your network:
SETUP SELECTED DEVICES
1. TwProDevice - 192.168.1.101
2. TwProDevice - 192.168.1.100
Open Twinkly Select Devices Press
Add another device
Select the devices
found and press
SETUP SELECTED DEVICES
DEVIC E S
Twinkly-4m
2 Twinkly - 3000 LEDs - Join
Add another device
Devices
3.23.1 3.3 3.4

16
NEX T
Join
Join multiple Twinklysinto one big virtually
connected Twinkly,ideal for decorating a
large object.
Sync
Synchronize multiple similar Twinklys and
play the same effect on each at the same
time.
Scene
Create a large scene consisting of various
Twinkly devices.
Devices
TWINKLY 0 3
TWINKLY 0 2
TWINKLY 0 1
CREAT E GROUP
CREATE
TwProDevice.1
1.500 LEDs RGB
TwProDevice.2
1.500 LEDs RGB
Devices
Select devices to join group:
CREAT E GROUP
Congure selecting LED,
RGB, 250 lamps per port, 6
ports, then press
SAVE
Press
CREATE GROUP
Choose Join and press
NEXT
Select the devices to add to
the group and press
CREATE
DEVIC E S
TwProDevice.1
1500 LEDs RGB
Twinkly_4m
2 Twinkly - 3000 LEDs - Join
Add another device
TwProDevice.2
Devices
1500 LEDs RGB
CREATE GROUP
3.63.5 3.7 3.8
Lights
LED
Lamps per port
Active Ports
SAVE TO ALL SAVE
1 2 3 4 5 6
100 125 200 250
RGB RGBW AWW
Festoon C7/C9 Lamp Curtain
STEP 3
Re-conguring the Cone Tree
TROUBLESHOOTING

17
M
AP
L
IG
HT
S

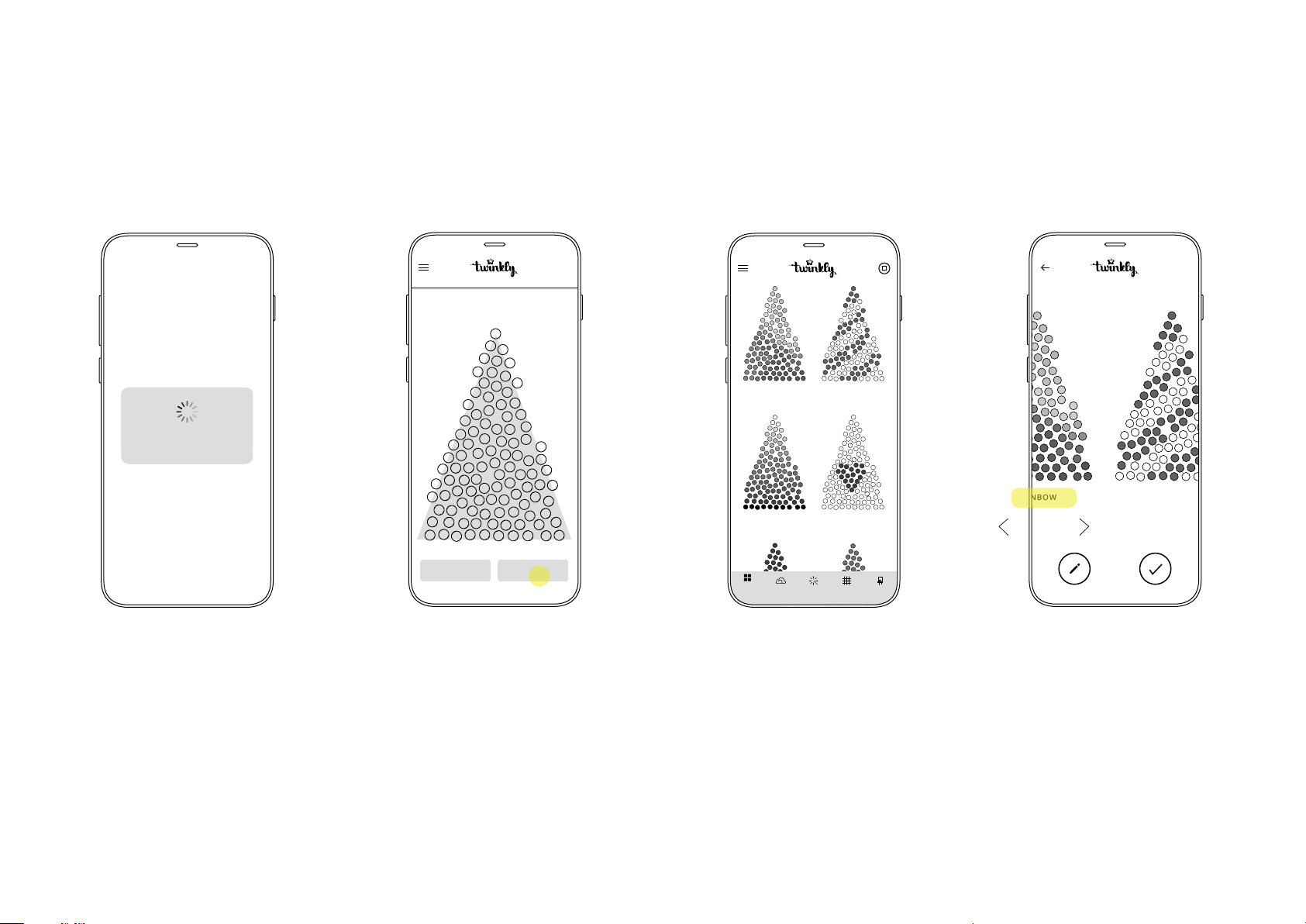

Mapping
Choose a mapping type
2D mapping
3D mapping
Cancel
Name your group and press
SAVE
Your group will now appear
in DEVICES list.
Use the icon to show the
dropdown menu to manage
the devices within the group
Navigate to Layout
then press
MAP LIGHTS
Select
3D mapping
3.103.9 3.11 3.12
CREAT E GROUP
Groupname
Giveaname to the group
Twinkly-4m_02
CANCEL SAVE
DEVIC E S
Twinkly-4m_02
3.000 LEDs - Join
TwProDevice. 1
1.500 LEDs RGB
Add another device
TwProDevice. 2
1.500 LEDs RGB
Twinkly-4m
3.000 LEDs - Join
Layout
MAP LIGHTS
MAP LIGHTS
STEP 3
Re-conguring the Cone Tree
TROUBLESHOOTING

18
The mapping is ongoing,
keep the camera steady and
do not close the app during
this process.
Looking at the tree:
/ / RED/ORANGE/YELLOW
LEDs are still to be mapped,
scan another view pointing
at them.
GREEN LEDs are ok,
already mapped
To keep mapping press
ADD ANOTHER
and repeat from step 3.13
until all the LEDs are green to
ensure the best layout, when
done press I’M SATISFIED
Frame your installation
and press
MAPPING
* Once you start mapping, LEDs
turn dierent RGB colors during
the process
START MAPPI NG
3.143.13 3.15 3.16
Do you want to add another point
of view to the mapping?
I’M SATISFIED ADD ANOTHER
STEP 3
Re-conguring the Cone Tree
TROUBLESHOOTING

19
Cloud 3D reconstruction
in progress...
Wait for the cloud to process
and create your 3D layout
The mapping process is now
complete and saved onto
your account
3.183.17
TRY AGAIN OK
Mapping completed. Save the layout?
RAINBOW
SNOW
VERTIGO
HEARTBEAT
Gallery
3.19
Return to the Gallery to
browse the eects with your
new mapped layout, select
any to preview them
RAINBOW VERTIGO
Swipe LEFT or RIGHT
to browse eects
3.20
STEP 3
Re-conguring the Cone Tree
TROUBLESHOOTING

20
If you need any further information,
please feel free to contact us:
[email protected]
