Twinkly Pro TWPRO1500ETHP User manual

USERGUIDE TWPRO1500ETHP
REV 2.200831
Smart decoration solutions for professionals

READ AND FOLLOW ALL SAFETY INSTRUCTIONS
1. Read and follow all safety instructions.
2. Do not use seasonal products outdoors unless marked
suitable for indoor and outdoor use. When products are
used in outdoor applications, connect the product to a
Ground Fault Circuit Interrupting (GFCI) outlet. If one is
not provided, contact a qualied electrician for proper
installation.
3. This seasonal use product is not intended for permanent
installation or use.
4. Do not mount or place near gas or electric heaters,
replaces, candles, or other similar sources of heat.
5. Do not secure the wiring of the product with staples or nails,
or place on sharp hooks or nails.
6. Do not let lamps rest on the supply cord or on any wire.
7. This is an electric product - not a toy! To avoid risk of re,
burns, personal injury and electric shock it should not be
played with or placed where small children can reach it.
8. Do not use this product for other than its intended use.
9. Do not hang ornaments or other objects from cord, wire, or
light string.
10. Do not cover the product with cloth, paper, or any material
not part of the product when in use.
11. Do not close doors or windows on the product or extension
cords as this may damage the wire insulation.
12. Read and follow all instructions that are on the product or
provided with the product.
13. Save these instructions.
USE AND CARE INSTRUCTIONS
a. When the product is placed on a live tree, the tree
should be well maintained and fresh. Do not place on
live trees in which the needles are brown or break o
easily. Keep the live tree holder lled with water.
b. Once the product is placed, the installation should be
well secured and stable.
c. Before using or reusing, inspect product carefully.
Discard any products that have cut damaged, or frayed
wire insulation or cords, cracks in the lampholders or
enclosures, loose connections, or exposed copper
wire.
d. When storing the product, carefully remove the
product from wherever it is placed, including trees,
branches, or bushes, to avoid any undue strain or
stress on the product conductors, connections, and
wires.
e. When not in use, store neatly in a cool, dry location
protected from sunlight.
ATTENTION – TO REDUCE THE RISK OF FIRE AND
ELECTRIC SHOCK
a. Do not install on surfaces having sharp edges, or
coverings of metal or materials which look like metal.
b. Do not mount or support wires in a manner that can
cut or damage wire insulation.

Class A Disclaimer: This equipment has
been tested and found to comply with
the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses, and
can radiate radio frequency energy and,
if not installed and used in accordance
with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that
interference will not occur in a particular
installation. If this equipment does
cause harmful interference to radio
or television reception, which can be
determined by turning the equipment
o and on, the user is encouraged to
try to correct the interference by one or
more of the following measures:
i. Reorient or relocate the receiving
antenna.
ii. Increase the separation between the
equipment and receiver.
iii. Connect the equipment into an
outlet on a circuit dierent from that
to which the receiver is connected.
iv. Consult the dealer or an experienced
radio/television technician for help.
WARNING!
Do not connect the light string to the
power supply while it is in the packaging.
The connecting cable cannot be repaired
or replaced. THE LAMPS ARE NOT
REPLECEABLE. The lighting chain must
not be used without all gaskets being
in place. Lighting chains not intended
for interconnection. Do not connect
this light string electrically to devices
from another manufacturer. CAUTION!
Strangulation hazard. Keep out of reach
of young children.
The crossed-out wheeled bin symbol
indicates that the item should be
disposed of separately from household
waste. The item should be handed in
for recycling in accordance with local
environmental regulations for waste
disposal.
No. of ports 6 *
IP rating IP65
Connectivity Ethernet
Power rating 150 W MAX
Adapter input
voltage
120 - 240 VAC | MAX
50/60Hz
Temperature
range
-15°C / 40°C | 5°F /
104°F
Storage
temperature
range
-20°C / 60°C | -4°F /
140°F
Certification US | EU | JP | AU
certified
Warranty 24 months
TECHNICAL SPECIFICATIONS
* Up to max. 1500 RGB / AWW Twinkly Pro LEDs.
Up to max. 1250 RGB+W Twinkly Pro LEDs.

Introduction 4
Package Contents 5
Installation Requirements 6
INSTALLATION PROCESS
Connect Light Strings 7
Powering up the Controller 8
Connect to your Network 9
Multi-controller Setup 10
NETWORKING LAYOUT
Correct networking layout for multiple controllers 11
Incorrect networking layout for multiple controllers 12
TABLE OF CONTENTS

Thank you for choosing Twinkly Pro for your lighting needs.
This manual will provide detailed instructions, guide you through
the entire setup process, and assist you with the recommended
installation procedure for your device(s).
By reading this step-by-step guide you will:
• avoid making common installation mistakes;
• learn the technical and practical knowledge needed to operate
and manage your device(s) properly;
• minimize the need for Technical Support;
• help create the best experience possible for you and your
customers.
At the end of this manual, complete the ‘pre-ight’ checklist and be
ready to decorate like a boss!
Sincerely,
THE TWINKLY PRO TEAM
Introduction
4

5
Package Contents
What is inside the box
1AC/DC Power Adapter
2TWPRO1500ETHP Ethernet Controller
3Plug
4Ethernet Cable Extender
12
34

6
Installation Requirements
What is required for the installation *
5Twinkly Pro Light Strings (up to 6 per TWPRO1500ETHP controller)
6Internet Router
7CAT5 Ethernet Cable (only needed in case the TWPRO1500ETHP
controller’s ethernet cable can’t reach the router)
5
6
7
* purchased separately

7
STEP 1
Connect
Light Strings

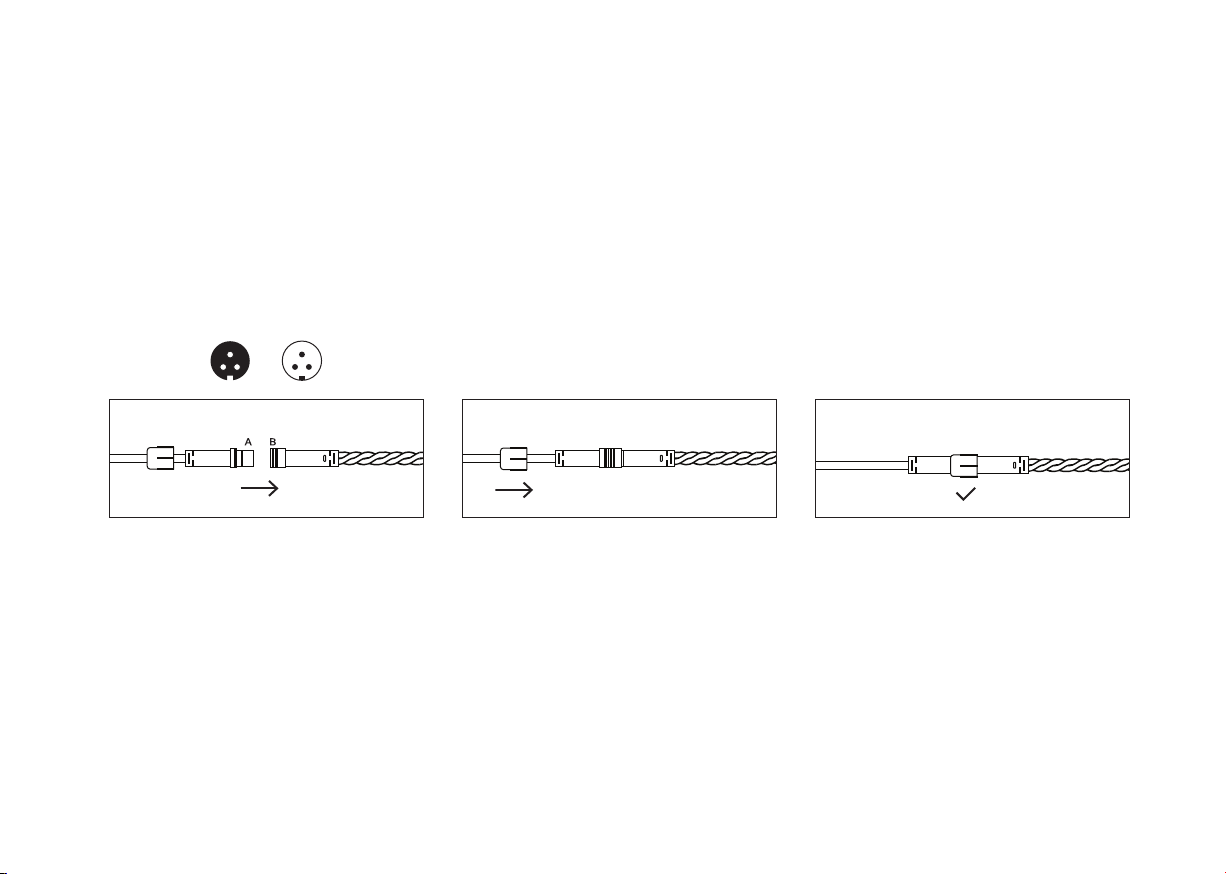

A B
NOTE
Up to max. 1500 RGB / AWW Twinkly Pro LEDs.
Up to max. 1250 RGB+W Twinkly Pro LEDs.
We recommend installing lights strings before connecting them to the controller(s).

8
STEP 2
Powering up
the Controller
Connect the AC cable to the plug
Connect the power adapter to a power socket
You can also connect the
power supply without plug
in an airtight electrical box
Your controller is now powered up
When the controller is powered up, a LED light on the top
turns green.
1
2

9
STEP 3
Connect to
your Network

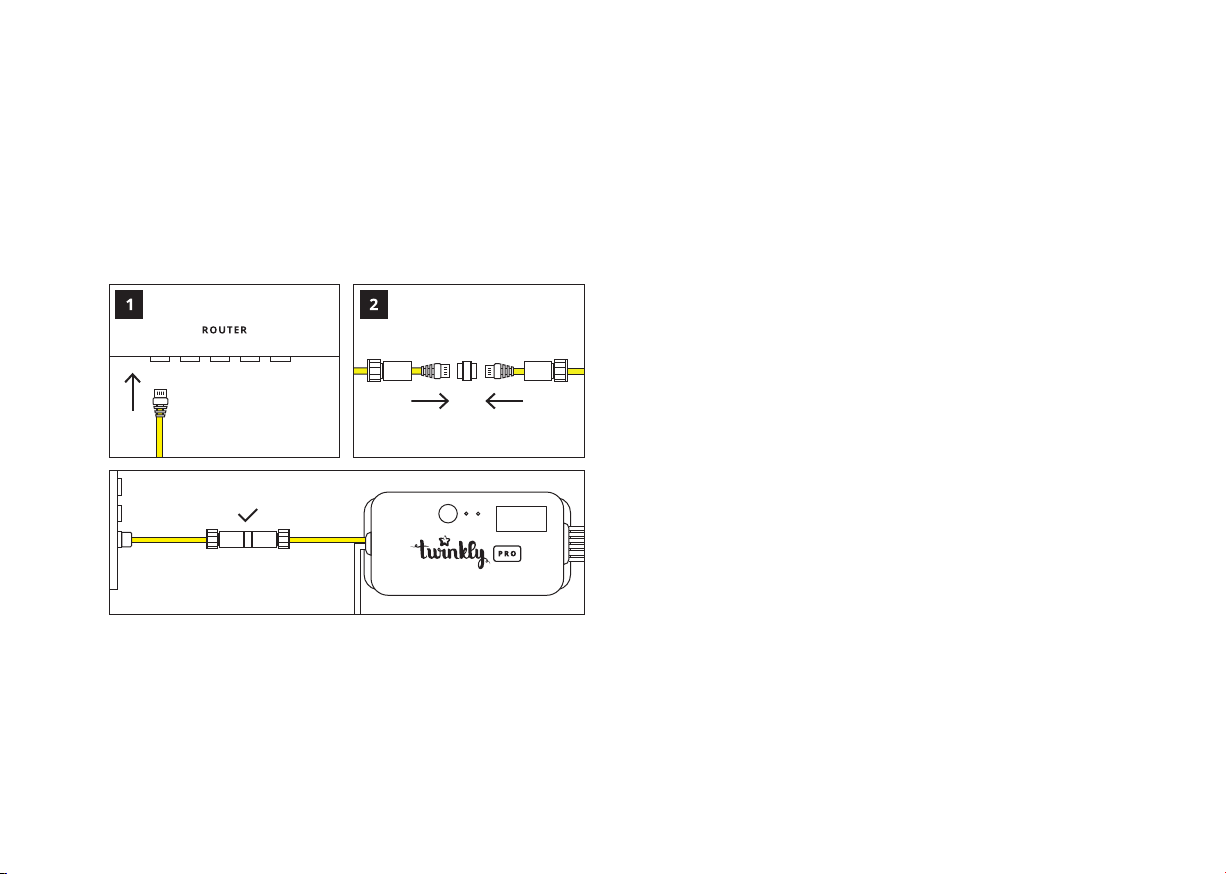

Connect CAT 5 cable to an open port on router
(not WAN)
• Use Network Switch for installations requiring
more controllers, see page 11 for recommended
networking setup
• Connect to WAN port for installations to be
controlled remotely and to have full access to all
the Twinkly app features during conguration and
devices control
In case the cable is too short, use the Ethernet Cable
Extender provided
You are connected!
When the controller is powered up, a LED light on the top
turns green.
1
2

10
Multi-
controller
Setup

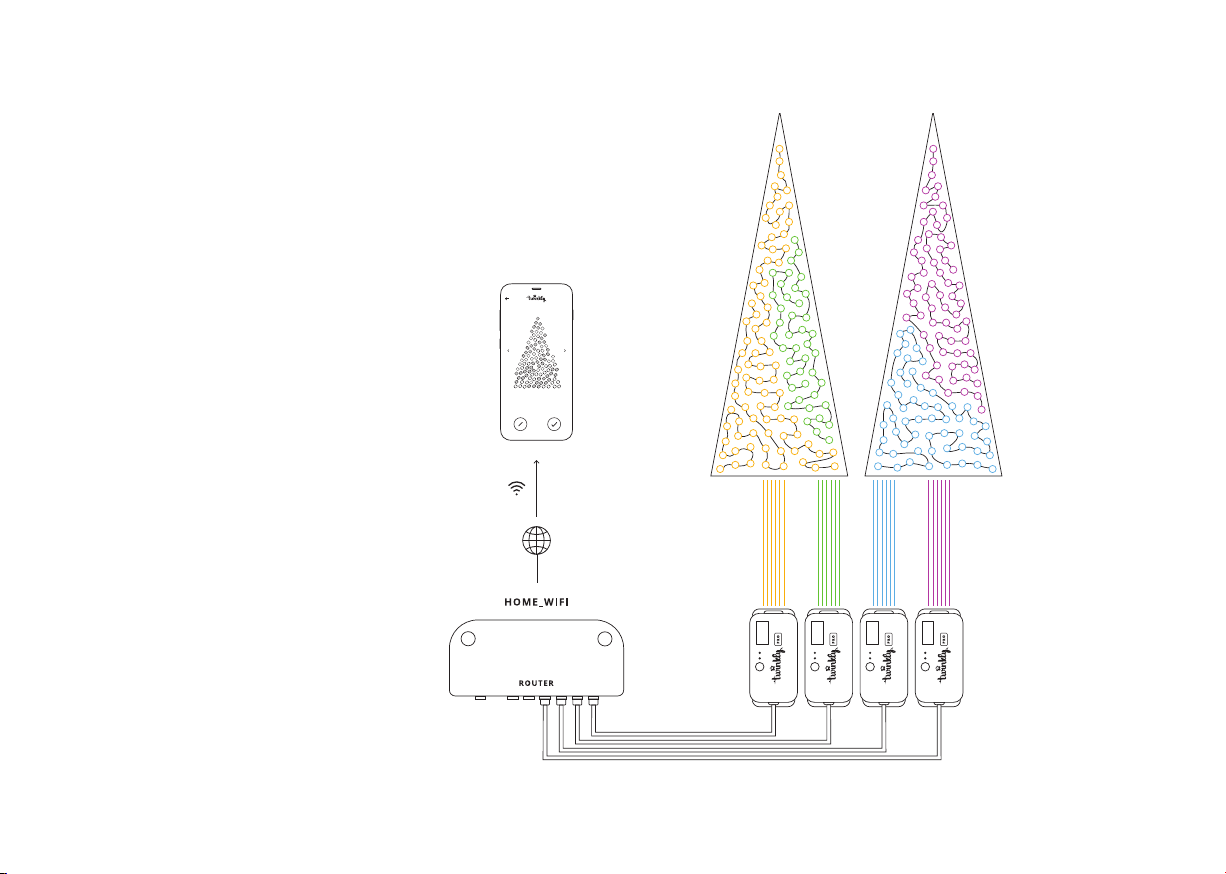

Twinkly App functions for
multi-controller installations:
- Grouping
- Join
- Sync
- Scenes
- Mapping
VERTIGO
6,000 Bulbs
Installation

11
CORRECT
Networking layout
for multiple controllers NOTE
* The maximum number is delimited by the
number of available ethernet ports in your router.
LEVEL TWO
LEVEL ONE
LEVEL TWO
LEVEL THREE
LEVEL ONE
1 - 3*
CONTROLLERS
3* OR MORE CONTROLLERS
OPTION A OPTION B

12

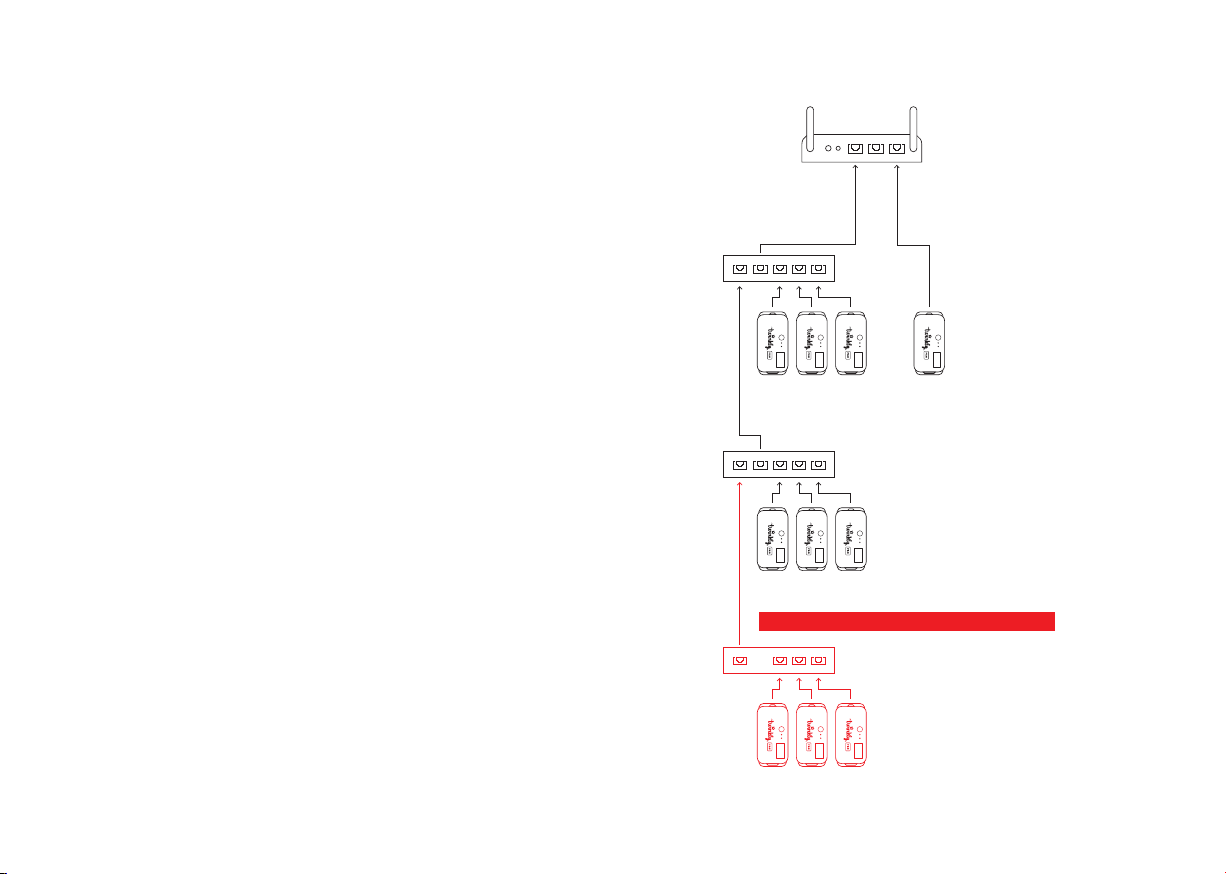

INCORRECT
Networking layout
for multiple controllers
NOTE
Networking controllers beyond three levels
deep may result in loss of data transfer.
NETWORKING BEYOND THIS POINT NOT RECOMMENDED
LEVEL TWO
LEVEL THREE
LEVEL ONE
LEVEL FOUR

If you need any further information,
please feel free to contact us:
[email protected]
