UPRIGHT SPECIFIC APPLICATION STORAGE SPRINKLERS
MODEL F892X DESIGNER
STANDARD RESPONSE, K=16.8 , 3/4"NPT **
GENERAL DESCRIPTION
The 16.8 K-Factor Model F892X De-
signer, Standard Response, Upright
Specific Application Storage Sprin-
klers (Ref. Figure A) are automatic
sprinklers of the frangible bulb type.
They are “standard response - spray
sprinklers” which produce a hemi-
spherical water distribution pattern be-
low the deflector.
The F892X Sprinklers are intended for
use in fire sprinkler systems designed
in accordance with the standard instal-
lation rules recognized by the applica-
ble Listing or Approval agency (e.g.,
UL Listing is based on the require-
ments of the National Fire Protection
Association), as well as in accordance
with their “specific application” list-
ing/approvals.
The 16.8 K-Factor F892X Sprinklers
were subjected to full scale, high-piled
storage, fire tests to qualify their use
with reduced pressure and design ar-
eas for the protection of high-piled
storage. The use of the 16.8 K-Factor
F892X Upright Specific Application
Storage Sprinklers in some cases can
subsequently reduce the design area
and the overall water demand of a
sprinkler system. Refer to Table A for
details.
Applications for the Model F892X De-
signer Upright Specific Application
Storage Sprinklers are expanding be-
yond the current “specific application”
listings/approvals. For information re-
garding research fire tests which may
be acceptable to an Authority Having
Jurisdiction, please contact the Tech-
nical Services Department.
APPROVALS AND STANDARDS
Laboratory listings and approvals for
the 16.8 K-Factor, Model F892X De-
signer, Standard Response, Upright
Specific Application Storage Sprin-
klers are given in Table A.
WARNING
The 16.8 K-Factor, Model F892X Up-
right Specific Application Storage
Sprinklers described herein must be
installed and maintained in compli-
ance with this document, as well as
with the applicable standards of the
National Fire Protection Association,
in addition to the standards of any
other authorities having jurisdiction.
Failure to do so may impair the integ-
rity of these devices.
The owner is responsible for main-
taining their fire protection system
and devices in proper operating con-
dition. The installing contractor or
manufacturer should be contacted
relative to any questions.
Printed in U.S.A. 3-01 TD595M
FIGURE A
16.8 K-FACTOR MODEL F892X UPRIGHT (SIN G1887) SPECIFIC APPLICATION STORAGE SPRINKLERS
1 - Frame
2-Button
3 - Gasketed
Spring Plate
4 - Bulb
5 - Deflector
6 - Compression
Screw
*Temperature rating is indicated on deflector.
** Pipe thread connections per ISO 7/1 can be provided on special request.
TYCO FIRE PRODUCTS, 7071 S. 13th Street, Suite 103 Oak Creek, WI 53154 — www.gemsprinkler.com
Customer Service/Sales: Tel: [phone] / Fax: [phone]
Technical Services: Tel: [phone] / Fax: [phone]
OBSOLETE
Close

TECHNICAL DATA
The 16.8 K-Factor, Model F892X De-
signer, Standard Response, Upright
Specific Application Storage Sprin-
klers are rated for use at a maximum
service pressure of 175 psi (12,1 bar).
They are available in the temperature
ratings and finishes indicated in Table
A.
The nominal flow “Q” in GPM (LPM) is
determined by the following formula:
where the nominal sprinkler discharge
coefficient “K” = 16.8 (241,9) and “p”
equals the residual flowing pressure in
psi (bar).
The Frame of the Model F892X Sprin-
klers, (Ref. Figure A), is a dezincifica-
tion resistant bronze. The Button is
bronze, and the Gasketed Spring Plate
is sealed on both its inside and outside
faces with a Teflon  gasket. The Com-
pression Screw and the Deflector are
brass. The standard response Model
F892X Sprinklers utilizea5mmdi-
ameter frangible bulb. Table A indi-
cates the bulb liquid color as a function
of temperature rating
QKp =
 DuPont Registered Trademark
TYPE TEMPERATURE
RATING
BULB
LIQUID
COLOR
NATURAL BRASS
w/ CHROME DEFLECTOR
SPRINKLER FINISH
NOTES:
1. Listed by Underwriters Laboratories, Inc. (UL Listed) and listed by Underwriters Laboratories, Inc. for use in Canada (C-UL Listed) for
the following “specific application” and with ceiling only protection (i.e., no in-rack sprinklers):
•16.8 K-Factor F892X Sprinklers, when acceptable to the Authority Having Jurisdiction, may be used to protect single, double, multi-
ple-row, or portable rack storage of Class I-IV commodity, encapsulated or non-encapsulated, as well as cartoned or uncartoned
unexpanded Group A or B plastics, or, cartoned expanded Group A or B plastics, with:
a storage height of up to 25 feet (7,6 m);
a maximum ceiling height of 30 feet (9,1 m);
a minimum deflector to top of storage clearance of 36 inches (0,9m);
a minimum design density of 0.80 gpm/ft2(32 mm/min);
a minimum “Reduced Design Area” of 2000 ft2(186 m2) for wet systems or 4500 ft2(419 m2) for dry systems.
a maximum coverage area of 100 ft2(9,3 m2);
a minimum coverage area of 70 ft2(6,5 m2);
NFPA spacing criteria for standard spray sprinklers, i.e. 12 feet (3,7 m)* maximum and 6 feet (1,8 m) minimum;
NFPA deflector-to-ceiling distances; and
NFPA obstruction criteria for standard spray sprinklers.
*12’-6" (3,8 m) is allowed in 25’-0" (7,6 m) wide bays.
2. Approved by Factory Mutual Research Corporation as follows:
•16.8 K-Factor F892X Sprinklers are to be installed in accordance with the applicable “control-mode specific application” guidelines
provided by Factory Mutual. (FM guidelines may differ from UL and C-UL Listing criteria.)
TABLE A
LABORATORY LISTINGS AND APPROVALS
UPRIGHT
(SIN G1887)
155°F/68°C
200°F/93°C Green
Red 2
1, 2
OBSOLETE
Close

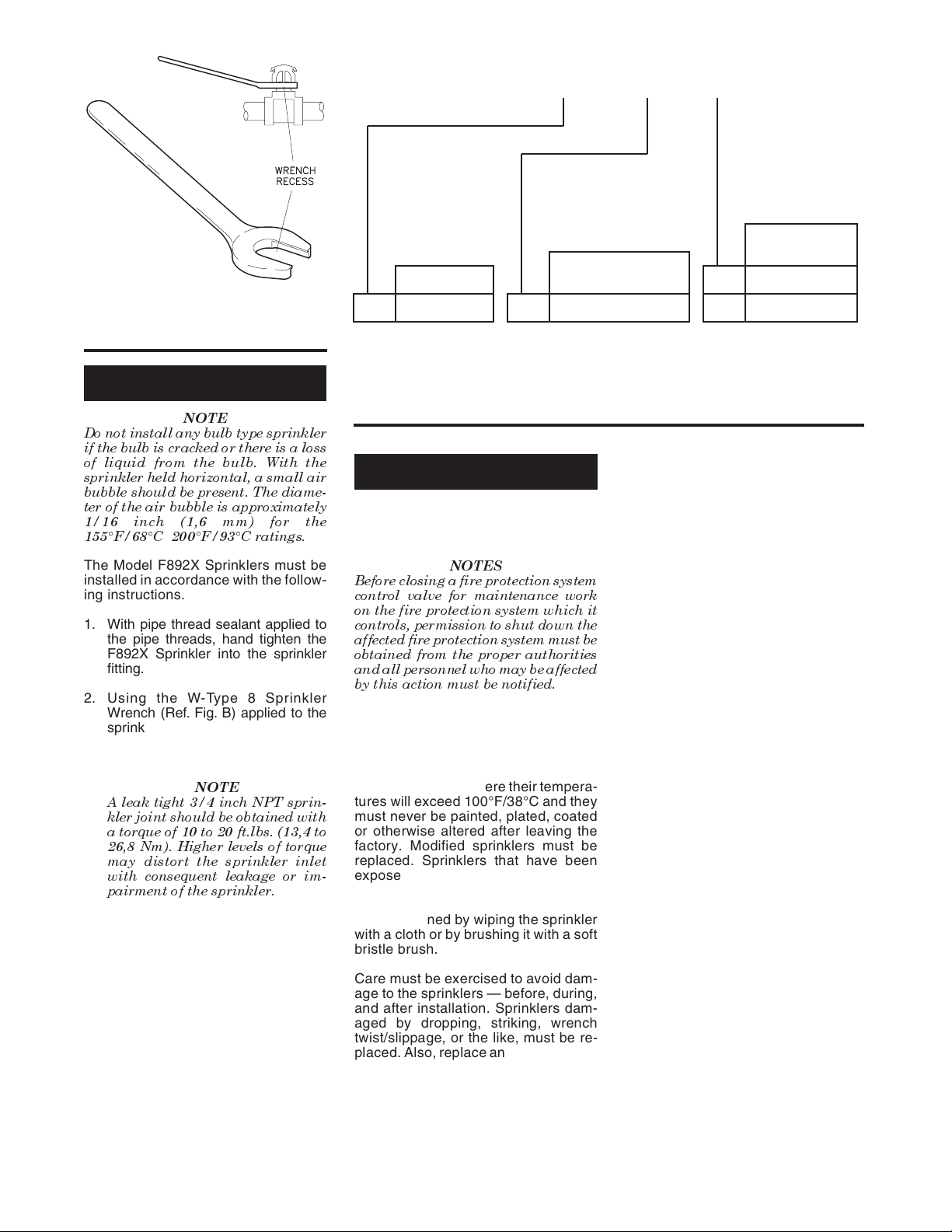

INSTALLATION
NOTE
Do not install any bulb type sprinkler
if the bulb is cracked or there is a loss
of liquid from the bulb. With the
sprinkler held horizontal, a small air
bubble should be present. The diame-
ter of the air bubble is approximately
1/16 inch (1,6 mm) for the
155°F/68°C 200°F/93°C ratings.
The Model F892X Sprinklers must be
installed in accordance with the follow-
ing instructions.
1. With pipe thread sealant applied to
the pipe threads, hand tighten the
F892X Sprinkler into the sprinkler
fitting.
2. Using the W-Type 8 Sprinkler
Wrench (Ref. Fig. B) applied to the
sprinkler Wrench Flats (Ref. Fig. A),
tighten the F892X Sprinkler into the
sprinkler fitting.
NOTE
A leak tight 3/4 inch NPT sprin-
kler joint should be obtained with
a torque of 10 to 20 ft.lbs. (13,4 to
26,8 Nm). Higher levels of torque
may distort the sprinkler inlet
with consequent leakage or im-
pairment of the sprinkler.
CARE AND MAINTENANCE
Model F892X Sprinklers must be
maintained and serviced in accord-
ance with the following instructions:
NOTES
Before closing a fire protection system
control valve for maintenance work
on the fire protection system which it
controls, permission to shut down the
affected fire protection system must be
obtained from the proper authorities
and all personnel who may be affected
by this action must be notified.
Sprinklers which are found to be leak-
ing or exhibiting visible signs of corro-
sion must be replaced.
Automatic sprinklers must never be
shipped or stored where their tempera-
tures will exceed 100°F/38°C and they
must never be painted, plated, coated
or otherwise altered after leaving the
factory. Modified sprinklers must be
replaced. Sprinklers that have been
exposed to corrosive products of com-
bustion, but have not operated, should
be replaced if they cannot be com-
pletely cleaned by wiping the sprinkler
with a cloth or by brushing it with a soft
bristle brush.
Care must be exercised to avoid dam-
age to the sprinklers — before, during,
and after installation. Sprinklers dam-
aged by dropping, striking, wrench
twist/slippage, or the like, must be re-
placed. Also, replace any sprinkler that
has a cracked bulb or that has lost
liquid from its bulb (ref. Installation
Section Note).
The owner is responsible for the in-
spection, testing, and maintenance of
their fire protection system and de-
vices in compliance with this docu-
ment, as well as with the applicable
standards of the National Fire Protec-
tion Association (e.g., NFPA 25), in
addition to the standards of any other
authorities having jurisdiction. The in-
stalling contractor or sprinkler manu-
facturer should be contacted relative
to any questions.
It is recommended that automatic
sprinkler systems be inspected,
tested, and maintained by a qualified
Inspection Service.
PSN 51 — XXX — X — XXX
155°F/68°C155
TEMPERATURE
RATING
887 1
SPRINKLER
FINISH
TABLE B
PRODUCT SYMBOL NUMBER SELECTION
16.8 K-FACTOR MODEL F892X UPRIGHT
SPECIFIC APPLICATION STORAGE
SR UPRIGHT 200°F/93°C200NATURAL BRASS
TYPE
FIGURE B
W-TYPE 8 SPRINKLER
WRENCH
OBSOLETE
Close

LIMITED WARRANTY
Products manufactured by Tyco Fire
Products are warranted solely to the
original Buyer for ten (10) years
against defects in material and work-
manship when paid for and properly
installed and maintained under normal
use and service. This warranty will ex-
pire ten (10) years from date of ship-
ment by Tyco Fire Products. No war-
ranty is given for products or
components manufactured by compa-
nies not affiliated by ownership with
Tyco Fire Products or for products and
components which have been subject
to misuse, improper installation, corro-
sion, or which have not been installed,
maintained, modified or repaired in ac-
cordance with applicable Standards of
the National Fire Protection Associa-
tion, and/or the standards of any other
Authorities Having Jurisdiction. Mate-
rials found by Tyco Fire Products to be
defective shall be either repaired or
replaced, at Tyco Fire Products’ sole
option. Tyco Fire Products neither as-
sumes, nor authorizes any person to
assume for it, any other obligation in
connection with the sale of products or
parts of products. Tyco Fire Products
shall not be responsible for sprinkler
system design errors or inaccurate or
incomplete information supplied by
Buyer or Buyer’s representatives.
IN NO EVENT SHALL TYCO FIRE
PRODUCTS BE LIABLE, IN CON-
TRACT, TORT, STRICT LIABILITY
OR UNDER ANY OTHER LEGAL
THEORY, FOR INCIDENTAL, INDI-
RECT, SPECIAL OR CONSEQUEN-
TIAL DAMAGES, INCLUDING BUT
NOT LIMITED TO LABOR CHARGES,
REGARDLESS OF WHETHER TYCO
FIRE PRODUCTS WAS INFORMED
ABOUT THE POSSIBILITY OF SUCH
DAMAGES, AND IN NO EVENT
SHALL TYCO FIRE PRODUCTS’ LI-
ABILITY EXCEED AN AMOUNT
EQUAL TO THE SALES PRICE.
THE FOREGOING WARRANTY IS
MADE IN LIEU OF ANY AND ALL
OTHER WARRANTIES EXPRESS
OR IMPLIED, INCLUDING WARRAN-
TIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PUR-
POSE.
ORDERING PROCEDURE
A Product Symbol Number (PSN) is
not specified when ordering sprinklers
with thread connections per ISO 7/1.
Contact your local distributor for avail-
ability.
Sprinkler Assemblies:
Specify: 16.8 K-Factor, (specify tem-
perature rating), Model F892X Stand-
ard Response Upright Specific Appli-
cation Storage Sprinkler with natural
brass finish, PSN (specify from Table
B).
“Special Order”
Sprinkler Assemblies with ISO 7/1
Thread Connections:
Specify: 16.8 K-Factor, (specify tem-
perature rating), Model F892X Stand-
ard Response Upright Specific Appli-
cation Storage Sprinkler with natural
brass finish and thread connection per
ISO 7/1.
Sprinkler Wrench:
Specify: W-Type 8 Sprinkler Wrench,
PSN 56-892-1-001.
OBSOLETE
Close
