INSTALLATION AND OPERATING INSTRUCTIONS Page 1
WARNING
SECTION 1: GENERAL INFORMATION
These heaters are ETL approved by Intertek for permanent installations and
electrical connections. Built with splash proof construction, the conducting
parts are protected against water. All wiring must be performed in
accordance with local codes. See Table 1 for wire and room size
requirements.
These heaters are free standing, secured to the oor with separate controls.
Do not take a sauna if using
alcohol, drugs or medications.
Pregnant women or persons
with poor health should
consult their physician before
using any sauna.
Caution re hazard: Do not use
the sauna room for drying
clothes, bathing suits, etc. Do
not hang towels above heater
or place any object other than
the rocks supplied on the
heater. If any darkening of the
wall around the heater is
noticed discontinue sauna use
immediately.
Inspect sauna regularly for
required maintenance to
heater, control and benches.
Replace wood surfaces which
show any signs of
deterioration.
The heater gets extremely hot
during operation and should
not be touched or burns may
result.
Minors should be adequately
supervised whenever near a
hot or warming sauna.

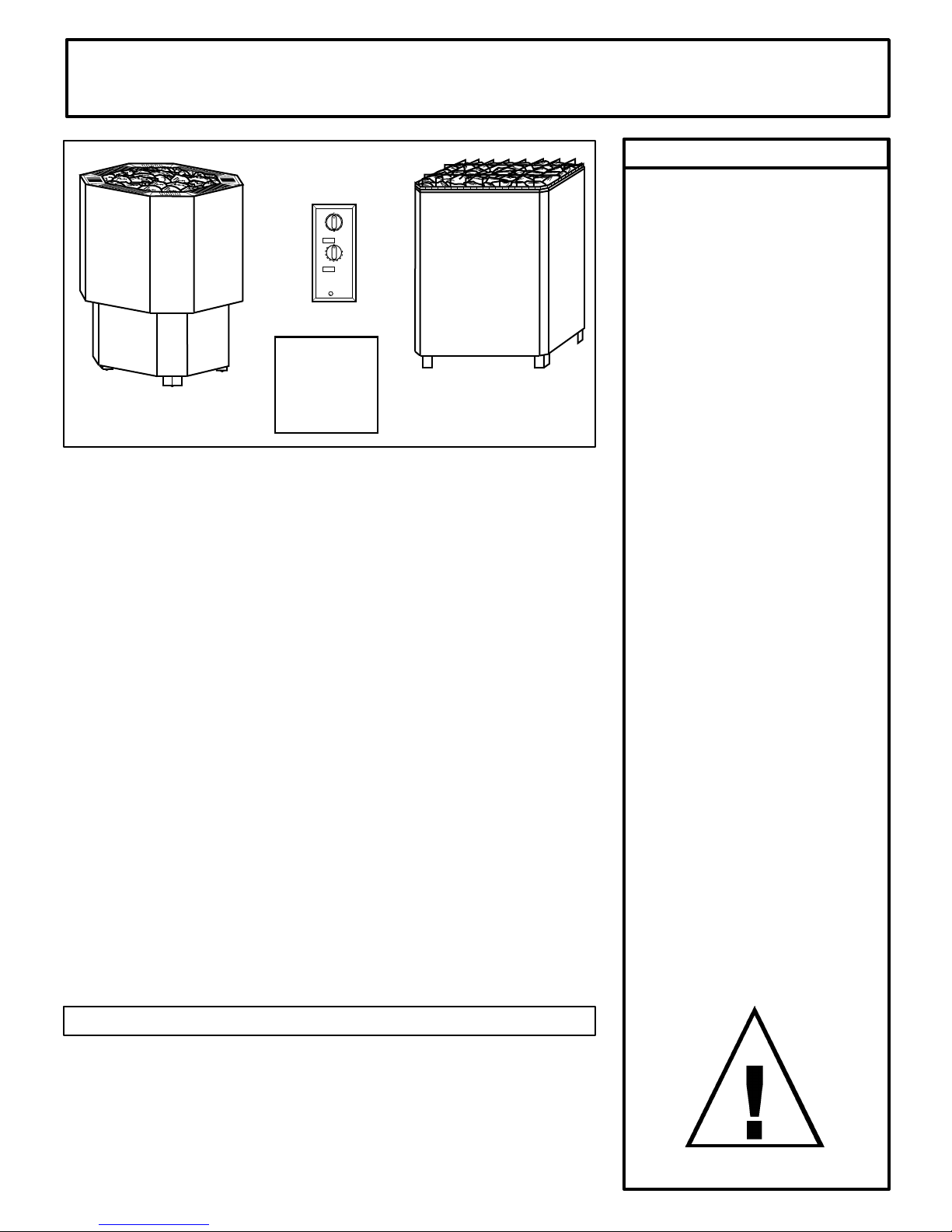

Sauna Heaters
Pro 10.5, 12.0, & 14.4 (Model # 1105-105, 1105-120 & 1105-140) or
Laava 10.5, 12.0, & 14.4 (Model # 1105-1052, 1105-1202 & 1105-1402) or
Octa 10.5, 12.0, & 14.4 (Model #1106-105, 1106-120, & 1106-140)
(With separate SC Control panel & contactor box)
Read all instructions carefully before installation.
Please leave all instructions and warranty with the owner.
WARNING
Prolonged exposure to elevated temperatures is capable of inducing
hyperthermia. Hyperthermia occurs when the internal temperature of the
body reaches several degrees above the normal body temperature of
98.6°F. The symptoms of hyperthermia include an increase in the normal
temperature of the body, dizziness, lethargy, drowsiness, and fainting. The
effects of the hyperthermia include failure to perceive heat, failure to
recognize the need to exit the room, unawareness of impending hazard,
fetal damage in pregnant women, physical inability to exit the room and
unconsciousness.
WARNING
The use of alcohol, drugs, or medication is capable of greatly increasing
the risk of fatal hyperthermia.
0
10
20
30
40
50
1
7
654
3
2
10
9
8
0
SET TIMER
SET TEMPERATURE
Sauna Heating
Room Light
TEMPERATURE
CONTROL
MODEL 19-8
Listed
Sauna heater
No. 339 B
U
L
R
Contactor Box
CB 1201-7-1
or
CB 1201-7-3
SC Control
1106-XXX
Octa Heater
1105-XXX
Pro Heater /
1105-XXX2
Laava Heater

4211-83-G 09-29-16 7014024 314 SKLE 70 H
INSTALLATION AND OPERATING INSTRUCTIONS Page 2
SECTION 2: MOUNTING OF SAUNA HEATER
SECTION 3: PLACING OF ROCKS
Carefully locate the heater according to the dimensions shown in Diagram 1 and
bolt it to the oor. (Bolts are not supplied with the heater.) Tighten to secure the
heater in place.
The rocks supplied with the heater have been chosen to provide the best heater
performance. Use of any other type of rock may void the heaters warranty.
Never operate the heater without rocks in place! Rinse the rocks with water before
placing in the heater. Place the larger rocks between the elements and the
smallest rocks between the elements and the inner rock compartment of the
heater. Place the rocks loosely so the air can circulate. Continue adding rocks
until there is 1 layer above the heating elements. Packing the rocks too tightly
may cause the heater high limit switch to trip. Attach the rock guard with the
screws provided.
Fire sprinkler systems used
inside any sauna room should
be properly rated for sauna
room temperatures.
Do not pour chlorinated pool
or spa water on heater.
Excessive water use on heater
may cause damage and void
warranty.
Do not install a shower in
sauna room.
Electric Shock Hazard - High
voltage exists within this
equipment. There are no user
serviceable parts in this
equipment. All installation and
service to this equipment
should be performed by
qualied licensed personnel in
accordance with local and
national codes.
Do not construct sauna room
so as to restrict air ow
through the bottom of the
heater.
Packing the rocks too tightly
may cause the heater high
limit switch to trip.
SECTION 4: ELECTRICAL HOOK-UP
SECTION 6: HEATER SCREEN (GUARD RAIL)
Install a wooden heater guard to prevent the sauna bather from accidentally
touching the sauna heater. Install the heater guard rail with the height clearances
and dimensions shown in Diagram 1.
SECTION 5: TEMPERATURE SENSOR
Feed the "low voltage" sensor wire from the control to the sensor location. Senor
wire must be routed completely seperate (as per low voltage electrical wiring
codes) from any wiring carrying over 50 volts. It may be necessary to drill holes
to string the wire through the studs or ceiling joists. Route wires into control box
and connect to terminals #2 and #3 at the thermostat terminal block. Using a
at tip screwdriver, unsnap sensor cover from sensor as shown in Diagram 2.
Mount sensor horizontally to the nished wall directly above heater using two (2)
screws (provided) as shown in Diagrams 1 & 3.
Electrical installation must be made by a licensed electrician in accordance with
the National Electrical Code and local regulations.
This heater is intended for use with SC Controls only. Use of any other control
type will void the warranty and ETL listing. The control panel and contactor box
must be installed in a dry location outside the sauna room. The control panel
must be located to allow installation of the thermostat's temperature sensor
shown in Diagram 1. The sensor wire supplied is 9 feet, but it may be extended at
the control end with 2 conductor wire.
The model CB 7-3 contactor box is required for use with a three phase heater, the
model CB 7-1 contactor box is required for use with a single phase heater. To
determine the correct wire size, refer to Table 1. Use copper supply wire only,
suitable for minimum 90 degrees C. The heater must be grounded! See the

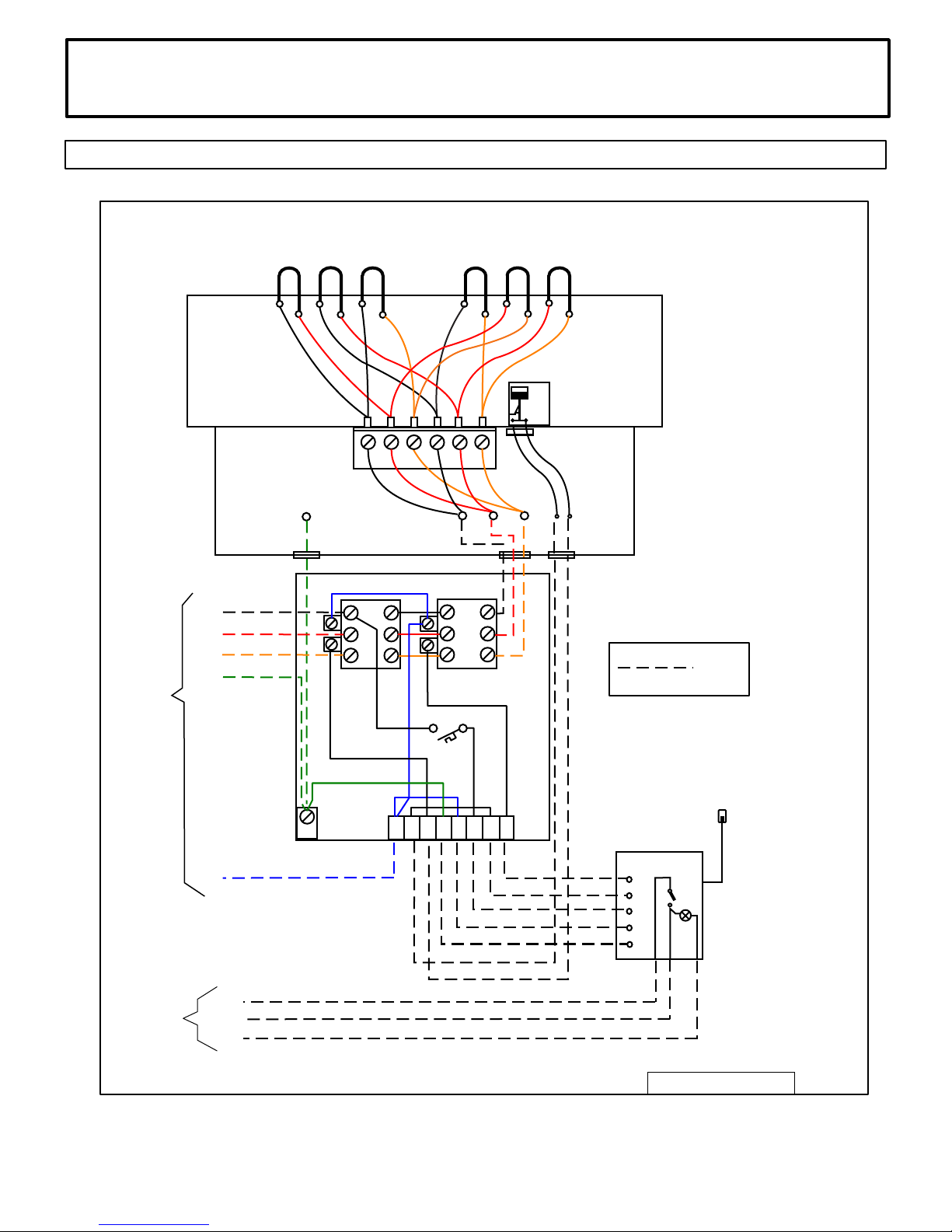

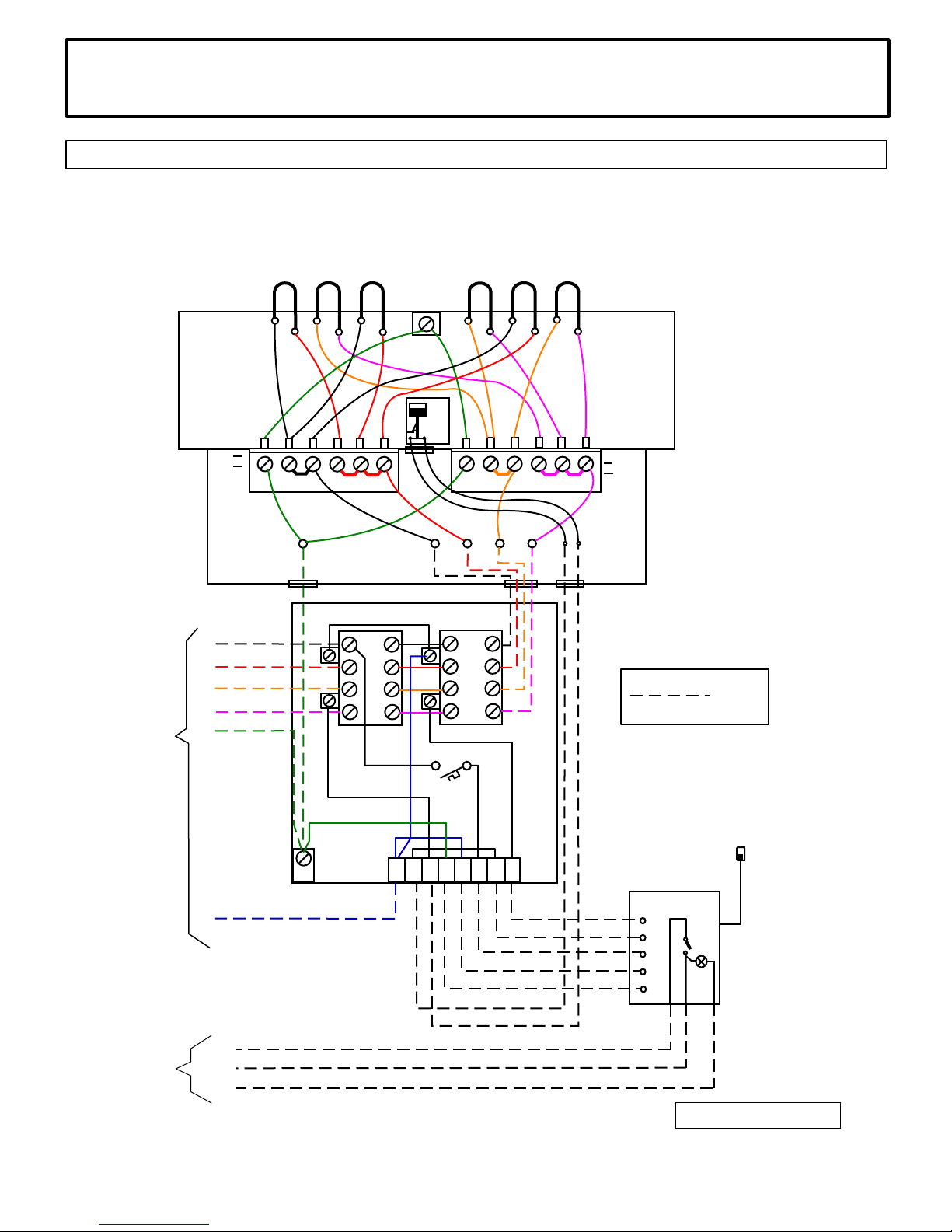

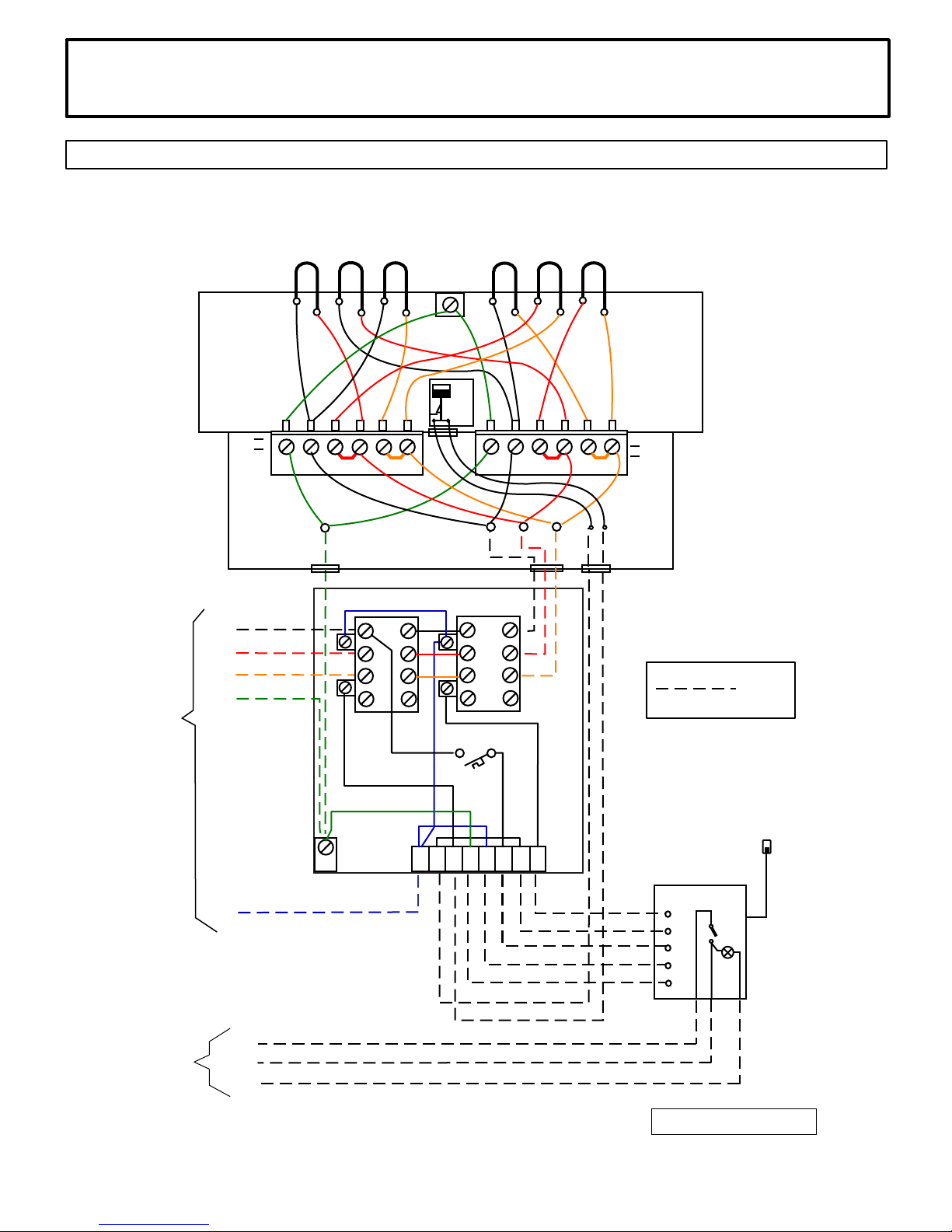

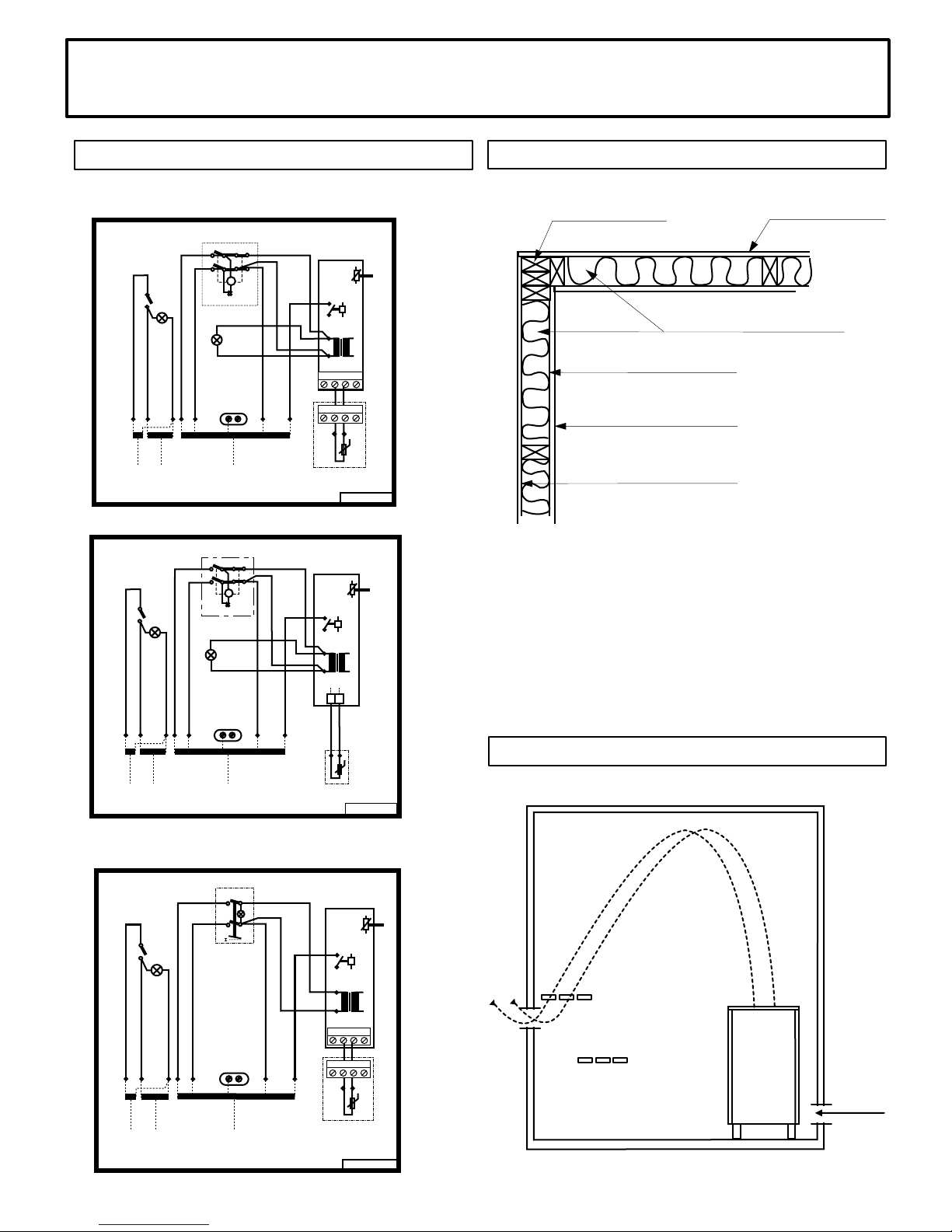

heater and control wiring diagrams for proper connections.
WARNING

4211-83-G 09-29-16 7014024 314 SKLE 70 H
INSTALLATION AND OPERATING INSTRUCTIONS Page 3

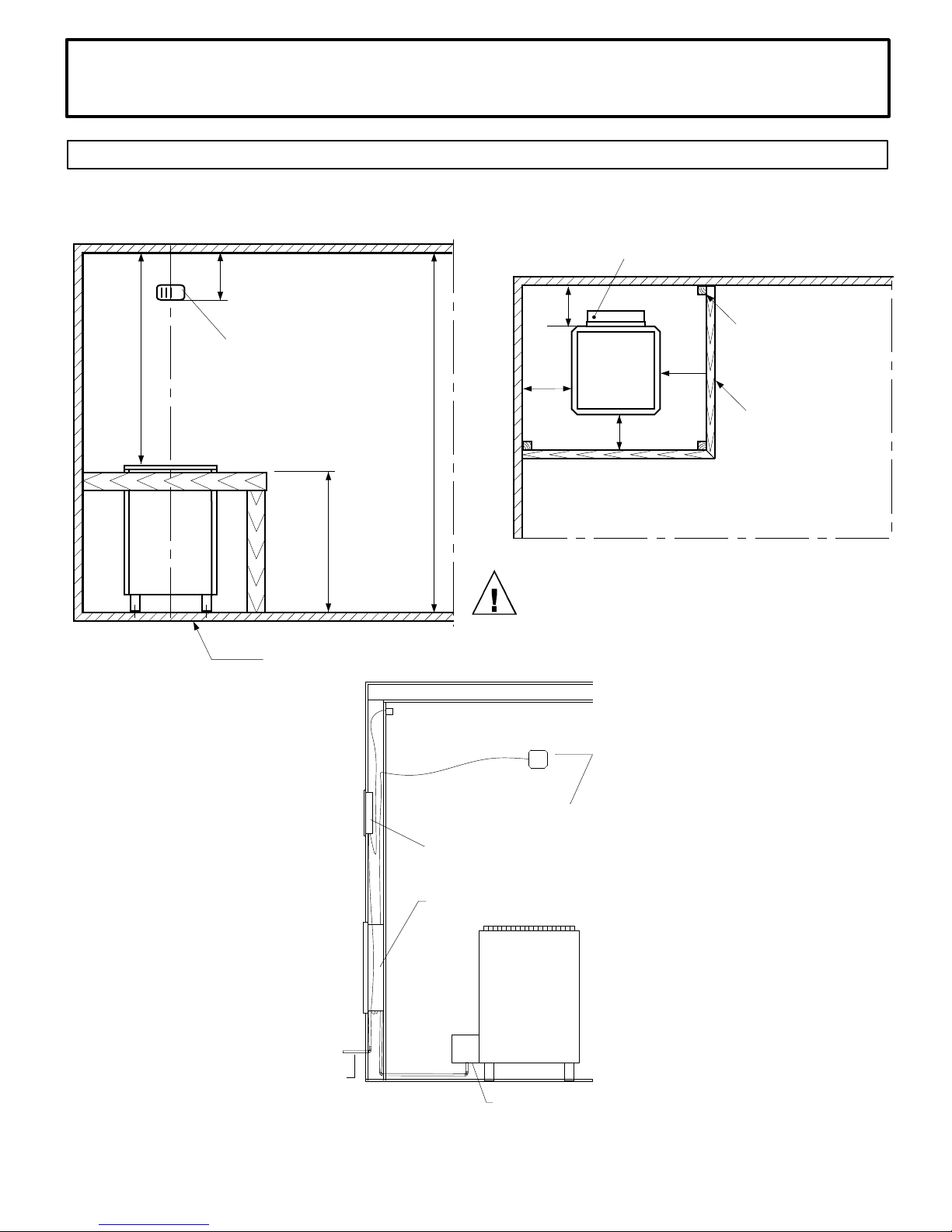

DIAGRAM 1
Sensor
2"
49½"
min.
78"
min.
27"
max.
High Limit Control Reset
2½"
min.
5"
min.
5"
min. 1x1"
wooden
post
¾ x 4"
wooden
rail
2½"
min.
OBSERVING MINIMUM DISTANCES IS
REQUIRED TO REDUCE THE RISK OF FIRE
BOLTS
Pro Heater
1105-XXX
Note 1: The contactor box may be mounted anywhere outside the sauna room.
A location should be selected so the front cover is accessible for service and the
noise of the contactor pulling in will not be a nuisance.
Provide a service loop into the sauna room to the proposed heater location.
Locate the sensor 2"
from ceiling directly
above the heater.
Room light outlet box
70" up from the floor.
High Limit Reset
Power input to
contactor box.
Locate the control
outside the sauna room.
Locate CB 7-1 or 7-3
contactor box outside
the sauna room. (See Note 1)

4211-83-G 09-29-16 7014024 314 SKLE 70 H
INSTALLATION AND OPERATING INSTRUCTIONS Page 4
DIAGRAM 1
Sensor
2"
49½"
min.
78"
min.
27"
max.
High Limit Control Reset
1"
min.
2"
min.
4-1/2"
min. 1x1"
wooden
post
¾ x 4"
wooden
rail
1"
min.
OBSERVING MINIMUM DISTANCES IS
REQUIRED TO REDUCE THE RISK OF FIRE
BOLTS
Laava Heater
1105-XXX2
Note 1: The contactor box may be mounted anywhere outside the sauna room.
A location should be selected so the front cover is accessible for service and the
noise of the contactor pulling in will not be a nuisance.
Provide a service loop into the sauna room to the proposed heater location.
Locate the sensor 2"
from ceiling directly
above the heater.
Room light outlet box
70" up from the floor.
High Limit Reset
Power input to
contactor box.
Locate the control
outside the sauna room.
Locate CB 7-1 or 7-3
contactor box outside
the sauna room. (See Note 1)

4211-83-G 09-29-16 7014024 314 SKLE 70 H
INSTALLATION AND OPERATING INSTRUCTIONS Page 5

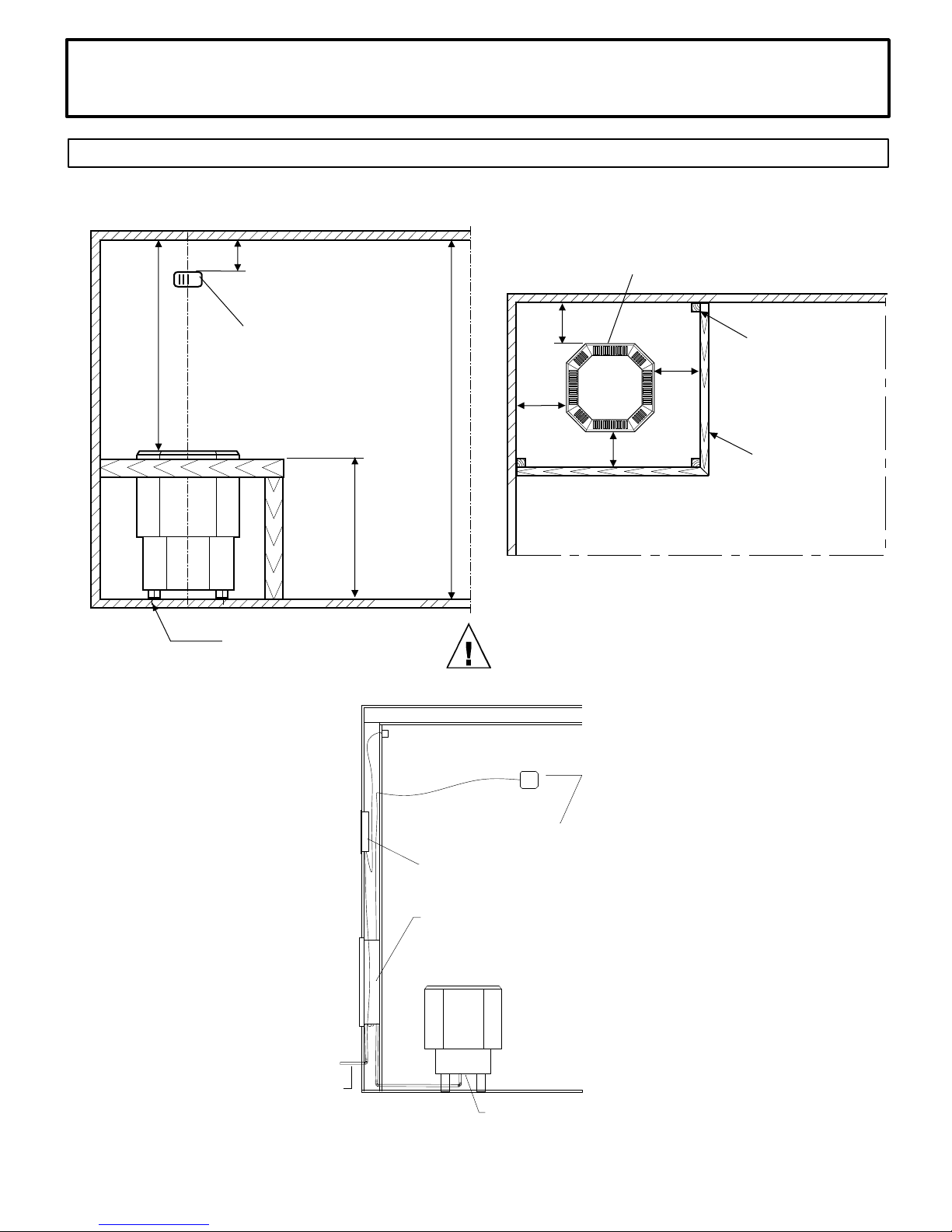

DIAGRAM 1 Continued
BOLTS
Sensor
2"
78"
min.
30"
max.
High Limit Control Reset
31/4"
min. 1x1"
wooden
post
¾ x 4"
wooden
rail
46¾"
min
31/4"
min.
¾"
min.
¾"
min.
OBSERVING MINIMUM DISTANCES IS
REQUIRED TO REDUCE THE RISK OF FIRE
Octa Heater
Locate the sensor 2"
from ceiling directly
above the heater.
Room light outlet box
70" up from the floor.
High Limit Reset
Power input to
contactor box.
Locate the control
outside the sauna room.
Locate CB 7-1 or 7-3
contactor box outside
the sauna room. (See Note 1)
Note 1: The contactor box may be mounted anywhere outside the sauna room.
A location should be selected so the front cover is accessible for service and the
noise of the contactor pulling in will not be a nuisance.
Provide a service loop into the sauna room to the proposed heater location.

4211-83-G 09-29-16 7014024 314 SKLE 70 H
INSTALLATION AND OPERATING INSTRUCTIONS Page 6

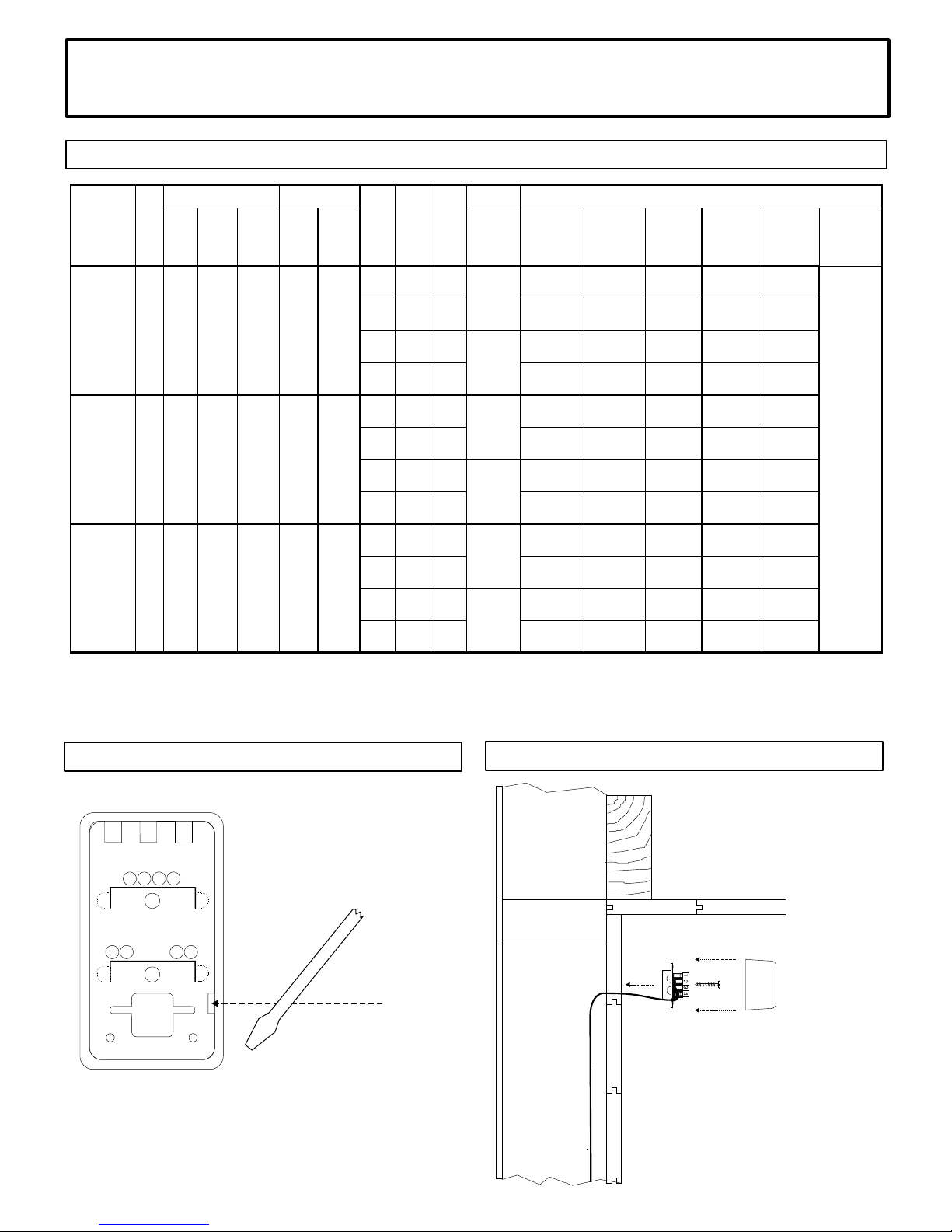

DIAGRAM 2
Back of
sensor
Insert screwdriver tip here to unsnap
sensor cover from sensor.
DIAGRAM 3
Mount the sensor 2"
from ceiling to the top
of sensor
TABLE 1
* Total amp draw of combined circuits.
** Single phase heaters are supplied power from two circuits which must be grouped and marked per NEC.
NOTE 1: Use separate 120V branch circuit protected for 15 or 20 amps if control light switch is to be used.
Floor
Area
Ceiling
Height
Volume
Cu.Ft.
Ceiling
Height
Volume
Cu.Ft.
Contactor
Box Model
** Breaker #
and Size
Power Supply
to Contactor
Contactor to
Heater
Contactor to
Heater High
Limit
Contactor to
Control
Power Supply
to Control
Light Circuit
1 208 50.5 2 x 40 Amps 4 #8AWG
+N+GR
4 #8AWG
+GR 2 #14AWG 3 #14AWG +N+GR
1 240 43.8 2 x 30 Amps 4 #8AWG
+N+GR
4 #10AWG
+GR 2 #14AWG 3 #14AWG +N+GR
3 208 29.1 1 x 40 Amps 3 #8AWG
+N+GR
3 #8AWG
+GR 2 #14AWG 3 #14AWG +N+GR
3 240 25.3 1 x 40 Amps 3 #8AWG
+N+GR
3 #8AWG
+GR 2 #14AWG 3 #14AWG +N+GR
1 208 57.7 2 x 40 Amps 4 #8AWG
+N+GR
4 #8AWG
+GR 2 #14AWG 3 #14AWG +N+GR
1 240 50.0 2 x 30 Amps 4 #10AWG
+N+GR
4 #10AWG
+GR 2 #14AWG 3 #14AWG +N+GR
3 208 33.3 1 x 40 Amps 3 #8AWG
+N+GR
3 #8AWG
+GR 2 #14AWG 3 #14AWG +N+GR
3 240 28.9 1 x 40 Amps 3 #8AWG
+N+GR
3 #8AWG
+GR 2 #14AWG 3 #14AWG +N+GR
1 208 69.2 2 x 40 Amps 4 #8AWG
+N+GR
4 #8AWG
+GR 2 #14AWG 3 #14AWG +N+GR
1 240 60.0 2 x 40 Amps 4 #8AWG
+N+GR
4 #8AWG
+GR 2 #14AWG 3 #14AWG +N+GR
3 208 40.0 1 x 50 Amps 3 #6AWG
+N+GR
3 #6AWG
+GR 2 #14AWG 3 #14AWG +N+GR
3 240 34.6 1 x 50 Amps 3 #6AWG
+N+GR
3 #6AWG
+GR 2 #14AWG 3 #14AWG +N+GR
See Note 1
Below
Copper Wire Size 90° C
Pro 14.0 or
Laava 14.0 or
Octa 14.0
14.4 78 sq.
ft. 78" 630 96" 950
CB 7-1 1201-
7-1
CB 7-1 1201-
7-1
CB 7-1 1201-
7-1
CB 7-3 1201-
7-3
CB 7-3 1201-
7-3
CB 7-3 1201-
7-3
600
96" 740
Pro 10.5 or
Laava 10.5 or
Octa 10.5
10.5 48 sq.
ft. 78" 390 96"
Pro 12.0 or
Laava 12.0 or
Octa 12.0
12.0 63 sq.
ft. 78" 510
*
Amps
Heater Model /
Product
Number KW
Minimum Room Maximum Room
Phase VAC

4211-83-G 09-29-16 7014024 314 SKLE 70 H
INSTALLATION AND OPERATING INSTRUCTIONS Page 7
WARNING
SECTION 7: OPERATION
Do not locate benches over
heater. Refer to Diagram 1 for
minimum ceiling height.
Minimum clearance from heater
to wooden surfaces (benches,
heater fence etc. Refer to
Diagram 1)
Use only copper wire of the size
and type indicated in the Heater
Specication Chart and the
temperature rating indicated on
the heater junction box.
All heaters and controls must be
grounded per NEC to prevent
electrical shock in case of unit
failure.
Electrical outlets or receptacle
must not be installed in a sauna
room.
A guardrail or fence is required
around the heater to prevent
burns from accidental contact.
The heater is intended for use with a SC-9, SC-60 or SC-Club Control
Panel only. For health and re safety, never attempt to alter or bypass the
timer or thermostat. If the sauna is to be used without an automatic timer
provided, (Model SC-Club Control Panel) an attendant must be present at all
times.
MODEL SC-9 CONTROL PANEL, Model Number 19-8-1517 ( 9 Hour Delay
/1 Hour Operation) This control panel is equipped with a 60 minute timer
with a 9 hour delay, an electronic thermostat, a light switch, and a pilot
lamp that indicates when the heater is on. A pilot lamp in the sauna light
switch indicates when the sauna light is on.
SETTING THE TEMPERATURE: The temperature can be adjusted by turning
the thermostat knob. To raise the temperature, turn the knob clockwise; to
lower the temperature, turn the knob counter-clockwise.
SETTING THE TIME: If you want the heater to begin heating immediately,
turn the dial clockwise past the rst marked section labeled "off to 1" (See
Diagram 4), then turn the dial back (counter-clockwise) until you feel it
"click", near the on position, into the one hour operating zone.
The heater has a "9 plus 1" timer, which means you can set the heater to
begin heating after a delay of up to 9 hours. If you set the timer dial in the
"1 to 9" zone, the heater will automatically turn on after the selected delay
time has elapsed. Light Switch: Use the light switch to turn the sauna room
light on and off.
MODEL SC-60 CONTROL PANEL, Model Number 19 - 8 -
1817 ( 60 minute timer ) This control panel is equipped with
a 60 minute timer, an electronic thermostat, a light switch,
and a pilot lamp that indicates when the heater is on. A pilot
lamp in the sauna light switch indicates when the sauna light
is on.
SETTING THE TEMPERATURE: The temperature can be
adjusted by turning the thermostat knob. To raise the
temperature, turn the knob clockwise; to lower the
temperature, turn the knob counter-clockwise.
SETTING THE TIME: Use the timer to turn the heater on. To
start the heater, turn the timer knob clockwise to the desired
time setting. Maximum operating time is one hour.
Light Switch: Use the light switch to turn the sauna room
light on and off.
OFF ON
1
2
3
4
5
6
7
8
9

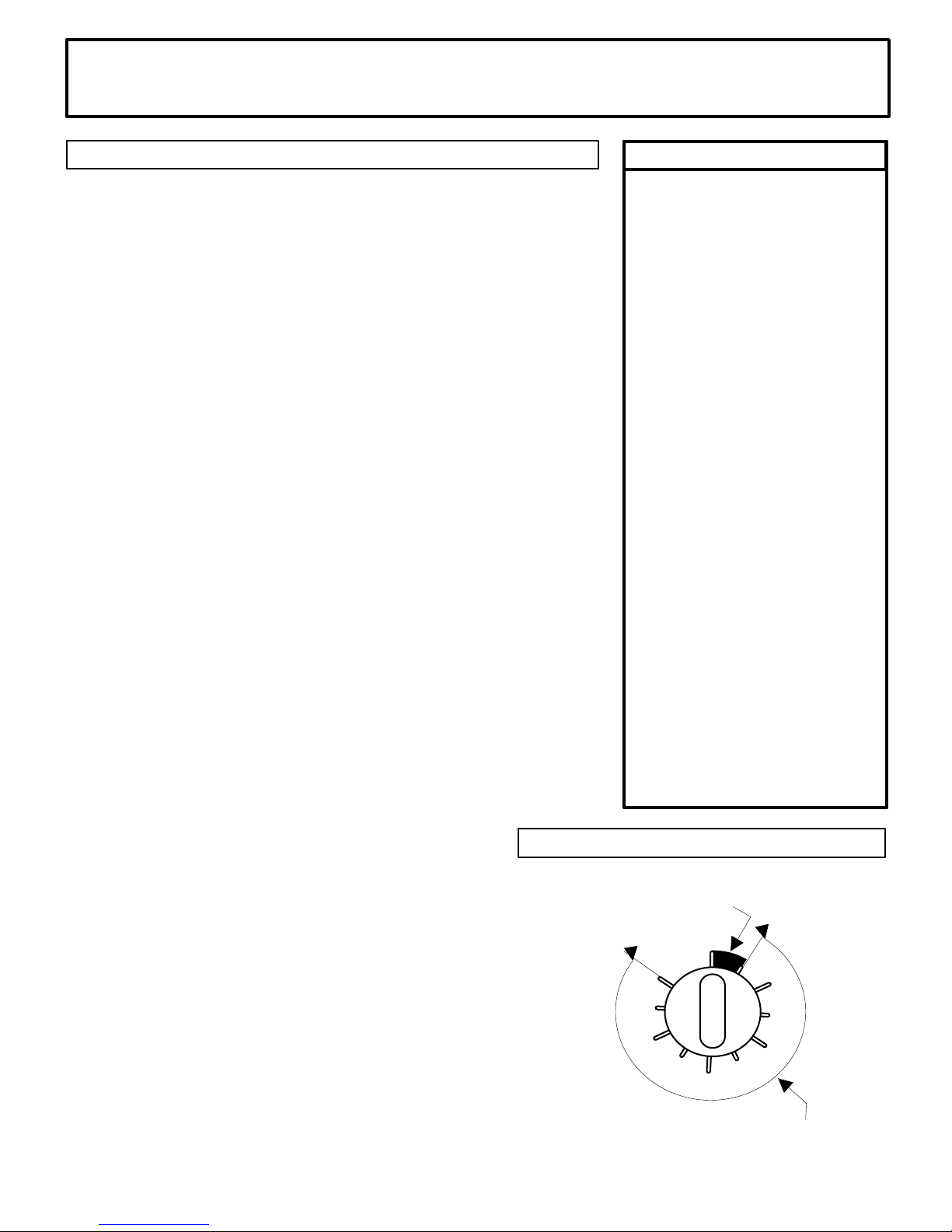

DIAGRAM 4
ONE HOUR OPERATING ZONE FOR 9 HOUR DELAY TIMER
This area from "OFF" to "ON" is the operating zone. This is
the only time the heater is on.
DELAY ZONE
This area from "9" to "ON" is the delay zone, meaning the
heater can be programmed to come on up to nine hours
later. The heater will not operate in this area.

4211-83-G 09-29-16 7014024 314 SKLE 70 H
INSTALLATION AND OPERATING INSTRUCTIONS Page 8
SECTION 7: OPERATION, Continued
MODEL SC-Club CONTROL PANEL, Model Number 19 - 8 - 17 (Attendant
Present Control, Thermostat Only) This control panel is equipped with a
main on/off switch, an electronic thermostat, and a sauna light switch. A
pilot lamp in the main on/off switch indicates when the sauna heater is on.
A pilot lamp in the sauna light switch indicates when the sauna light is on.
SETTING THE TEMPERATURE: The temperature can be adjusted by
turning the thermostat knob. To raise the temperature, turn the knob
clockwise; to lower the temperature, turn the knob counter-clockwise.
TO START: To start the heater, turn on the main switch. To stop the heater,
turn the main switch off. This control panel is intended for commercial use
and an attendant must be present to monitor the sauna bather's safety.
Light Switch: Use the light switch to turn the sauna room light on and off.
SECTION 8: LIMIT CONTROL (RESET BUTTON)

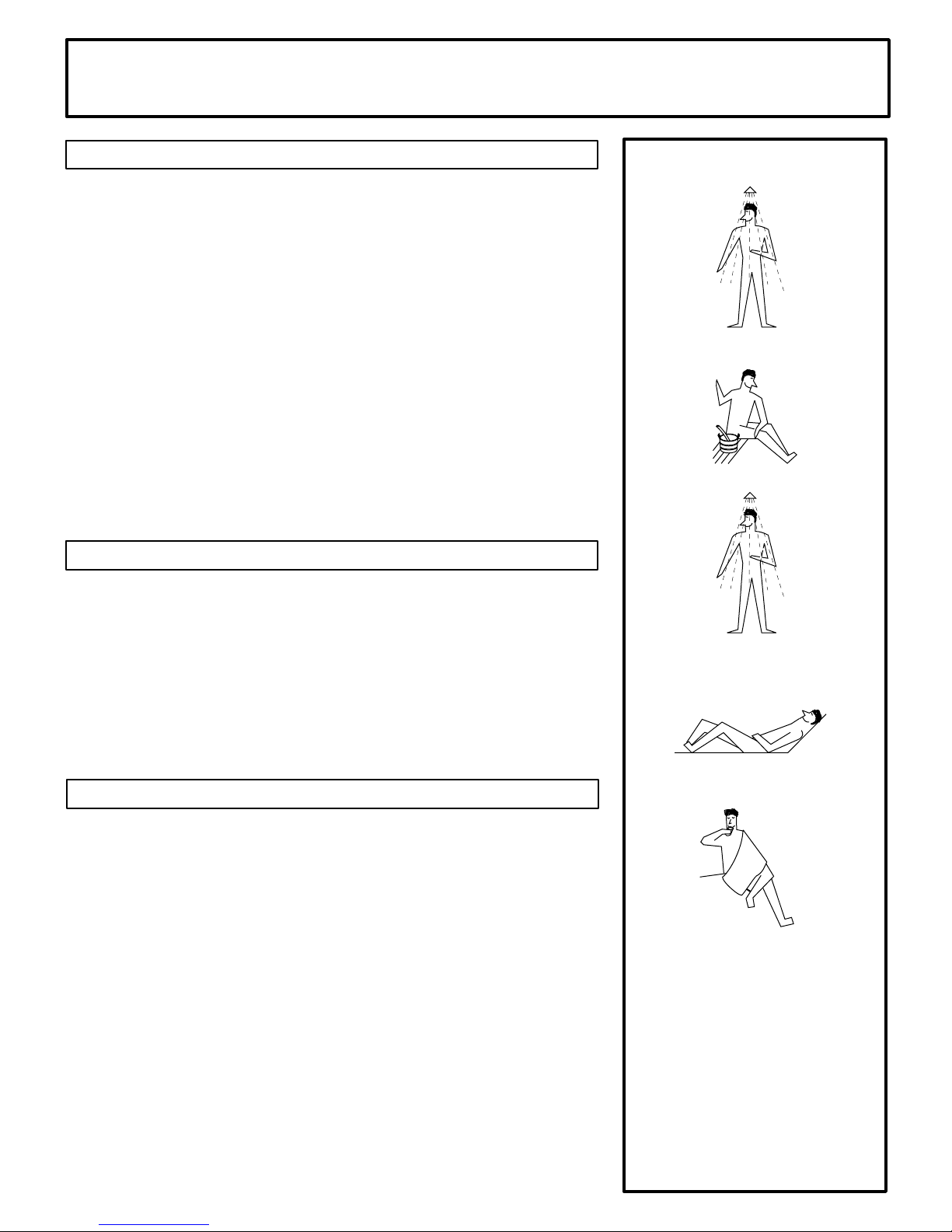

SECTION 9: HOW TO TAKE A SAUNA
The sauna heater has a built-in High Limit control, which automatically
turns off the heater if the temperature inside the sauna room rises to an
abnormally high level.
To restart the heater, let the heater cool and the timer run down to zero
(off), then push the reset button on the bottom of the heater (See Diagram
1). If the High Limit continually shuts off the heater, refer to the
Troubleshooting Section 14.
• When taking a sauna, allow time to relax completely.
• Remove clothing and jewelry...if required, wear a towel loosely.
• After 10 minutes or when perspiration begins, leave sauna and relax in
dressing area...follow with a cool shower.
• Cooling time should equal time spent in sauna. Enter sauna room again
and stay 5 or 10 minutes.
• Repeat the cycle 2 or 3 times; end with a brisk shower...rinse in cool
water.
• Dress when completely dry and perspiration has stopped.
• Some sauna bathers enjoy the soothing effect of steam by splashing
water on the heated sauna rocks. Use only one dipper full (approx. ½
cup) at a time and take care to keep clear of the steam as it rises off the
rocks.
• Do not smoke, exercise or drink alcoholic beverages in the sauna room.
• Do not pour chlorinated pool or spa water on the heater or corrosion
damage may result.
Shower
Sauna (10 - 15 min.)
Shower or swim
Rest (10 - 15 min.)
Relax with juice or water
You liked it?
Do it once again and
you will feel great.

4211-83-G 09-29-16 7014024 314 SKLE 70 H
INSTALLATION AND OPERATING INSTRUCTIONS Page 9
DIAGRAM 6
354 SKLE 25 E
SINGLE PHASE WIRING DIAGRAM HEATER MODELS:
Pro 10.5, 12.0 & 14.4 Model Number: 1105-105, 1105-120 & 1105-140
Laava 10.5, 12.0 & 14.4 Model Number: 1105-1052, 1105-1202 & 1105-1402
1 2 3 4 5 6
LIMIT CONTROL
T4 T3 T2 T1
GR
1 PHASE HEATER
JUNCTION BOX
208V or 240V
1-phase
GR T1 T2 T3 T4 1 2
Gr
Sensor
Circuit 1
Power Input
12
11
10
N
N1 2 Gr N 10 11 12
N
L1
L2
L1
L2 Circuit 2
T4 T3 T2 T1
(Re-set Fuse)
II
I
1 2 3 4 5 6 1 2 3 4 5 6
1 PHASE HEATER WIRING
COMPARTMENT
Field
Wiring
1
2
N
Control Panel
(Model #)
SC 9 (19-8-1517)
SC 60 (19-8-1817)
SC Club (19-8-17)
CONTACTOR BOX
CB 7-1 (Model # 1201-7-1)
Light Switch 1 - light power in 2 - light power out N - neutral
GR

4211-83-G 09-29-16 7014024 314 SKLE 70 H
INSTALLATION AND OPERATING INSTRUCTIONS Page 10
DIAGRAM 6, Continued
354 SKLE 24
F
Light Switch 1 - light power in 2 - light power out N - neutral
Gr
Sensor
12
11
10
N
1
2
N
1 2 3 4 5 6
LIMIT CONTROL
GR
3 PHASE HEATER
JUNCTION BOX
208V or 240V
3-phase
GR T1 T2 T3 1 2
POWER INPUT
N1 2 Gr N 10 11 12
L1
L2
L3
GR
(Re-set Fuse)
II
I
1 2 3 4 5 6 1 2 3 4 5 6
3 PHASE HEATER WIRING
COMPARTMENT
N
Field
Wiring
T3 T2 T1
L3 L2 L1
CONTACTOR BOX
CB 7-3 (Model# 1201-7-3)
Control Panel(Model #)
SC 9 (19-8-1517)
SC 60 (19-8-1817)
SC Club (19-8-17)
THREE PHASE WIRING DIAGRAM HEATER MODELS:
Pro 10.5, 12.0 & 14.4 Model Number: 1105-105, 1105-120 & 1105-140
Laava 10.5, 12.0 & 14.4 Model Number: 1105-1052, 1105-1202 & 1105-1402

4211-83-G 09-29-16 7014024 314 SKLE 70 H
INSTALLATION AND OPERATING INSTRUCTIONS Page 11
DIAGRAM 6
354 SKLF 29 B
1 2 3 4 5 6
LIMIT CONTROL
T4 T3 T2 T1
GR
1 PHASE HEATER
JUNCTION BOX
208V or 240V
1-phase
GR T1 T2 T3 T4 1 2
Gr
Sensor
Circuit 1
Power Input
12
11
10
N
N1 2 Gr N 10 11 12
N
L1
L2
L1
L2
Circuit 2
T4 T3 T2 T1
(Re-set Fuse)
1 2 3 4 5 6
1 PHASE HEATER WIRING
COMPARTMENT
Field
Wiring
1
2
N
Light Switch 1 - light power in 2 - light power out N - neutral
Gr
SINGLE PHASE WIRING DIAGRAM: HEATER MODELS OCTA 10.5, 12.0 & 14.4
Model Number: 1106-105, 1106-120 & 1106-140
CONTACTOR BOX
CB 7-1 (Model # 1201-7-1)
Control Panel(Model #)
SC 9 (19-8-1517)
SC 60 (19-8-1817)
SC Club (19-8-17)

4211-83-G 09-29-16 7014024 314 SKLE 70 H
INSTALLATION AND OPERATING INSTRUCTIONS Page 12
DIAGRAM 6, Continued
354 SKLF 31
B
Gr
Sensor
12
11
10
N
Light Switch 1 - light power in 2 - light power out N - neutral
1
2
N
THREE PHASE WIRING DIAGRAM: HEATER MODELS OCTA 10.5, 12.0 & 14
Model Number: 1106-105, 1106-120 & 1106-140
1 2 3 4 5 6
T3 T2 T1
GR
3 PHASE HEATER
JUNCTION BOX
208V or 240V
3-phase
GR T1 T2 T3 1 2
POWER INPUT
N1 2 Gr N 10 11 12
L1
L2
L3
GR
(Re-set Fuse)
1 2 3 4 5 6
3 PHASE HEATER WIRING
COMPARTMENT
L3 L2 L1
N
Field
Wiring
LIMIT CONTROL
CONTACTOR BOX
CB 7-3 (Model # 1201-7-3)
Control Panel(Model #)
SC 9 (19-8-1517)
SC 60 (19-8-1817)
SC Club (19-8-17)

4211-83-G 09-29-16 7014024 314 SKLE 70 H
INSTALLATION AND OPERATING INSTRUCTIONS Page 13
SC-60 Control Panel (19-8-1817)
DIAGRAM 7
DIAGRAM 8
DIAGRAM 6, Continued
SC-Club Control Panel (19-8-17)
Air Inlet
Vent
Air Outlet
Vent
354 SYLU 17 D
L
N
S1
Gr
Sauna
light
ON/OFF switch
1A 2A
4B 5B
0
Room light Connection to
max. 60W heater junction box
Input
120V
1 2
N N 10 11 12
1 2 3 4
1 2 3 4
OLET 7
Sensor
2x4" framing 1/2" wallboard
fiberglass insulation
1/2" wallboard
T&G soft wood
foil vapor barrier
SC-9 Control Panel (19-8-1517)
354 SYLU 15 D
Pilot lamp
Sauna
light
9 +1 timer
Room light Connection to
max. 60W heater junction box
Input
120V
S1
N
L
1 2 N N 10 11 12
Gr
1 2 3 4
OLET 7
1 2 3 4
Sensor
M
OYKS 9
a1 a b b0
a1 a b b0
354 SLYU 15F
S1
Sensor
Pilot lamp
Sauna
light
One hour timer
3
2
L
N
N N 10 11 12
Gr
OLET 7
Room light Connection to
max 60W heater junction box
M
a1 a b b0
a1 a b b0
1 2
Input
120V
S1

4211-83-G 09-29-16 7014024 314 SKLE 70 H
INSTALLATION AND OPERATING INSTRUCTIONS Page 14
WARNING

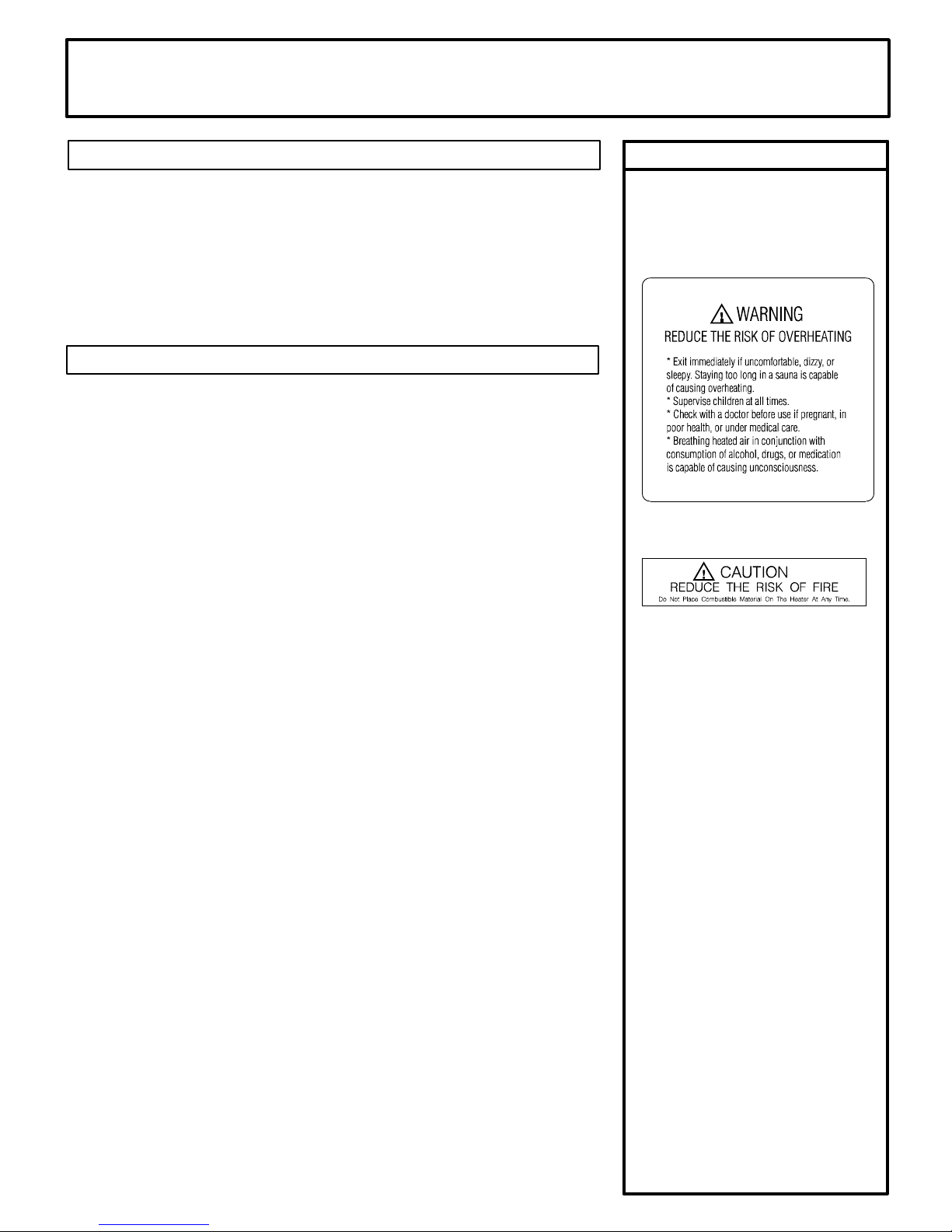

SECTION 10: WARNING PLACARDS
SECTION 11: ROOM CONSTRUCTION
For safety purpose sauna door
must open out and not lock.
Never use a wood stain, seal
or preservative on the inside of
your sauna room.
Light xtures get very hot
during operation. Locate light
xture where it will not be a
burn hazard.
Secure the two metal placards at eye level with the screws that are included
in the Installation Instruction Envelope packaged with every Sauna Heater.
The CAUTION placard must be attached to the interior wall of the sauna
room directly above the heater where it is visible to the bather. The
WARNING placard must be attached to the outside of the door of the sauna
room.
The "CAUTION" and
"WARNING" placards must be
mounted in accordance with
Section 10.
For safety and reliability, the following rules must be addressed.
• No permanent locking or latch system is to be used on the sauna door.
• Acceptable door ttings are: magnetic catches, friction catches, spring
or gravity loaded closures. The door must always open outwards.
• No shower may be installed in a sauna room.
• No electrical receptacle shall be installed inside the sauna room.
• The enclosed WARNING: Reduce the risk of overheating … warning
plate must be mounted on or alongside the door outside the sauna room at
about eye level.
• The enclosed CAUTION: Reduce the risk of re … caution plate must be
mounted on the interior wall above the heater.
• The heater should not be operated without its container properly lled
with rocks and the rock guard in place.
• If an intercom speaker is installed, it should be away from the heater and
as close to the oor as possible.
• If a room light is installed, it should be a surface mounted bracket type.
Wall mounted lights should be about 70" above the oor. Ceiling mounted
lights should be of an approved type with a junction box that is remote to
the xture itself. Use only a xture that uses A.F. or xture type internal
wiring. A 60 watt bulb should provide sufcient lighting.
• Fire sprinkler systems installed inside any sauna room should be
properly rated for sauna room temperatures.
• Always mount the heater according to these installation instructions.

4211-83-G 09-29-16 7014024 314 SKLE 70 H
INSTALLATION AND OPERATING INSTRUCTIONS Page 15
SECTION 12: VENTILATION
SECTION 13: MAINTENANCE
VENTILATION Ventilation shall be provided in a sauna, the air should be changed about 6 times an hour. This can be
achieved by making a vent opening (fresh air inlet) in the sauna wall directly below the heater. The air outlet must be
lower than the upper benches, as far as possible from the heater and about two feet higher than the fresh air inlet
vent, See Diagram 8.
The minimum opening should be determined using one of the following formulas:
For R < 31, V ³ 9.4
For R ³ 31, V ³ 0.3R
where R = the oor area of the room in square feet and
V = the minimum vent size in square inches
The sauna, like a bathroom, should be kept clean and odor free.
Towels or mats should always be used on benches and oor as perspiration otherwise penetrates the soft wood.
Air out the sauna often by keeping the door and vents open when the sauna is not in use. Saunas that are in daily
use should be washed down at least once a week to keep them clean and the air fresh. Duckboard should be
removed from the sauna, the sauna oor mopped and dried in a conventional manner, and the duckboard thoroughly
scrubbed and dried before returning to the sauna room. The sauna heater should be wiped down occasionally with a
damp cloth to remove lint and dust. The rocks should be removed once a year for cleaning and small or crumbled
rocks replaced.
To clean and remove perspiration stains, use soap or detergent in warm water, best applied with a scrub brush.
Badly soiled surfaces may require sanding. Sand paper wrapped around a wooden block works well.
Benches and supporting structure must be inspected annually for potential deterioration due to age, dry rot or abuse.
Any boards with signs of deterioration should be replaced immediately to avoid possible injury.
SECTION 14: TROUBLESHOOTING
No Heat - Check timer, refer to Section 7 and Diagram 4 about timer operation.
Control Timer Light is On but No Heat - Press (reset) the high limit switch on the bottom of heater.
Slow Heat Time or High Limit Tripping - Check rock placement, they will break down over time and reduce the air
ow in the heater. Refer to Diagram 10 for proper rock installation. Discard all rocks under the size of 3" peices. Call
the number below to order more rocks if needed.
For troubleshooting or service questions call 1-888-780-4427 and ask to speak with service. Prior to calling, please
have the Model and Type number available. You may also email us at
techsuppor[email protected]
