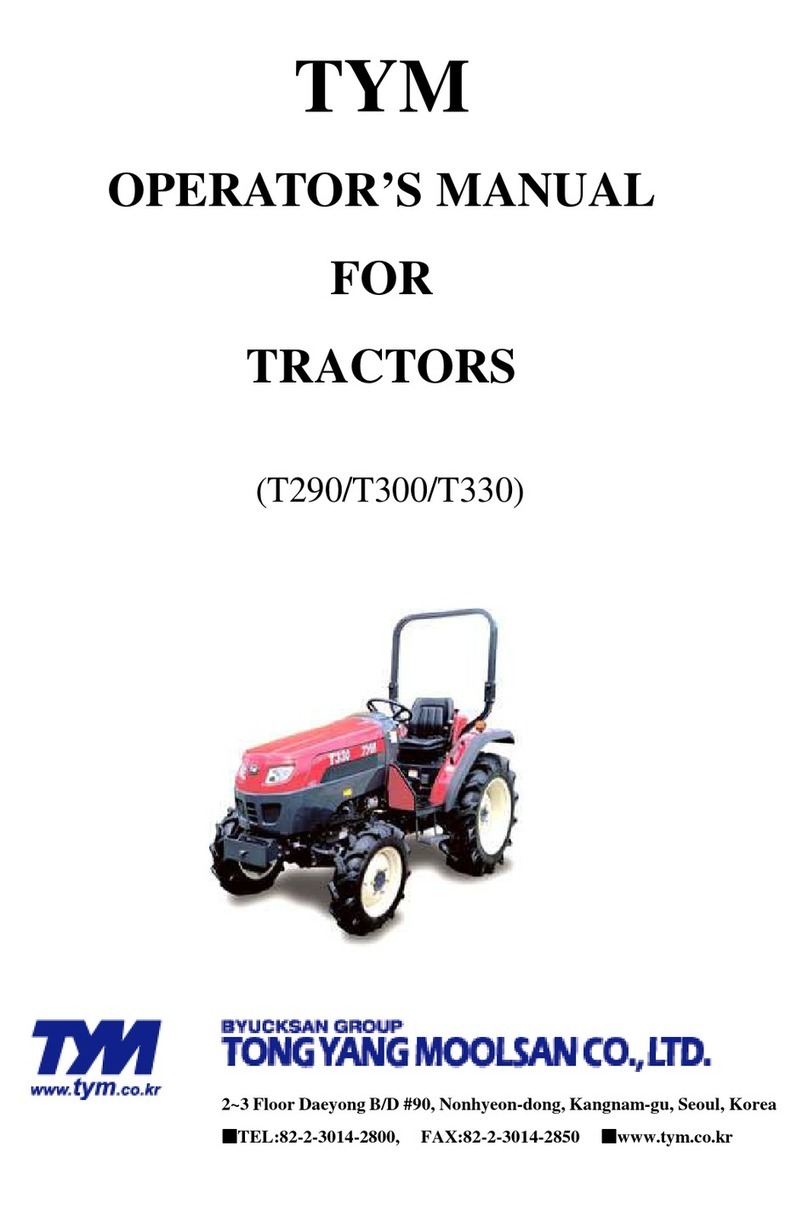

TYM
OPERATOR’S MANUAL
FOR
TRACTORS
(T290/T300/T330)
2~3 Floor Daeyong B/D #90, Nonhyeon-dong, Kangnam-gu, Seoul, Korea
■TEL:[phone], FAX:[phone] ■www.tym.co.kr

KUBOTA
FEDERAL AND CALIFORNIA
EMISSION CONTROL SYSTEMS
LIMITED WARRANTY
NON-ROAD ENGINES (CI)
The U.S. Environmental Protection Agency (EPA), the California Air Resources Board (CARB), And
KUBOTA Corporation are pleased to explain the Federal and California Emission Control System
Warranty on your non-road engine.
In California, new 1995 and later small off-road engines must be designed, built and equipped to meet
California’s stringent anti-smog standards. In other states of the U.S.A., new non-road engines subject to
the provisions of 40 CFR 89 subpart A must be designed, built and equipped, at the time of sale, to meet
the U.S. EPA regulations for non-road engines. KUBOTA must warranty the emission control system on
your engine for the period of time listed below provided there has been no abuse, neglect or improper
maintenance of your engine. This emission warranty is applicable in all states of the U.S.A. and all
provinces and territories of CANADA.
Where a warrantable condition exists, KUBOTA will repair your engine at no cost to you, including
diagnosis (if the diagnostic work is performed at an authorized dealer), parts and labors.
In an emergency, repairs may be performed at any engine repair facility or by the owner.
EMISSION DESIGN AND DEFECT WARRANTY COVERAGE
The warranty period for the engine begins on the date of sale to the ultimate purchaser and continues for
the period mentioned below.
The warranty period for all engines rated under 19kW, and for constant speed engines rated under 37kW
with rated speeds greater than or equal to 3000 rpm, is 1500 hours of operation or two (2) years of use,
whichever first occurs. For all other engines, the warranty periods are 3000 hours of operation or five (5)
years of use, whichever first occurs.
If any emission related part on your engine is defective, the part will be repaired or replaced by
KUBOTA free of charge.
OWNER’S WARRANTY RESPONSIBILITIES
(a) As the engine owner, you are responsible for the performance of the required maintenance listed
in your KUBOTA operator’s manual. KUBOTA recommends that you retain all receipts
covering maintenance on your engine, but KUBOTA cannot deny a warranty claim solely for the
lack of receipts or for your failure to ensure the performance of all scheduled maintenance.
(b) As the engine owner, you should be aware, however, that KUBOTA may deny your warranty
coverage if your engine or a part has failed due to abuse, neglect, improper maintenance or
unapproved modifications.

(c) You are responsible for presenting your engine to the nearest dealer or service station
authorized by KUBOTA when a problem exists. The warranty repairs should be completed
in a reasonable amount of time, not to exceed 30 days. If you have any questions regarding
your warranty rights and responsibilities or the location of the nearest authorized dealer or
distributor, you should contact KUBOTA ENGINE AMERICA CORPORATION, Service
Department at [phone], KUBOTA TRACTOR CORPORATION, National Service
Department at [phone] or KUBOTA CANADA LTD at [phone].
COVERAGE
KUBOTA warrants to the ultimate purchaser and each subsequent purchaser that your engine will
be designed, built and equipped, at the time of sale, to meet all applicable regulations. KUBOTA also
warrants to the initial purchaser and each subsequent purchaser that your engine shall be free from
defects in materials and workmanship which cause the engine to fail to conform with applicable
regulations for the period mentioned above from the date of original sale.
KUBOTA shall remedy warranty defects at any authorized KUBOTA engine dealer or warranty
station. Any authorized work done at an authorized dealer or warranty station shall be free of charge
to the owner if such work determines that a warranted part is defective. Any manufacturer approved or
equivalent replacement part may be used for any warranty maintenance or repairs on emission related
parts, and must be provided free of charge to the owner if the part is still under warranty. KUBOTA is
liable for damages to other engine components caused by the failure of a warranted part still under
warranty.
Listed below are the parts covered by the Federal and California Emission Control Systems
Warranty. Some parts listed below may require scheduled maintenance and are warranted up to the
first scheduled replacement point for that part. The warranted parts are:
1) Fuel Injection Pump 7) Inlet Pipe
2) Nozzle Assembly 8) Inlet Pipe Band
3) Injection Pipe 9) Air Cleaner Element *
4) Connector of Fuel Line 10) Fuel Filter Element *
5) Fuel Pipe Assembly 11) Turbocharger
6) Inlet Manifold 12) Exhaust Manifold

MAINTENANCE REQUIREMENTS
The owner is responsible for the performance of the required maintenance as defined by KUBOTA in
the operator’s manual.
LIMITATIONS
This Emission Control System Warranty shall not cover any of the following;
(a) Repair or replacement required because of misuse or neglect, improper maintenance, repairs
improperly performed or replacements not conforming to KUBOTA specifications that
adversely affect performance and/or durability, and alteration or modifications not
recommended or approved in writing by KUBOTA.
(b) Replacement of parts and other services and adjustments necessary for required maintenance at
and after the first scheduled replacement point.

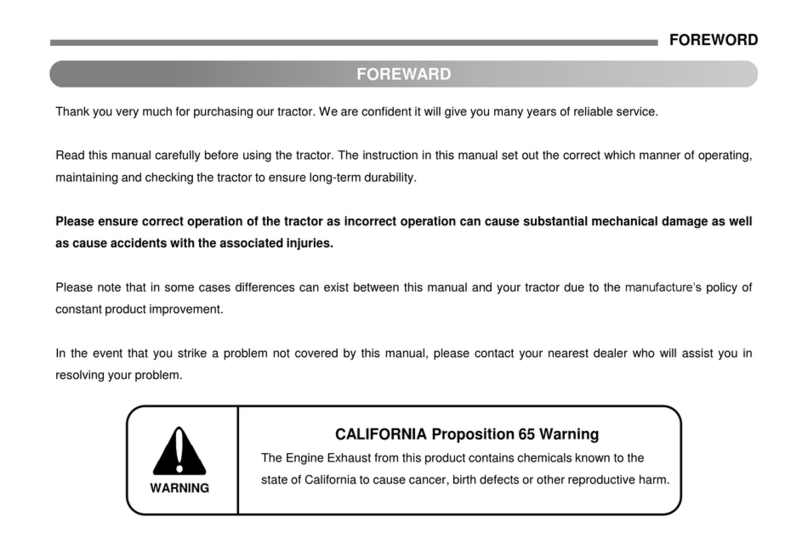

FOREWARD
Thank you very much for purchasing our tractor, which, we feel sure, will give you many years of
troubling the service.
The introduction in this manual set out the correct manner of operating, maintaining and checking the
tractor to ensure long-term durability.
Please ensure correct operation of the tractor as incorrect operation can cause substantial mechanical
damage as well as cause accidents with the associated injuries.
Please note that in some cases differences can exist between this manual and your tractor due to the
manufacture’s policy of constant product improvement.
In the event that you strike a problem not covered by this manual please contact your nearest dealer who
will assist you in resolving your problem.
1
WARNING
CALIFORNIA Proposition 65 Warning
The Engine Exhaust from this product contains chemicals known to the state
of California to cause cancer,birth defects or other reproductive harm
WARNING SIGNS IN THIS MANUAL
The following warning signs in this manual draw additional attention to items of importance for the
safe and correct operation of the tractor.
Hazard or unsafe practice that can lead in injury or death.
Instructions for the correct operation of the machine which, if
followed, will ensure that it performs at it’s best
Hazard or unsafe practice that can lead to severe injury or death.
Serious hazard with a very high level of risk of either serious injury or
death
MEANING OF THE SIGNSIGN
Danger
Warning
Caution
Important

CONTENTS
1. Tractor Identification
2. About this manual
3. Introduction & description
4. Owner assistance
5. ROPS (Roll over protection structures)
6. Safety instructions, Do’s & Don’ts
7. Safety signs
8. Universal symbols
Section A
9. Controls, Instruments & Operations
Section B
10. Lubrication & maintenance
Section C
11. Specifications
12. Fuel saving Tips
13. Fault tracing
14. Wiring Diagram
15. Power Train
16. Tractor history card
17. Service record
18. Daily operating Log
19. Part replacement record
Sr. No. Description Page No.
All information, illustrations and specifications in this manual are based on latest information available at
the time of publication. The right is reserved to make changes at any time without notice.
2
3
4
5~7
8
9~11
12~25
26~28
29
31~51
53~74
75~77
78~79
80~84
85~88
89
90
91
92
93

TRACTOR IDENTIFICATION
The engine number is stamped on the left hand side of the engine block.
The chassis number is shown on the left hand side of the tractor as shown in the drawing.
Illustration A
WARRANTY OF THE PRODUCT.
The manufacturer warrants this product and full details of the warranty are provided on a separate
warranty schedule.
SERVICE.
Service is available from any TYM dealer in the country.
PARTS.
To obtain spare parts please contact your nearest dealer and give him the details listed below.
Tractor model
Tractor serial number
Tractor engine number
Part number and description
Quantity required.
3
Engine type and number on the R.H.S of Engine body
Manufacturer’s tractor Sr. No.
punched on plate on the L.H.S of Axle bracket

ABOUT THIS MANUAL
This manual has been prepared to assist you in following/adopting the correct procedure for running-in
operation and maintenance of your new TYM Tractor.
Your Tractor has been designed and built to give maximum performance, with good fuel economy and
ease of operation under a wide variety of operating conditions. Prior to delivery, The tractor was
carefully inspected, both at the factory and by your TYM Dealer/Distributor, to ensure that it reaches
you in optimum conditions .To maintain this condition and ensure trouble free performance. it is
important that the routine services, as specified in this manual, are carried out at the recommended
intervals.
Read this Manual carefully and keep it in a convenient place for future reference. If at any time you
require advice concerning your Tractor, do not hesitate to contact your Authorized TYM
dealer/Distributor. He has trained personnel, genuine parts and necessary equipments to undertake all
your service requirements.
TYM.CO.,LTD. policy is one of continuous improvement,and the right to change prices, specifications
or equipments at any time without notice is reserved.
All data given in this book is subject to production variations. Dimensions & weight are approximate
only and the illustrations do not necessarily show Tractors in standard condition. For exact information
about any particular Tractor, please consult your TYM dealer/Distributor.
4

Introduction & Description
TRACTOR AN INTRODUCTION
The word, ’Tractor’ has been derived from ‘Traction’ which means pulling.
A Tractor is required to pull or haul an equipment, implement or trolley which are coupled to the Tractor
body through suitable linkage. A Tractor can also be used as a prime mover as it has a power outlet
source which is also called Power Take or PTO shaft.
In this book the operating, maintenance and storage instructions for all models of TYM Diesel Tractors
has been complied. This material has been prepared in detail to help you in the better understanding of
maintenance and efficient operation of the machine.
If you need any information not given in this manual, or require the services of a trained mechanic,
please get in touch with the TYM Dealer/Distributor in your locality. Dealer/Distributors are kept
informed of the latest methods of servicing Tractors. They stock genuine spare parts and are backed by
the Company’s full support.
Through this manual. The use of the terms LEFT,
RIGHT, FRONT and REAR must be understood,
to avoid any confusion when following the
introductions. The LEFT and RIGHT means left
and right sides of the Tractor when facing
forward in the driver’s seat, Reference to the
FRONT indicates the radiator end of the Tractor,
while the REAR, indicates the drawbar end
(illustration E)
When spare parts are required, always specify
the Tractor and engine serial number when
ordering these parts.(See illustration A).This will
facilitate faster delivery and help ensure that the
correct parts for your particular Tractor is
received. The tractor serial number is punched
on a plate attached to the left hand side of the
engine body (illust. A), For easy reference, we
suggest you to write the number in the space
provided in the owner’s personal data. illustration E
( Front, Rear,Left,Right Portion)
5

DESCRIPTION
■General construction
The transmission case, Clutch, Clutch housing, Engine and Front Axle Support are bolted together to form
a rigid unit
■Front Axle & Wheels
The 4WD front axle is a center-pivot, reverse Eliot type. The front wheel drive mechanism is incorporated
as a part of the axle.
The front wheel drive power is taken off the rear transmission and transmitted to the differential in the
front axle where the power is divided into right and left and to the respective final cases.
In the final cases, the transmitted revolution is reduced by the level gears to drive the front wheel. The
4WD mechanism with level gears provides wider steering and greater durability.
■Engine
The tractors are fitted with vertical, Water-cooled 4-cycle and spherical chamber type KUBOTA
ENGINES (T290/T300/T330)
■Clutch and Transmission
A single plate dry clutch(8.86″diameter) is used on these tractors. Tractor with IPTO(Independent Power
Take Off) are fitted with hydraulic Clutch Assy. The transmission Gear box has twelve forward speeds &
twelve reverse speeds of T290/T300/T330 with high-low selector lever, Presently, TYM Tractors are
fitted with partial synchro mesh type gears.
■Brakes
TYM tractors are provided with independent disc brakes operated by two road travel. A foot brake lever is
fitted for parking.
■Rear axle & Wheels
This is mounted on ball bearings and is enclosed in removable housing which are bolted to the
transmission case. The rim & Disc fitted with Rear tires are bolted to the outer flange of Rear Axle.
■Hydraulic system & Linkages.
TYM Tractors are fitted with Live (i.e. system is in operation even when clutch is disengaged.)
independent, very touch of hydraulic System. Three point Linkages can be used for category 1 type of
implements.
6

■Steering
It consists of Hydrostatic Power steering system, which has a hydraulic cylinder and tandem type
hydraulic pump
■Electrical System
A 12 Volt Lead Acid Propylene Battery is used to activate the Engine through the Starter Motor and the
Electrical system comprising Horn, Head Lamp, Side indicator Lamps, Plough Lamp, Brake Light,
Gauge lamp, Hazard Lamp. Generator or Alternator, Fuse box also from part of the Electrical system.
7

OWNER ASSISTANCE
We at TYM.CO.,LTD.and TYM Dealer/Distributor wants you to be completely satisfied with your
investment. Normally any problems with your equipment will be handled by your Dealer/Distributor’s
Service Departments, however, misunderstanding can occur. If you feel that your problem has not been
handled to your satisfaction, we suggest the following.
Contact the owner or General Manager of the Dealership, explain the problem, and request assistance.
When additional assistance is needed, Your Dealer/Distributor has direct access to your office. If you
cannot obtain satisfaction by doing this, contact the TYM CO.,LTD. Office and provide them with;
•Your name, address and telephone number
•Model and Tractor serial number
•Dealer/Distributor Name & Address
•Machine purchase date and Hours used
•Nature of problem
Before contacting TYM.CO.,LTD. office, be aware that your problem will likely to be resolved in the
Dealership using the Dealer’s/Distributor’s facilities, equipment and personnel.
So it is important that your initial contact be with the Dealer/Distributor.
8

(ROPS) Roll Over Protective Structures
Roll Over Protective Structures (ROPS)
TYM CO.,LTD Tractors are fitted with a frame for the protection of Operators of Tractors to
minimize the possibility of serious operator injury result from accidental upset. These are called as
ROPS and are characterized by providing space for the clearance zone inside the envelope of the
structure or within a space bounded by a series of straight lines from the outer edge of the tractor to
any part of the Tractor that might come in contact with flat ground and is capable of supporting the
Tractor in that position if the Tractor overturns.
The mounting structure and fasteners forming the mounting connection with the Tractor are part of the
ROPS.
Loosen and release the knob slowly and cautiously to fold down the ROPS. If Tractor is
operated with ROPS folded (E.g. to enter a low building) Drive with extreme caution
and do not use seat belt. Fold the ROPS up again before the Tractor is operated under
normal conditions.
Please note that in no condition. The tractor is to be operated without ROPS. Operating
the tractor without ROPS, with folded
ROPS with damaged ROPS or hardware can lead to fatal injuries
Caution
(ROPS) Maintenance and inspection
The ROPS has been certified to industry and/or government standards. Any damage or alteration to the
ROPS, mounting hardware or seat belt voids the certification and will reduce or eliminate protection for
the operator, in the event of a roll-over.
The ROPS, mounting hardware and seat belt should be checked after the first 100 hrs. of machine
operation and every 500 hrs thereafter for any evidence of damage wear or cracks. In the event of damage
or alteration the ROPS must be replaced prior to further operation of the machine. The seat belt must be
worn during machine operation when it is equipped with a certified ROPS. Failure to do so will reduce or
eliminate protection of the operate in the event of a roll-over. Substitution of mounting hardware, seat belt
etc. with components not equal to or superior to the original certified components will void the
certification and will reduce or eliminate protection for the operator in the event of a roll-over.
9

10
Damage of the ROPS
If the tractor has rolled over or the ROPS has damaged (such as striking an overhead object during transport),
It must be replaced to provide the original protection. After an accident, check for damages to the
1.ROPS.2.Seat 3.seat belt & seat mountings. Before you operate a Tractor, replace all damaged parts.
DO NOT WELD, DRILL OR STRAIGHTEN THE ROPS
Never attach chains, ropes to the ROPS for pulling purposes; this will cause
the Tractor to tip backwards. Always pull from the Tractor drawbar. Be
careful when driving through door opening or under low overhead objects.
Make sure there is sufficient overhead clearance for the ROPS fatal injuries
Warning
If the ROPS is removed or replaced, make certain that the proper hardware is
used to replace the ROPS and the recommended torque values are applied to
the attaching bolts
Warning
Always wear your seat belt if the tractor is equipped with ROPS
Warning

NOTE: Do not use solvents to clean the seat. Use warm water with a little detergent added.
Before operating a Tractor it is important to adjust the seat to the most comfortable position & check whether
it is properly locked in its position. Figure 1 identifies the seat fitted to your Tractor.
FOR Sliding seat
To select Seat position, move Adjusting lever and slide Seat closer to or away from Dash panel and controls.
Check whether the seat properly locked in its position before driving the tractor
Danger
11
Always use the seat belt when the ROPS is installed.Do not use the seat belt if a
foldable ROPS is down or there is no ROPS.Check the seat belt regularly and replace if
frayed or damaged
Danger
Figure 1
Seat Adjusting
Lever

SAFETY INSTRUCTIONS
DANGER
WARNING
CAUTION
SIGNAL WORDS.
A signal word―DANGER, WARNING OR CAUTION―is used
with safety alert symbol. DANGER identifies the most serious
hazards. Safety signs with signal Word ―DANGER OR
WARNING―are typically near specific hazards. General
precautions are listed on CAUTION safety signs.
READ SAFETY INSTRUCTION
Carefully read all safety instructions given in this manual for your
safety. Tempering with any of the safety devices can cause serious
injuries or death. Keep all safety signs in good condition. Replace
missing or damaged safety signs.
Keep your tractor in proper condition and do not allow any
unauthorized modifications to be carried out on the Tractor, which
may impair the function/safety and affect Tractor life.
PROTECTION CHILDREN
Keep children and others away from the Tractor while operating.
BEFORE YOU REVERSE
- Look behind Tractor for children.
- Do not let children to ride on Tractor or any implement.
12
RECOGNIZE SAFETY INFORMATION
This symbol means ATTENTION! YOUR SAFETY IS
INVOLVED. The message that follows the symbol contains
important information about safety. Carefully read the message

USE OF ROPS AND SEAT BELT
The Roll Over Protective Structure(ROPS) has been certified to industry
and/or government standards. Any damage or alternation to the ROPS,
mounting hard-ware, or seat belt voids the certification and will reduce
or eliminate protection for the operator in the event of a roll-over. The
ROPS, mounting hardware, and seat belt should be checked after the
first 100 hours of Tractor and every 500 hours thereafter for any
evidence of damage, wear or cracks. In the event of damage or
alteration, the ROPS must be replaced prior to further operation of the
Tractor.
The seat belt must be worn during machine operation when the machine
is equipped with a certified ROPS.
Failure to do so will reduce or eliminate protection for the operator in
the event of a roll over.
PRECAUTION TO AVOID TIPPING
Do not drive where the Tractor could slip or tip.
Stay alert for holes and rocks in the terrain, and other hidden hazards.
Slow down before you make a sharp turn.
Driving forward out of a ditch or mired condition could cause Tractor to
tip over backward. Back out of these situations if possible
PARK TRACTOR SAFELY
Before working on the Tractor ;
Lower all equipment to the ground.
Stop the engine and remove the key
KEEP RIDERS OFF TRACTOR
Do not allow riders on the Tractor.
Riders on Tractor are subject to injury such as being stuck by foreign
objects and being thrown off of the Tractor
13

HANDLE FUEL SAFELY-AVOID FIRES
Handle fuel with care; it is highly flammable. Do not refuel the Tractor
while smoking or near open flame or sparks.
Always stop engine before refueling Tractors.
Always keep your tractor clean of accumulated grease, and debris.
Always clean up spilled fuel.
STAY CLEAR OF ROTATING SHAFTS
Entanglement in rotating shaft can cause serious injury or death.
Keep PTO shield in place at all times.
Wear close fitting clothing. Stop the engine and be sure PTO drive is
stopped before making adjustments, connections, or cleaning out PTO
driven equipment.
ALWAYS USE SAFETY LIGHTS AND DEVICES
Use of hazard warning lights and turn signals are recommended when
towing equipment on public roads unless prohibited by state or local
regulations.
Use slow moving vehicle (SMV) sign when driving on public road
during both day & night time, unless prohibited by law
PRACTICE SAFE MAINTENANCE
Understand service procedure before doing work.
Keep the surrounding area of the Tractor clean and dry.
Do not attempt to service Tractor when it is in motion.
Keep body and clothing away from rotating shafts.
Always lower equipment to the ground. Stop the engine.
Remove the key. Allow Tractor to cool before any work repair is
caused on it.
Securely support any Tractor elements that must be raised for
service work.
Keep all parts in good condition and properly installed.
Replace worn or broken parts. Replace damage/missing decals.
Remove any buildup of grease or oil from the Tractor.
Disconnect battery ground cable(−) before making adjustments on
electrical systems or welding on Tractor
14
