FOREWARD
Thank you very much for purchasing our tractor, which, we feel sure, will give you many years of
troubling the service.
The introduction in this manual set out the correct manner of operating, maintaining and checking
the tractor to ensure long-term durability.
Please ensure correct operation of the tractor as incorrect operation can cause substantial
mechanical damage as well as cause accidents with the associated injuries.
Please note that in some cases differences can exist between this manual and your tractor due to the
manufacture’s policy of constant product improvement.
In the event that you strike a problem not covered by this manual please contact your nearest dealer
who will assist you in resolving your problem.
WARNING
CALIFORNIA Proposition 65 Warning
The Engine Exhaust from this product contains chemicals known to the
state of California to cause cancer,birth defects or other reproductive harm
WARNING SIGNS IN THIS MANUAL
1
WARNING SIGNS IN THIS MANUAL
The following warning signs in this manual draw additional attention to items of importance for the
safe and correct operation of the tractor.
Caution
Danger
Warning
Important
SIGN MEANING OF THE SIGN
Serious hazard with a very high level of risk of either serious
injury or death
Hazard or unsafe practice that can lead to severe injury or death.
Hazard or unsafe practice that can lead in injury or death.
Instructions for the correct operation of the machine which, if
followed, will ensure that it performs at it’s best
All information,illustrations and specifications in this manual are based on latest information
available at the time of publication.The right is reserved to make changes at any time without notice.

CONTENTS
1. Tractor Identification 3
2. About this manual 4
3. Introduction & description 5~7
4. Owner assistance 8~9
5. ROPS (Roll over protection structures)
6. Safety instructions, Do’s & Don’ts 10~23
7. Safety signs 24~27
8. Universal symbols 28
Section A
9. Controls, Instruments & Operations 29~50
Section B
10. Lubrication & maintenance 51~74
Sr. No. Description Page No.
Section C
11. CABIN 75~83
12. Air conditioning system 84~94
Section D
13. Specifications 95~97
14. Fuel saving Tips 98~99
15. Fault tracing 100~103
16. Wiring Diagram 104~110
17. Tractor history card 111
18. Service record 112
19. Daily operating Log 113
20. Part replacement record 114
All information, illustrations and specifications in this manual are based on latest information
available at the time of publication. The right is reserved to make changes at any time without notice.
2

TRACTOR IDENTIFICATION
The engine number is stamped on the left hand side of the engine block.
The chassis number is shown on the left hand side of the tractor as shown in the drawing.
WARRANTY OF THE PRODUCT.
The manufacturer warrants this product and full details of the warranty are provided on a separate
warranty schedule.
SERVICE.
Service is available from any TYM dealer in the country.
PARTS.
To obtain spare parts please contact your nearest dealer and give him the details listed below.
Tractor model
Tractor serial number
Tractor engine number
Part number and description
Quantity required.
3
Illustration A

ABOUT THIS MANUAL
This manual has been prepared to assist you in following/adopting the correct procedure for
running-in operation and maintenance of your new TYM CO.,LTD (Here in after refer to TYM)
Tractor.
Your Tractor has been designed and built to give maximum performance, with good fuel economy
and ease of operation under a wide variety of operating conditions. Prior to delivery, The tractor
was carefully inspected, both at the factory and by your TYM Dealer/Distributor, to ensure that it
reaches you in optimum conditions .To maintain this condition and ensure trouble free performance.
it is important that the routine services, as specified in this manual, are carried out at the
recommended intervals.
Read this Manual carefully and keep it in a convenient place for future reference. If at any time you
require advice concerning your Tractor, do not hesitate to contact your Authorized TYM
dealer/Distributor. He has trained personnel, genuine parts and necessary equipments to undertake
all your service requirements.
Manufacturer’s policy is one of continuous improvement, and the right to change prices,
specifications or equipments at any time without notice is reserved.
specifications or equipments at any time without notice is reserved.
All data given in this book is subject to production variations. Dimensions & weight are
approximate only and the illustrations do not necessarily show Tractors in standard condition. For
exact information about any particular Tractor, please consult your TYM dealer/Distributor.
4

Introduction & Description
TRACTOR AN INTRODUCTION
The word, ’Tractor’ has been derived from ‘Traction’ which means pulling.
A Tractor is required to pull or haul an equipment, implement or trolley which are coupled to the
Tractor body through suitable linkage. A Tractor can also be used as a prime mover as it has a power
outlet source which is also called Power Take or PTO shaft.
In this book the operating, maintenance and storage instructions for all models of TYM Diesel
Tractors has been complied. This material has been prepared in detail to help you in the better
understanding of maintenance and efficient operation of the machine.
If you need any information not given in this manual, or require the services of a trained mechanic,
please get in touch with the TYM Dealer/Distributor in your locality. Dealer/Distributors are kept
informed of the latest methods of servicing Tractors. They stock genuine spare parts and are backed
by the Company’s full support.
Through this manual. The use of the terms
LEFT, RIGHT, FRONT and REAR must be
LEFT, RIGHT, FRONT and REAR must be
understood, to avoid any confusion when
following the introductions. The LEFT and
RIGHT means left and right sides of the
Tractor when facing forward in the driver’s
seat, Reference to the FRONT indicates the
radiator end of the Tractor, while the REAR,
indicates the drawbar end (illustration E)
When spare parts are required, always specify
the Tractor and engine serial number when
ordering these parts.(See illustration A).This
will facilitate faster delivery and help ensure
that the correct parts for your particular
Tractor is received. The tractor serial number
is punched on a plate attached to the left hand
side of the engine body (illus.A) ,For easy
reference, we suggest you to write the number
in the space provided in the owner’s personal
data.
Illustration E
( Front, Rear,Left,Right Portion)
5

DESCRIPTION
■
■■
■General construction
The transmission case, Clutch, Clutch housing, Engine and Front Axle Support are bolted together to
form a rigid unit
■
■■
■Front Axle & Wheels
The 4WD front axle is a center-pivot, reverse Eliot type. The front wheel drive mechanism is
incorporated as a part of the axle.
The front wheel drive power is taken off the rear transmission and transmitted to the differential in
the front axle where the power is divided into right and left and to the respective final cases.
In the final cases, the transmitted revolution is reduced by the level gears to drive the front wheel.
The 4WD mechanism with level gears provides wider steering and greater durability.
■
■■
■Engine
The tractors are fitted with vertical, Water-cooled 4-cycle and spherical chamber type KUBOTA
ENGINES(T431)
■
■■
■Clutch and Transmission
A single plate dry clutch(10.24″diameter) is used on these tractors. Tractor with IPTO(Independent
Power Take Off) are fitted with hydraulic Clutch Assy. The transmission Gear box has sixteen
forward & sixteen reverse speeds of T431/T451 with high-low selector lever, Presently, TYM
Tractors
are
fitted
with
partial
synchro
mesh
type
gears
.
Tractors
are
fitted
with
partial
synchro
mesh
type
gears
.
■
■■
■Brakes
TYM tractors are provided with independent disc brakes operated by two road travel. A foot brake
lever is fitted for parking.
■
■■
■Rear axle & Wheels
This is mounted on ball bearings and is enclosed in removable housing which are bolted to the
transmission case. The rim & Disc fitted with Rear tires are bolted to the outer flange of Rear Axle.
■
■■
■Hydraulic system & Linkages.
TYM Tractors are fitted with Live (i.e. system is in operation even when clutch is disengaged.)
independent, very touch of hydraulic System. Three point Linkages can be used for category 1 type
of implements.
6

■
■■
■Steering
It consists of Hydrostatic Power steering system, which has a hydraulic cylinder and tandem type
hydraulic pump
■
■■
■Electrical System
A12 Volt Lead Acid Propylene Battery is used to activate the Engine through the Starter Motor and
the Electrical system comprising Horn, Head Lamp. Side indicator Lamps, Plough Lamp, Brake
Light, Gauge lamp, Hazard Lamp. Generator or Alternator, Fuse box also from part of the Electrical
system.
7

OWNERASSISTANCE
We at TYM CO.,LTD and your TYM Dealer/Distributor wants you to be completely satisfied with
your investment. Normally any problems with your equipment will be handled by your
Dealer/Distributor’s Service Departments, however, misunderstanding can occur. If you feel that
your problem has not been handled to your satisfaction, we suggest the following.
Contact the owner or General Manager of the Dealership, explain the problem, and request
assistance. When additional assistance is needed, Your Dealer/Distributor has direct access to your
office. If you cannot obtain satisfaction by doing this, contact the TYM CO.,LTD. Office and
provide them with;
• Your name, address and telephone number
• Model and Tractor serial number
•
Dealer/Distributor Name & Address
•
Dealer/Distributor Name & Address
• Machine purchase date and Hours used
• Nature of problem
Before contacting TYM CO.,LTD office, be aware that your problem will likely to be resolved in
the Dealership using the Dealer’s/Distributor’s facilities, equipment and personnel. So it is
important that your initial contact be with the Dealer/Distributor.
8

(ROPS) Roll Over Protective Structures
Roll Over Protective Structures (ROPS)
TYM Tractors are equipped with a frame for the protection of operators.
In the case of cab tractors the frame is incorporated in the cab structure.
The objective of the frame or cab structure is to protect the operator in the event of a roll over
and they are designed to support the entire weight of the tractor in that event.
Each TYM ROPS frame or cab structure is designed and has been tested to meet industry and or
Government standards.
Included in these tests were all mounting bases and bolts or other fasteners.
DANGER
For ROPS frames to be effective and protect the operator, the seat belt provided must be
worn in order to keep operators within the ROPS protected area in the event of a roll over.
Failure to use the seat belt can still cause serious injury or death.
On some models the ROPS frame has a fold down feature, which can be used to enter low
buildings etc.
Take care when lowering the upper section of the ROPS frame and take extreme care while
9
driving the tractor with the ROPS frame lowered.
Do not wear the seat belt with the ROPS lowered and please remember that the fold down facility
is for special circumstances only and must not be lowered for general use.
Use of the tractor with the ROPS lowered can cause fatal injuries.
As the ROPS frame or cab together with the seat belt was designed to meet certain standards,
they must be maintained in good order and condition.
To achieve this objective, both the structure and the seat belt should be inspected on a regular
basis (every time the tractor is serviced)
In the event that the seat belt is damaged or frayed, it should be replaced and in the event that the
ROPS frame or any part of the mounting structure is damaged or cracked, the faulty component
must be replaced with a new unit.
Such a unit must meet all of the test criteria of the original unit.
Fitment of an inferior item or items affects the certification of the entire ROPS structure and the
effectiveness of the structure in the event of an accident.
Drilling or welding of the ROPS structure is forbidden.

Damage of the ROPS
If the tractor has rolled over or the ROPS has damaged (such as striking an overhead object during
transport), It must be replaced to provide the original protection. After an accident, check for damages
to the 1.ROPS.2.Seat 3.seat belt & seat mountings. Before you operate a Tractor, replace all damaged
parts.
10
DO NOT WELD, DRILL OR STRAIGHTEN THE ROPS
Warning
Never attach chains, ropes to the ROPS for pulling purposes; this will
cause the Tractor to tip backwards. Always pull from the Tractor drawbar.
Be careful when driving through door opening or under low overhead
objects. Make sure there is sufficient overhead clearance for the ROPS
fatal injuries
Warning
If the ROPS is removed or replaced, make certain that the proper hardware
is used to replace the ROPS and the recommended torque values are
applied to the attaching bolts
Warning
Always wear your seat belt if the tractor is equipped with ROPS

NOTE: Do not use solvents to clean the seat. Use warm water with a little detergent added.
Before operating a Tractor it is important to adjust the seat to the most comfortable position & check
whether it is properly locked in its position. Figure 1 identifies the seat fitted to your Tractor.
FOR Sliding seat
To select Seat position, move Adjusting lever and slide Seat closer to or away from Dash panel and
Seat Adjusting Lever
Fig.1
To select Seat position, move Adjusting lever and slide Seat closer to or away from Dash panel and
controls.
Danger
Check whether the seat properly locked in its position before driving the
tractor
11

SAFETY INSTRUCTIONS
SIGNALWORDS.
Asignal word―DANGER, WARNING OR CAUTION―is
used with safety alert symbol. DANGER identifies the most
serious hazards. Safety signs with signal Word ―DANGER OR
WARNING―are typically near specific hazards. General
precautions are listed on CAUTION safety signs.
DANGER
WARNING
CAUTION
RECOGNIZE SAFETY INFORMATION
This symbol means ATTENTION! YOUR SAFETY IS
INVOLVED. The message that follows the symbol contains
important information about safety. Carefully read the message
READ SAFETY INSTRUCTION
Carefully read all safety instructions given in this manual for
your safety. Tempering with any of the safety devices can
cause serious injuries or death. Keep all safety signs in good
condition. Replace missing or damaged safety signs.
Keep your tractor in proper condition and do not allow any
unauthorized modifications to be carried out on the Tractor,
which may impair the function/safety and affect Tractor life.
PROTECTION CHILDREN
Keep children and others away from the Tractor while
operating.
BEFORE YOU REVERSE
- Look behind Tractor for children.
- Do not let children to ride on Tractor or any
implement.
12

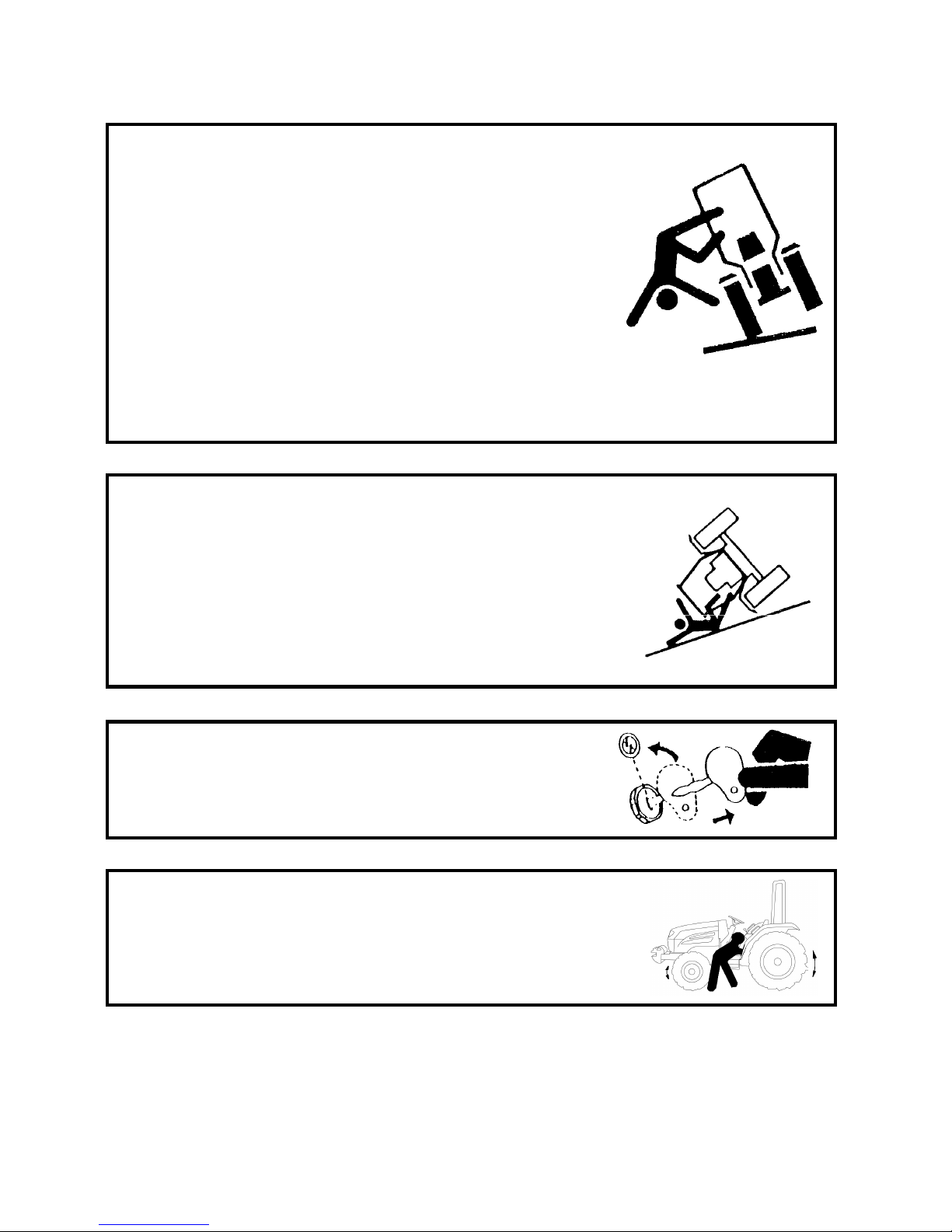

USE OF ROPS AND SEAT BELT
The Roll Over Protective Structure(ROPS) has been certified to
industry and/or government standards. Any damage or alternation to
the ROPS, mounting hard-ware, or seat belt voids the certification
and will reduce or eliminate protection for the operator in the event
of a roll-over. The ROPS, mounting hardware, and seat belt should
be checked after the first 100 hours of Tractor and every 500 hours
thereafter for any evidence of damage, wear or cracks. In the event
of damage or alteration, the ROPS must be replaced prior to further
operation of the Tractor.
The seat belt must be worn during machine operation when the
machine is equipped with a certified ROPS.
Failure to do so will reduce or eliminate protection for the operator
in the event of a roll over.
PRECAUTION TO AVOID TIPPING
Do not drive where the Tractor could slip or tip.
Stay alert for holes and rocks in the terrain, and other hidden
hazards.
Slow down before you make a sharp turn.
Driving forward out of a ditch or mired condition could cause
Driving forward out of a ditch or mired condition could cause
Tractor to tip over backward. Back out of these situations if
possible
PARK TRACTOR SAFELY
Before working on the Tractor ;
Lower all equipment to the ground.
Stop the engine and remove the key
KEEPRIDERS OFF TRACTOR
Do not allow riders on the Tractor.
Riders on Tractor are subject to injury such as being stuck by
foreign objects and being thrown off of the Tractor
13

HANDLE FUEL SAFELY-AVOID FIRES
Handle fuel with care; it is highly flammable. Do not refuel the
Tractor while smoking or near open flame or sparks.
Always stop engine before refueling Tractors.
Always keep your tractor clean of accumulated grease, and debris.
Always clean up spilled fuel.
STAYCLEAR OF ROTATING SHAFTS
Entanglement in rotating shaft can cause serious injury or death.
Keep PTO shield in place at all times.
Wear close fitting clothing. Stop the engine and be sure PTO drive
is stopped before making adjustments, connections, or cleaning out
PTO driven equipment.
ALWAYS USE SAFETY LIGHTS AND DEVICES
Use of hazard warning lights and turn signals are recommended
when towing equipment on public roads unless prohibited by state
or local regulations.
Use slow moving vehicle (SMV) sign when driving on public road
during both day & night time, unless prohibited by law
during both day & night time, unless prohibited by law
PRACTICE SAFE MAINTENANCE
Understand service procedure before doing work.
Keep the surrounding area of the Tractor clean and dry.
Do not attempt to service Tractor when it is in motion.
Keep body and clothing away from rotating shafts.
Always lower equipment to the ground. Stop the engine.
Remove the key. Allow Tractor to cool before any work repair is
caused on it.
Securely support any Tractor elements that must be raised for
service work.
Keep all parts in good condition and properly installed.
Replace worn or broken parts. Replace damage/missing decals.
Remove any buildup of grease or oil from the Tractor.
Disconnect battery ground cable(−) before making adjustments on
electrical systems or welding on Tractor
14

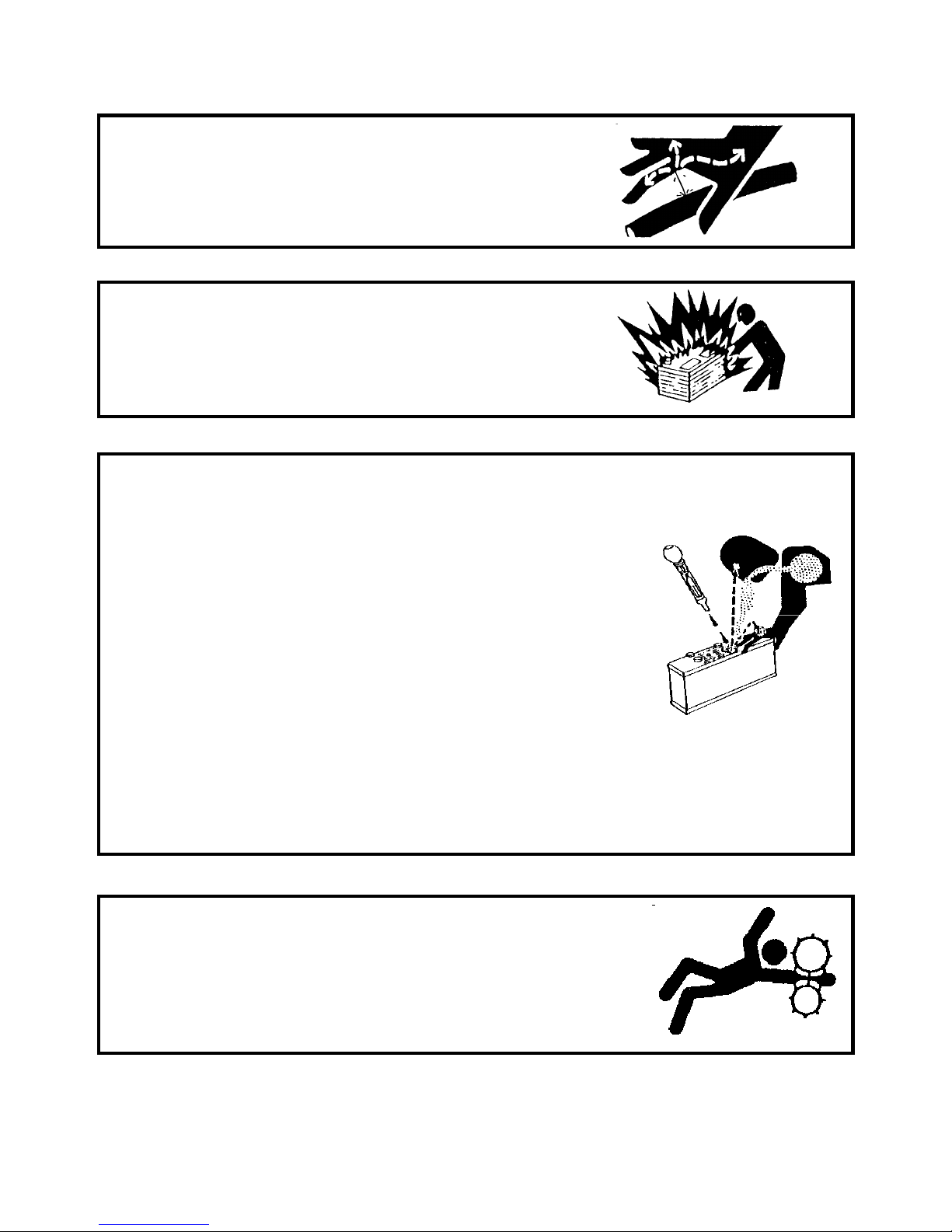

AVOID HIGH-PRESSURE FLUIDS
Escaping fluid under pressure can penetrate the skin causing
serious injury. Keep hands and body away from pinholes and
nozzles, which eject fluids under high pressure. If ANY fluid is
injected into the skin. Consult your doctor immediately.
PREVENT BATTERY EXPLOSIONS
Keep sparks, lighted matches, and open flame away from the top of
battery. Battery gas can explode.
Never check battery charge by placing a metal object across the poles.
PREVENTACID BURNS
Sulfuric acid in battery electrolyte is poisonous. It is strong enough to
burn skin, cause holes in clothing and cause blindness if found entry
into eyes.
For adequate safety always;
1.Fill batteries in a well-ventilated area.
2.Wear eye protection and acid proof hand gloves
3.Avoid breathing direct fumes when electrolyte is added.
4. Do not add water to electrolyte as it may splash off causing severe
burns.
If you spill acid on yourself;
1.Flush your skin with water.
2.Flush your eyes with water for 10-15 minutes.
Get medical attention immediately.
SERVICE TRACTOR SAFELY
Do not wear a necktie, scarf or loose clothing when you work near
moving parts. If these items were to get caught, severe injury could result.
Remove rings and other jeweler to prevent electrical shorts and
entanglement in moving parts.
15

TRACTOR RUNAWAY
1. The tractor can start even if the transmission is engaged position causing Tractor to runaway and
serious injury to the people standing nearby the tractor.
2. For additional safety keep the pull to stop knob (fuel shut off control) in fully pulled out position.
Transmission in neutral position, Foot brake engaged and PTO lever in disengaged position while
attending to Safety Starter Switch or any other work on Tractor.
SAFETY STARTER SWITCH
1. Clutch operated safety switch is provided on all Tractors which allow the starting system to
become operational only when the Clutch pedal is fully pressed.
2. Do not By-pass this safety starter switch or work on it. Only Authorized Dealers are
WORK IN VENTILATEDAREA
Do not start the Tractor in an enclosed building unless the doors &
windows are open for proper ventilation, as tractor fumes can cause
sickness or death. If it is necessary to run an engine in an enclosed area
remove the exhaust fumes by connecting exhaust pipe extension.
Safety Starter Switch is to be replaced after every 2000 hours/4 years,
whichever is earlier
recommended to work on safety starter switch.
3. On some models Safety Starter switch is provided on transmission High-low shifter lever and in
PTO shifter lever.The tractor can be started only if High-low shifter lever is in neutral position.
16
Caution

SAFE OPERATION OFYOUR TRACTOR
The manufacturer of your tractor has made every effort to make it as safe as is humanly possible.
Beyond this point it is the responsibility of the operator to avoid accidents and we ask that you read and
implement our suggestions for your safety.
Ensure that only trained and competent operators use this tractor and ensure that they are fully
conversant with the machine and aware of all it’s control and safety features.
Operators should not operate the tractor or associated machinery while tired or untrained.
To avoid accidents please ensure that the operator wears clothing which will not get entangled in the
moving parts of the tractor or machine and protect him or her from the elements.
When spraying or using chemicals, please ensure that clothing and protective equipment is worn which
prevents respiratory or skin problems.
For full details consult the manufacturer of the chemicals.
17
To avoid lengthy exposure to noise ensure that ear protection is worn.
If adjustment to the tractor or machinery need to be made ensure the tractor or machine are turned off
beforehand.
Use of certified Roll Over Protection Structure (ROPS) is a must while operating a tractor.
Use of seat belt is a must while operating a tractor.
In summary, ensure at all times that the safety of the operator and any other worker is paramount.

SAFETYTIPS DURING MAINTENANCE
1.At least on a daily basis check all oil levels. Water level in the radiator and electrolyte level in
the battery and perform services according to the service schedule.
2. Ensure tire pressure are even and the correct pressure for the job being done is maintained.
3. Check to ensure that the all controls and preventative mechanisms of the Tractor and implement
work correctly and effectively.
4. Ensure that an adequate set of the correct tools is available for maintenance and minor repairs.
5. Ensure that all service work and repairs are carried out on a flat area with a concrete or similar
floor.
Do not carry out service work on a tractor until it is switched off, and the parking brake applied
and wheels choked.
Where a tractor is started in a confined area, ensure that the area is well ventilated as exhaust
gases are very harmful, and can cause death.
6. Do not work under raised implements.
7.
When changing wheels or tires ensure that a suitable wheel stand is placed under the axle prior
18
7.
When changing wheels or tires ensure that a suitable wheel stand is placed under the axle prior
to removing the wheel and the wheels are chocked.
8. Where guards or shields need to be removed to perform a service or repair, ensure that the
guard or shield is correctly reinstalled before starting the Tractor.
9. Never refuel near a naked flame or with an overheated engine. Ensure to turn off Engine
before refueling.
10. The cooling system operates under pressure, take care when removing the Radiator cap on a
hot engine to prevent being scalded by steam or hot water. Do not add water in the radiator
when the engine is hot. Add water to the radiator only after the engine cools down completely.
11.To prevent fires keep the tractor including the engine clean and free from inflammable material
and well away from fuels and other inflammable material.

►
►►
►MOUNTING AND DEMOUNTING IMPLEMENTS
(1)Ensure that all mounting and removal of implements is done on safe flat ground. Ensure no one
is between the Tractor and implement and do not get under the implement to avoid accidental
injuries.
(2) After mounting the implement, ensure that all sway chains are correctly adjusted and, where
PTO shafts are used that the shaft is fitted and secured correctly.
(3) Where heavy implements are used, ensure that the combination is well balanced or use proper
ballast to achieve balance.
(4) Before leaving the tractor at any time, lower the implement, stop the PTO shaft where
applicable, set the parking brake and switch off the engine.
(5) While operating the implements with the PTO keep all bystanders away from any moving parts
and do not attempt to make adjustments while the machine is running.
(6) Only the driver should ride on the Tractor with the ROPS frame fitted and with the seat belt
properly fastened.
(7) Where young children are present, particular care should be taken and the tractor should not be
moved until the whereabouts of all children is known.
(8) Only trained operators should operate the Tractor and so taking care to ensure that other
workers are not injured. In particular they should take care during dusty operations, which will
reduce visibility substantially.
(9) Never start the tractor unless the transmission is out of gear, the operator is in the seat and all
round safety has been checked.
(10) Only operate the tractor seated in the drivers seat and never turn or brake suddenly at high
speed as this can cause a roll
-
over and serious injury or death.
19
speed as this can cause a roll
-
over and serious injury or death.
(11) When traveling on a public road ensure that the tractor and driver both meet all laws relating to
safety and licensing. When traveling with wide implements use red flags on the extremities and
observe all legal including escort requirements.
(12) When operating under adverse conditions, hilly terrain or on bad ground adjust the speed of the
tractor to suit the conditions, safety comes first. Never drive down hill at high speed or with the
transmission in neutral. Use of the braking capacity of the engine as well as the service brakes.
Do not try to change gear going up or down a steep slope, select the correct gear before
starting.
(13) Take care when traveling uphill with a heavy implement to ensure that it does not overbalance
and tip up the front end.
(14) Never remove or modify the seat belt.
(15) Never remove, modify or repair the ROPS frame.
PLEASE REMEMBER THATA LITTLE BIT OF EXTRACARE CAN PREVENT SERIOUS
INJURY OR TEATHANDAVOID DAMAGE TO YOUR TRACTOR.
