TYROLIT Hydrostress TME1000P Guide

Operating manual
Spare parts list
Stone cutoff saw
TME1000P
Index «001 »
10997855 EN I 25.04.2019

2
Manufacturer's address:
TYROLIT Hydrostress AG
Witzbergstrasse 18
CH-8330 Pfäffikon
Switzerland
Tel. [phone]
Fax [phone]
e-mail: [e-mail]
www.hydrostress.com
TYROLIT Hydrostress AG reserves the right to make technical changes without prior notice.
Copyright© 2014 TYROLIT Hydrostress AG, CH-8330 Pfäffikon ZH, Switzerland
All rights reserved, in particular copyrighting and translating rights.
Printing of this operating manual, including extracts from it, is prohibited. No parts of it may be
reproduced in any form or processed using electronic systems, duplicated or disseminated without the
written permission of TYROLIT Hydrostress AG.

3
Preface to the operating manual
This operating manual makes it easier to become familiar with the machine and to use it properly.
The operating manual contains important information on how to operate the machine safely, properly and
efficiently. Following the operating manual helps avoid danger, avoid repair costs and downtime, and
increase the machine's reliability and life.
The operating manual must be supplemented with instructions based on national regulations for accident
prevention and environmental protection.
The operating manual must always be readily available at the location where the machine is used.
The operating manual must be read and used by any person assigned tasks with the machine, such as:
- operation, including set-up, repair of malfunctions during operation, disposal of production
waste, maintenance, disposal of materials
- maintenance (service, inspection, or repair) and/or Transport
In addition to the operating manual and the regulations for accident prevention in force in the country and
at the location where the machine is used, recognised technical rules for safe and correct operation must
befollowed.
Table of contents
1. Basic safety instructions
2. Machine description
3. Assembly and initial preparation for operation
4. Transport
5. Operation
6. Disassembly
7. Maintenance
8. Malfunctions
9. Electric scheme
10. Declaration of conformity

4
1. Basic safety instructions
1.1 Warnings and symbols in this manual
Danger! Points out that serious or even fatal injuries may result if not followed.
Caution! Points out that injuries may result if not followed.
Notice! Points out that damage to the machine or other equipment may result if not followed.
1.2 Principle of intended use
Danger! 1.2.1 The stone cutoff saw is designed exclusively for wet sawing of building blocks made of
mineral materials. Sawing of wood or metal is prohibited!
The manufacturer/supplier is not liable for damages resulting from improper use.
Compliance with the operating manual and observation of inspection and service
requirements are essential components of proper use.
1.2.2 Use the machine only in correct working order and for its intended purpose. The operator
must follow the instructions in the operating manual and be fully aware of the safety
requirements and hazards posed by the machine. In particular, any faults that may
compromise safety must be
repaired immediately.
1.3 Organisational measures
1.3.1 Always keep the operating manual readily available at the location where the machine is used!
Danger! 1.3.2 lnstruct users to observe supplements to the operating manual as weil as all generally
applicable legal and other mandatory regulations on accident prevention and
environmental protection!
Obligations of this nature may also relate to the use of dangerous substances, for
example, or the wearing of personal protective equipment or to road traffic regulations.
Danger! 1.3.3 Personnel assigned to work with the machine must have read the
operating instructions and, in particular, the chapter on safety before beginning work.
Reading the manual for the first time when working on the machine is too late.
This applies especially to persons who work on the machine only occasionally, such as
those performing set-up and maintenance.

5
1.3.4 Check at least from time to time whether personnel are performing the work in
compliance with the operating manual and paying attention to risks and safety
factors!
Caution! 1.3.5 Use personal protective equipment where necessary or if required by regulations.
Danger! 1.3.6. Obey all safety and danger notices on the machine!
Danger! 1.3.7 Ensure that all safety and danger notices on the machine remain clearly legible!
Danger! 1.3.8 In the event of safety-relevant changes to the machine or its operating performance,
stop the machine immediately and report the malfunction to the responsible
authorities/ person!
Danger! 1.3.9 Never make any modifications, additions or conversions which might affect safety
without the supplier's approval!
Danger! 1.3.10 Use only manufacturer's original parts!
Danger! 1.3.11 Observe the stipulated periods or the periods given in the operating manual for
inspections! The machine must be inspected annually by an expert.
1.3.12 The machine must be thoroughly cleaned before inspection.
Danger! 1.3.13 The power cord must be unplugged before all inspection or repair work.
1.4 Personnel selection and qualification; fundamental duties
Danger! 1.4.1 Only persons aged 18 years and over and who have been instructed on how
to operate the machine may be entrusted with operating it independently.
Danger! 1.4.2
Danger! 1.4.3
Danger! 1.4.4
People must not remain unnecessarily on the machine or in its area of movement!
During all machine movements, operating personnel must always ensure that they
do not endanger themselves or others.
Work on electrical equipment on the machine may only be carried out by an
electrician or by instructed persons under the guidance and supervision of an
electrician in
accordance with electrical regulations.
Danger! 1.4.5 Personnel who are being trained, instructed or in training as part of a general
education programme may only be permitted to work on the machine while under
the constant supervision of an experienced person!

6
1.5 Safety instructions during specific operating phases
1.5.1 Normal operation
1.5.1.1 Avoid all actions and working methods which may compromise safety .
Danger! 1.5.1.2 Take steps to ensure that the machine is operated only in a safe and proper
condition!
1.5.1.3 Check the machine for visible external damage and defects at least once per shift.
lmmediately report any changes (including in operational performance) to the appropriate
office/individual! lf necessary, stop the machine immediately and make it secure.
Danger! 1.5.1.4 In case of malfunction, stop the machine immediately and make it
secure. lmmediately repair any malfunctions!
Danger! 1.5.1.5 The stone cutoff saw is designed exclusively for wet sawing of building blocks.
Sawing of wood or metal is prohibited!
Danger! 1.5.1.6 The machine must not be connected to a circuit without a ground-fault circuit
interrupter (FI) in the electrical line or distribution box.
Danger! 1.5.1.7 Before beginning cutting operations each day, check the following:
- condition of the diamond saw blade (cracked saw blades must be replaced - when
in doubt, by an expert)
- functional condition of the safety devices
- adequate cooling water supply - dry sawing is not permitted!
Danger! 1.5.1.8 Do not jam saw blade.
Danger! 1.5.1.9 The electrical plug must not be pulled when the machine is running.
Notice! 1.5.1.10 When there is danger of freezing, remove the water pump from the pan
(do not switch on pumps that are already frozen - thaw them out slowly).
1.5.2 Special work in conjunction with use of the machine and maintenance and repairs
during operation; disposal
Caution! 1.5.2.1 Observe all the setting, maintenance and inspection activities and timetables,
including instructions for replacing parts/secondary devices, as described in the
operating manual! Only technically qualified personnel should carry out these
activities.
Caution! 1.5.2.2 Brief operating personnel before beginning special operations and maintenance
work! Appoint supervisory personnel.
Danger! 1.5.2.3 lf the machine is completely shut down during maintenance and repair work, it must
be mechanically secured to prevent accidental activation.

7
Note 1.5.2.4 Before cleaning the machine with water or other cleaning agents, cover/seal all
openings that, for reasons of safety and/or functioning, water/steam/cleaning agents
must not be allowed to enter. Particularly endangered are electrical motors, switches
and plug connections. Cleaning with a steam jet is not permitted.
Note 1.5.2.5 After cleaning, the covers and tapes must be removed completely!
Danger! 1.5.2.6 Always tighten loose screw connections during servicing and maintenance work!
Danger! 1.5.2.7 Any safety devices removed during set-up, maintenance or repair must be
reinstalled and checked immediately upon completion of the maintenance and repair
work!
1.5.2.8 Dispose of fuel and consumable materials and replacement parts in a safe and
environmentally-friendly manner!
1.6 Notice on specific hazard types
1.6.1 Electricity
Danger! 1.6.1.1 Only use original fuses with the specified amperage! lf the electrical power supply is
interrupted, shut down the machine immediately!
Danger! 1.6.1.2 Perform maintenance or repair work only when the machine is separated from the
electric circuit.
Danger! 1.6.1.4 The electrical equipment on the machine should be inspected/checked on a regular
basis. Defects, such as loose connections or scorched cables, must be repaired
immediately .
1.6.2 Dust
1.6.2.1 Observe applicable national regulations when working in enclosed spaces!

8
1.7 Transport
Danger! 1.7.1 Use a four ring suspension gear of sufficient carrying force when dislocating
the machine.
Danger! 1.7.2 Determine an expert to give the appropriate handling instructions for the lifting
procedure!
Danger! 1.7.3 Lift machine according to the instructions as provided in the operation manual
(stop points for load carrying devices etc.) by means of the lifting gear in a
workmanlike manner!
Danger! 1.7.4 Use only suitable transport vehicles with sufficient lifting capacities!
Danger! 1.7.5 Secure the load reliably. Use suitable lifting points!
Danger! 1.7.6 Disconnect all power sources before moving the machine, even for very short
distances! Ensure that the machine is correctly reconnected to the power supply
before restarting!
Danger! 1.7.7 Restart the machine strictly in accordance with the operating manual!

9
2. Machine description

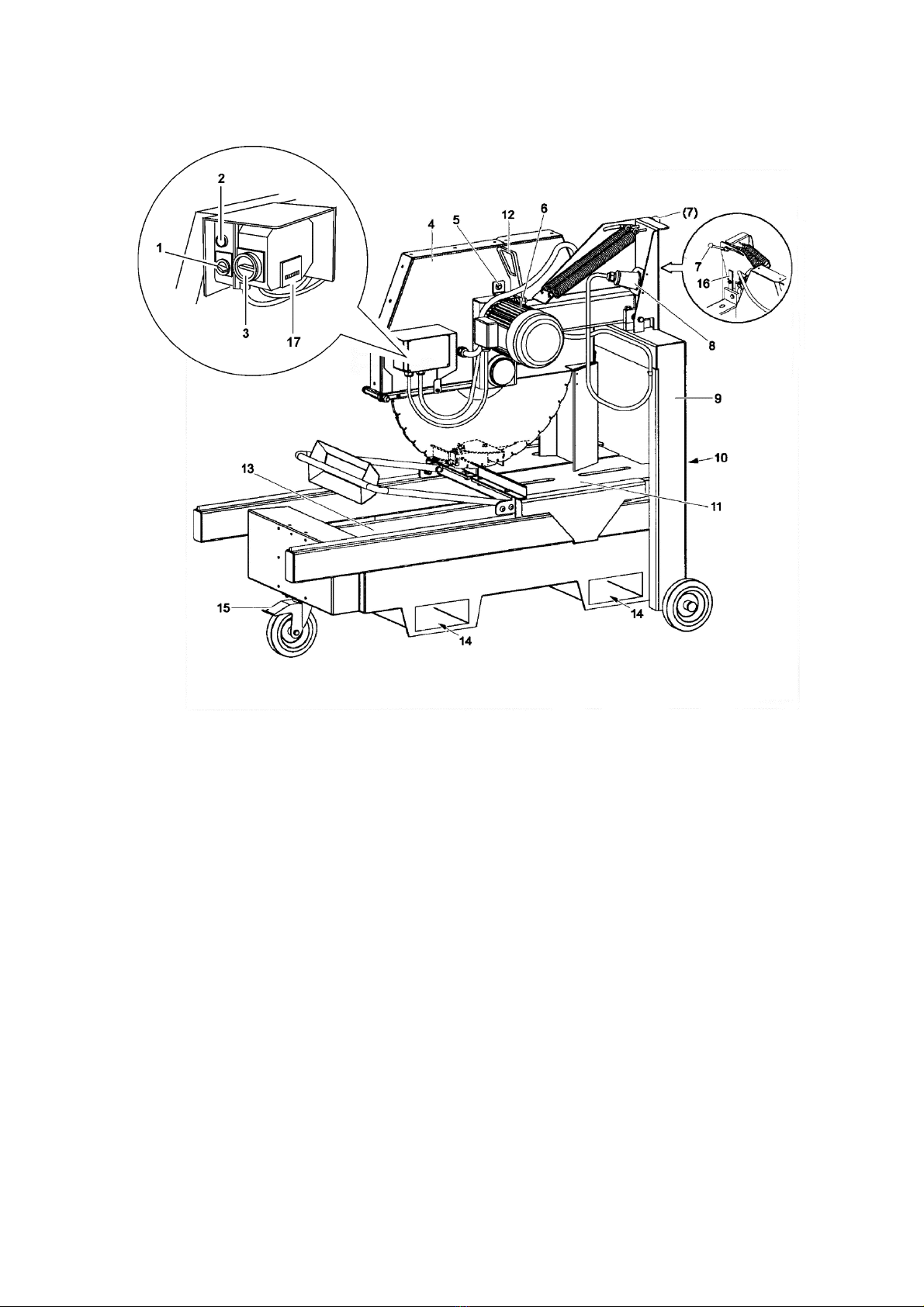

2.1 Overview of components
ltem 1 Star- delta switch
ltem 2 Button start
ltem 3 Emergency/ main switch
ltem 4 Saw hood
ltem 5 Hexagonal cut for saw hood fixing
ltem 6 Motor
ltem 7 Lever for sawing height adjustment
ltem 8 Connectionplug
ltem 9 Frame
ltem 10 Locking device for saw table
ltem 11 Saw table
ltem12 Fixingpoints
ltem 13 Water pan
ltem14 Forklifttakingup
ltem 15 Parking brake
ltem16 Lockingofsawarm
Item
17 Hour meter
2.2 Protective equipment
ltem 4 - Saw hood
2.3 Technical data
Motor power
Current consumption
Protecting kind
7,5 kW/ 400 V
14,9 A
IP54
Saw blade wave revolutions
970 U/min
Saw blade diameter
900/1000 mm
Saw blade receptacle
Cutting depth
60mm
370/380 mm
Cutting length.
Table breadth
660mm
745mm
Height
Breadth
1500 mm
1030 mm
Weight
342 kg
Length in transport position
1800 mm
with hand
Subject to technical changes!

10
2.4 Noise emission values
The measurements were made in accordance to the standards 3744, EN ISO 11201 and EN 12418.
Therefore it was used a standard saw blade, 900 mm, (not a silent blade)
Parameter
Value
continuous sound
pressure level
at work LoA
91 dB (A)
Sound power level LwA
106 dB (A)
Sound power level at the
ear of user
86,8 dB (A)
2.5. Vibration at the grab handle
When cutting the oscillation total value is under 2.5 m/s
2
•

11
3. Assembly and initial preparation for operation
3.1 Assembly tools
• Combination wrench size 13/46
3.2 Setup
Danger! • Put the saw on a clean and horizontal ground
• Press the parking brake (ltem 15)
3.3 Installation of the saw blade (or checkinq the installation)
Notice! • High adjustment must betighten
• Water hose coupling is open
• Remove the hexagon bolt
• Turn the saw hood forward on the table
• Remove the flange nut (left-hand thread) and thrust washer.
ATTENTION! When installing the saw blade, observe the following:
• All receptacle surfaces must be clean.
• Rotation direction arrow on the saw blade must match the one on the hood.
• Use only diamond saw blades intended by the manufacturer.
• lnstall thrust washer and flange nut. (Combination wrench size 13/46)
• Turn back the saw hood
• Fix the saw hoos with the hexagon bolt
• Close the water hose coupling
3.4 Saw preparations
• Fill the pan with water until the pump is submerged.
• Open the water valve.
• Plug the supply line cable (400 VI 32 A) into the socket (item 8).
• Check protective equipment (see 2.2).
• Switch the main switch (item 3) to “I ON”.
3.5
Test direction of rotation of the saw blade
• Turn Star delta switch (item 1) to “star”.
• Press button start (item 2).
• Turn star delta switch (item 1) to “0”.
• Check the direction of rotation of the saw blade.
* The direction of rotation is clockwise, seen from the left
(direction arrow on the saw hood).

12
3.6 Change direction of rotation
• Turn star delta switch (item 1) to 0.
• Remove power cord from the socket (item 8).
• Change phase of the power supply plug (item 8) with a screwdriver.
* Press and turn the black disc inside
3.7
Test run
• Place block on table.
• Push the block to the stop.
• Turn star delta switch (item 1) to “star”.
• Press button start (item 2).
• Wait untill the motor has a regular revolution (regular sound)
• Turn the star delta switch further to "delta"
ATTENTION! ls the saw blade adequately supplied with cooling water?
Caution! • Dry cutting is not permitted.
• lnadequate cooling water results in early wear or malfunctioning of the saw blade.
• Start feed movement above the sliding handle on the saw table.
* Begin cut with low feed speed.
* Adjust feed speed to the feed force.

13
4. Transport
4.1
Preparation for transport
• Remove the power cord from the saw.
• Empty the water from the pan.
• Saw blade height adjustment (item 7) is tightened.
• Put the saw table on the back wall and lock the device (item 10)
4.2
Displace with the crane
• Caution! The locking of the saw arm (Pos. 16) must stand vertical. Hang up the stopper
means with enough carry power to the limit stops (item 12)
• Bydisplacing - keepthesaw inyoureyes
4.3 Transport with the truck
• arrest the wheels with the brake
• fix the saws on the limit stop (item 12)
4.4 Transport with the forklift
• Take up the saw with the forklift (item 14)
5. Operation
5.1 Setting up the saw
• Set up the saw on a clean and stable foundation.
• All three wheels must have a grounding contact
• Press the brake (ltem 16)
5.2 Saw preparations (see 3.4)
5.3 Test the direction of rotation of the saw blade
5.4 Changing direction of rotation (see 3.6)
5.5 Sawing (see 3.7)
5.6 Saw blade sharpness
lf the saw blade loses its sharpness after longer use, you can "sharpen" it by making some cuts in
sand-lime bricks or similar material.
5.7 Cooling water
Very dirty water reduces the life of the pump and saw blade.
• With frequent use, replace the water daily and remove the saw sludge.
• Also clean the pump's suction strainer with each water change.

14
5.8 Heightadjustment
The saw blade height adjustment is needed for:
• cutting through blocks with height over 380 mm in the reversing tool.
Performing the height adjustment.
Attention! Position the saw arm locking (Pos. 16) horizontal.
• Motor is turned off.
• Loosen the clamping lever (item 7).
• Set the saw head to the desired height.
• Tighten the clamping lever (item 7).
5.9 Changing the saw blade (see 3.3)

15
6. Disassembly
• Turn star delta switch (item 1) to “0”.
• Switch main switch (item 10) to “O OFF”
• Remove the connecting cable.
• lf there is danger of freezing, take the water pump out of the water and run it until empty .
ATTENTION! Frozen pumps have to be thawed out before switching them on.
• Transport (see 4)
7. Maintenance
• Thoroughly clean the saw after work (without electricity) .
• Change gear oil every two years: Oil: ISO VG 680 (3dl. TYROLIT no.10999315)

16
8. Malfunctions
Malfunction
Possible cause
Remedv
Motor does not run
- Power cord is defective
- Motor is defective
- Switch is defective
- New power cord
- May only be repaired by
an electrician
lncorrect saw blade rotation direction
- Motor incorrectly polarised - Reverse the phase inverter
Motor shuts down during sawing,
but can be restarted after a short
break.
- Feed too fast
- Saw blade blunt
- Saw blade worn
(coating > 2 mm)
- Cut with slower feed
- Sharpen saw blade with
10- 15 cuts in sand-lime
bricks
No water at saw blade
- Pump is not running
- Line system clogged
- Change the safety
device in the switchbox.
Only by an
electrician
expert.
- Clean line system

17

18
