TYROLIT Hydrostress TME700P User manual

Operating manual
Spare parts list
Stone cutoff saw
TME700P
Index«000 »
10995348 en I 16.07..2015

2
Manufacturer's address:
TYROLIT Hydrostress AG
Witzbergstrasse 18
CH-8330 Pfäffikon
Switzerland
Tel . [phone]
Fax [phone]
e-mail:[e-mail]
www.hydrostress.com
TYROLIT Hydrostress AG reserves the right to make technical changes without prior notice.
Copyright© 2014 TYROLIT Hydrostress AG, CH-8330 Pfäffikon ZH, Switzerland
All rights reserved, in particular copyrighting and translating rights.
Printing of this operating manual, including extracts from it, is prohibited. No parts of it may be
reproduced in any form or processed using electronic systems,duplicated or disseminated without the
written permission of TYROLIT Hydrostress AG.

3
Preface to the operating manual
This operating manual makes it easier to become familiar with the machine and to use it properly.
The operating manual contains important information on how to operate the machine safely, properly and
efficiently. Following the operating manual helps avoid danger, avoid repair costs and downtime, and
increase the machine's reliability and life.
The operating manual must besupplemented with instructions based on national regulations for accident
prevention andenvironmental protection.
The operating manual must always be readily available at the location where the machine is used.
The operating manual must beread and used by any person assigned tasks with the machine, such as:
- operation, including set-up, repair of malfunctions during operation, disposal of production
waste, maintenance, disposal of materials
- maintenance (service, inspection, or repair) and/or Transport
In addition to the operating manual and the regulations for accident prevention in force in the country and
at the location where the machine is used, recognised technical rules for safe and correct operation must
befollowed.
Table of contents
1. Basic safety instructions
2. Machine description
3. Assembly and initial preparation for operation
4. Transport
5. Operation
6. Disassembly
7. Maintenance
8. Malfunctions
9. Electric scheme
10.Declaration of conformity

4
1. Basic safety instructions
1.1 Warnings and symbols in this manual
Danger! Points out that serious or even fatal injuries may result if not followed.
Caution! Points out that injuries may result if notfollowed.
Notice! Points out that damage to the machine or other equipment may result if notfollowed.
1.2 Principle of intended use
Danger! 1.2.1 The stone cutoff saw is designed exclusively for wet sawing of building blocks made of
mineral materials. Sawing ofwood or metal isprohibited!
The manufacturer/supplier is not liable for damages resulting from improper use.
Compliance with the operating manual and observation of inspection and service
requirements are essential components of proper use.
1.2.2 Use the machine only in correct working order and for its intended purpose. The operator
must follow the instructions inthe operating manual and befully aware of the safety
requirements and hazards posed by the machine. In particular, any faults that may
compromise safety must be repairedimmediately.
1.3 Organisational measures
1.3.1 Always keep the operating manual readily available at the location where the machine is used!
Danger! 1.3.2 lnstruct users to observe supplements to the operating manual as weil as all generally
applicable legal and other mandatory regulations on accident prevention and
environmental protection!
Obligations of this nature may also relate to the use of dangerous substances, for
example, or the wearing of personal protective equipment or to road traffic regulations.
Danger! 1.3.3 Personnel assigned to work with the machine must have read the
operating instructions and, in particular, the chapter on safety before beginning work.
Reading the manual for the first time when working on the machine is too late.
This applies especially to persons who work on the machine only occasionally, such as
those performing set-up and maintenance.

5
1.3.4 Check at least from time to time whether personnel are performing the work in
compliance with the operating manual and paying attention to risks and safety
factors!
Caution! 1.3.5 Use personal protective equipment where necessary or if required by regulations.
Danger! 1.3.6. Obey all safety and danger notices on the machine!
Danger! 1.3.7 Ensure that all safety and danger notices on the machine remain clearly legible!
Danger! 1.3.8 Inthe event of safety-relevant changes to the machine or itsoperating performance,
stop the machine immediately and report the malfunction to the responsible
authorities/person!
Danger! 1.3.9 Never make any modifications, additions or conversions which might affect safety
without the supplier's approval!
Danger! 1.3.10 Use only manufacturer's original parts!
Danger! 1.3.11 Observe the stipulated periods or the periods given in the operating manual for
inspections! The machine must be inspected annually by an expert.
1.3.12 The machine must bethoroughly cleaned before inspection.
Danger! 1.3.13 The power cord must be unplugged before all inspection or repair work.
1.4 Personnel selection and qualification; fundamental duties
Danger! 1.4.1 Only persons aged 18 years and over and who have been instructed on how
to operate the machine may be entrusted with operating it independently.
Danger! 1.4.2
Danger! 1.4.3
Danger! 1.4.4
People must not remain unnecessarily on the machine or in its area of movement!
During all machine movements, operating personnel must always ensure that they
do not endanger themselves or others.
Work on electrical equipment on the machine may only becarried out by an
electrician or by instructed persons under the guidance and supervision of an
electrician in accordance with electrical regulations.
Danger! 1.4.5 Personnel who are being trained, instructed or in training as part of a general
education programme may only be permitted to work on the machine while under
the constant supervision of an experienced person!

6
1.5 Safety instructions during specific operating phases
1.5.1 Normaloperation
1.5.1.1 Avoidallactionsandworkingmethodswhichmaycompromisesafety .
Danger! 1.5.1.2 Take steps to ensure that the machine isoperated only in a safe and proper
condition!
1.5.1.3 Check the machine for visible external damage and defects at least once per shift.
lmmediately report any changes (including in operational performance) to the appropriate
office/individual! lf necessary, stop the machine immediately and make it secure.
Danger! 1.5.1.4 Incase of malfunction, stop the machine immediately and make it
secure. lmmediately repair any malfunctions!
Danger! 1.5.1.5 The stone cutoff saw is designed exclusively for wet sawing of building blocks.
Sawing of wood or metal is prohibited!
Danger! 1.5.1.6 The machine must not be connected to a circuit without a ground-fault circuit
interrupter (FI) in the electrical line or distribution box.
Danger! 1.5.1.7 Before beginning cutting operations each day, check the following:
- condition of the diamond saw blade (cracked saw blades must be replaced -when
in doubt, by an expert)
- functional condition of the safety devices
- adequate cooling water supply - dry sawing is not permitted!
Danger! 1.5.1.8 Do notjam saw blade.
Danger! 1.5.1.9 The electrical plug must not be pulled when the machine is running.
Notice! 1.5.1.10 When there is danger of freezing, remove the water pump from the pan
(do not switch on pumps that are already frozen - thaw them out slowly).
1.5.2 Special work in conjunction with use of the machine and maintenance and repairs
during operation; disposal
Caution! 1.5.2.1 Observe all the setting, maintenance and inspection activities and timetables,
including instructions for replacing parts/secondary devices, as described in the
operating manual! Only technically qualified personnel should carry out these
activities.
Caution! 1.5.2.2 Brief operating personnel before beginning special operations and maintenance
work! Appoint supervisory personnel.
Danger! 1.5.2.3 lf the machine is completely shut down during maintenance and repair work, it must
be mechanically secured to prevent accidental activation.

7
Note 1.5.2.4 Before cleaning the machine with water or other cleaning agents, cover/seal all
openings that, for reasons of safety and/or functioning, water/steam/cleaning agents
must not beallowed to enter. Particularly endangered are electrical motors, switches
and plug connections. Cleaning with a steam jet is not permitted.
Note 1.5.2.5 After cleaning, the covers and tapes must be removed completely!
Danger! 1.5.2.6 Always tighten loose screw connections during servicing and maintenance work!
Danger! 1.5.2.7 Any safety devices removed during set-up, maintenance or repair must be
reinstalled and checked immediately upon completion ofthe maintenance and repair
work!
1.5.2.8 Dispose of fuel and consumable materials and replacement parts in a safe and
environmentally-friendly manner!
1.6 Notice on specific hazard types
1.6.1 Electricity
Danger! 1.6.1.1 Only use original fuses with the specified amperage! lfthe electrical power supply is
interrupted, shut down the machine immediately!
Danger! 1.6.1.2 Perform maintenance or repair work only when the machine is separated from the
electric circuit.
Danger! 1.6.1.4 The electrical equipment on the machine should be inspected/checked on a regular
basis. Defects, such as loose connections or scorched cables, must be repaired
immediately .
1.6.2 Dust
1.6.2.1 Observe applicable national regulations when working in enclosed spaces!

8
1.7 Transport
Danger! 1.7.1 Use a four ring suspension gear of sufficient carrying force when dislocating
themachine.
Danger! 1.7.2 Determine anexpert to give the appropriate handling instructions for the lifting
procedure!
Danger! 1.7.3 Lift machine according to the instructions as provided inthe operation manual
(stop points for load carrying devices etc.) by means of the lifting gear ina
workmanlikemanner!
Danger! 1.7.4 Useonly suitable transport vehicles with sufficient liftingcapacities!
Danger! 1.7.5 Secure the load reliably. Use suitable lifting points!
Danger! 1.7.6 Disconnect all power sources before moving the machine,even for very short
distances! Ensure that the machine iscorrectly reconnected to the power supply
beforerestarting!
Danger! 1.7.7 Restartthe machine strictly inaccordance with the operating manual!

9
2. Machine description

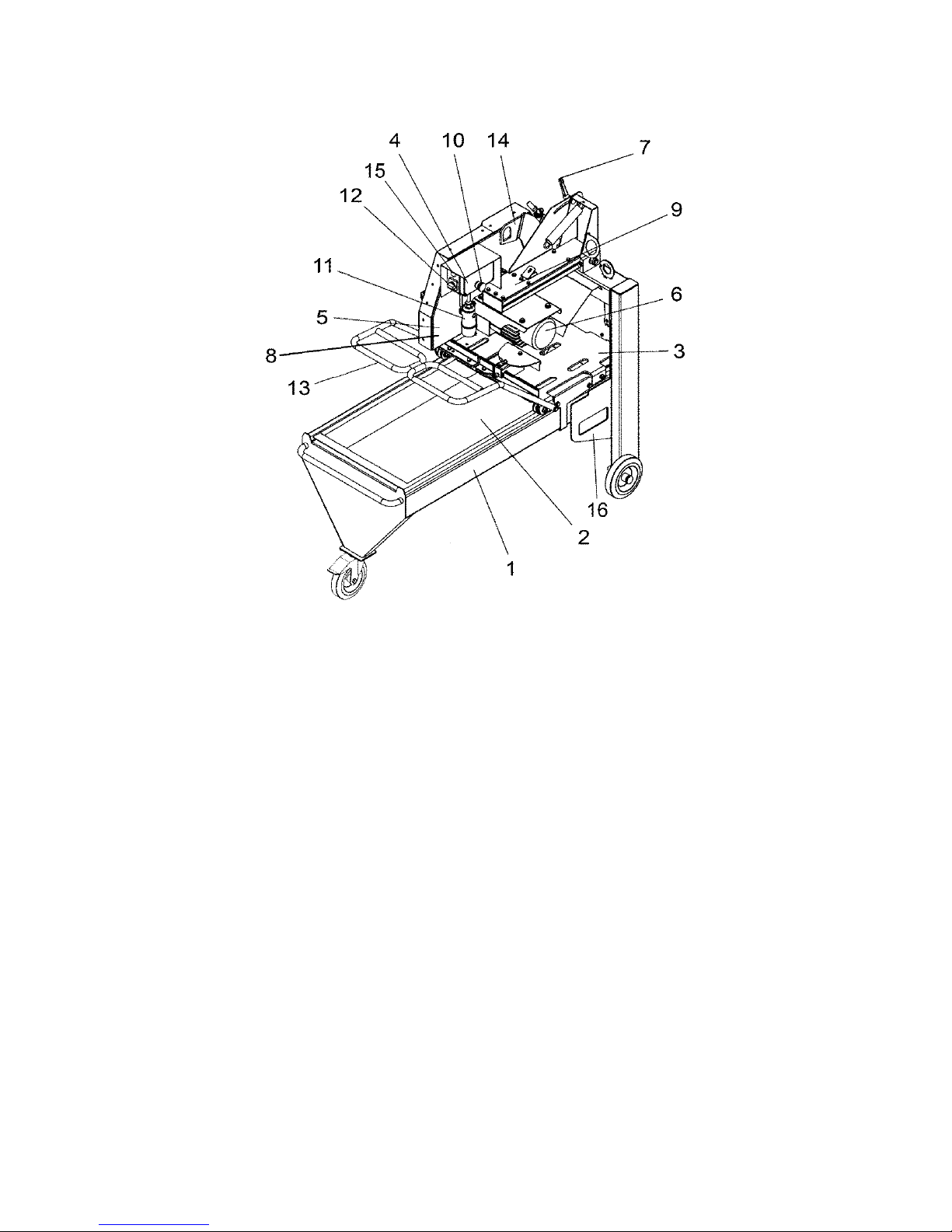

2.1 Overview ofcomponents
ltem 1 Frame
ltem 2 Watertub
ltem 3 Sawtable
ltem4 Switchbox
ltem 5 Sawhood
ltem 6 Motor
ltem 7 Cutting height adjustment
ltem 8 Saw blade
ltem 9 Saw head
ltem10 Emergencyswitch
ltem 11 Connector plug
ltem12 Switch
ltem13 Feedgrip
ltem14 Jackring
Item 15 Switch start
Item 16 suspension point
2.2 Protectiveequipment
ltem 5 - Saw hood
ltem 10- Emergency switch
2.3 Technical data
Motor power
Operationvoltage
Currentconsumption
Connected load
Safety class
5,5kW
400V
13 A
400 V/ 32 A
IP 55
Saw blade shaft r.p.m.1380 r.p.m.
Saw
blade
diameter
650/700
mm
Saw blade arbor
Cutting depth 60mm
245/270 mm
Cutting length.
Table width
600mm
630mm
Height
Width 1350 mm
910
mm
Lenght 1470 mm
Weight 220 kg
Subject to technical changes!

10

11
2.4 Noiseemission values
The measurements were made in accordance to the norms EN ISO 3744, EN ISO 11201 and EN
12418. Therefore itwas used a standard saw blade Type W3 0700 mm (not a silent blade).
Parameter
Value
continuoussound
pressure level
at work LoA
91 dB (A)
Sound
power
level
LwA
92 dB (A)
Sound
power
level
at
the
ear of user
106dB (A)
2.5 Vibration at the grab handle
When cutting the oscillation total value is under 2,5 m/s
2.
3. Assembly and initial preparation for operation
3.1 Assembly tools
- Combination wrench size 13/46
3.2 Set up and assembly
- Put the saw on a clean and capable of bearing ground
- Remove the packing
3.3 Installation of the saw blade (or checking the installation)
- Loose the clamp handle (item 7).
- Lift up the saw head and tighten the clamping lever (item 7).
- Remove the side protecting sheet metal.
- Remove the flange nut (left-hand thread) and thrust washer.
ATTENTION! When installing the saw blade, observe the following:
- Allreceptaclesurfaces mustbeclean.
- Rotation direction arrow on the saw blade must match the one on the hood.
- Use only diamond saw blades provided by the manufacturer.
- lnstall thrust washer and flange nut. (Combination wrench size 13/46).
- Mount the side protecting sheet metal.
3.4 Saw preparations
- Fillthe tub with water until the pump is submerged.
- Open the water valve.
- Plug the supply line cable (400 V, 32 A) into the connector plug (item 11).
- Check protective equipment (see 2.2).

12

13
3.5 Test direction of rotation of the saw blade
- Press the switch start (15).
- Switch the Star-delta-switch (item 12) short to "Star''.
- Check the direction of rotation of the saw blade.
* The direction of rotation is clockwise, seen from the left (direction arrow on the saw hood).
3.6 Change direction of rotation
- Turn off main switch (item 12).
- Remove power cord from the socket (item 11).
- Change phaseofthe power supply plug(item 11)withascrewdriver .
3.7
Test run
- Place block on table.
- Press the switch start (15)
- Push the block to the stop.
- Press the main switch (item 12) to "Star".
- Wait until the motor has a regular revolution (regular sound)
- Turn the switch (item 12) further to "triangle"
ATTENTION! lsthe saw blade adequately supplied with cooling water?
Caution!
- Drycuttingisnotpermitted.
- lnadequate cooling water results an early wear or malfunctioning of the saw blade.
- Start feed movement via handle (item 13) on the saw table.
* First cut with low feed speed.
* Adjust feed speed to the feed force.
4. Transport
4.1 Preparation fortransport
- Remove the power cord from the saw.
- Empty the water from the tub.
- Saw blade height adjustment (item 7) istightened.
- Lock the device on the saw table
4.2 Displace with the crane
- Hang up the suspension gear with sufficient carrying force into the eyelets provided for
this purpose at the suspension point (Pos.16).
- By displacing-keep the saw in youre By
4.3 Transport with the truck
- fix the saw on the suspensions point (Pos.16)

14

15
5. Operation
5.1 Setting upthesaw
- Set up the saw on a clean and stable foundation.
- Testthesaw'ssteadiness.
5.2 Saw preparations (see3.4)
5.3 Test the direction of rotation of the saw blade (see 3.5)
5.4 Changing direction of rotation (see 3.6)
5.5 Sawing (see 3.7)
5.6 Cutting guality of the saw blade
lfthe saw blade looses its sharpness after langer use, you can "sharpen" it by making some cuts
in sand-lime bricks or similar material.
5.7 Coolingwater
Very dirty water reduces the life of the pump and saw blade.
- By frequent use replace the water daily and remove the saw sludge.
- Also clean the pump's suction strainer with each water change.
5.8 Height adjustment
The saw blade height adjustment is needed for:
- cutting through blocks with height over 270 mm inthe reversing tool.
Performing the heightadjustment.
- The motor is turned off.
- Loosen the clamping lever (item 7).
- Set the saw head to the desired height.
- Tighten the clamping lever (item 7).
5.9 Changing the saw blade (see 3.3)
6. Disassembly
- Turn back the star delta switch (item 12).
- Remove the connecting cable.
- lfthere is danger of freezing, take the water pump out of the water and let the water drain off.
ATTENTION! Frozenpumpshavetobethawedoutbeforeswitchingthem on .
- Transport (see 4)

16
7. Maintenance
- Thoroughly clean the saw once per week (in off circuit condition).
8. Malfunctions
Malfunction Possible cause
Remedv
Motor does not run
- Power cord is defective
- Motor is defective
- Switch isdefective
- New power cord
- May only be repaired by
an electrician
lncorrect saw blade rotation direction
- Motor incorrectly polarised - Reverse the phase inverter
Motor shuts down during sawing,
but can be restarted after a short
break.
- Feed too fast
- Saw blade blunt
- Saw blade worn
(coating > 2 mm)
- Cut with slower feed
- Sharpen saw blade with
10- 15 cuts in sand-lime
bricks
Nowater at saw blade
- Pump is not running
- Line system clogged
- Change the safety
device in the switchbox.
Only by an electrician
expert.
- Clean line system

17

18
