TYROLIT Hydrostress FSD1274E5 User manual

Index 002
OPERATING INSTRUCTIONS
FSD1274E5
Translation of the Original Operating Instructions
11005603 en / 09.01.2023

2
Tyrolit Hydrostress AG
Witzbergstrasse 18
CH-8330 Pfäkon
Switzerland
Phone [phone]
Fax [phone]
www.tyrolit.com
Congratulations!
You have chosen tried and tested Tyrolit Hydrostress equipment that sets technological
standards for the industry. Only genuine Tyrolit Hydrostress spare parts guarantee quality
and problem-free replacement. If maintenance work is neglected or not performed
correctly, we cannot cover our warranty obligations. All repairs must only be performed by
trained specialist personnel.
Our Customer Service is at your disposal to help keep your Tyrolit Hydrostress equipment in
perfectcondition.
We wish you smooth, trouble-free working.
Tyrolit Hydrostress
Copyright © Tyrolit Hydrostress

Contents 3
Contents
1. Safety 5
1.1. General safety information 5
1.2. Signs on the equipment 6
1.3. What to do in an emergency 6
1.4. Intended use 7
1.5. Improper use or misuse 7
1.6. Electrics 7
2. Design and function 8
2.1. Design 8
2.2. Function 10
3. Mounting/Removing 12
3.1. Mounting the saw blade 12
3.2. Water connection 14
3.3. Battery 16
3.4. Cut indicator 17

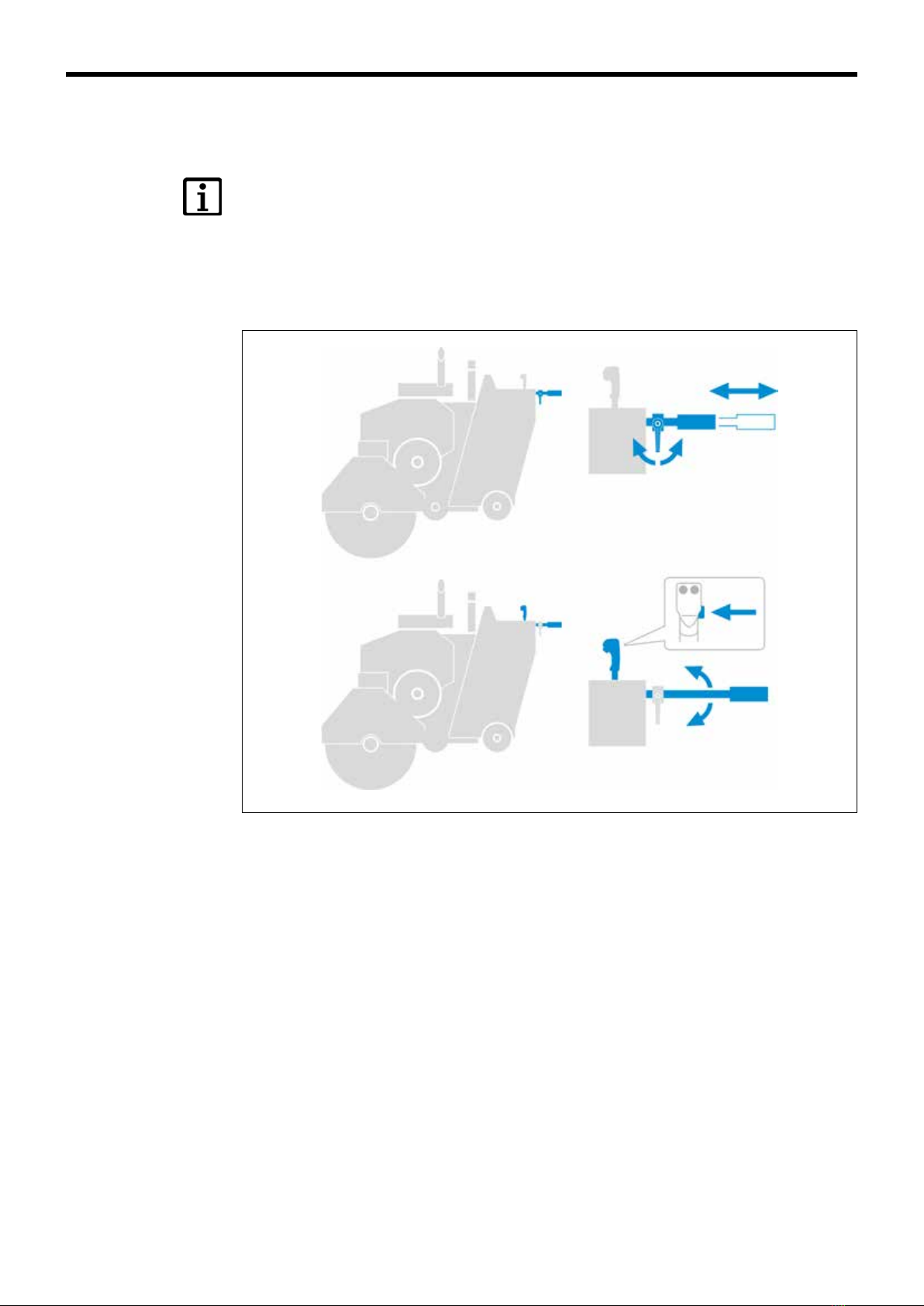

3.5. Handle adjustment 18

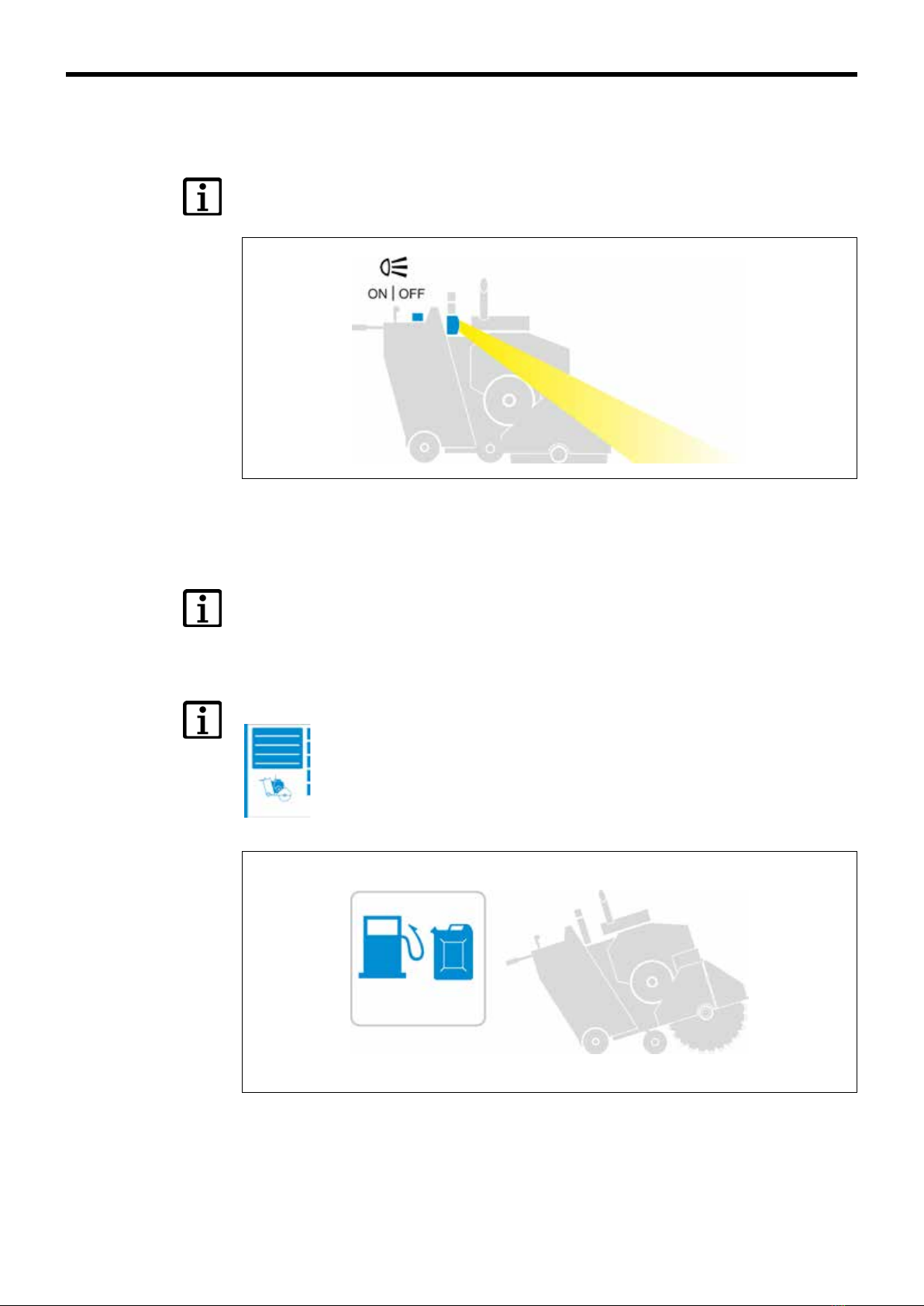

3.6. Light 19
3.7. Fuel 19
4. Operation 20
4.1. Overview of controls 20
4.2. Cutting data table 21
4.3. Control panel 22
4.4. Starting the oor saw 34
4.5. Controlling the travel motion 34
4.6. Lifting and lowering the blade 36
4.7. Shifting gears with the 3-speed transmission 37
4.8. Switching o the oor saw (engine) 38
4.9. After work 38
5. Servicing and maintenance 39
5.1. Tools for maintenance 41
5.2. Preparations for maintenance 41
5.3. Cleaning 41
5.4. Lubrication 42
5.5. Hydraulic system 43
5.6. Belts 43
5.7. Blowing out water 44
5.8. Recycling waste materials 44

4Contents
6. Troubleshooting 45
6.1. Troubleshooting table 45
7. Transport/Storage 48
7.1. Transport 48
7.2. Storage 48
8. Technical data 49
8.1. Dimensions 49
8.2. Dimensions and weights 50
8.3. Engine 50
8.4. Recommended ambient temperature 50
8.5. Lifting drive 51
8.6. Drive 51
8.7. Sound level and vibrations 51
8.8. Battery 51
8.9. Saw blade and blade guard 52
8.10. Water 52
8.11. Fluids and lubricants 52
9. EC Declaration of Conformity 53

safety 5
Safety
General safety information
INFORMATION
This instruction manual is just part of the documentation for the oor saw. These
instructions are only complete together with the "Floor Saw Safety Manual/System
Description" and the engine documentation.
Documentation

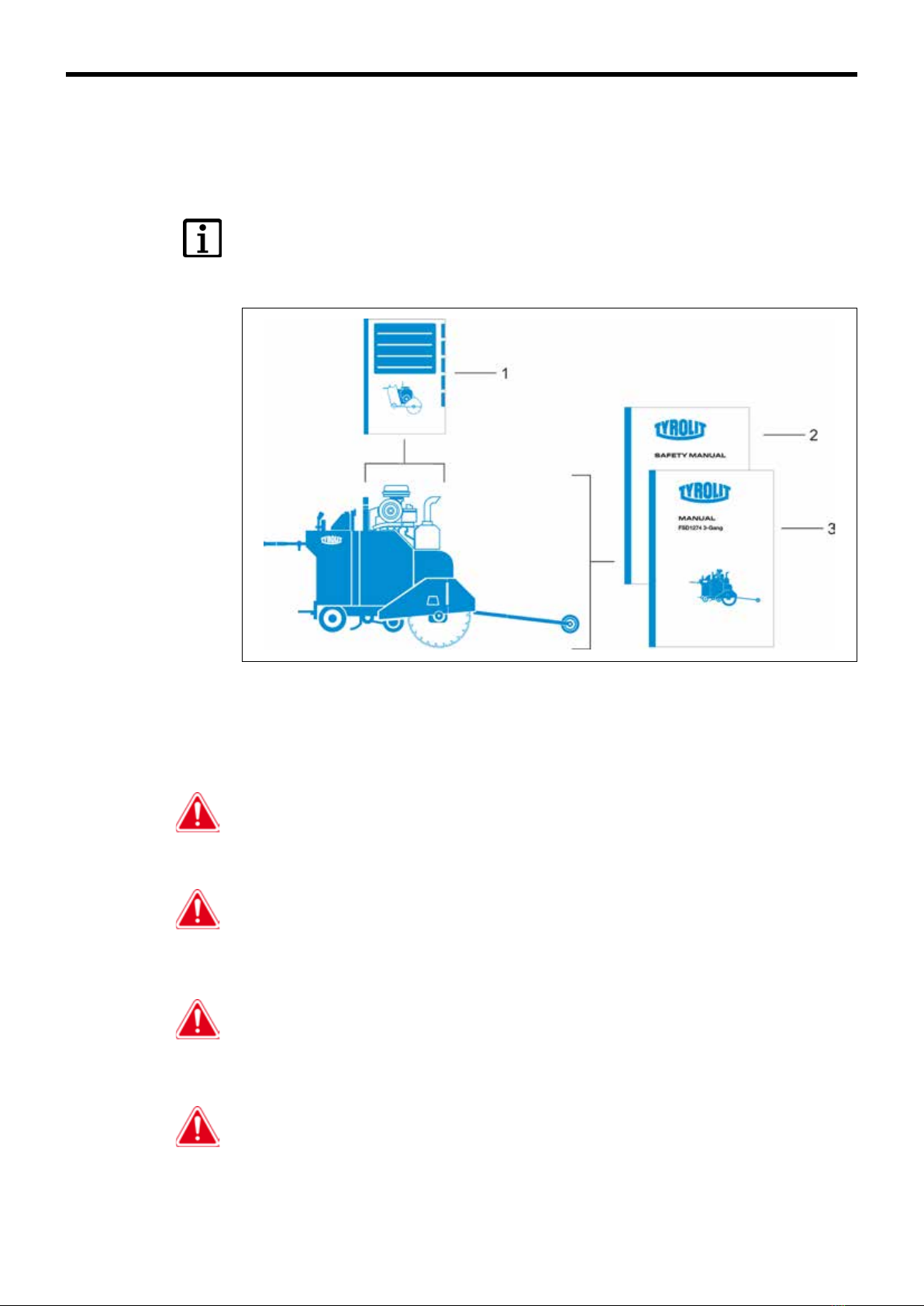

1Engine documentation
2Floor Saw Safety Manual/System Description
3Floor Saw Operating Instructions
DANGER
Failure to observe the safety instructions in the "Safety Manual/System Manual" and the
operating instructions/engine documentation may result in death or serious injury.
▶Ensure that all documentation has been read and understood.
DANGER
Risk of cut injuries due to saw blade!
▶Protective gloves must be worn when working on with the oor saw, especially the saw
blade.
▶Operate the oor saw only with the blade guard.
DANGER
Death or serious injury if the machine starts up unexpectedly!
▶Before switching on the oor saw, make sure that there are no persons in the danger
zones.
▶Switch o the oor saw when leaving and secure so it cannot be switched back on.
DANGER
Death or serious injury if the oor saw continues running in the event of an accident.
▶Make sure that the EMERGENCY STOP button can be reached quickly.
1
1.1

6safety
Signs on the equipment

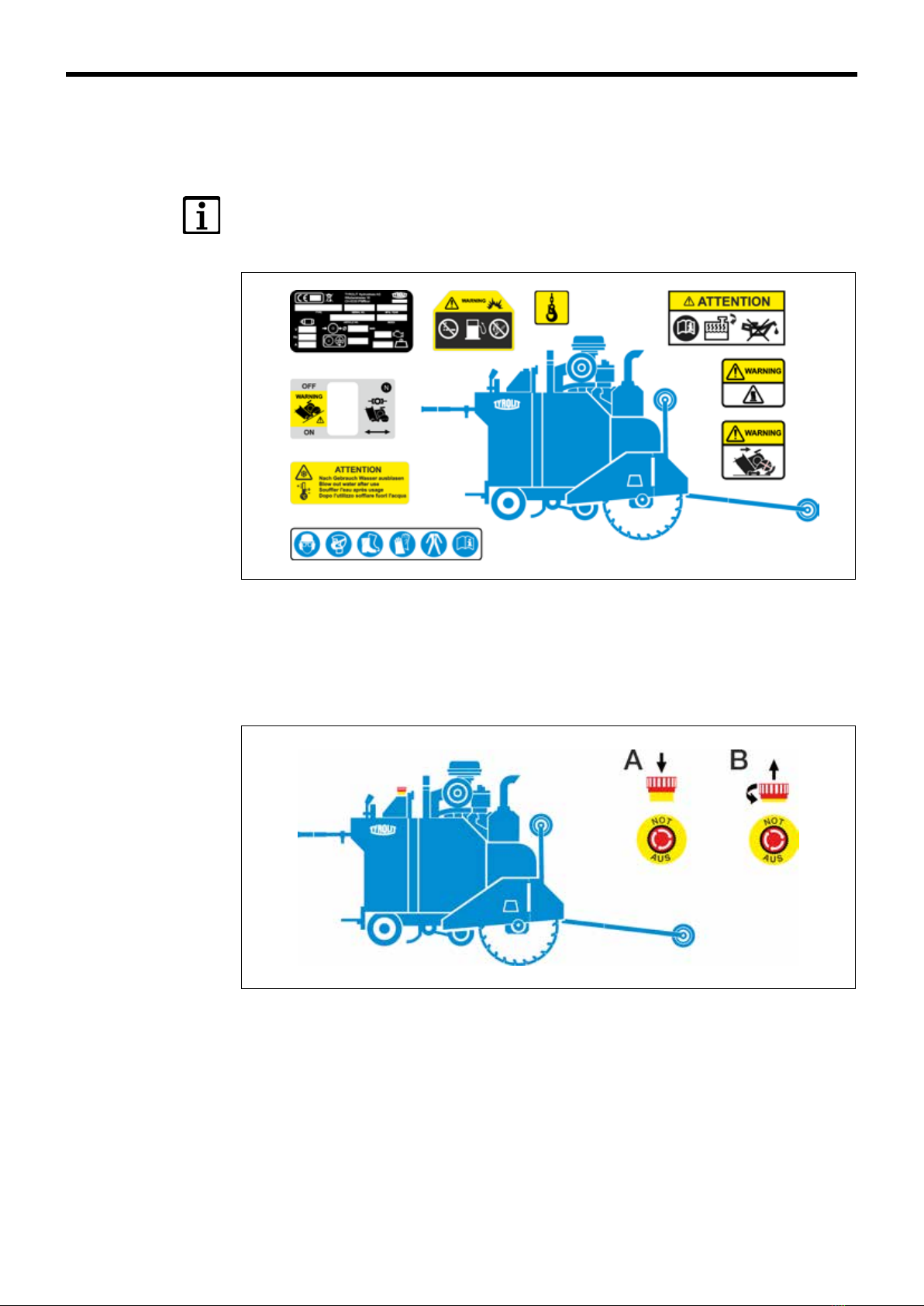

Type plate and danger stickers
INFORMATION
Besides the type plate, danger and information stickers are axed to the oor saw. Follow
the instructions to avoid damage and injury.
Type plate and danger stickers
What to do in an emergency
▶Press the EMERGENCY STOP button.
What to do in an emergency
AActivate EMERGENCY STOP
BDeactivate EMERGENCY STOP
1.2
1.3

safety 7
Intended use
The oor saw has been designed and built for the following use:
• Cutting asphalt and concrete (including reinforced concrete).
• Making plunge cuts, ush cuts and cutting joints in oors.
• Only use tools with an original hole pattern.
• If oor saws are operated in enclosed or underoor spaces, exhaust fumes from
combustion engines must be vented to the outdoors.
• Binding operating limits and characteristic data can be found in the technical data in the
operating instructions.
Improper use or misuse
• Use that is not in accordance with the intended use is considered improper use or
misuse.
• Since improper use and misuse can in some cases result in considerable hazards, we
would like to point out here the improper uses or misuses known to us.
The following types of use are prohibited:
• Cutting metal, wood and plastic
• Cutting loose parts (including in concrete)
• Operation in water and in explosion-proof spaces
• Cutting without system and tool cooling (unless dry cutting with a special diamond tool)
• Cutting without the protection devices provided
• Incorrect or no disposal of waste water (saw sludge water)
• Cutting without the protection devices provided
Electrics
Caution
Defective electrotechnical equipment is a re risk.
▶The electrotechnical equipment must be checked before each use and sporadically
during longer periods of use. Defective parts such as cables and plugs must be
replaced immediately by persons trained in electrical engineering when in a de-
energized state.
▶Check all fuses if switches or controls are not functioning properly. If fuses trip
frequently, determine the cause and repair them immediately.
Failure to observe this instruction may result in consequential damage such as re.
INFORMATION
You can nd electric circuit diagrams in the spare parts list.
1.4
1.5
1.6

8Design anD funCtion
Design and function
Design
Components
Components
1Handle 11 Cut indicator roll 21 Lifting chassis
2Control switch/lever 12 Lamp 22 Lifting chassis bearing
3Tap 13 Hydrostat 23 Splash guard
4Speed lever 14 Saw blade drive transmission 24 Rear axle
5 Light 15 Blade guard 25 Rear cut indicator
6Water pump 16 Chassis 26 Battery
7Crane hitch 17 Saw blade drive 27 Radiator fan
8Coolant hose 18 Saw blade ange 28 Engine
9Air lter/pre-separator 19 Wheels
10 Exhaust 20 Lifting cylinder
2
2.1
2.1.1

Design anD funCtion 9
Components

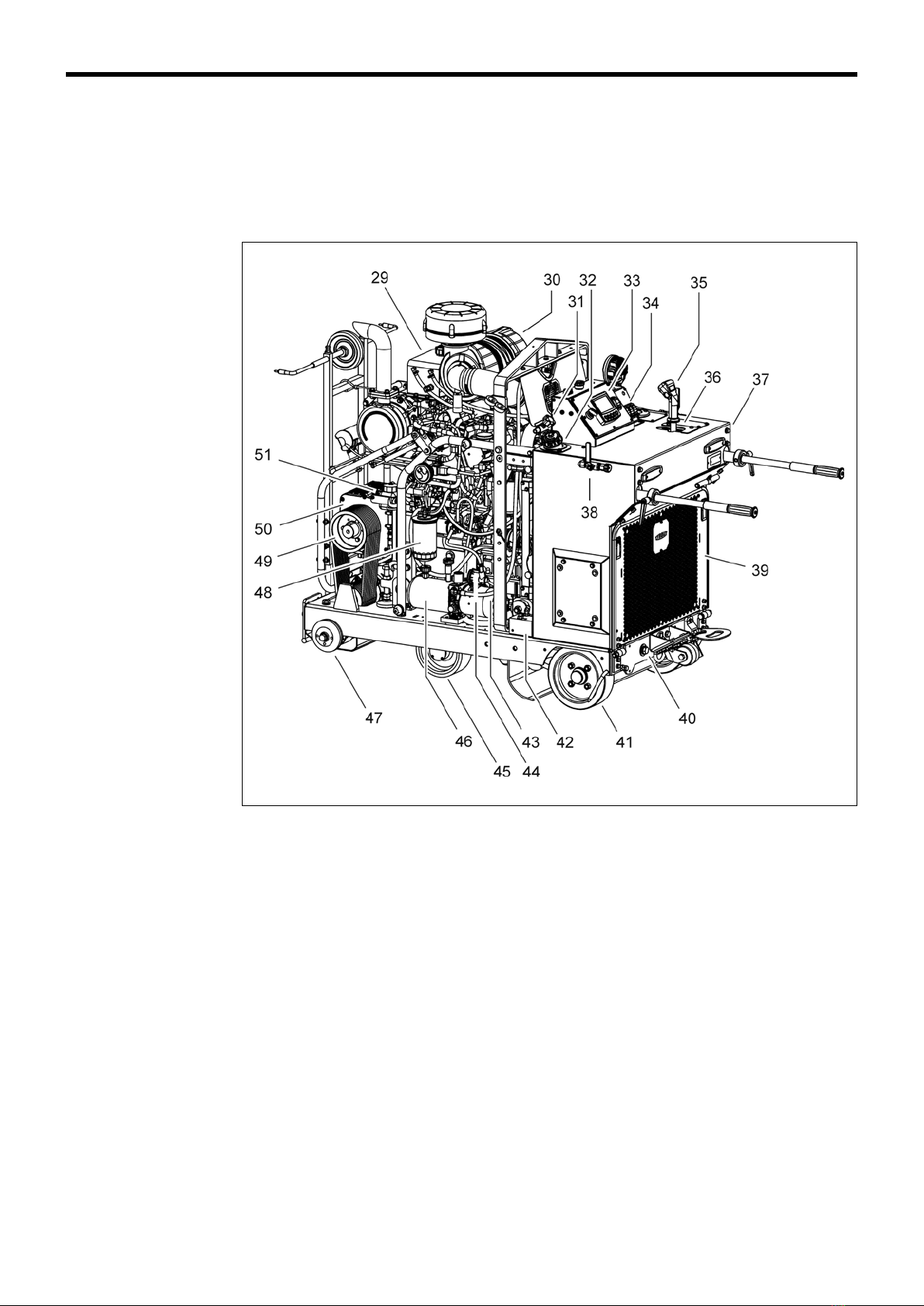

29 Coolant expansion tank 39 Radiator 49 Belt drive
30 Air lter 40 Wheel alignment device 50 Saw blade drive transmission
31 Light clamp handle 41 Drive wheel 51 Oil tank for saw blade drive
32 Tank ller neck 42 Drive valve block
33 Control panel 43 Pump motor
34 Control switch 44 Lifting cylinder hydraulic pump
35 Combination wrench 45 Wheel
36 Speed lever 46 Oil tank
37 Frame 47 Saw blade ange
38 Water connection 48 Diesel lter

10 Design anD funCtion
Function
Saw blade drive
Saw blade drive (diagram)
13-speed (angle) transmission 3Blade drive
2Driving belt 4Saw blade spindle
Lifting drive
INFORMATION

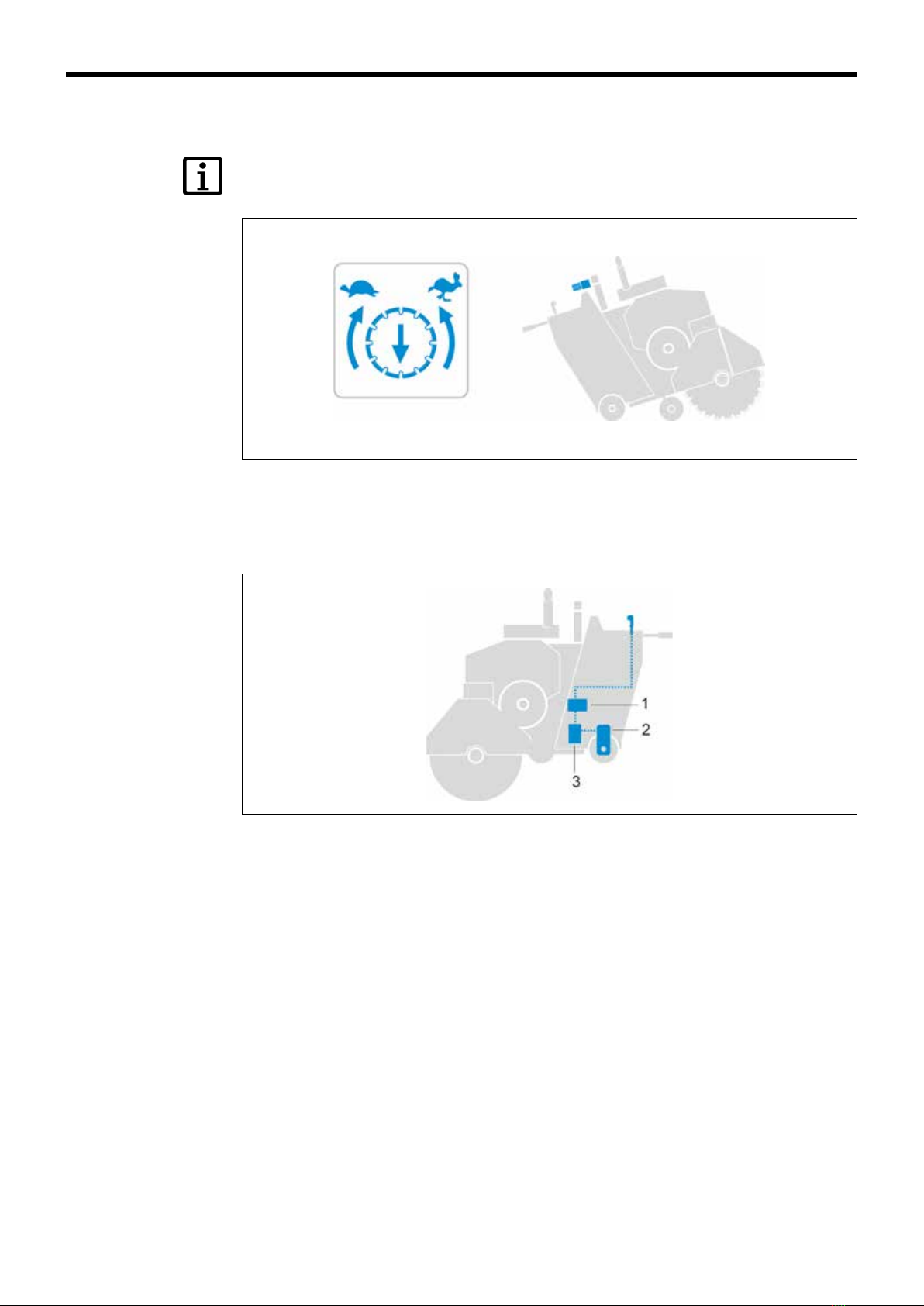

The lifting movement is achieved by means of a hydraulic cylinder.
Lifting drive (diagram)
2.2
2.2.1
2.2.2

Design anD funCtion 11
Reducing the saw blade speed
INFORMATION
The valve sets the stroke speed of the saw blade.
Reducing the saw blade speed (diagram)
Drive
Drive (diagram)
1Oil pump 3Valve block
2Hydraulic motors Drive ON/OFF
2.2.3
2.2.4

12 Mounting/ReMoving
Mounting/Removing
Mounting the saw blade
DANGER
Death or serious injury if the saw blade ies o!
▶Only use genuine screws from Tyrolit Hydrostress AG.
DANGER
Serious injury if the saw blade starts up suddenly!
▶Switch o the oor saw before working on the saw blade.
INFORMATION
Diamond saw blades with mounting holes dia. 25.4 mm can be mounted on the oor saw.
Always use a blade guard that is suitable for the blade size.
Mounting the saw blade
3
3.1

Mounting/ReMoving 13

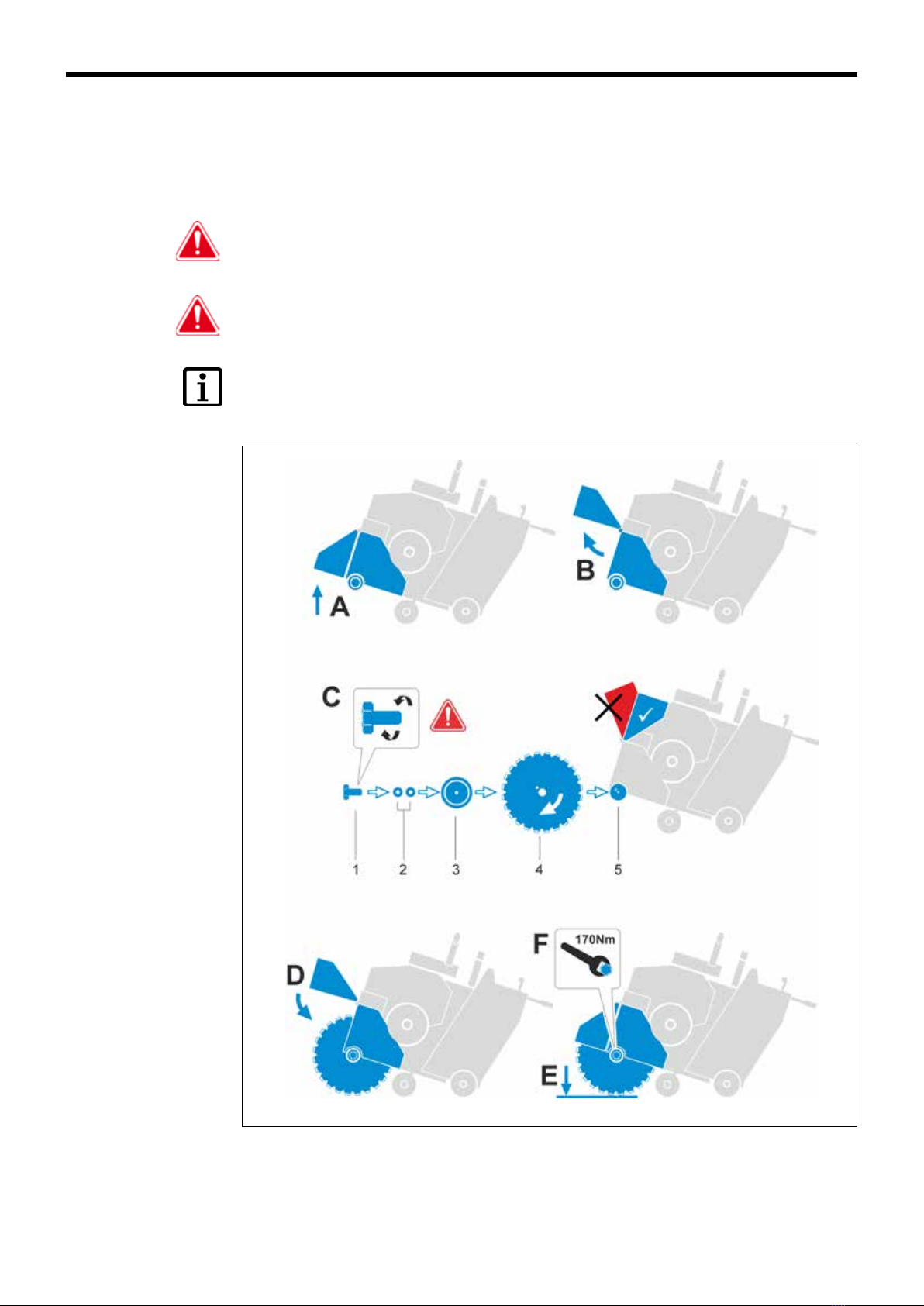

Proceed as follows:
9Check that the direction of rotation arrow on the saw blade (C4) matches the direction of
rotation of the engine (arrow on the blade guard).
9When mounting the saw blade on the right-hand side, use the fastening screw (C1) with
left-hand thread. When mounting the saw blade on the left-hand side, use the fastening
screw
(C1) with right-hand thread
▶Swing the saw blade spindle up (A).
▶Lift the front protective ap up 180° and secure it (B) with a locking pin.
INFORMATION
Using the correct saw blade (size and type) protects the saw blade and improves
eciency, resulting in lower costs.
▶Saw blade inspection
Inspect each saw blade before installation and discard damaged saw blades. Inspect
the saw blade for:
–Cracks, notches and dents
–Damaged/deformed mandrel (centre hole)
–Darkness/discoloration near the diamond segments
–Deformation of the saw blade circumference
–Segment loss/cracks
–Worn core
–Bending
–Sides of unequal width
INFORMATION
Spanner
A 15/16-inch combination wrench, located on the right-hand side of the control panel, is
provided for mounting and removing the saw blade.

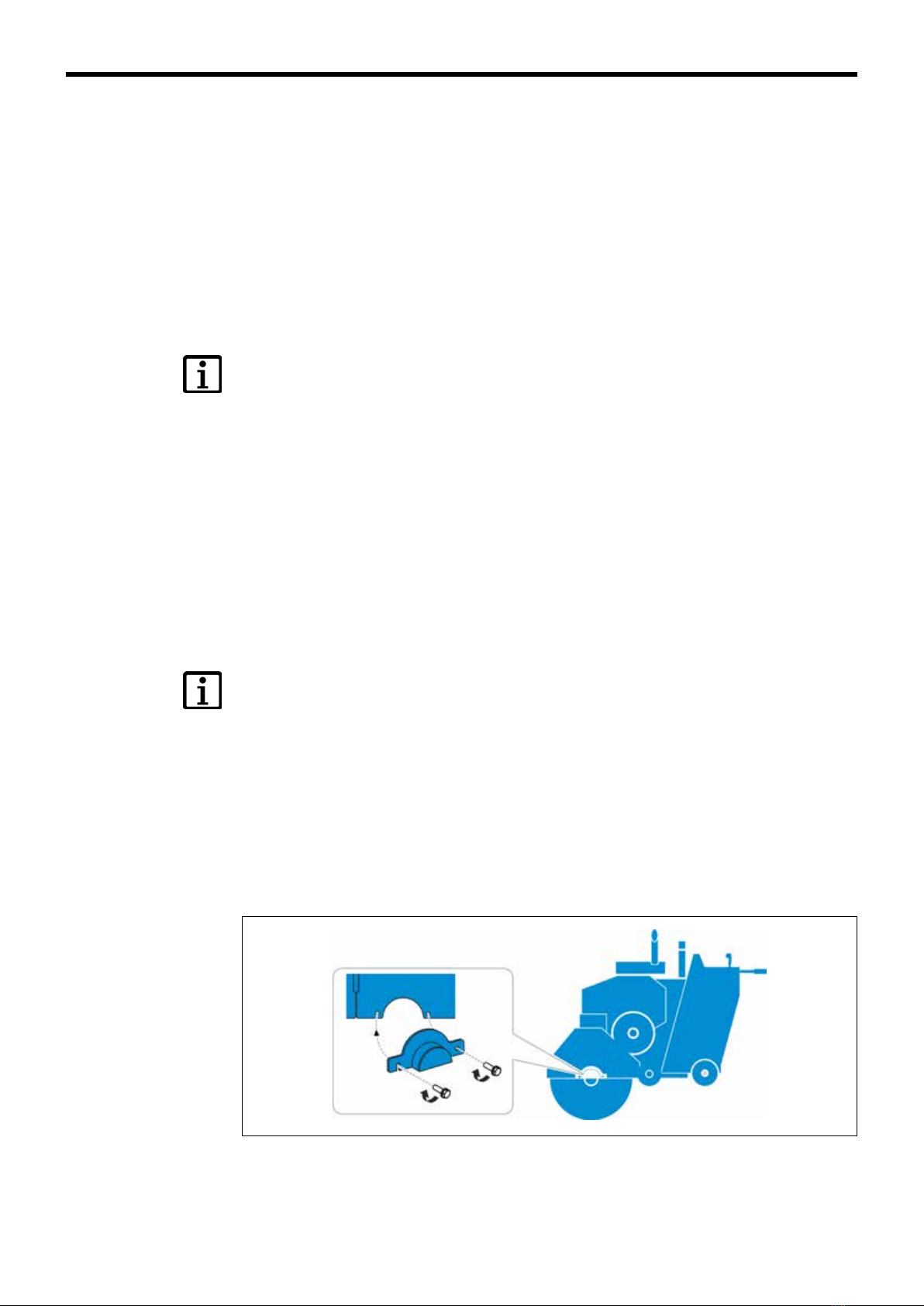

▶Secure the saw blade C4 to the locating ange C5 using blade cover C3 and genuine
Tyrolit bolts C1/lock washers C2.
▶Swing the front protective ap down and secure it (B).
▶Carefully place the saw blade on the oor (E) to prevent the saw blade from rotating
while you are tightening the bolt.
▶Tighten the blade cover bolts to a torque of 170 Nm (F).
▶Securing the blade ange guard
Securing the blade ange guard

14 Mounting/ReMoving
Water connection
Wet and dry cutting
INFORMATION
The oor saw can be used for wet and dry cutting.
INFORMATION
Special Tyrolit diamond tools must be used for dry cutting.
Water connection (diagram)
Water supply
The water supply reduces dust during cutting and cools the fuel, transmission and saw
blade.
INFORMATION
Always test the water supply for adequate pressure and ow before cutting.
Water connection
Parameter Value
Pressure min. 2 bar/max. 6 bar
Flowrate min. 4 l/min
Max. temperature 25°C
3.2
3.2.1
3.2.2

Mounting/ReMoving 15
Using the water supply
▶Make sure that the water valves on the right and left-hand sides of the oor saw are
closed.
▶Connect the water hose to the water valve on the left-hand side of the oor saw.
▶Check the following supply hose connections to ensure that they are not leaking:
–Supply hose from right-hand water valve to inlet of fuel cooler assembly.
–Supply hose from outlet of fuel cooler assembly to inlet of water solenoid valve.
–Supply hose from outlet of water solenoid valve to transmission inlet.
–Supply hose from transmission outlet.
▶Connect the water supply hose from the transmission outlet to the water manifold on
the blade guard.
▶Move the lever of the water valve on the right-hand side of the oor saw to the fully
open position. Increase or reduce the water ow by moving the valve lever on the left-
hand side ofthe oor saw that is connected to the water hose.
INFORMATION
You can turn the water on and o and adjust the water ow from either side of the oor
saw, asrequired.
▶When you have nished cutting, turn o the water supply to the blade guard, turn o the
water supply at the source, and detach the water source hose from the oor saw.
▶Drain the water from the radiator of the upper transmission.
INFORMATION
Pay attention to the engine manufacturer's instructions.
Automatic water system (AWS)
The automatic water system has a solenoid valve in the water supply system, which works
inconjunction with the "Zero saw blade" option on the control panel. When the saw blade
is "zeroed" on the top of the surface, the solenoid valve allows water to ow when the
blade is plunged into a cut. When the saw blade is lifted out of the cut and passes the
"zero point", thewater ow is automatically switched o.
INFORMATION
When using AWS, adjust the lever of the water valve so that the water ow is measured.
AWSautomatically turns the water on/o when the saw blade enters or exits the cut.
3.2.3
3.2.4

16 Mounting/ReMoving
Battery
DANGER
Death or serious injury from the battery!
Ignitable, explosive gas escapes from the battery. Do not expose the battery to sparks or
naked ames, and keep the area around the battery well ventilated.
Disconnect the battery before servicing the oor saw. Always keep the battery cable
clamps away from the battery terminals while the battery is disconnected. Take care to
always connect the battery cables to the correct terminal when reconnecting.
Battery (diagram)
INFORMATION
Use a suitable battery tester to check the battery strength.
Wear protective goggles or face protection and avoid contact with the skin when handling
and servicing the battery.
The oor saw contains a charged battery with a positive cable (red) and a negative cable
(black).
Battery maintenance
Proceed as follows:
Detach the battery from the holder
▶Disconnect the negative cable (black) from the negative terminal.
INFORMATION
Always disconnect the negative cable rst.
▶Disconnect the positive cable (red) from the positive terminal.
▶Remove the battery.
▶When cleaning the battery, inspect the terminals, clamps and cables for damage and
corrosion. Clean the poles and terminals with a wire brush. Grease the battery terminals
and poles with acid-free, acid-resistant grease.
▶Carefully reinsert the battery in the battery box.
▶Reconnect the positive cable.
INFORMATION
▶Always reconnect the positive cable (red) rst.
▶Reconnect the negative cable (black).
▶Place the battery compartment cover on the two screws of the pull rod and tighten with
the two ratchet knobs.
3.3
3.3.1

Mounting/ReMoving 17
Cut indicator
If necessary, use the cut indicator to follow the cutting line. Before cutting, always check
that the cut indicators are correctly aligned with the saw blade.
Cut indicator (diagram)
1Cutting line
2String
Adjusting the front indicator
▶Lower the front indicator frame to the oor (A).
▶Undo both screws in the front indicator frame.
▶Divide an 8-10m-long piece of string (B) into two halves.
▶Extend the string from the saw blade to the cutting line of the indicator
▶Adjust the indicator rod so that the tip is between the tensioned strings (C).
▶Lock the cut indicator in place.
Adjusting the rear indicator(s)
▶Undo the nut and bolt of the rear indicator on the back of the frame base.
▶Align the rear cut indicator with the cutting line and tighten the nut and bolt once more.
3.4

18 Mounting/ReMoving
Handle adjustment
INFORMATION
The length and height of the handles can be adjusted to an ergonomic position.
The handlebars help you to guide and manoeuvre the oor saw. Move the handlebars to
the desired position for better leverage when lifting and steering. To manoeuvre the oor
saw forwards and backwards, turn on the freewheel switch and move the oor saw as
desired.
The freewheel only works when the ignition key is turned to ON.
Handle adjustment (diagram)
Adjusting the handlebar
▶Undo the handlebar adjustment lever.
▶Move the handlebar forwards or backwards to adjust the length, then tighten the
adjustment lever once more.
▶Press the pushbutton on the side of the steering handle for inclining the guide bar, and
move the guide bar up or down to adjust the angle.
3.53.5

Mounting/ReMoving 19
Light
INFORMATION
Adjust the light so that the work area is well lit.
Light (diagram)
Fuel
INFORMATION
Always be careful when refuelling.
▶Do not operate the oor saw if fuel is leaking.
▶Do not refuel the oor saw while the engine is running.
▶Do not smoke or expose to naked ames.
INFORMATION
Pay attention to the engine manufacturer's instructions.
Fuel
3.6
3.7

20 opeRation
Operation
Overview of controls
Controls
1Ignition lock 13 Tool holder
2Control panel 14 Combination wrench
3Engine speed toggle switch 15 Light clamp handle
4Light toggle switch 16 Light
5Toggle switch (not assigned) 17 Freewheel toggle switch
6Toggle switch (not assigned) 18 Rotating valve lowering speed
7Toggle switch (not assigned) 19 Emergency stop button
8Tool lifting pushbutton 20 Indicator cord clamp
9Tool lowering pushbutton 21 Light clamp handle
10 Handle adjustment pushbutton 22 Handle holder
11 Clamp handle 23 Water connection
12 Water metering control valve
4
4.1
