TYROLIT Hydrostress TRE250 User manual

Operating Instructions
TBE400
Index 001
10999936 en / 04.01.2022

2
Manufacturer's address:
TYROLIT Hydrostress AG
Witzbergstrasse 18
CH-8330 Pfäffikon
Switzerland
Tel. [phone]
Fax [phone]
www.hydrostress.com
TYROLIT Hydrostress AG reserves the right to make technical changes without prior notice.
Copyright © 2018 TYROLIT Hydrostress AG, CH-8330 Pfäffikon ZH, Switzerland
All rights reserved, in particular copyrighting and translating rights.
Printing of this operating manual, including extracts from it, is prohibited.
No parts of it may be reproduced in any form or processed using electronic systems, duplicated or
disseminated without the written permission of TYROLIT Hydrostress AG.

3
TBE400 Owner manual text
TABLE OF CONTENTS
Contents……………………………...........
Safety precautions………………………..
General safety rules………………………
Health warnings…………………………...
Unpack, assembly & set-up……………..
Diamond blade installation……………....
Inspection & specification………………..
Features……………………………………
Cutting table assembly………………..….
The rip guide…………………………...….
Cutting depth……………………………...
Water pump installation………………….
Folding legs ………………………………
Electric motor specifications…………….
Do’s & Don’ts for blades…………………
Saw maintenance…………………………
Troubleshooting…………………………..
Customer service…………………………
Contact us…………………………………
Disposal …………… …………….………
Spare parts list……………………………
Declaration of conformity ……………….
3
4
5
6
6
6
7
8
9
10
10
11
12
13
14
15
16
19
19
20
22
31

4
SAFETY PRECAUTIONS
Saw blade should be inspected daily for excessive wear, core cracks, and arbor
damage. Replace any blade that shows signs of damage.
•To mount blade, clean arbor and outer flanges, tightening nut securely.
•DO NOT place any portion of body in line with blade while it is rotating.
•To reduce risk of electrical shock, it is recommended to use GFCI and refer servicing
to qualified professional.
We recommends the use of these safety items when operating the saw:
USE PROPER GROUND CICUIT !
USE BLADE GUARD WHEN OPERATING SAW !
ALWAYS WEAR SAFETY GEAR !

5
GENERAL SAFETY RULES
•Never use the machine improperly or work in an unsafe manner.
•Always wear safety goggles, dust mask, and ear protection while operating the saw.
•Always remain alert when the saw is in use. Failure to pay attention on the
operator’s part may lead to serious injury.
•Before you start working, familiarize yourself with the work site and its surroundings.
Take notice of circumstances, which may impede working or traffic, observe soil
conditions (good bearing or not), and take measures to ensure safety (i.e. the
shielding of road works from public traffic).
•Take measures to ensure that the machine is in a safe and trouble-free condition
prior to usage. Use the machine only when all protective devices (i.e. guards, noise
absorbers, emergency-off devices) are operating in the intended locations.
•A visual check of the machine must be made at least once a shift to ensure that
visible damages or faults are recognized. Any changes (including changes in the
performance or behavior of the machine) must be reported to the supervisor. If
necessary, stop the machine at once and secure it.
•In the case of a malfunction, stop the machine immediately and secure it. Fix the
problem as soon as possible.
•For starting and stopping the machine follow the operating instruction steps and
observe any indicator lights.
•Before switching the machine on make sure that the activated machine will be of no
danger to anyone.
•Be sure to connect the plug to a properly grounded receptacle to reduce the risk of
electric shock.

6
HEALTH WARNINGS
Some dust are created by power sanding, sawing, grinding, drilling, and cause other
construction activities contains chemicals known to cause cancer, birth defects or other
reproductive harm. Some examples of these chemicals are:
•Lead from lead based paints.
•Crystalline silica from bricks and cement and other masonry products.
•Arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of
work. To reduce your exposure to these chemicals: work in a well ventilated area, and
work with approved safety equipment, such as those dust masks that are specially
designed to filter out microscopic particles.
UNPACKING, ASSEMBLY & SET-UP
Open the container, carefully lift the saw frame handles and place it on a flat, level
working area. Be certain that you have the following items before you discard the
container:
•Saw
•45° / 90° rip guide
•Universal wrench
•Owner’s manual

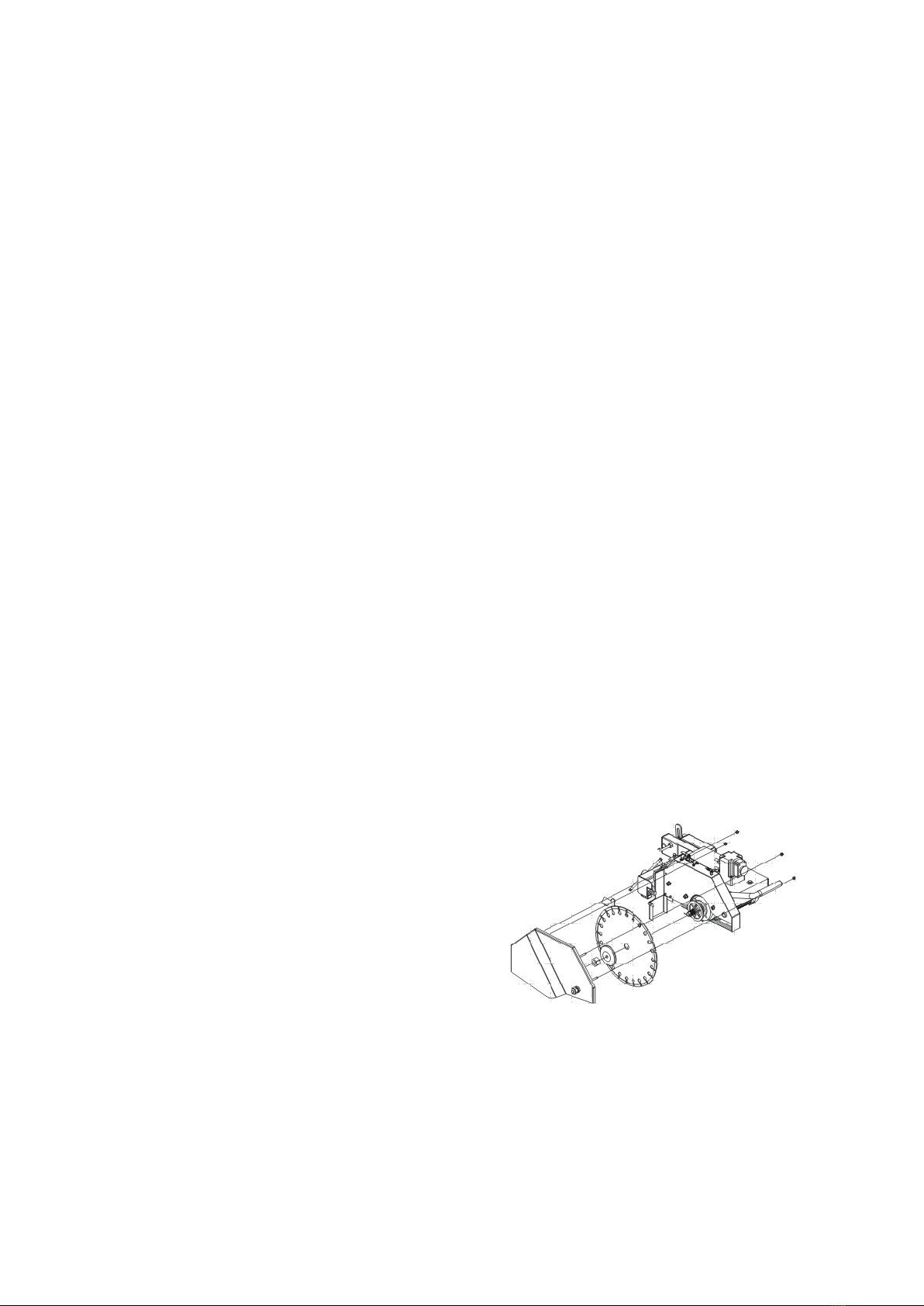

DIAMOND BLADE INSTALLATION
1. Move the blade shaft cover upwards.
To remove the blade lock nut, open
the shaft space.
2. Place the blade onto the blade shaft.
Make sure that the directional arrow is
pointing in the direction of the shaft
rotation
3. Lock the blade lock nut with the outer
flange. Use the multiple wrench
provided to fasten the blade tightly

7
INSPECTIONS & SPECIFICATION
The compact TBE400 table saws are
shipped completely assembled and ready
for use except for the diamond blade.
Inspect the saw for shipping damage. If any
damage is found, contact the shipper
immediately and file a freight claim. We are
not responsible for any freight related
damages. Remove the saw from the
shipping container.
TBE400SPECIFICATIONS
Power 2,2 kW
Volts 230 V (110 V)
Amps 10 A (20)
Cycles 50 Hz (60 Hz)
Blade Shaft Speed 2,800 rpm
Max. Blade Size 15,7” / 400 mm
Arbor Size 1” / 25,4 mm
Max. Cutting Length 23,6” / 600 mm
Length 1210 mm
Width 655 mm
Hight 1285 mm
Wight 86 Kg
Degree of protection IP54
NOISE LEVEL AND VIBRATIONS
Parameter Wert
Noise level at the ear of the user (Leq) 81.9 dB(A)*
Noise level at workplace (LPA) 69.3 dB(A)*
Sound power level in acc. ISO 3744 (LwA) 89.3 dB(A)*
Vibrations DIN EN ISO 5349-2 < 2.5 m/s²
*Value applies under the following condition: With Sawblade Ø350mm Type
EB No. 5696.
Higher noise levels may be generated in cutting operation.
ATTENTION! Hearing protection must be worn when 85 dB(A) is exceeded!

8

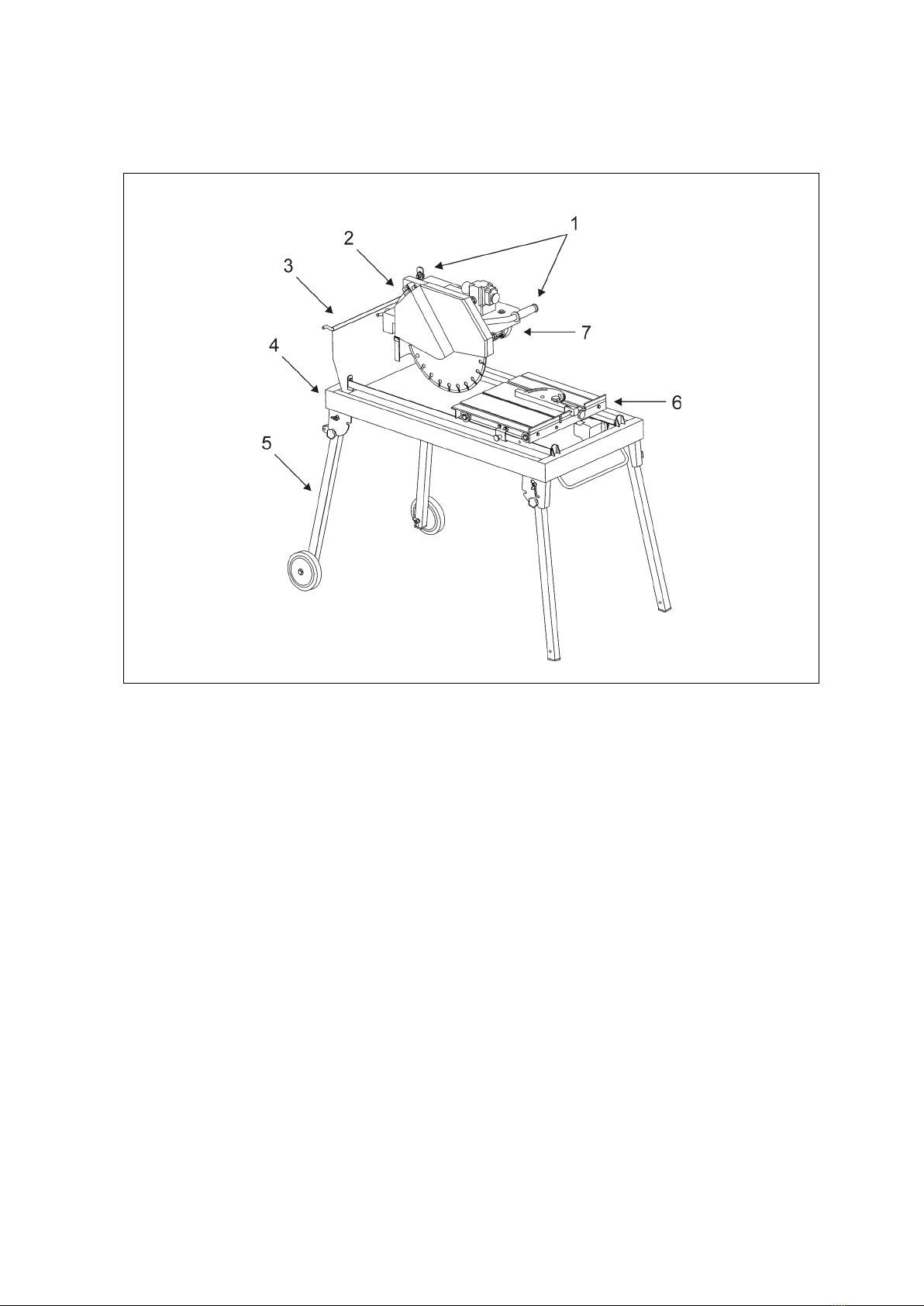

FEATURES
The TBE400 table saw is designed for the professional contractor in mind. It enhances
performance with a multitude of features facilitating operation.
1 Sturdy handle and Spring Lever allow for quick pluge cuts
2 Miter Cutting Capability
3 Rear Splash Guard protects the jobsite against dust and water
4 Stainless Steel Water Tray
5 Folding legs with Wheels facilitate transport
6 45° / 90° Rip Guide
7 Powerful Induction Motor

9

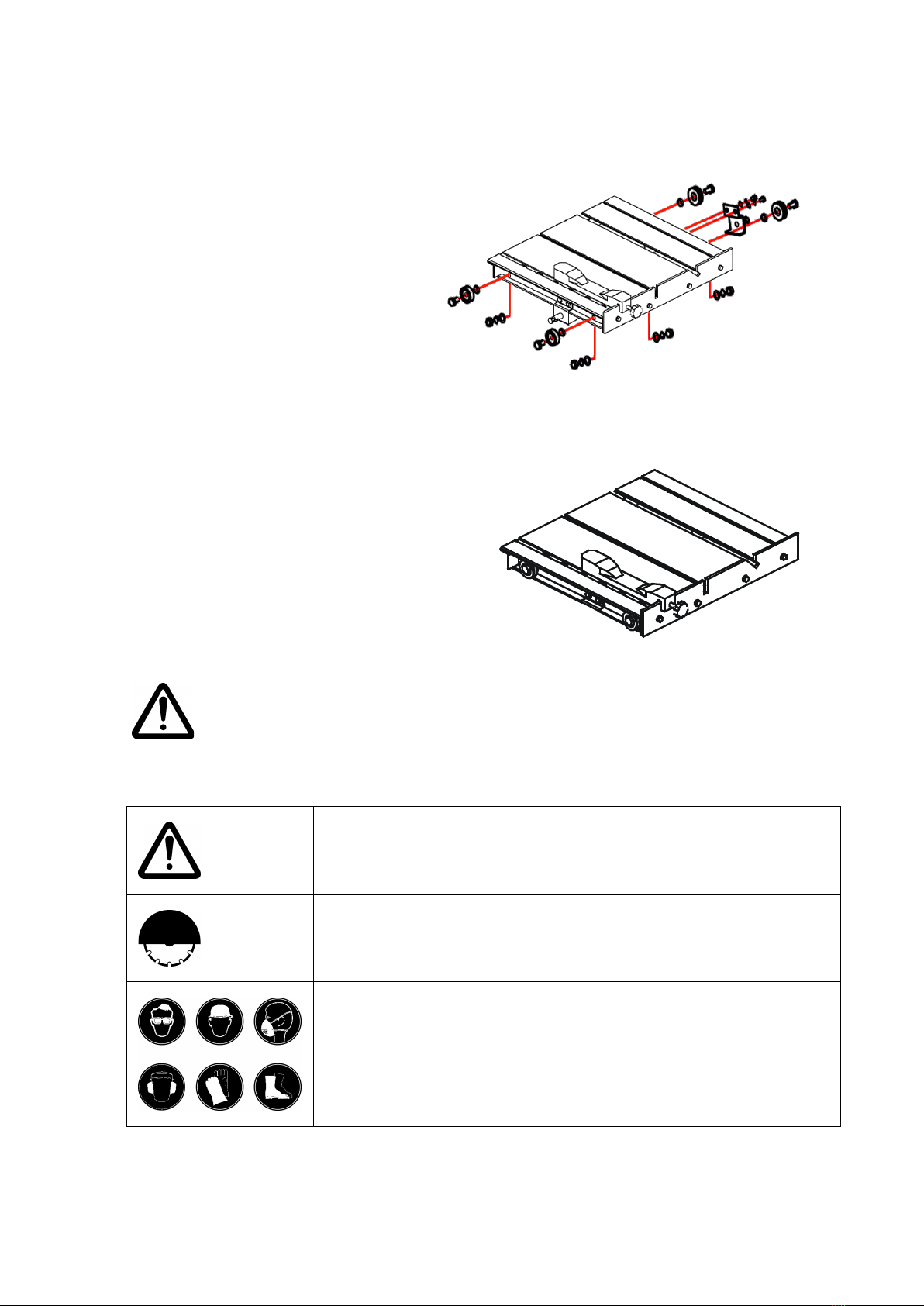

CUTTING TABLE ASSEMBLY
To install the cutting table to the machine:
1. Set the cutting table on the rails
2. Install the screw and brackets to
the cutting table
3. To remove the cutting table do
the reverse of the above two
steps.
THE CUTTING TABLE
Features:
•The heavy-duty cutting table with
steel wheels provides the durability
to handle large materials.
Only use the Ø16" (400 mm) blade for this saw. Setting smaller size of
diamond blade may grab the material being cut, causing damage and
possibly injury.
USE PROPER GROUND CICUIT !
USE BLADE GUARD WHEN OPERATING SAW !
ALWAYS WEAR SAFETY GEAR !

10
THE RIP GUIDE
Steps to use the 45º / 90º rip guide
1. Set the rip guide by positioning it on the desired dimension and tighten the threaded
knob. Make sure that the rip guide is firmly tightened to avoid slippage. The rip guide
can be used for 90º rip cuts and 45º angle cuts from both the left and right side.
(Note the straight and 45º angled slits on the bottom of the rip guide
2. After the rip guide is positioned for the desired cut, place material flat against the rip
guide and the measurement rail. After the rip guide is positioned for the desired cut,
place material flat against the rip guide and the measurement rail. For 45º rip cuts,
place the corner of material in the open slot of the measurement rail.
3. Simply line up the material being cut with the appropriate pre-marked lines on the
cutting table.
4. Now you are ready to make your cut
CUTTING DEPTH
The recommended cutting depth is 0.6cm (¼") below the cutting table surface. The
cutting clearance has been fixed from original designed.
Only use the Ø16" (400 mm) blade for this saw. Setting smaller size of
diamond blade may grab the material being cut, causing damage and
possibly injury.
max. Blade Diameter
max. Cutting Depth
400 mm 125 mm

11

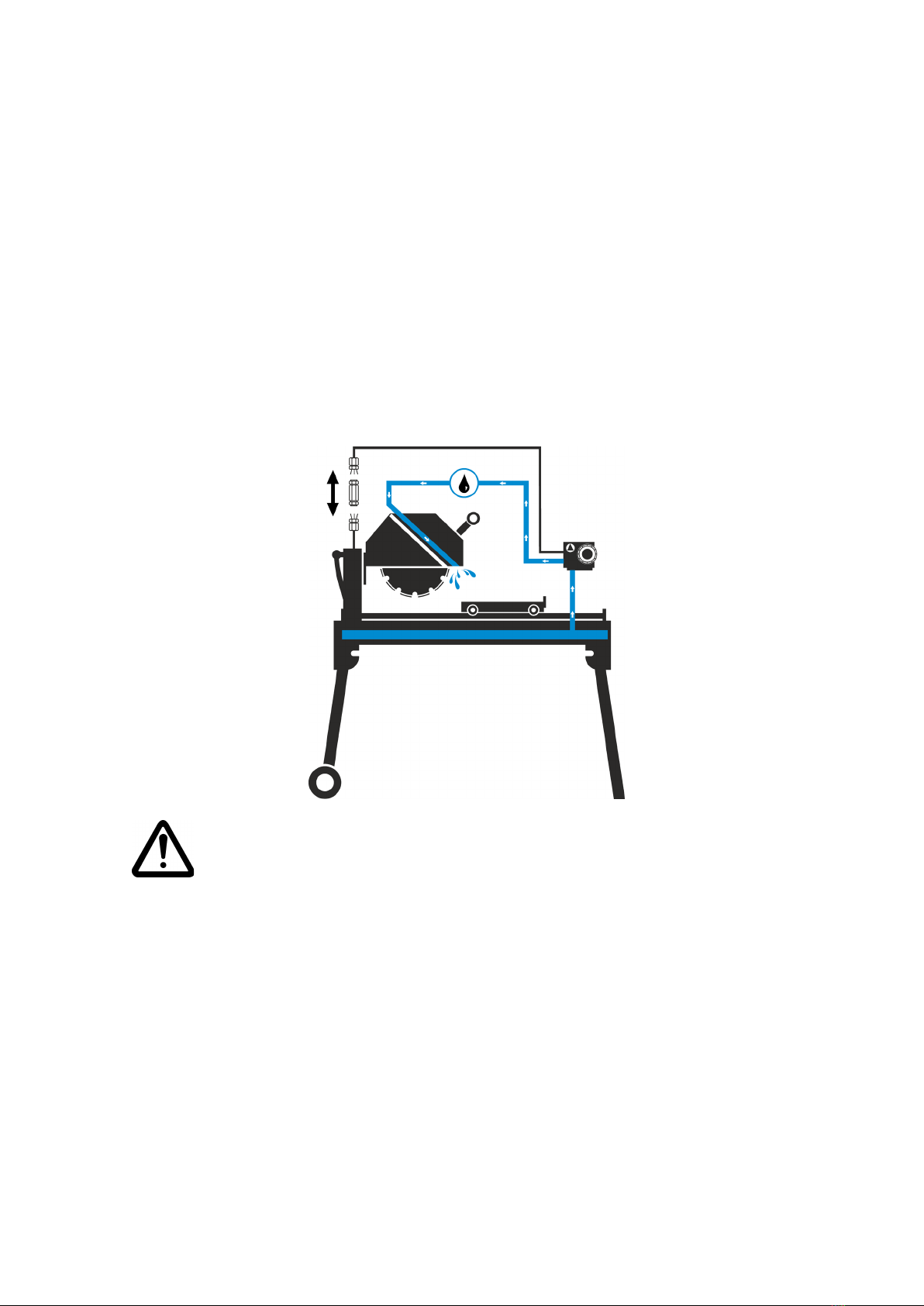

WATER PUMP INSTALLATION
1. Remove the water pump from the box and check that it is not damaged.
2. Place the pump into the middle of the water tray along its side so that the water
outlet is positioned horizontally. Connect the water hose from the blade guard to the
pump and plug the power cord into the 3-prong receptacle.
3. Fill the water tray so that the water intake is fully immersed.
4. Be sure to support the pump during installation to prevent pump failure or damage.
Disconnect the pump before attempting to handle the pump.
Never operate pump without water in the tray

12

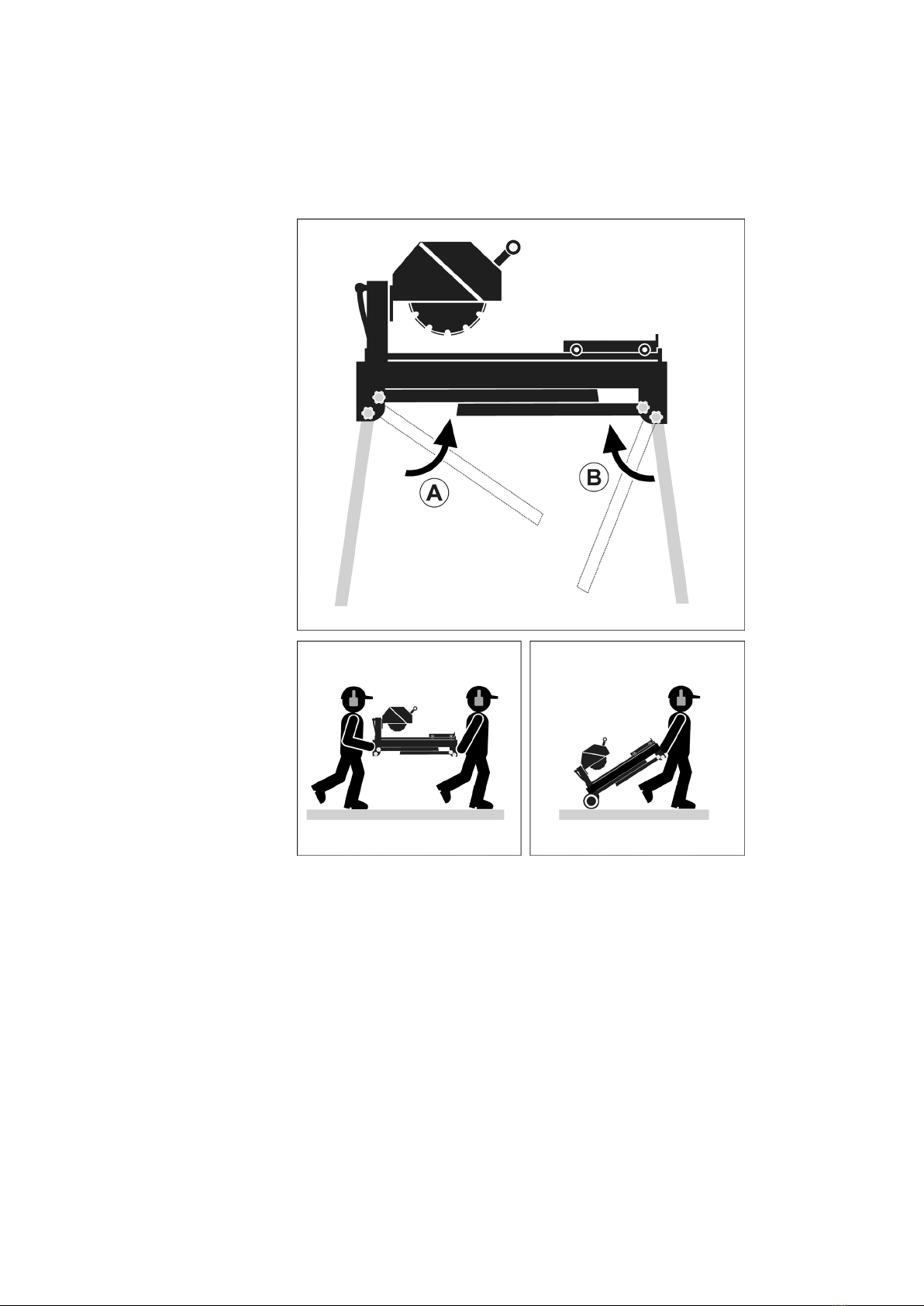

FOLDING LEGS

13

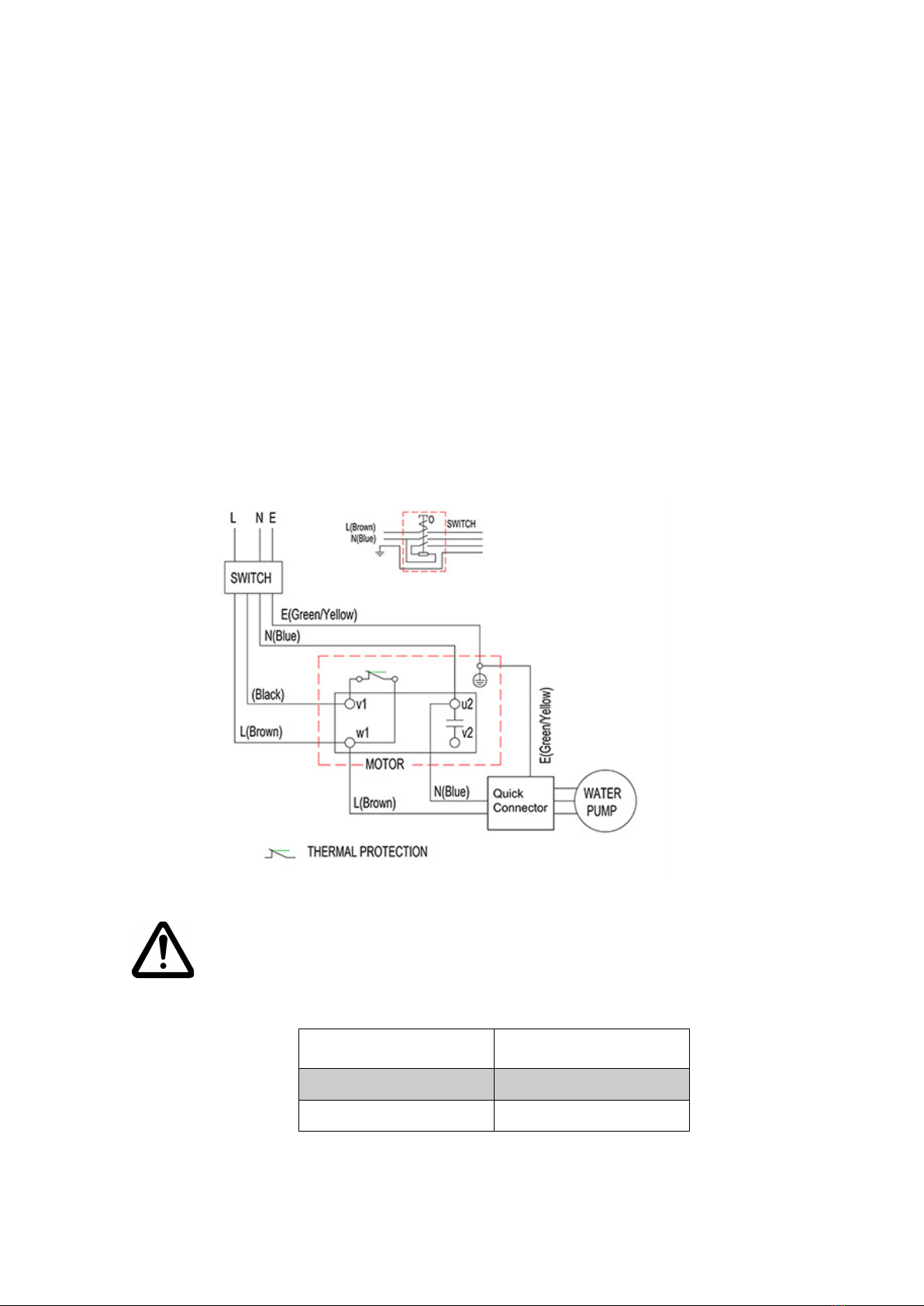

ELECTRICAL MOTOR SPECIFICATIONS
Features:
Power 2,2 kW
Volts 230 V (110 V)
Amps 10 Amps (20A)
Motor RPM 2800 RPM
Cycle 50 Hz (60 Hz)
Recommendations:
It is recommended that a 15 A (30 A) CIRCUIT be used while operating this saw. This
will prevent any loss of power or interruption.
Always plug saw as close as possible to the power source while operating. This will
allow you to receive optimum electricity.
To avoid permanent motor damage you must use the correct extension
cord. Never use more than one extension cord at a time. Follow the
chart for proper size:
Wiregauge
Length of cord
2,2 kW – 230 V (110V)
1.5 mm² 30 m
2.5 mm² 50 m

14
DO’S AND DON’TS FOR BLADES
WET CUT BLADES
DO'S
•Inspect blades daily for cracks or uneven wear.
•Always use appropriate blade for material being cut.
•Inspect arbor shaft for uneven wear before mounting blade.
•Always use blades with the correct arbor shaft size.
•Ensure that blade is mounted in the correct direction.
•Secure the blade to the arbor with a wrench.
•Use proper safety equipment when operating the saw.
•Periodically check the blade for cracks or bond fatigue.
•Always have a continuous flow of water on both sides of blade.
DON'TS
•Do not operate the saw without safety guards in position.
•Do not operate the saw with blades larger than Ø 16" (400 mm)
•Do not cut dry with blades marked "Use Wet".
•Do not exceed manufacturer's recommended maximum RPM.
•Do not force blade into material let blade cut at its own speed.
DRY CUT BLADES
DO'S
•In addition to the following, always follow wet recommendations.
•Use appropriate blade for material being cut.
•Inspect segment blades for segment cracking or loss.
•Do not use damaged blades.
•Use proper safety equipment when operating the saw.
DON'TS
•In addition to the following, always follow wet recommendations.
•Do not make long cuts with dry blades--allow them to air cool periodically.
•Do not use the edge or side of blade to cut or grind.
•Do not attempt to cut a radius or curve.
•Do not cut too deep or too fast into the material.
•Do not cut any material not recommended by blade manufacturer.

15
SAW MAINTENANCE
Maintenance interval Wath to do for maintenance and care
After ecery use ot the
machine
- Remove dirty water from container.
- Remove dirt and mud from the bottom of the container
- Rinse teh immersion pump with fresh water to prevent water
pump dogging from residual dirt.
After wet clearing and
before using the machine
again
Connect the machine to an electric power outlet equipped with
a“GFI” safety power breaker. If the safety power breaker cuts off
the electrical power supply, do not try to operate the machine but
have it checked by an authorized dealer first.
Before not using the
machine for a prolonged
period of time
Clean and lubricate all movable part.
Before not using the
machine for a prolonged
period of time
- Check that the stand is safely fixed.
- Check that all screw joints and nuts are fixed.
- Check that the roller table is in its guides and that it easliy
moves to and fro.
- With the saw blade removed, switch on the motor for an
instant and switch it off again. If the motor does not run, have
the machine inspected by a qualified electrician.
- Check that the immersion pump works properly. Turn on the
cooling water tap and switch the machine on. If the pump
does not give any water or only a little, switch the machine off
at once. Clean the pump, or replace if necessary.
Ambient temperture below
0°C (operation in winter)
To prevent the water in the pump and cooling system from
freezing, remove the water after using the machine or when there
will be a long break. Make sure that the cooling system is entirely
drained so that there is no water left inside the pump, water hose
and bearing housing
For your safety, before performing any maintenance on the saw turn off
the power switch and unplug the power card

16
TROUBLESHOOTING
Problem Possible cause Solution
Machine does not run
when switched on
Power cord not properly
fixed / plugged in
Check that the machine is properly
connected to the power supply.
Power cord defective Have the power cord checked, replace
if necessary.
Main power switch
defective
Have the main power switch checked
and replace if necessary by a qualified
electrician.
Loose eleectrical
connection inside the
electric system
Have the whole electric system of the
machine checked by a qualified
electrician.
Motor defective Have the motor checked and replace if
necessary by a qualified techician.
Motor stops
(power cut out)
To much pressure exerted
while cutting
Exert less pressure when cutting
Incorrect specification for
saw blade
Use a saw blade which corresponds to
the material being cut
Saw has a defective electric
system
Have the electric system of the saw
checked by a qualified technician
Poor machine
performance little
power
Power cord/extension cable
too long or cable still wound
up inside cable drum
Use a power cord/ectension cable of
the rated length, use a cable drum with
cable fully extended
Power network is
insufficient
Observe the electrical ratings of the
machine and connect it only to a power
network which complies with these
ratings
Drive motor no longer runs
at rated speed (r.p.m.)
Have the motor checked by a qualified
electrician and have it replaced if
necessary

17
TROUBLESHOOTING
Problem Possible Cause Solution
Irregular run of the
saw blade
Poor tension in the blade
material
Return the saw blade to the
manufacturer
Saw blade wobbles
when running
Saw blade is damaged or
bent
-Have the saw blade
aligned/flattened
-Clean the receiving flange
-Solder the diamond segments of
the old blade onto another swa
blade or use a new blade
Flange of the saw blade is
damaged
Replace the saw blade flange
Shaft of the motor is bent Replace the electric motor
Diamond segment
becomes loose
Overheating of the saw
blade, cooling water not
sufficient
Have the diamond segment soldered on
the blade again, ensure optimum flow of
cooling water
Excessive wear Wrongtype of saw blade Use harder saw bldes
Shaft of motor causes
wobbling
Have bearings of the motor or the motor
replaced
Overheating Ensure optimum flow of cooling water
Cracks in or near the
diamond segment
Saw blade too hard Use a softer blade
Fixed flange is worn out Have the fixed flange replace
Motor shaft bearing Replace the bearing of the motor shaft

18
TROUBLESHOOTING
Problem Possible cause Solution
Saw blade is blunt - Saw blade type is
unsuitable for the
meterial being cut
- Saw blade type is
unsuitable for the
machine performance
- Saw blade too hard
Use appropriate type of saw blade
Diamond segments are
blunt
Sharpen the diamond saw blade
Appearance of cut is
not optimal
Poor tension in the blade
material
Return the saw blade to the
manufacturer
Too much load placed on
the saw blade
Use a suitable saw blade
Diamond segments are
blunt
Sharpen the saw blade
The center hole in the
saw blade has become
wider due to wear
The saw blade has slipped
on the motor shaft when
running
The arbor otr the saw blade must be
fitted with an appropriate adapter ring
Check the receiving flange and have it
replaced if necessary
Saw blade shows
blooming colors
Lateral friction when cutting The material feed is too high; proceed
more slowly
Grinding marks on the
saw blade
Material is not being feed
parallel to the saw blade
Ensure that the direction of feed is
absolutley parallel to the saw blade
Adjust the roller table/have it adjusted
Poor tension in the blade
material
Have the saw blade tensioned
Too much load on the saw
blade
The material feed is too high, proseed
more slowly

19
CUSTOMER SERVICE
AFTER SALE SERVICE
All customer service (technical questions, re-order of parts, etc.) will be provided by us.
CLAIMS FOR LOST OR DAMAGED GOODS
If merchandise is delivered in damaged condition or cartons are missing, a notation
must be placed on all papers signed by the receiver. If unreported or concealed
damages are noticed after delivery, the carrier should be contacted by telephone and if
carrier fails to send an inspector within five days, a request should be made in writing to
the carrier, confirming the telephone request for an inspection.
All requests for credit due to transportation loss or damage should be accompanied by
properly signed papers. A claim for loss or damage must be filed with the carrier within
60 days from the shipping date for UPS or other common carriers. Credit cannot be
allowed for damage claims that are not properly substained with supporting papers or
received by us too late for timely filing with the carrier.
CONTACT US
We pride ourselves on our customer service. If you have any questions regarding our
products, whether it may be product inquiry or troubleshooting, please don’t hesitate to
contact us at our corporate office. We will do our best to answer your questions. In
some cases we may even refer you to a local sales representative that can better
service you.

20
DISPOSAL
GENERAL
The operator can recycle or dispose of the Table saw himself
provided he observes the statutory provisions. In order to
dismantle the Table saw correctly and to properly remove the
materials some knowledge in the area of mechanics and
knowledge about differentiation of waste materials is necessary.
If during correct disposal doubts arise that represent a hazard for
persons or the environment, the after-sales service of TYROLIT
Hydrostress AG will be happy to provide information.
DANGER
Voltage warning
Before working in an area identified in this way, the
installation or device must be fully disconnected from the
power (voltage) and secured against being accidentally
powered up again.
Failure to head this warning may lead to death or serious
injury.
PERSONNEL QUALIFICATIONS
Only personnel with basic technical training and who are in a
position to identify the various material groups should be involved
in disposal.
DISPOSAL REGULATIONS
The normal local and regional rules and guidelines must be
observed when disposing of the machines making up the Table
saw.
