TYROLIT Hydrostress TBE350S-1 User manual

10996400 en / 28.09.2016
Operating Instructions
TBE350

Table Saw
Index / Indice «001»

2
Manufacturer's address:
TYROLIT Hydrostress AG
Witzbergstrasse 18
CH-8330 Pfäffikon
Switzerland
Tel. [phone]
Fax [phone]
www.hydrostress.com
TYROLIT Hydrostress AG reserves the right to make technical changes without prior notice.
Copyright © 2003 TYROLIT Hydrostress AG, CH-8330 Pfäffikon ZH, Switzerland
All rights reserved, in particular copyrighting and translating rights.
Printing of this operating manual, including extracts from it, is prohibited.
No parts of it may be reproduced in any form or processed using electronic systems, duplicated
or disseminated without the written permission of TYROLIT Hydrostress AG.

3
TBE350** Owner manual text
TABLE OF CONTENTS
Contents……………………………...........
Safety precautions………………………..
General safety rules…………………….
Health warnings………………………….
Unpack, assembly & set-up…………….
Diamond blade installation……………...
Inspection & specification……………….
Features……………………………………
Cutting table assembly………………….
The rip guide…………………………….
Cutting depth……………………………...
Water pump installation………………….
Slide-In legs………………………………
Electric motor specifications…………….
Do’s & Don’ts for blades…………………
Saw maintenance…………………………
Troubleshooting…………………………..
Customer service…………………………
Contact us…………………………………
Warranty……………………………………
Spare parts list……………………………
Explode view…………………………….
3
4
5
5
6
6
7
8
9
10
10
11
12
13
14
15
16
19
19
20
21
22

4
SAFETY PRECAUTIONS
Saw blade should be inspected daily for excessive wear, core cracks, and arbor
damage. Replace any blade that shows signs of damage.
•To mount blade, clean arbor and outer flanges, tightening nut securely.
•DO NOT place any portion of body in line with blade while it is rotating.
•To reduce risk of electrical shock, it is recommended to use GFCI and refer
servicing to qualified professional.
We recommends the use of these safety items when operating the saw:
USE PROPER GROUND CICUIT !
USE BLADE GUARD WHEN OPERATING SAW !
ALWAYS WEAR SAFETY GEAR !

5
GENERAL SAFETY RULES
•Never use the machine improperly or work in an unsafe manner.
•Always wear safety goggles, dust mask, and ear protection while operating
the saw (to comply with ANSI-Z87.1).
•Always remain alert when the saw is in use. Failure to pay attention on the
operator’s part may lead to serious injury.
•Before you start working, familiarize yourself with the work site and its
surroundings. Take notice of circumstances, which may impede working or
traffic, observe soil conditions (good bearing or not), and take measures to
ensure safety (i.e. the shielding of road works from public traffic).
•Take measures to ensure that the machine is in a safe and trouble-free
condition prior to usage. Use the machine only when all protective devices
(i.e. guards, noise absorbers, emergency-off devices) are operating in the
intended locations.
•A visual check of the machine must be made at least once a shift to ensure
that visible damages or faults are recognized. Any changes (including
changes in the performance or behavior of the machine) must be reported to
the supervisor. If necessary, stop the machine at once and secure it.
•In the case of a malfunction, stop the machine immediately and secure it. Fix
the problem as soon as possible.
•For starting and stopping the machine follow the operating instruction steps
and observe any indicator lights.
•Before switching the machine on make sure that the activated machine will be
of no danger to anyone.
•Be sure to connect the plug to a properly grounded receptacle to reduce the
risk of electric shock.
HEALTH WARNINGS
Some dust are created by power sanding, sawing, grinding, drilling, and cause
other construction activities contains chemicals known to cause cancer, birth
defects or other reproductive harm. Some examples of these chemicals are:
•Lead from lead based paints.
•Crystalline silica from bricks and cement and other masonry products.
•Arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type
of work. To reduce your exposure to these chemicals: work in a well ventilated
are, and work with approved safety equipment, such as those dust masks that
are specially designed to filter out microscopic particles.

6
UNPACKING, ASSEMBLY & SET-UP
Open the container, carefully lift the saw frame handles and place it on a flat,
level working area. Be certain that you have the following items before you
discard the container:
•Saw
•45° / 90° rip guide
•Universal wrench
•Owner’s manual

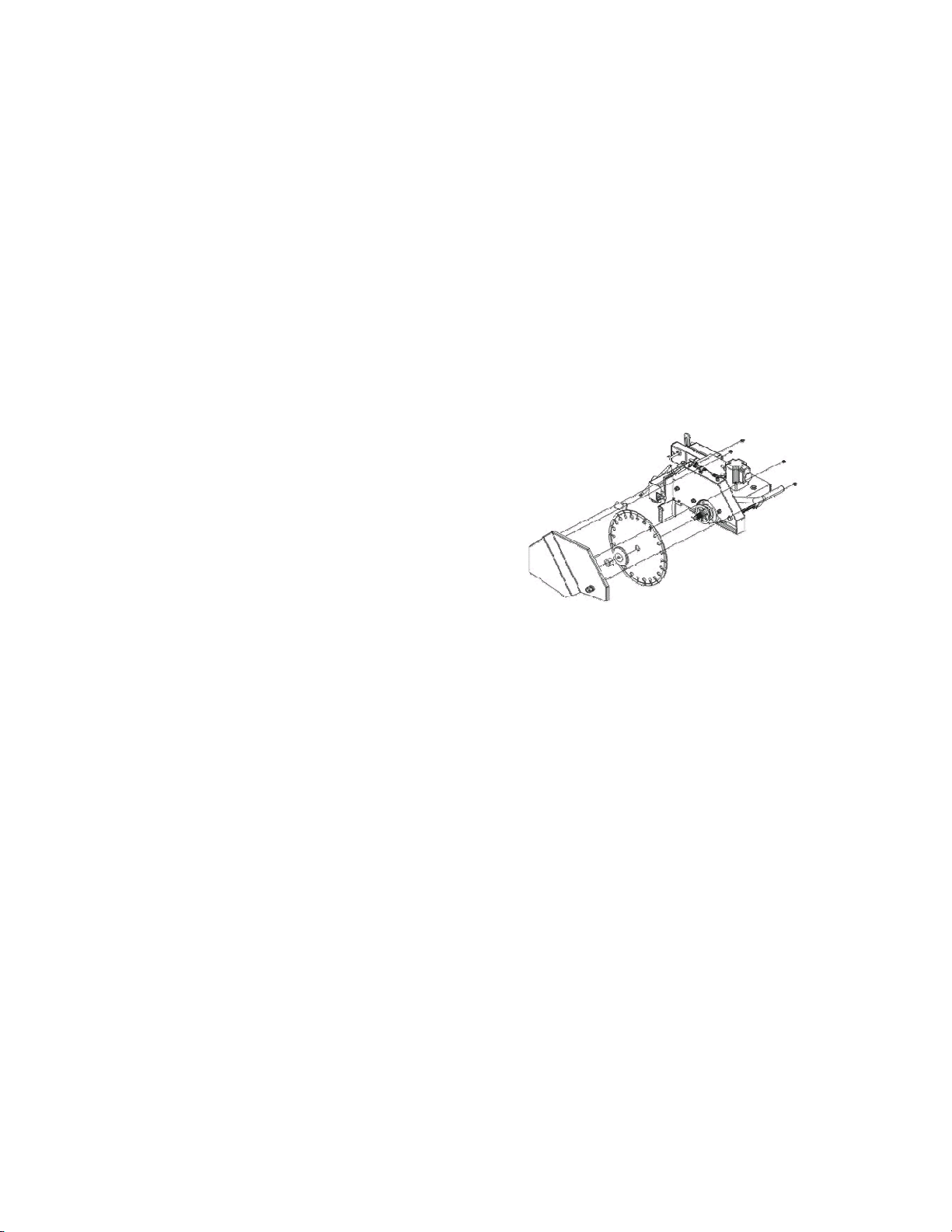

DIAMOND BLADE INSTALLATION
1. Move the blade shaft cover upwards.
To remove the blade lock nut, open
the shaft space.
2. Place the blade onto the blade shaft.
Make sure that the directional arrow is
pointing in the direction of the shaft
rotation
3. Lock the blade lock nut with the outer
flange. Use the multiple wrench
provided to fasten the blade tightly

7

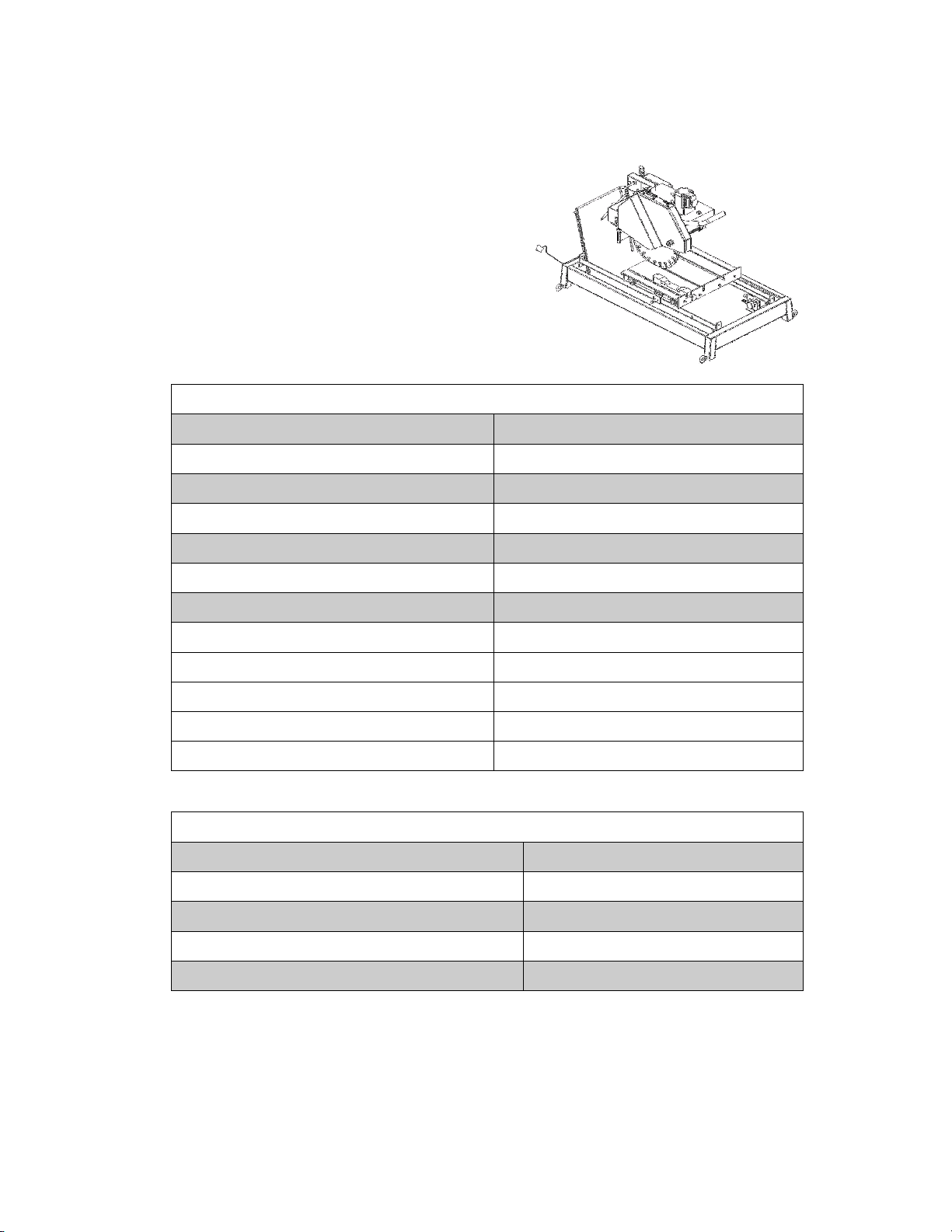

INSPECTIONS & SPECIFICATION
The compact TBE350** table saws are
shipped completely assembled and ready
for use except for the diamond blade.
Inspect the saw for shipping damage. If any
damage is found, contact the shipper
immediately and file a freight claim. We are
not responsible for any freight related
damages. Remove the saw from the
shipping container.
TBE350** SPECIFICATIONS
Power 2,2 kW
Volts 230 V (110 V)
Amps 10 A (20)
Cycles 50 Hz (60 Hz)
Blade Shaft Speed 2,800 rpm
Max. Blade Size 15,7” / 400 mm
Arbor Size 1” / 25,4 mm
Max. Cutting Length 23,6” / 600 mm
Length 1140 mm
Width 640 mm
Hight 1230 mm
Wight 79 Kg
NOISE LEVEL AND VIBRATIONS
Parameter Wert
Noise level at the ear of the user (Leq) 81.9 dB(A)*
Noise level at workplace (LPA) 69.3 dB(A)*
Sound power level in acc. ISO 3744 (LwA) 89.3 dB(A)*
Vibrations DIN EN ISO 5349-2 < 2.5 m/s²
*Value applies under the following condition: With Sawblade Ø350mm Type
EB No. 5696.
Higher noise levels may be generated in cutting operation.
ATTENTION! Hearing protection must be worn when 90 dB(A) is exceeded !

8

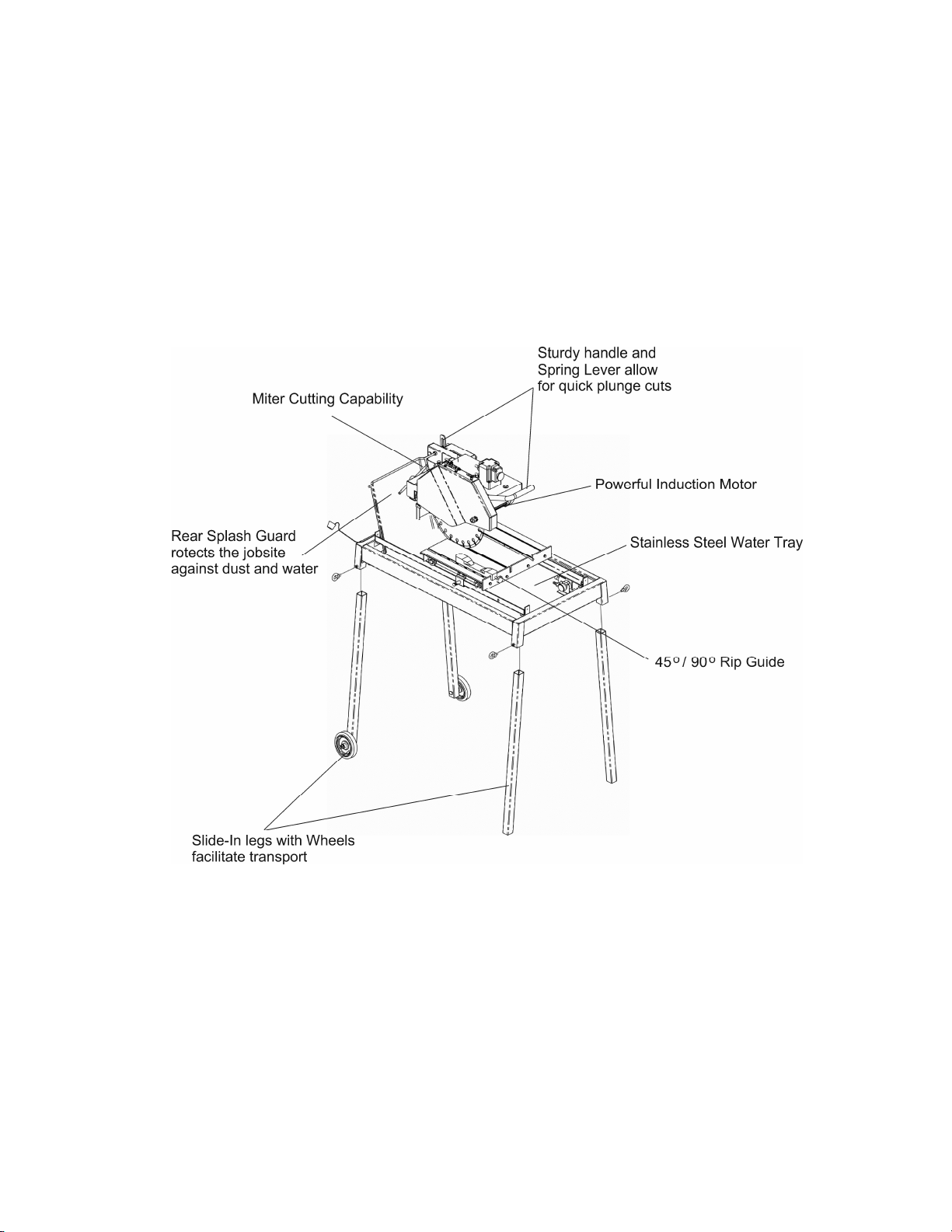

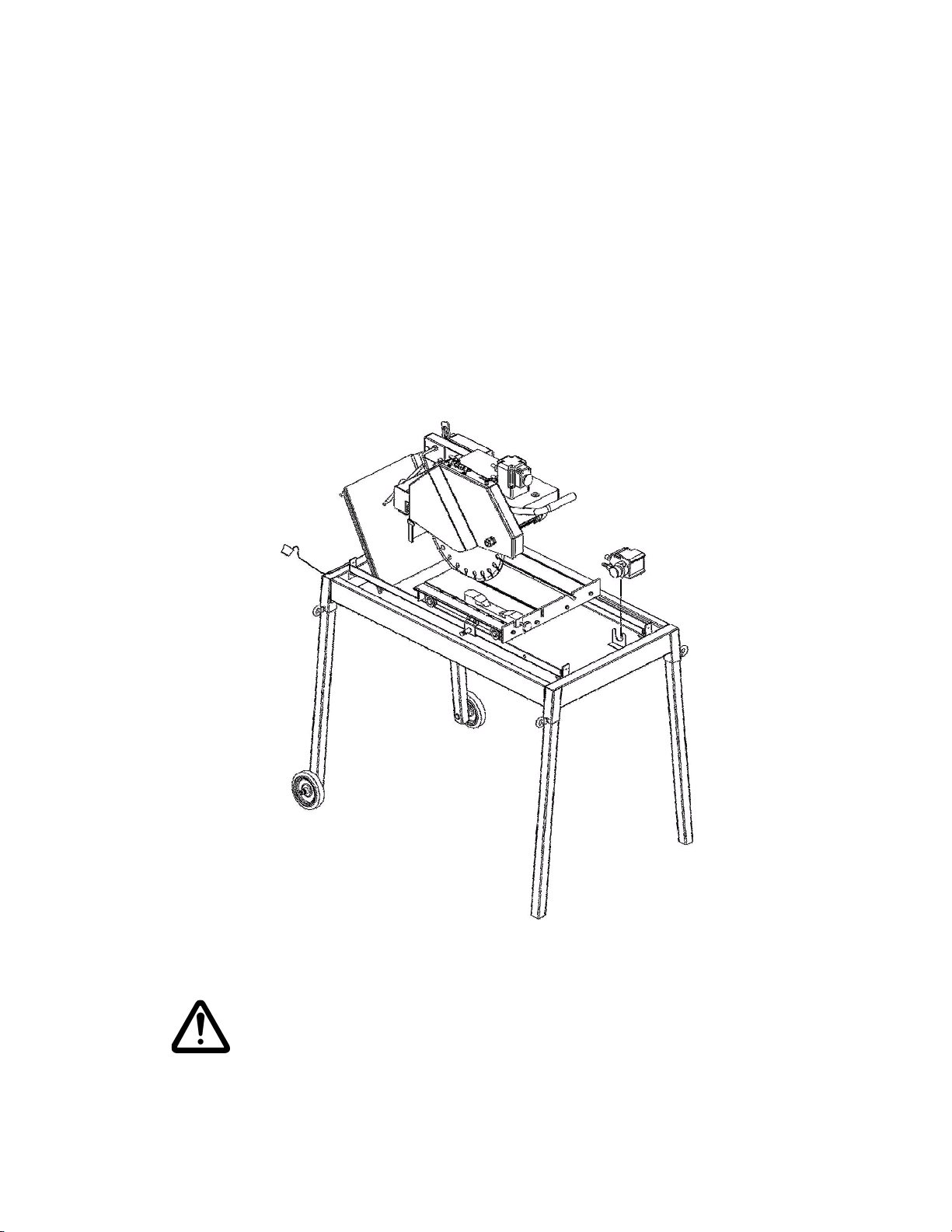

FEATURES
The TBE350** table saw is designed for the professional contractor in mind. It
enhances performance with a multitude of features facilitating operation.

9
CUTTING TABLE ASSEMBLY
To install the cutting table to the machine:
1. Set the cutting table on the rails
2. Install the screw and brackets to
the cutting table
3. To remove the cutting table do
the reverse of the above two
steps.
THE CUTTING TABLE
Features:
• The heavy-duty cutting table with
steel wheels provides the durability
to handle large materials.
Only use the Ø14" (350 mm) blade for this saw. Setting smaller size of
diamond blade may grab the material being cut, causing damage and
possibly injury.
USE PROPER GROUND CICUIT !
USE BLADE GUARD WHEN OPERATING SAW !
ALWAYS WEAR SAFETY GEAR !

10
THE RIP GUIDE
Steps to use the 45º / 90º rip guide
1. Set the rip guide by positioning it on the desired dimension and tighten the
threaded knob. Make sure that the rip guide is firmly tightened to avoid
slippage. The rip guide can be used for 90º rip cuts and 45º angle cuts from
both the left and right side. (Note the straight and 45º angled slits on the
bottom of the rip guide
2. After the rip guide is positioned for the desired cut, place material flat against
the rip guide and the measurement rail. After the rip guide is positioned for
the desired cut, place material flat against the rip guide and the measurement
rail. For 45º rip cuts, place the corner of material in the open slot of the
measurement rail.
3. Simply line up the material being cut with the appropriate pre-marked lines on
the cutting table.
4. Now you are ready to make your cut
CUTTING DEPTH
The recommended cutting depth is ¼" below the cutting table surface. The
cutting clearance has been fixed from original designed.
Only use the Ø14" (350 mm) blade for this saw. Setting smaller size of
diamond blade may grab the material being cut, causing damage and
possibly injury.
max. Blade Diameter max. Cutting Depth
400 mm 120 mm

11
WATER PUMP INSTALLATION
1. Remove the water pump from the box and check that it is not damaged.
2. Place the pump into the middle of the water tray along its side so that the
water outlet is positioned horizontally. Connect the water hose from the blade
guard to the pump and plug the power cord into the 3-prong receptacle.
3. Fill the water tray so that the water intake is fully immersed.
4. Be sure to support the pump during installation to prevent pump failure or
damage.
Disconnect the pump before attempting to handle the pump.
Never operate pump without water in the tray

12
SLIDE-IN LEGS
1. Slide each of the four legs into the housing at the four corners of the saw
frame.
2. After sliding the leg as far as possible, lock the leg in place with the ring bolt
located on the leg housing.

13

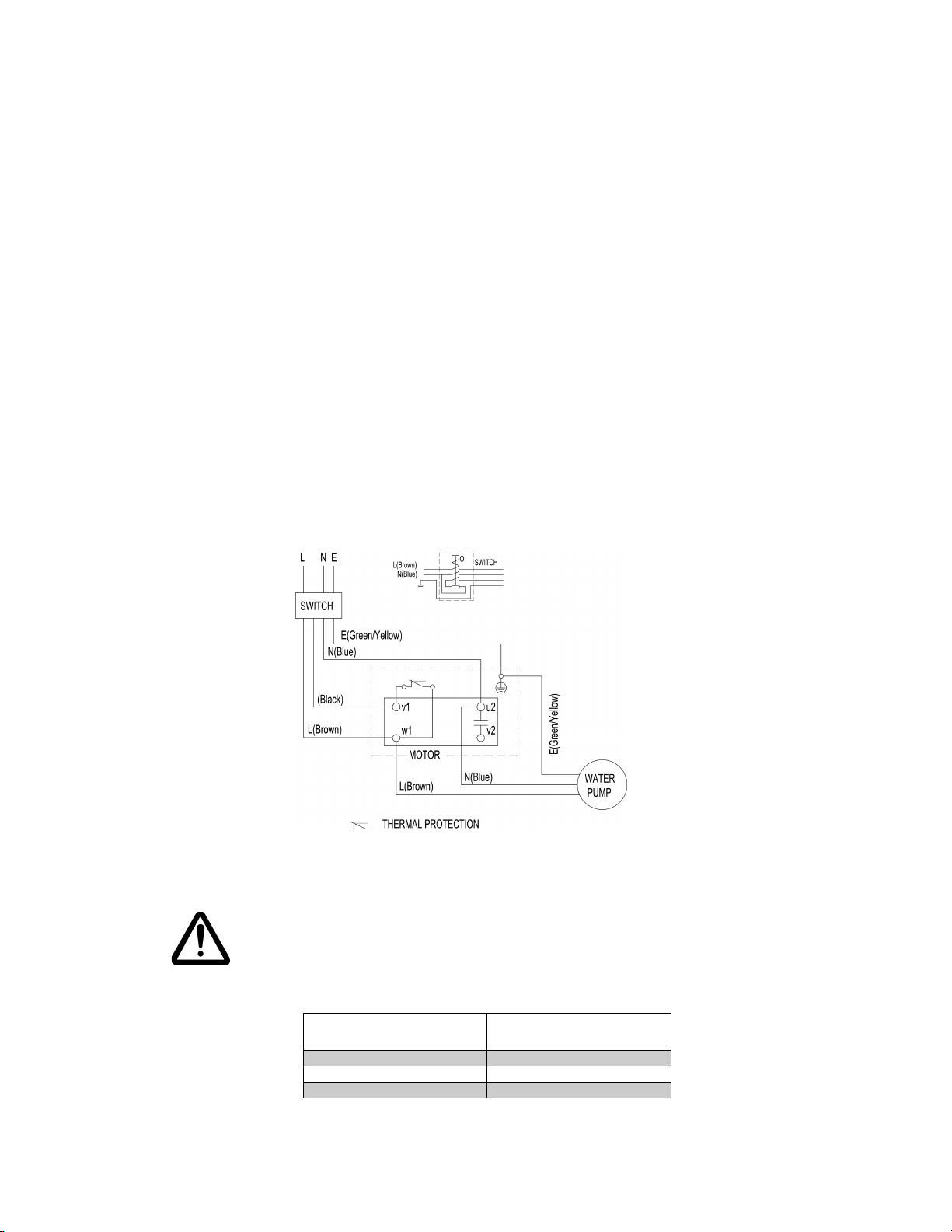

ELECTRICAL MOTOR SPECIFICATIONS
Features:
Power 2,2 kW
Volts 230 V (110 V)
Amps 15 Amps (30A)
otor RPM 2800 RPM
Cycle 50 Hz (60 Hz)
Recommendations:
It is recommended that a 15 A (30 A) CIRCUIT be used while operating this saw.
This will prevent any loss of power or interruption.
Always plug saw as close as possible to the power source while operating. This
will allow you to receive optimum electricity.
To avoid permanent motor damage you must use the correct extension
cord. Never use more than one extension cord at a time. Follow the
chart for proper size:
Wiregauge Length of cord
2,2 kW – 230 V (110V)
Ø5 mm (Ø10 mm) 8 m
Ø8 mm (Ø16 mm) 15 m
Ø15 mm (Ø32 mm) 20 m

14
DO’S AND DON’TS FOR BLADES
WET CUT BLADES
DO'S
•Inspect blades daily for cracks or uneven wear.
•Always use appropriate blade for material being cut.
•Inspect arbor shaft for uneven wear before mounting blade.
•Always use blades with the correct arbor shaft size.
•Ensure that blade is mounted in the correct direction.
•Secure the blade to the arbor with a wrench.
•Use proper safety equipment when operating the saw.
•Periodically check the blade for cracks or bond fatigue.
•Always have a continuous flow of water on both sides of blade.
DON'TS
•Do not operate the saw without safety guards in position.
•Do not operate the saw with blades larger than Ø 15,7" (400 mm)
•Do not cut dry with blades marked "Use Wet".
•Do not exceed manufacturer's recommended maximum RPM.
•Do not force blade into material let blade cut at its own speed.
DRY CUT BLADES
DO'S
•In addition to the following, always follow wet recommendations.
•Use appropriate blade for material being cut.
•Inspect segment blades for segment cracking or loss.
•Do not use damaged blades.
•Use proper safety equipment when operating the saw.
DON'TS
•In addition to the following, always follow wet recommendations.
•Do not make long cuts with dry blades--allow them to air cool periodically.
•Do not use the edge or side of blade to cut or grind.
•Do not attempt to cut a radius or curve.
•Do not cut too deep or too fast into the material.
•Do not cut any material not recommended by blade manufacturer.

15
SAW MAINTENANCE
Maintenance interval Wath to do for maintenance and care
After ecery use ot the
machine
- Remove dirty water from container.
- Remove dirt and mud from the bottom of the container
- Rinse teh immersion pump with fresh water to prevent water
pump dogging from residual dirt.
After wet clearing and
before using the machine
again
Connect the machine to an electric power outlet equipped with
a“GFI” safety power breaker. If the safety power breaker cuts off
the electrical power supply, do not try to operate the machine but
have it checked by an authorized dealer first.
Before not using the
machine for a prolonged
period of time
Clean and lubricate all movable part.
Before not using the
machine for a prolonged
period of time
- Check that the stand is safely fixed.
- Check that all screw joints and nuts are fixed.
- Check that the roller table is in its guides and that it easliy
moves to and fro.
- With the saw blade removed, switch on the motor for an
instant and switch it off again. If the motor does not run, have
the machine inspected by a qualified electrician.
- Check that the immersion pump works properly. Turn on the
cooling water tap and switch the machine on. If the pump
does not give any water or only a little, switch the machine off
at once. Clean the pump, or replace of necessary.
Ambient temperture below
0°C (operation in winter) To prevent the water in the pump and cooling system from freezing, remove the water after using the machine or when there
will be a long break. Make sure that the cooling system is entirely
drained so that there is no water left inside the pump, water hose
and bearing housing
For your safety, before performing any maintenance on the saw turn off
the power switch and unplug the power card

16
TROUBLESHOOTING
Problem Possible cause Solution
Machine does not run
when switched on Power cord not properly fixed / plugged in
Check that the machine is properly
connected to the power supply.
Power cord defective Have the power cord checked, replace
if necessary.
Main power switch
defective Have the main power switch checked and replace if necessary by a qualified
electrician.
Loose eleectrical
connection inside the
electric system
Have the whole electric system of the
machine checked by a qualified
electrician.
Motor defective Have the motor checked and replace if
necessary by a qualified techician.
Motor stops
(power cut out) To much pressure exerted while cutting
Exert less pressure when cutting
Incorrect specification for
saw blade
Use a saw blade which corresponds to
the material being cut
Saw has a defective electric
system Have the electric system of the saw checked by a qualified technician
Poor machine
performance little
power
Power cord/extension cable
too long or cable still wound
up inside cable drum
Use a power cord/ectension cable of
the rated length, use a cable drum with
cable fully extended
Power network is
insufficient Observe the electrical ratings of the machine and connect it only to a power
network which complies with these
ratings
Drive motor no longer runs
at rated speed (r.p.m.) Have the motor checked by a qualified electrician and have it replaced if
necessary

17
TROUBLESHOOTING
Problem Possible Cause Solution
Irregular run of the
saw blade Poor tension in the blade material Return the saw blade to the manufacture
Saw blade wobbles
when running Saw blade is damaged or bent -Have the saw blade aligned/flattened
-Clean the receiving flange
-Solder the diamond segments of
the old blade onto another swa
blade or use a new blade
Flange of the saw blade is
damaged Replace the saw blade flange
Shaft of the motor is bent Replace the electric motor
Diamond segment
becomes loose Overheating of the saw blade, cooling water not
sufficient
Have the diamond segment soldered on
the blade again, ensure optimum flow of
cooling water
Excessive wear Wrongtype of saw blade Use harder saw bldes
Shaft of motor causes
wobbling Have bearings of the motor or the motor replaced
Overheating Ensure optimum flow of cooling water
Cracks in or near the
diamond segment Saw blade too hard Use a softer blade
Fixed flange is worn out Have the fixed flange replace
Motor shaft bearing Replace the bearing of the motor shaft

18
TROUBLESHOOTING
Problem Possible cause Solution
Saw blade is blunt - Saw blade type is
unsuitable for the
meterial being cut
- Saw blade type is
unsuitable for the
machine performance
- Saw blade too hard
Use appropriate type of saw blade
Diamond segments are
blunt Sharpen the diamond saw blade
Appearance of cut is
not optimal Poor tension in the blade material Return the saw blade to the manufacture
Too much load placed on
the saw blade Use a suitable saw blade
Diamond segments are
blunt Sharpen the saw blade
The center hole in the
saw blade has become
wider due to wear
The saw blade has slipped
on the motor shaft when
running
The arbor otr the saw blade must be
fitted with an appropriate adapter ring
Check the receiving flange and have it
replaced if necessary
Saw blade shows
blooming colors Lateral friction when cutting The material feed is too high; proceed more slowly
Grinding marks on the
saw blade Material is not being feed parallel to the saw blade Ensure that the direction of feed is absolutley parallel to the saw blade
Adjust the roller table/have it adjusted
Poor tension in the blade
material Have the saw blade tensioned
Too much load on the saw
blade The material feed is too high, proseed more slowly

19
CUSTOMER SERVICE
AFTER SALE SERVICE
All customer service (technical questions, re-order of parts, etc.) will be provided
by us.
CLAIMS FOR LOST OR DAMAGED GOODS
If merchandise is delivered in damaged condition or cartons are missing, a
notation must be placed on all papers signed by the receiver. If unreported or
concealed damages are noticed after delivery, the carrier should be contacted by
telephone and if carrier fails to send an inspector within five days, a request
should be made in writing to the carrier, confirming the telephone request for an
inspection.
All requests for credit due to transportation loss or damage should be
accompanied by properly signed papers. A claim for loss or damage must be
filed with the carrier within 60 days from the shipping date for UPS or other
common carriers. Credit cannot be allowed for damage claims that are not
properly substained with supporting papers or received by us too late for timely
filing with the carrier.
CONTACT US
We pride ourselves on our customer service. If you have any questions
regarding our products, whether it may be product inquiry or troubleshooting,
please don’t hesitate to contact us at our corporate office. We will do our best to
answer your questions. In some cases we may even refer you to a local sales
representative that can better service you.

20
WARRANTY
For a period of one (1) year from the original date of purchase, if the product is
determined to be defective, we will repair or replace the product, at its option, at
no charge to the customer, or pay the associated repair costs to an authorized
service facility. All replacement parts, new or rebuilt, supplied at our option for
repairs will be warranted for the remainder of the original warranty period of one
(1) year. All defective products or components replaced under this limited
warranty will become our property. This limited warranty excludes all components
not manufactured by OUR COMPANY, which are listed below with their
corresponding independent warranty periods. Such components are warranted
by their respective manufacturer, whose warranty will be the governing warranty
for that particular product.
Excluded Components Manufacturer’s Warranty
Electric Motors 1 Year
EXCLUSIONS FROM WARRANTY
We cannot assume responsibility for claims arising from abuse of the our
product:
•Due to abuse by the Purchaser in their processing.
•Due to improper installation practices or procedures.
•Due to abuse or improper usage by the end-user.
•Due to contaminants, including, but not limited to, exposure to salt or fresh
water, chemicals and any other form of contamination from a source outside
of our control.
LIMITED WARRANT
This product is covered by a one year warranty from the date of purchase. If the
product is defective in workmanship or material, TYROLIT Hydrostress AG will
repair and /or replace it free of charge upon returning the product to
distributor/dealer in its original packaging.
This warranty does not cover normal wear or damage resulting from operator
abuse. TYROLIT Hydrostress AG obligations under this warranty shall be limited
to the repair and/or replacement of the product. TYROLIT Hydrostress AG shall
not be liable for consequential damages resulting from the improper use of the
product. This warranty is void if the product or any of its components are
modified, altered, or in any way changed. Selected components such as
motor/engines are excluded from this warranty and are subject to the
manufacturer’s warranty. This warranty is in lieu of all warranties expressed or
implied.
