Ubiquiti EdgeSwitch 10x User manual

8-Port Gigabit Switch with PoE
Passthrough and 2 SFP Ports
Model: ES-10X

Introduction
Thank you for purchasing the Ubiquiti Networks® EdgeSwitch®
10X. This Quick Start Guide is designed to guide you through
installation and also includes warranty terms.
Package Contents
EdgeSwitch 10X Wall Mount
Screws (Qty. 2)
Wall Mount
Anchors (Qty. 2)
Ground Screw Power Adapter
(24V, 1A)
Cable Clip
Installation Requirements
• For indoor applications, use Category 5 (or above) UTP
cabling approved for indoor use.
• For outdoor applications, shielded Category 5 (or above)
cabling should be used for all wired Ethernet connections
and should be grounded through the AC ground of the
power supply.
We recommend that you protect your networks from
harmful outdoor environments and destructive ESD events
with industrial‑grade, shielded Ethernet cable from Ubiquiti
Networks. For more details, visit: www.ubnt.com/toughcable
WARNING: To reduce the risk of fire or electric shock,
do not expose the EdgeSwitch to rain or moisture.
Note: Although the cabling can be located outdoors,
the EdgeSwitch itself should be housed inside a
protective enclosure.
TERMS OF USE: All Ethernet cabling runs must use CAT5 (or above). It is the professional
installer’s responsibility to follow local country regulations, including operation within legal
frequency channels, output power, indoor cabling requirements, and Dynamic Frequency
Selection (DFS) requirements.

Hardware Overview

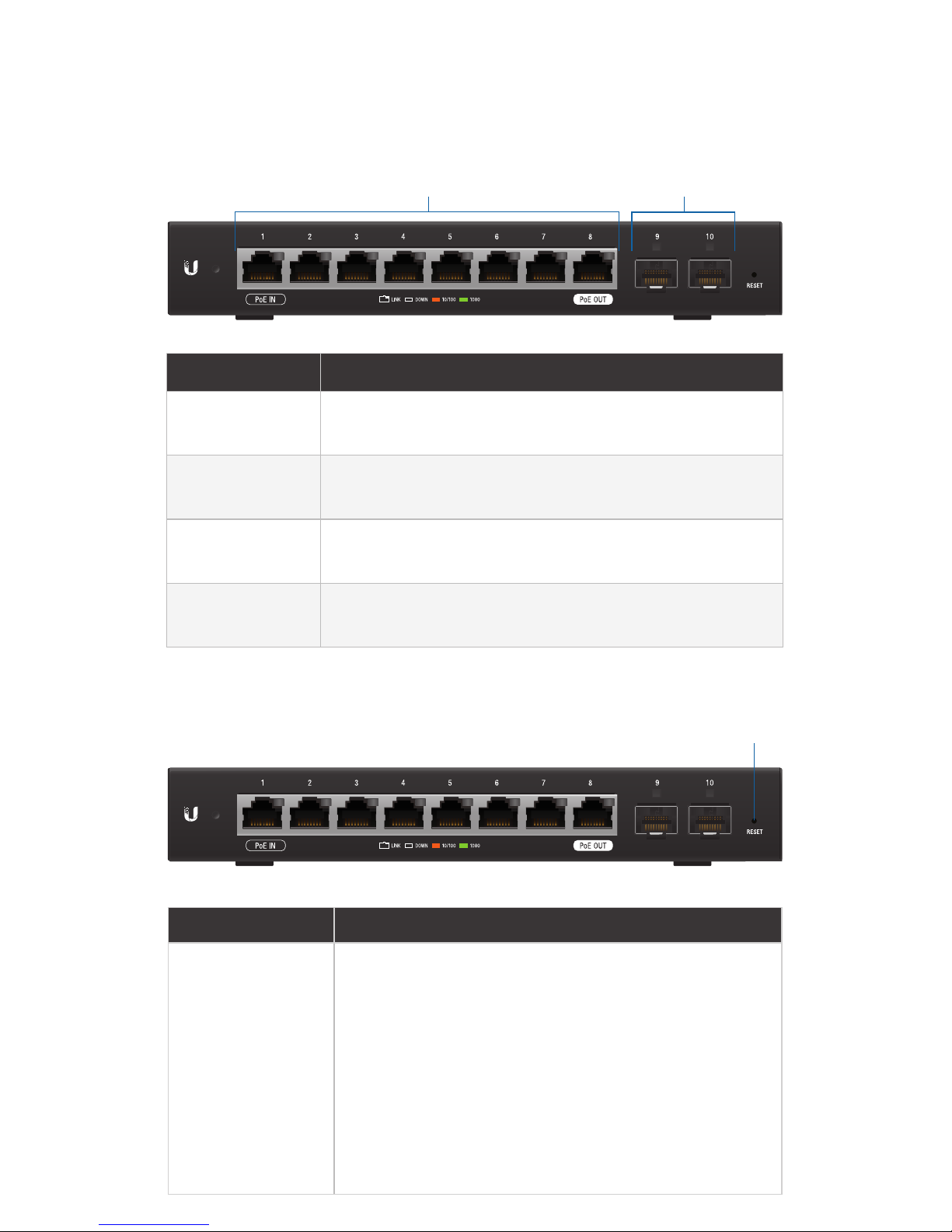

Front Panel Ports
RJ45 Ports 1-8 SFP Ports 9-10
Interface Description
RJ45 1‑8 RJ45 ports support 10/100/1000 Ethernet
connections.
PoE In
(Port 1)
Supports 24V Passive PoE input.
PoE Out
(Port 8)
Supports 24V Passive PoE passthrough.
SFP 9‑10 Hot‑swappable SFP ports support 1 Gbps
connections.
Front Panel Button
Reset
Button Description
Reset
To reset to factory defaults:
1. Disconnect power from the EdgeSwitch.
2. Reconnect power while holding the
Reset button. The port LEDs will light
up in sequential order (this takes
approximately five seconds).
3. When the port 1 LED flashes again,
release the Reset button.

Front Panel LEDs
System
System LED
State Status
Flashing White Bootup in Progress
White
Ready for Use
Not Connected to Ubiquiti® Network
Management System (UNMS™)
Blue Ready for Use
Connected to UNMS
Steady Blue
with Occasional
Flashing
Ready for Use
Unable to Connect to UNMS
Quickly Flashing
Blue Used to Locate a Device in UNMS
Alternating
Blue/White Firmware Upgrade in Progress

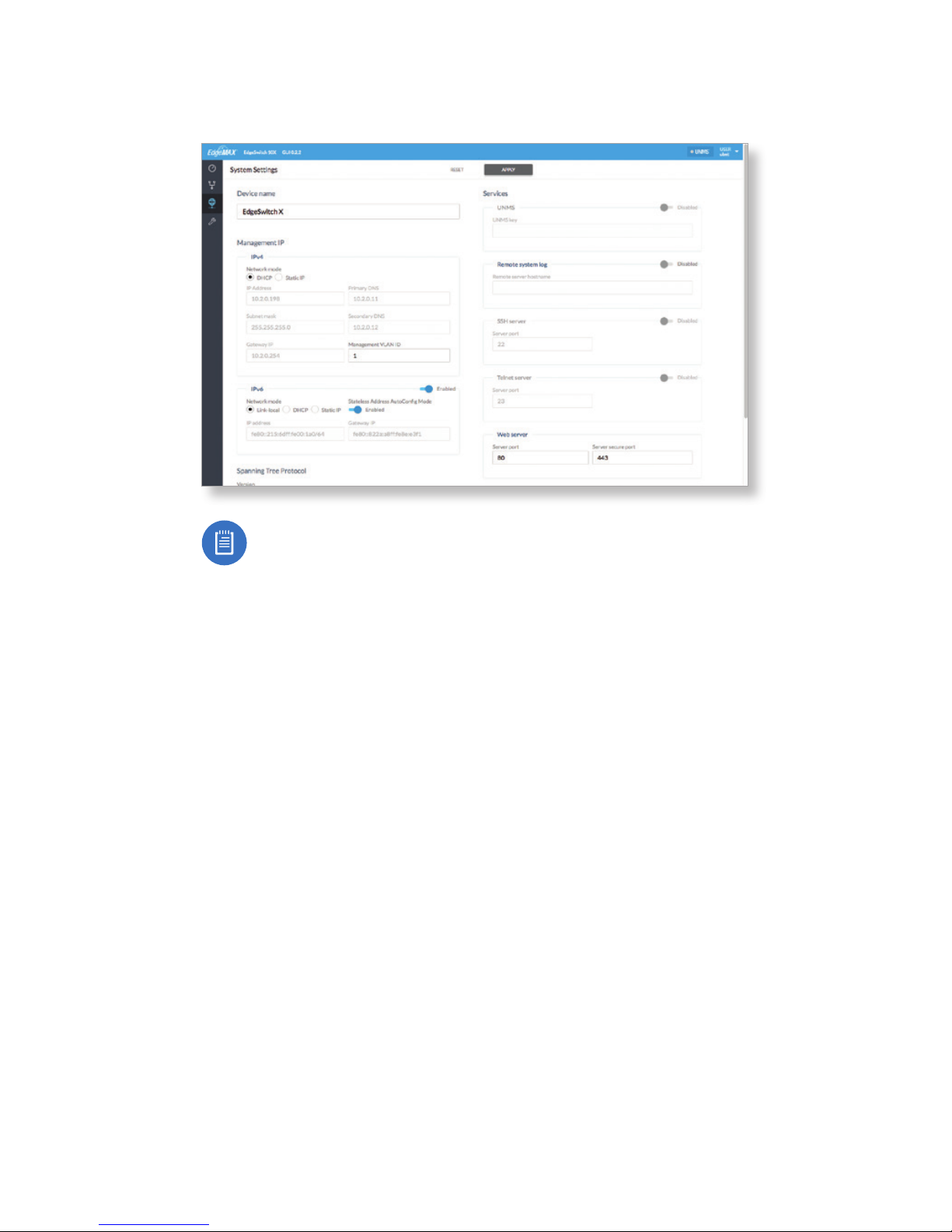

You can use the EdgeSwitch Configuration Interface or UNMS
to manage your device. UNMS lets you configure, monitor,
upgrade, and back up your devices using a singleapplication.
Get started at www.unms.com

RJ45 LEDs
Speed/Link/Activity
LED State Status
Speed/
Link/
Activity
Off No Link
Amber Link Established at 10/100 Mbps
Amber
Flashing Link Activity at 10/100 Mbps
Green Link Established at 1000 Mbps
Green
Flashing Link Activity at 1000 Mbps
SFP LEDs
Link/Activity
LED State Status
Link/
Activity
Off No Link
Green Link Established at 1 Gbps
Green
Flashing Link Activity at 1 Gbps

Back Panel
Power
Grounding Point
Interface Description
Power Connect the included Power Adapter to the
Power port.
Grounding
Point
Ground bonding point for an optional
ground wire.
Side Panel
Ventilation
Holes
Bracket Mounting
Holes

Hardware Installation
The EdgeSwitch can be placed on a horizontal surface,
mounted on a wall, or mounted in a rack (brackets not
included). The optional EdgeRouter™Rackmount Kit, model
ER‑RMKIT, is sold separately.
Follow the Wall Mounting instructions to mount the
EdgeSwitch using the included screws and anchors.
WARNING: FAILURE TO PROVIDE PROPER VENTILATION
MAY CAUSE FIRE HAZARD. KEEP AT LEAST 20 MM OF
CLEARANCE NEXT TO THE VENTILATION HOLES FOR
ADEQUATE AIRFLOW.
WARNING: The EdgeSwitch ES‑10X must not be stacked.
Do not place it on top of another switch. Do not place
anything on top of the ES‑10X.
Wall Mounting
To mount the EdgeSwitch on a wall, you will need a drill, a
6mm drill bit, and a Phillips screwdriver.

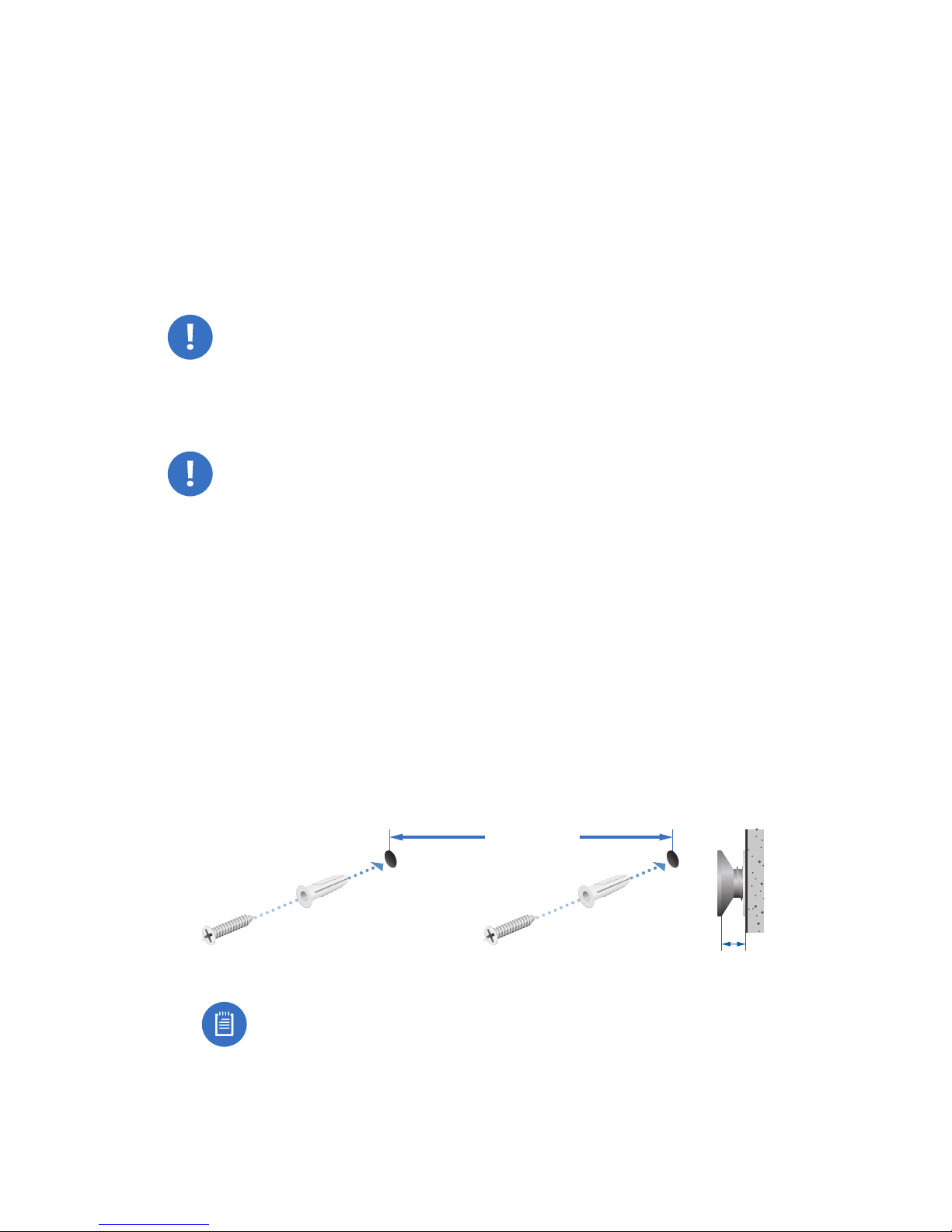

1. Use a 6 mm drill bit to drill two holes 148 mm apart.
2. Insert the Wall Mount Anchors into the holes. Use a Phillips
screwdriver to secure a Wall Mount Screw to each anchor.
Leave a clearance of approximately 3 mm between each
screw head and its anchor.
148 mm
3 mm
Note: You can also mount the EdgeSwitch in a
vertical orientation.

3. Position the EdgeSwitch with the Ethernet ports facing
down. Place the wall‑mount slots of the EdgeSwitch over
the screw heads on the wall. Then slide the EdgeSwitch
down to lock it into place.

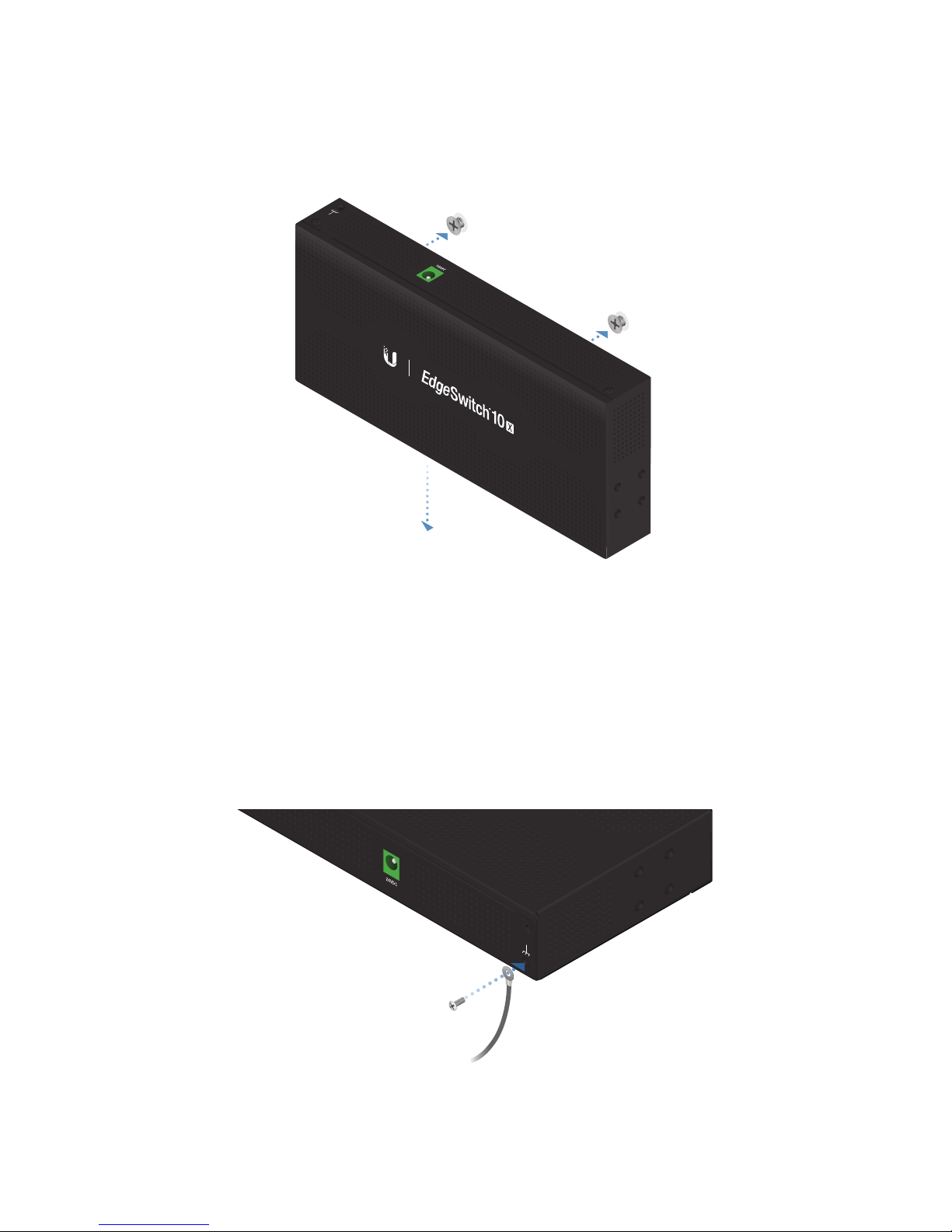

Grounding the EdgeSwitch (Recommended)
The EdgeSwitch is grounded through the Power Cord; however,
you can add optional ESD grounding for enhanced ESD
protection.
1. Attach the Ground Screw to secure a ground wire (not
included) to the Grounding Point.
2. Optional: To secure the Power Adapter cord, insert it
into the Cable Clip and secure the Cable Clip using the
GroundScrew.
3. Secure the other end of the ground wire to a grounding block.

Connecting Power
The EdgeSwitch can be powered by the included Power
Adapter or 24V Passive PoE.
Note: Only one power source can be used at any one
time. With both power sources connected, the input with
the highest voltage will be used; the other power source
defaults to backup.
Using the Power Adapter
1. Connect the Power Adapter to the Power port.
2. Connect the other end of the Power Adapter to a power
outlet.
Using PoE Input
1. Connect an Ethernet cable from your 24V PoE source to the
PoE In port on the EdgeSwitch.
4
3
2 5 9
876 10
1
PoE IN PoE OUT

Connecting Ethernet
1. Connect an Ethernet cable from your DHCP server or LAN
system to any available port 1‑7 on the EdgeSwitch.
4
3
2 5 9
876 10
1
PoE IN PoE OUT
2. Connect your 24V Passive PoE device to the PoE Out port
on the EdgeSwitch.
WARNING: Before enabling PoE passthrough in the
EdgeSwitch Configuration Interface, ensure that the
connected PoE device supports 24V Passive PoE.
4
3
2 5 9
876 10
1
PoE IN PoE OUT
3. Connect your computer or host system and other devices
to the other ports on the EdgeSwitch.
