Ubiquiti EdgeSwitch 10 XP User manual

8-Port Gigabit Switch with PoE
and 2 SFP Ports
Model: ES-10XP

Introduction
Thank you for purchasing the Ubiquiti Networks® EdgeSwitch®
10XP. This Quick Start Guide is designed to guide you through
installation and also includes warranty terms.
Package Contents
EdgeSwitch 10XP Wall Mount
Screws (Qty. 2)
Wall Mount
Anchors (Qty. 2)
Ground Screw Power Adapter
(24V, 2.5A)
Power Cord Cable Clip
Installation Requirements
• For indoor applications, use Category 5 (or above) UTP
cabling approved for indoor use.
• For outdoor applications, shielded Category 5 (or above)
cabling should be used for all wired Ethernet connections
and should be grounded through the AC ground of the
power supply.
We recommend that you protect your networks from
harmful outdoor environments and destructive ESD events
with industrial‑grade, shielded Ethernet cable from Ubiquiti
Networks. For more details, visit: www.ubnt.com/toughcable
WARNING: To reduce the risk of fire or electric shock,
do not expose the EdgeSwitch to rain or moisture.
Note: Although the cabling can be located outdoors,
the EdgeSwitch itself should be housed inside a
protective enclosure.
TERMS OF USE: All Ethernet cabling runs must use CAT5 (or above). It is the professional
installer’s responsibility to follow local country regulations, including operation within legal
frequency channels, output power, indoor cabling requirements, and Dynamic Frequency
Selection (DFS) requirements.

Hardware Overview
Front Panel Ports
RJ45 Ports 1-8 SFP Ports 9-10
Interface Description
RJ45 1‑8 RJ45 ports support 10/100/1000 Ethernet
connections and 24V Passive Power over
Ethernet (PoE) output.
SFP 9‑10 Hot‑swappable SFP ports support 1 Gbps
connections.
Front Panel Button
Reset
Button Description
Reset
To reset to factory defaults:
1. Disconnect power from the EdgeSwitch.
2. Reconnect power while holding the
Reset button. The port LEDs will light
up in sequential order (this takes
approximately five seconds).
3. When the port 1 LED flashes again,
release the Reset button.

Front Panel LEDs
System
System LED
State Status
Flashing White Bootup in Progress
White
Ready for Use
Not Connected to Ubiquiti® Network
Management System (UNMS™)
Blue Ready for Use
Connected to UNMS
Steady Blue
with Occasional
Flashing
Ready for Use
Unable to Connect to UNMS
Quickly Flashing
Blue Used to Locate a Device in UNMS
Alternating
Blue/White Firmware Upgrade in Progress
You can use the EdgeSwitch Configuration Interface or UNMS
to manage your device. UNMS lets you configure, monitor,
upgrade, and back up your devices using a singleapplication.
Get started at www.unms.com

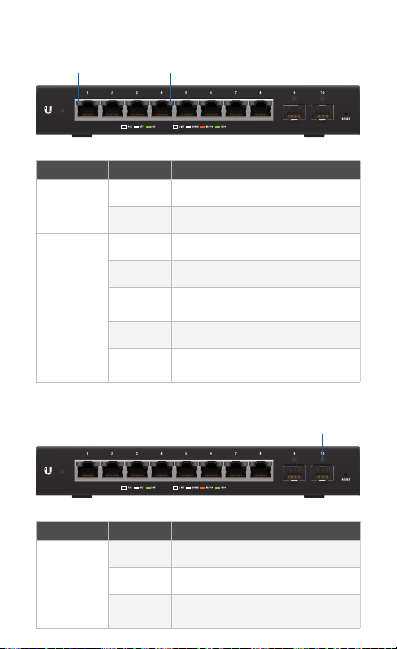

RJ45 LEDs
Speed/Link/ActivityPoE
LED State Status
PoE
Off No Power over Ethernet
Green 24V Power over Ethernet
Speed/
Link/
Activity
Off No Link
Amber Link Established at 10/100 Mbps
Amber
Flashing Link Activity at 10/100 Mbps
Green Link Established at 1000 Mbps
Green
Flashing Link Activity at 1000 Mbps
SFP LEDs
Link/Activity
LED State Status
Link/
Activity
Off No Link
Green Link Established at 1 Gbps
Green
Flashing Link Activity at 1 Gbps

Back Panel
Power
Grounding Point
Interface Description
Power Connect the included Power Adapter to the
Power port.
Grounding
Point
Ground bonding point for an optional
ground wire.
Side Panel
Ventilation
Holes
Bracket Mounting
Holes

Hardware Installation
The EdgeSwitch can be placed on a horizontal surface,
mounted on a wall, or mounted in a rack (brackets not
included). The optional EdgeRouter™Rackmount Kit, model
ER‑RMKIT, is sold separately.
Follow the Wall Mounting instructions to mount the
EdgeSwitch using the included screws and anchors.
WARNING: FAILURE TO PROVIDE PROPER VENTILATION
MAY CAUSE FIRE HAZARD. KEEP AT LEAST 20 MM OF
CLEARANCE NEXT TO THE VENTILATION HOLES FOR
ADEQUATE AIRFLOW.
WARNING: The EdgeSwitch ES‑10XP must not be stacked.
Do not place it on top of another switch. Do not place
anything on top of the ES‑10XP.
Wall Mounting
To mount the EdgeSwitch on a wall, you will need a drill, a
6mm drill bit, and a Phillips screwdriver.
1. Use a 6 mm drill bit to drill two holes 148 mm apart.
2. Insert the Wall Mount Anchors into the holes. Use a Phillips
screwdriver to secure a Wall Mount Screw to each anchor.
Leave a clearance of approximately 3 mm between each
screw head and its anchor.
148 mm
3 mm
Note: You can also mount the EdgeSwitch in a
vertical orientation.

3. Position the EdgeSwitch with the Ethernet ports facing
down. Place the wall‑mount slots of the EdgeSwitch over
the screw heads on the wall. Then slide the EdgeSwitch
down to lock it into place.

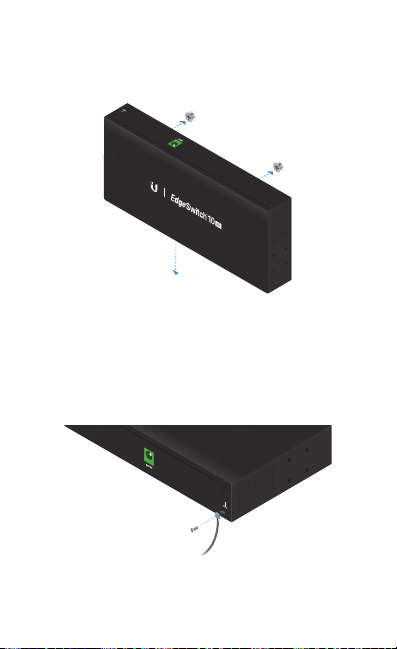

Grounding the EdgeSwitch (Recommended)
The EdgeSwitch is grounded through the Power Adapter;
however, you can add optional ESD grounding for enhanced
ESD protection.
1. Attach the Ground Screw to secure a ground wire (not
included) to the Grounding Point.
2. Optional: To secure the Power Adapter cord, insert it
into the Cable Clip and secure the Cable Clip using the
GroundScrew.
3. Secure the other end of the ground wire to a grounding block.

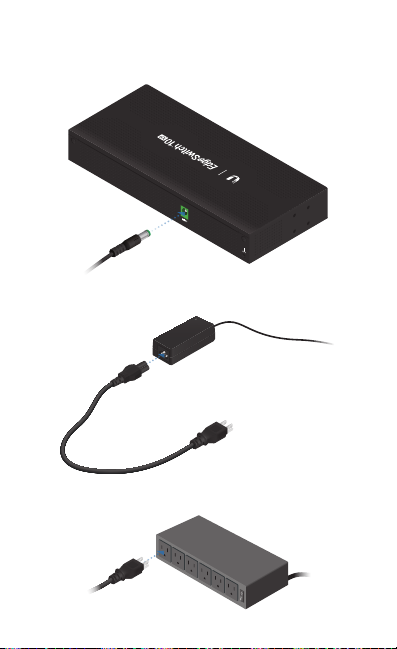

Connecting Power
1. Connect the Power Adapter to the Power port.
2. Connect the Power Cord to the Power Adapter.
3. Connect the other end of the Power Cord to a power outlet.

Connecting Ethernet
1. Connect an Ethernet cable from your DHCP server or LAN
system to any port on the EdgeSwitch.
2. Connect your computer or host system and other devices
to the other ports on the EdgeSwitch.

Using SFP Ports

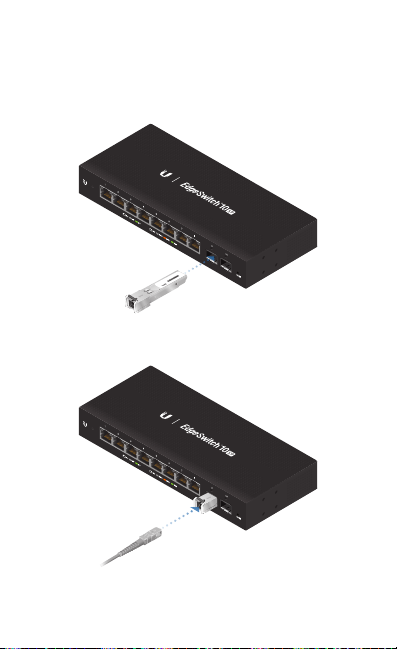

To use an SFP port:
1. Remove the protective plug covering the SFP port.
2. Plug a compatible fiber module into the SFP port.
1000MbpsSM/SC20KM DDM
Tx1550nm/Rx1310nm
3. Connect the fiber optic cable to the fiber module. Then
connect the other end of the cable to another fiber device.
For information about compatible fiber SFP modules, visit:
community.ubnt.com/edgemax

Accessing the Configuration Interface
The EdgeSwitch is set to DHCP by default, so it will try to
automatically obtain an IP address. If that fails, then it will use
the default fallback IP address, 192.168.1.20. Proceed to the
appropriate section, DHCP or Fallback IP Address:
DHCP
Use one of the following methods:
• Set up the DHCP server to provide a specific IP address to
the EdgeSwitch based on its MAC address (on the label).
• Let the EdgeSwitch obtain an IP address and then check the
DHCP server to see which IP address was assigned.
To log in, follow these steps:
1. Launch your web browser. Type the appropriate IP address
in the address field. Press enter (PC) or return (Mac).

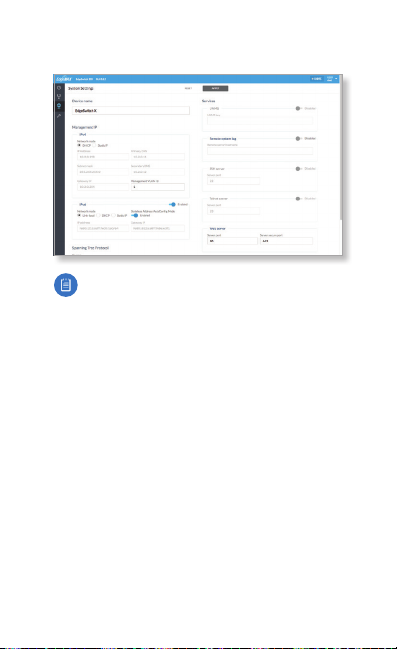

2. The login screen will appear. Enter ubnt in the Username
and Password fields. Click Sign In. (When you sign in, you
agree to accept the Ubiquiti License Agreement.)
The EdgeSwitch Configuration Interface will appear.
Customize additional settings as needed. For 24V Passive PoE
configuration, refer to the Configuring PoE Settings section. For
more information, refer to the EdgeSwitch documentation,
which is available at www.ubnt.com/download/edgemax
You can also manage your device using UNMS, which lets you
configure, monitor, upgrade, and back up your devices using a
singleapplication. Get started at www.unms.com

Fallback IP Address
1. Ensure that your computer (or other host system) is
connected to the EdgeSwitch.
2. Configure the Ethernet adapter on your host system with a
static IP address on the 192.168.1.x subnet.
3. Launch your web browser. Type the appropriate IP address
in the address field (192.168.1.20 is the default fallback IP
address). Press enter (PC) or return (Mac).
https://192.168.1.20
4. The login screen will appear. Enter ubnt in the Username
and Password fields. Click Sign In. (When you sign in, you
agree to accept the Ubiquiti License Agreement.)
5. The EdgeSwitch Configuration Interface will appear. Click
the System tab.

6. Change the IP Address to a unique IP address or keep the
default, DHCP. Click Apply.
Note: If you change the IP settings, the session will
be cut off, and you will need to reconnect to the
EdgeSwitch using the new IP address.
The EdgeSwitch Configuration Interface will appear.
Customize additional settings as needed. For 24V Passive PoE
configuration, refer to the Configuring PoE Settings section. For
more information, refer to the EdgeSwitch documentation,
which is available at www.ubnt.com/download/edgemax
You can also manage your device using UNMS, which lets you
configure, monitor, upgrade, and back up your devices using a
singleapplication. Get started at www.unms.com

Configuring PoE Settings
The PoE setting for ports 1-8 is set to Off by default.
WARNING: Before activating PoE, ensure that the
connected device supports passive PoE and the
supplied voltage.
1. On the Dashboard tab, click the PoE setting of the Ethernet
port you want to configure. Then select 24V.
2. The Ethernet port’s PoE LED will confirm the PoE setting.
PoE

Specifications
ES‑10XP
Dimensions 207 x 31.1 x 90 mm (8.15 x 1.22 x 3.54")
Weight 500 g (1.10 lb)
Total Non‑Blocking
Throughput
10 Gbps
Switching Capacity 20 Gbps
Forwarding Rate 14.88 Mpps
Max. Power Consumption
(Excluding PoE Output)
8W
Power Method 24VDC, 2.5A
Supported Voltage Range 9 ‑ 30VDC, 5A
Power Supply 24VDC, 2.5A Power Adapter (Included)
LEDs
System
RJ45 Data Ports
SFP Data Ports
Status
PoE, Link/Speed/Activity
Link/Activity
Networking Interfaces (8) 10/100/1000 Mbps RJ45 Ports
(2) 1 Gbps SFP Ports
Management Interface Ethernet In‑Band
Certications CE, FCC, IC
ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature ‑10 to 50° C (14 to 122° F)
Operating Humidity 5 to 95% Noncondensing
Shock and Vibration ETSI300‑019‑1.4 Standard
PoE
PoE Interface (8) 24VDC Passive PoE (Pins 4, 5+; 7, 8‑)
Max. Passive PoE Wattage
per Port
15W
24V Passive PoE Voltage Range 24V

Safety Notices
1. Read, follow, and keep these instructions.
2. Heed all warnings.
3. Only use attachments/accessories specified by the manufacturer.
WARNING: Failure to provide proper ventilation may
cause fire hazard. Keep at least 20 mm of clearance next
to the ventilation holes for adequate airflow.
WARNING: To reduce the risk of fire or electric shock, do
not expose this product to rain or moisture.
WARNING: Do not use this product in location that can
be submerged by water.
WARNING: Avoid using this product during an electrical
storm. There may be a remote risk of electric shock from
lightning.
Electrical Safety Information
1. Compliance is required with respect to voltage, frequency, and current
requirements indicated on the manufacturer’s label. Connection to a
different power source than those specified may result in improper
operation, damage to the equipment or pose a fire hazard if the
limitations are not followed.
2. There are no operator serviceable parts inside this equipment. Service
should be provided only by a qualified service technician.
3. This equipment is provided with a detachable power cord which has
an integral safety ground wire intended for connection to a grounded
safety outlet.
a. Do not substitute the power cord with one that is not the provided
approved type. Never use an adapter plug to connect to a 2‑wire
outlet as this will defeat the continuity of the grounding wire.
b. The equipment requires the use of the ground wire as a part of the
safety certification, modification or misuse can provide a shock
hazard that can result in serious injury or death.
c. Contact a qualified electrician or the manufacturer if there
are questions about the installation prior to connecting the
equipment.
d. Protective earthing is provided by Listed AC adapter. Building
installation shall provide appropriate short‑circuit backup
protection.
e. Protective bonding must be installed in accordance with local
national wiring rules and regulations.

Limited Warranty
www.ubnt.com/support/warranty/
The limited warranty requires the use of arbitration to resolve disputes on
an individual basis, and, where applicable, specify arbitration instead of
jury trials or class actions.
Compliance
FCC
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including
interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications. Operations of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to
correct the interference at his own expense.
ISED Canada
CAN ICES‑3(A)/NMB‑3(A)
This Class A digital apparatus complies with Canadian CAN ICES‑003.
CAN ICES‑3(A)/NMB‑3(A)
Cet appareil numérique de la classe A est conforme à la norme NMB‑003
du Canada.
Australia and New Zealand
Warning: This is a Class A product. In a domestic environment this
product may cause radio interference in which case the user may
be required to take adequate measures.

CE Marking
CE marking on this product represents the product is in compliance with all
directives that are applicable to it.
RoHS/WEEE Compliance Statement
English
European Directive 2012/19/EU requires that the equipment bearing
this symbol on the product and/or its packaging must not be disposed
of with unsorted municipal waste. The symbol indicates that this
product should be disposed of separately from regular household waste
streams. It is your responsibility to dispose of this and other electric and
electronic equipment via designated collection facilities appointed by the
government or local authorities. Correct disposal and recycling will help
prevent potential negative consequences to the environment and human
health. For more detailed information about the disposal of your old
equipment, please contact your local authorities, waste disposal service, or
the shop where you purchased the product.
Deutsch
Die Europäische Richtlinie 2012/19/EU verlangt, dass technische
Ausrüstung, die direkt am Gerät und/oder an der Verpackung mit diesem
Symbol versehen ist, nicht zusammen mit unsortiertem Gemeindeabfall
entsorgt werden darf. Das Symbol weist darauf hin, dass das Produkt
von regulärem Haushaltmüll getrennt entsorgt werden sollte. Es
liegt in Ihrer Verantwortung, dieses Gerät und andere elektrische
und elektronische Geräte über die dafür zuständigen und von der
Regierung oder örtlichen Behörden dazu bestimmten Sammelstellen zu
entsorgen. Ordnungsgemäßes Entsorgen und Recyceln trägt dazu bei,
potentielle negative Folgen für Umwelt und die menschliche Gesundheit
zu vermeiden. Wenn Sie weitere Informationen zur Entsorgung Ihrer
Altgeräte benötigen, wenden Sie sich bitte an die örtlichen Behörden oder
städtischen Entsorgungsdienste oder an den Händler, bei dem Sie das
Produkt erworben haben.

Español
La Directiva 2012/19/UE exige que los equipos que lleven este símbolo en
el propio aparato y/o en su embalaje no deben eliminarse junto con otros
residuos urbanos no seleccionados. El símbolo indica que el producto
en cuestión debe separarse de los residuos domésticos convencionales
con vistas a su eliminación. Es responsabilidad suya desechar este y
cualesquiera otros aparatos eléctricos y electrónicos a través de los puntos
de recogida que ponen a su disposición el gobierno y las autoridades
locales. Al desechar y reciclar correctamente estos aparatos estará
contribuyendo a evitar posibles consecuencias negativas para el medio
ambiente y la salud de las personas. Si desea obtener información más
detallada sobre la eliminación segura de su aparato usado, consulte a las
autoridades locales, al servicio de recogida y eliminación de residuos de su
zona o pregunte en la tienda donde adquirió el producto.
Français
La directive européenne 2012/19/UE exige que l’équipement sur lequel
est apposé ce symbole sur le produit et/ou son emballage ne soit pas jeté
avec les autres ordures ménagères. Ce symbole indique que le produit
doit être éliminé dans un circuit distinct de celui pour les déchets des
ménages. Il est de votre responsabilité de jeter ce matériel ainsi que tout
autre matériel électrique ou électronique par les moyens de collecte
indiqués par le gouvernement et les pouvoirs publics des collectivités
territoriales. L’élimination et le recyclage en bonne et due forme ont pour
but de lutter contre l’impact néfaste potentiel de ce type de produits
sur l’environnement et la santé publique. Pour plus d’informations sur le
mode d’élimination de votre ancien équipement, veuillez prendre contact
avec les pouvoirs publics locaux, le service de traitement des déchets, ou
l’endroit où vous avez acheté le produit.
Italiano
La direttiva europea 2012/19/UE richiede che le apparecchiature
contrassegnate con questo simbolo sul prodotto e/o sull’imballaggio non
siano smaltite insieme ai rifiuti urbani non differenziati. Il simbolo indica
che questo prodotto non deve essere smaltito insieme ai normali rifiuti
domestici. È responsabilità del proprietario smaltire sia questi prodotti sia
le altre apparecchiature elettriche ed elettroniche mediante le specifiche
strutture di raccolta indicate dal governo o dagli enti pubblici locali. Il
corretto smaltimento ed il riciclaggio aiuteranno a prevenire conseguenze
potenzialmente negative per l’ambiente e per la salute dell’essere umano.
Per ricevere informazioni più dettagliate circa lo smaltimento delle vecchie
apparecchiature in Vostro possesso, Vi invitiamo a contattare gli enti
pubblici di competenza, il servizio di smaltimento rifiuti o il negozio nel
quale avete acquistato il prodotto.
