Ubiquiti TS-16-CARRIER User manual

Rack-Mount
Power over Ethernet
Managed Switches
Model: TS-16-CARRIER

Introduction
Thank you for purchasing the Ubiquiti Networks®
TOUGHSwitch™CARRIER. This Quick Start Guide is designed to
guide you through installation and includes warranty terms.
Package Contents
TOUGHSwitch CARRIER
Flathead Screws
(M3x8, Qty. 2)
Phillips Screws
(#10-32 x 5/8”, Qty. 4)
Cage Nuts
(#10-32 x 5/8”, Qty. 4)
Rack-Mount
Power over Ethernet
Managed Switches
Model: TS-16-CARRIER
Power Cords (Qty. 2) Quick Start Guide
TERMS OF USE: All Ethernet cabling runs must use CAT5 (or above). Shielded Ethernet cable
and earth grounding must be used for outdoor installations as conditions of product warranty.
TOUGHCable™ is designed for outdoor installations. It is the customer’s responsibility to follow
local country regulations, including operation within legal frequency channels, output power,
and Dynamic Frequency Selection (DFS) requirements.

Hardware Overview
Aand Bdesignate the two 8-Port TOUGHSwitch PoE PROs
housed in the rack. This may be useful for the Location setting
on the Device tab in the Configuration Interface.
Front Panel Ports
Management Ports 1-8
ResetUSB
Management Ports 1-8
ResetUSB
TOUGHSwitch A TOUGHSwitch B
Interface Description
Management 10/100 Mbps port used to access the
TOUGHSwitch Configuration Interface.
Ports 1-8 10/100/1000 Mbps ports for switching and
PoE (also available for management by
default).
USB Reserved for future use.
Reset
To reset to factory defaults, press and hold
the Reset button for more than 10 seconds
while the unit is already powered on.
Back Panel
Power Power
Ventilation HolesVentilation Holes
Note: There are additional ventilation holes on the top
and sides of the TOUGHSwitch.

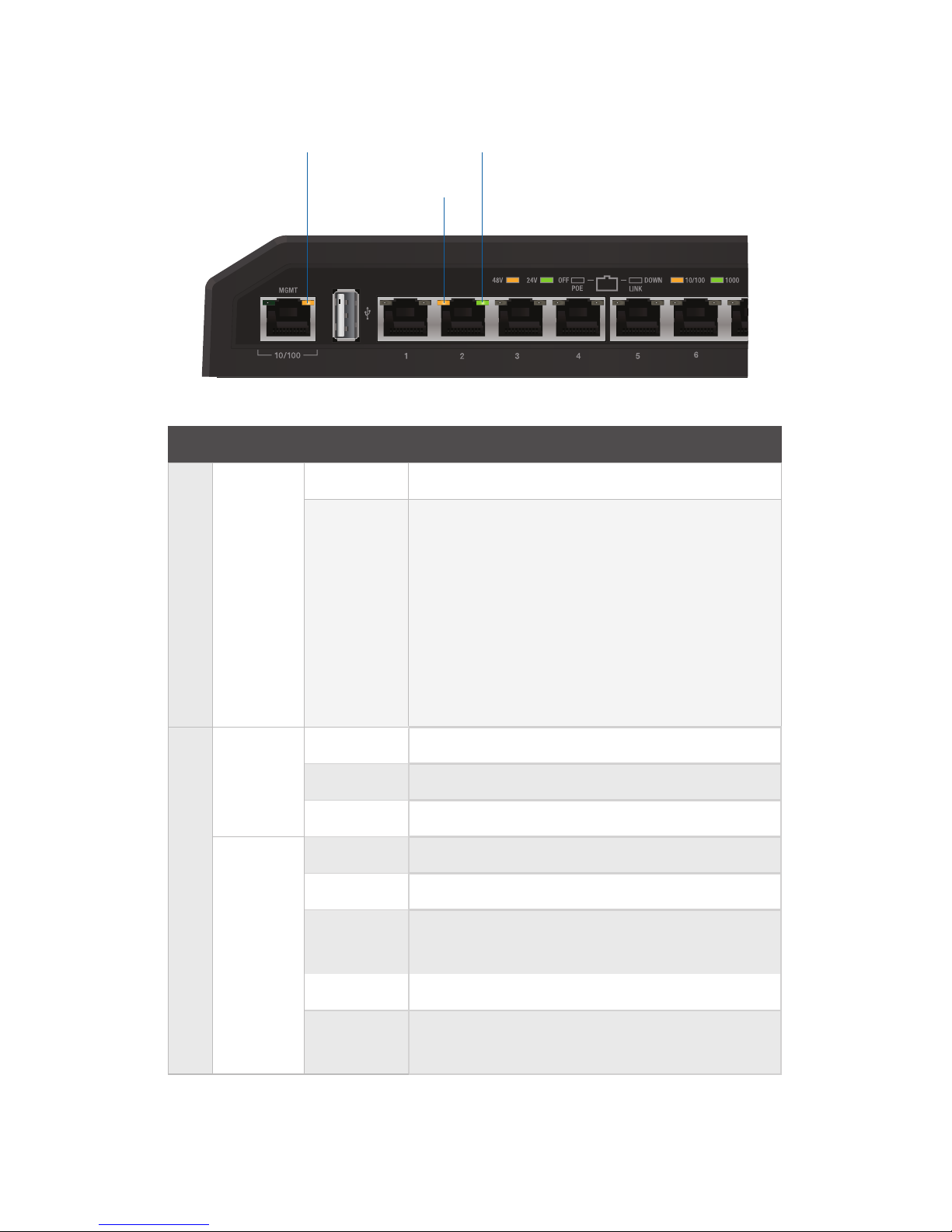

Front Panel LEDs
Power/Link
PoE
Speed/Link/Act
LED State Status
MGMT
Power/
Link
Off No Power/No Link
Amber
After bootup, the LED indicates
power. After an initial link is
established, the LED indicates a
10/100 Mbps connection. If the link
terminates, the LED turns off until
a link is re-established. If the unit
reboots, the LED will again indicate
power until a link is established.
Ports 1-8
PoE
Off No Power over Ethernet
Green 24V Power over Ethernet
Amber 48V Power over Ethernet
Speed/
Link/
Act
Off No link
Amber Link established at 10/100 Mbps
Amber
Flashing Link activity at 10/100 Mbps
Green Link established at 1000 Mbps
Green
Flashing Link activity at 1000 Mbps

Installation Requirements
• Phillips and flathead screwdrivers
• Standard-sized, 19" wide rack with an available 1U space
• For indoor applications, use Category 5 (or above) UTP
cabling approved for indoor use.
• For outdoor applications, shielded Category 5 (or above)
cabling should be used for all wired Ethernet connections
and should be grounded through the AC ground of the
powersupply.
We recommend that you protect your networks from
harmful outdoor environments and destructive ESD events
with industrial-grade, shielded Ethernet cable from Ubiquiti
Networks. For more details, visit www.ubnt.com/toughcable
Important: Although the cabling can be located
outdoors, the TOUGHSwitch itself should be housed
inside a protective enclosure.
WARNING: To reduce the risk of fire or electric shock,
do not expose this TOUGHSwitch to rain or moisture.
WARNING: FAILURE TO PROVIDE PROPER VENTILATION
MAY CAUSE FIRE HAZARD. KEEP AT LEAST 20 MM OF
CLEARANCE NEXT TO THE VENTILATION HOLES FOR
ADEQUATE AIRFLOW.

Hardware Installation
1. Connect the Power Cord to the Power port of each
TOUGHSwitch.
2. Attach the TOUGHSwitch PoE CARRIER to the rack using
the four Phillips Screws. (If the rack has square slots, then
use the Cage Nuts with the Phillips Screws.)

3. Attach the top portion of the faceplate at a slight angle,
and then snap on the bottom portion. Secure the
faceplate to the TOUGHSwitch PoE CARRIER using the two
FlatheadScrews.
4. Connect the other end of each Power Cord to a power
outlet.

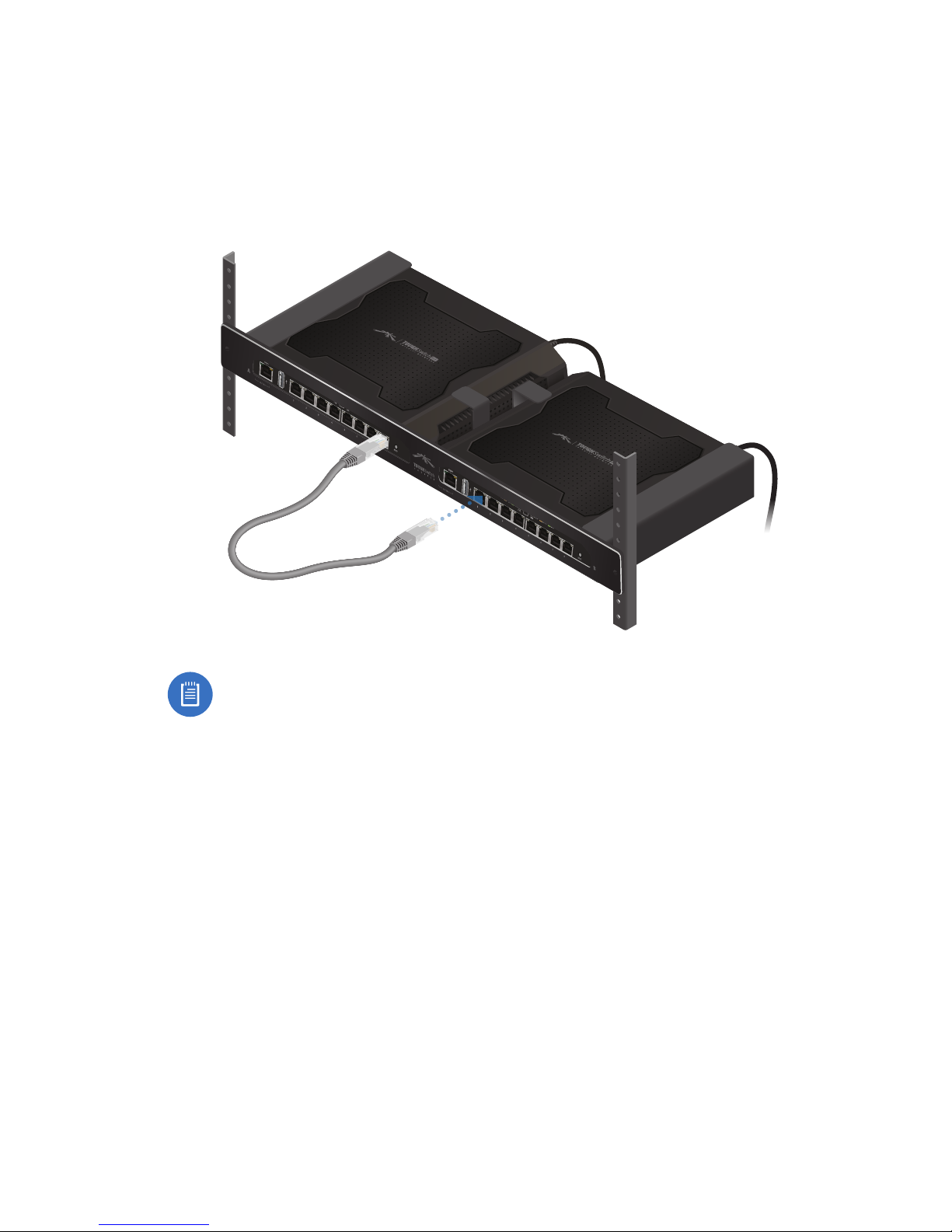

Daisy-Chain (Optional)
All data ports are available as uplink ports. If you want to
daisy-chain TOUGHSwitch A and B, we recommend that you
connect an Ethernet cable from port 8 of TOUGHSwitch A to
port1 of TOUGHSwitch B.
Note: PoE is disabled by default on all numbered
ports and is not available on the Management port. To
enable PoE on the appropriate ports, use the Ports tab
in the Configuration Interface.

Accessing the Configuration Interface
Connect to the Configuration Interface by performing the
following steps:
1. Ensure that your computer is connected to the
Management port on the TOUGHSwitch.
Note: By default, you can configure the
TOUGHSwitch via any port; however, we
recommend the Management port. (Access to
the Configuration Interface can be limited to the
Management port only. You can configure this
setting on the Device tab.)
2. Configure the Ethernet adapter on your computer with a
static IP address on the 192.168.1.x subnet
(e.g., 192.168.1.100).

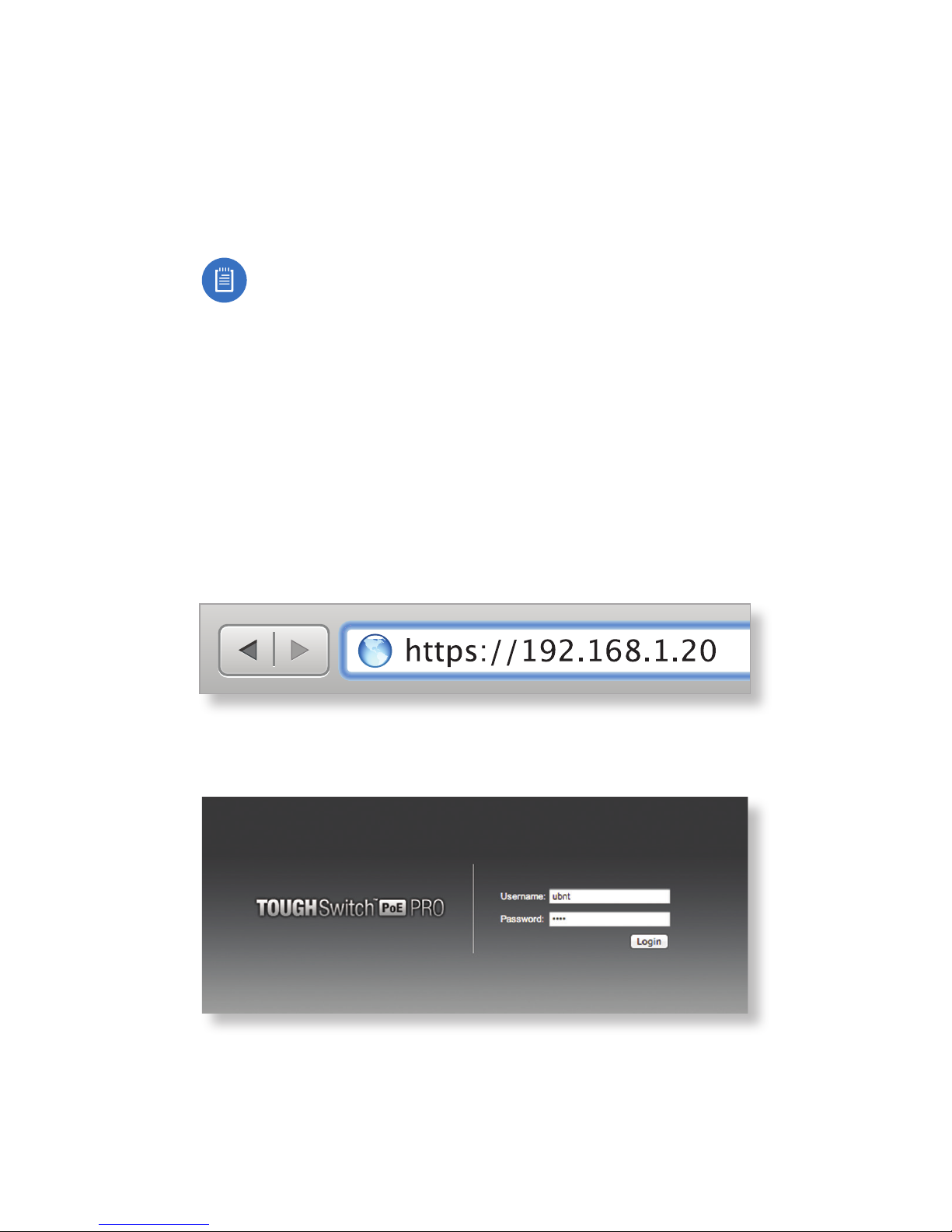

3. Launch your web browser. Type https://192.168.1.20 in
the address field. Press enter (PC) or return (Mac).
4. The login screen will appear. Enter ubnt in the Username
and Password fields. Click Login.
The Configuration Interface will appear, allowing you to
customize your settings as needed.

*640-00056-03*
640-00056-03
Configuring PoE Settings
WARNING: Before activating PoE, ensure that the
connected device supports passive PoE and the
supplied voltage. By default, PoE is off on each port.
1. Click the Ports tab.
2. On the Ports tab, select the Ethernet port you want to
configure. Select the appropriate PoE Status setting, and
then click Save Changes.
The PoE LED on the Ethernet port will confirm the PoE setting.
For detailed instructions on configuring other features,
please refer to the TOUGHSwitch PoE User Guide available at
documentation.ubnt.com/toughswitch
