uhlmann & zacher CX2172 Product guide

CX2172
Clex private
Electronic door handle
in rosette fitting
Operating and
Assembly Manual

CX2172 TABLE OF CONTENTS
1
Imprint
Operating and assembly manual (english)
Electronic door handle CX2172
Document number: 070A
Version: 1.24
Status as on: 24.04.2017
Manufacturer
Uhlmann & Zacher GmbH
Gutenbergstraße 2–4
97297 Waldbüttelbrunn
Germany
Phone: [phone]
E-Mail: [e-mail]
http://www.UundZ.de
This operating and assembly manual is copyright protected. The information
contained in it should not be reproduced, distributed or used for competitive
purposes or shared with third parties. It is likewise forbidden to manufacture any
component using this manual without prior written consent.

CX2172 TABLE OF CONTENTS
2
Table of contents
1About this document ........................................................................ 4
1.1 Warnings ............................................................................................4
1.2 Symbols..............................................................................................4
2Safety ............................................................................................ 5
2.1 Proper use ..........................................................................................5
2.2 Improper use.......................................................................................5
2.3 General safety instructions....................................................................5
3Product description .......................................................................... 6
3.1 Functional description ..........................................................................6
3.2 Design................................................................................................7
3.3 Versions..............................................................................................8
3.4 Scope of supply ...................................................................................9
3.5 Technical data ..................................................................................10
3.6 Standards .........................................................................................12
3.7 Management accessories ...................................................................13
4Assembly .......................................................................................14
4.1 Assembly instructions .........................................................................14
4.2 Assembly ..........................................................................................14
5Commissioning ..............................................................................20
5.1 Teach-in the service key .....................................................................20
5.2 Administration as learning –clearing system ........................................20
5.3 Administration with Keyng CX2530 .....................................................21
5.4 Changing the settings ........................................................................21
6Operation .....................................................................................22
6.1 Automatic wake up ............................................................................22
6.2 Opening the door..............................................................................22
6.3 Toggling the door handle...................................................................22
6.4 Indications ........................................................................................23
7Cleaning and maintenance..............................................................24
7.1 Cleaning...........................................................................................24
7.2 Maintenance .....................................................................................24
8Faults during operation ...................................................................26
8.1 Fault indications ................................................................................26
9Disassembly and disposal ................................................................27
9.1 Disassembly ......................................................................................27
9.2 Disposal ...........................................................................................29
10 FAQ .............................................................................................30

CX2172 TABLE OF CONTENTS
3
10.1 Door handle is not reaching at-rest position.........................................30
11 Glossary........................................................................................31

CX2172 ABOUT THIS DOCUMENT
4
1About this document
This operating and assembly manual describes the Clex private electronic door
handle in rosette fitting (in short: CX2172). It is part of the product and contains
important information that is necessary for proper operation and maintenance.
This operating and assembly manual is valid for all versions of CX2172 and is
intended for technicians, who are responsible for assembling and disassembling,
as well as for end customers.
Read this operating and assembly manual carefully for smooth and safe
operation and follow the instructions given in it before operating the door
handle.
Keep the operating and assembly manual in a safe place.
After the installation, hand over the manual to the end customer and make
sure that the customer is familiar with its use.
Uhlmann & Zacher GmbH does not assume any responsibility for disruptions or
hazards such as non-access to injured personnel, malfunctions, property damage
or other damages resulting from non-compliance with this operating and
assembly manual or incorrectly configured door handles.
If there are still any doubts after reading this operating and assembly
manual, please contact your respective dealer or Uhlmann & Zacher GmbH
directly.
1.1 Warnings
Warnings warn against hazards that may arise when using the door handle. There
are two levels of warning that can be identified by the signal word:
Signal word
Significance
CAUTION
Indicates a hazard with a low risk that can lead to mild or
moderate injury if not avoided.
ATTENTION
Indicates a hazard that results in property damage.
1.2 Symbols
The following symbols may be used in this manual:
This symbol indicates an instruction that must be followed by the user.
This symbol indicates an entry in a list.
This symbol indicates useful and important information.

CX2172 SAFETY
5
2Safety
2.1 Proper use
The electronic door handle CX2172 is intended to be installed in building doors
and for opening the doors. It is compatible with the commonly used European
standards for locks.
The different versions allow it to be used in all the common doors such as wood,
steel and aluminum doors as well as doors with narrow frames having a backset
of more than 30 mm.
The CX2172 can be used in interior as well as exterior areas (depending on the
product version).
2.2 Improper use
The CX2172 should not be used for locking up supplies required in case of
emergencies (for example defibrillator, emergency medication, fire extinguishers,
etc.).
2.3 General safety instructions
Follow these basic safety instructions when using the door handle:
Installation and battery replacement should only be done by qualified
technicians according to the instructions in this operating and assembly
manual.
Do not use the door handles in potentially explosive areas.
Do not make any kind of modifications to the door handles, with the
exception of those described in this operating and assembly manual.
Do not apply paints or acids to the door handles.
Do not heat the door handle and battery beyond the specified storage
temperature.
Use only original spare parts and accessories from Uhlmann & Zacher to
prevent malfunctions and damages.
Only use batteries procured from Uhlmann & Zacher.

CX2172 PRODUCT DESCRIPTION
6
3Product description
3.1 Functional description
The electronic door handle CX2172 is a product in the Clex private system. The
reading unit, the communication electronics, the mechanical system and power
supply, are integrated within the door handle.
Different transponder carriers can be used as key in the CX2172, for example,
ISO card or key fob.
CX2172 has the following system properties:
Up to 1,000 key/locking authorizations can be stored
Up to 128 events in the fitting can be recorded*
Up to 32 holidays can be configured*
Automatic summer and winter time changeover*
15 weekly schedules can be programmed*
Permanent engagement possible without additional power consumption
Engagement time can be programmed from 1 to 15 seconds
Can be connected to the IDS module CX6934
Pre-configured by default for 868 MHz wireless networking
Inner fitting fixed mechanically (only for one-sided electronic authorization)
Different handle shapes available
Suitable for all doors having a thickness of 30 mm to 110 mm
Square thickness of 7 mm, 8 mm, 8.5 mm, 9 mm and 10 mm are available
No cabling required
Can be combined with other systems (for example Clex prime)
Version for MIFARE®Transponder can be supplied
Optional administration with the CX2530 Keyng software
3.1.1 Battery management
The electronic door handle CX2172 comes with a battery management system,
which indicates the need for battery replacement by means of a visible and audio
signal when the battery power reduces (capacity loss) during the last 1,000
operations of battery (see chapter 7.2.1 battery replacement).
The signal is given out in two phases:
The battery needs to be replaced soon.
If an authorized key is held in front of the reading unit, then the engaging of the
door handle is accompanied with flashing of red light (5 times) and 5 short
audible signals.
The battery should be replaced immediately.
If an authorized key is held in front of the reading unit, then the red LEDs flash (5
times) accompanied by 5 short audible signals. The engaging of the door handle
is delayed by 5 seconds, during which time the green LEDs flash.
The access data, the event log, the settings of the door handle and the time are
stored in the non-volatile memory and are thus retained even without power
supply, for example when changing the battery or if the battery is completely
drained. The time is written to the non-volatile memory once every 30 minutes.
When the power supply is disrupted, the clock stops after a few seconds and
continues from the last saved value once the power supply is restored.
*When using CX2530 Keyng
Phase 1
Phase 2

CX2172 PRODUCT DESCRIPTION
7
3.1.2 Event log
The last 128 events of the door handle are stored in the event log.
Event logging can be enabled or disabled for each door handle individually,to
be able to comply with specific data privacy guidelines.
The event log can be read using Keyng CX2530.
3.2 Design

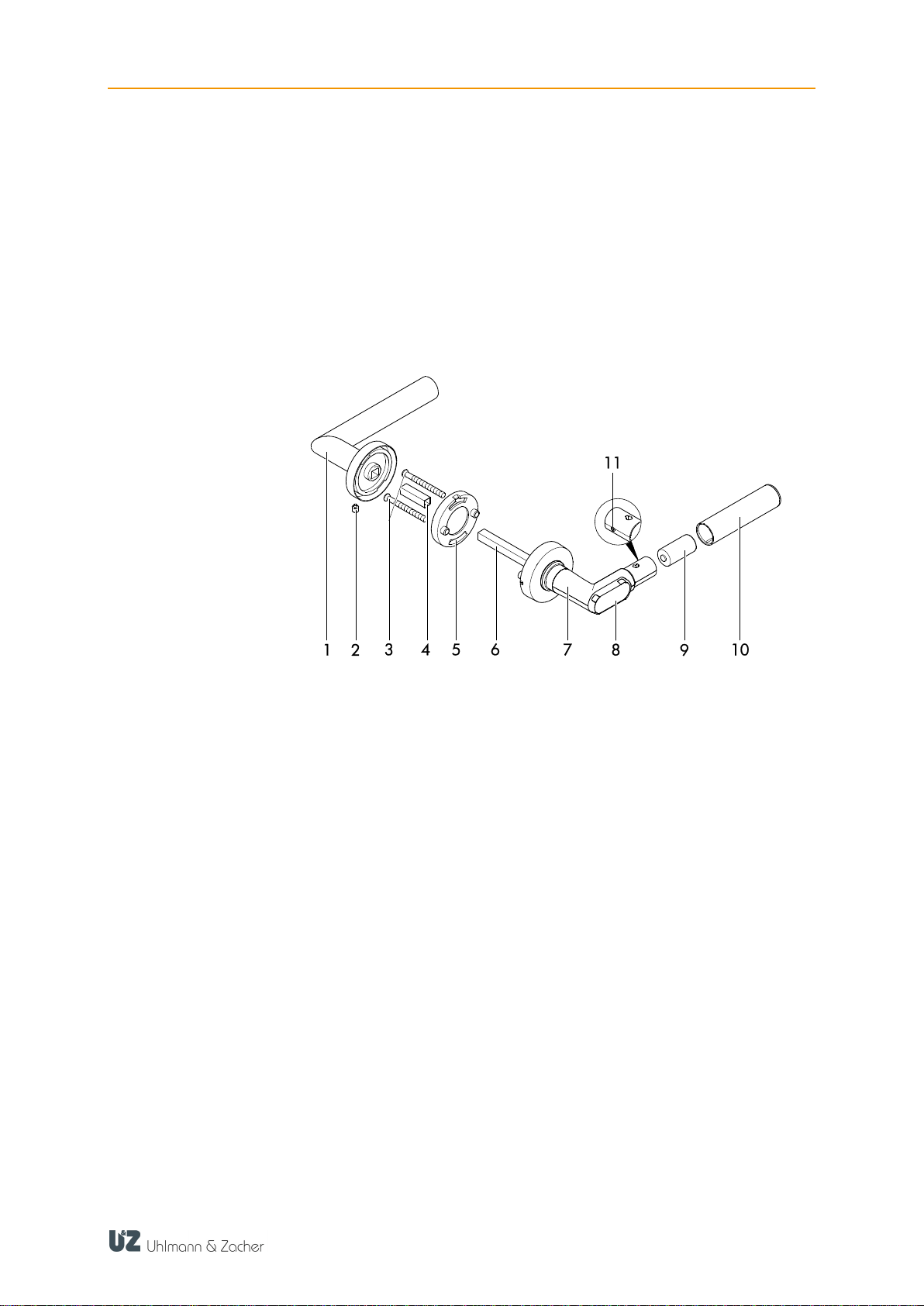

3.2.1 One-sided electronic authorization
1
Mechanical door handle
7
Electronic door handle
2
Locking screw
8
Reading unit
3
Mounting screw
9
Battery
4
Adapter sleeve (only for 7-mm-
square pin)
10
Gripping sleeve
5
Handle holder (with bayonet
lock)
11
Grub screw for gripping sleeve
6
Square pin

CX2172 PRODUCT DESCRIPTION
8
3.2.2 Two-sided electronic authorization
1
Reading unit
6
Rosette cover
2
Electronic door handle
(outside)
7
Electronic door handle (inside)
3
Square pin
8
Battery
4
Adapter sleeve (only for 7-mm
-square pin)
9
Gripping sleeve
5
Mounting screw
10
Grub screw for gripping sleeve

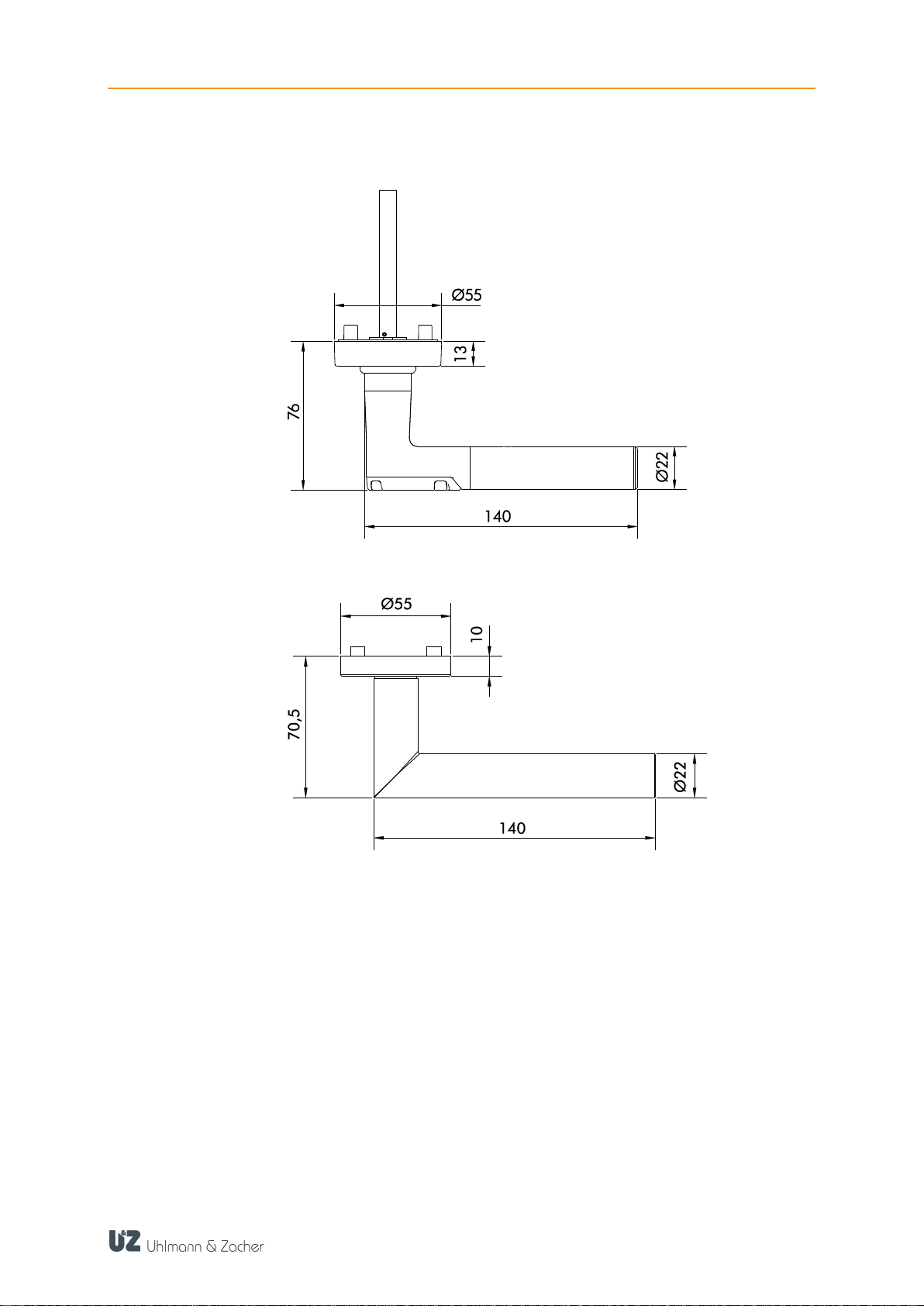

3.3 Versions
Different handle shapes and versions are available:
Door handles in L-shape or U-shape
One or two-sided electronic authorization
For door hinged on the right or left
For inside or outside use
Various square sizes (7 mm, 8 mm, 8,5 mm, 9 mm, 10 mm)

CX2172 PRODUCT DESCRIPTION
9

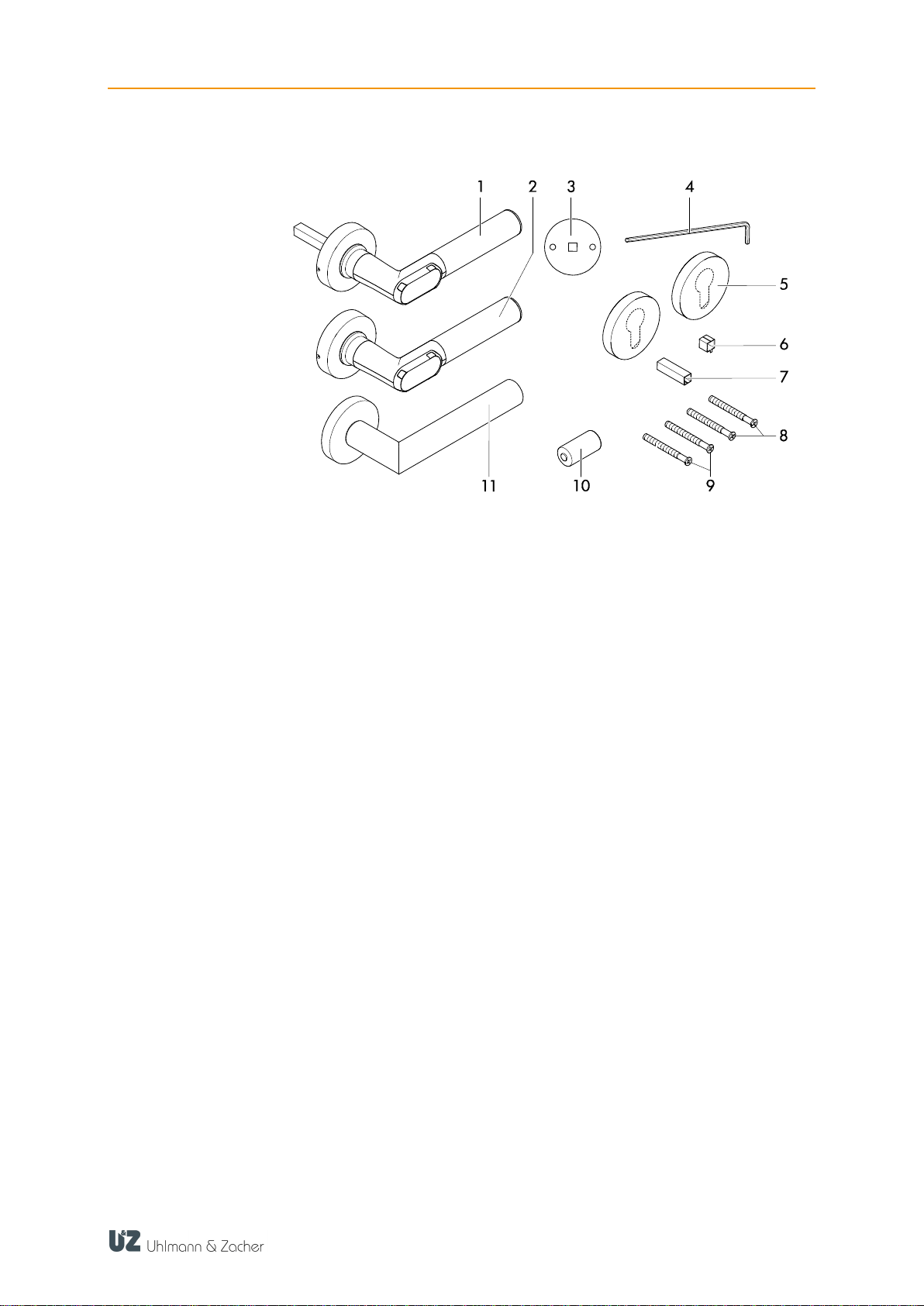

3.4 Scope of supply
1
Electronic door handle including
rosette
Square
Sealing ring (only for outdoor version)
2
Electronic door handle (only for two-sided electronic authorization)
including
rosette
Sealing ring (only for outdoor version)
3
Drilling template
4
2mm Allen key (1 per order)
5
Optional: key rosettes (blind cover or with PZ hole)
6
Adapter sleeve for square in case of two-sided electronic authorization (only
for 7 mm square)
7
Adapter sleeve for square in case of one-sided electronic authorization
(only for 7 mm square)
8
Mounting screws for door handle (M5)
9
Optional: Mounting screws for key rosettes (M4)
10
Battery
11
Mechanical door handle (only for one-sided electronic authorization)

CX2172 PRODUCT DESCRIPTION
10
3.5 Technical data
3.5.1 General technical data
Description
Value
Diameter of rosette
55 mm
Swivel angle
45°
Transponder
MIFARE®Classic
MIFARE®DESFire®
active transponder (868 MHz))
Power supply
CR123A 3V battery (1 piece)
Battery life
up to 150,000 operations or 10.0 years
Power consumption in
standby mode
0.06 mW
3.5.2 Ambient conditions
Description
Value
Operating
temperature
+5°C to +55°C (indoor version)
-25°C to +65°C (outdoor version)
Storage
temperature
-40°C to +65°C
Maximum relative
humidity (door
handle)
Up to 95% non-condensing
Place of installation
Inside or outside (depending on the product model)
Protection class
IP66 (outdoor version; being prepared)

CX2172 PRODUCT DESCRIPTION
11

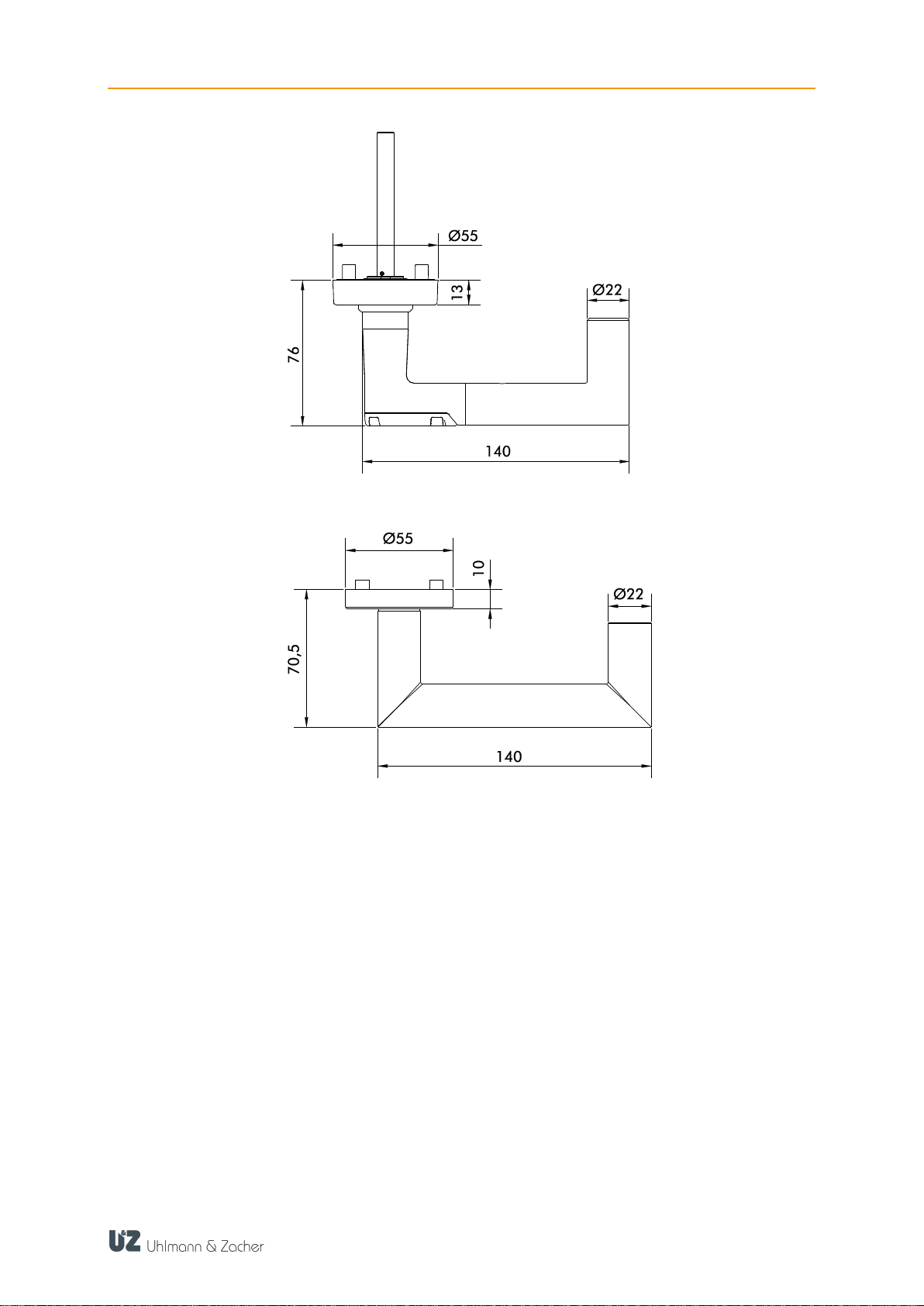

3.5.3 Dimensions
L-shape electronic side
L-shape mechanical side

CX2172 PRODUCT DESCRIPTION
12
3.6 Standards
The electronic door handle CX2172 meets the following standards:
EN 300 220 V2.4.1
EN 302 291 V1.1.1
EN 301 489-1 V1.9.2
EN 55022:2010
EN 61000-6-1:2007
EN 61000-6-3:2007
EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + AC:2011 +
A2:2013
EN 62479:2010
Directive 1999/5/EG
U-shape electronic side
U-shape mechanical side

CX2172 PRODUCT DESCRIPTION
13
3.7 Management accessories
3.7.1 CX2530 Keyng
Using the CX2530 Keyng administration software, it is possible to manage the
Clex private electronic locking system conveniently from the PC. In contrast to the
well-known learning - clearing system, the software provides a wide range of
functions.
The communication between the locking units and the administration software
takes place using a USB radio stick.
3.7.2 Service key
Using the service key, a user identifies himself as an administrator of the locking
system. If this key is held in front of a locking system component, then the
respective component goes into service mode, where it is possible, for example,
to create or change authorizations, make settings or to read the event log.

CX2172 ASSEMBLY
14
4Assembly
4.1 Assembly instructions
ATTENTION
Damage of the door handle by using mounting screws of wrong
length
The rosette of the electronic door handle can be damaged if
the mounting screws are too long!
4.1.1 General assembly instructions
Carry out the assembly necessarily with the door open.
Ensure that the latches or seals fitted to the door do not hinder the proper
operation of the CX2172.
Ensure that the door handle does not protrude and prevent the door from
swinging freely.
Before assembling the door handle, always check whether all the
components can move freely.
After assembly, check the function with the door open.
4.1.2 Drilling template
The drilling template supplied is used to mark the drilling holes.
There should be a distance of at least 38 mm between the two drilling holes for
the handle rosette and for the key rosette.
4.2 Assembly
4.2.1 Assembly of the square pin
1
Electronic door handle
2
Spiral pin
3
Square pin
4
Adapter sleeve (only for 7-mm-square pin)
1
3
2
4

CX2172 ASSEMBLY
15
Insert adapter sleeve in square pin fixture (if required)
Insert square pin completely on fixing pin and in square pin fixture
Insert spiral pin in square pin
4.2.2 One-sided electronic authorization
Insert the square pin of the electronic door handle into the square nut of the
lock.
Place the drilling template on the square pin, align horizontally and center
punch the hole markings.
Remove the square pin again.
Drill holes of diameter 8 - 8.5 mm at the marked positions. Do not drill into
or through the lock casing.
Insert the square pin of the electronic door handle once again into the
square nut of the lock. If necessary, place the adapter sleeve supplied on the
square pin.

CX2172 ASSEMBLY
16

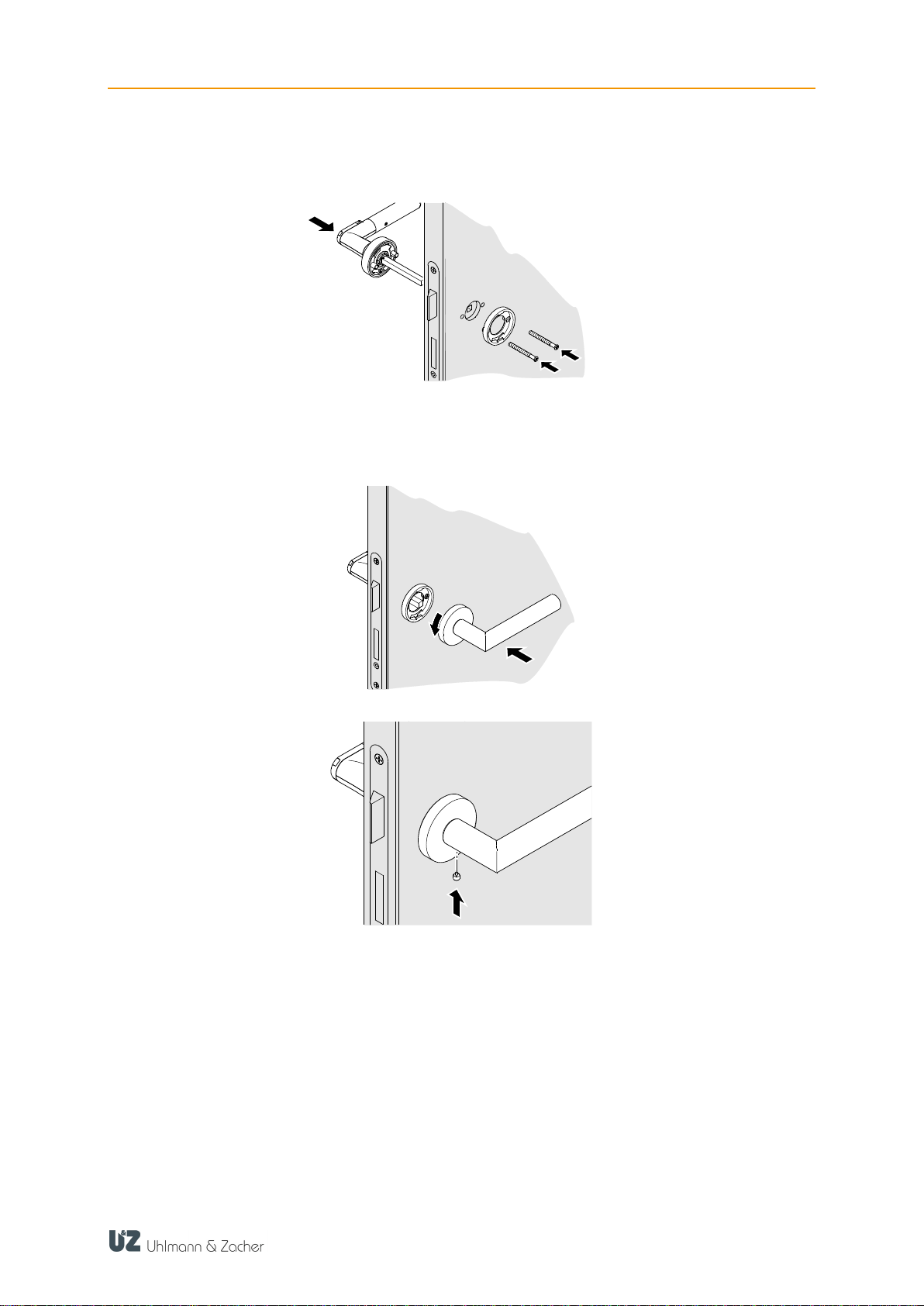

Insert the handle holder of the mechanical door handle from the other side
and screw it along with the electronic door handle through the door panel.
Please use the supplied mounting screws.
Insert the mechanical door handle keeping it in a horizontal position. For
door handles pointing to the right, tighten the rosette towards the left, guide it
over the handle holder and engage the bayonet lock. Accordingly, tighten
the rosette towards the right for door handles pointing to the left.
Insert the locking screw from the bottom of the rosette and tighten it.
To operate the door handle, insert the battery and close the housing (see
chapter 7.2.1 Battery replacement).
Check the functionality and easy movement of the door handle with the door
open. To do this, hold an authorized key in front of the reading unit.
When engaged, the catch of the lock should be completely inside the lock
casing when the latch is pressed down.
After holding up an authorized key for the first time, only the two upper LEDs
light up as an indication.

CX2172 ASSEMBLY
17
4.2.3 Two-sided electronic authorization

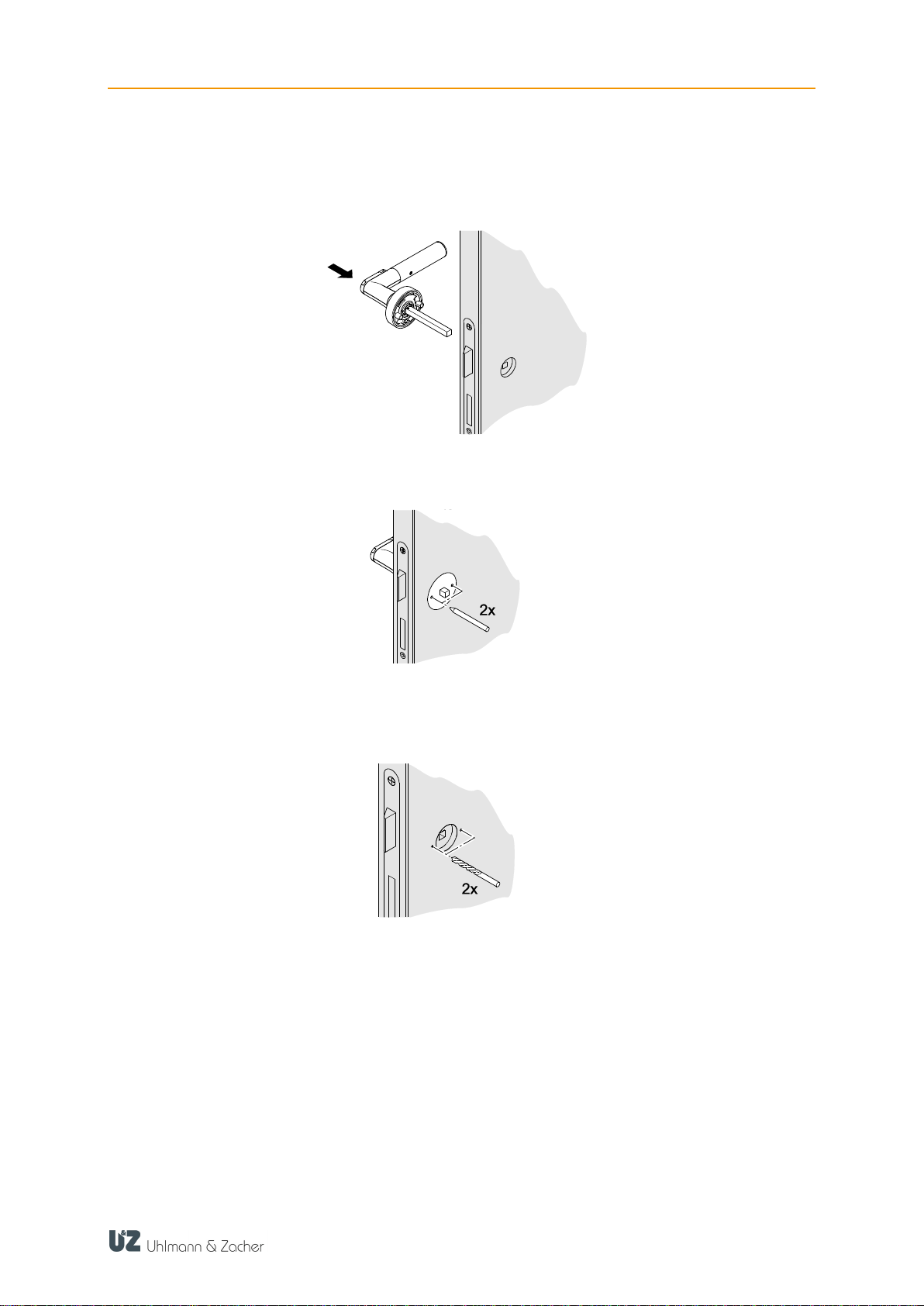

Insert the square pin of the outer electronic door handle into the square nut
of the lock.
Place the drilling template on the square pin, align horizontally and center
punch the hole markings.
Remove the square pin again.
Drill holes of diameter 8 - 8.5 mm at the marked positions. Do not drill into
or through the lock casing.
Insert the square pin of the outer electronic door handle once again into the
square nut of the lock. If necessary, place the adapter sleeve supplied on the
square pin.
Check the extent to which the square pin protrudes out of the door panel and
shorten it if required, in order to completely insert the inner electronic door
handle. The square pin should protrude 6 mm ±0.5 mm over the door
panel,to ensure proper functioning.

CX2172 ASSEMBLY
18

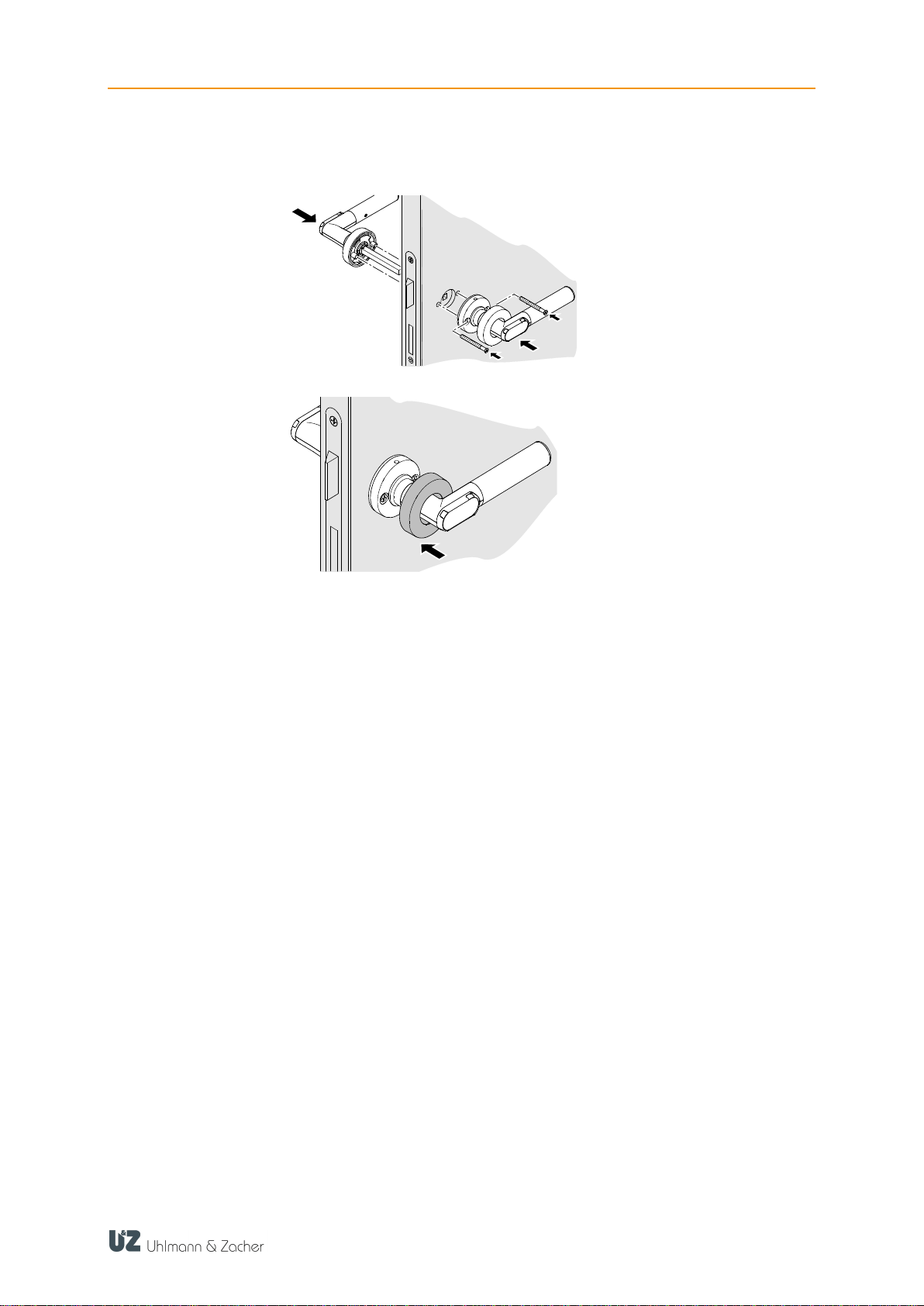

Retract the rosette cover of the inner electronic door handle to the maximum
extent and screw both the electronic door handles together through the door
panel. Please use the supplied mounting screws.
Place the rosette cover.
To operate the door handle, insert the battery and close the housing (see
chapter 7.2.1 Battery replacement).
Check the functionality and easy movement of the door handle with the door
open. To do this, hold an authorized key in front of the reading unit.
In the engaged condition, the catch of the lock should be completely inside
the lock casing when the latch is pressed down.
After holding up an authorized key for the first time, only the two upper LEDs
light up as an indication.

CX2172 ASSEMBLY
19
4.2.4 Assembling the key rosette
Place the drilling template, align horizontally and center punch the hole
marks.
Drill holes of diameter 7 - 7.5 mm at the marked positions. Do not drill into
or through the lock casing.
Screw both the key rosettes together through the door panel.
Place the rosette covers and press firmly until the engage audibly.
