1 About this document
This operating and assembly manual describes the Clex prime electronic door
handle (in short: CX6172) and the electronic door fitting (in short: CX6174). It is
part of the product and contains important information that is necessary for
proper operation and maintenance.
This operating and assembly manual is valid for all versions of CX6172 and
CX6174 and is intended for technicians, who are responsible for assembling and
disassembling, as well as for end customers.
Read this operating and assembly manual carefully for smooth and safe
operation and follow the instructions given in it before operating the door
handle.
Keep the operating and assembly manual in a safe place.
After the installation, hand over the manual to the end customer and make
sure that the customer familiar with its use.
Uhlmann & Zacher GmbH does not assume any responsibility for disruptions or
hazards such as as non-access to injured personnel, malfunctions, property
damage or other damages resulting from non-compliance with this operating and
assembly manual or incorrectly configured door handles.
If there are still any doubts after reading this operating and assembly manual,
please contact your respective dealer or Uhlmann & Zacher GmbH directly.
1.1 Warnings
Warnings warn against hazards which may arise when using the door handle.
There are two levels of warnings that can be identified based on the signal word:
Signal word
Meaning
CAUTION
Indicates a hazard with a low risk that can lead to mild or
moderate injury if not avoided.
ATTENTION
Indicates a hazard that results in property damage.
1.2 Symbols
The following symbols may be used in this manual:
This symbol indicates a usage instruction that must be followed by the user.
This symbol indicates an entry in a list.
This symbol indicates useful and important information.

CX6172/4 TABLE OF CONTENTS
6
2Security
2.1 Proper use
The electronic door handle CX6172/4 is intended to be installed in building
doors and for opening the doors. It is compatible with the commonly used
European standards for locking systems. The CX6172/4 can be used indoors as
well as outdoors (depending on the product version).
The different versions allow it to be used in all the common doors such as wood,
steel and aluminum doors as well as doors with narrow frames having a backset
of more than 18 mm (depending on the product version).
The assembly should be carried out only by trained technicians. Only the
components approved by Uhlmann & Zacher should be used for installation and
maintenance.
Any other use is considered as improper and may result in damage to material or
even in physical injury.
2.2 Improper use
The CX6172/4 should not be used for locking up people or animals as well as
supplies required in case of emergencies (for example defibrillator, emergency
medication, fire extinguishers, etc.).
The CX6172/4 should not be used in potentially explosive surroundings.
Specially approved versions that are intended for the purpose should be installed
and used in fire, smoke resistant doors and emergency exit locks. The applicable
regulations should be followed.
The CX6172/4 should not be used if the housing or the electronics is damaged.
Changes or retrofits to the product are not allowed. The knob module should not
be used outside the given specifications.
The CX6172/4 should not be used in doors that do not open freely or in doors or
lock cases that are damaged. The product should not be used as a stopper
against obstacles.
2.3 General safety instructions
Follow these basic safety instructions when using the door handle:
Installation and battery replacement should only be done by qualified
technicians according to the instructions in this operating and assembly
manual.
Do not use the door handles in potentially explosive areas.
Do not make any kind of modifications to the door handles, with the
exception of those described in this operating and assembly manual.
Do not apply paints or acids to the door handles.
Do not heat the door handle and battery beyond the specified storage
temperature.
Use only original spare parts and accessories from Uhlmann & Zacher to
prevent malfunctions and damages.
Only use batteries procured from Uhlmann & Zacher.

CX6172/4 TABLE OF CONTENTS
7
3Product description
3.1 Functional description
The electronic door handle CX6172/4 is a product in the Clex prime system. The
reading unit, the communication electronics, the mechanical system and power
supply, are integrated within the door handle.
Different transponder carriers can be used as key in the CX6172/4, for example,
ISO card or key fob.
CX6172/4 has the following system properties:
Up to 60,000 key/locking authorizations can be stored
Up to 512 events can be recorded in the fitting
Up to 32 holidays can be configured
Automatic summer and winter time changeover
5,296 locking groups
Permanent engagement possible without additional power consumption
Up to 20 time circuits can be programmed for daily activation (automatic
permanent engagement)
Engagement time can be programmed from 1 to 15 seconds
Can be connected to the IDS module CX6934
Pre-configured by default for 868 MHz wireless networking
Inner fitting fixed mechanically (only for one-sided electronic authorization)
Different handle shapes available
Suitable for all doors having a thickness of 30 mm to 110 mm
Square thickness of 7 mm, 8 mm, 8.5 mm, 9 mm and 10 mm are available
No cabling required
Can be combined with other systems (for example Clex private)
Versions for HITAG 1, MIFARE®and LEGIC ®Transponder can be supplied
3.1.1 Authorisations
There are up to 296 groups in the Clex prime locking system. If the door handle
is a member of one or more of these groups, then all those keys that are also
members of this group are authorized to open the door handle - provided the key
authorizations are not restricted by time zone settings.
In addition to the normal groups, there are 5000 other groups in the Clex prime
locking system. Each key can be a member of up to 16 of these other groups.
An individual authorization entitles a key to operate one door handle. Depending
on the type of key (writable, not writable), the individual authorizations are either
stored on the key (up to 16 individual authorizations per key) or in the door
handle (up to 60,000 individual authorizations).
Keys with toggle authorization can permanently engage a door handle, hence the
door can be opened even without a key.
Group Access Rights
Extra Group Access
Rights
Individual
authorisations
Toggle authorisation
(permanent
engagement)

CX6172/4 TABLE OF CONTENTS
8
The four-eyes group is used to open a door handle only when two different keys
are held up, out of which one should be a member of the four eyes group and
the other should have normal authorization for the door handle. Which group is
defined as the four-eyes group can be configured for each door handle.
In combination with a CX6934 IDS module, the door handle can be used to
enable and disable the intrusion detection system (IDS). To do this it is necessary
to define a group (IDS group) in the door handle that is authorized to enable /
disable the IDS.
In addition, a firefighters group can be defined, which is always authorized to
open the door regardless of the status of the intrusion detection system. In
contrast to the group access rights of the fire brigade, the switching status of the
intrusion detection system is first queried for all the other group access rights
before granting the access right.
3.1.2 Time zones
You can restrict the locking access right in terms of time by using a time zone.
The time restrictions along with the locking authorizations are programmed in the
key in the Clex prime system.
The following time restrictions are possible:
Total interval
Day interval
Weekly schedule
Holidays
Special time zones
For detailed information on the different time zones, please refer to the Keyvi
software manual.
3.1.3 Automatic expiry date
Using the automatic expiry date, it is possible to restrict the validity of a key
regardless of the time zones applicable for the key.
For detailed information on the automatic expiry date, please refer to the Keyvi
software manual.
3.1.4 Radio network
If a corresponding radio network is installed in the building, then the door handle
CX6172/4 can be integrated with this network. The following functions can be
then be executed via radio:
Programming access rights
Changing access rights
Configuring time zones / timer circuits
Reading event log
Engaging the door handle (for the duration defined by locking time)
Viewing battery and maintenance messages
Reading the battery value
FW update
3.1.5 Key feedback
Even for door handles operated offline, there is an option to send the battery
status of the door handle to the Keyvi management software. To do this, the
battery status of the 16 most recently operated door handles is stored on the key.
The battery status information is sent to Keyvi and deleted from the key if the key
Four-Eyes-Group
Intrusion detection
system (IDS) group

CX6172/4 TABLE OF CONTENTS
9
is read by an automatic programming terminal or a programming station. The
prerequisite is that the key should have been prepared for writing the information
and the option Key feedback should be set in the door handle.
Key Feedback can only be used with the transponder types MIFARE ®and LEGIC®
advant.
3.1.6 Battery management
The electronic door handle CX6172/4 comes with a battery management system,
which indicates the need for battery replacement by means of a visible and audio
signal, when the battery power reduces (capacity loss) during the final 1,000
operations of the battery (see chapter 7.2.17.2.1 Battery Replacement).
The signal is given out in two phases:
The battery needs to be changed soon.
If an authorized key is held in front of the reading unit, then the engaging of the
door handle is accompanied with flashing of red light (5 times) and 5 short
audible signals.
The battery needs to be changed immediately.
If an authorized key is held in front of the reading unit, then the red LEDs flash (5
times) accompanied by 5 short audible signals. The engaging of the door handle
is delayed by 5 seconds, during which time the green LEDs flash.
The access data, the events log, the settings of the door handle and the time are
stored on non-volatile memory and thus retained even when there is no power
supply, for example, when changing the battery or if the battery discharges
completely. The time is written to the non-volatile memory once every 30 minutes.
If the power supply remains off, then the clock comes to a standstill after a few
seconds and starts running from the last stored value onwards after the power
supply is restored.
Phase 1
Phase 2

CX6172/4 TABLE OF CONTENTS
10
3.1.7 Event log
The last 512 events of the door handle are stored in the event log.
The following events are logged:
Unauthorised
Authorised
Service opening
Timer circuit open
Timer circuit closed
Reset
Summer time On
Summer time Off
Coupling error
Battery Ok
Battery weak Phase 1:
Battery weak Phase 2:
Manipulation
Toggle off
Toggle On
Unknown position
Service mode
Radio diagnosis
Automatic wake up off
Wireless opening not OK
Wireless opening OK
The following information are recorded for every event: Event code, date, time,
key code if necessary.
Event logging can be enabled or disabled for each door handle individually, to
comply with specific data privacy guidelines.
The event log can be read using the service unit CX6510 or using ClexTouch
CX6522. If the door handle is located in a Keyvi radio network, it can also be
read via radio.

CX6172/4 TABLE OF CONTENTS
11
3.2 Design

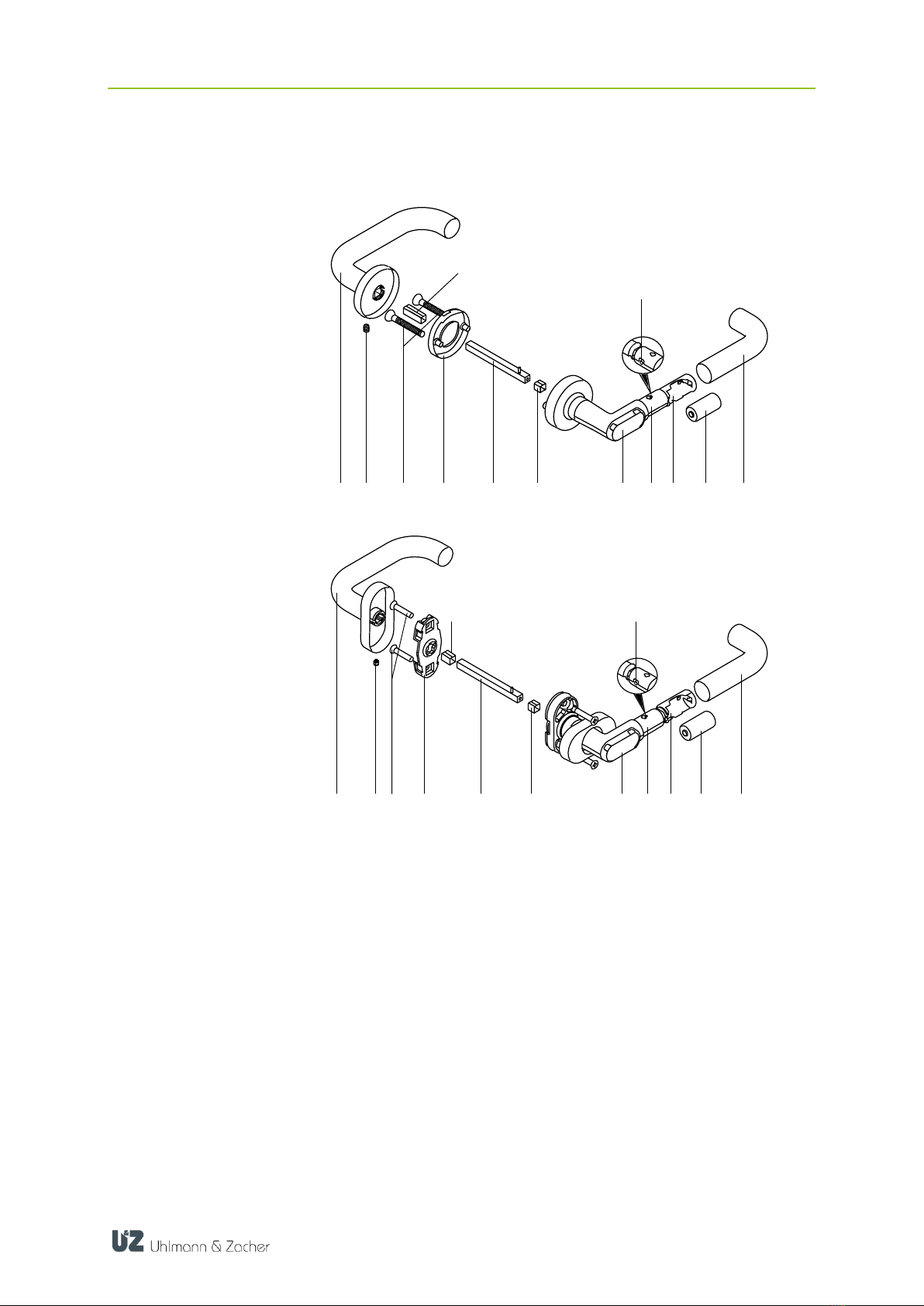

3.2.1 One-sided electronic authorization
1
Mechanical door handle
7
Reading unit
2
Locking screw
8
Electronic door handle
3
Mounting screw
9
Battery compartment
4
Opener holder (with bayonet
lock)
10
Battery
5
Square pin with spiral
clamping
11
Gripping sleeve
6
Adapter sleeve (only for 7 mm
square pin)
12
Grub screw for gripping sleeve
12
1 2 3465 78910 11
6
1 2 345 6 78910 11
126
Circular rosette
Oval rosette

CX6172/4 TABLE OF CONTENTS
12
1
Mounting screws
9
Electronic door handle
2
Washers
10
Battery
3
Locking screws
11
Plate cover
4
Base plate
12
Gripping sleeve
5
Adapter sleeve (only for 7 mm
square pin)
13
Grub screw for gripping sleeve
6
Square pin with spiral
clamping
14
Mechanical door handle
7
Threaded sleeves
15
Screw-type sleeve
8
Reading unit
1
345 6 5 4 7 8910 11 12
13
14
2
1 2
1
345 6 5 78910 11 12
13
14
15
4
Long narrow plate
Long wide plate

CX6172/4 TABLE OF CONTENTS
13
1
Mounting screws
7
Locking screw
2
Mechanical door handle
8
Threaded sleeve
3
Grub screw for gripping sleeve
9
Electronic door handle
4
Locking screw
10
Battery
5
Square pin with spiral
clamping
11
Plate cover
6
Adapter sleeve (only for 7 mm
square pin)
12
Gripping sleeve
Short plate

CX6172/4 TABLE OF CONTENTS
14

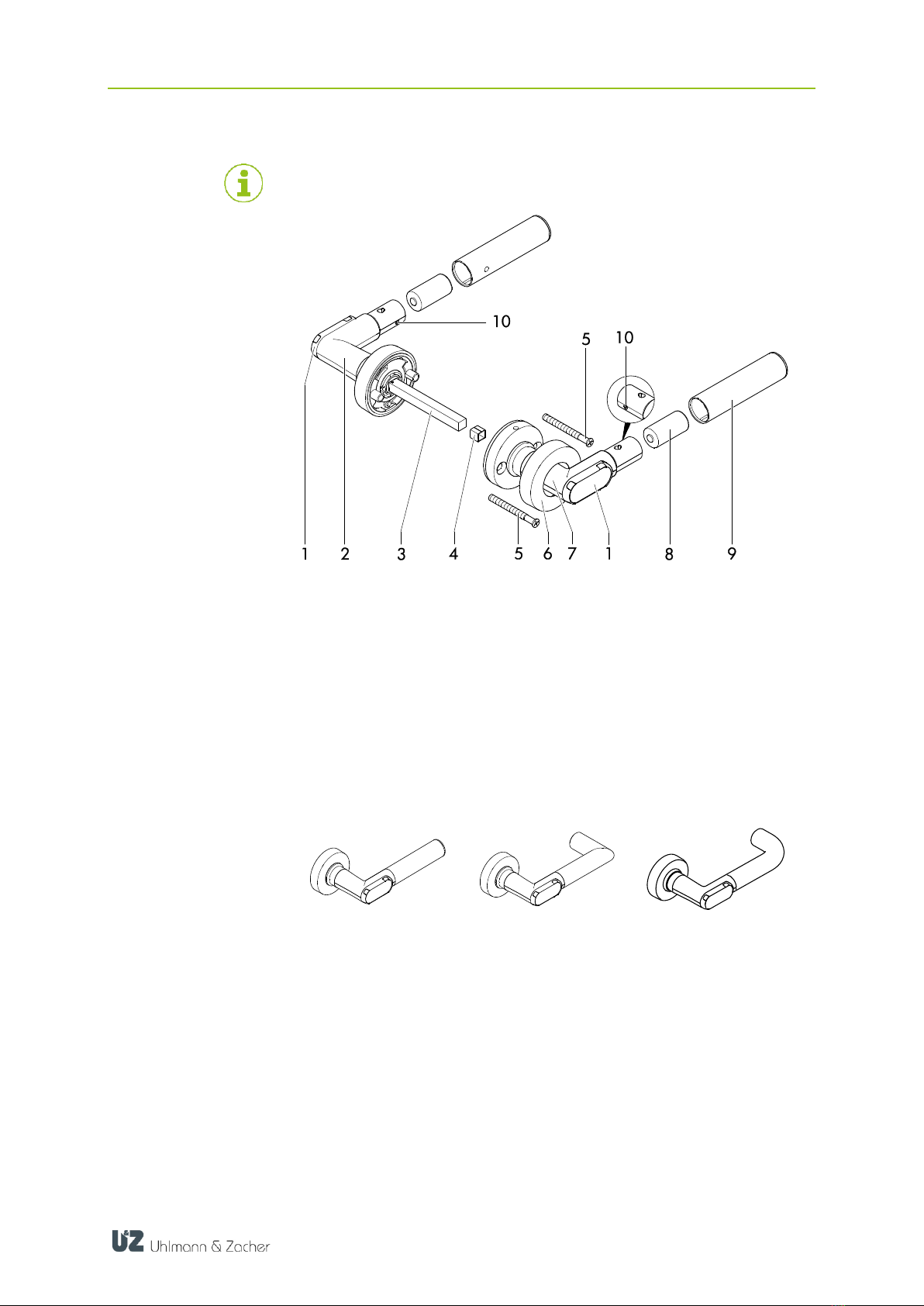

3.2.2 Two-sided electronic authorization
Two-sided electronic authorization is possible only in certain combinations of the
variants round rosette, oval rosette, long plate narrow and long plate wide.
1
Reading unit
6
Rosette cover
2
Electronic door handle
(outside)
7
Electronic door handle (inside)
3
Square pin
8
Battery
4
Adapter sleeve (only for 7 mm
square pin)
9
Gripping sleeve
5
Mounting screw
10
Grub screw for gripping sleeve

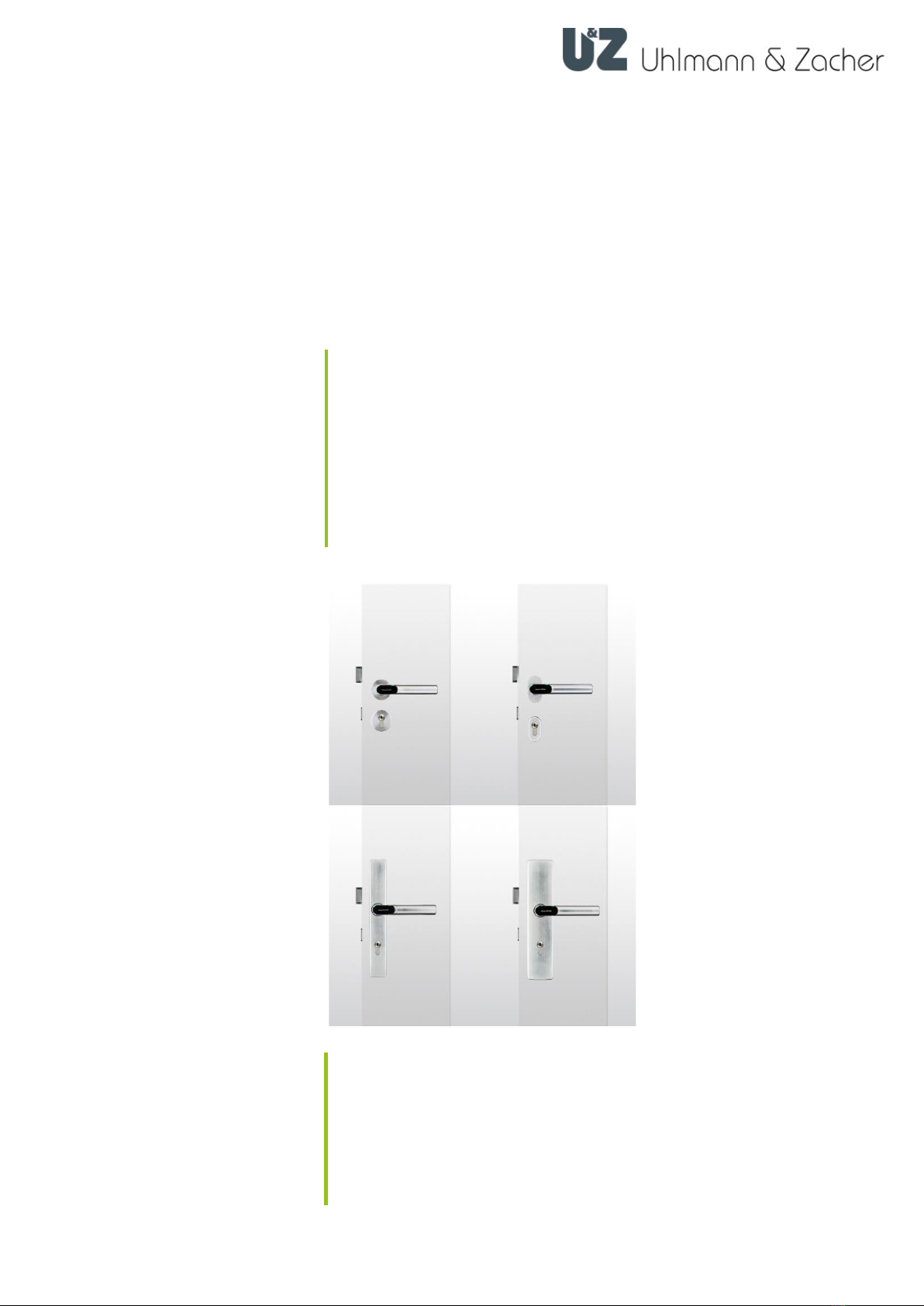

3.3 Versions
Different opener shapes and versions are available:
Door openers in L-shape or U-shape
One or two-sided electronic authorization
Circular rosette, oval rosette, long narrow plate and long wide plate
For door hinged on the right or left
For indoor or outdoor use
For emergency exit locks, fire and smoke resistant doors
Different transponder types: 125 kHz (HITAG/EM), MIFARE®, LEGIC®
Various square sizes (7 mm, 8 mm, 8,5 mm, 9 mm, 10 mm)
Basic version without date/time and event memory

CX6172/4 TABLE OF CONTENTS
15
3.4 Technical data
3.4.1 General technical data
Name
Value
Minimum backset
Round rosette: 28 mm
Oval rosette: 18 mm
Long plate narrow: 22 mm
Long plate wide: 33 mm
Door thickness
30 mm to 110 mm
Maximum door weight
300 kg
Swivel angle
45°
Transponder versions
Version 1: 125 kHz (868 MHz)
EM4102, EM4450, HITAG 1,
Active transponder (868 MHz)
Version 2: MIFARE®13.56 MHz (868 MHz)
MIFARE®Classic, MIFARE®DESFire®,
Active transponder (868 MHz)
Version 3: LEGIC®13.56 MHz (868 MHz)
LEGIC®prime, LEGIC®advant, MIFARE®DESFire®,
Active transponder (868 MHz)
Radio
Frequency: 868.3 MHz
Maximum transmission power: 1 mW
Power supply,
Rated voltage
CR123A 3V battery (1 piece),
3 volts
Battery life
125 kHz: up to 90,000 operations or 10,0 years
MIFARE®: up to 160.000 operations or 9.8 years
LEGIC®: up to 70.000 operations or 7.0 years
Power consumption in
sleep mode
125 kHz: 0.03 mW
MIFARE®: 0.06 mW
LEGIC®: 0.08 mW
3.4.2 Ambient conditions
Name
Value
Operating
temperature
+5°C to +55°C (indoor version)
-25°C to +65°C (outdoor version)
Storage temperature
-40°C to +65°C
Maximum relative
humidity (door
handle)
Up to 95% non-condensing
Installation location
Indoor or outdoor (depending on the product model)
Protection class
Version for indoor use: IP40
Version for outdoor use: IP66

CX6172/4 TABLE OF CONTENTS
16

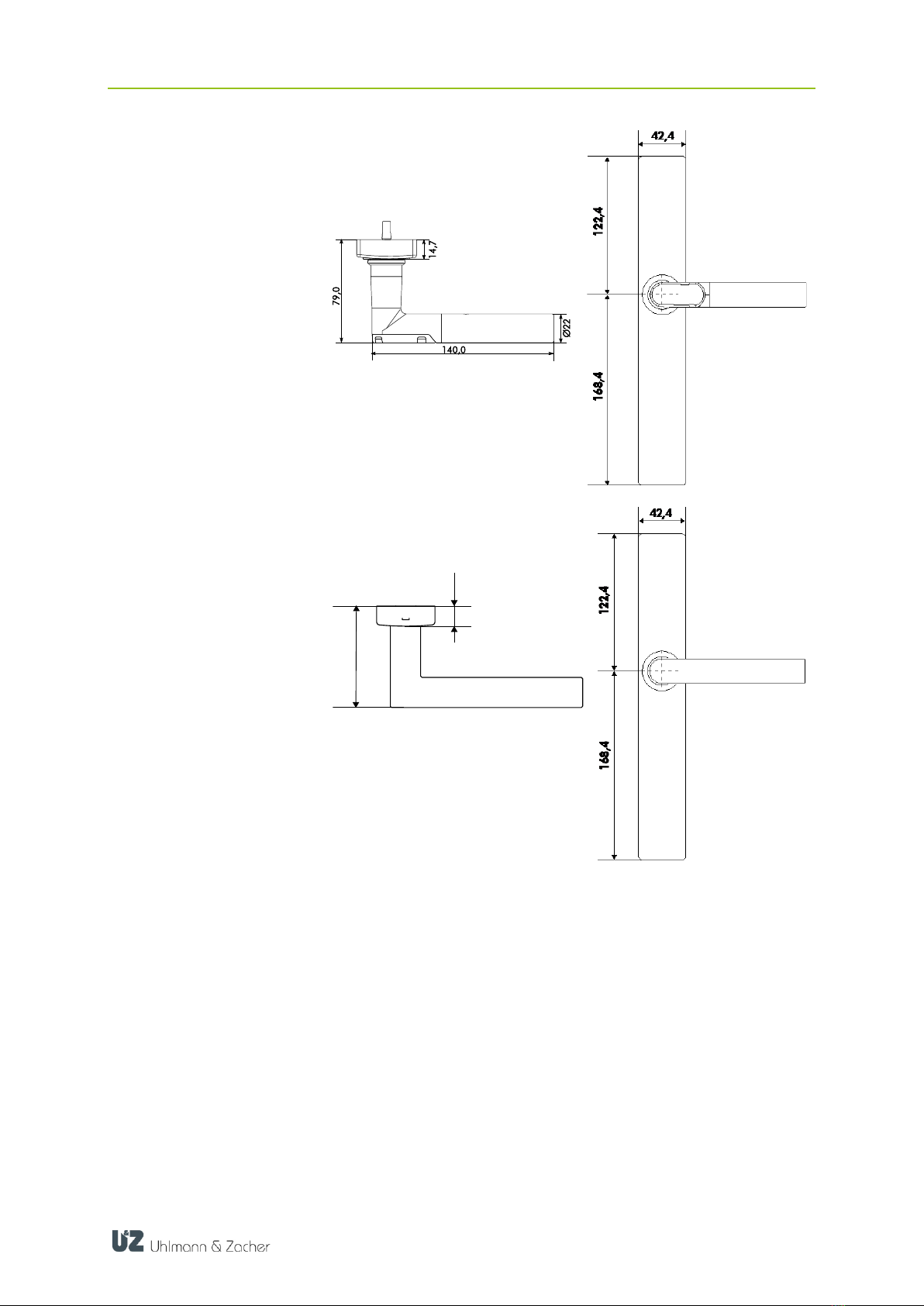

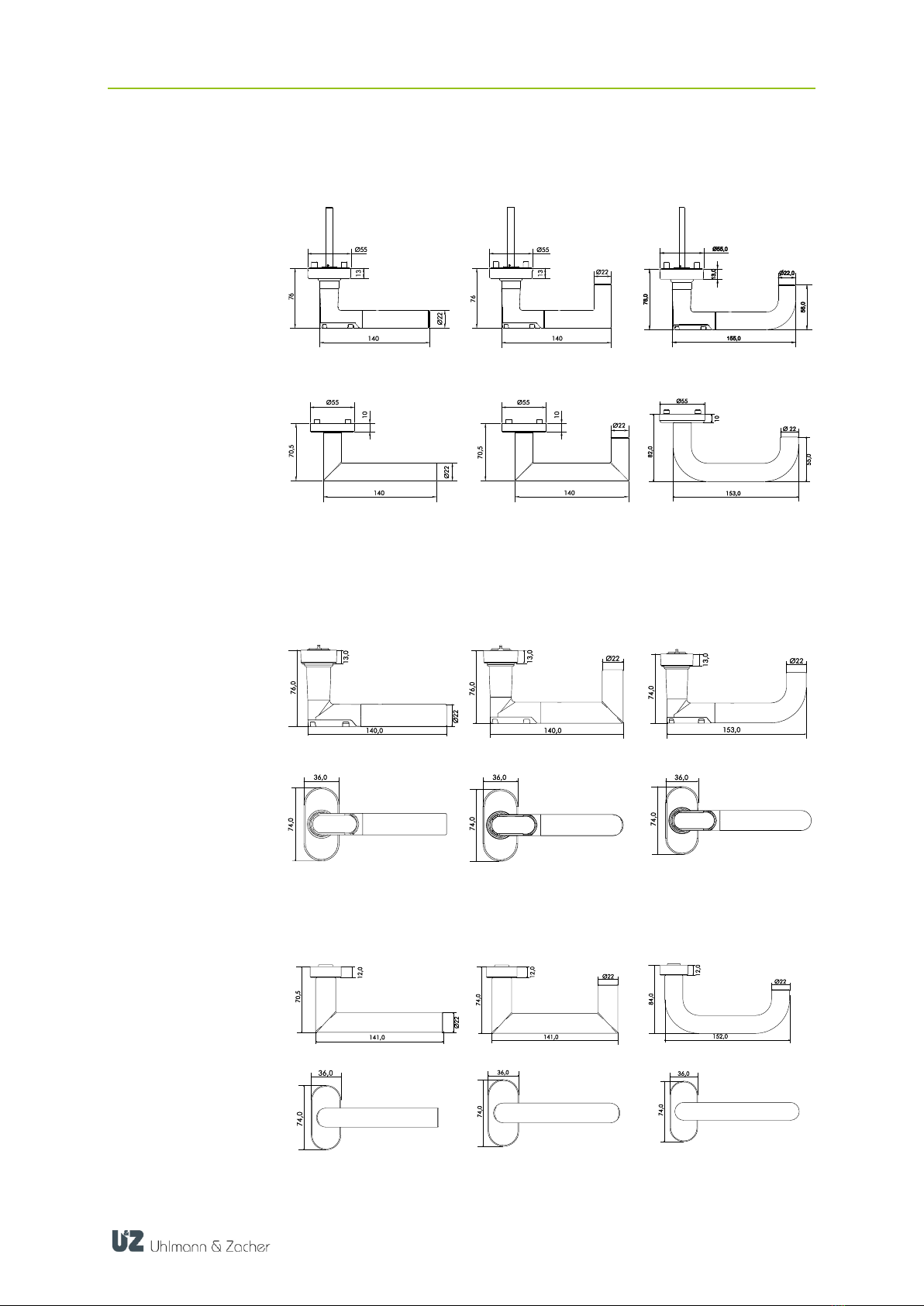

3.4.3 Dimensions
Circular rosette
electronics side and
handle versions
Circular rosette
mechanical side and
handle versions
Oval rosette
electronics side
Oval rosette
mechanical side

CX6172/4 TABLE OF CONTENTS
17
Long narrow plate
electronics side
Long narrow plate
mechanical side
14,7
75,5

CX6172/4 TABLE OF CONTENTS
18
75,5
14,7
Long wide plate
electronics side
Long wide plate
mechanical side
14,7
79,0

CX6172/4 TABLE OF CONTENTS
19
3.5 Standards
The electronic door handle CX6172/4 meets the following standards:
EN 16867:2020, classification 47-B11D00 (version for indoor use)
47-B11D40 (version for outdoor use)
EN 1906:2012
Short plate electronics
side
Short plate mechanical
side

CX6172/4 TABLE OF CONTENTS
20
3.6 Management accessories
The components of the Clex prime system described below are used to manage a
Clex prime locking system.
3.6.1 CX6530 Keyvi management software
The locking system can be managed centrally and conveniently from the PC using
the Keyvi management software for Clex prime. Even complex locking programs
can be easily created, monitored and maintained using the software.
3.6.2 CX6510 Service device
The CX6510 service device is used for programming the locking system.
Information can be exchanged between the Keyvi management software and
locking units using the service unit. The information includes, for example,
authorizations, events or settings for the locking units. In case of EM and
HITAG1, the keys can also be programmed using the service device.

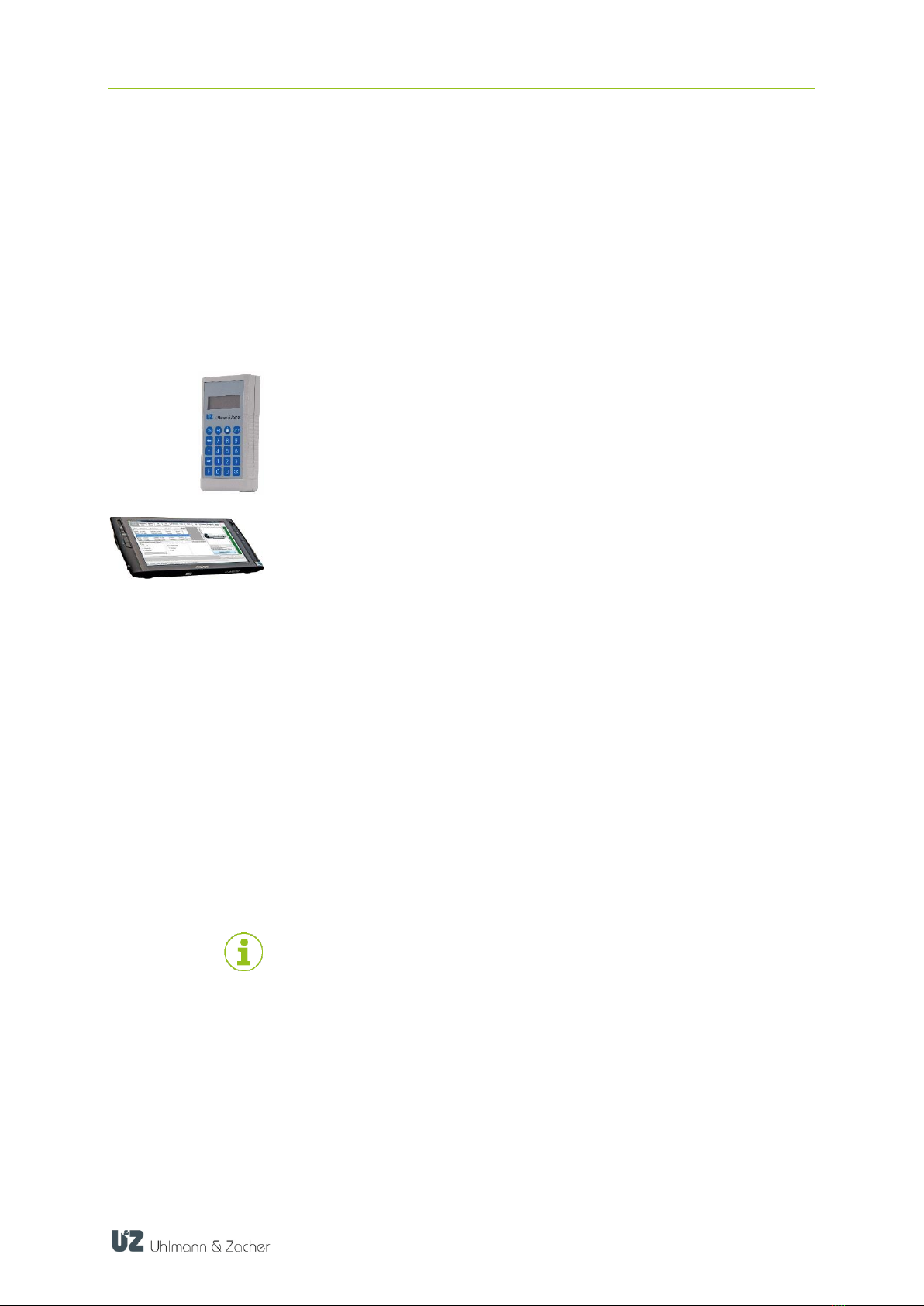

3.6.3 CX6522 ClexTouch
ClexTouch is software that runs on handheld computers or laptops with Windows.
It can be used to conveniently configure the locking system and (along with a
corresponding wireless USB stick) and the relevant data can be sent directly to all
the locking system components of Clex prime that are provided with a radio chip.
3.6.4 CX6520 Programming station
The programming station is an optional addition to the Keyvi management
software and the CX6510 service device in order to conveniently program the
key. In conjunction with MIFARE®or LEGIC ®transponders, the programming
station is always required to program the key. The programming station is
connected to the PC using a USB cable.
3.6.5 Special keys
Using the service key, a user identifies himself as an administrator of the locking
system. If this key is held in front of a locking system component, then the
respective component goes into service mode, where it is possible, for example,
to create or change authorisations, make settings or to read the event log.
A sub-service puts an already personalized locking unit into service mode. These
sub-service keys have authorization only for certain areas or for specific times (for
example, for a locking system with several houses and individual management).
Sub-service keys cannot be used to customise brand new locking units for the first
time. Only existing customised locking system units can be set to the service
mode.
Service key
Sub-service keys
