GARAGE PARKING AID
UPA 500 A1
GARAGE PARKING AID
Operating instructions
PYSÄKÖINTILIIKENNEVALOT
Käyttöohje
LJUSSIGNAL FÖR PARKERING
Bruksanvisning
PARKERINGSLYS
Betjeningsvejledning
CV_70429_UPA500A1_LB3.indd 1-3CV_70429_UPA500A1_LB3.indd 1-3 23.11.2011 15:25:54 Uhr23.11.2011 15:25:54 Uhr

UPA 500 A1
12
7
3
4
5
6
CV_70429_UPA500A1_LB3.indd 4-6CV_70429_UPA500A1_LB3.indd 4-6 23.11.2011 15:25:57 Uhr23.11.2011 15:25:57 Uhr

1
UPA 500 A1
GB
IE
Index
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Warning symbols used . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Intended use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Items supplied and transport inspection . . . . . . . . . . . . . . . . . . . . . .4
Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Safety instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Interaction with batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Appliance description . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Handling and operation . . . . . . . . . . . . . . . . . . . . . . . . . 7
Inserting the batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Wall mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Cleaning / Storage / Disposal . . . . . . . . . . . . . . . . . . . 10
Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Storage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Notes on the Declaration of Conformity . . . . . . . . . . . . . . . . . . . .12
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Importer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Buch_70429_LB3.indb 1Buch_70429_LB3.indb 1 02.12.2011 13:37:19 Uhr02.12.2011 13:37:19 Uhr

Introduction
GB
IE
2UPA 500 A1
Introduction
Congratulations on the purchase of your new appliance!
These operating instructions are a component of the Parking Lamp
UPA 500 A1(hereafter designated as the appliance) and they
provide you with important information about the intended use,
safety, operation and disposal of the appliance.
The operating instructions must be constantly kept available close to the
appliance. They are to be read and applied by everyone assigned to
operate, and eliminate faults in, the appliance. Retain these operating
instructions and pass them on, with the appliance, to any future owner.
Warning symbols used
In these extant operating instructions the following warnings are used:
DANGER
A warning at this risk level indicates a potentially
dangerous situation.
If the dangerous situation is not avoided, it could lead to
death or serious physical injury.
Pay heed to the instructions in this warning to avoid the►
death of or serious physical injury to people.
Buch_70429_LB3.indb 2Buch_70429_LB3.indb 2 02.12.2011 13:37:19 Uhr02.12.2011 13:37:19 Uhr

Introduction
3
UPA 500 A1
GB
IE
WARNING
A warning at this risk level indicates a potentially
dangerous situation.
If the dangerous situation is not avoided it can lead to physical
injuries.
Pay heed to the instructions in this warning to avoid personal►
injuries.
TAKE NOTE
A warning at this risk level signifies potential
property damage.
If the situation is not avoided it could lead to property damage.
Pay heed to the instructions in this warning to avoid property►
damage.
NOTICE
A notice signifies additional information that can assist you in►
the operation of the appliance.
Intended use
This appliance is intended exclusively for the signaling of distances
between a vehicle and the garage wall and thus facilitates the proc-
ess of parking. This appliance is intended only for domestic use, it is
not intended for commercial or industrial applications. This appliance
is intended only as an aid in parking, under no circumstances can
or does it replace the necessary prudence and caution of the driver
during the parking process. Accordingly, no liability can be assumed
for any damage resulting from improper assembly, use, maintenance
or malfunction. The operator alone bears the risk.
Buch_70429_LB3.indb 3Buch_70429_LB3.indb 3 02.12.2011 13:37:19 Uhr02.12.2011 13:37:19 Uhr

Introduction/Safety
GB
IE
4UPA 500 A1
Items supplied and transport inspection
The appliance is delivered with the following components as standard:
1 x Parking Lamp UPA 500 A1▯
4 x Batteries 1.5 V Type AA/LR6/Mignon▯
4 x Screws M3 x 24 mm▯
4 x Wallplugs (S6)▯
3 x Hook and Loop pads▯
These operating instructions▯
NOTICE
Check the contents to ensure everything is available and for►
signs of visible damage.
If the delivery is not complete or is damaged due to defective►
packaging or through transportation contact the Service
Hotline (see chapter Service).
Safety
In this chapter you will receive important safety information regarding
the handling of the appliance.
This appliance complies with the statutory safety regulations. Incorrect
usage can lead to personal injury and property damage.
Safety instructions
If you are unsure about your current medical condition, obtain■
advice from your doctor before using the appliance.
Buch_70429_LB3.indb 4Buch_70429_LB3.indb 4 02.12.2011 13:37:20 Uhr02.12.2011 13:37:20 Uhr

Safety
5
UPA 500 A1
GB
IE
WARNING - RISK OF INJURY
Before use check the appliance for visible external damage.►
Do not put into operation an appliance that is damaged or
has been dropped.
Use the appliance only for the purposes as described (see►
chapter Intended use).
This appliance is not intended for use by individuals (including►
children) with restricted physical, physiological or intellectual
abilities or deficiences in experience and/or knowledge
unless they are supervised by a person responsible for their
safety or receive from this person instruction in how the appli-
ance is to be used.
Children should be supervised to ensure that they do not►
play with the appliance.
CAUTION - PROPERTY DAMAGE
Avoid any additional heat build up, e.g. direct sunlight,►
heaters, etc..
Do not expose the appliance to moisture, use it only in dry►
areas.
Buch_70429_LB3.indb 5Buch_70429_LB3.indb 5 02.12.2011 13:37:20 Uhr02.12.2011 13:37:20 Uhr

Safety
GB
IE
6UPA 500 A1
Interaction with batteries
WARNING
Danger from improper use!
For safe handling of batteries pay heed to the following safety
instructions:
Do not throw batteries into a fire.►
Never short-circuit batteries.►
Do not attempt to recharge batteries.►
Regularly check the condition of the batteries. Leaking battery►
acid can cause permanent damage to the appliance. Special
caution should be shown when handling damaged or leaking
batteries. Risks from acid burns! Wear protective gloves.
Store batteries in a place inaccessible to children. If a battery►
is swallowed seek IMMEDIATE medical attention.
Do not use or mix depleted and new batteries together.►
If you do not intend to use the appliance for an extended►
period, remove the batteries.
Buch_70429_LB3.indb 6Buch_70429_LB3.indb 6 02.12.2011 13:37:20 Uhr02.12.2011 13:37:20 Uhr

Appliance Description/Operation ...
7
UPA 500 A1
GB
IE

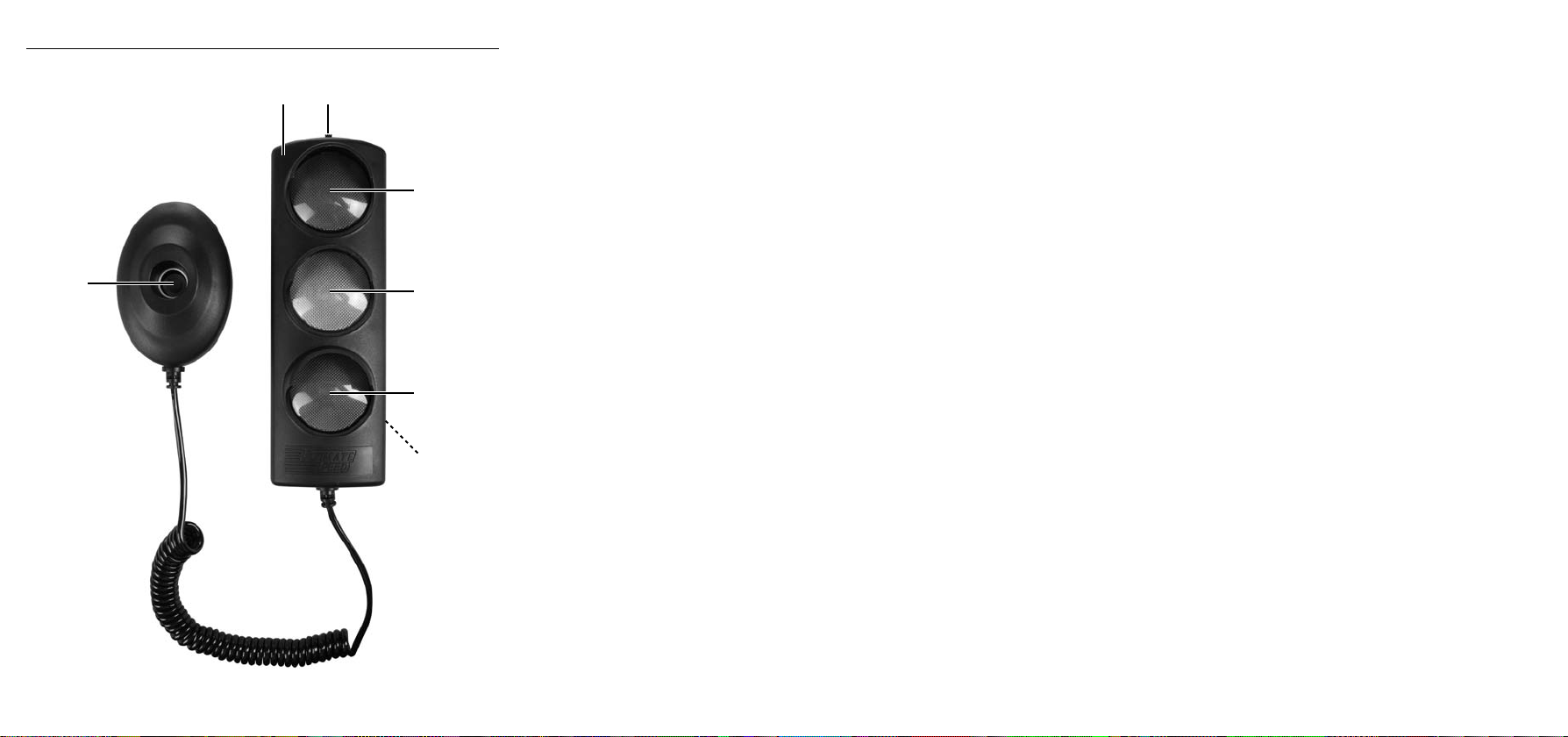

Appliance description
Parking Lamp
2On/Off switch
3Red LED
4Yellow LED
5Green LED
6Battery compartment
7Ultrasonic sensor
Handling and operation
Inserting the batteries
Slide the on/off switch♦ 2to the position "OFF".
Slide the battery compartment cover in the direction of the arrow♦
and remove it from the appliance.
Insert 4 x 1.5 V batteries of the type AA/LR6/Mignon into the♦
battery compartment 6. Pay heed the the polarity markings
given in the battery compartment 6.
Replace the battery compartment cover and let it firmly engage.♦
NOTICE
If, during use or in standby mode, the red LED► 3flashes
once every 10 seconds, the batteries are too weak and must
be replaced.
Buch_70429_LB3.indb 7Buch_70429_LB3.indb 7 02.12.2011 13:37:20 Uhr02.12.2011 13:37:20 Uhr

Handling and operation
GB
IE
8UPA 500 A1
Wall mounting
DANGER
When drilling the holes ensure that any electric cables or►
other installations in the wall, such as water pipes, are not
damaged.
TAKE NOTE
The supplied plugs are only suitable for a mounting on con-►
crete or stone. Before starting the installation, please check
your installation location carefully for its suitability for the
plugs. If in doubt, call a professional.
Attach the Parking Lamp♦ on the garage wall at the level of
the windshield of your vehicle. For this, mark two boreholes with
a vertical spacing of 130 mm.
Attach the ultrasonic sensor on the garage wall at the level of♦
the bumper of your vehicle. For this, mark two boreholes with a
vertical spacing of 45 mm.
Now bore, using an electric or hand drill fitted with a 6 mm♦
drill, the four holes to a minimum depth of 30 mm.
Insert the plugs into the holes and screw the screws in. Leave♦
the screw heads protruding a little.
Now hang the Parking Lamp♦ and the ultrasonic sensor 7
on the screws.
NOTICE
Alternatively, you can also use the supplied hook and loop►
pads for mounting the Parking Lamp and the ultrasonic
sensor 7.
Buch_70429_LB3.indb 8Buch_70429_LB3.indb 8 02.12.2011 13:37:21 Uhr02.12.2011 13:37:21 Uhr

Handling and operation
9
UPA 500 A1
GB
IE
Operation
The appliance has three operating modes:
Standby
The appliance switches automatically into standby mode (energy
saving mode) if no movement has occurred within the monitoring
area for about 30 seconds. In the case of movement occuring, the
appliance automatically detects the entrance or exit, and switches
itself on again.
Entrance
On entrance into the garage the appliance switches itself on with the
light sequence green - yellow - red.
Exit
Should a vehicle remove itself from close to the appliance, the yellow
LED 4switches on and then the green LED 5.
Switch the appliance on by sliding the on/off switch♦ 2to the
position "ON". The LEDs flash briefly (red, yellow, green).
The appliance is now operational and the green LED 5glows
permanently.
Now test the functionality by moving slowly towards the ultra-♦
sonic sensor 7and checking the individual light signals of the
Parking Lamp .
Light signal Distance from ultrasonic sensor
green approx. 5 -1.5 m
yellow approx. 1.5 -0.5 m
red approx. 0.5 -0 m
Buch_70429_LB3.indb 9Buch_70429_LB3.indb 9 02.12.2011 13:37:22 Uhr02.12.2011 13:37:22 Uhr

Cleaning / Storage / Disposal
GB
IE
10 UPA 500 A1
NOTICE
Please take note that, in the switchover zones, it is possible►
to have an alternating of the colours. This is not a defect, it
is an indication that the switchover zone cannot be clearly
identified, such as when the vehicle is not parallel to the
sensor.
Cleaning / Storage / Disposal
Cleaning
IMPORTANT
Possible damage to the appliance.
To avoid irreparable damage, when you are cleaning the►
appliance ensure that no moisture can penetrate inside it.
Do not use abrasive cleaners or solvents. They could damage►
the surface.
Clean the appliance with a soft, dry cloth. For stubborn soiling♦
you may also moisten the cloth slightly.
Storage
Should you intend to not use the appliance for an extended period,
remove the batteries and store it in a clean and dry place away from
direct sunlight.
Buch_70429_LB3.indb 10Buch_70429_LB3.indb 10 02.12.2011 13:37:23 Uhr02.12.2011 13:37:23 Uhr

Cleaning / Storage / Disposal
11
UPA 500 A1
GB
IE
Disposal
Disposal of the appliance
Do not dispose of this appliance in your
normal domestic waste. This appliance is
subject to the provisions of European
Directive 2002/96/EC-WEEE (Waste Electrical
and Electronic Equipment).
Dispose of the appliance through an approved
disposal centre or at your community waste facility.
Observe the currently applicable regulations. In case
of doubt, please contact your waste disposal centre.
Dispose of all packaging materials in an environmen-
tally friendly manner.
Disposing of the batteries
Batteries must not be disposed of in the household waste. Every
consumer is statutorily obliged to dispose of batteries at a collecting
point in their town/district or at a retail company. This obligation
is intended to ensure that batteries are disposed of in an environ-
mentally safe manner. Only dispose of batteries when they are fully
discharged.
Buch_70429_LB3.indb 11Buch_70429_LB3.indb 11 02.12.2011 13:37:23 Uhr02.12.2011 13:37:23 Uhr

Appendix
GB
IE
12 UPA 500 A1
Appendix
Technical data
Detectable range 15 cm - 500 cm
Power supply 4 x 1.5 V-Batteries
Type AA/LR6/Mignon
Operating temperature range + 5 to + 40°C
Humidity 5 - 90% (no condensation)
Dimensions (W x H x D)
Parking Lamp
Ultrasonic sensor
approx. 5.5 x 16.5 x 4.8 cm
approx. 5.6 x 8 x 3.4 cm
Weight approx. 165 g
(without batteries)
Notes on the Declaration of Conformity
In regard to compliance with fundamental requirements
and other relevant provisions, this appliance complies
with the requirements of the European Electromagnetic
Compatibility Directive 2004/108/EC.
The complete original declaration of conformity can be
obtained from the importer.
Buch_70429_LB3.indb 12Buch_70429_LB3.indb 12 02.12.2011 13:37:23 Uhr02.12.2011 13:37:23 Uhr

Appendix
13
UPA 500 A1
GB
IE
Warranty
You receive a 3-year warranty for this appliance as of the purchase
date. This appliance has been manufactured with care and meticu-
lously examined before delivery.
Please retain your receipt as proof of purchase. In the case of a
warranty claim, please make contact by telephone with our service
department. Only in this way can a post-free despatch for your
goods be assured.
NOTICE
The warranty covers only claims for material and manufac-►
turing defects, not for transport damages, wearing parts or
for damage to fragile components, e.g. buttons or batteries.
This appliance is intended solely for domestic, not commercial, use.
In the event of misuse and improper handling, use of force and
interference not carried out by our authorised service branch, the
warranty will become void.
Your statutory rights are not restricted in any way by this warranty.
The warranty period is not extended by repairs effected under
warranty. This applies also to replaced and repaired parts.
Any damages or deficiencies found on purchase must be reported
as soon as possible after unpacking, at the latest by two days after
purchase.
On expiry of the warranty, all repairs carried out are subject to
charges.
Buch_70429_LB3.indb 13Buch_70429_LB3.indb 13 02.12.2011 13:37:23 Uhr02.12.2011 13:37:23 Uhr

Appendix
GB
IE
14 UPA 500 A1
Service
Service Great Britain
Tel.: [phone] (£ 0.10/Min.)
E-Mail: [email protected]
IAN 70429
Service Ireland
Tel.: [phone]
(0,08 EUR/Min., (peak))
(0,06 EUR/Min., (off peak))
E-Mail: [email protected]
IAN 70429
Importer
KOMPERNASS GMBH
BURGSTRASSE 21
44867 BOCHUM, GERMANY
www.kompernass.com
Buch_70429_LB3.indb 14Buch_70429_LB3.indb 14 02.12.2011 13:37:23 Uhr02.12.2011 13:37:23 Uhr

15
UPA 500 A1
FI
Sisällysluettelo
Johdanto . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Käytetyt varoittavat ohjeet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Määräystenmukainen käyttö . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Toimituslaajuus ja kuljetustarkastus. . . . . . . . . . . . . . . . . . . . . . . . .18
Turvallisuus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Turvaohjeet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Paristojen käsittely . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Laitteen kuvaus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Käyttö ja toiminta . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Paristojen asentaminen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Seinäasennus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Käyttö. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Puhdistus/Varastointi/Hävittäminen . . . . . . . . . . . . .24
Puhdistus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Varastointi. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Hävittäminen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Liite. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Tekniset tiedot. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
EY-vaatimustenmukaisuusvakuutusta koskevia ohjeita . . . . . . . . . .26
Takuu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Huolto. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Maahantuoja . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Buch_70429_LB3.indb 15Buch_70429_LB3.indb 15 02.12.2011 13:37:23 Uhr02.12.2011 13:37:23 Uhr

Johdanto
FI
16 UPA 500 A1
Johdanto
Sydämellinen onnittelumme uuden laitteesi ostosta!
Tämä käyttöohje on osa pysäköintitunnistinta UPA 500 A1 (jatkossa
"laite") ja antaa tärkeitä ohjeita laitteen määräystenmukaisesta
käytöstä, turvallisuudesta, ohjauksesta sekä hävittämisestä.
Käyttöohjeen on oltava jatkuvasti saatavilla laitteen lähellä. Jokaisen
laitteen käytön ja häiriönpoiston kanssa tekemisissä olevan henkilön
on luettava se ja sovellettava sitä. Säilytä tämä käyttöohje ja luovuta
se eteenpäin laitteen mukana seuraavalle omistajalle.
Käytetyt varoittavat ohjeet
Tässä käyttöohjeessa käytetään seuraavia varoittavia ohjeita:
VAARA
Tämän vaara-asteen varoitus on merkkinä uhkaa-
vasta vaarallisesta tilanteesta.
Jos vaarallista tilannetta ei vältetä, se voi johtaa kuolemaan
tai vakaviin vammoihin.
Noudata tämän varoituksen sisältämiä ohjeita välttääksesi►
kuoleman tai vakavien henkilövammojen vaaran.
Buch_70429_LB3.indb 16Buch_70429_LB3.indb 16 02.12.2011 13:37:24 Uhr02.12.2011 13:37:24 Uhr

Johdanto
17
UPA 500 A1
FI
VAROITUS
Tämän vaara-asteen varoitus on merkkinä mahdolli-
sesti vaarallisesta tilanteesta.
Jos vaarallista tilannetta ei vältetä, se voi johtaa loukkaantumisiin.
Noudata tämän varoituksen sisältämiä ohjeita välttääksesi►
henkilövammat.
HUOMIO
Tämän vaara-asteen varoitus on merkkinä mahdol-
lisista aineellisista vahingoista.
Jos tilannetta ei vältetä, se voi johtaa aineellisiin vahinkoihin.
Noudata tämän varoituksen sisältämiä ohjeita välttääksesi►
aineelliset vahingot.
OHJE
Ohje on merkkinä lisätiedoista, jotka helpottavat laitteen►
käsittelyä.
Määräystenmukainen käyttö
Laite on tarkoitettu ainoastaan ajoneuvon ja autotallin seinän välisen
etäisyyden ilmoittamiseen ja se helpottaa näin pysäköintiä. Tämä
laite on tarkoitettu ainoastaan yksityisten kotitalouksien käyttöön, ei
kaupalliseen tai teolliseen käyttöön. Laite on tarkoitettu ainoastaan
avuksi pysäköinnissä. Se ei missään tapauksessa korvaa pysäköinnissä
tarvittavaa kuljettajan varovaisuutta ja huolellisuutta. Siksi emme
vastaa mistään mahdollisista vahingoista, jotka syntyvät virheellisestä
asennuksesta, käytöstä, kunnossapidosta tai virhetoiminnosta. Vastuu
on yksinomaan käyttäjällä.
Buch_70429_LB3.indb 17Buch_70429_LB3.indb 17 02.12.2011 13:37:24 Uhr02.12.2011 13:37:24 Uhr

Johdanto/Turvallisuus
FI
18 UPA 500 A1
Toimituslaajuus ja kuljetustarkastus
Laite toimitetaan vakiona seuraavilla osilla:
1 x pysäköintitunnistin UPA 500 A1▯
4 x paristo 1,5 V tyyppiä AA/LR6/Mignon▯
4 x ruuvi M3 x 24 mm▯
4 x tulppa (S6)▯
3 x tarraliimatyynyä▯
Tämä käyttöohje▯
OHJE
Tarkista toimituksen täydellisyys ja tarkista se näkyvien►
vaurioiden varalta.
Jos toimitus on puutteellinen tai havaitaan puutteellisen►
pakkauksen tai kuljetuksen aiheuttamia vahinkoja, käänny
huollon palvelunumeron puoleen (katso luku Huolto).
Turvallisuus
Tässä luvussa annetaan tärkeitä turvaohjeita laitteen käsittelyä varten.
Tämä laite vastaa annettuja turvamääräyksiä. Asiaton käyttö voi johtaa
henkilövahinkoihin ja aineellisiin vahinkoihin.
Turvaohjeet
Mikäli et ole varma terveydellisestä tilastasi, kysy lääkärin neuvoa■
ennen laitteen käyttämistä.
Buch_70429_LB3.indb 18Buch_70429_LB3.indb 18 02.12.2011 13:37:24 Uhr02.12.2011 13:37:24 Uhr
