Uniden VHF HH940 User manual

G:\temp\HH940ENG\Hh940.vp
Wed Jun 03 15:29:48 1998
Color profile: Disabled
Composite Default screen

CONTENTS
Controls and Indicators....Foldout
Introduction .............2
Features .............2
Technical Support and Service. . 2
Maritime Radio
Services Operation ........3
Included with Your HH940 .....4
Getting Started ...........5
Mounting the Drop-in Charger . . 5
Attaching the Antenna ......5
Attaching the Battery Pack ....6
Charging the Battery Pack ....6
Operation ..............8
Setting the Squelch........8
Selecting a Channel.......10
One-touch Channel 16/9 ....10
All-channel Scan ........10
Monitoring Weather Channels. . 11
Triple Watch ...........12
Weather Alert ..........12
International-USA Channels . . 13
Transmitting ...........13
Lighted Keys and Display ....13
KeyLock.............13
Marine Channels - USA ......14
Marine Channels - International . . 15
Parts and Accessories.......16
Specifications ...........17
G:\temp\HH940ENG\Hh940.vp
Wed Jun 03 15:29:48 1998
Color profile: Disabled
Composite Default screen

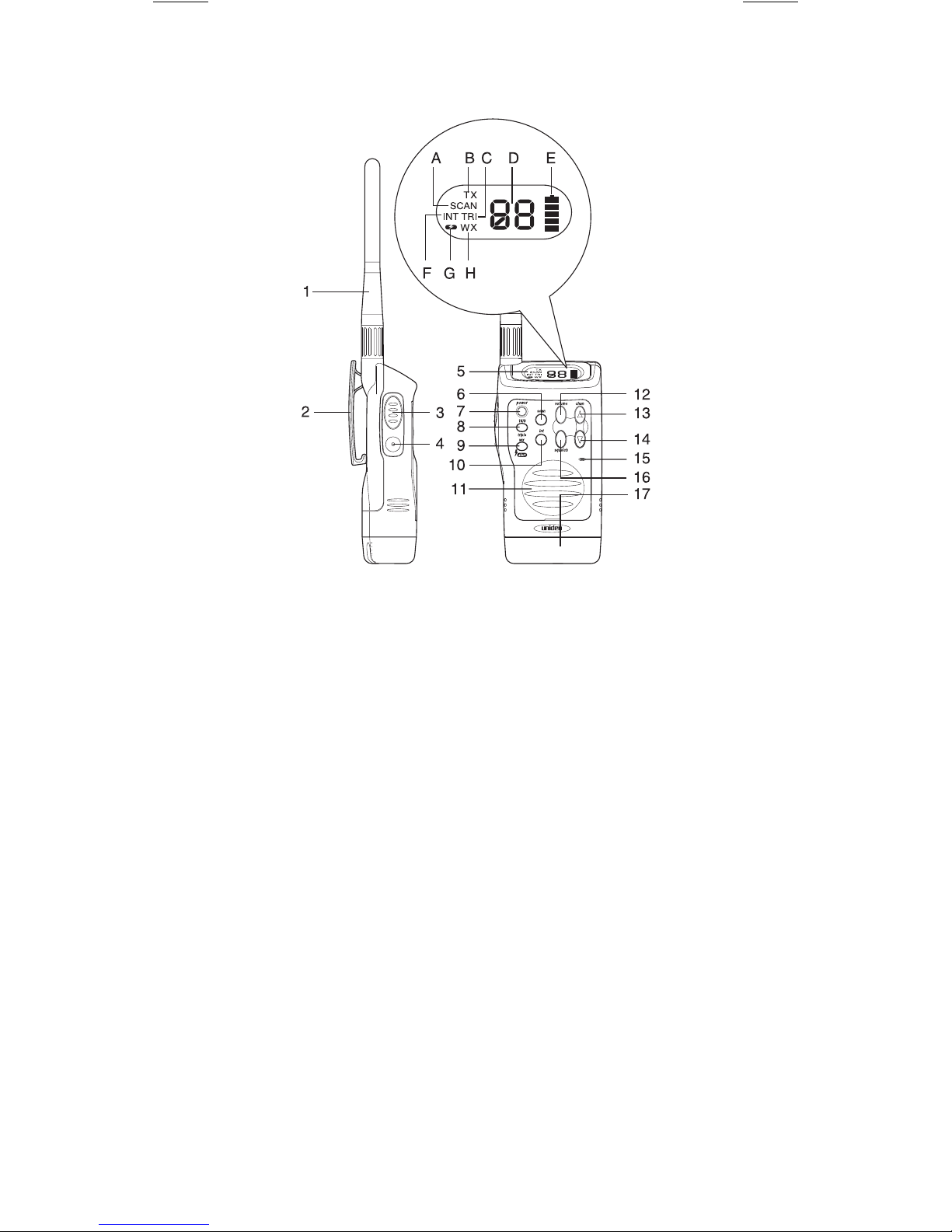

Controls and Indicators
1 Antenna 14 Channel Down
button ▼
2 Belt Clip 15 Microphone
3 PTT (Push to Talk)
Key 16 Squelch button
squelch
4 Light/Lock Key 17 Battery
5 LCD Display A Scan Indicator
6 Scan button
scan B Transmit Indicator
7 Power button
power C Triple Watch
Indicator
8 16/9 - Triple Watch
button
16/9/triple
D Channel Number
Display
9 WX Mode/Weather
Alert button
wx
E Strength Meter
10 USA/International
button
int
F International
Indicator
11 Speaker G Weather Alert
Indicator
12 Volume button
volume
H Weather Mode
Indicator
13 Channel Up
button ▲
G:\temp\HH940ENG\Hh940.vp
Wed Jun 03 15:29:50 1998
Color profile: Disabled
Composite Default screen

Warning!
☞The HH940 is waterproof only when
both the antenna and the battery are
properly attached.
☞Do not operate the transmitter of any
radio equipment unless all the Radio
Frequency (RF) connectors are secure
and any open connectors are properly
terminated.
☞Do not operate the transmitter of any
radio equipment near electrical
blasting caps or in an explosive
atmosphere.
☞Do not let children operate any
transmitter-equipped radio equipment.
☞Have your radio equipment serviced
by a qualified technician.
☞Do not operate the transmitter of any
radio equipment with the antenna
touching or close to the eyes, face, or
exposed body parts.
Rechargeable Nickel-Cadmium
Battery Warning
☞This equipment contains a
Nickel-Cadmium Battery Pack.
☞Cadmium is a chemical known to the
State of California to cause cancer.
☞The Nickel-Cadmium Battery Pack
contained in this equipment may explode
if disposed of in a fire.
☞Do not short-circuit the Battery Pack.
☞Do not charge the Nickel-Cadmium
Battery Pack used in this equipment in
any charger other than the one
designed to charge this Battery Pack.
Using another charger may damage
the Battery Pack or cause the Battery
Pack to explode.
G:\temp\HH940ENG\Hh940.vp
Wed Jun 03 15:29:51 1998
Color profile: Disabled
Composite Default screen

G:\temp\HH940ENG\Hh940.vp
Wed Jun 03 15:29:53 1998
Color profile: Disabled
Composite Default screen

Introduction
The HH940 is a waterproof, portable two-way
VHF transceiver. It is compact, lightweight, and
rugged and fits easily in your hand.This
hand-held VHF marine radio will give you
consistent, outstanding performance in
virtually all conditions and situations.
To ensure that you get the most from the
HH940’s features, please read this operating
guide carefully before using the unit.
Features
■Waterproof
■Triple Watch Mode
■Priority channel startup
■One-touch channel 16/9
■10 Weather Channels
■Weather alert
■All-channel scan
■International-USA channels
■Table-top drop-in charger (can also be
wall-mounted)
■Rechargeable nickel-cadmium battery
pack
■Key lock
■Back-lit display
■Belt clip
■Wrist strap
Technical Support and Service
Your Uniden dealer can provide you with
technical assistance and information. If your
marine radio does not perform properly, take it
to a Uniden dealer for servicing. The radio
contains no user-serviceable parts.
Unauthorized adjustment will void the warranty
and may cause illegal radio operation.Be sure
that a qualified technician services your radio
equipment.
Caution: Changes or modifications to this
product not expressly approved by
Uniden, or operation of this product in
any way other than as detailed by this
Operating Guide, can void your
authority to operate this product.
2
G:\temp\HH940ENG\Hh940.vp
Wed Jun 03 15:29:53 1998
Color profile: Disabled
Composite Default screen

Maritime Radio Services Operation
WARNING!
This transmitter will operate on channels/frequencies
that have restricted use in the United States. The
channel assignments include frequencies assigned for
exclusive use of the U.S.Coast Guard, use in Canada,
and use in international waters. Operation in these
frequencies without proper authorization is strictly
forbidden. For frequencies/channels that are currently
in use in the U.S. without requiring an individual
license, please contact the FCC Call Center at
1-888-CALL-FCC.
For individuals requiring a license, such as
commercial users, you should obtain a license
application from your nearest FCC field office.
3
G:\temp\HH940ENG\Hh940.vp
Wed Jun 03 15:29:53 1998
Color profile: Disabled
Composite Default screen

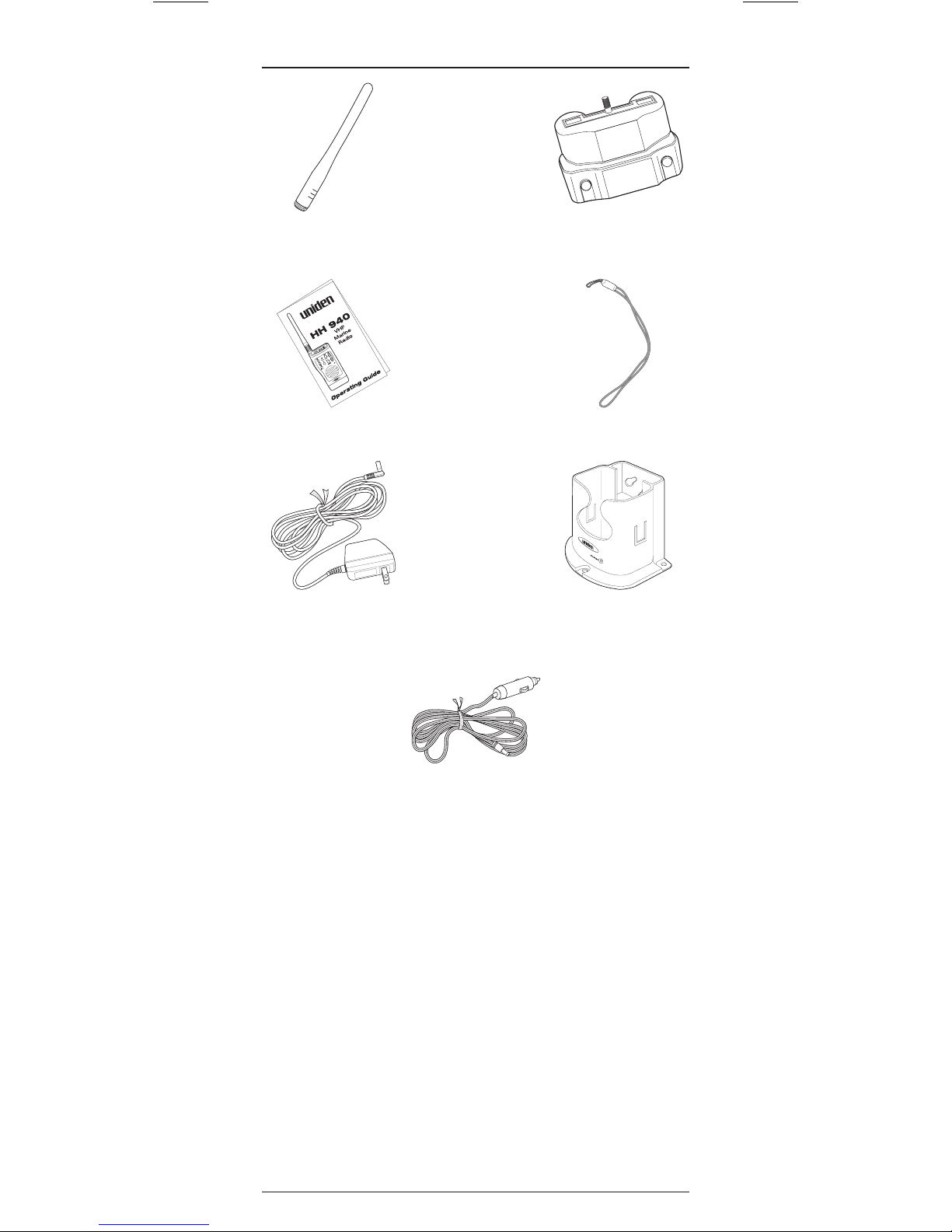

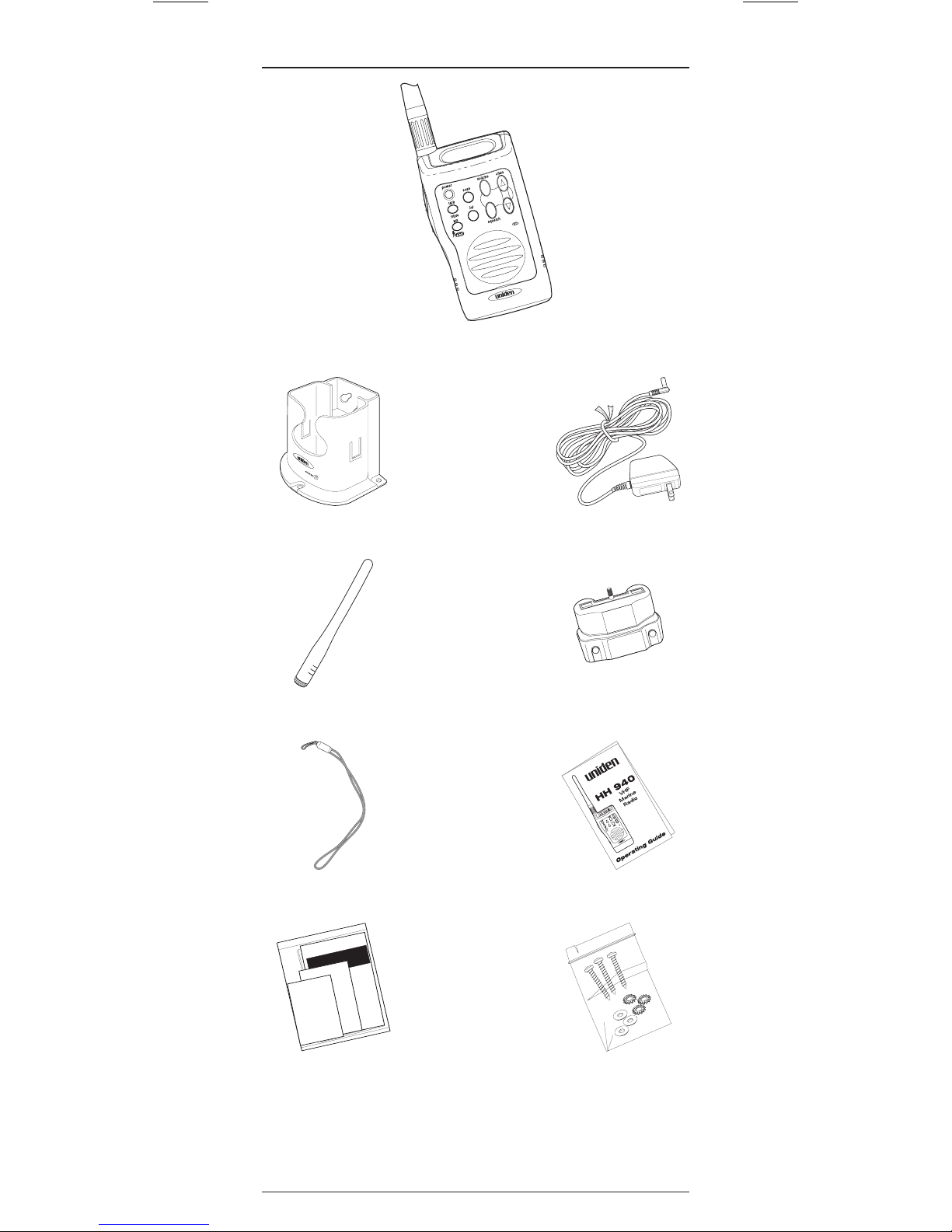

Included with Your HH940
If any of these items are missing from the box,
contact your Uniden Dealer.
4
HH940
Charger AC Adapter
Antenna Battery
Wrist Strap Operating Guide
Printed Material Mounting Screws
G:\temp\HH940ENG\Hh940.vp
Wed Jun 03 15:29:55 1998
Color profile: Disabled
Composite Default screen

Getting Started
Mounting the Drop-in Charger
1. Mount the drop-in charger to either a
counter or wall.
2. Plug one end of the AC adapter into the
wall outlet, and the other end into the
Drop-in Charger.
Attaching the Antenna
Attach the antenna to the HH940. Be sure
the antenna is firmly seated.
5
G:\temp\HH940ENG\Hh940.vp
Wed Jun 03 15:30:00 1998
Color profile: Disabled
Composite Default screen

Attaching the Battery Pack
1. Slide the battery pack onto the bottom of
the radio.
2. Use a quarter to turn the screw that
connects the battery pack to the HH940.Be
sure the battery pack fits tightly against the
HH940’s body.
Charging the Battery Pack
Your marine radio is powered by a
specially-designed nickel-cadmium battery
pack.
+Before operating the HH940, charge the
battery pack for 15 hours in the drop-in
charger.
6
G:\temp\HH940ENG\Hh940.vp
Wed Jun 03 15:30:02 1998
Color profile: Disabled
Composite Default screen

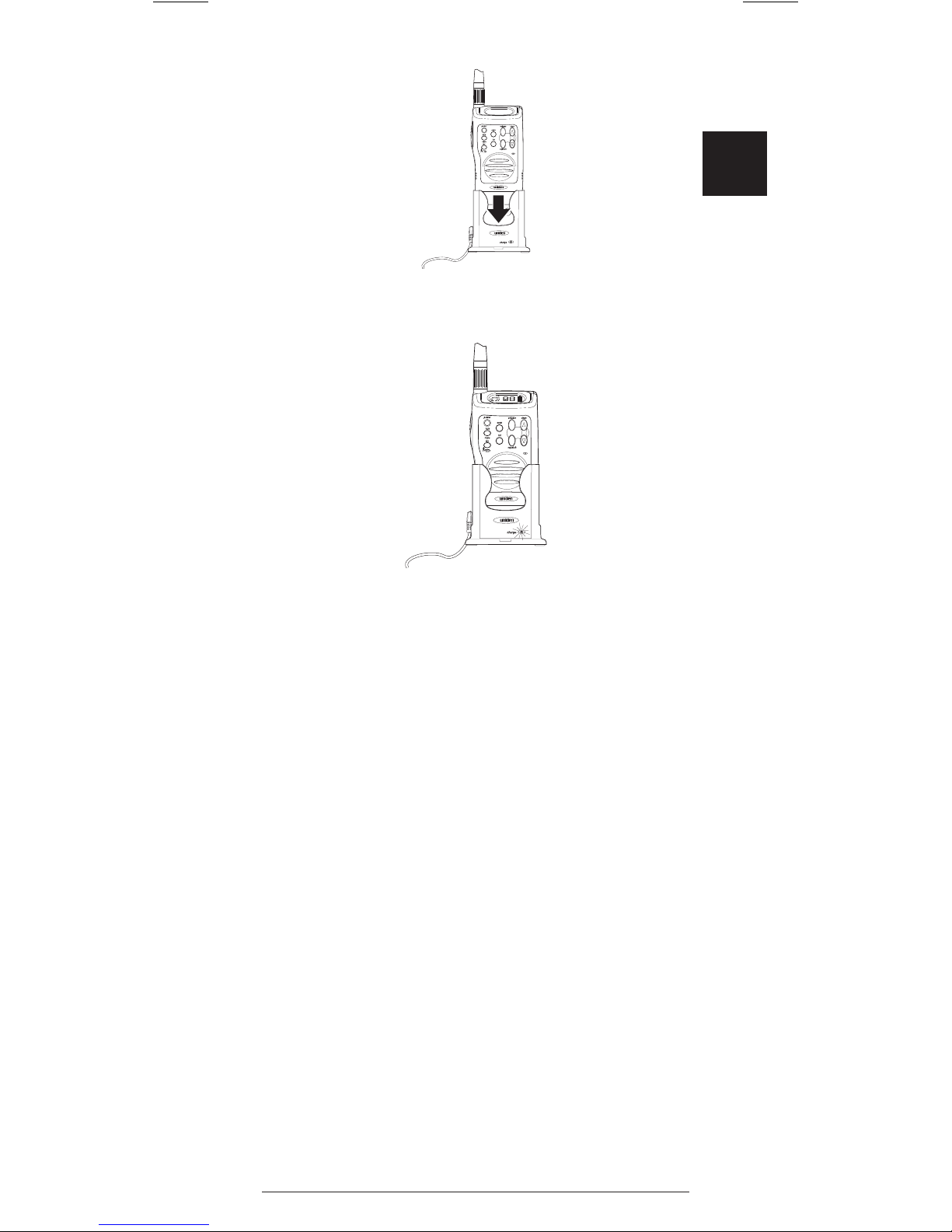

1. Place the HH940 in the drop-in charger.
2. The red LED lights and stays on.
+The charger won’t overcharge the battery
pack.
+Do not transmit when the HH940 is in the
drop-in charger!
+You can monitor incoming calls while the
HH940 is in the drop-in charger.
+You can charge the battery pack alone or
connected to the HH940.
7
G:\temp\HH940ENG\Hh940.vp
Wed Jun 03 15:30:05 1998
Color profile: Disabled
Composite Default screen

Operation
+When you press any key (except PTT), a
short tone sounds.
+Whenever you turn on your HH940, it is
tuned to channel 16 – the United States
Coast Guard frequency for distress, safety,
and calling.
+See the foldout in the front of the operating
guide for button and key positions.

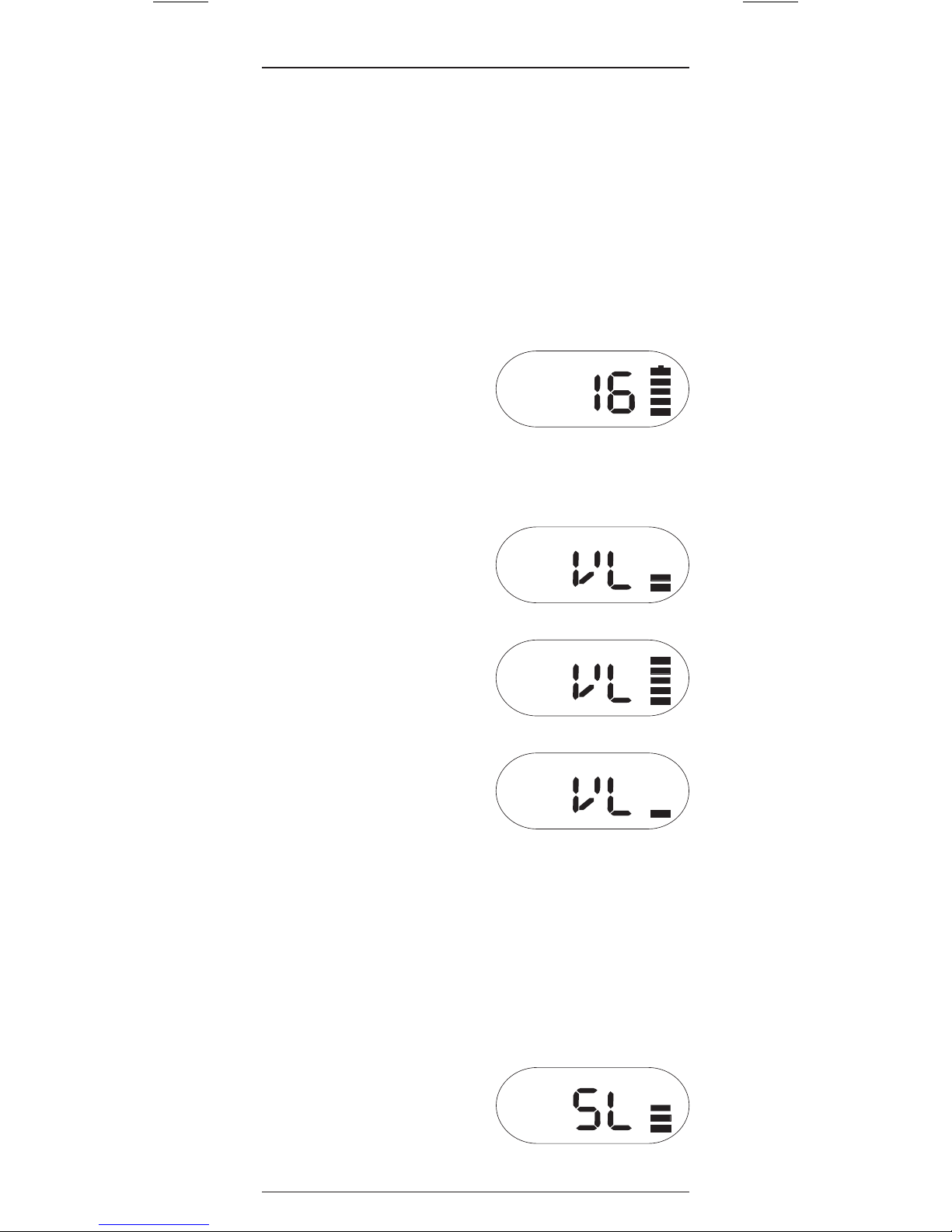

Setting the Squelch
1. To turn the unit on,
press and hold the
power button for 2.0
seconds.
2. Use the
volume and chan buttons to adjust
the volume to a comfortable level.
3. Press the
volume
button.
Press ▲on the
chan
button to adjust the
volume up.
Press ▼on the
chan
button to adjust the
volume down.
Press
volume to finish.

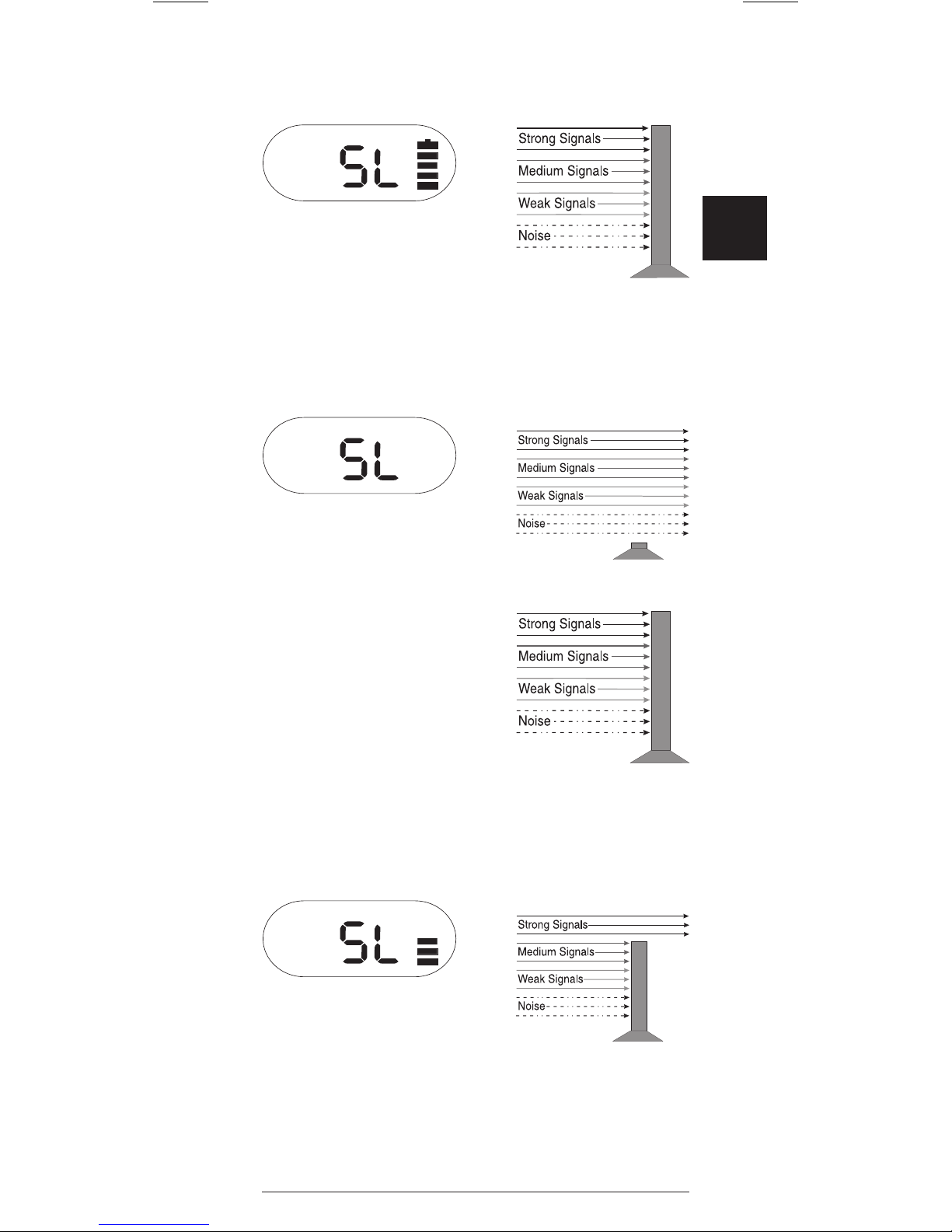

+Before setting the squelch control on your
marine radio, you must select a channel
that is not in use.
4. Use the
squelch and chan buttons to adjust
the squelch to the desired level. Think of
the squelch control as a gate.
Press the
squelch
button.
8
G:\temp\HH940ENG\Hh940.vp
Wed Jun 03 15:30:07 1998
Color profile: Disabled
Composite Default screen

Press and hold ▲on the chan button to
adjust the “squelch gate” so high that no
signals get through.
5. Press and hold ▼on the
chan button to
adjust the “squelch gate” so everything gets
through – noise, weak signals, and strong
signals.
6. To set the
“squelch gate” to the
desired level, press
▲on the
chan
button until the gate
is all the way shut.
Press ▼repeatedly until you just hear
noise. Then press ▲on the
chan button
repeatedly until the noise just stops.Now
only strong signals get through.
Press the
squelch button when finished.
9
G:\temp\HH940ENG\Hh940.vp
Wed Jun 03 15:30:10 1998
Color profile: Disabled
Composite Default screen

Selecting a Channel
1. Turn on your
HH940.
2. To select a higher
channel, press ▲on
the channel button.
3. To select a lower
channel press ▼on
the channel button.
One-touch Channel 16/9
Example: While you are monitoring
channel 19, you want to check channel 16 or
channel 9.
You are on channel
19.
1. To monitor
channel 16, press
the
16/9 button.
2. To monitor channel
9, press the
16/9
button again.
To return to channel 19, press the
16/9
button again.
All-channel Scan
+While the HH940 is scanning, it is
automatically in Triple Watch mode.See
page 12 for information on Triple Watch
operation.
10
G:\temp\HH940ENG\Hh940.vp
Wed Jun 03 15:30:12 1998
Color profile: Disabled
Composite Default screen

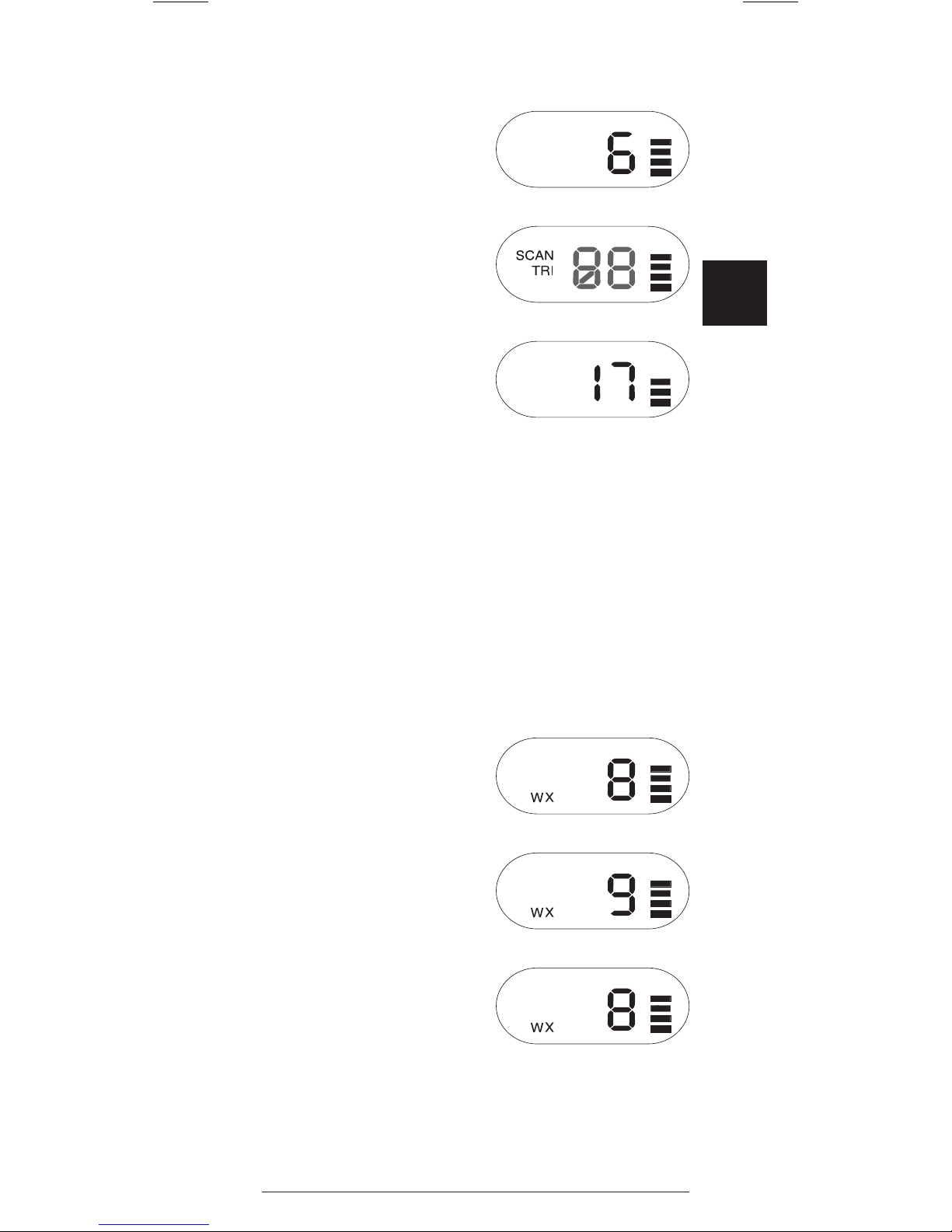

Example: You’re listening to channel 6. You
want to scan all the channels.
1. To start scanning all
channels, press the
scan button.
2. The channels flash
on the LCD display
as the HH940 looks
for a transmission.
3. When it finds
(receives) an
incoming call, the
HH940 stops and
monitors that
channel.
4. When the transmission stops, the radio
continues scanning.
To stop scanning channels press
scan , wx ,
or
16/9 .
Monitoring Weather Channels
The HH940 has 10 preprogrammed weather
channel frequencies – represented by 1
through 0.
1. To listen to the
weather channels in
your area, press
wx .
2. To move up, press
▲on the
chan
button.
3. To move down,
press ▼on the
chan
button.
4. To exit press
wx .
11
G:\temp\HH940ENG\Hh940.vp
Wed Jun 03 15:30:14 1998
Color profile: Disabled
Composite Default screen

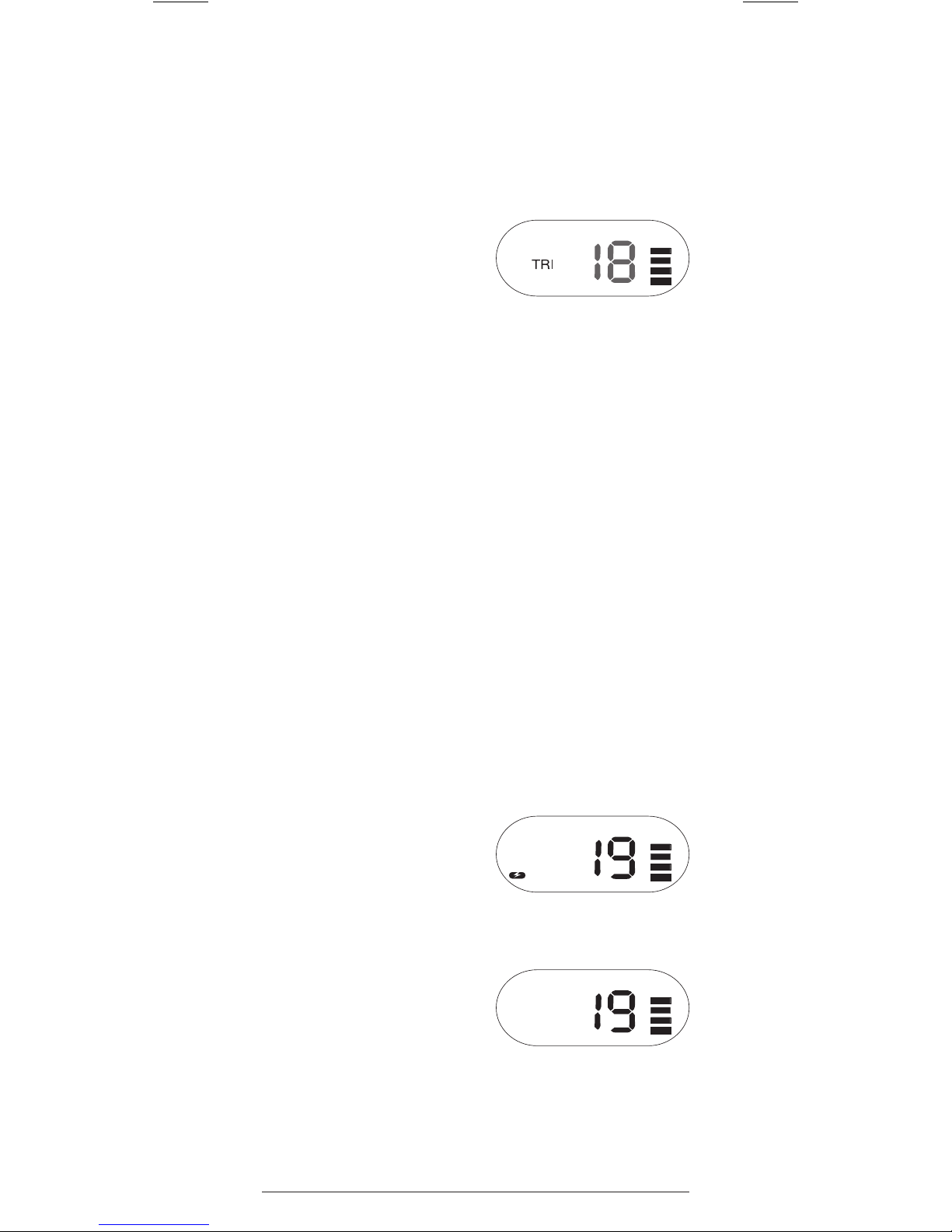

Triple Watch
Triple Watch mode monitors channels 16 and
9 while monitoring the currently selected
channel for a signal. The marine radio checks
channel 16 and channel 9 for activity every
2 seconds.
To select
Triple Watch mode
press and hold the
triple button for two
seconds. A double
confirmation tone sounds.
+While in Triple Watch mode you can use
the select channels using the ▲and ▼
chan button, or monitor channels 16 or 9
by pressing and releasing the 16/9 button.
To exit Triple Watch, press and hold
triple
for two seconds. A double confirmation
tone sounds.
+If Weather Alert is active, it also checks the
weather channel every 7 seconds.
Weather Alert
Weather Alert lets your HH940 function as a
severe weather warning radio. With Weather
Alert turned on, when the NOAA issues a
severe weather warning, the HH940 sounds
an alert tone and you will hear the emergency
weather broadcast.
1. To select Weather
Alert, press and
hold
wx for two
seconds. A double
confirmation tone
sounds.
2. To turn off weather
alert, press and hold
wx for two seconds.
A double
confirmation tone
sounds.
12
G:\temp\HH940ENG\Hh940.vp
Wed Jun 03 15:30:15 1998
Color profile: Disabled
Composite Default screen

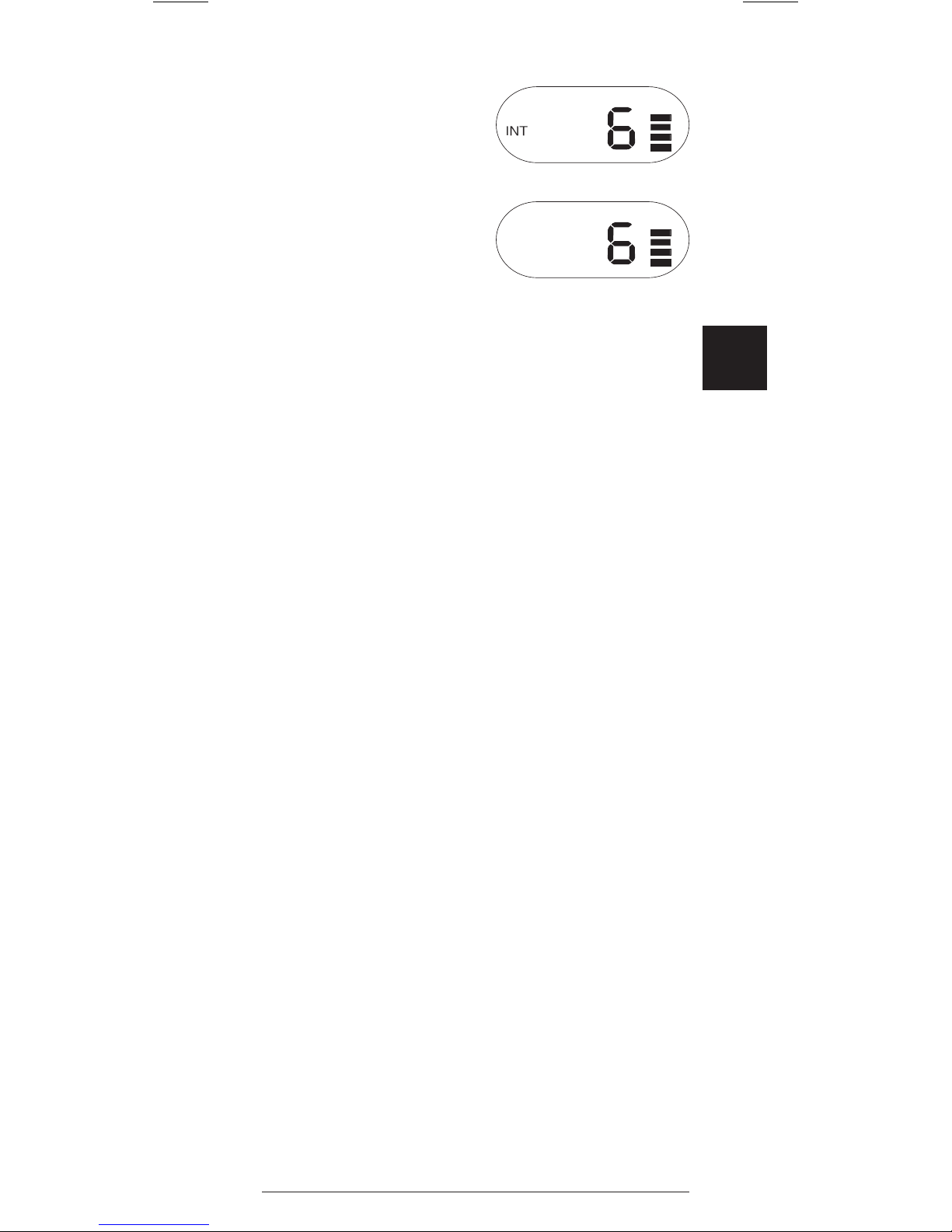

International-USA Channels
1. To listen to
international marine
channels, press
int .
2. To switch back to
USA marine
channels, press
int
again.
+For USA and international marine channels
and functions, refer to the tables starting on
page 14.
Transmitting
To transmit, press and hold in the PTT key.
To receive, release the
PTT key.
Lighted Keys and Display
Press the LCD backlight button to light the
display for about 5 seconds.
Key Lock
To prevent accidental entries, you can lock the
keypad.
Press and hold the LCD backlight button
until it beeps.The keypad is locked.
To unlock the keypad, press and hold the
LCD backlight button again.
13
G:\temp\HH940ENG\Hh940.vp
Wed Jun 03 15:30:15 1998
Color profile: Disabled
Composite Default screen

Marine Channels - USA
Channel Frequency (MHz)
Transmit Receive Traffic Type Ship to Ship Ship to Shore
WX0 163.275 NOAA Weather RX Only
WX1 162.550 NOAA Weather RX Only
WX2 162.400 NOAA Weather RX Only
WX3 162.475 NOAA Weather RX Only
WX4 162.425 NOAA Weather RX Only
WX5 162.450 NOAA Weather RX Only
WX6 162.500 NOAA Weather RX Only
WX7 162.525 NOAA Weather RX Only
WX8 161.650 Can. Weather RX Only
WX9 161.775 Can. Weather RX Only
01 156.050 156.050 Com’l, Port Ops, VTS Yes Yes
02 156.100 156.100 Port Ops Yes Yes
03 156.150 156.150 Com’l, Port Ops, VTS Yes Yes
04 156.200 156.200 Port Ops Yes Yes
05 156.250 156.250 Port Ops, VTS Yes Yes
06 156.300 156.300 Safety Yes No
07 156.350 156.350 Com’l Yes Yes
08 156.400 156.400 Com’l Yes No
09 156.450 156.450 Com’l & Non Com’l Yes Yes
10 156.500 156.500 Com’l Yes Yes
11 156.550 156.550 Com’l, VTS, SMS Yes Yes
12 156.600 156.600 Port Ops, VTS, SMS Yes Yes
13 156.650 156.650 Navigational Yes No
14 156.700 156.700 Port Ops Yes Yes
15 156.750 Environmental RX Only
16 156.800 156.800 Distress, Safety, Calling Yes Yes
17 156.850 156.850 State Control Yes Yes
18 156.900 156.900 Com’l Yes Yes
19 156.950 156.950 Com’l Yes Yes
20 157.000 161.600 Port Ops Yes Yes
21 157.050 157.050 U.S. Govt Only Yes Yes
22 157.100 157.100 Coast Guard Yes Yes
23 157.150 157.150 U.S. Govt Only Yes Yes
24 157.200 161.800 Public Corresp. No Yes
25 157.250 161.850 Public Corresp. No Yes
26 157.300 161.900 Public Corresp. No Yes
27 157.350 161.950 Public Corresp. No Yes
28 157.400 162.000 Public Corresp. No Yes
60 156.025 156.025
61 156.075 156.075
62 156.125 156.125
63 156.175 156.175
64 156.225 156.225
65 156.275 156.275 Port Ops No Yes
66 156.325 156.325 Port Ops Yes Yes
67 156.375 156.375 Com’l Yes No
68 156.425 156.425 Non Com’l Yes Yes
69 156.475 156.475 Non Com’l Yes Yes
70 156.525 Digital Selective Calling Yes No
71 156.575 156.575 Non Com’l Yes Yes
72 156.625 156.625 Non Com’l Yes No
73 156.675 156.675 Port Ops Yes Yes
74 156.725 156.725 Port Ops Yes Yes
77 156.875 156.875 Port Ops Yes No
78 156.925 156.925 Non Com’l Yes Yes
79 156.975 156.975 Com’l Yes Yes
80 157.025 157.025 Com’l Yes Yes
81 157.075 U.S. Govt Only Yes Yes
82 157.125 157.125 U.S. Govt Only Yes Yes
83 157.175 U.S. Govt Only Yes Yes
84 157.225 161.825 Public Corresp. No Yes
85 157.275 161.875 Public Corresp. No Yes
86 157.325 161.925 Public Corresp. No Yes
87 157.375 161.975 Public Corresp. No Yes
88 157.425 157.425 Com’l Yes No
14
G:\temp\HH940ENG\Hh940.vp
Wed Jun 03 15:30:18 1998
Color profile: Disabled
Composite Default screen

Marine Channels - International
Channel Frequency (MHz)
Transmit Receive Traffic Type Ship to Ship Ship to Shore
WX0 163.275 NOAA Weather RX Only
WX1 162.550 NOAA Weather RX Only
WX2 162.400 NOAA Weather RX Only
WX3 162.475 NOAA Weather RX Only
WX4 162.425 NOAA Weather RX Only
WX5 162.450 NOAA Weather RX Only
WX6 162.500 NOAA Weather RX Only
WX7 162.525 NOAA Weather RX Only
WX8 161.650 Can. Weather RX Only
WX9 161.775 Can. Weather RX Only
01 156.050 160.650 Com’l, Port Ops, VTS Yes Yes
02 156.100 160.700 Port Ops Yes Yes
03 156.150 160.750 Com’l, Port Ops, VTS Yes Yes
04 156.200 160.800 Port Ops Yes Yes
05 156.250 160.850 Port Ops, VTS Yes Yes
06 156.300 156.300 Safety Yes No
07 156.350 160.950 Com’l Yes Yes
08 156.400 156.400 Com’l Yes No
09 156.450 156.450 Com’l & Non Com’l Yes Yes
10 156.500 156.500 Com’l Yes Yes
11 156.550 156.550 Com’l, VTS, SMS Yes Yes
12 156.600 156.600 Port Ops, VTS, SMS Yes Yes
13 156.650 156.650 Navigational Yes No
14 156.700 156.700 Port Ops, VTS, SMS Yes Yes
15 156.750 156.750 Environmental RX Only
16 156.800 156.800 Distress, Safety, Calling Yes Yes
17 156.850 156.850 State Control Yes Yes
18 156.900 161.500 Com’l Yes Yes
19 156.950 161.550 Com’l Yes Yes
20 157.000 161.600 Port Ops No Yes
21 157.050 161.650 U.S. Govt Only Yes Yes
22 157.100 161.700 Coast Guard Yes Yes
23 157.150 161.750 U.S. Govt Only Yes Yes
24 157.200 161.800 Public Corresp. No Yes
25 157.250 161.850 Public Corresp. No Yes
26 157.300 161.900 Public Corresp. No Yes
27 157.350 161.950 Public Corresp. No Yes
28 157.400 162.000 Public Corresp. No Yes
60 156.025 160.625
61 156.075 160.675
62 156.125 160.725
63 156.175 160.775
64 156.225 160.825
65 156.275 160.875 Port Ops Yes Yes
66 156.325 160.925 Port Ops Yes Yes
67 156.375 156.375 Com’l Yes No
68 156.425 156.425 Non Com’l Yes Yes
69 156.475 156.475 Non Com’l Yes Yes
70 156.525 Digital Selective Calling Yes No
71 156.575 156.575 Non Com’l Yes Yes
72 156.625 156.625 Non Com’l Yes No
73 156.675 156.675 Port Ops Yes Yes
74 156.725 156.725 Port Ops Yes Yes
77 156.875 156.875 Port Ops Yes No
78 156.925 161.525 Non Com’l Yes Yes
79 156.975 161.575 Com’l Yes Yes
80 157.025 161.625 Com’l Yes Yes
81 157.075 161.675 U.S. Govt Only Yes Yes
82 157.125 161.725 US Gov Only Yes Yes
83 157.175 161.775 U.S. Govt Only Yes Yes
84 157.225 161.825 Public Corresp. No Yes
85 157.275 161.875 Public Corresp. No Yes
86 157.325 161.925 Public Corresp. No Yes
87 157.375 161.975 Public Corresp. No Yes
88 157.425 162.025 Public Corresp. No Yes
15
G:\temp\HH940ENG\Hh940.vp
Wed Jun 03 15:30:19 1998
Color profile: Disabled
Composite Default screen

Parts and Accessories
16
Antenna Battery Pack
BP940
Operating Guide Wrist Strap
AC Adapter Drop-in Charger
Cigarette
Adapter
HH9804
G:\temp\HH940ENG\Hh940.vp
Wed Jun 03 15:30:21 1998
Color profile: Disabled
Composite Default screen
