400-Channel Programmable
Hand-HeldAuto Scanner
OPERATING GUIDE
:
==~- ,-,..--- "

- .---..- ---.-. 1
PRECAUTIONS
Beforeyoureadanythingelse,
pleaseobservethefollowing:
WARNING!
Uniden DOES NOT represent this unit to be waterproof.
To reduce the risk of fire or electrical shock, DO NOT expose
this unit to rain or moisture.
NICKEL-CADMIUM BATTERY WARNING
.This equipment contains a Nickel-Cadmium
Battery.
.The Nickel-Cadmium Batterycontained in
this equipment mayexplode if disposed of
in a fire.
.Do not short circuit the battery. .
.Do not charge the Nickel-CadmiumBattery
used inthis equipment in any other charger
other than the one designed to charge this
battery. Using another charger may
damage the battery, or cause the battery to
explode.
Bearcaf is a registered trademark of Uniden Corporation.
I
J
-~I

I-- t-.
Table of Contents
AboutYourNewUBC2500XLT... 2
WhatisScanning? 2
Types of Communication 2
Where to Obtain More Information. . . . . . . . . . . . . . . . . . . . 3
Unpacking 3
Optional Accessories 3
FeatureHighllghts 4
Controls and Indicators 5
TopView 5
FrontView 6
LCDDisplay 12
\
II
I
I
I
I
I

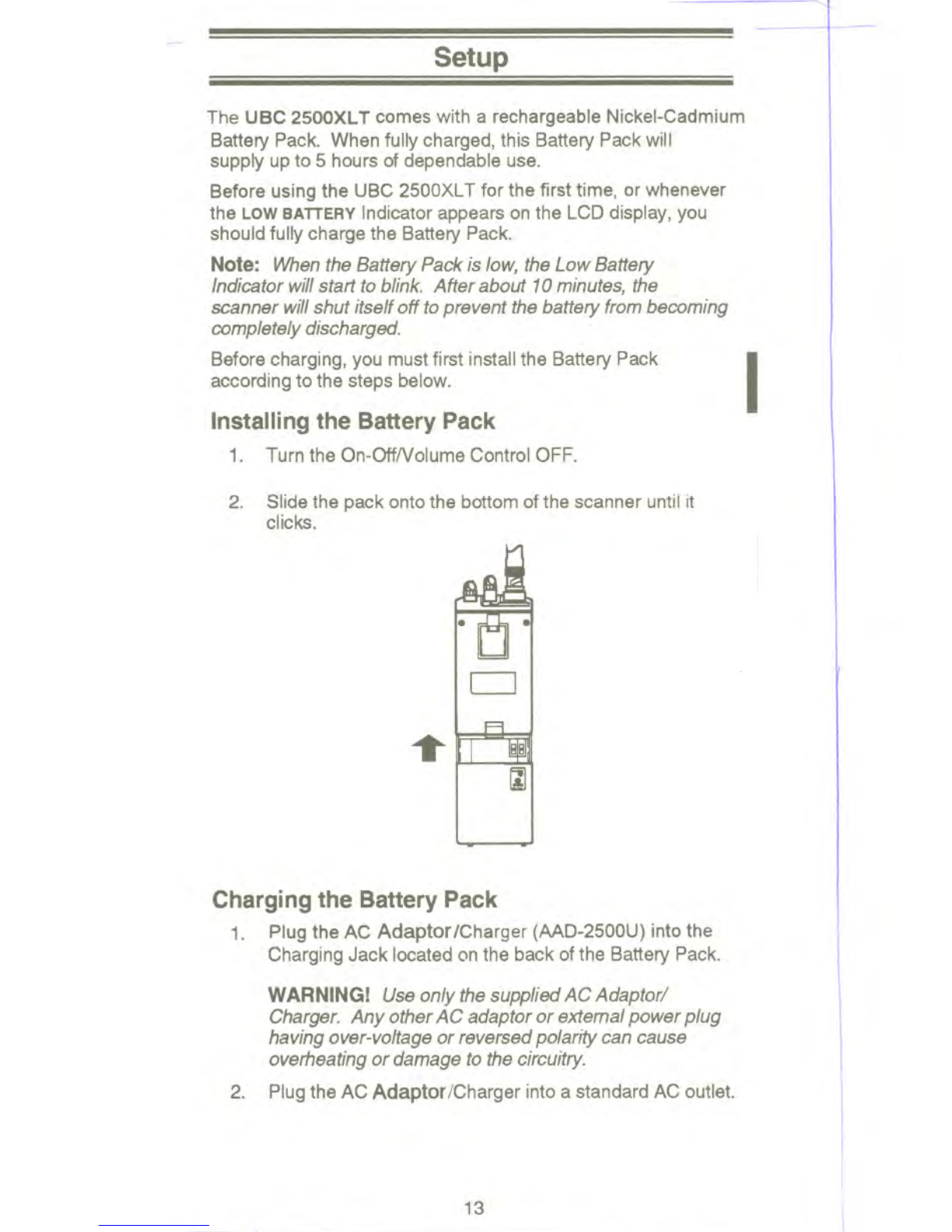

Setup 13
Installingthe Battery Pack 13
ChargingtheBatteryPack 13
Mountingthe FlexibleAntenna .14
InstallingtheBeltClip 14

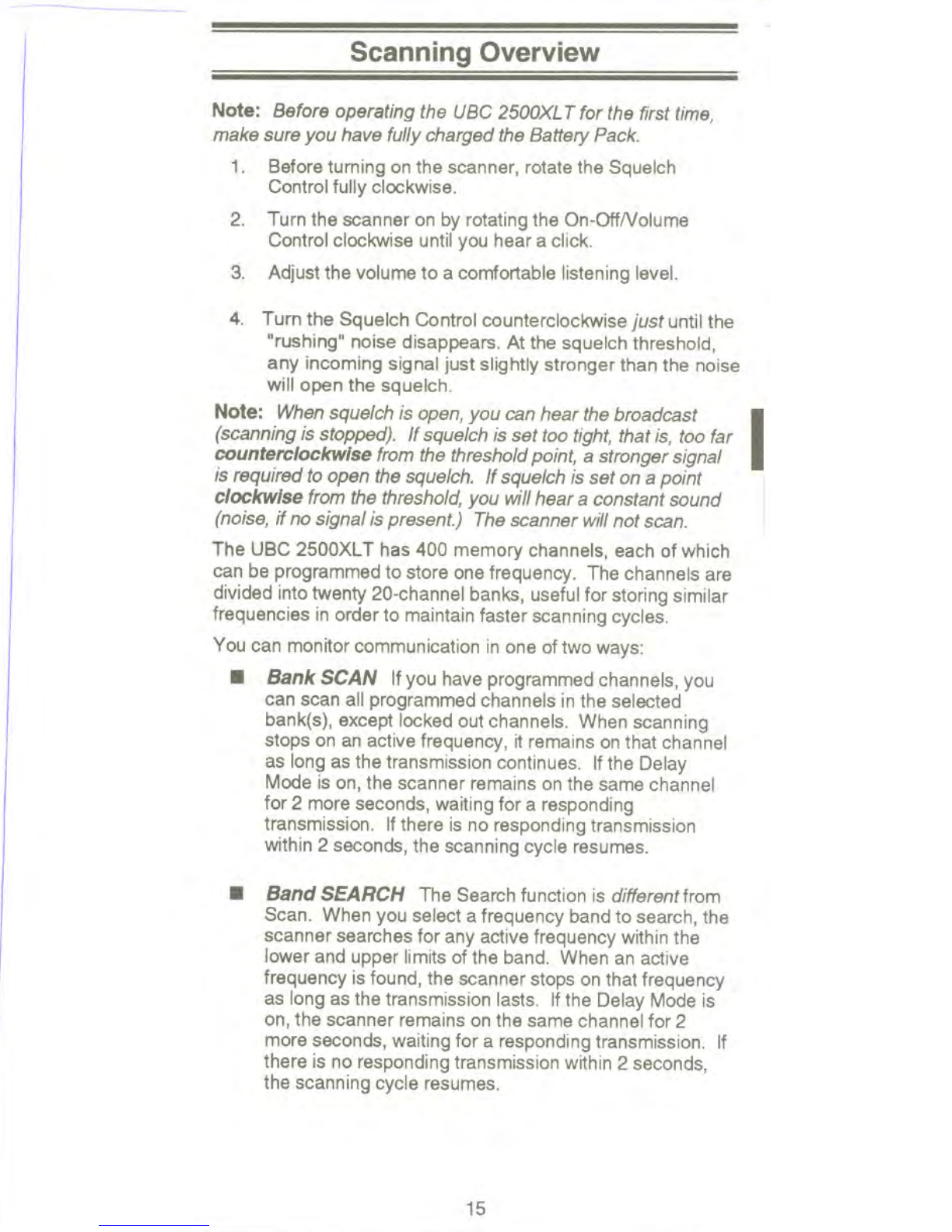

ScanningOverview 15

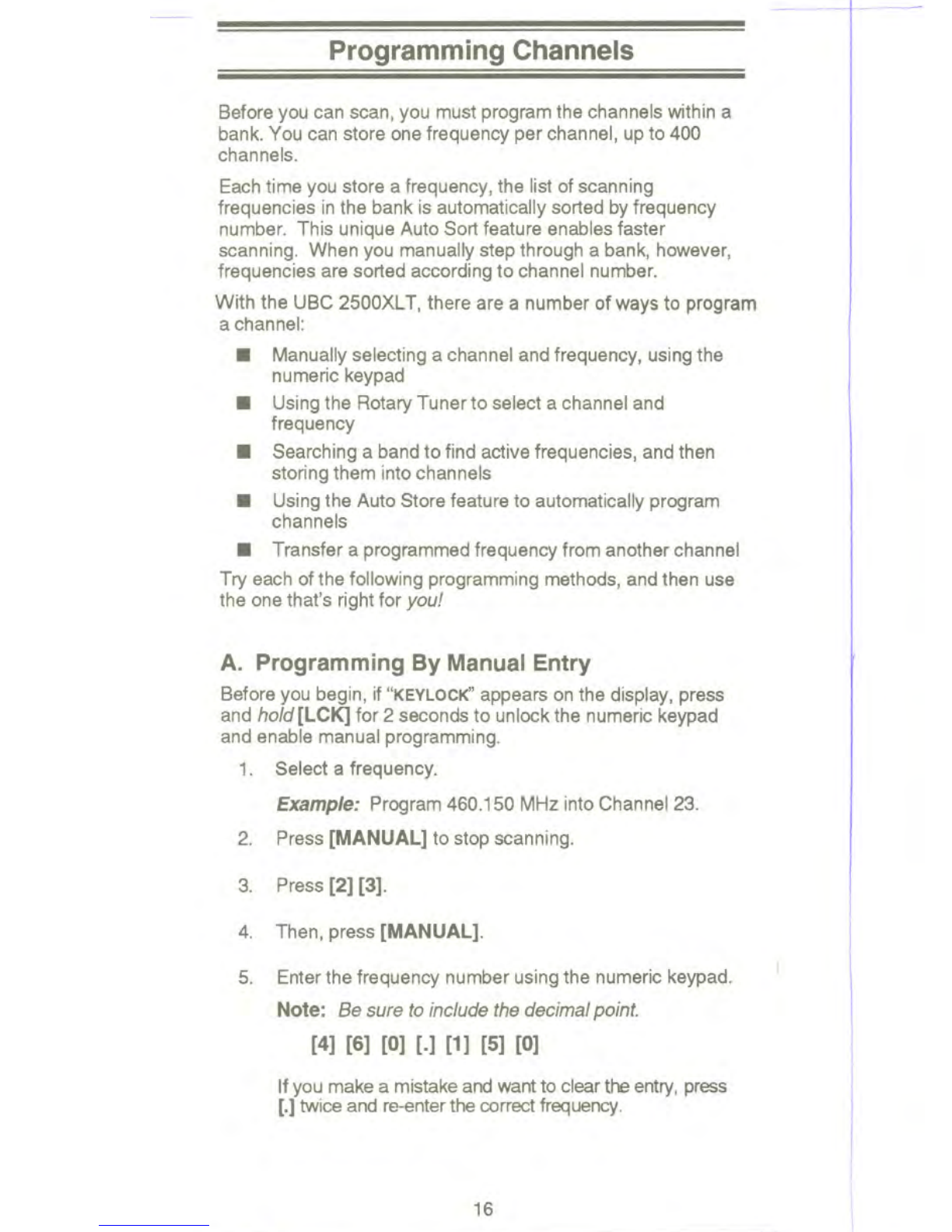

ProgrammingChannels 16
A. Programming By Manual Entry. . . . . . . . . . . . . . . . . . . 16
B. ProgrammingWith the Rotary Tuner. . . . . . . . . . . . . . 17
C. ProgrammingWith SEARCH 19
D. ProgrammingWith AUTO STORE. . . .. . . . . . . . . . . . 20
E. Transferring a Programmed Frequency to
AnotherOpenChannel 21
DeletingaStoredFrequency.. """ 22
Scanning 23
WeatherChanneIScanning 24
Customizing ScannerOperation. ... .. .. ... ... .. .. .. .25
SettingtheScanningSpeed 25
Settingthe Delay Mode 25
Settingthe Step Size 25
SettingtheLCDDisplayLight 25
PreventingAccidental Programming. . . . .. . . . . . . . . . . . 25
LockingtheRotaryTuner 25
ChanneILockOut 26
SettingUpPriorityChannels 27
UsingCOUNT to Monitor Channel Activity. ............28
Care and Maintenance. 29
Troubleshooting 31
Technical Specifications 32
1
"'-"---"-"' -......-...
-
r
--" '

- ~-
c--------.------.----.----..

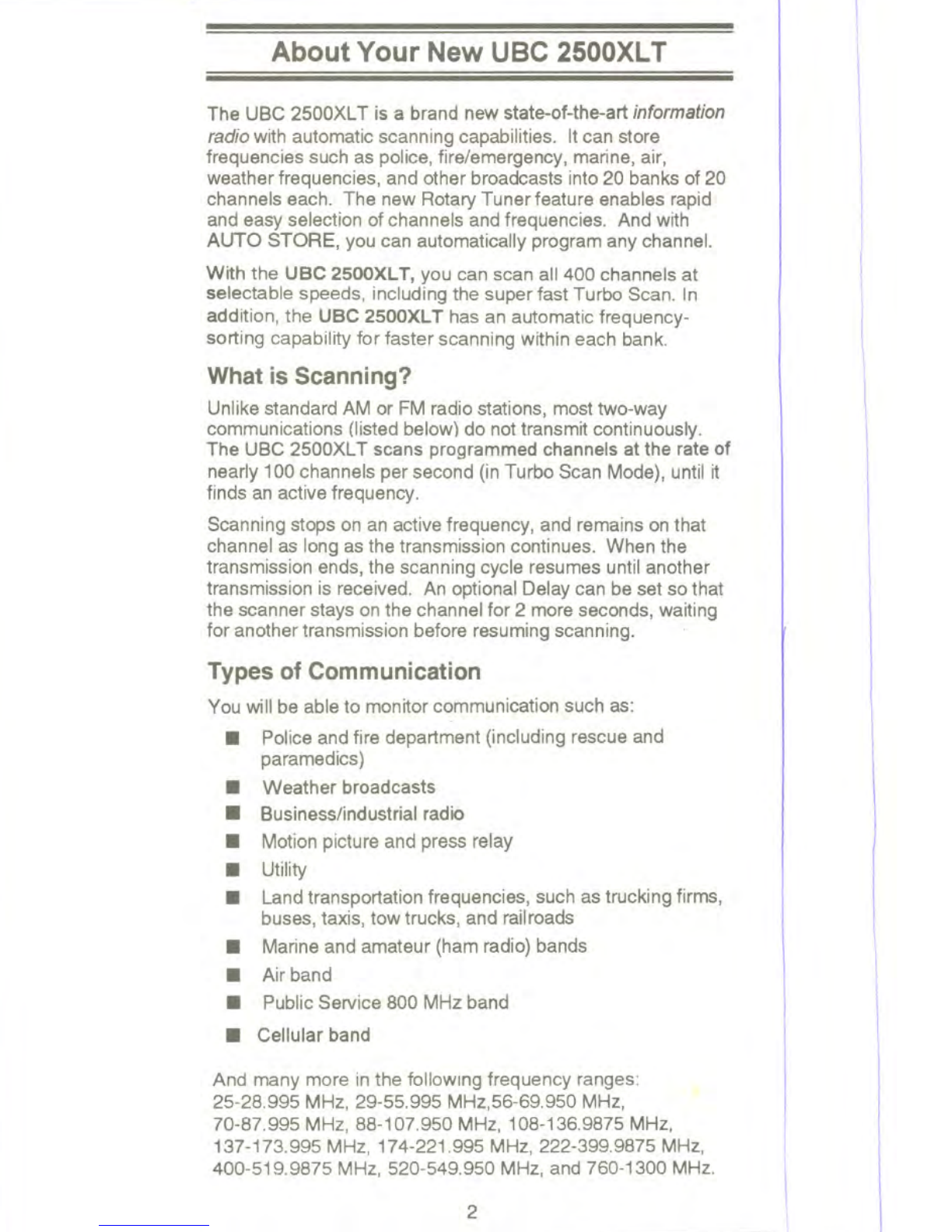

About Your New UBC 2500XLT
The UBC 2500XLT is a brand new state-of-the-art information
radiowith automatic scanning capabilities. Itcan store
frequencies such as police,fire/emergency, marine, air,
weather frequencies, and otherbroadcasts into20 banks of 20
channels each. The new Rotary Tuner feature enables rapid
and easy selection of channels andfrequencies. And with
AUTO STORE, you can automatically programany channel.
With the UBC 2500XL T, you can scan all 400 channels at
selectable speeds, including the super fast Turbo Scan. In
addition, the UBC 2500XL T has an automatic frequency-
sorting capability for faster scanning within each bank.
What is Scanning?
Unlike standard AM or FM radio stations, most two-way
communications (listed below) do not transmit continuously.
The UBC 2500XL T scans programmed channels at the rate of
nearly 100 channels per second (in Turbo Scan Mode), until it
finds an active frequency.
Scanning stops on an active frequency, and remains on that
channel as long as the transmission continues. When the
transmission ends, the scanning cycle resumes until another
transmission is received. An optional Delay can be set so that
the scanner stays on the channel for 2 more seconds, waiting
for another transmission before resuming scanning.
I
!
Ii
(I
!I
\I
I
Types of Communication
Youwillbe able to monitor communication such as:
. Police and fire department (including rescue and
paramedics)
. Weather broadcasts
. Business/industrial radio
. Motion picture and press relay
. Utility
. Landtransportation frequencies, such as trucking firms,
buses,taxis, towtrucks, and railroads
. Marine and amateur (ham radio) bands
. Airband
. PublicService800MHzband
. Cellularband
And many more inthe following frequency ranges:
25-28.995 MHz, 29-55.995 MHz,56-69.950 MHz,
70-87.995 MHz, 88-107.950 MHz, 108-136.9875 MHz,
137-173.995 MHz, 174-221.995 MHz, 222-399.9875 MHz,
400-519.9875 MHz, 520-549.950 MHz, and 760-1300 MHz.
2
----

- ---.
Unpacking
Carefully check the contents against this list:
. UBC2500XLTAuto Scanner
. RubberAntenna
. ACAdaptor/Charger(AAD-2500U)
. Earphone
. Leather-likeCarrying Case
. BeltClip
. ThisOperatingGuide
If any items are missing or damaged, contact your place of
purchase immediately.
Please read this Operating Guide thoroughly before operating
the scanner.
I
OptionalAccessories
The followingoptional accessories for your UBC 2500XL Tare
available from your local Uniden Dealer or through the Uniden
Technical Service Division.
StraightCigaretteLighterPowerCord(UASO2)-Usefor
temporary operationfrom your vehicle's cigarette lighter.
Coiled Cigarette Lighter Power Cord (UA502A) -Use for
temporary operation from your vehicle's cigarette lighter.
Spare Battery Pack (BP2S00)
3

-..,
Feature Highlights
.Turbo Scan This lightning-fast technology enables
the UBC 2500XL T to scan and search nearly 100
channels or steps per second. Because the frequency
coverage is so large (see "Technical Specifications"
section for band listing), a very fast scanning system is
essential. That is why we combined our latest
technology -Turbo Scan - into the UBC 2500XL T.
. VFOControl (Variable Frequency Oscillator) Turn
the Rotary Tuner to select the desired frequency or
channel.
. 400Channels You can program each of these
memorychannels to store one frequency.
.20 Banks Each bank contains 20 channels, usefulfor
storing similar frequencies in order to maintainfaster
scanning cycles.
. 25 MHz - 1.3 GHz Indicatesthe range offrequencies
that can be searched within the bands of your scanner.
(Note: The frequency coverage is not totally
continuous from 25.0 MHzto 1.3 GHz.)
. PriorityChannelsYou can assign one Priority
Channel in each of Banks 1 through 10. Assigning
priority channels allows you to keep track of activity on
your most important channel(s) while monitoring other
channels for transmissions.
.Weather Channels Letsyour scanner function as a
weather information radio.
I
I
i
i
,
!
I
I
I
I
I
I,
i
I
I
!
1-
!
i
,
i
,
.Auto Store Automatically stores all activefrequencies
within the specified bank(s).
.Auto Sorting Programmedfrequencies are
automaticallysorted within each bankfor faster
scanning.
.Battery-Free Memory The stored channels are
retained in memory when the Battery Pack is removed
from the scanner.
Note: Currently the Weather Service is not available
in Australia.
J4

--"---'--

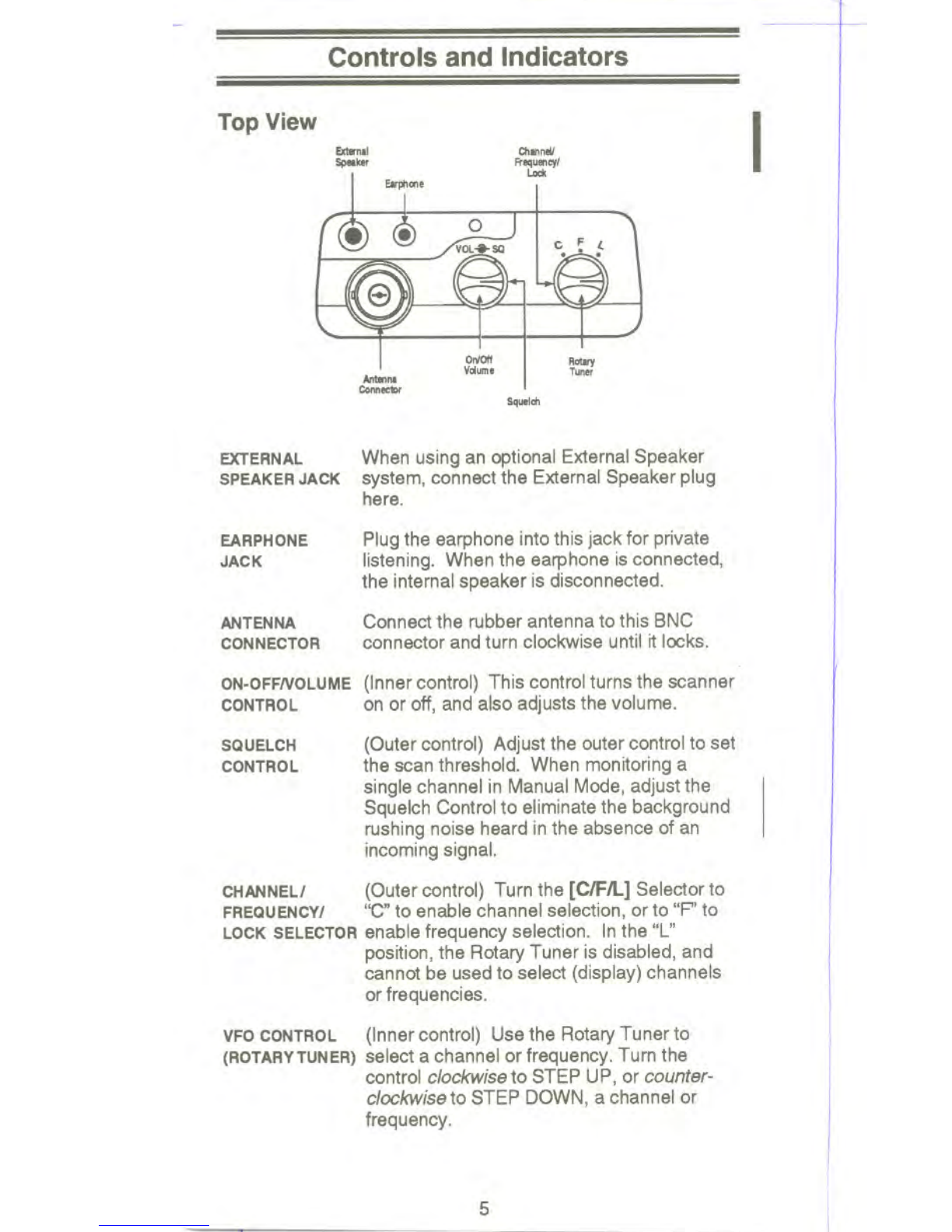

Controls and Indicators
TopView Emmal
Speaker I
Channel!
Frequencyl
Lock
Earphone
Antenna
Connec1Dr
OriOlf
Volume Rotary
Tuner
Squelch
EXTERNAL When using an optional ExternalSpeaker
SPEAKERJACK system, connect the External Speaker plug
here.
EARPHONE
JACK
ANTENNA
CONNECTOR
Plug the earphone into this jack for private
listening. When the earphone is connected,
the internal speaker is disconnected.
Connect the rubber antenna to this BNC
connector and turn clockwise until it locks.
ON-OFFNOLUME (Inner control) This control turns the scanner
CONTROL on or off, and also adjusts the volume.
SQUELCH
CONTROL (Outer control) Adjust the outer control to set
the scan threshold. When monitoring a
single channel in Manual Mode, adjust the
Squelch Control to eliminate the background
rushing noise heard in the absence of an
incoming signal.
CHANNEL! (Outercontrol) Turn the [CIFIL] Selectorto
FREQUENCY! "C" to enable channel selection, or to "P' to
LOCKSELECTORenable frequency selection. In the "L"
position, the Rotary Tuner is disabled, and
cannot be used to select (display) channels
or frequencies.
VFOCONTROL (Inner control) Use the RotaryTuner to
(ROTARYTUNER)select a channel or frequency. Turnthe
control clockwiseto STEP UP, or counter-
clockwiseto STEP DOWN, a channel or
frequency.
5
-- :r:
==--=.===- .
==- I
"",-- - -" """,,...1
-

FrontView
leDDltpIIy
SCANKay
MAMlAL Kay
WX (WelCherMode) Key
DLY (DelIY) Key
LJO(Lock Out) Kay PAl (PrIority)Key
aD
0000000
0000000
0000000
0000000
0000000
6
=r:
~-.-
=- ..= L
-
0 ICAH J(jj' (ti (:'"
-,...- ',..,
:> (Y i$'::"
...
0-1 " ,
:..::!.i '.". -"":...,,
,".," ,....",,' .,'
:,::) (::,:: ()'
. ,
,....c""" ,...."c""
(J)
C) (9)
f,;.:.;"j ,'--< '::}
.""""'. .'-"
- , /.\
:.:',: \'::'::;<....> ",..,' ".>:>
EJ j....:; ,""', f"":: b}
,;
::..:.' t:J,......... "'w.,:

------
Press [SCAN] to start scanning all
programmed channels that are not locked
out. ("SCAN" appears on the display during
scanning.)
In Scan or Search Mode, press [MANUAL]
to stop scanning or searching, and to select a
channel. After you stop the scanner, press
fMANUAL] again to STEP UP a channel or
requency. Press and holdto rapidly step
through the channels or frequencies. Use
the numeric keypad to enter a channel
number, and then press [MANUAL] to
access the channel.
There are 7 weather channels. Press
[WX]to find the active weather
channel in your area. ('WX' appears on the
display in Weather Mode.)
Note: Currently the Weather Service is not available
in Australia.
LCD DISPLAY
SCAN KEY
MANUAL KEY
WX KEY
DELAY KEY
UO KEY
PRI KEY
The liquid crystal display (LCD) shows the
current channel and frequency. It also
displays the mode, status, and bank
indicators.
Use [DL V] to turn ON or OFF the automatic
2-second delay during scanning or searching
for active frequencies. (In Delay Mode, "DLY"
appears on the display.) In this mode, when
the scanner monitors an active frequency,
searching or scanning will not resume until
transmission stops for 2 seconds.
Press rUe] to "lock out" or prevent scanning
of the displaxed channel, including Priority
Channels. ('ud' appears on the display.) To
unlock a channel, press rUe] again. rUe]
can be used in Manual Mode, or Scan Mode,
only on programmed channels. To display
locked out channels, turn the Rotary Tuner,
or press [HLD], [LMT], [MANUAL] to manually
step through the selected bank. (Note: Locking
out achannel willnot erase the programmed
frequency.)
You can assign "priority" to one channel in
each of Banks 1 through 10. To assign
priority, first display the selected channel,
and then press and hold [PRI] for more than
2.5 seconds. A "P" appears on the display
beside the Priority Channel. In Priority Mode,
the scanner monitors the Priority Channel(s)
every 2 seconds. If activity is detected, the
scanner monitors that channel until no signal
is present. ("PRt' appears on the display.)
7
--- =r:
:- ----== I
I
j
I
I
,
!
!
I
I
I

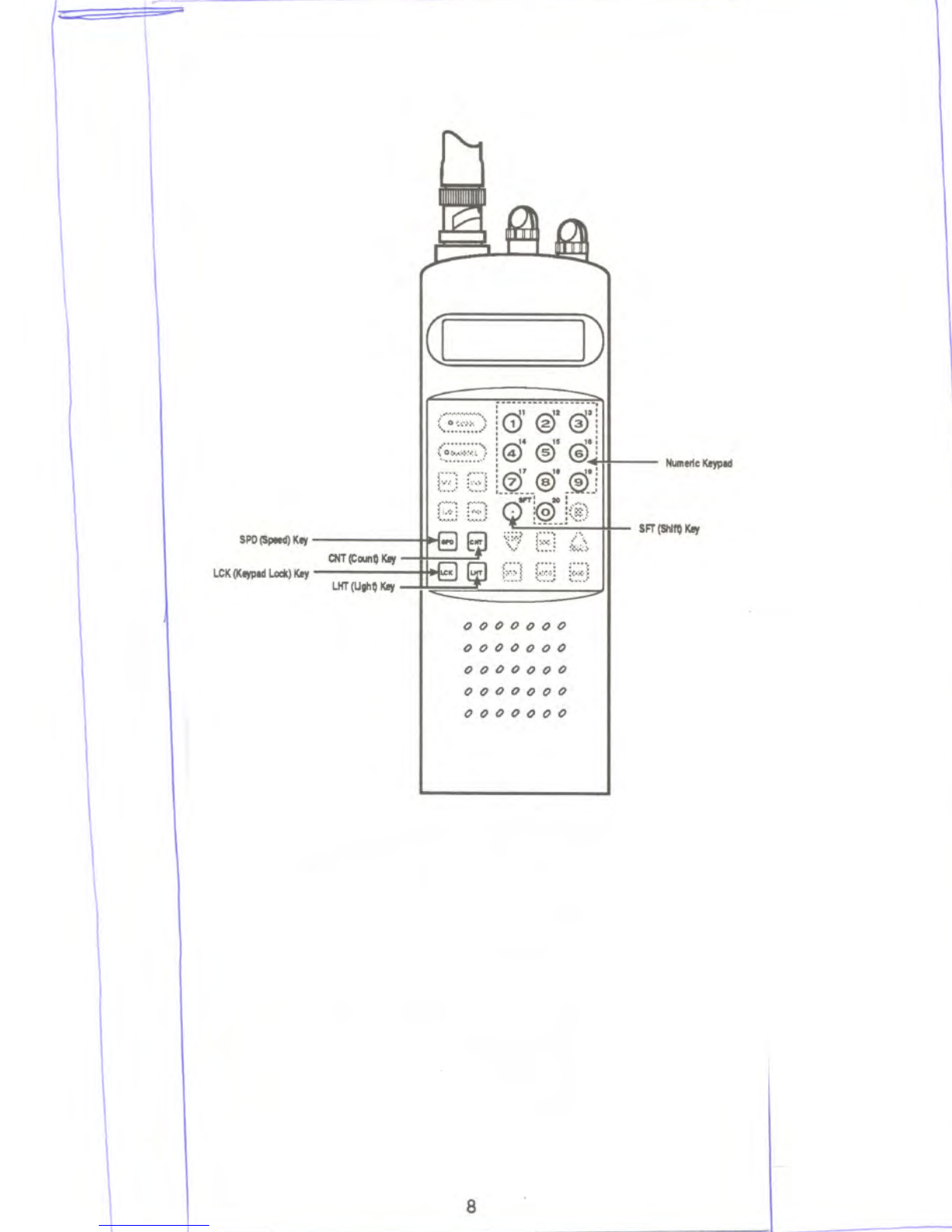

SPD (SpIed) Key
LCK (Keypad LocII) Key
CNT (COIIII) Key
LHT (Ughl) Key
-
aD
- n- n _u -u ---_n-.
,~M"'"~', !0)11 @'1 @13:
io~,'n. ~ : 1 2 3:
~ , '
,~ :@'C @1I @'8!
~o...">~.,,i:4 5 6'
'., " . 4
r"" ~"-, :~'7 t:;{. @
":
!""::".'~:7 \!I 9:
,w.' ' 'I.. n'
,'-" ~~~ n -iPT1@20:,..,.,
~"~: :,<.! . . 0 :~,,~<
~:...:.;~w..' :--u_: c::'J
:';8 F1 ,~~,
[:1 E~j E}
0000000
0000000
0000000
0000000
0000000
8---
NumellcKeypad
SFT(ShIft)Key
-'-- ---

SPEEDKEY Press rSPD] to select the scanning speed,
normar or Turbo Scan. (In Turbo Scan
Mode, "TURBO" appears next to "SCAN" on
the display.) At normal speed, the scanner
scans 16 to 20 channels per second. In
Turbo speed, the scanner scans nearly 100
channels per second.
Use [CNT] to indicate the number of times
the scanner stopped on a channel during its
last scan. First press [MANUAL] to stop
scanning. Then press [CNT]. (In Count
Mode, "COUNT"appears on the display.)
Turnthe RotaryTuner (with[C/F/L] selector
set to "C") or press [MANUAL]to display
each channel and number count. I
COUNT KEY
KEYPAD LOCK Press and hold [LCK] for 2 seconds to turn
the keypadON or oF1=. "KEYLOCK"appears
on the display when the keypad is disabled.
Use this key to avoid any accidental key
entries.
LIGHT KEY Press [LHT] to turn the display light ON for
15 seconds. Press [LHT] again to manually
turn the light OFF.
Use these keys to program a channel for
scanning. Also use to access a channel
directly with [MANUAL]. During Scan
Mode, use these keys to select or deselect
any of the 20 memory banks. (Only the
selected bank indicator(s) appear on the
display.)Note: Youcannotdeactivateall20 .
banks.
NUMERIC
KEYPAD
9
1=
==-==== ..= -~-[
'-""'-~"--
--
=- ~
.---- I
!
!
i
I
iI
!
I
I
I
I
I
!
j
I
I
\
i
\
J
I
I
I
i
\
1
I
!
I
I
j
I
I
I
\
Bank Channel Bank Channel
1 1 - 20 11 201 - 220
221 - 40 12 221 - 240
3 41 - 60 13 241 - 260
4 61 - 80 14 261 - 280
5 81 -100 15 281 - 300
6 101- 120 16 301 - 320
7121 - 140 17 321 - 340
8 141- 160 18 341 - 360
9 161- 180 19 361 - 380
10 181- 200 20 381 - 400
SFT[.] This key has several functions: (a) During
(SHIFT)KEY scanning, press ['l with a numeric keytoenter a bank num er from 11 -20. For
examle, to select Bank 13, ress ]3].
To se ect Bank 20, press [.] 0]; (b ress
this ket twice to clear a number you entered
during programming; )Press this key
twice to reset the num er count in Count
Mode.

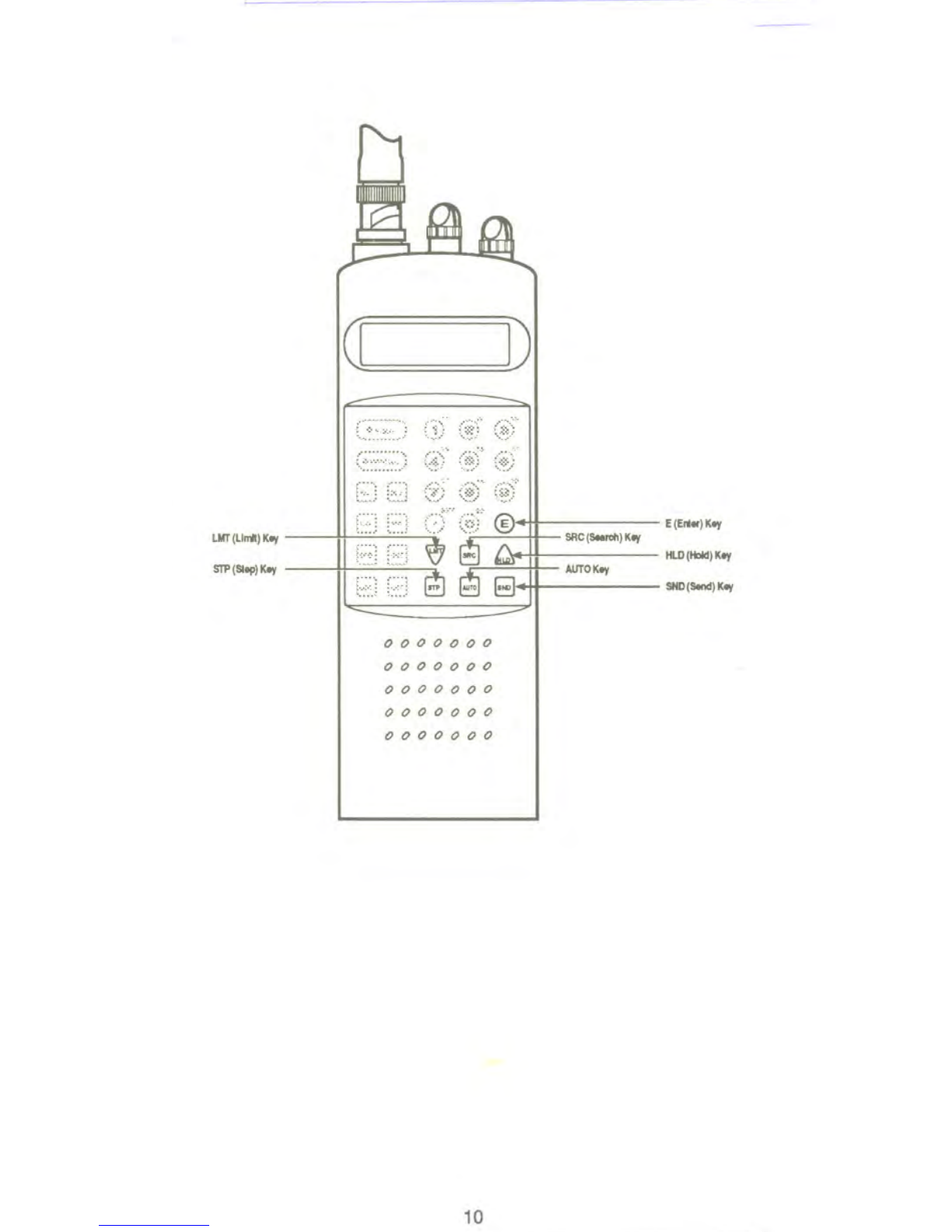

LMT(LInt)K'V
SIP(Slep)Key
a
, .
: ':"':'." :
, .
,
::E::::::::;;::)
F::,) f:::]
C;:'j E::J
F::~'j L;::::.J
""". ,""'.
1.,.;,:: :,..:d
'...,' :' '
{j)' (:~i'f (:~::;"
'.'
(:;f;: (;:~)' {:;~;)
(~:.:: :::~;)' G~);'
D
SRC(SIIroh)K'V
At1TOKey
E(EN"')Key
HLD(Hold)Key
SND (Send) K'V
.l=
======= -~
~
;'.>'.'
l",:\
0000000
0000000
0000000
0000000
0000000
10
[
.-..... -==

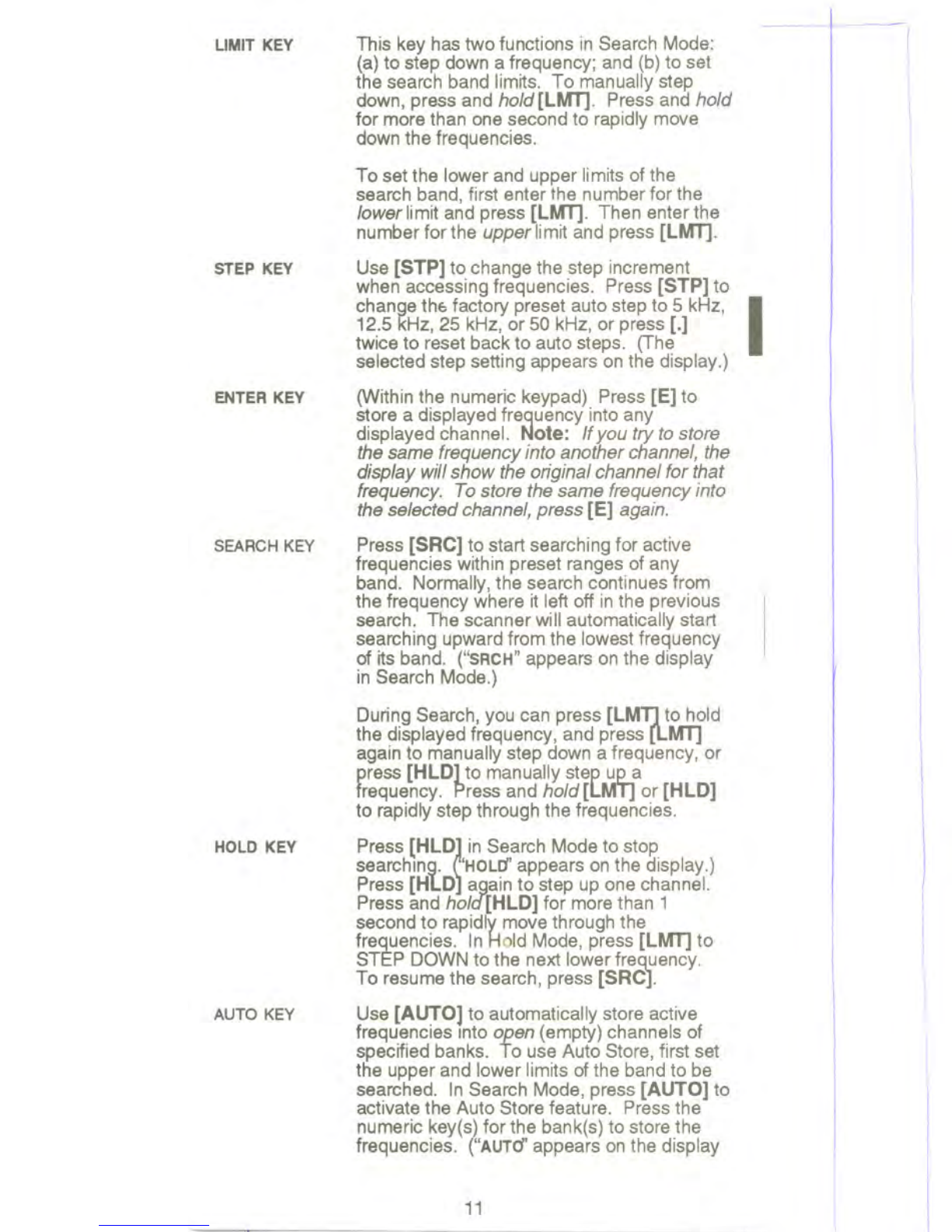

LIMIT KEY
STEP KEY
ENTERKEY
SEARCH KEY
HOLD KEY
AUTO KEY
I=-=-=====
This key has two functions in Search Mode:
(a) to step down a frequency; and (b) to set
the search band limits. To manually step
down, press and hold [LMT]. Press and hold
for more than one second to rapidly move
down the frequencies.
To set the lower and upper limits of the
search band, first enter the number for the
lower limit and press [LMT]. Then enter the
number for the upper limit and press [LMT].
Use [STP] to change the step increment
when accessing frequencies. Press [STP] to
change thE;factory preset auto step to 5 kHz, I
12.5 kHz, 25 kHz, or 50 kHz, or press [.]
twice to reset back to auto steps. (The
selected step setting appears on the display.)
(Within the numeric keypad) Press [E] to
store a displayed fre_quency into any
displayed channel. Note: Ifyou try to store
the same frequency into another channel, the
display will show the original channel for that
frequency. To store the same frequency into
the selected channel, press [E] again.
Press [SRC] to start searching for active
frequencies within preset ranges of any
band. Normally, the search continues from
the frequency where it left off in the previous
search. The scanner will automatically start
searching upward from the lowest frequency
of its band. ("SRCH" appears on the display
in Search Mode.)
During Search, you can press [LMT] to hold
the displayed frequency, and press [LMT]
again to manually step down a frequency, or
press [HLDl to manually step u~a
frequency. ~ress and hold [LMTj or [HLD]
to rapidly step through the frequencies.
Press [HLD
~
in Search Mode to stop
searching. 'HOLD"appears on the display.)
Press [HLD again to step up one channel.
Press and hold[HLD] for more than 1
second to rapidly move through the
frequencies. In Hold Mode, press [LMT] to
STEP DOWN to the next lower fre9..uency.
To resume the search, press [SRCj.
Use [AUTO] to automatically store active
frequencies Into open (empty) channels of
specified banks. To use Auto Store, first set
the upper and lower limits of the band to be
searched. In Search Mode, press [AUTO] to
activate the Auto Store feature. Press the
numeric key(s) for the bank(s) to store the
frequencies. ("AUTd' appears on the display
11
_..-
~,"-""'"
\
!
i
i
I
I
I
I
\
I
\
I
I
....... ,)

----..-----------
-
SEND KEY
LCD Display
~
when Auto Store is activated.) To stop Auto
Store, press [HLD], [MANUAL], or [AUTO].
Press [SND] to transfer a displayed
frequency to any open (empty) bank channel.
When the bank Indicators start flashing,
press the numeric keys for the selected bank.
Then press [E) to complete the transfer.
BANK 1 2 3 4 5 6 7 8 9 10 1112 1314 15 1617 1819 20
TURBO SCAN PRI DLY AUTO SRCH COUNTqBAITA
P8 8 8 18 8 8. 8 8 8 8 MHz
HOLD UO WX 1 2 .50KHz AM NFMWFM IKEYLOCKI
MEMORYBANK
NUMBERS
MODE
INDICATORS
STEP
INDICATOR
SIGNAL MODE
INDICATOR
LOWBATTERY
INDICATOR
CHANNEL
NUMBER
FREQUENCY
NUMBER
'--.--- --- ._-~-~
(1 through 20) Each memory bank consists
of 20 channels that you can select or
deselect during scanning operation, using the
numeric keypad. When you select a bank, its
number appears on the display. When you
deselect a bank, its number disapRears from
the display. When you press [MANUAL] to
stop scanning, only the bank of the current
channel appears.
Indicate the current mode(s) of operation
(TURBO,SCAN,PRI,DLY,AUTO,SRCH,COUNT, .
HOLD, UO, WX,KEYLOCK). Each of these
modes is described in the Front Panel
features section, in the related key
description. Note: Only the active mode(s)
are displayed during operation.
Indicates the frequency step automatically
when the scanner moves through the
selected band. While searching for active
frequencies, you can change the factory
preset auto step to 5 kHz, 12.5 kHz,
25 kHz, 50 kHz, or press [.] twice to reset
back to auto steps. Note: Manually
selected steps are erased when you turn off
the power.
Displays the automatic signal selection: AM,
NFM, orWFM.
Appears on the display when the Battery
Pack is Iow and needs recharging.
Indicates the current channel that the
scanner ISon.
Indicates the frequency being received by the
scanner.
12
.-- =-- '"-"~=,o,..~...,.
,
I
\I
i
I
I
!
,
I
I
I
i
I
I
I
I
I
!
I
I
I

'-
Setup
The UBC 2500XL T comes with a rechargeable Nickel-Cadmium
Battery Pack. When fully charged, this Battery Pack will
supply up to 5 hours of dependable use.
Before using the UBC 2500XL T for the first time, or whenever
the LOWBATTERYIndicator appears on the LCD display, you
should fully charge the Battery Pack.
Note: When the Battery Pack is Iow, the Low Battery
Indicator will start to blink. After about 10 minutes, the
scanner will shut itself off to prevent the battery from becoming
completely discharged.
Before charging, you must first install the Battery Pack
according to the steps below.
Installing the Battery Pack
1. Turn the On-OffNolume Control OFF.
I
2. Slidethe pack ontothe bottom of the scanner until it
clicks.
D
~
Charging the Battery Pack
1. Plug the AC Adaptor ICharger (AAD-2500U) into the
Charging Jack located on the back of the Battery Pack.
WARNING! Use only the supplied AC Adaptor/
Charger. Any other AC adaptor or external power plug
having over-voltage or reversed polarity can cause
overheating or damage to the circuitry.
Plug the AC Adaptor /Charger into a standard AC outlet.
2.
13
=I
~-. ;;:: r
-- -..
-' - ~

To fully charge the battery, leave the Adaptor/Charger
connected for 14 to 16 hours. Note: You can operate
the unit while the battery is charging.
3. When charging is complete, disconnect the Adaptor/
Charger from the AC outlet and from the Battery Pack.
Note: Disconnect theAC Adaptor/Charger from the unit
during apower failure.
Mounting the Flexible Antenna
Place the end of the antenna onto the BNC connector on top
of the scanner and turn clockwise until tight.
Installing the Belt Clip
Place the Belt Clip slightly above the mounti:lg area on the
back of the scanner, and press downward and in.
~
14
-4 ~'-
=-==-=== -,~
~.. r
, , ,--,-"'-,-,-,~

..-----..----
Scanning Overview
Note: Before operating the uac 2500XLTfor the first time,
make sureyou have fully charged the Battery Pack.
1. Beforeturning onthe scanner, rotatethe Squelch
Controlfully clockwise.
2. Turnthe scanner on by rotatingthe On-OttNolume
Controlclockwise until you hear a click.
3. Adjust the volumeto a comfortable listening level.
4. Turn the Squelch Control counterclockwise just until the
"rushing" noise disappears. At the squelch threshold,
any incoming signal just slightly stronger than the noise
will open the squelch.
Note: Whensquelch is open, you can hear the broadcast I
(scanning is stopped). If squelch is set too tight, that is, too far
counterclockwlse from the threshold point, astronger signal
is required to open the squelch. If squelch is set on apoint
clockwise from the threshold, you will hear aconstant sound
(noise, if no signal is present) The scanner will not scan.
The UBC 2500XL T has 400 memory channels, each of which
can be programmed to store one frequency. The channels are
divided into twenty 20-channel banks, useful for storing similar
frequencies in order to maintain faster scanning cycles.
You can monitor communication in one of two ways:
.Bank SCAN Ifyou haveprogrammedchannels,you'
can scan all programmed channels in the selected
bank(s), except locked out channels. When scanning
stops on an active frequency, it remains on that channel
as long as the transmission continues. If the Delay
Mode is on, the scanner remains on the same channel
for 2 more seconds, waiting for a responding
transmission. If there is no responding transmission
within 2 seconds, the scanning cycle resumes.
.Band SEARCH The Searchfunction is differentfrom
Scan. When you select a frequency band to search, the
scanner searches for any active frequency within the
lower and upper limits of the band. When an active
frequency is found, the scanner stops on that frequency
as long as the transmission lasts. If the Delay Mode is
on, the scanner remains on the same channel for 2
more seconds, waiting for a responding transmission. If
there is no responding transmission within 2 seconds,
the scanning cycle resumes.
15
-----

Programming Channels
Before you can scan, you must program the channels within a
bank. You can store one frequency per channel, up to 400
channels.
Each time you store a frequency, the list of scanning
frequencies in the bank is automatically sorted by frequency
number. This unique Auto Sort feature enables faster
scanning. When you manually step through a bank, however,
frequencies are sorted according to channel number.
With the UBC 2500XL T, there are a number of ways to program
a channel:
. Manually selecting a channel and frequency, using the
numeric keypad
. Using the Rotary Tuner to select a channel and
frequency
. Searching a band to find active frequencies, and then
storing them into channels
. Using the Auto Store feature to automatically program
channels
. Transfer a programmed frequency from another channel
Try each of the following programming methods, and then use
the one that's right for you!
A. Programming By Manual Entry
Before you begin, if "KEYLOCK"appears on the display, press
and hold [LCK] for 2 seconds to unlock the numeric keypad
and enable manual programming.
1. Select a frequency.
Example: Program 460.150 MHz into Channel 23.
Press [MANUAL] to stop scanning.
2.
3. Press [2] [3].
4. Then, press [MANUAL].
5. Enter the frequency number using the numeric keypad.
Note: Be sure to include the decimal point.
[4] [6] [0] [.] [1] [5] [0]
If you make a mistake and want to clear the entry, press
[.] twice and re-enter the correct frequency.
16
.-~L
==-=-=== =- -o.~'".=..=-.b -

--
6. Press [E] to store the entry.
.If the frequency is already stored in another
channel, the other channel will appear on the
display. To resolve the conflict, just enter another
frequency for the cu"ently selected channel.
(Later, we'll discuss how to delete astored
frequency.)
.Any frequency already stored in achannel will
automatically be replaced by the new one.
."Error" appears on the display if an e"or is made
during programming, or if the frequency is out of
range. To clear the error, enter avalid channel or
frequency number.
To program another channel, repeat the above procedures.
B. ProgrammingWiththe RotaryTuner
To program a channel usingthe Rotary Tuner:
1. If the UBC 2500XLT is scanning, press [MANUAL] to
stop scanning.
2. Select a channel to be programmed by turning the
RotaryTuner to displaythe channel. (Rotatethe control
clockwiseto step up a channel, or counterclockwiseto
step down a channel.)
Note: IftheChanneVFrequency/LockSelector[CIFIL] .
is set toilL"(lock), turn the control to "C" to enable
channel selection using the Rotary Tuner.
3. Turn the Channel/Frequency/Lock Selector to "F"to
enablefrequency selection.
4. Select a frequencyto bestored by turning the Rotary
Tunerto displaythe frequency. (Rotatethe control
clockwiseto step up a frequency, or counterclockwise
to step down a frequency.)
Note: Whenyou rotate the Rotary Tuner, the channel
selection flasheson the display. Thismeans that the
frequencydisplayed is not programmed in that channel.
5. To store the displayed frequency intothe current
channel, continue with Step 6
-OR-
To store the displayed frequency into another
selected channel, skip to Step 7
-OR-
I
To store the displayed frequency into another bank's
open (empty)channel, skip to Step 10.
17
=I
=-=-==== ---"""" =-=--[
-.-.-
"-
'.
-..-.----
!
i
I
I
.1

6. Press [E]. The frequency is now programmed into the
current channel.
7. You are finished, and may now skip to the next section.
Press [SND] twice. When the channel number blinks,
enter the new channel number using the numeric keys.
Press [HLD] to see if the selected channel is already
programmed.
8.
If the selected channel already has a stored
frequency:
The display alternates between the current channeV
frequency and the selected channel! frequency. Ifyou
wish to keep the selected channel's frequency, press [.]
twice to return to Step 7. Otherwise, that frequency will
be replaced by the new frequency selection when
programming is completed.
If the selected channel is open (empty):
The display alternates between the current
channellfrequency and the selected channeVopen
frequency (000.000).
Note: Be sure you have pressed [HLD] before
continuing with the next step. Otherwise IlError"
appears on the display when you try to complete the
programming entry. This is to avoid accidentally
erasing afrequency you want to keep.
9. Press [E] to complete programming.
You are finished, and may now skip to the next section.
10. Press [SND].
"BANK" flashes on the display, and the current bank
number is shown.
11. Press the numeric key(s) for the new bank selection.
The new bank indicator appears, and its lowestopen
channel starts flashing. When programming is
completed, the frequency will automatically be stored
into the channel. Note: After entering the selected bank
number if the screen displays a message indicating the
bank is IIFULL",inthis case select another bank.
12. Press [E] to complete programming.
The frequency is stored, and the bank channel is
displayed with its new frequency. (The old channel will
retain its original frequency.)
18
1:
- -- ---
~
-
-- I,
, ---~---------.
-------
I
I!
\
I\
iI
\I
,
Ii
I,
\
I\
!
I
\I
I
I
I
