Unitech TB160 User manual

10.1” Rugged Tablet Computer
- TB160 -
Service Manual
Version 1.1
© 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.

© 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
Revision History
Date Change Description Version
2017/12/29 first published version 1.0
2018/1/4 Update TB160-Work Instruction 1.1

Table of Contents
Chapter 1 – Overall Looks ....................................................................... 1
1.1 Product Detail ......................................................................................... 1
Chapter 2 – Assembly ............................................................................... 6
2.1 Spare Parts ............................................................................................. 6
2.2 Assembly Procedures ........................................................................... 15
2.3 TB160-Work Instruction ........................................................................ 16
Chapter 3 – OS Update Procedure ..................................................... 17
3.1 How to install Recovery SW via SD card .............................................. 17
Appendix I – Worldwide Support......................................................... 22
Worldwide Support ..................................................................................... 22
i
© 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.

TB160 User’s Manual
Chapter 1 – Overall Looks
1.1 Product Detail
TB160 Front View
1
Left view
2 Front view
3
Rear view
4 Right view
5
Rubber bumpers
6 Bottom view
1
© 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.

TB160 User’s Manual
1
Front camera
8
Volume +
2 Touch screen 9 Volume -
3
Barcode trigger
10
Power key
4 Battery LED 11 Power LED
5
Wi-Fi LED
12
F2 key (Programmable function key)
6 FN LED 13 F1 key (Programmable function key)
7
Home key
14
FN key (Programmable function key)
2
© 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.

TB160 User’s Manual
TB160 Rear View
1
Battery
2 Rear camera
3
Barcode reader
4 NFC sensing area
5
Securing holes
6 Expansion bay
7
Stylus holder
3
© 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.

TB160 User’s Manual
TB160 Side and Bottom View
1 Left I/O compartment cover
(USB 2.0 port)
9 USB 3.0
2 Micro HDMI 10 Audio jack
3
MicroSD slot
11
Ethernet
4 Left I/O compartment cover 12 DC-IN Jack
5
Tether hole
13
RS-232
6 USB 2.0 14 DC-IN cover
7
Battery switch
15
Right I/O compartment cover
8 Micro SIM slot
4
© 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.

TB160 User’s Manual

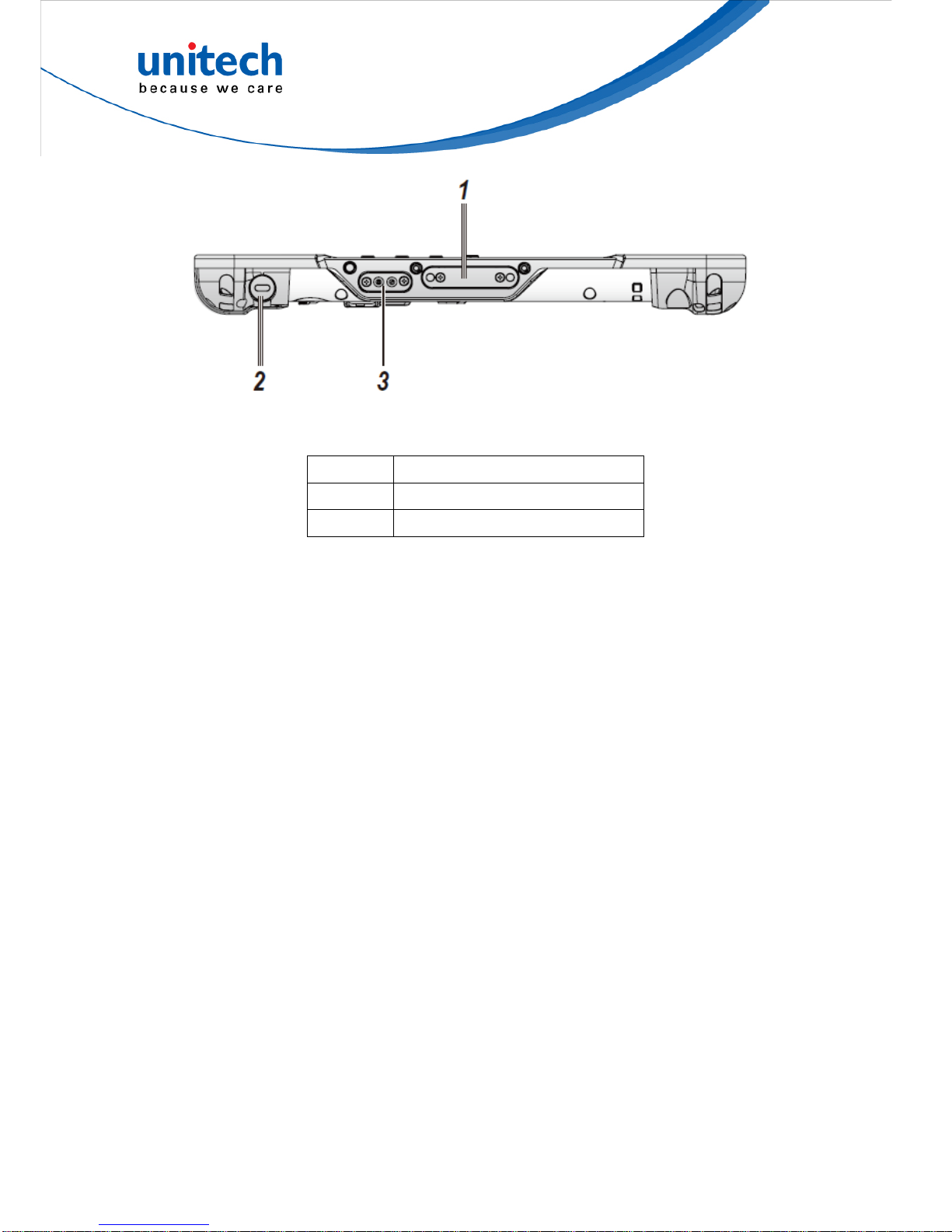

1
Docking connector
2 Kensington lock
3
Pass-through
5
© 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.

TB160 Service Manual
Chapter 2 – Assembly

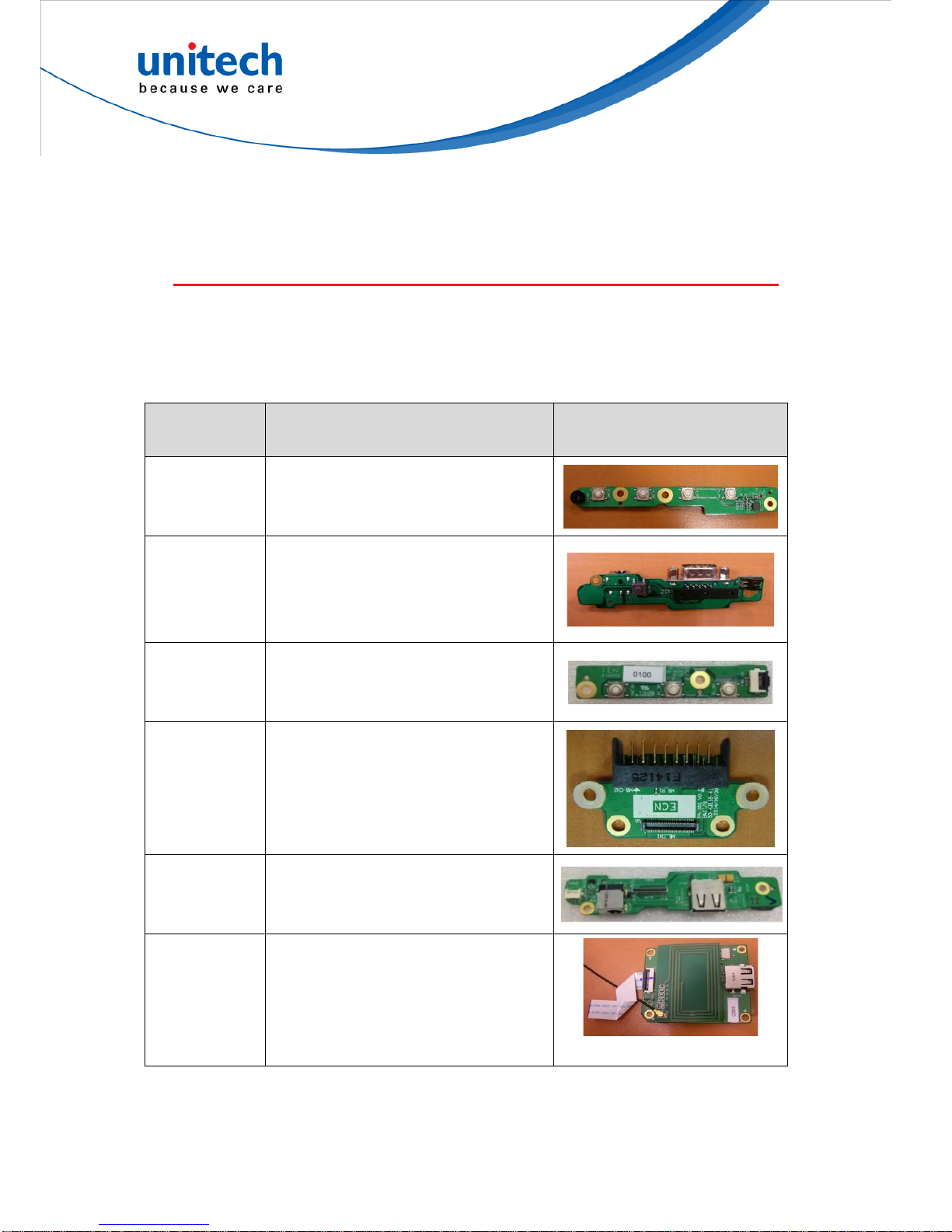

2.1 Spare Parts
Below spare parts tables offer an easy and quick index for product
maintenance.
Spare part list version
：
V1.0 Release
：
2016/05/18
Part
Number
Description Remarks
607112G
IPC BOARD PM-521(TB160) WIN_KEY
BOARD VER:1.0 ASS'Y W/KITS
LR_75-20275-01 spare parts
607113G
IPC BOARD PM-521(TB160)
FUNCTION_RS232 BOARD VER:1.0
ASS'Y W/KITS LR_75-20276-01 spare
parts
607114G
IPC BOARD PM-521(TB160)
FUNCTION_KEY BOARD VER:1.0 ASS'Y
W/KITS LR_75-20277-01 spare parts
607115G
IPC BOARD PM-521(TB160)
MAIN_BATTERY BOARD VER:1.0 ASS'Y
W/KITS LR_75-20278-01 spare parts
607116G
IPC BOARD PM-521(TB160) USB
BOARD VER:1.0 ASS'Y W/KITS
LR_75-20279-01 spare parts
607117G
IPC BOARD PM-521(TB160) NFC+USB
BOARD VER:1.0 ASS'Y W/KITS
LR_75-20450-01 spare parts
不含 RF cable & FFC
6
© 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.

TB160 Service Manual
607118G
PACKING IPC BOARD PM-521(TB160)
POGO BOARD VER:1.0 ASS'Y
LR_51-43177-04 spare parts
607119G
PACKING IPC BOARD PM-521(TB160)
RF_SWITCH BOARD VER:0.4 ASS'Y
LR_51-43178-03 spare parts
607120G
IPC BOARD PM-521(TB160) M/B
VER:0.4a W/CPU:Atom E3827 D0
Stepping 1.75GHz DDR3L 4GB W/LAN
ASS'Y W/KITS LR_75-20281-01 spare
parts
607121G
PM-521(TB160) TOUCH SCREEN
10.1INCH WUXGA 1920*1200
UBX-1041-01 PLD (BE) W/3 MODES+
TOUCH CABLE + LVDS CABLE +
UNITECH TOP COVER(BLACK) W/KIT
LR_75-20283-01 spare parts
607122G
PM-521(TB160) SSD 128GB MLC
mSATA 3.3V with Kits LR_75-20445-00
spare parts
607140G
(EOL) LAN WIRELESS UNIT IEEE
802.11a/c + BT4.0 PCIE Half Mini Card
AC 7260 7260.HMWWB.R Intel
LR_71-40473-01 spare parts
7
© 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.

TB160 Service Manual

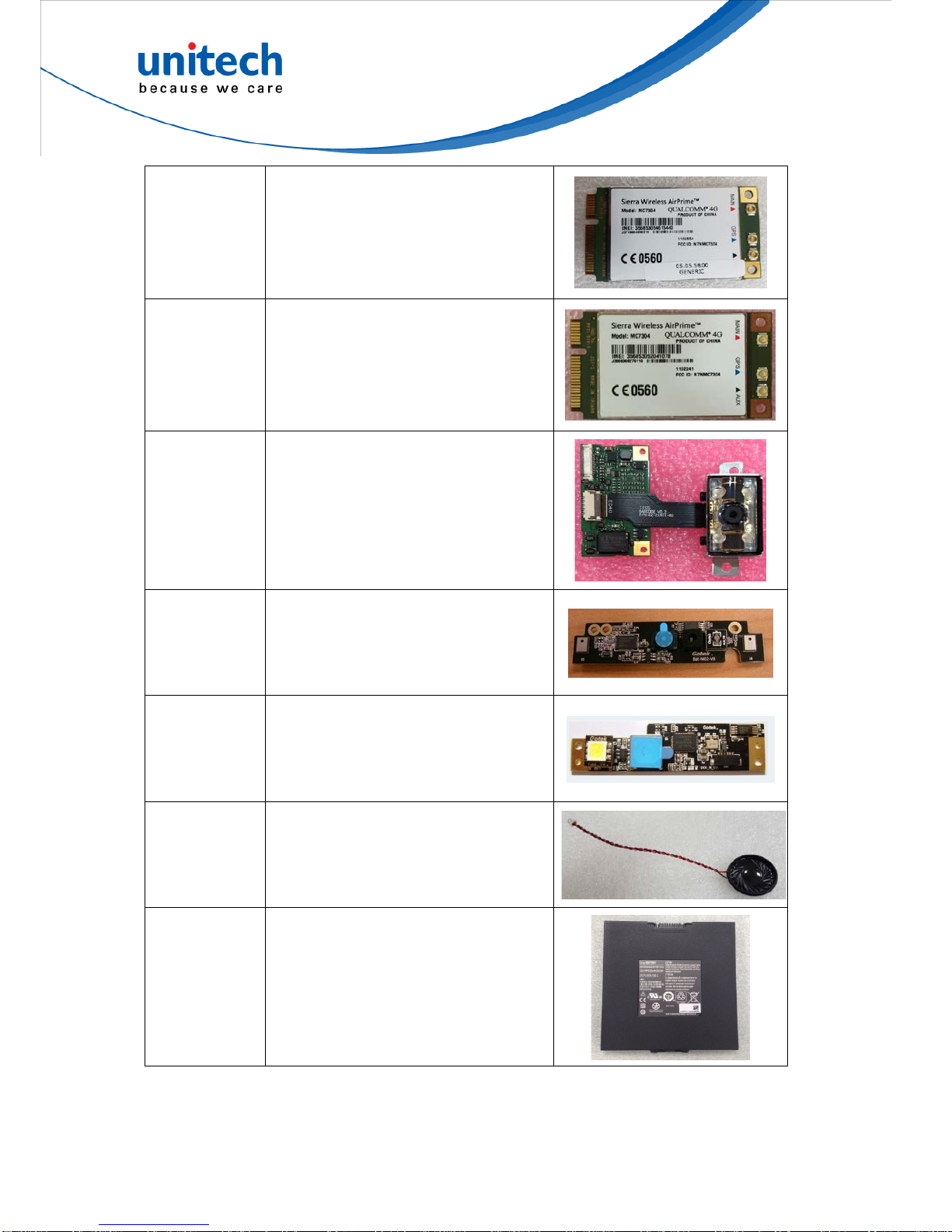

607123G
Wireless WAN Module (4G/3.5G)
LTE/HSPA PCIE MC7304(QMI Mode) FW:
05.05.58.00 Sierra LR_71-40465-02
spare parts
607124G
Wireless WAN Module (4G/3.5G)
LTE/CDMA/HSPA PCIE MC7354(QMI
Mode) FW:
SWI9X15C_05.05.58.00(Generic) Sierra
LR_71-40466-02 spare parts
607125G PM-521(TB160) SCANNER MODLULE
2D with Kits LR_75-20446-00 spare parts
607126G
PM-521(TB160) CAMERA Module CMOS
2M UXGA with ALS and DMIC 12PIN
NC0-062FR-XA02 GOTEK W/KITS
LR_75-20286-00 spare parts
607127G
PM-521(TB160) CAMERA Module CMOS
5M QSXGA with LED Flashlight and AF
NC0-O45AS-RL01 GOTEK W/KITS
LR_75-20287-00 spare parts
607128G
SPEAKER Module 26ψ4ohm 1.5W
T=5.8mm 90mm RENE-2604-15-90 for
T10S RENE LR_21-21025-20 spare parts
1400-900042G
BATTERY PACK 10.8V 4500mAh 48.6Wh
NCA103450 LI-ION PRISMATIC FOR
PX501 JMS-T10SXSYM6 JMS
LR_21-93078-01 spare parts
8
© 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.

TB160 Service Manual
205739G
PM-521(TB160) BATTERY PACK 3.6V
2700mAh 9.72Wh NCR18650PF LI-ION
FOR PX501/PM521 JMS-T10SXSYN1
JMS W/KITSLR_75-20288-00 spare parts
205741G
*ANTENNA Combo GPS/WIFI(Aux)
2.4/5GHz wire=210/115mm
Φ=1.13mm,MHF I for PX501, PA-501,
PM-521(TB160) and FBI 5001799
Ethertronics LR_21-93084-03 spare parts
205740G
*ANTENNA WIFI(Main) 2.4/5GHz
wire=95mm Φ=1.13mm, MHF I for PX501,
PA-501, PM-521(TB160) and FBI
5001791 Ethertronics LR_21-93085-03
spare parts
205742G
ANTENNA LTE2, wire=5mm, Φ=1.13mm,
MHF I for PA-501 and PM-521(TB160)
(US SKU) MP version,
AH-JT-1417Y1411M01 Jieng Tai
LR_21-93087-04 spare parts
205743G
PM-521(TB160) ANTENNA LTE1
(P-Sensor), wire=225mm, Φ=1.13mm,
MHF I for PM-521(TB160) (US SKU)
Jieng Tai W/KITS LR_75-20290-00 spare
parts
607130G
PM-521(TB160) CASE ASSY T10B
BOTTOM COVER (BLACK BUMPER)
TAIDOC + LENS W/O BARCODE +
UNITECH RATING LABEL W/KITS
LR_75-20448-00 spare parts
9
© 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.

TB160 Service Manual

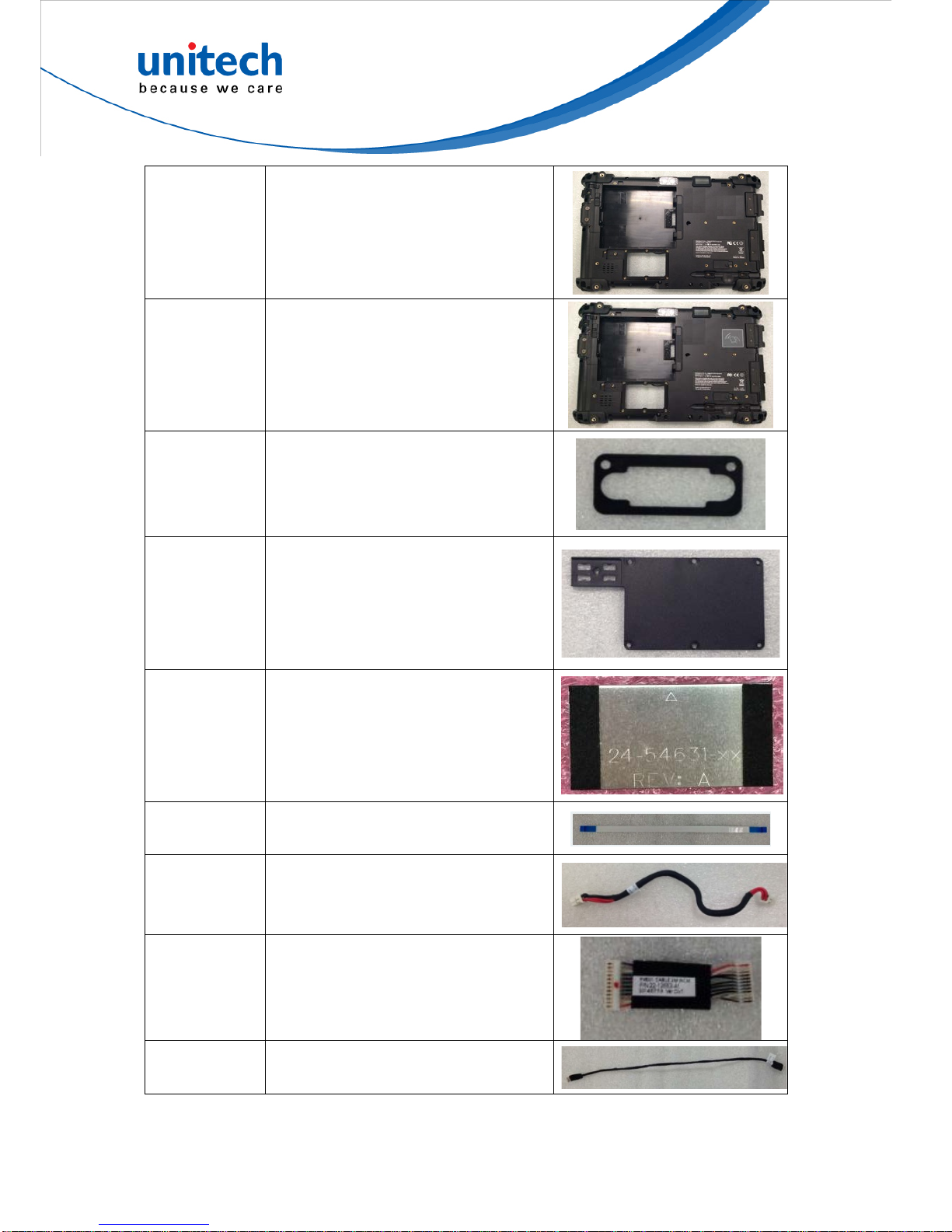

607131G
PM-521(TB160) CASE ASSY T10B
BOTTOM COVER (BLACK BUMPER)
TAIDOC + LENS W/BARCODE +
UNITECH RATING LABEL W/KITS
LR_75-20449-00 spare parts
607132G
PM-521(TB160) CASE ASSY T10B
BOTTOM COVER (BLACK BUMPER)
TAIDOC + LENS W/BARCODE + NFC +
UNITECH RATING LABEL W/KITS
LR_75-20447-00 spare parts
385141G FRAME T10S RS232 COVER RAY
HOME LR_24-54643-00 spare parts
385142G PLASTIC T10S SERVICE DOOR TAIDOC
LR_24-62823-00 spare parts
385143G FRAME T10S BARCODE SHIELDING
RAY HOME LR_24-54631-00 spare parts
205744G FFC function key WINTAC for T10S
LR_22-21667-40 spare parts
205745G *CABLE DC in GBE for T10S
LR_22-12652-A1 spare parts
205746G *CABLE 2M webcam GBE for T10S
LR_22-12653-A1 spare parts
205747G *CABLE 5M webcam GBE for PX-501
LR_22-12654-A1 spare parts
10
© 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.

TB160 Service Manual

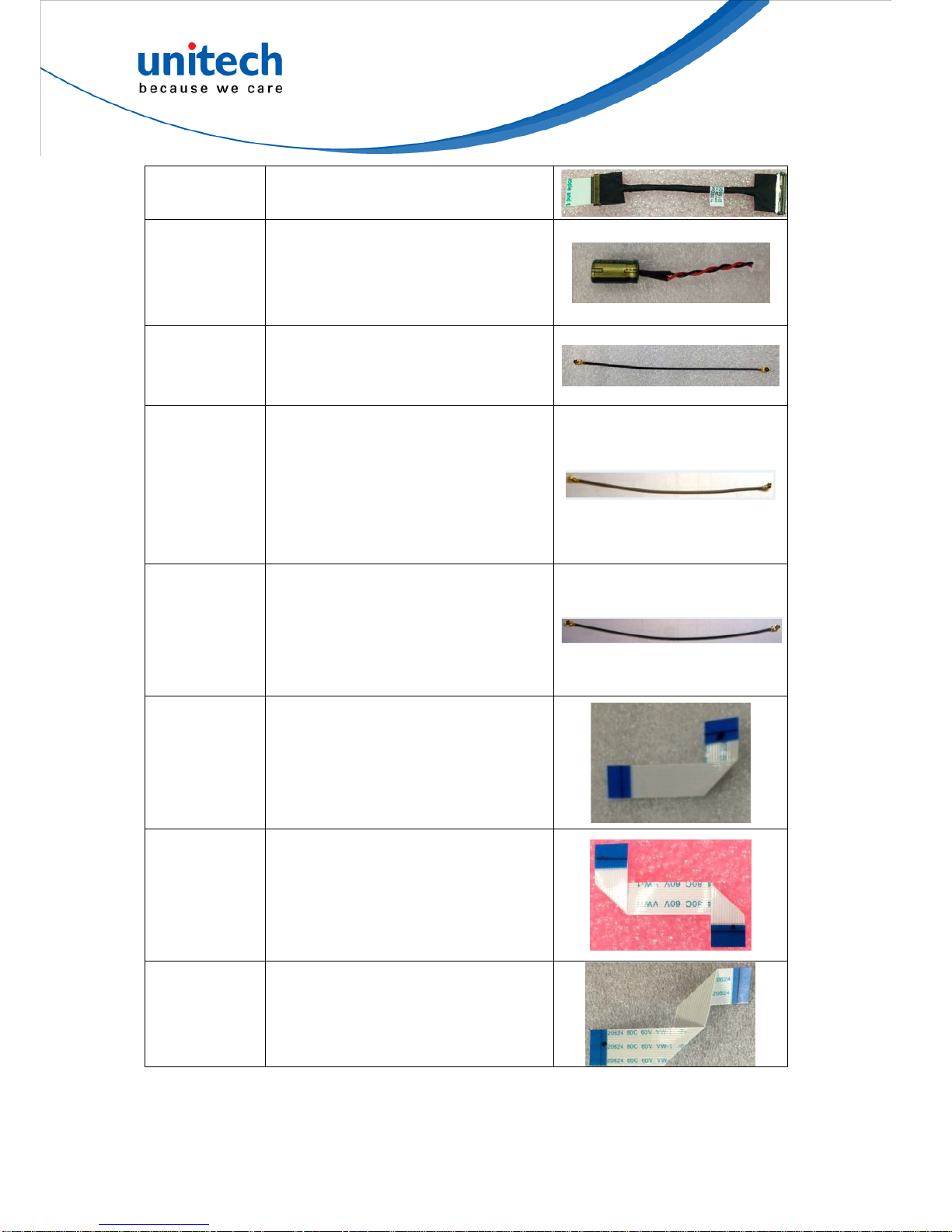

205748G CABLE Docking UL1354 36AWG GBE for
T10S LR_22-12728-A1 spare parts
607133G
CABLE CAP. 2pin L-36mm 25V/470uF
D=8mm*L-15mm Life=8000hrs for Bobcat
SAMPHONE LR_22-12659-80 spare
parts
205749G
CABLE NFC 1pin L-85mm for
PM-522(GOLDEN BRIDGE)
LR_22-12650-A1 spare parts
205750G
WIRE WWAN/GPS RF cable IPEX Joint
(MHF 1.13) to IPEX Joint (MHF 1.13)
FOR PX-501, PA-501, PM-521(TB160)
and FBI wire=80mm (Gray)
6303020200-100 KINSUN
LR_22-12664-01 spare parts
205751G
WIRE WLAN RF cable IPEX Joint (MHF
1.13) to IPEX Joint (MHF 1.13) for
PX-501, PA-501, PM-521(TB160) and FBI
wire=120mm (Black) 6303020206-115
KINSUN LR_22-12665-01 spare parts
205752G FFC win key WINTAC for T10S
LR_22-21666-40 spare parts
205753G FFC Barcode ED40 WINTAC for T10S
LR_22-21668-40 spare parts
205754G *FFC NFC+USB WINTAC for T10B
LR_22-21669-40 spare parts
11
© 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.

TB160 Service Manual
205756G *FPC 26pins 0.5pitch Function RS232 3Gi
for PX-501 LR_22-21670-80 spare parts
607137G CASE ASSY T10S PASSTHROUGH
TAIDOC LR_24-47704-00 spare parts
385144G
SCREW M2.5*0.45*L9*D4.5*H0.8 CI
NI.BL NYLOK HNS LR_24-12323-02
spare parts
385145G
SCREW M2.5*L4*D4.5*H0.5 CI NI.BL
NYLOK HNS LR_24-12340-02 spare
parts
385146G
SCREW M2*L4*D4*H0.6 CI NI.BL
NYLOK+O_RING HNS LR_24-12381-00
spare parts
385147G
SCREW M2*L4*D4*H0.6 CI NI.BL
NYLOK(Yellow) HNS LR_24-12381-01
spare parts
385148G
SCREW M2.5*L6*D5*H0.8 CI NI.BL
NYLOK(Yellow)+O_RING HNS
LR_24-12398-00 spare parts
385149G
CONDUCTIVE TAPE for T10C
TP6-20*0.12*25+3M9707 SUNNY-TEK
LR_24-89PFJ-01 spare parts
385150G
CONDUCTIVE TAPE T10C
TP6-12*0.12*20+3M9707 SUNNY-TEK
LR_24-89PGU-01 spare parts
385151G
CONDUCTIVE TAPE T10C
TP6-5*0.12*20+3M9707 Stamping
process SUNNY-TEK LR_24-89PGW-01
spare parts
12
© 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.

TB160 Service Manual

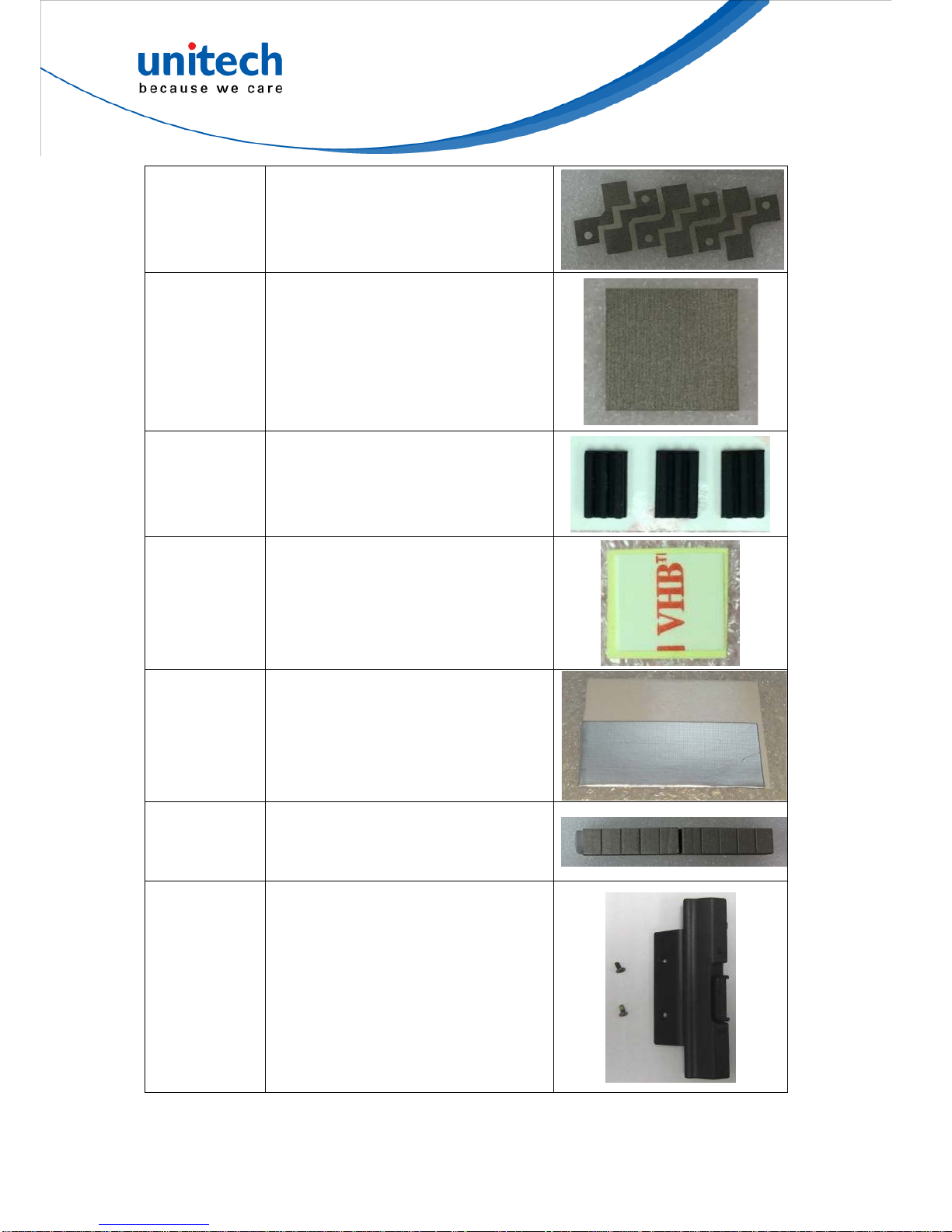

385152G
CONDUCTIVE TAPE for PX-501
TP6-22.18*0.12*22.5+3M9707 Stamping
process SUNNY-TEK LR_24-89PSF-01
spare parts
385153G
CONDUCTIVE TAPE T10S DIGITIZER
PONTENTIAL LR_24-89PT2-00 spare
parts
385154G RUBBER T10S RF CABLE HSIANG
CHAN LR_24-89PUK-00 spare parts
385155G
TAPE T10S CAP. ADHESIVE
POTENTIAL LR_24-89PTC-00 spare
parts
385156G
Aluminum foil for FBI
A16M-060-065.035.015 CHENG RUENN
LR_24-89PV9-01 spare parts
385157G
GASKET for FBI GP6+Y46-10.0*9.0*15.0
+ 6mm3M9707 SUNNY-TEK
LR_24-89PVB-01 spare parts
607174G CASE ASSY T10S IO DOOR TAIDOC
LR_24-47702-00 spare parts
13
© 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.

TB160 Service Manual
607175G CASE ASSY T10SRS232 DOOR TAIDOC
LR_24-47705-00 spare parts
607176G CASE ASSY T10B USB DOOR TAIDOC
LR_24-47707-00 spare parts
Note
：
If you are going to replace any defective components or boards, please
order the additional spare parts from unitech. Do not swap components
or boards between the terminals.
14
© 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.

2.2 Assembly Procedures
Naming Rule: TB160 - □ x □ x □ x □ x □ x □ x □ x G
( □ = D1 x D2 x D3 x D4 x D5 x D6 x D7 x Green part)
Model / Part Number
Coding
TB160 with 2D Engine , BT and WIFI
TB160-QT62UMNG
Refer to Section
D1:
Q: Honeywell 2D EA11
0: Without Imager
D2:
T: Windows 10 IOT Enterprise Entry
D3:
6: BT + WIFI
G: BT + WIFI + LTE (US)
H: BT + WIFI + LTE (EU)
D4:
2: Camera + GPS
F: Camera + GPS + NFC
D5:
U: Unitech Standard
D6:
M: Multi
D7:
N: Terminal + battery + adaptor
E: Terminal + battery + adaptor + Europe
power cord
TB160 with 2D Engine , BT and WIFI
TB160-QT6FUMNG
Refer to Section
TB160 with 2D Engine , BT + WIFI +
LTE (US)
TB160-QTGFUMNG
Refer to Section
TB160 with 2D Engine , BT + WIFI +
LTE (EU)
TB160-QTHFUMEG
Refer to Section
TB160 without Engine, BT + WIFI
TB160-0T62UMNG
Refer to Section
15
© 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.

16 © 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
2.3 TB160 Work Instruction
For TB160 work instruction, please download it via:
http://w3.tw.ute.com/pub/cs/product\TB160\WI\TB160WI‐2018.pptx
TB160 User’s Manual

TB160 Service Manual
Chapter 3 – OS Recovery Procedure
To restore your Windows operating system on TB160 back to factory default,
please use the following instructions to operate:
If user account is not encrypted or you are able to log into Windows,
read section 1.If you are not able to log into Windows system and is
blocked at login screen, read section 2.

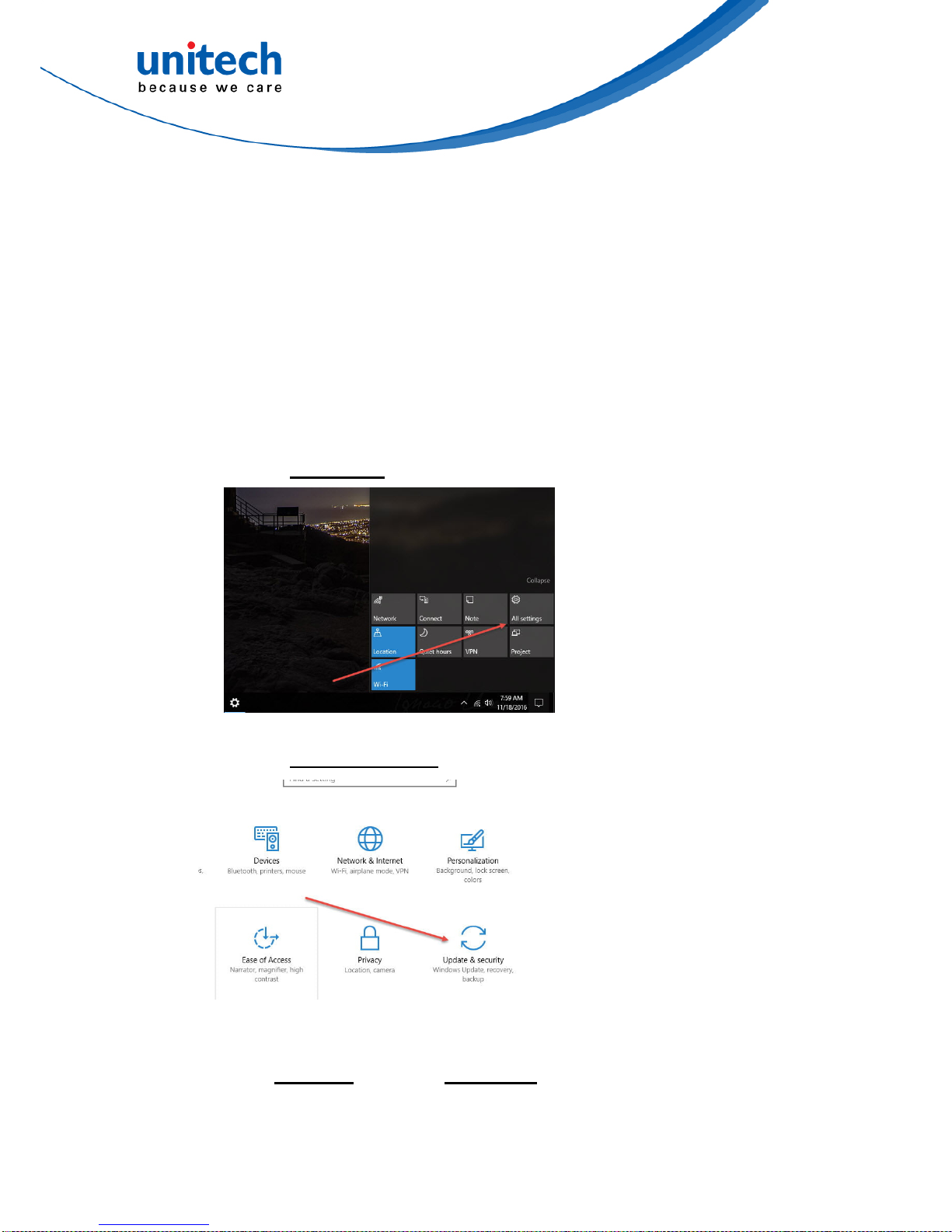

Section 1. Reset system in Windows settings.
1. Go to All settings
2. Go to Update & security
3. Go to Recovery
17 © 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.
tab and hit Get started beneath Reset this PC
