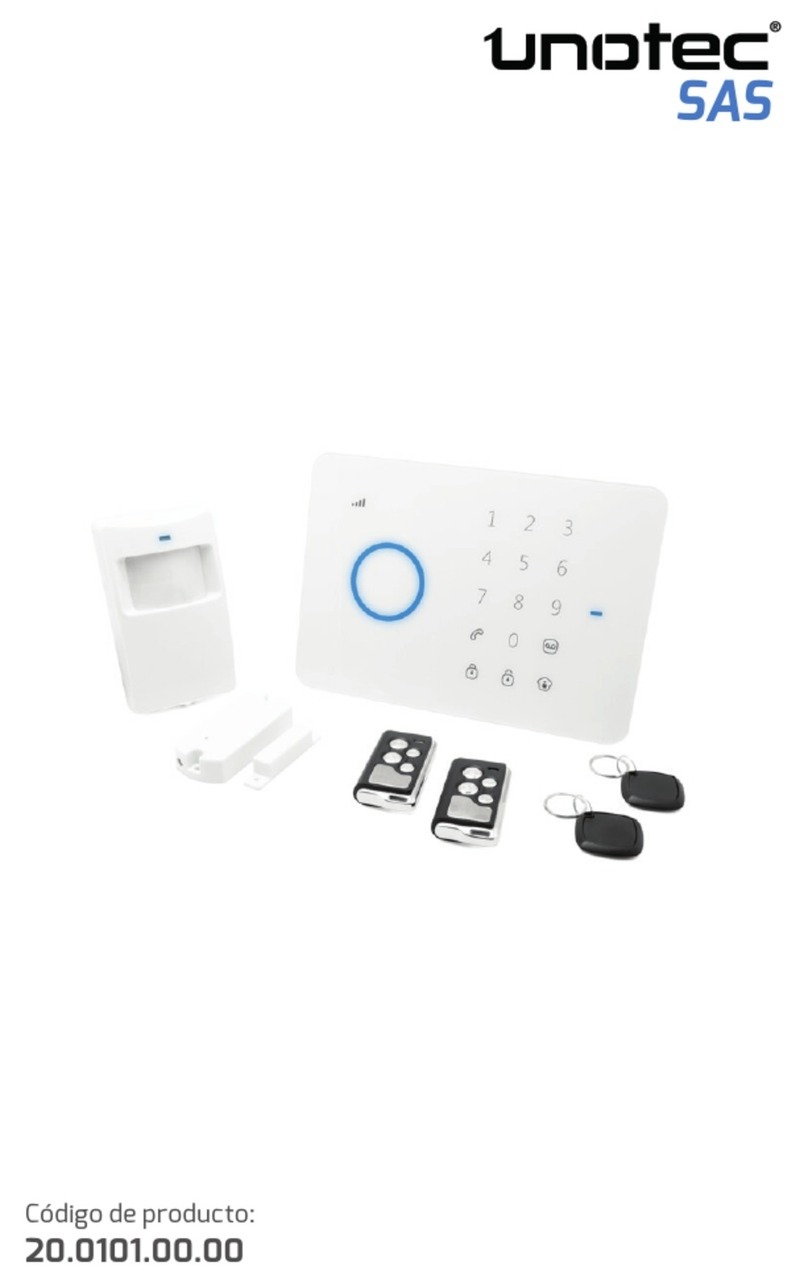

unotec SAS User manual

1
Code Product:
20.0101.00.00
User Manual ENG
SAS

2
FEATURES AND TECHNICAL SPECIFICATIONS
ITEMS THAT CAN MAKE UP YOUR SECURITY ALARM SYSTEM SAS UNOTEC
OVERVIEW
ITEMS INCLUDED
This device is an excellent security product that incorporates GSM / SMS / RFID technology.
You are at a complete wireless alarm system with touch keypad and communica on of warnings via phone SIM card.
You only need to have GSM coverage in the loca on of your CCP to keep an eye on your home or business. All this
without any fee or monthly subscrip on (excluding costs of SMS and calls). You will receive on your mobile phone
alerts no ces sent directly by the alarm. Also, being a completely wireless system, you will not be forced to connect
diff erent computers together via cables. Loca on fl exibility, ease of installa on and cap va ng aesthe cs.
This revolu onary Wireless Security Alarm System with touch keypad UNOTEC SAS has all the features of a profes-
sional electronic security system, yet is easy to use and confi gure.
The confi gura on and system management is done through the Central Control Panel through its touch keyboard,
SMS or phone calls. At any  me you can check the status of the system and if you want, whenever someone acces-
ses the monitored area disarming the UNOTEC SAS Keychain RFID you will be no fi ed through an SMS containing
informa on on who and when agreed the monitored area. And always maintaining a comprehensive what happens
in your home or offi ce control.
Central control panel with: mermaid, microphone and
speaker, touchpad, RFID card reader, ba ery back up
and power adapter.
Keychains proximity RFID tags.

3
OPTIONAL ITEMS
PIR wireless mo on sensors with ba eries and out-
door LED status and immune to movements of pets.
Wireless signal repeaters or integrated with feeder
included, ideal for extending the range of range of su-
pplements to 500 meters radius. RT-101 / RT-110
4-bu on remote controls and 6 func ons with built-in
ba ery.
PIR wireless mo on sensor ba ery status LED for in-
terior
Intelligent wireless adapter included with sirens, stro-
be lights and LED status. There are indoor, outdoor,
fueled by sunlight, ba ery-backed, an sabotage, pos-
sible delays ...
Wireless gas sensor status LEDs, built-in siren and
verbal warning.
Wireless magne c sensors for doors and windows,
with ba ery and LED status.

4
Adjustable Wireless smoke sensor with built-in siren,
ba ery status LED.
Presence sensor equipped with wireless IR beam
barrier 10 meters powered ba ery charged by solar
energy, built-in siren, strobe lights and LED status.
Adjustable sound sensor Wireless Glassbreak with
status LED, including feeder and wired outputs.
Wireless sensor ba eries included fl ooding and status
LEDs.
Wireless remote control keypad with smart
keychains RFID reader for access to contro-
lled area compa ble with electronic locks.
Wireless vibra on sensors with ba ery, status LED
and adjustable sensi vity.

5
The Security Alarm System UNOTEC SAS comprises the Central Control Panel (CCP), sensors, signal repeaters and
fully wireless sirens has the following technical possibili es:
• Supports up to 10 remotes (remote control), 50 keychains proximity (RFID tags), 50 wireless sensors and
several sirens.
• The other has 4 wired zones (Normal + 24h + Siren + Relay Mode) allowing you among other things per-
fectly integrate any IP camera that have alarm input and display enabling him live what mo vated no ce.
• An sabotage which triggers the alarm when an element of it is intended to be manipulated. Subs tuent
of self-checking of the wiring systems.
• Holds 5 phone numbers to alert by SMS in case of alarm.
• Store another 5 phone numbers to no fy them by phone call.
• direct or remote access to voicemail stored in the Central Control Panel.
• Ability to set speed dial call by pressing a bu on.
• Ability to call other numbers from the Central if they are marked in full.
• Store a number to no fy you by SMS when and who disarm the system with proximity key.
• It has delayed ac va on for a more comfortable entry and exit.
• There is another specifi c delay for the desired sensors.
• SMS alert disconnect Central Control Panel power.
• SMS alert reset the power.
• SMS alert low ba ery Central Control Panel.
• arm and disarm the system by SMS or free call.
• Status Monitoring System remotely by telephone.
• Speaker and microphone to CCP for bidirec onal communica on.
• integrated into the CCP deterrent siren and possibility of adding addi onal ones.
• The CCP includes 2 backup ba eries, lithium 800 mAh each, which provide a range of 5 h at rest in case
of power failure
• The CCP has integrated antenna mul band GSM 850/900/1800/1900 MHz.
The four main roles of our Security Alarm System UNOTEC SAS are:
ANTI THEFT - FEEL SAFE:
Besides being a clear deterrent, the main feature of System Security Alarm UNOTEC SAS is that warns
you, to you even if you are kilometers away and their neighbors, where there has been a port in the area
patrolled unauthorized.
TELEASISTENCIA - FEEL PROTECTED:
Remote controls have a “panic bu on” or SOS that when pressed, the Central Control Panel (regardless
of which state you are in) will ac vate the sirens, send SMS and call phone numbers stored. Par cularly
useful for lonely older people with mobility diffi cul es in an emergency, or to manually ac vate all alarms
if anything unusual is detected.
ANTI DISASTER - FEEL SAFE:
Safety sensors will alert 24h to tell if a gas leak occurs, there is a fl ood, a window is broken, a fi re, an earth-
quake ... In all these cases,  mely ac on to occur is the key separates a scare of a catastrophe.
KNOW WHO AND WHEN ENTERING YOUR HOUSE - FEEL INFORMED:
Thanks to ad disarmament SMS with RFID tags keychains proximity you will always know who and when
has accessed your home. Very useful to employees.
TECHNICAL POSSIBILITIES
FUNCTIONALITY

6
IMPORTANT THINGS TO KNOW BEFORE YOU SET YOUR ALARM SYSTEM SECURITY SAS
UNOTEC
SAS UNOTEC STATES
POSSIBLE WAYS ARM AND DISARM YOUR UNOTEC SAS
WAYS YOU CAN PROGRAM SENSORS AREAS
CONFIGURABLE DELAY TIME WINDOW
The Security Alarm System UNOTEC SAS has three possible states:
Armed
Disarmed
Par al armed
There are two possible loca ons from which you can control the armed (ac va on) and disarmed (disable)
Security System.
• From the Central Control Panel
o Key
o With RFID Key
• Remotely
o With the remote control (remote control)
o With the wireless keyboard or KP-700
• For key
• With RFID Key
o by phone
• Through SMS
• With one phone call free
Each wireless sensor in the Security Alarm System is an area UNOTEC SAS. a
area (sensor) can be set in four diff erent ways:
Normal mode. System assets in the states: Arming and Home Arming.
Home mode. Ac ve only when the system is in armed state.
Timed mode. As in Normal Mode but with a confi gurable delay.
Mode 24h. They are always ac ve regardless of system status.
Finally, there are two types of confi gurable delays in its Security Alarm System that will enable SAS UNO-
TEC establish a window of  me between when a sensor is ac vated un l the Central ac vates the sirens
and alerts the protocol begins.
Input and output delay. Valid for sensors (zones) programmed in Normal, House and  med. It applies to the
subsequent ac va on Armed System to ac va on of alarms a er ac va on.
Timed delay zones. Valid for zones (sensors) programmed in Timed applies only to the ac va on of alarms
upon ac va on mode.
* Note: Sensors programmed in 24h mode can not be delayed.

7
TYPICAL EXAMPLE OF INSTALLATION
THEORETICAL EXAMPLE
GRAPHICAL EXAMPLE
For clarifi ca on so we show two typical installa ons as examples.
In this example the sensors (areas) are set as follows:
Normal mode: magne c sensor placed on the front door and IR barriers.
Mode PIR: movement sensors House Salon and stairs.
Timed mode: magne c sensor placed on the garage door.
24h mode: sensor cooking gas and smoke detector.
With this programming zones (sensors) is achieved when the house is empty and UNOTEC SAS in armed state all
sensors are ac vated and protec ng your home is high, but when they are at home (eg at night ) can set the status
of your alarm system Safety Arming, allowing them to move freely inside the house without triggering any sensor,
but also be protected against intrusions from the outside, since these sensors yes will be alert.
Similarly if we set 95 ‘’ as delay areas (sensors) that we have programmed as  med a ached to a delay se ng input
and output 15 ‘’ is achieved when employees enter your home have 15 ‘’to disarm the proximity Key System before
the alarms are ac vated and that you, if you come by car directly from the garage available 95’ ‘to disarm the system.
Likewise, if someone arms the system from the Central Control Panel will have 15 ‘’ to leave the property without
triggering alarms.
If there were a fi re or a gas leak, sensors programmed in the 24h mode all alarms ac vated immediately regardless
of the state in which the Security Alarm System SAS UNOTEC you are.
Before installing the Security Alarm System UNOTEC SAS is necessary to study the architectural features of the
place where you want to place the system (home, offi ce, apartment ...) and carefully iden fy their weaknesses, to
thereby be able to plan eff ec ve protec on and safe.
Each sensor corresponds to a virtual region that called Central Control Panel area. The names of the fi rst 9 sensors
(zones) can be customized. This way you get the system to alert you with a personalized SMS with content similar to
the following: “gas leak” or “Movement in your bedroom.”
Pay a en on to this simple example chart for a house on one level
* Note: If installing it over nine sensors (sirens and signal repeaters do not take zone) from the tenth will be automa-
 cally numbered from 10 to 50 and you can not customize your name
Norm Map
A) Alarm Switchboard
B) Control
C) Foghorn
1- Main Door: Opening Sensor
2- Living: Mo on Detector
3- Window Living: Opening Sensor
4- Window Living: Opening Sensora
5- Door Terrace: Opening Sensor
6- Room: Mo on Sensor
7- Room: Mo on Sensor
8-Kitchen: Gas Detector
Normal Mode
Home Mode
Normal Mode
Normal Mode
Normal Mode
Home Mode
24H Mode
24H Mode

8
UNOTEC SAS IN DETAIL
CENTRAL CONTROL PANEL CCP
FRONT
Coverage indicator
Touchpad
Call / Sending LED
RFID Keychains Reader / Play voice message
Then we will detail the key elements that cons tute the Central Control Panel.
Status Ligh ng
The signal fl ashes once per second, it means the de-
vice is searching GSM network
The signal fl ashes once every two seconds, it means
that the device is connected to the GSM network
Aesthe c touch keyboard which is ac vated by con-
tact with our fi ngers thanks to body temperature.
Methacrylate surface, easy to clean, provides a high
level fi nish. The numbers give us the ability to:
• Enter the key manually disarm the system
• Enter the key to synchronize devices
• Enter a phone number you wish to call
This red LED lights when the Central Control Panel is receiving a phone call. If the alarm LED fl ashes while the
sirens.
The red LED also lights when the CCP is on a call or sending an SMS.
RFID Keychains Reader
This is the area in which the iden fi ca on card reader is radio frequency.
To bring some of the keychains RFID tags at a distance of less than one cen meter circle, it will light blue-green
and beeping disarm the Security Alarm System UNOTEC SAS.
Immediately a er disarmament, the Central Control Panel will send an SMS to the phone number we have told
you. In this SMS the recipient will fi nd informa on about the user who disarmed the UNOTEC SAS and the  me
that has made this disarmament.
* Note: The RFID reader is energy intensive and is deac vated when the CCP is not connected to the mains, so if
the light is gone can not disarm the system with the key although remotely via call or SMS.
Coverage indicator
Touchpad
Disarmed
Armed
Par al Armed
Call
Call/ Sending LED
RFID Keychains Reader/
Play Voice Message
Record Voice Message/
Sync Bu on

9
Call
Armed
Disarmed
Partial Armed
Record voice message / Sync button
Playing voice message
As the numbers, this circle is touch sensi ve. If pressed we can hear the last voice message stored in the CCP.
As discussed below, this voice message can be recorded both from the Central Control Panel, thanks to the inte-
grated microphone that has, or remotely from a mobile phone. This func on is very useful if you want to leave a
message for cleaning or if we inform our children of the  me you get home.
When the CCP detects that it has recorded a new voice message and this has not been heard yet, a indigo blue
light will fl ash around the circle to remind the following approaches to disarm or arm the system that someone has
le a message for him .
It is also possible to listen to this voicemail remotely from a mobile phone.
The touch pad has a dual func on.
• Is the speed dial bu on. Pressing a phone call is made to the number you have defi ned. Press again to
end the call again.
• If you press a er entering a phone number available via touch keyboard, it made a phone call to that number.
Anyone press arm the system.
This new state of the system is confi rmed because while the system is armed will remain illuminated.
To disarm the system is necessary to know the password (default: 1234).
Enter the password on the touch keypad and press disarmament is confi rmed by issuing a long beep when you
press while the RFID reader emits a greenish blue circle light, then stay on to easily recognize at a glance
the state the UNOTEC SAS.
If instead of a beep you hear three pressing is that the key is not inserted correctly and should try again.
To set the Security Alarm System SAS UNOTEC state Par al Armed press
This way you can move freely inside your home without triggering any sensor, while maintaining a high degree of
protec on against intrusions.
Record voice message
Press to record a voice message on the Central Control Panel ten se-
conds while remaining illuminated. An indigo blue light will fl ash around
the bu on Playing voice message to remind you that someone has le a
mansaje not yet been heard. In this way it will encourage the recipient to
press it, which will take you to hear the message.
Once I heard the voice message, the Play bu on will turn off message, but
the message s ll engraved in the CCP. If someone a er you press the circle
you can hear the message again.
The only way to clear this message is recording another above.
The touch pad has a dual func on.
• Is the speed dial bu on. Pressing a phone call is made to the number you have defi ned. Press again to
• Is the speed dial bu on. Pressing a phone call is made to the number you have defi ned. Press again to
• If you press a er entering a phone number available via touch keyboard, it made a phone call to that number.
Anyone press arm the system.
This new state of the system is confi rmed because while the system is armed will remain illuminated.
Enter the password on the touch keypad and press disarmament is confi rmed by issuing a long beep when you
press while the RFID reader emits a greenish blue circle light, then stay on to easily recognize at a glance
press while the RFID reader emits a greenish blue circle light, then stay on to easily recognize at a glance
the state the UNOTEC SAS.
If instead of a beep you hear three pressing is that the key is not inserted correctly and should try again.
press while the RFID reader emits a greenish blue circle light, then stay on to easily recognize at a glance
Press to record a voice message on the Central Control Panel ten se-
conds while remaining illuminated. An indigo blue light will fl ash around
the bu on Playing voice message to remind you that someone has le a
Bu on to record
voice message
Play the message

10
Sync bu on
When adding a new item to its Security Alarm System UNOTEC SAS, it must be synchronized with the system to
work together.
To perform this synchroniza on is necessary to dial an access code (default 1234) for its Central Control Panel and
then press
If you hear three beeps it is that you have entered a wrong access code and may not sync. Try again.
If it emits a long beep and lights, a  me window of 15 seconds in which to follow the instruc ons of the ele-
ment (usually an sabotage pressing the bu on or switch) to complete the pairing will open. You know that the
 me window has ended because no longer be illuminated.
If synchroniza on is successful the CCP will beep. If you hear two beeps it is that element was already paired with
your UNOTEC SAS.
Remember the order in which the sensors are synchronized to know because you will need to customize their na-
mes and receive some SMS clearer no ce.
When you are synchronizing an element you have to be especially careful during those 15 seconds we have to
synchronize our device any other is not ac ve fi rst by accident, because if this happens the device is ac vated fi rst
and that will synchronize wanted no. In any case, it always pays to prove that the device is properly synchronized
with it causing an alarm and no ng the number of the CCP that lights up when it occurs. Also should check the
actual range from its fi nal loca on.
* Note: The synchroniza on and subsequent verifi ca on of the correct linkage and sensor range from its fi nal lo-
ca on can be done without entering a SIM card in the CCP. In this way we will save the cost of SMS messages that
would be sent.
To perform this synchroniza on is necessary to dial an access code (default 1234) for its Central Control Panel and
If you hear three beeps it is that you have entered a wrong access code and may not sync. Try again.
If it emits a long beep and lights, a  me window of 15 seconds in which to follow the instruc ons of the ele-
ment (usually an sabotage pressing the bu on or switch) to complete the pairing will open. You know that the
 me window has ended because no longer be illuminated.

11
REAR
Microphone
Buzzer
Anti sabotage
Speaker
Backup batteries
Perforated slots to improve access sound microphone into Cen-
tral Control Panel.
With this microphone you can make recordings of the voice
message from the CCP. It is also required for bidirec onal com-
munica on established with phone calls.
These calls can be made in the following ways:
Manually. The speed dial number or any other pre-dial.
Automa cally. When the alarm or press the panic bu on is ac-
 vated.
Remotely. We can ask the CCP call us at the desired  me.
Thanks to these holes drilled in the plas c body of the CCP ABS projec on of sound produced by the internal siren
of 110 dB is favored.
The elements of a security system must have an an sabotage or Samper barrier. This method of protec on will
alert us if someone tries to manipulate the device ac va ng the alarm when it happens.
Two slots drilled in this place facilitate the projec on of the sound generated by the internal speaker of the Central
Control Panel.
This speaker we need for two-way communica ons with the Central.
It is also very useful because it informs us that commands or keystrokes made on the touch screen the received
successfully.
Finally, he is responsible for the 110dB internal siren generated by the CCP.
These two lithium ba eries 800mAh 3.7V and each are essen al because they allow us to keep the Security Alert
System SAS UNOTEC ac ve even when it fails (or someone inten onally cut) power supply. These ba eries are
prepared to keep ac ve, without external power, our UNOTEC SAS up for 5h.
When the power failure occur the CCP no fy us via SMS of the status of power failure so we can take appropriate
ac on. In case the power is restored the CCP will tell us that the situa on has returned to normal. Finally, when the
backup ba eries are running low, the CCP sent us another SMS to communicate to its ba eries have a low load.
* Note: If the CCP is powered only by the ba ery backup will not work RFID.
Backup Ba eries
Microphone Buzzer An Sabotage Speaker

12
INSIDE
SIM Card Slot
Mode 24h Sensor wiring
Activation output of electronic devices
Normal mode sensor wiring
Perforated slots to improve access sound microphone
into Central Control Panel.
With this microphone you can make recordings of the
voice message from the CCP. It is also required for
bidirec onal communica on established with phone
calls.
These calls can be made in the following ways:
Manually. The speed dial number or any other pre-
dial.
Automa cally. When the alarm or press the panic bu-
 on is ac vated.
Remotely. We can ask the CCP call us at the desired
 me.
If you already had another system of previous Security and has chosen to renew with UNOTEC SAS you can reuse
your old wired sensors that will remain equally useful, as the CCP is also compa ble with wired sensors integra ng
perfectly with the fantas c system announcements Security Alarm System UNOTEC SAS.
Unlike wireless sensors, sensor wiring can not be programmed to have diff erent behaviors, which is why the CCP
inside has two entrances.
Here you can connect one or more sensors simultaneously and operate as if they were programmed in 24h mode.
This output will provide a great versa lity to your UNOTEC SAS. With it, you can connect any device powered by
relay ac va on.
Imagine for example connect with an automa c lock, or when you get home automa cally turn lights or blinds to
climb, or at disarm your UNOTEC SAS from the remote control garage door automa cally opens. The only limit is
your ingenuity to make it work.
* Note: This output (relay) will ac vate for two seconds to disarm the SAS UNOTEC
The sensor (s) wiring that connects to the input labeled as Z2, work in Normal mode.
Following is internal wired connec ons to Central Control Panel they are located in the space between the two
backup ba eries and accessed by li ing the back cover.
Sim Card Slot
Mode 24h Sensor wiring
Normal Mode Sensor wiring
Ac va on output of electronic
devices
Wired siren output ≤ 500 mA
Power supply
Switch ON - OFF

13
REMOTE CONTROL SYSTEM FROM A SMARTPHONE
Wired siren output ≤ 500 mA
Power supply
Switch ON - OFF
This output is intended to be connected to a wired siren. This siren of 500 mA maximum internal siren will sound
when the CCP is ac vated.
Best of all is that, whether or not wired siren connected to this output, here you can connect all IP cameras that
they have always desired alarm input. This way you will be perfectly integrated a remote viewing images with
UNOTEC SAS. May display when the alarm occurs images that will clarify why it has generated the alarm. This
visualiza on can be done remotely from anywhere in the world with your mobile or via email, because the camera
will send an email to your email with the images captured at the  me of the alarm and, at worst cases, may no fy
the Security Forces of the State with legal arguments necessary, under current legisla on, to come to their aid.
This is the place where you must connect the AC / DC transformer supplied with the Central Control Panel and so
the electricity needed to supply the equipment.
Before turning on the Central Control Panel via this switch insert a SIM card PIN code lacking and if possible take
detours off into the slot designed for it.
The system can also operate without a SIM card, but in this case there will be no communica on with the outside
through the GSM network then become an audible warning system. Turn the CCP without a SIM card can be useful
for the pairing process and check scope of the various elements that form and for the fi rst few days while you are
in the ini al trial period.
If you have a smart phone or Smartphone without doubt the best is to use the manufacturer’s applica on for con-
fi guring and managing your Security Alarm System UNOTEC SAS. In addi on to using this applica on will reduce
by half the number of SMS required to perform any confi gura on, since the ini al SMS in which he requested the
CCP to the code set that parameter save.
The applica on, highly intui ve, called SAS UNOTEC Alarm, is free and is available for both iOS AppStore, and
Android in playstore.
It then proceeds to detail its opera on.
Download and install the SAS UNOTEC Alarm applica on.
Once you have done the following icon will appear on your mobile:
A er a while you can start trading with the applica on.
If a Security Alarm System confi gured on the phone you alre-
ady have, you can access it directly from this screen.
Being the fi rst  me you access the applica on will need to
click on the Add Account bu on and the following screen
opens:

14
You can now control your UNOTEC SAS from the applica on, here you can enter
data from the Central Control Panel UNOTEC SAS.
Set a name that helps you iden fy the UNOTEC SAS to be controlled and enter the
phone number associated with the SIM card which is inserted into the CCP.
To confi rm press the bu on made the top right.
* Note: The same applica on can control several UNOTEC SAS.
Click the bu on that iden fi es the system to be controlled and the following
appears:
The diff erent icons that appear on the screen to control the following func ons.
Estados del Sistema
• Armed • Disarmed
• Par al Armed • Record the voice message
• Establish two-way communica on with the monitored area
When you slide your fi nger across the screen from right to le will go to the next level.
* Note: You can know at what level is thanks to the three dots that appear at the bo om of the screen.
Pressing the Select bu on system language
WARNING: The system language, although the applica on can change, always have to be in English, otherwise
communica on errors can occur between the phone and the CCP

15
By clicking the bu on SIM SMS number for RFID tags
set the phone to reach the informa on when and who
disarmed the system with a proximity key.
Clicking on Storing speed dial numbers set the phone
number to be dialed by clicking on the speed dial bu on.
Rename pressing the bu on area can easily customize
the names of the sensors (zones).
Clicking on Clear will unlink RFID, upon confi rma on, all
keychains proximity to disarm the UNOTEC SAS.
* Note: It has to do when a proximity key is lost.
If from the control screen slide your fi nger twice on the
screen from right to le , you reach the third level of the
applica on.
Pressing Name Changes RFID tags you can customize
the names of the proximity keychains.

16
Pressing the Set  me delay bu on will set the delay  me
that will allow entry and exit from the area monitored
more comfortable.
Clicking the access bu on Key deac va on may choose
the code that must be entered in the CCP to disarm the
system manually.
Pressing the Volume bu on of the siren and ring dura-
 on confi gure the internal siren of the CCP.
* Note: It shall not aff ect other sirens.
Finally, if you click the bu on delay zone will set the  me
it takes to ac vate the alarm sensors programmed  med
since they are ac vated.
As can be seen, the confi gura on of Security Alarm System UNOTEC SAS through this applica on is very easy and
comfortable at the same  me reduces the number of SMS required to perform it.
That is why, whenever possible, we recommend using this applica on.
* Note: All sample images are taken from the SAS UNOTEC Alarm app that can be downloaded free from playstore
for iPhone op ons are the same slightly changing the wallpaper.

17
Storing numbers for telephone communica on
Se ng the phone to receive the no ces by RFID disar-
mament
Storing numbers for sending SMS
Remember before star ng the CCP PIN must be removed if possible detours off to the SIM card to be used in its
UNOTEC SAS. Once this is done we can introduce into the slot for the SIM card which is in the inside of the CCP.
Now connect the panel to the mains using the supplied power supply and only a er making sure that the SIM card
is inserted properly and that the wall bracket (or table) is properly seated, turn the ON - OFF switch to turn the
CCP .
* Note: Before making any confi gura on is necessary to properly plan the Security Alarm System UNOTEC SAS to
thereby avoid missteps and to make a meaningful confi gura on. Think about the people who will have a remote
control (remote control), which will use keychains proximity, the fi nal loca on of the diff erent elements ... Really
visualize your UNOTEC running SAS and think about the situa ons They presented.
Just open the case of your UNOTEC SAS, you will fi nd that it is confi gured by default to accept orders from any
phone contact with him. While his UNOTEC SAS is virgin Security System is very vulnerable, as anyone who knows
the telephone number associated with the SIM card inserted in the CCP will operate at will.
That is why the fi rst opera on to be performed is to set the phone numbers that have permission to access and
confi gure your UNOTEC SAS. Remember the environment in which it will be installed and users must have access
to it.
CCP CONFIGURATION AND MANAGEMENT
Previous Steps
Permissions settings
Send SMS to CCP
Send SMS to CCP
Send SMS to CCP
This is the SMS
will receive
This is the SMS
will receive
This is the SMS
will receive
Confi rma on
SMS
Confi rma on
SMS
Confi rma on
SMS
Add the desired
numbers and
resend the SMS
Add the desired
number and
resend the SMS
Add the desired
numbers and
resend the SMS

18
Customization of devices
Customizing sensor names
To receive clearer SMS and improve your experience with our UNOTEC SAS is convenient to customize the various
elements of your system by pu ng the appropriate names.
To do this it is necessary that these devices are previously synchronized with our system.
Customizing the names of the RFID keychains Tags
Send SMS “10” to the telephone number associated with the SIM card you entered in the Central Control Panel.
El CCP le enviará un SMS para que se lo reenvíe incluyendo los nombres de las personas que usted ya ha decidido
que van a desarmar el sistema por medio del llavero de proximidad (sus hijos, su marido, la asistenta…).
Finally you will receive an SMS confi rming that the opera on was successful.
* Note: Although you can synchronize up to fi  y RFID tags, can only customize the name of the fi rst four synchro-
nized RFID cards.
* Note 2: It is desirable that those who use a method of disarmament can not use another, that is, those who are
not familiar with the key password and using the remote control does not have key.
If those key also know the key, with the excuse that they can forget the key, they can disarm the system by key dis-
armament thereby circumven ng the SMS control that tells about the  me and who has System disarmed. Think as
an indispensable key to enter the guarded area element and if one day I always forget you can call them to disarm
the system remotely from your mobile.
Podemos decir que hay tres niveles de permisos:
Access permissions. People with this permission will only have proximity key to disarm the system.
Advanced access permissions. People with this type of permit will know the password and have a remote control
(RC-80). This means you can access the monitored area without anyone being informed.
Permissions control. People with this permission will have full control over the system may or may not have an
RC-80 but his mobile phone number is stored at the CCP so they can remotely control the SAS UNOTEC at will.
Send SMS to CCP
This is the SMS
will receive
Add the names of
the carriers of RFID
tags and forward the SMS
Confi rma on
SMS
Add the names of
the sensor and
forward the SMS
(92 for the second
sync sensor,
93 for the third...)

19
Changing the password (disarmament)
of UNOTEC SAS
Delay settings for input and output of the monitored area
Setting the volume and length of the
internal siren of the CCP
Once at this point, we can only defi ne a few more parameters for our Security Alarm System UNOTEC SAS is ope-
ra onal.
Factory this func on is disabled. If you want the person to arm the system from the CCP have a window of  me to
leave the area without triggering any sensor monitored you must set the  me in seconds that must last the window.
This func on is very useful because it allows arming and disarming the system from the Central Control Panel wi-
thout any alarm. If le at zero seconds will be forced to place the CPC outside the zone monitored whether to use
keychains proximity, or you have to use every  me the remote control (or mobile) to disarm and arm the system
remotely without trigger alarms.
* Note: disarmament through the CCP can use other specifi c delay for a specifi c sensor which is what we will see
in the next sec on, but here we are considering how to do it with this delay.
It is also used when deciding to disarm the system with a key that is inside the house. Thus, if you know exactly
where that key is it is able to go for it and disarm the system before they jump the alarms. If you decide to use this
possibility need not be carried above the key, but of course, does not know who has entered since the same key
will use several people.
Its opera on is as follows:
• A sensor (you coming through the door) is ac vated.
• A beep reminds you that you must disarm the system or alarm.
• Disarm the system with proximity key or by key. Reverse opera on:
• Weapon System from the CCP or the RC-80.
• A beep reminds you that you must leave the supervised area or jump the alarm.
• Leave the monitored area without triggering alarms and a few seconds later the
system will enter arming status.
To set a delay  me of input and output from a sensor is ac vated, or the system is
armed and the alarm, or UNOTEC SAS enters the armed status, do the following:
The most common configuration parameters

20
Configuring the activation delay for specific sensors
Confirmation of the most common parameters
Unlike the previous delay for input and output aff ects all sensors programmed in Normal, House and  med, this
delay aff ects only those who have programmed in Timed Mode.
Its func on is to allow more reac on  me (up to fi ve minutes) for disarming the system without se ng off alarms
when accessing the area being monitored by a less common entry and requires more  me to approach the CCP or
area in which the Remote Control to disarm the system scope. The advantage of this is that only one door is le
with more  me but the rest of sensors con nues to ac vate the alarm immediately or a er the lapse of the delay
 me of input and output (if this has been enabled).
This delay applies only to the ac va on of alarms upon ac va on of a programmed  med sensor, but these sensors
will be assembled in the same way as scheduled in Normal mode, which does not allow us alone, leave the monito-
red area without triggering the alarm when arming the system from the CCP.
This means that if used wrongly as delay to leave the area monitored once armed the system without triggering the
alarm, all you get is jump alarms when it is outside the monitored area. If you just want to do the la er, you must
use the input and output delay we explained in the previous sec on. The
delay of the sensors (zones) programmed in Timed Mode is only for input,
not output.
To set a delay  me in ac va ng alarms when sensors programmed in
Timed Mode is ac vated and thus give  me to disarm the system when
accessing a diff erent input monitored by the usual area, do the following:
