Upright TM12 User manual

TM12
Work Platform
Serial Numbers 7352 - Current
Publication Number: 107099-002

Call Toll Free in U.S.A.
1-800-926-LIFT
UpRight, Inc.
801 South Pine Street
Madera, California 93637
TEL: [phone]
FAX: [phone]
PARTS: 1-888-UR-PARTS
PARTS FAX: [phone]
UpRight
Unit S1, Park West Industrial Park
Friel Avenue
Nangor Road
Dublin 12, Ireland
TEL: [phone]
FAX: [phone]
When contacting UpRight for service or parts information, be sure to include the MODEL and SERIAL NUMBERS
from the equipment nameplate. Should the nameplate be missing, the SERIAL NUMBER is also stamped on top of
the chassis near the front axle pivot.
TM12
Serial Number 7352 to current
Stamped Serial Number

Service Manual Page i
F OREWORD
This manual contains instructions for the maintenance of the machine. Referring to the Operator Manual
will aid in understanding the operation and function of the various components and systems of the
machine, and help in diagnosing and repair of the machine.
All information contained in this manual is based on the latest product information available at the time of
printing. We reserve the right to make changes at any time without notice. No part of this publication may
be reproduced, stored in retrieval system, or transmitted, in any form by any means, electronic, mechani-
cal, photocopying, recording, or otherwise, without the prior written permission of the publisher. This
includes text, figures and tables.
This manual consists of five (5) parts.
O PERATOR M ANUAL
A copy of the Operator Manual that is stored on every UpRight Aerial Work Platform.
S ECTION 1 - G ENERAL I NFORMATION
Contains generic information relevant to all UpRight Aerial Work Platforms.
S ECTION 2 - S ERVICE AND R EPAIR
Detailed information specific to this UpRight Aerial Work Platform.
S ECTION 3 - T ROUBLESHOOTING
Causes and solutions to typical problems.
S ECTION 4 - S CHEMATICS
Electric and Hydraulic schematics.

Foreword
Page ii Service Manual
N OTES :

107098-002 TM12 - Operator Manual Page 1
OPERATOR MANUAL
WARNING
All personnel shall carefully read, understand and follow all safety rules, operating instructions,
and the Scaffold Industry Association’s MANUAL OF RESPONSIBILITIES of ANSI A92.6-1999
before performing maintenance on or operating any UpRight Aerial Work Platform.
Safety Rules
Safety RulesSafety Rules
Safety Rules
•NEVER operate the machine without first surveying the work area for surface hazards such as holes, drop-offs, bumps,
curbs, or debris.
•NEVER operate the machine if all guardrails are not properly in place and secured with all fasteners properly torqued.
•ALWAYS close and secure the entrance after entering the platform.
•NEVER use ladders or scaffolding on the platform.
•NEVER exceed the maximum platform load. See “Specifications” on page 16.
•NEVER attach overhanging loads or increase platform size.
•LOOK up, down and around for overhead obstructions and electrical conductors.
•DISTRIBUTE all platform loads evenly on the platform.
•NEVER use damaged equipment. (Contact UpRight for instructions. See toll free phone number on inside back cover.)
•NEVER change operating or safety systems.
•INSPECT the machine thoroughly for cracked welds, loose or missing hardware, hydraulic leaks, damaged cables or
hoses, loose wire connections, and wheel bolts.
•NEVER climb down elevating assembly when the platform is elevated.
•IF ALARM SOUNDS while the platform is elevated, STOP, carefully lower the platform. Move the machine to a firm, level
surface.
•IN CASE OF EMERGENCY push the Emergency Stop Switch to cut power to all machine functions.
•NEVER perform service on the machine while the platform is elevated without blocking the elevating assembly.
•NEVER recharge batteries near sparks or open flame; batteries that are being charged emit explosive hydrogen gas.
•NEVER replace any component or part with anything other than original UpRight replacement parts without the manufac-
turer’s written consent.
•VERIFY that all labels are in place and legible before using.
•NEVER tow the machine. Transport by truck or trailer only.
•AFTER USE, secure the machine against unauthorized use by turning the Chassis Key Switch off and removing the key.
California Proposition 65 Warning
Battery Posts, terminals and related accessories contain lead compounds, chemicals known to the State of
California to cause cancer and reproductive harm. Wash hands after handling.
NEVER operate or drive with the
platform elevated unless on firm, level
surface.
NEVER position the machine without
first checking for overhead obstructions
or other hazards.
NEVER climb, stand or sit on the
platform guardrails or midrail.

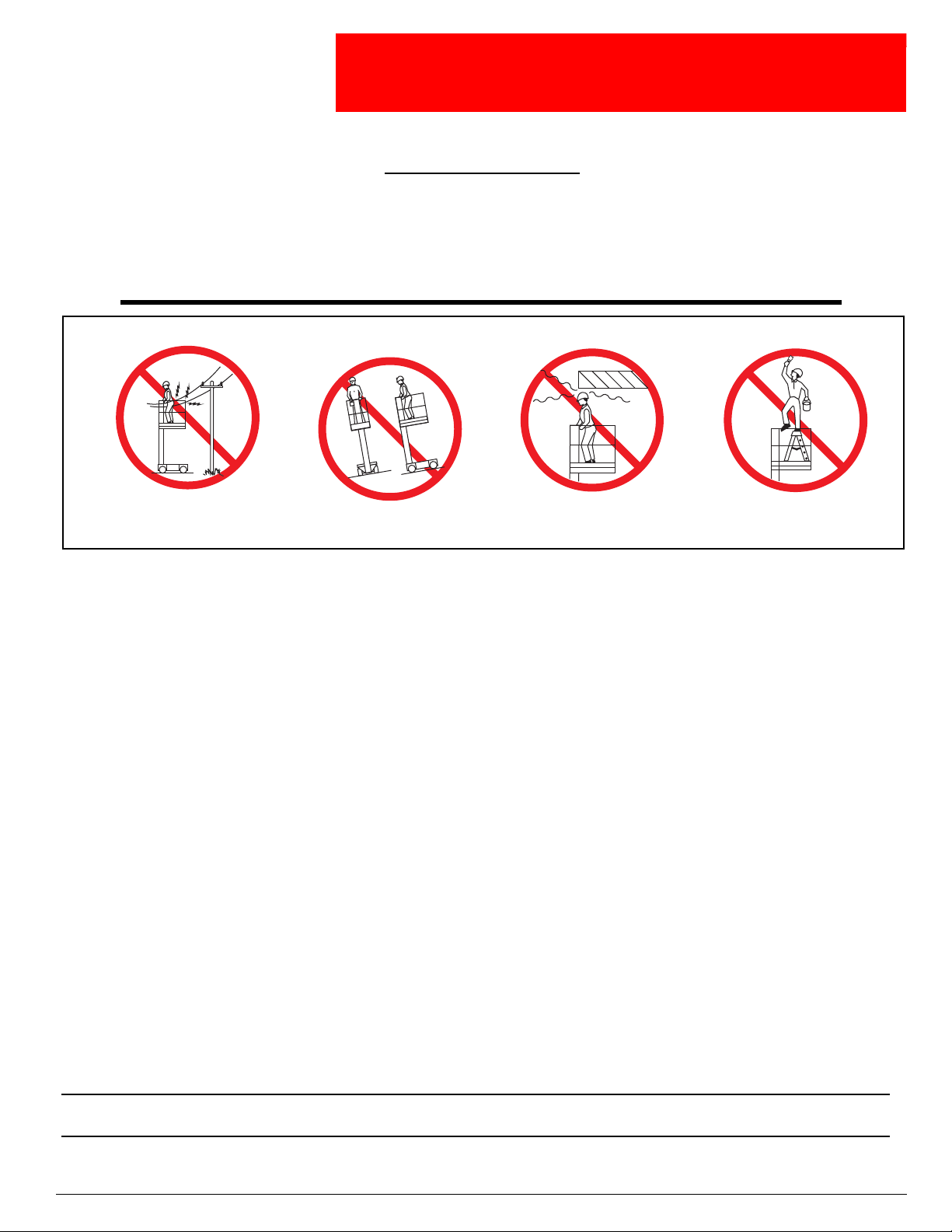

Electrocution Hazard
Electrocution HazardElectrocution Hazard
Electrocution Hazard Tip Over Hazard
Tip Over HazardTip Over Hazard
Tip Over Hazard Collision Hazard
Collision HazardCollision Hazard
Collision Hazard Fall Hazard
Fall HazardFall Hazard
Fall Hazard
NEVER operate the machine within ten
(10) feet of power lines.
THIS MACHINE IS NOT INSULATED.

Page 2 107098-002 TM12 - Operator Manual
C ONTENTS
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
General Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Controls and Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Pre-Operation Safety Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
System Function Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Travel With Platform Lowered . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Elevating The Platform . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Travel With The Platform Elevated . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Lowering The Platform . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Emergency Lowering. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Parking Brake Release . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
After Use Each Day. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Transporting the Machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
By Crane . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
By Forklift . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
By Truck . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Blocking the Elevating Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Hydraulic Fluid. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Check Hydraulic Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Battery Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Battery Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Daily Inspection and Maintenance Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Daily Preventative Maintenance Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Introduction
107098-002 TM12 - Operator Manual Page 3
I NTRODUCTION
This manual covers the TM12 Aerial Work Platform. This manual must be stored on the machine at all
times.
Read, understand and follow all safety rules and operating instructions before attempting to operate the
machine.
G ENERAL D ESCRIPTION

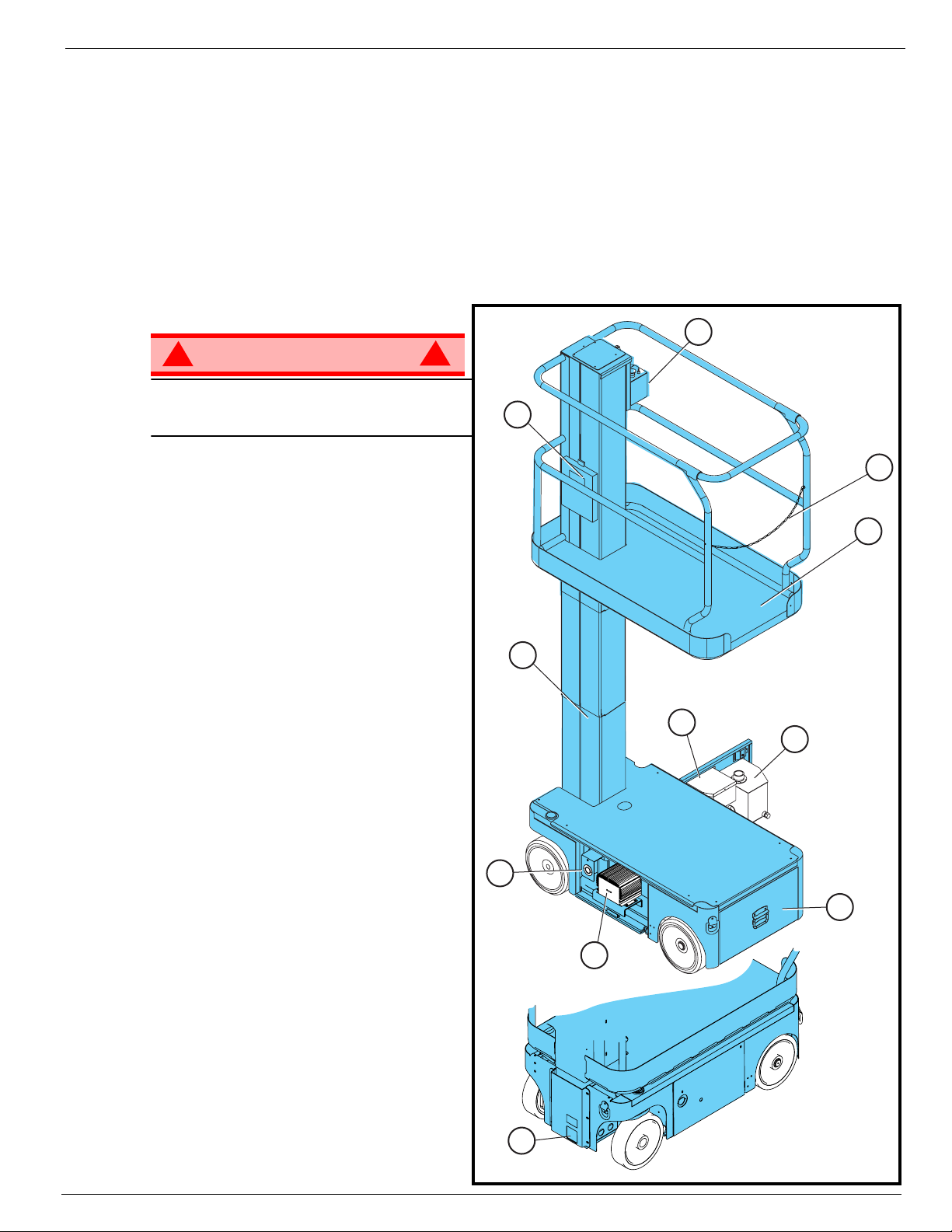

Figure 1: TM12 Series
WARNING
!!
DO NOT use the machine if all guardrails
are not properly in place and secured with
all fasteners properly torqued.
1. Platform
2. Entry Chain
3. Elevating Mast
4. Platform Controls
5. Manual Case
6. Electrical Box
7. Hydraulic Reservoir
8. Battery Tray
9. Emergency Down Valve Knob
10. Battery Charger
11. Charger Outlet Plug
4
67
8
10
11
1
2
3
5
9

Page 4 107098-002 TM12 - Operator Manual
Controls and Indicators
C ONTROLS AND I NDICATORS
The operator shall know the location of each control and indicator and have a thorough knowledge of the
function and operation of each before attempting to operate the unit.
Figure 2: Controls and Indicators
P RE -O PERATION S AFETY I NSPECTION
NOTE: Carefully read, understand and follow all safety rules, operating instructions, labels, and the Scaffold
Industry Association’s MANUAL OF RESPONSIBILITIES of ANSI A92.6-1999. Perform the following
steps each day before use.
1. Open the chassis door and inspect for damage, fluid leaks or missing parts.
2. Check the level of the hydraulic fluid with the platform fully lowered. Open the chassis door and remove
the reservoir cap, fluid should be visible on the dipstick. Add recommended hydraulic fluid if necessary.
See “Specifications” on page 16.
3. Check that the fluid level in the batteries is correct. See “Battery Maintenance” on page 10.
4. Verify that the batteries are charged.
5. Check that the A.C. extension cord has been disconnected from the chassis outlet.
6. Check that all guardrails are properly in place and secured with all fasteners properly torqued.
7. Inspect the machine thoroughly for cracked welds, loose or missing hardware, hydraulic leaks, dam-
aged cables or hoses, loose wire connections, and wheel bolts.
Platform Controller
5
2
8
6
7
9
1
Chassis Controller (Right Side)
4
3
5
2
1. Interlock Switch
2. Platform Emergency Stop Switch
3. Control Handle
4. Steering Switch
5. Lift/Drive Switch
6. Chassis Emergency Stop Switch
7. Chassis Up/Down Switch
8. Chassis Key Switch
9. Hour Meter

System Function Inspection
107098-002 TM12 - Operator Manual Page 5
S YSTEM F UNCTION I NSPECTION
Refer to Figure 1 and Figure 2 for the locations of various controls and indicators.
WARNING
!!
STAND CLEAR of the machine while performing the following checks.
Before operating the machine, survey the work area for surface hazards such as holes, drop-offs, bumps,
curbs, or debris.
LOOK up, down and around for overhead obstructions and electrical conductors.
Protect the control cable from possible damage while performing checks.
1. Move the machine, if necessary, to an unobstructed area to allow for full elevation.
2. Turn the Chassis and Platform Emergency Stop Switches ON by pulling the buttons out.
3. Check Level Sensor operation:

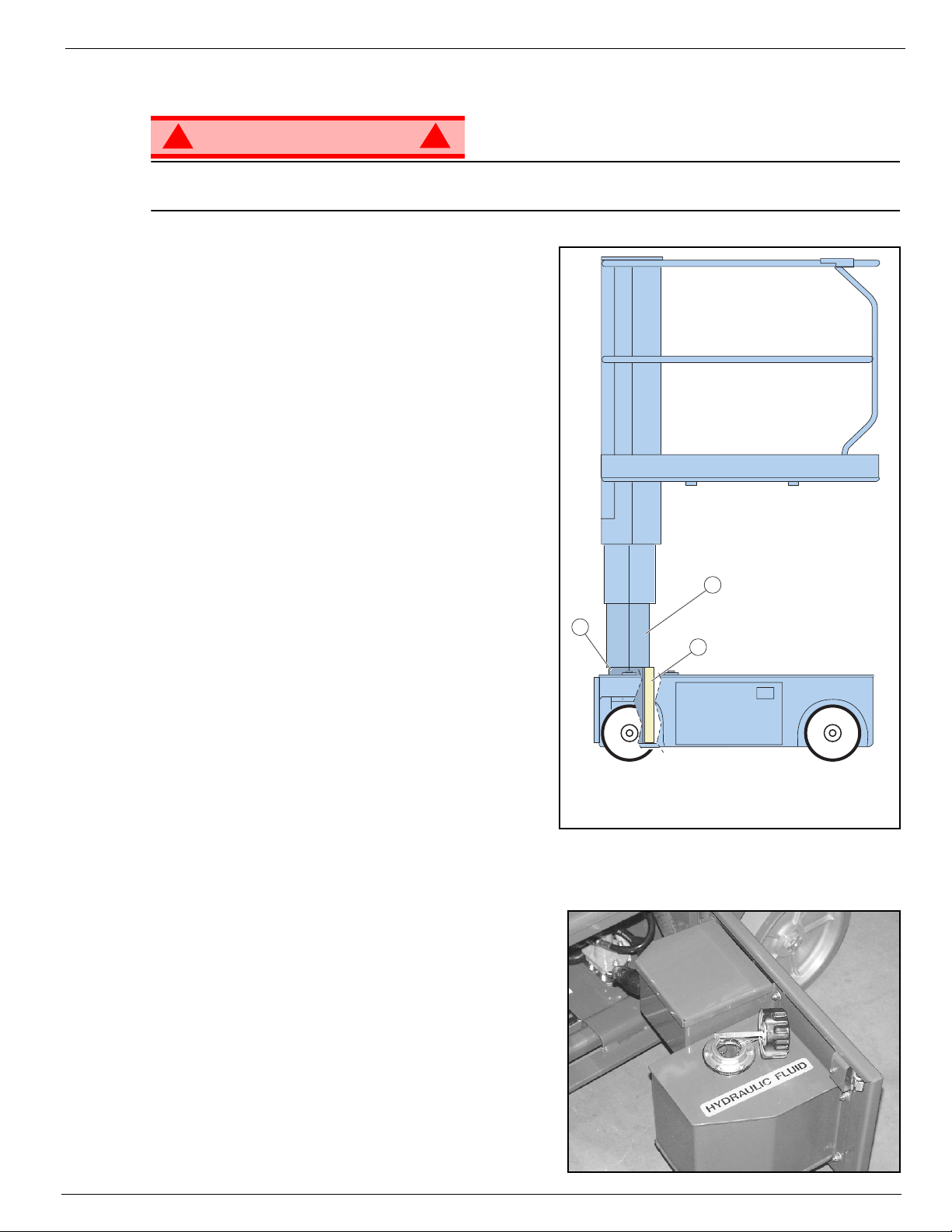

Figure 3: Level Sensor Location
a. Open the door.
b. Push and hold the sensor off of level.
c. Turn and hold the Chassis Key Switch to
CHASSIS and push the Chassis Up/Down
Switch to the UP position.
• The alarm should sound, and the plat-
form should not lift.
d. Close and latch the door.
4. Turn and hold the Chassis Key Switch to
CHASSIS and push the Chassis Up/Down
Switch to the UP position and fully elevate the
platform.
5. Visually inspect the mast assembly for dam-
age or erratic operation. Check for missing or loose parts.
6. Verify that the depression mechanism supports have rotated into position under the machine.
7. Partially lower the platform by pushing the Chassis Up/Down Switch to DOWN, and check the operation
of the audible lowering alarm.
8. Check the Emergency Down Valve for proper operation (see Figure 4):
a. Open the valve by pulling the knob out.
b. Once the platform is fully lowered, close the valve by releasing the knob.
9. Push the Chassis Emergency Stop Switch in to the OFF position. All machine functions should be dis-
abled. Pull the Chassis Emergency Stop Switch out to resume.
10. Turn the Chassis Key Switch to DECK.
11. Check that the route is clear of persons, obstructions, holes and drop-offs, is level and capable of sup-
porting the wheel loads.
12. After mounting the platform, properly close and secure the entrance.
13. Position the Lift/Drive Switch to DRIVE.
14. Check for speed and directional control.
• While engaging the Interlock Switch, slowly position the Control Handle to FORWARD then
REVERSE. The farther you push or pull the Control Handle from center the faster the machine will
travel.
15. Push the Steering Switch RIGHT then LEFT to check for steering control.
16. Turn the Lift/Drive switch to LIFT to check platform lift controls.
• While engaging the Interlock Switch, move the Control Handle to UP to raise the platform.
• While engaging the Interlock Switch, move the Control Handle to DOWN to lower the platform. The
platform should descend and the audible lowering alarm should sound.
17. Push the Platform Emergency Stop Switch in to the OFF position. All machine functions should be dis-
abled. Pull the Platform Emergency Stop Switch out to resume.
Level Sensor

Page 6 107098-002 TM12 - Operator Manual
Operation
O PERATION
Before operating the machine, ensure that the Pre-Operation Safety Inspection and System Function
Inspection has been completed and that any deficiencies have been corrected. Never operate a dam-
aged or malfunctioning machine. The operator must be thoroughly trained on this machine.
T RAVEL W ITH P LATFORM L OWERED
1. Check that the route is clear of surface hazards such as holes, drop-offs, bumps, curbs, or debris.
2. Check that the route is level, and is capable of supporting the wheel loads.
3. Verify that the Chassis Key Switch is turned to DECK and the Chassis Emergency Stop Switch is ON,
(pull button out).
4. After mounting the platform, properly close entrance.
5. Check clearances above, below and to the sides of the machine.
6. Pull the Platform Controls Emergency Stop switch up to the ON position.
7. Position the Lift/Drive Switch to DRIVE.
8. While depressing the Interlock Switch, slowly push or pull the Control Handle to FORWARD or
REVERSE position to travel in the desired direction. The farther you push or pull the Control Handle
from center the faster the machine will travel.
S TEERING
NOTE: Steering is not self-centering. Wheels must be returned to straight ahead position by operating the Steering
Switch.
1. Position the Lift/Drive Switch to DRIVE.
2. While depressing the Interlock Switch, push the Steering Switch to RIGHT or LEFT to turn the wheels
in the desired direction. Observe the tires while maneuvering the machine to ensure proper direction.
E LEVATING T HE P LATFORM
1. Position the Lift/Drive Switch to LIFT.
2. While depressing the Interlock Switch, push Control Handle forward to UP, the farther you push the
Control Handle the faster the Platform will elevate.
3. If the machine is not level the Tilt Alarm will sound and the machine will not lift or drive. If the Tilt alarm
sounds the platform must be lowered and the machine moved to a firm, level surface before attempting
to elevate the platform.
T RAVEL W ITH T HE P LATFORM E LEVATED
NOTE: The machine will travel at reduced speed when the platform is elevated.
1. Check that the route is clear of surface hazards such as holes, drop-offs, bumps, curbs, or debris.
2. Check that the route is level, and is capable of supporting the wheel loads.
3. Check clearances above, below and to the sides of the platform.
4. Position the Lift/Drive Switch to the DRIVE position.
5. While depressing the Interlock Switch, push Control Handle to FORWARD or REVERSE for desired
direction of travel.
6. If the machine is not level the Tilt Alarm will sound and the machine will not lift or drive. If the Tilt alarm
sounds the platform must be lowered and the machine moved to a level location before attempting to
elevate the platform.
L OWERING T HE P LATFORM
1. Position the Lift/Drive Switch to LIFT.
2. While depressing the Interlock Switch, pull back on the Control Handle.

Operation
107098-002 TM12 - Operator Manual Page 7
E MERGENCY L OWERING
WARNING
!!
If the platform should fail to lower, NEVER climb down the elevating assembly.
Stand clear of the elevating assembly while operating the Emergency Down Valve Knob.
Figure 4: Emergency Down Valve Knob
Ask a person on the ground to open the Emergency
Down Valve to lower the platform. The Emergency Down
Valve Knob is located at the front of the chassis.
1. Open the Emergency Down Valve by pulling the knob
out.
2. To close, release the knob.
NOTE: The platform will not elevate if the Emergency Down Valve
is open.
P ARKING B RAKE R ELEASE
Perform the following procedure only when the machine will not operate under its own power and it is nec-
essary to move the machine, or when winching onto a trailer to transport.
Figure 5: Parking Brake Release
1. Remove the spring compression nut so the
spring is loose and the brake bars are away
from the tires.
2. The machine will now roll when pushed or
pulled.
After moving the machine and before normal oper-
ation:
1. Replace the spring compression nut and
tighten until the spring measures 22,2 cm –
22,9 cm (8¾ in. – 9 in.) in length, verify that
the brake bars have fully engaged the tires
before the machine is operated.
WARNING
!!
Never tow faster than 0,3 m/sec. (1 ft./sec.).
Never operate the machine with the parking brakes released. Serious injury or damage could result.
A FTER U SE E ACH D AY
1. Ensure that the platform is fully lowered.
2. Park the machine on a firm level surface, preferably under cover, secure against vandals, children and
unauthorized operation.
3. Turn the Chassis Key Switch to OFF and remove the key to prevent unauthorized operation.
Emergency Down Valve Knob
Spring
Compression
Nut
8¾ in. – 9 in.

Page 8 107098-002 TM12 - Operator Manual
Transporting the Machine
T RANSPORTING THE M ACHINE
B Y C RANE
DANGER
! !
See specifications for weight of machine and be certain that crane is of adequate capacity to lift the
machine.
Secure the straps to chassis lifting/tie down points only.
B Y F ORKLIFT
DANGER
! !
Forklifting is for transport only.
See specifications for weight of machine and be certain that forklift is of adequate capacity to lift the
machine.
Figure 6: Transporting the Machine
Forklift from the side by lifting under the chassis.
B Y T RUCK
1. Maneuver the machine into transport position and
chock wheels.
2. Secure the machine to the transport vehicle with
chains or straps of adequate load capacity
attached to the chassis lifting/tie down points.
CAUTION
Overtightening chains or straps attached to the Tie
Down lugs may result in damage to the machine
Forklift From
Side
Typical Tie Down/Lift Points
(D-Rings)

Maintenance
107098-002 TM12 - Operator Manual Page 9
M AINTENANCE
WARNING
!!
Never perform service while the platform is elevated without first blocking the elevating assembly.
DO NOT stand in the elevating assembly area while deploying or storing the brace.
Figure 7: Supporting the Elevating Assembly
B LOCKING THE E LEVATING
A
SSEMBLY
I
NSTALLATION
1. Park the machine on firm level ground.
2. Verify that both Emergency Stop Switches are ON.
3. Turn and hold the Chassis Key Switch to CHASSIS.
4. Position the Chassis Up/Down Switch to UP and ele-
vate the platform approximately 1,2 m (4 ft.).
5. Place a solid 2 x 4 wood block, approximately 50 cm
(18 in.) long, between the number two mast and
chassis just behind the mast assembly and against
the number one mast.
6. Move the Chassis Lift Switch to the DOWN position
and gradually lower the work platform until the num-
ber two mast is supported by the block.
R
EMOVAL
1. Push the Chassis Up/Down Switch to the UP posi-
tion and gradually raise platform until the wood block
can be removed.
2. Remove the block.
3. Push the Chassis Up/Down Switch to the DOWN
position and completely lower the platform.
H YDRAULIC F LUID
The hydraulic fluid reservoir is located in the chassis door.
Figure 8: Hydraulic Fluid Reservoir and Dipstick
NOTE: Never add fluid if the platform is elevated.
C
HECK
H
YDRAULIC
F
LUID
1. Make sure that the platform is fully lowered.
2. Open the chassis door.
3. Remove the filler cap from the hydraulic fluid reser-
voir.
4. Check the fluid level on the dipstick on the filler cap.
5. Add the appropriate fluid to bring the level to the FULL
mark. See “Specifications” on page 16.
1
2
3
1 Wood Block 50 cm (18 in.) long
2. Number Two Mast
3. Number One Mast

Page 10 107098-002 TM12 - Operator Manual
Maintenance
B ATTERY M AINTENANCE

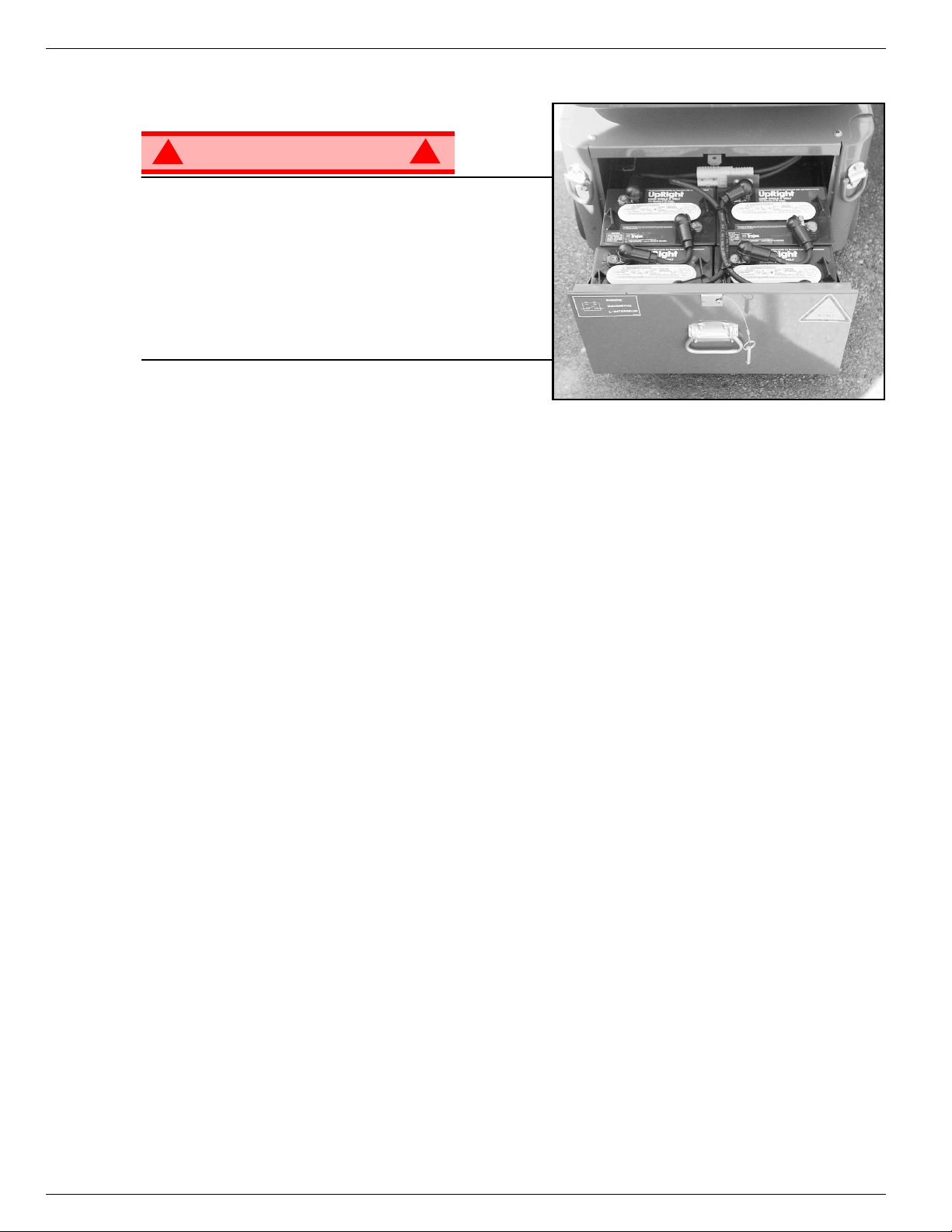

Figure 9: Access to Batteries
WARNING
!!
Hazard of explosive gas mixture. Keep sparks, flame,
and smoking material away from batteries.
Always wear safety glasses when working near
batteries.
Battery fluid is highly corrosive. Thoroughly rinse away
any spilled fluid with clean water.
Always replace batteries with UpRight batteries or
manufacturer approved replacements weighing 26,3 kg
(58 lbs.) each.
•Check the battery fluid level daily, especially if the machine is being used in a warm, dry climate.
•If electrolyte level is lower than 10 mm (3/8in.) above the plates add distilled water only. DO NOT use
tap water with high mineral content, as it will shorten battery life.
•Inspect the battery regularly for signs of cracks in the case, electrolyte leakage and corrosion of the
terminals.
•Inspect cables regularly for worn spots or breaks in the insulation and for broken cable terminals.
•Keep the terminals and tops of the batteries clean.
•Refer to the Service Manual to extend battery life and for complete service instructions.

Maintenance
107098-002 TM12 - Operator Manual Page 11
B ATTERY C HARGING
Figure 10: Battery Charge Indicator
Charge the batteries at the end of each work shift or
sooner if the batteries have been discharged.
WARNING
!!
Charge the batteries in a well ventilated area.
Do not charge the batteries when the machine is near a
source of sparks or flames.
Permanent damage to the batteries will result if the
batteries are not immediately recharged after discharging.
Never leave the battery charger operating for more than two days.
Never disconnect the cables from the batteries when the charger is operating.
Keep the charger dry.
1. Check the battery fluid level. If the battery fluid level is lower than 10 mm (3/8in.) above the plates add
distilled water only.
2. Connect an extension cord (1,5 mm²[12 gauge] minimum conductor diameter; 15 m [50 ft.] maximum
length) to the charger plug located through a cutout at the left side of the chassis.
3. The charger turns on automatically after a short delay. There are three LED’s to indicate the state of
charge cycle.
•The first LED will blink until the batteries reach 50% state of charge, and then it will stop blinking and
stay ON.
•The second LED will blink until the batteries reach 75% state of charge, and then it will stop blinking
and stay ON.
•The third LED will blink until the batteries reach 100% state of charge, and then it will stop blinking and
stay ON.
•When the batteries are fully charged, all three LED’s will stay ON. The battery charger will automati-
cally turn off a short time after the batteries reach full charge.
NOTE: The battery charger circuit must be used with a GFI (Ground Fault Interrupt) outlet.
NOTE: DO NOT operate the machine while the charger is plugged in.
Battery
Charge
Indicator

Page 12 107098-002 TM12 - Operator Manual
Daily Inspection and Maintenance Schedule
D AILY I NSPECTION AND M AINTENANCE S CHEDULE
The Complete Inspection consists of periodic visual and operational checks, along with periodic minor
adjustments that assure proper performance. Daily inspection will prevent abnormal wear and prolong the
life of all systems. Perform the inspection and maintenance items daily. Inspection and maintenance shall
be performed by personnel who are trained and familiar with mechanical and electrical procedures.
WARNING
!!
Before performing preventative maintenance, familiarize yourself with the operation of the machine.
Always block the elevating assembly whenever it is necessary to perform maintenance while the
platform is elevated.
The daily preventative maintenance checklist has been designed for machine service and maintenance.
Please photocopy the Daily Preventative Maintenance Checklist and use the checklist when inspecting
the machine.

Daily Preventative Maintenance Checklist
107098-002 TM12 - Operator Manual Page 13
D AILY P REVENTATIVE M AINTENANCE C HECKLIST
M
AINTENANCE
T
ABLE
K
EY
Y= Yes/Acceptable
N= No/Not Acceptable
R= Repaired/Acceptable
P
REVENTATIVE
M
AINTENANCE
R
EPORT
Date: _______________________________________
Owner: ______________________________________
Model No: ___________________________________
Serial No:____________________________________
Serviced By: _________________________________
COMPONENT INSPECTION OR SERVICES Y N R
Battery
Check electrolyte level.
Check battery cable condition.
Charge batteries
Check charger condition and operation
Chassis Check hoses for pinch or rubbing points.
Check welds for cracks.
Control Cable Check the exterior of the cable for pinching,
binding or wear.
Controller Check switch operation.
Drive Motors Check for operation and leaks.
Elevating Assembly Inspect for external damage, dents, loose rivets
or cracks.
Emergency Hydraulic
System
Operate the emergency down valve and check
for serviceability.
Entire Unit Perform pre-operation inspection.
Check for and repair collision damage.
Hydraulic Fluid Check fluid level.
Hydraulic Pump Check for hose fitting leaks.
Hydraulic System Check for leaks.
Labels Check for peeling, missing, or unreadable
labels & replace.
Lift Cylinder Check for leaks
Platform Deck and
Rails
Check welds for cracks.
Check condition of deck.
Check entry way closure.
Tires Check for damage.
Wheels Check for loose components
COMPONENT INSPECTION OR SERVICES Y N R

Page 14 107098-002 TM12 - Operator Manual
Labels
L ABELS
These labels shall be present and in good condition before operating the machine. Be sure to read, under-
stand and follow these labels when operating the machine.
1 060197-000
2 066552-000
3 061205-005
5 005221-000
6 005223-005
7 .066554-000
8 107050-000
10 101250-000
13 010076-001
15 065568-001
19 062562-001
20 066550-001
21 014222-003-99
22 061220-002
23 066555-000
24 066568-000
25 066556-000
26 066522-000
27 101252-000
28 066556-001
29 107051-000
HYDRAULIC FLUID
060197-000
BATTERY
MAINTAIN BATTERY FLUID
AT RECOMMENDED LEVEL
EMERGENCY
STOP
LIFT DRIVE
NEUTRAL
UpRight
FORWARD
UP
DOWN
REVERSE
CUTOUT
CUTOUT
EMERGENCY
STOP
UP
DOWN DECK
OFF
CHASSIS
BREAKER
CIRCUIT
TIP-OVER HAZARD
DANGER
!
BATTERIES ACT AS COUNTERWEIGHT
60 LBS OR MORE
EACH REPLACEMENT BATTERY SHALL WEIGH
TIP-OVER HAZARDS
ELECTROCUTION HAZARD
FALL HAZARD
slopes or soft ground.
DO NOT elevate or drive elevated on
drop offs
DO NOT drive into holes or over
lines. THIS MACHINE IS NOT INSULATED.
DO NOT operate within ten feet of power
wires.
Look up, down and around for electrical
DO NOT climb on guardrail.
Make sure guardrails are fastened securely
Secure gate or chain across enterance.
DO NOT use ladders or scaffolding on platform
DO NOT climb down mast.
!
DANGER
serious injury.
rules will cause death or
and obey the following safety
Failure to read, understand,
!
WARNING
CRUSHING HAZARD
SERVICING MACHINE
COMPLETELY BEFORE
LOWER PLATFORM
PLATFORM
KEEP CLEAR OF
CHARGER
BATTERY

Labels
107098-002 TM12 - Operator Manual Page 15
Figure 11: Safety Labels Locations

Page 16 107098-002 TM12 - Operator Manual
Specifications
S PECIFICATIONS
Specifications subject to change without notice. Refer to the Service Manual for service and repair infor-
mation. Refer to the Parts Manual for illustrated parts breakdown. Hot weather or heavy use may reduce
performance. Meets or exceeds all applicable national safety requirements
*Specifications are subject to change without notice. Hot weather or heavy use may affect performance.
Refer to the Parts Manual and the Service Manual for complete parts and service information.
The TM12 meets or exceeds all applicable requirements of OSHA and ANSI A92.6-1999.
ITEM TM12
Platform Size 73,7 cm x 1,04 m (29 in. x 41 in.)
Maximum Platform Capacity 227 kg (500 lbs.)
Maximum Number of Occupants 2 People
Height
Working Height 5,83 m (19 ft.)
Maximum Platform Height 3,66 m (12 ft.)
Minimum Platform Height 48,3 cm (19 in.)
Dimensions
Weight 776 kg (1710 lbs.)
Overall Width 76 cm (30 in.)
Overall Height (Lowered) 165 cm (65 in.)
Overall Length 1,36 m (53.5 in.)
Drive Speed
Platform Lowered 3,65 km/h (2.27 mph)
Platform Raised 0,87 km/h (0.54 mph)
Energy Source 24V battery pack
Four 220 ampere hour, 6 Volt batteries, min. wt. 26,3 kg (58 lbs.) each
4 HP DC electric motor
System Voltage 24 VDC
Battery Charger 20 AMP, 220 VAC 50Hz
Battery Duty Cycle 25% for 8 Hours
Hydraulic Reservoir Capacity 7,2 L (1.9 gal)
Maximum Hydraulic System Pressure 165 bar (2400 psi)
Hydraulic Fluid
Normal above 0° C [32° F] ISO #46
Low Temp. below 0° C [32° F] ISO #32
below -17° C [0° F] ISO #15
Lift System One Single Stage Lift Cylinder
Drive Control Proportional
Control System Proportional Control Handle with Interlock, Selector Switch,
Red Mushroom Emergency Stop Switches
Horizontal Drive Dual Front Wheel
Tires 30,5 cm (12 in.) diameter solid rubber, Non-marking
Parking Brakes Dual, Spring Applied, Hydraulic Release
Turning Radius (Inside) 37 cm (14.5 in.)
Maximum Gradeability 14º (25%)
Wheel Base 97,8 cm (38.5 in.)
Guardrails 1,10 m (43 in.)
Toeboard 152 mm (6 in.)
