Urban Burrows Chicken Coop User manual

INSTRUCTION MANUAL
MODEL: 2PUBU002FIR
Chicken Coop
with covered run and nesting box

IMPORTANT:
WHEN YOU OPEN THE CARTON, CAREFULLY CHECK THE CHICKEN COOP.
IF YOU HAVE ANY PROBLEMS WITH THE PRODUCT, OR HAVE DAMAGED
OR MISSING PARTS, PLEASE CALL 1-800-459-4409 (MONDAY–FRIDAY,
8:30 A.M.–5:00 P.M., CST) IMMEDIATELY FOR SERVICE.
DO NOT RETURN PRODUCT TO THE STORE BEFORE CALLING THE TOLL
FREE NUMBER. DO NOT DISPOSE OF YOUR CARTON UNTIL YOU ARE
COMPLETELY SATISFIED WITH YOUR NEW CHICKEN COOP.
SAVE THESE INSTRUCTIONS FOR FUTURE USE.
PARTS LIST
866
16
6
2 2
AScrews 3.5x40
BScrews 3.5x30
CScrews 3.0x16
DBolts and
Washers M6x60
EDoor Pull Screw
F1 Front Nest Panel
F2 Left Nest Panel
F3 Right Nest Panel
F4 Nest Floor
F5 Nest Divider
F6 Nest Roof
G1 Front Panel
G2 Left Side Panel
G3 Interior Panel
G4 Right Side Panel
G5 Back Panel
HRoof
I1 Perches
I2 Tray Supports
JRamp
KFloor Tray
L1 Door Pull
L2 Pull Support
ASSEMBLY
STEP 1 - ASSEMBLE THE MAIN STRUCTURE
1. Attach the front panel (G1) to the left side panel (G2), the interior panel
(G3) and the right side panel (G4). Use three (A) screws on each side
panel (G2, G4) and two (A) screws on the interior panel (G3). See Fig.
A.
2. Attach the back panel (G5) to the left side panel (G2), the interior panel
(G3) and the right side panel (G4). Use three (A) screws on each side
panel (G2, G4) and two (A) screws on the interior panel (G3). See Fig.
B.
FRONT
FIG. A
BACK
FIG. B

STEP 2 - ADD ACCESSORIES
1. Slide the two tray supports (I2) into the enclosed area and place into
the slots on the front panel (G1) and the back panel (G5). See Fig. C.
2. Slide the two perches (I1) into the enclosed area and place into the
slots on the left side panel (G2) and the interior panel (G3). See Fig. D.
FIG. DFIG. C
3. Place the ramp (J) in the main structure with its screw holes resting
against the bottom of the opening into the enclosed area. Attach with
two (C) screws. See Fig. E.
3. Slide the floor tray (K) into the slot in the front panel (G1) and under the
enclosed area of the main structure. See Fig. E.
FIG. E
STEP 3 - ATTACH THE DOOR PULL (FIG. F)
1. Attach the pull support (L2) to the left door jamb on the front panel (G1)
with two (C) screws.
2. Slide the straight end of the door pull (L1) through the pull support (L2),
then through the second pull support that is pre-installed on the interior
panel (G3). Secure with the door pull screw (E).
FIG. F
STEP 4 - ATTACH THE ROOF (FIG. G)
1. Place the roof (H) on top of the main structure. Make sure that the
front rim of the roof is placed over the front panel (G1).
2. Attach the roof (H) to the panels of the main structure using eight (B)
screws.
FIG. G

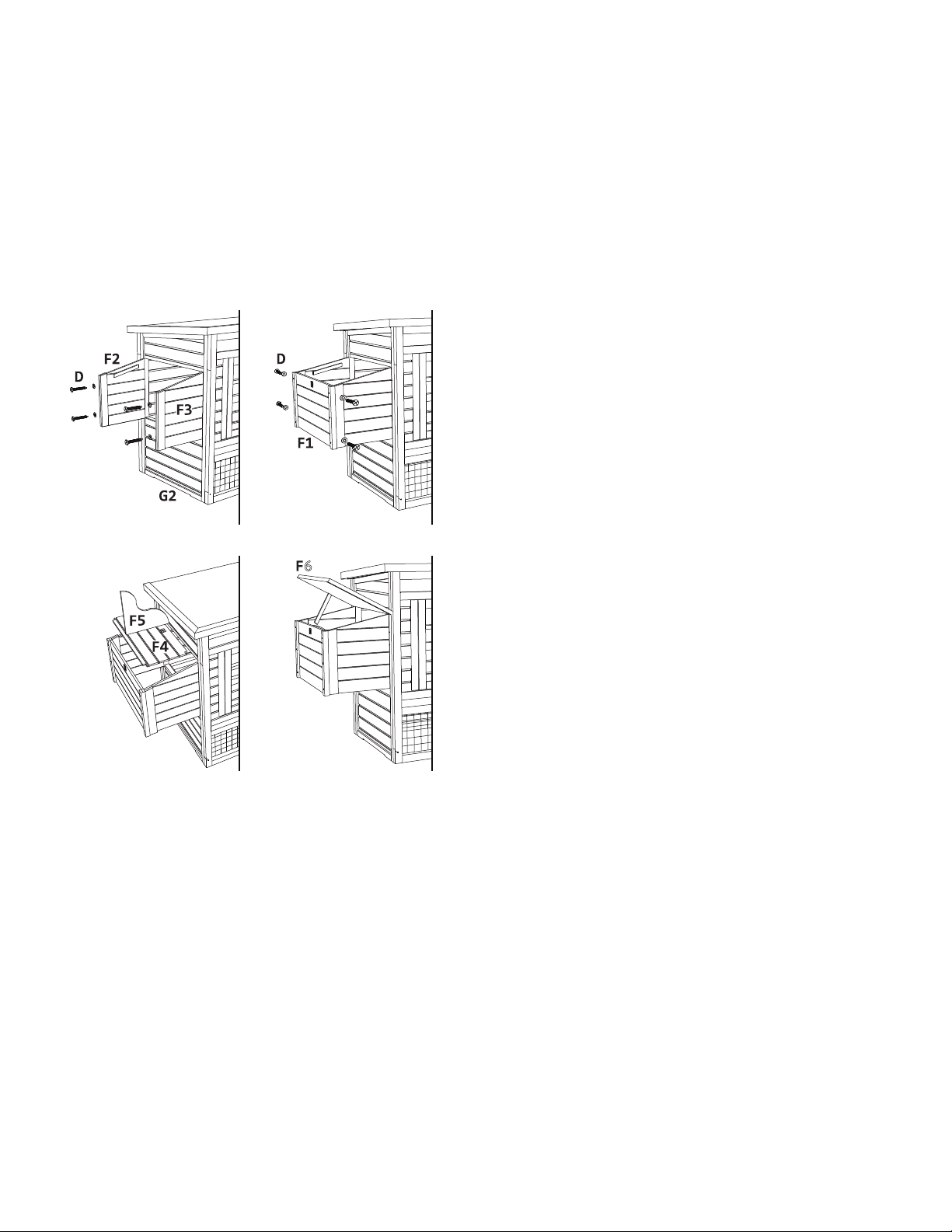

STEP 5 - ASSEMBLE THE NESTING BOX
1. Attach the left nest panel (F2) and the right nest panel (F3) to the left
side panel (G2). Use two (D) bolts and washers for each panel. See Fig.
H.
2. Attach the front nest panel (F1) to the left nest panel (F2) and the right
nest panel (F3). Use two (D) bolts and washers on each side. See Fig. I.
3. Place the nest floor (F4) in the bottom of the nesting box, making sure
that the slot for the nest divider is at the rear of the nesting box. Slide
the nest divider (F5) into the slot in the nest floor (F4). See Fig. J.
4. Slide the nest roof (F6) into the slot in the left side panel (G2). There is a
support attached to the left nest panel (F2) that can be used to prop up
the nest roof when it is open. See Fig. K.
FIG. H FIG. I
FIG. J FIG. K
6
CLEANING AND MAINTENANCE
As with most outdoor wooden structures, treatment of the wood is
recommended to ensure the longevity and beauty of your chicken coop.
This chicken coop has been pre-treated with an animal-friendly wood
preservative. It is highly recommended that you re-treat the wood with a
high quality varnish or animal-friendly wood preservative after assembly.
Also re-treat the wood annually.
This chicken coop was designed with various access points for easy
cleaning and maintenance. The pull-out floor tray provides a simple solution
for quick daily cleaning. In addition to large doors and an easy access roof,
the nesting box can also be easily unbolted and removed for a more thorough
cleaning.
If used during the winter, we recommend removing the accumulated snow
on the roof on a regular basis.
WARRANTY
Every chicken coop is tested before it leaves the factory. The main structure,
parts and accessories are guaranteed free of manufacturing defects for one
year from the date of purchase. This warranty does not cover normal wear
and tear, or aging. If the product should fail to operate correctly within one
year from the date of purchase, please follow the warranty claim procedure
below before going to the store. The store clerk should call customer
service at 1-800-459-4409 (Monday–Friday, 8:30 a.m.–5:00 p.m., CST) for an
authorization number, to request a credit note.
This warranty is intended for the original purchaser only and is non-
transferable. This warranty is void if, in the opinion of Quality Craft, the
product has been tampered with, altered, misused, damaged, or abused.
The warranty is for domestic use only and does not cover product used
in commercial or industrial situations, or intensive usage. This coop must
be used in compliance with your local bylaws, and Quality Craft will not be
responsible for any changes or modifications.
WARRANTY CLAIM PROCEDURE
If a claimable defect occurs, please fill out a claim form through our website
at www.qualitycraft.com or contact our customer service department at
1-800-459-4409 (Monday–Friday, 8:30 a.m.–5:00 p.m., CST).
Before you make your claim call, please make sure you have:
1. The description of the chicken coop
2. Proof of sale
3. Details and pictures regarding the defect
We assume no responsibility for labor costs, removing/replacing a
previously installed product, transportation, or return of the product.
