USSC Logwood 1261 User manual

CAUTION!
Read All Instructions Care-
fully Before Starting The In-
stallation or Operating This
Heater. DO NOT USE THIS HEATER
IN A MOBILE HOME OR TRAILER
SAVE THIS MANUAL FOR FUTURE REFERENCE
THISMANUALWILLHELPYOUTOOBTAINEFFICIENT,DEPENDABLESERVICEFROMTHEHEATER,ANDENABLE
YOU TO ORDER REPAIR PARTS CORRECTLY. KEEP IN A SAFE PLACE FOR FUTURE REFERENCE.
UNITED STATES STOVE COMPANY
227 Industrial Park Road
P.O. Box 151
South Pittsburg, TN 37380
[phone]
C
O
M
P
A
N
Y
U
N
I
T
E
D
S
T
A
T
E
S
S
T
O
V
E
C
S
S
U
OwnerOwner
OwnerOwner
Owners Manuals Manual
s Manuals Manual
s Manual
Logwood 1261
85029E
EPA EXEMPT PER
METHOD 28A
TESTED TO
UL 1482
RUS

CONGRATULATIONS!
You've purchased a heater from North America's oldest manufacturer of wood burning
products.
By heating with wood you're helping to CONSERVE ENERGY!
Wood is our only Renewable Energy Resource. Please do your part to preserve our wood
supply. Plant at least one tree each year. Future generations will thank you.
Tools and Materials Needed
TOOLS
Pencil
6 Foot Folding Rule or Tape Measure
Tin Snips
Drill, Hand or Electric
Drill Bit 1/8" Dia. (For Sheet Metal Screws)
Adjustable Wrench
Screw Driver (Blade-Type)
Gloves
Safety Glasses
MATERIALS
6" Elbow, Collar and Thimble; As Required
(24 gauge min.)
1/2" Sheet Metal Screws (No. 10A x 1/2")
6" Diameter, 24 gauge, black or blued steel
Underwriters Laboratories UL Listed
Residential Type HT (2100°F) Chimney or use a
Masonry Chimney in good repair.
Floor Protector Material (R value = 2.0); Size and
Installation as specified on Page 4
Furnace Cement (Manufacturer Recommends:
Rutland Black Code 78 or Equivalent)
6" Barometric Draft Regulator (DR-6)
2

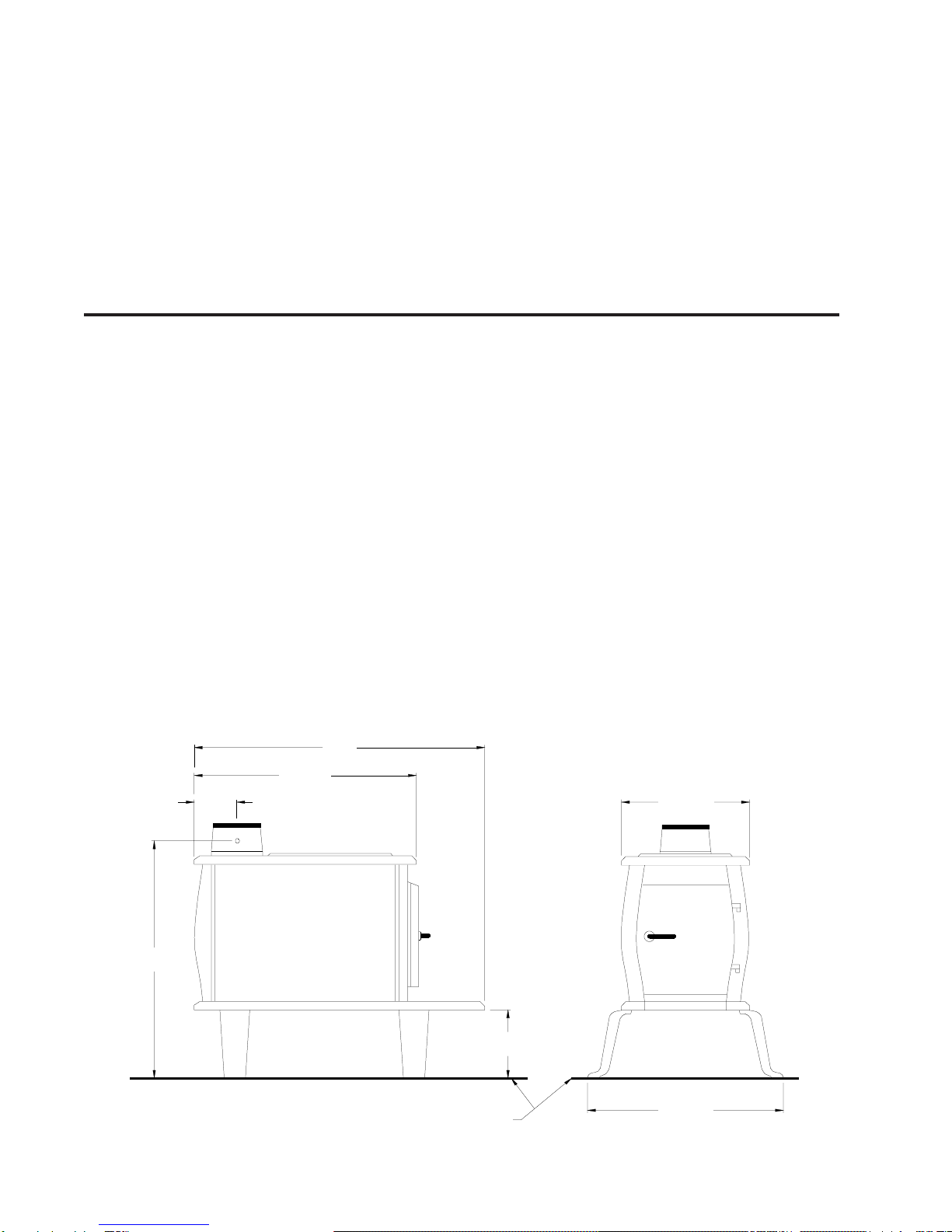

HEATER DIMENSIONS
FIG. 1
33"
4-5/8"
23"
FLOOR PROTECTOR
11-3/8"
18-1/2"
26-1/2"
8"

3
Safety Rules
SAFETY NOTICE: If this heater is not properly installed a house fire may result. For your safety, follow the
installation directions. Contact local building or fire officials about restrictions and installation inspection
requirements in your area.
Read these rules and the instructions carefully.
Check with local codes. The installation must
comply with their rulings. Observe closely the
clearances to combustibles (page 4).
Do not install this heater in a mobile home or
trailer.
Alwaysconnectthisheatertoachimneyandvent
to the outside. Never vent to another room or
inside a building.
Do not connect a wood burning heater to a Type
B gas vent. This is not safe and is prohibited by
the National Fire Protection Association Code.
This heater requires approved masonry or UL
Listed Residential Type and Building Heating
ApplianceChimney. Usea 6"diameter chimney,
orlarger,that ishighenoughtogiveagooddraft.
Be sure that your chimney is safely constructed
and in good repair. Have the chimney inspected
by the Fire Department or a qualified inspector.
Your insurance company may be able to recom-
mend a qualified inspector.
Inspect chimney connector and chimney twice
monthly during the heating season for any de-
posit of creosote or soot which must be removed
(see Chimney Maintenance, page 9).
Provideairforcombustionfromoutsidethehouse
into the room where the heater is located. If the
intakeisnotinthe sameroom,airmusthavefree
access in to the room.
Toprevent injury,donotallow anyonetousethis
heater who is unfamiliar with the correct opera-
tion of the heater.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
For further information on using your heater
safely, obtain a copy of the National Fire Pro-
tection Association (NFPA) publication "Using
Coal and Wood Stoves Safely" NFPA No. HS-
10-1978. The address of the NFPA is
Batterymarch Park, MA 02269.
Disposal of Ashes - Place ashes in a metal
containerwithatightfittinglid.Keeptheclosed
container on a noncombustible floor or on the
ground, well away from all combustible mate-
rials. Keep the ashes in the closed container
until all cinders have thoroughly cooled. The
ashes may be buried in the ground or picked
up by a refuse collector.
CAUTION - The special paints used on your
heatermaygiveoffsomesmokewhiletheyare
curingduringthefirstfewfires.Buildsmallfires
atfirst.
CARING FOR PAINTED PARTS - This heater
has a painted jacket which is durable but it will
not stand rough handling or abuse. When
installing your heater, use care in handling.
Clean with soap and warm water when heater
is not hot. DO NOT use any acids or scouring
soap, as these wear and dull the finish. PAINT
DISCOLORATION WILL OCCUR IF THE
HEATERISOVERFIRED.FOLLOWOPERAT-
ING INSTRUCTIONS CAREFULLY.
All persons, especially children, should be
alerted to hazards from high surface tempera-
tures and kept away while in operation. Small
children should not be left unsupervised when
in the room with the heater.
Keep the area adjacent to the heater free from
all combustible materials, gasoline, and other
flammable vapors.
CAUTION! Do not touch the heater until it has cooled.
NOTE:
FOR YOUR SAFETY, WE RECOMMEND INSTALLING SMOKE DETECTORS IN YOUR HOME IF NOT
ALREADY INSTALLED.

4
Place the heater on solid masonry or solid concrete. When
the heater is used on a combustible floor, use an Underwrit-
ers Listed floor protector. The floor protector must comply
with UL Standards. The base should extend at least 16"
beyond the door side of the heater and should extend under
the flue pipe if it is elbowed towards a wall. (Fig. 5).
Uncrateand/or unpacktheheater,removing allpack-
ing material, being careful not to dispose of the Parts
Bag.
Open the front feed door and remove the parts from
insidethestove.Youshouldfindthefollowing:Hearth
Plate(1); SolidDamper (1);Lids(2); PivotingTop (1);
Lid Support (1); Parts Package (1) containing nuts,
bolts,doorhandle,door latchandsecuringhardware;
Legs (4); Cast Iron Collar (1); Cast Iron Damper (1);
Baffle Assembly (1); Lid Lifter (1).
Placecardboard orother softmaterial adjacentto the
stove and carefully turn the stove onto its top side
(bottom facing up).
Attachhearthplatetothefrontofthestoveinitsproper
location.
Attachbothrearandfrontlegstothestove.Tightenthe
nuts and bolts securely. The stove may now be
CAREFULLY turned over to stand on it's four legs.
Attachthe baffleassembly andfluecollar tothestove
byinsertingthebafflestudsthruthetwoholeslocated
onthe topof therearof thestove;placetheflue collar
over the studs and mount using the proper nuts and
washers. Place lid support and lid in position on
pivotingtop. Placethe slidedamperin positiononthe
top of the hearth plate and under the feed door, and
secure with screw in slot.
After consulting the installation instructions for mini-
mum clearances to combustibles, locate your floor
protectoraccordingly and carefullyplace thestove in
your selected location. Install stove pipe, elbows and
thimble as necessary, utilizing either a recently
cleaned and inspected masonry chimney (properly
lined) or a UL Listed chimney. Insure that the damper
provided is installed in the flue collar.
Again, check the following illustrations and be sure
you have the clearances shown from the heater and
the connector pipe to combustible surfaces. If you
have a solid brick or stone wall behind your heater,
youmayplaceyourheaterascloseasyou wishto the
wall. However, if the wall is only faced with brick or
stone, consider it a combustible wall.
If your chimney drafts excessively, purchase and use
a Barometric Draft Regulator (DR6 available from
factory).
The chimney connection should be as short as pos-
sible, and the heater must have its own flue. Do not
connect this unit to a chimney flue serving other
appliances.
Use three sheet metal screws in each stove pipe and
or elbow joint to firmly hold the pipe together.
Do not install this heater in a mobile home or trailer.
Check your local building and insurance codes. The
installation must comply with their rulings.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
14.
Installation
CAUTION!
KEEP FURNISHINGS AND OTHER
COMBUSTIBLE MATERIALS
AWAY FROM THE HEATER.

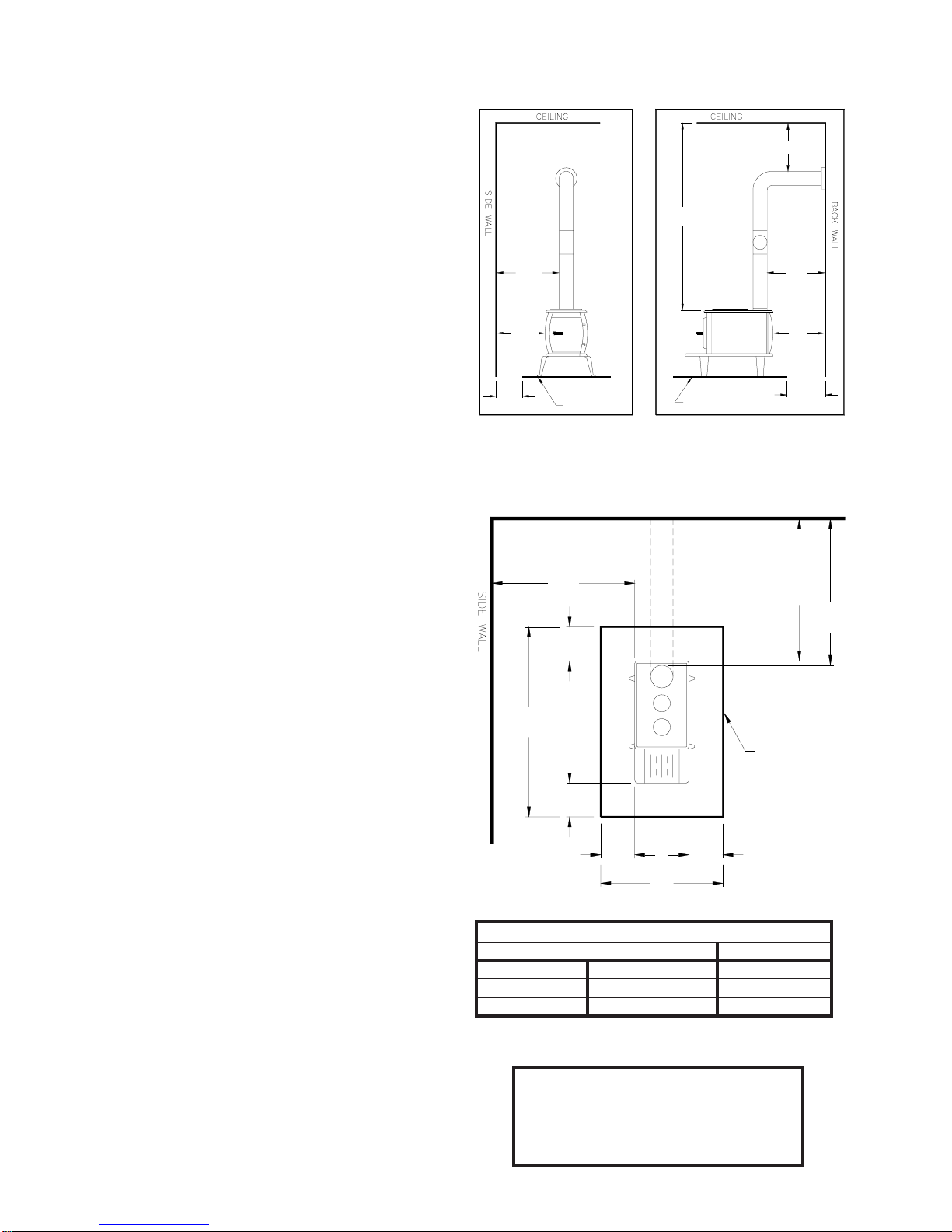

MINIMUM CLEARANCE
TO COMBUSTIBLE WALLS
FLOOR
PROTECTOR FLOOR
PROTECTOR
FIG. 2
(60" MIN.)
18"
FIG. 3
34"
865mm 26"
660mm
28"
712mm
28"
712mm 20"
508mm
37-1/2"
953mm
458mm
FLOOR
PROTECTOR
BACKWALL
DASHEDLINES
SHOW STRAIGHT
OUT CHIMNEY
CONNECTOR
28"
60"
34"
865mm 26" 660mm
NON-COMBUSTIBLE
CONSTRUCTION IN
ACCORDANCE WITH
NFPA 211
HEATER/FLOOR PROTECTOR LOCATION
(Dimensions are required for non-protected surfaces.
See chart for dimensions for protected surfaces.)
FIG. 2
FIG. 3
Protected Surfaces (NFPA 211)
Parallel Corner
Side Rear
12-inches 12-inches 12-inches
305-mm 305-mm 305-mm
FIG. 4
6"
153mm
6"
153mm
6"
153mm
16"
407mm
28-3/4"
730mm

WRONG
RIGHT
5
Operation of the Heater
1.
2.
3.
4.
5.
6.
7.
8.

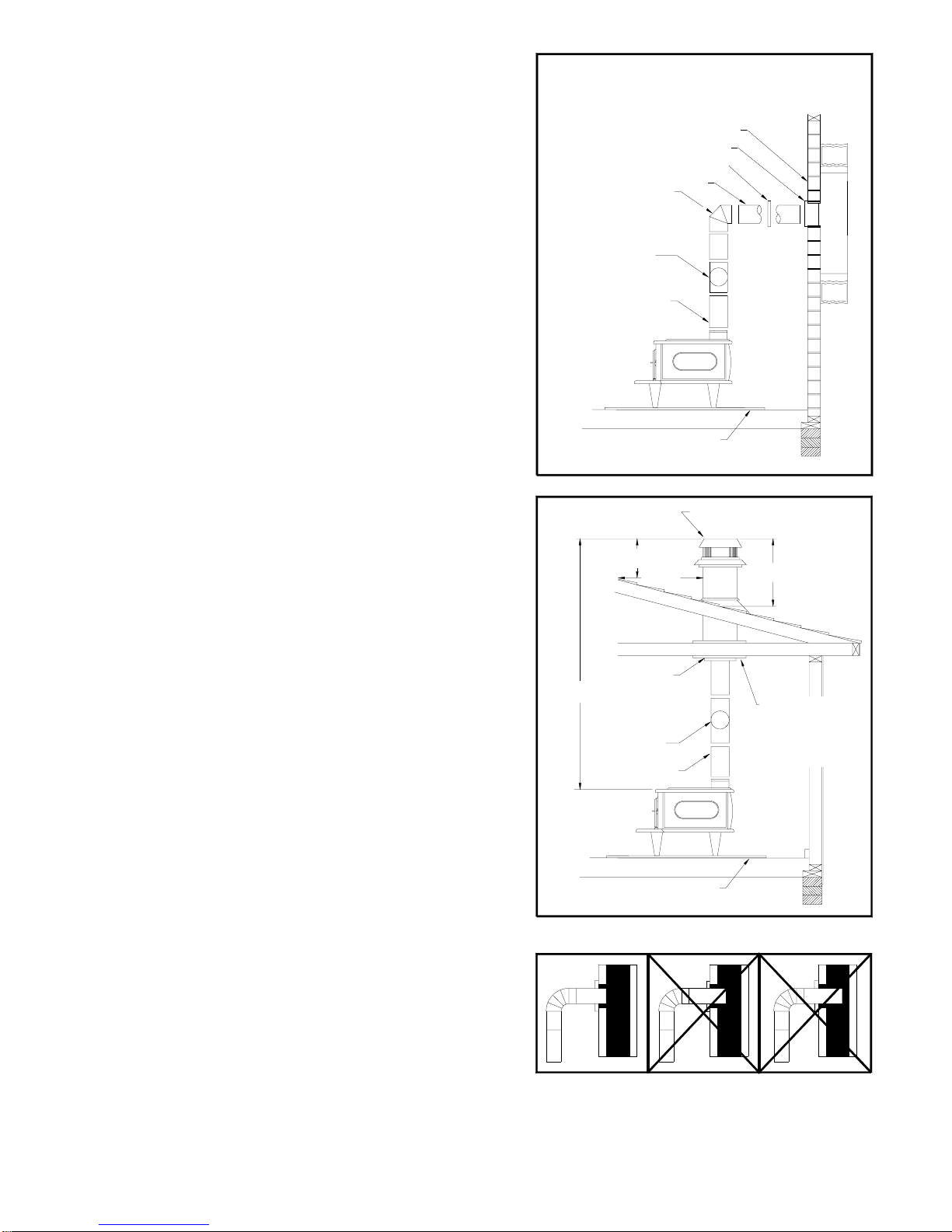

FIG. 6
FIG. 5
ELBOW
COLLAR
THIMBLE
PIPE REDUCER
FLOOR PROTECTOR
FLOOR PROTECTOR
3 FT. MIN.
2 FT. MIN
10 FT.
CHIMNEYCAP MANDATORY
11 FT. MINIMUM
FIG. 7
WRONG

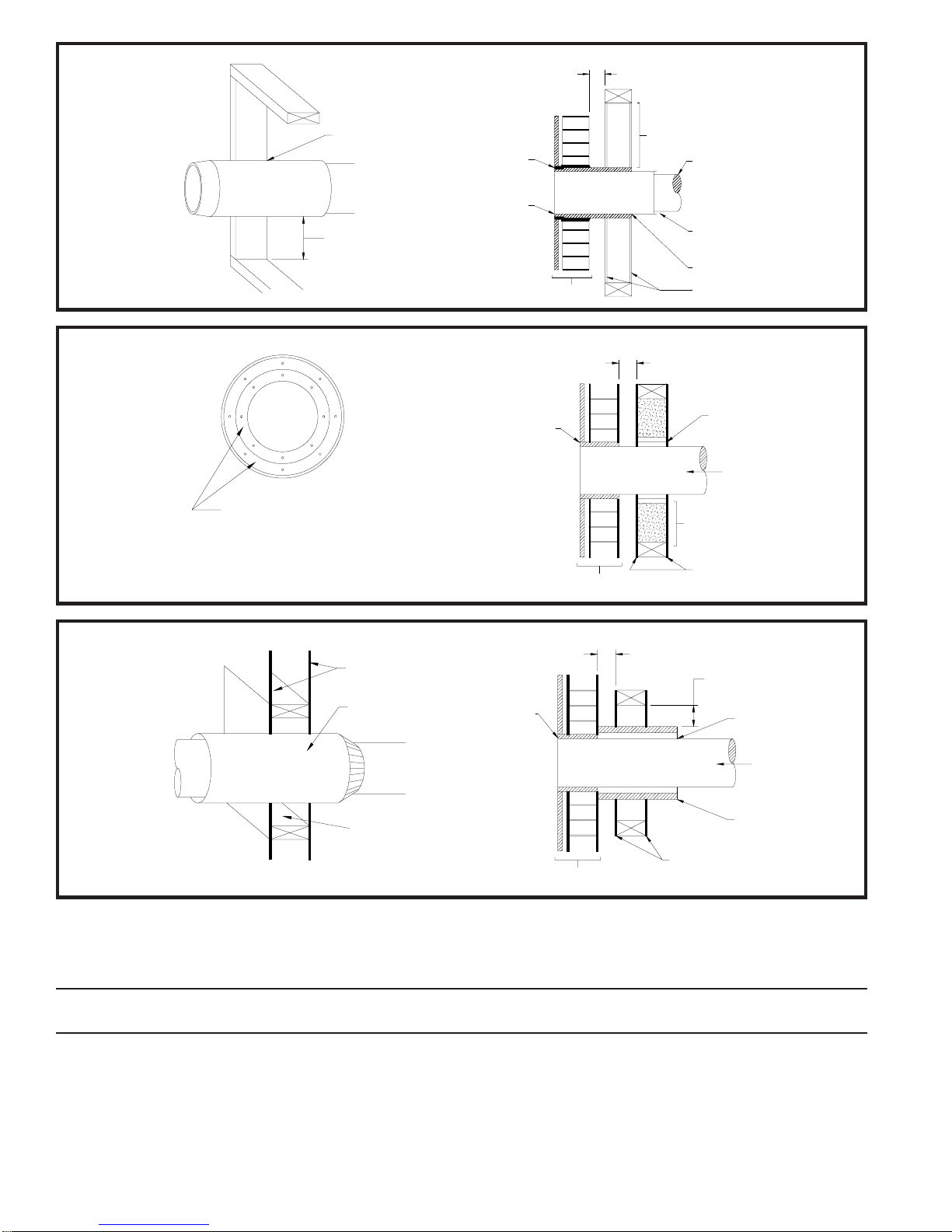

FLUE CONNECTION-NON-COMBUSTIBLE WALL
PIPE
NONCOMBUSTIBLEWALL
PIPE
BAROMETRIC
DRAFT REGULATOR
BAROMETRIC
DRAFT REGULATOR
PIPE
NONCOMBUSTIBLE
CONSTRUCTIONIN
ACCORDANCEWITH
NFPA211
BE SURE TO PUT A LAYER OF SAND OR FIREBRICK
APPROXIMATELY 1 1/2" THICK IN THE BOTTOM OF THE
STOVE BEFORE STARTING FIRE.
Burnwoodorwoodproductsonly.Thewoodshouldbeairdried
for at least six months prior to use for maximum efficiency.
After the fire has been started and is burning satisfactorily,
adjust the rate of burning by opening or closing the draft
damper wheel on the feed door.
Never build extremely large fires in this type of heater as
damage to the heater or smoking may result.
Provide air into the room for combustion.
Do Not touch the heater after firing until it has cooled.
Do Not use a grate or elevate fire, build fire directly on hearth.
The fuel feed door must remain closed during operation.
Crimped end of the pipe must be installed toward the heater.
The pipe should slide into the flue collar. The pipe should be
firmly attached to the flue collar with 3 screws and sealed with
furnace cement.
Slope any horizontal pipe upward toward the chimney at least
1/4 " inch for each foot of horizontal run.
You must have at least 18" inches clearance between any
horizontal piping and the ceiling. (Fig. 2)
The pipe cannot extend into the chimney flue.(Fig. 7)
Seal each connector pipe joint with furnace cement. Also seal
the pipe at the chimney.
Use3sheet metalscrewsateachjointtomakethepiping rigid.
It is recommended that no more than two (2) 90 degree bends
be used in the stove pipe installation as more than two (2) may
decrease the amount of draw and possibly cause smoke
spillage.
1.
2.
3.
4.
5.
6.
7.
Chimney Connection

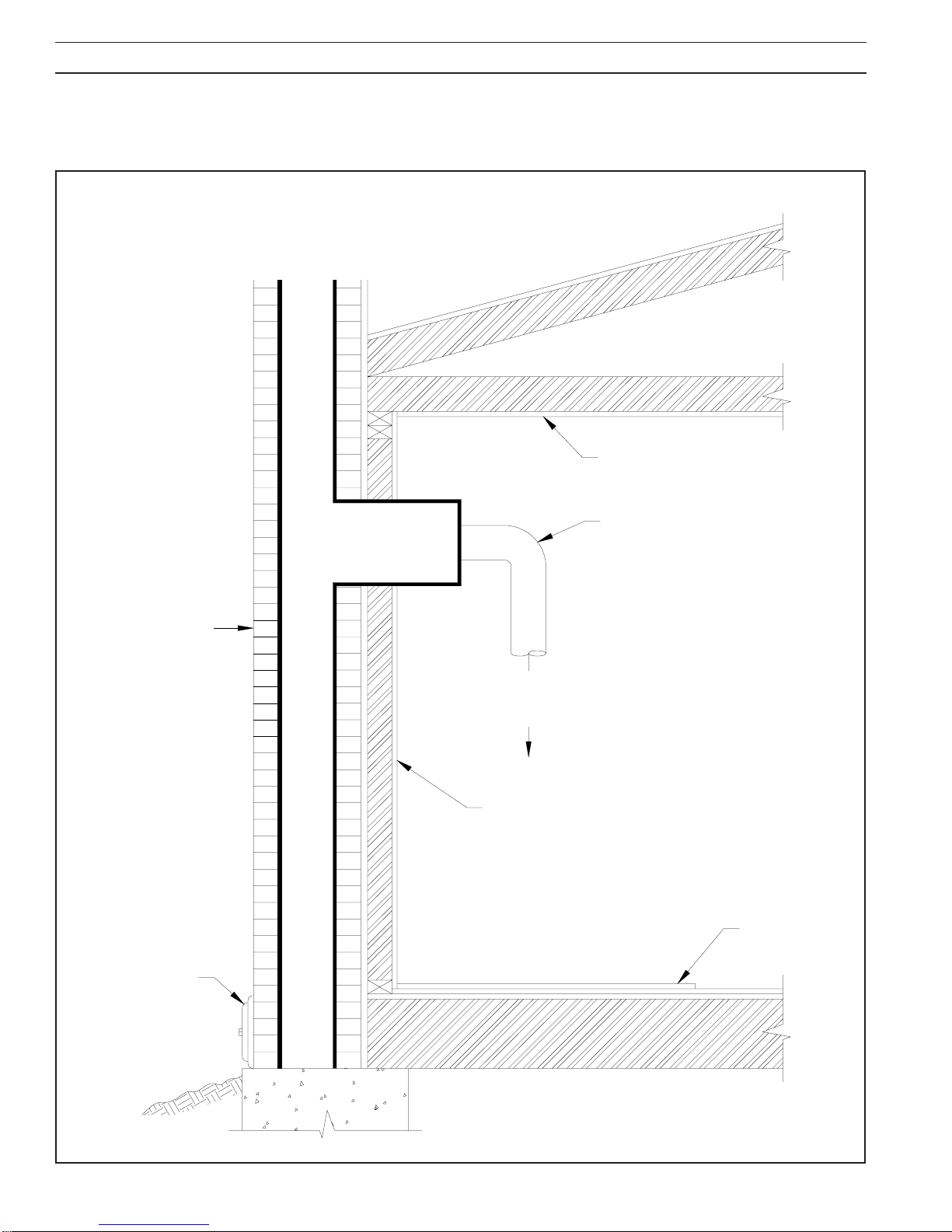

MASONRY CHIMNEY
The masonry chimney must comply with UL codes. Before using
an existing masonry chimney, clean the chimney and inspect the
flue liner to be sure it is safe to use. Make repairs before attaching
the heater. See Page 3, Item 5. Look at Fig. 5. The connector pipe
and fittings you will need to connect directly to a masonry chimney
areshown. Iftheconnectorpipemustgothroughacombustiblewall
before entering the masonry chimney, consult a qualified mason or
chimney dealer. The installation must conform to local fire codes,
and NFPA 211. Do not connect this heater into the same chimney
flue as the fireplace or flue from another heater. The chimney used
for a heater must not be used to ventilate the cellar or basement. If
there is a cleanout opening at the base of the chimney, close it
tightly.
UL/ULC LISTED CHIMNEY
Carefully follow chimney manufacturer's instructions. Use only
listed type HT per UL 103, 6-in diameter black or blued chimney
connector, minimum 24 gauge steel. If your chimney starts at the
ceiling (Fig. 6), you will need enough 6" pipe to reach the ceiling.
The top of the chimney must be at least 3 feet above the roof and
be at least 2 feet higher than any point of the roof within 10 feet. (Fig
6)
RULES FOR CONNECTOR PIPE INSTALLATION
NOTE: The chimney connector shall not pass through an
attic, roof space, floor, ceiling, or similar concealed space.
Where passage through a wall or partition of combustible
construction is desired, the installation must conform with
NFPA 211.

6
CONNECTION OF CHIMNEY CONNECTOR TO A MASONRY CHIMNEY THROUGH A COMBUSTIBLE WALL
Figure 8 shows how to connect the chimney connector of a heater to a masonry chimney through a combustible wall.
There are five allowable ways that a chimney connector can be connected to a masonry chimney by passing through
a combustible wall. NFPA Standard 211 allows the following wall pass-through systems.
MASONRY CHIMNEY
CONSTRUCTED TO
NFPA211
AIRTIGHT
CLEANOUT
DOOR
FLOOR
PROTECTOR
COMBUSTIBLE WALL
TO
HEATER
CHIMNEY CONNECTOR
CEILING
SEE PARTS A, B,
C, D, AND E OF
THIS FIGURE FOR
OPTIONS.
CHIMNEY FLUE
FIGURE 8 -
CONNECTIONOFCHIMNEY CONNECTOR TOA
MASONRYCHIMNEYTHROUGH ACOMBUSTIBLE
WALL
(FIGURE 8 CONTINUED ON NEXT PAGE)

7
MINIMUM12IN.
TOCOMBUSTIBLES
PART A, FIGURE 8
(FIGURE 8 CONTINUED ON NEXT PAGE)
1. Use a minimum 3-1/2" thick brick masonry wall framed into the combustible wall. A fireclay liner (ASTM C315 or
equivalent) having a 5/8" minimum wall thickness must be used and it must be at least 12" away from any material
that could catch fire. The inside diameter of the fireclay liner shall be sized for the proper snug fit of a 6" diameter
chimney connector pipe. The fireclay liner shall run from the outer surface of the brick wall to, but not beyond, the
inner surface of the chimney flue and shall be firmly cemented in place. See Part A of Figure 8.
2. Use a solid insulated listed factory-built chimney length having an inside diameter of 6" and having 1" or more of
solid insulation. There must be at least a 9" air space between the outer wall of the chimney length and any
combustiblematerials. Theinnerend ofthechimneylengthshall beflushwiththeinside ofthemasonrychimney , the
flue shall be sealed to the flue and to the brick masonry penetration with nonwater-soluble refractory cement. Sheet
steel supports which are at least 24 gauge(0.024") in thickness shall be securely fastened to wall
surfaces on all sides. Fasteners between supports and the chimney length shall not penetrate the chimney liner.
See Part B of Figure 8.
3. Usea10"diameterventilatedthimblemadeofatleast24 gauge(0.024") steel having two 1" air channels. The venti-
lated thimble must be separated from combustible materials by a minimum of 6" glass fiber insulation. The opening
in the combustible wall shall be covered and the thimble supported with sheet steel supports which are at least 24
gauge (0.024") in thickness. The sheet steel supports shall be securely fastened to wall surfaces on all sides and
shall be sized to fit and hold the chimney section. Fasteners used to secure chimney sections shall not penetrate
chimney flue liner. See Part C of Figure 8.
4. Use an 8" inside diameter solid insulated listed factory-built chimney length which has 1" or more of solid insulation.
The minimum length of this chimney section shall be 12" and will serve as a pass-through for the 6" diameter
chimney connector. There must be at least a 12" air space between the outer wall of the chimney section and any
combustible materials. The chimney section shall be concentric with and spaced 1" away from the chimney connec
torbymeansofsheetsteelsupportplatesonbothendsofthechimneysection. Theopeningin the combustible wall
shall be covered and the chimney section supported on both sides with sheet steel supports which are at least 24
gauge (0.024") in thickness. The sheet steel supports shall be securely fastened to wall surfaces on all sides and
shall be sized to fit and hold the chimney section. Fasteners used to secure chimney sections shall not penetrate
chimney flue liner. See Part C of Figure 8.
5. A listed factory-built wall pass-through system may be purchased and installed according to the instructions pack
aged with it to provide a safe method of passing the chimney connector through a combustible wall for connection
to a masonry chimney.
AdditionalrequirementspertainingtoFigure8 and the above wallpass-throughsystems:
1. Insulation material used as part of wall pass-through system shall be of noncombustible material and shall have a
thermal conductivity of 1.0 Btu • in./ft.² • °F (4.88 kg • cal/hr • m² • °C) or less
2. All clearances and thicknesses are minimums: larger clearances and thickness are acceptable.
3. A chimney thimble, as shown for 3" and 4" above (Parts C and D respectively of Figure 8) shall be for types "3" and
4" connections to facilitate removal of the chimney connector for cleaning. The chimney thimble shall be of ASTM
C315 fireclay with 5/8" minimum wall thickness, or material of equivalent durability. The inside diameter of the
thimble shall be sized for the proper snug fit of a 6" diameter chimney connector pipe. The thimble shall be installed
without damage to the chimney flue. The thimble shall extend through the chimney wall to, but not beyond, the
inner surface of the chimney flue and shall be permanently cemented in place with high temperature cement.
4. A chimney connector to a masonry chimney, except for 2" above (Part B of Figure 8), shall extend through the wall
pass-through system to the inner face of the chimney flue, but not beyond. It does not have to be fastened in place
so long as it cannot accidently be pulled out of the chimney or shoved into the chimney flue. If fasteners are used
to secure the chimney connector to a masonry chimney, the fasteners shall not penetrate the chimney flue liner.
5. Any material used to close up any opening for the connector shall be noncombustible.
CHIMNEYFLUE
MINIMUMCHIMNEYCLEARANCETO
BRICK AND COMBUSTIBLES IS 2 IN.
MINIMUMCLEARANCES12 IN.
OFBRICKALLAROUND
CHIMNEY CONNECTOR
TO HEATER
FIRECLAYLINER
(5/8"MIN.WALLTHICKNESS)
MIN.3-1/2" THICK BRICK
MASONRYWALL
MASONRYCHIMNEY
CONSTRUCTEDTO
NFPA211

8
CONNECTIONOFCHIMNEY CONNECTORTO AMASONRY CHIMNEYWHENCHIMNEY CONNECTOR
DOESNOTPASS THROUGHA COMBUSTIBLEWALL
PART E - (Figure 8)
In addition to the methods shown by A, B, C, and D of Figure 8, a listed factory-built wall pass-through system
may be purchased and installed according to the instructions packaged with it to provide a safe method of
passing chimney connector through a combustible wall for a connection to a masonry chimney.
If the chimney connector does not have to pass through a combustible wall to get to a masonry chimney, simply connect
the chimney connector directly to the masonry chimney's chimney thimble as described and shown by parts C and D of
Figure 8. Remember,thechimneyconnectorshouldextend into the chimneythimbletotheinnerfaceof the chimney flue
butnotbeyond; ifthechimney connector is extendedthroughthechimneythimble into the chimneyflue,resistancetothe
flow of smoke and gases up the chimney will occur; that flow resistance will have an adverse affect on the operation and
performance of the heater and venting system.
PARTB
FIGURE 8 -
(FIGURE 8 CONTINUED)
AIR SPACE
9 IN. MINIMUM
FACTORY-BUILT
CHIMNEYLENGTH
SHEET STEEL SUPPORTS
CHIMNEY SECTION
CHIMNEY
CONNECTOR
AIR SPACE
2 IN.
TWOVENTILATED AIR
CHANNELSEACH1 INCH.
CONSTRUCTED OF
SHEETSTEEL.
PARTC
FIGURE 8
PARTD
FIGURE 8
MASONRY CHIMNEY CONSTRUCTED
TONFPA211
SHEET STEEL SUPPORTS
(24 GAUGE MIN. THICKNESS)
CHIMNEY CONNECTOR
TOHEATER
MINIMUM CHIMNEY CLEARANCES FROM MASONRY TO
SHEET STEEL SUPPORTS AND COMBUSTIBLES 2 IN.
MINIMUM 6 IN. GLASS
FIBER INSULATION ALL AROUND
24 GAUGE
VENTILATED THIMBLE WITH
TWO 1 INCH AIR CHANNELS
CHIMNEY THIMBLE
CHIMNEY FLUE
MINIMUM CHIMNEY CLEARANCES FROM MASONRY TO
SHEET STEEL SUPPORTS AND COMBUSTIBLES 2 IN.
CHIMNEYLENGTH
FLUSH WITH INSIDE
OFFLUE
NONSOLUBLE
REFACTORY
CEMENT
MASONRY CHIMNEY CONSTRUCTED
TONFPA211
CHIMNEY CONNECTOR
TOHEATER
MINIMUM CLEARANCE
9 IN. ALL AROUND
SHEET STEEL SUPPORTS
(24 GAUGE MIN. THICKNESS)
CHIMNEY FLUE
SOLIDINSULATED,LISTED
FACTORY-BUILTCHIMNEY LENGTH
USE CHIMNEY MFRS. PARTS TO
ATTACHCONNECTORSECURELY
AIR SPACE
CHIMNEY CONNECTOR
TOHEATER
SOLIDINSULATED,LISTED
FACTORY-BUILTCHIMNEY
LENGTH (12 IN. LONG MIN.)
MINIMUM CLEARANCE
2 IN. ALL AROUND
CHIMNEY THIMBLE 1IN. AIR SPACETO
CHIMNEYLENGTH
MASONRY CHIMNEY CONSTRUCTED
TONFPA211
SHEET STEEL SUPPORTS
(24 GAUGE MIN. THICKNESS)
CHIMNEY FLUE
MINIMUM CHIMNEY CLEARANCES FROM MASONRY TO
SHEET STEEL SUPPORTS AND COMBUSTIBLES 2 IN.
8

WARNING!
NEVER STORE FLAMMABLE LIQUIDS,
ESPECIALLY GASOLINE. IN THE
VICINITY OF THE HEATER.
CAUTION!
OVERFIRING THE APPLIANCE MAY
CAUSE A HOUSE FIRE. IF A UNIT OR
CHIMNEY CONNECTOR GLOWS, YOU
ARE OVERFIRING.
CAUTION!
NEVER USE GASOLINE, GASOLINE-TYPE
LANTERN FUEL, KEROSENE, CHARCOAL
LIGHTER FLUID, OR FLAMMABLE
LIQUIDS TO START OR "FRESHEN UP" A
FIRE IN THE HEATER.
CAUTION!
USE WOOD OR WOOD-LIKE MATERIALS
ONLY. DO NOT USE COAL OR
CHARCOAL. COAL OR CHARCOAL WILL
DESTROY THE FIREBOX. DO NOT USE
DRIED LUMBER OR TREATED WOOD.
WARNING!
NEVER OPERATE THIS HEATER WITH THE
FUEL DOOR OPEN. NOTE:
DO NOT ELEVATE FIRE OR USE WITH A
GRATE - BUILD FIRE DIRECTLY ON THE
HEARTH.
9
Chimney Maintenance
Creosote - Formation and Need for Removal
When wood is burned slowly, it produces tar and other
organic vapors, which combine with expelled moisture to
form creosote. The creosote vapors condense in the rela-
tively cool chimney flue of a slow burning fire. As a result,
creosote residue accumulates on the flue lining. When
ignited, this creosote makes an extremely hot fire.
The chimney connector and chimney should be inspected
at least twice monthly during the heating season to deter-
mine if a creosote buildup has occurred.
Ifcreosotehasaccumulated,itshouldberemoved.Failureto
remove creosote may cause a house fire. Creosote may be
removed by using a chimney brush or other commonly
available materials.
Chimneyfiresburnveryhot.Ifthechimneyconnectorshould
glow red, immediately call the fire department, then reduce
thefirebyclosingtheinletaircontrolandpouralargequantity
of coarse salt, baking soda or cool ashes on top of the fire in
the firebox. CAUTION: A chimney fire may cause ignition of
wall studs or rafters which you thought were a safe distance
from the chimney. If you have a chimney fire, have your
chimneyinspected bya qualifiedperson beforeusing again.
Service Hints
Donot expectaheatertodraw.Itis thechimneythat creates
thedraft.Smokespillageintothehouseorexcessivebuildup
of water or creosote in the chimney are warnings that the
chimney is not functioning properly. Correct problem before
using heater. Possible causes are:
The connector pipe may push into the chimney too far,
stopping the draft. (Fig. 7)
Donot connecttwoheaters intothe samechimney flue.
The chimney used for a heater must not be used to
ventilate the cellar or basement. If there is a cleanout
opening at the base of the chimney, it must be closed
tightly.
1.
2.
3.
4.
5.
Ifthe chimneyisoperatingtoo cool,waterwillcondense
in the chimney and run back into the stove. Creosote
formation will be rapid and may block the chimney.
Operate the heater at a high enough fire to keep the
chimney warm preventing this condensation.
If the fire burns well but sometimes smokes or burns
slowly,itmaybecaused bythechimneytopbeinglower
thananotherpartofthehouseoranearbytree.Thewind
blowingover ahouse ortree, fallson topof thechimney
likewaterover adam,beatingdownthesmoke.Thetop
of the chimney should be at least 3 feet above the roof
and be at least to 2 feet higher than any point of the roof
within 10 feet (Fig. 6).
WARNING!
USE ONLY THE LEGS PROVIDED WITH THIS
HEATER. REFER TO STEP 5 IN THE "INSTAL-
LATION" SECTION OF THIS MANUAL.
WARNING!
DO NOT OBSTRUCT THE SPACE BENEATH
THE HEATER

Model 1261
Repair Parts
3
2
6
1
4
7
14
20
18
9
19 17
21
22
16
8
15
10
5
12 13
11
* NOT SHOWN
KEY
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
*
*
PART NO.
40296
40318
40297
40298
40299
40300
40301
40302
40303
40304
40305
40306
40307
40308
40332
D6
83427
89971
89972
89973
89974
89975
89589
85029
DESCRIPTION
REAR LEG
FRONT LEG
MAIN BOTTOM
MAIN SIDE
MAIN BACK
HEARTH PLATE
SLIDING DRAFT PLATE
DOOR FRAME
DOOR
MAIN TOP
PIVOTING TOP
LID
LID SUPPORT
LID LIFTER
FLUE COLLAR
SOLID FLUE DAMPER
DOOR PINS
HANDLE
LATCH
NUTS
HANDLE EXTENSION
HANDLE BRACKET
PARTS BAG
OWNERS MANUAL
QNTY.
2
2
1
2
1
1
1
1
1
1
1
2
1
1
1
1
2
1
1
2
1
1
1
1
10
