UWELL CROWN B User manual

CROWN B Pod System
User Manual

Illustration
Quick Guide
1. Take the pod off the device and remove the insulating
film from the bottom of the pod.
2. Open the filler plug and fill it with e-liquid, and then put
the filler plug back. Let the pod sit for 10 minutes.
3. Install the pod into the device and make sure it is
properly installed.
4. Press the fire button 5 times in 2 seconds to turn on the
device for vaping.
Filler plug
E-liquid
container
Device
Drip tip
Air
adjustment
valve
Fire button
Adjustment
knob
Type-C port
- 1 -

Specifications
● Materials: PCTG, Zinc Alloy
● Dimensions: 92 × 42 × 18 mm
● Net Weight: 82 g
● E-liquid Capacity: 3.5 ml
● Output Power Range: 13 W - 35 W
● Battery Capacity: 1150 mAh
● Pod Specifications:
0.3 Ω CROWN B Refillable Pod
0.8 Ω CROWN B Refillable Pod (Sold separately)
The Packaging Includes
● 1 × CROWN B Device
● 1 × 0.3 Ω CROWN B Refillable Pod (DTL) (Pre-installed)
● 1 × 510 Drip Tip (Pre-installed)
● 1 × 510 Drip Tip (Spare)
● 1 × Type-C Charging Cable
● 1 × User Manual
Features
1. Built-in battery capacity is 1150 mAh. The battery can be
fully charged in one hour with fast charging.
2. The pod is refillable for different flavors.
3. Power and airflow are both adjustable.
4. Upgraded UWELL Pro-FOCS technology restores the
flavor excellently.
5. Stable, safe, and reliable performance is ensured by a
built-in safety mechanism.
6. Simple and fashionable design brings it an attractive
appearance. The ergonomic design brings it a
comfortable grip.
- 2 -

Instructions

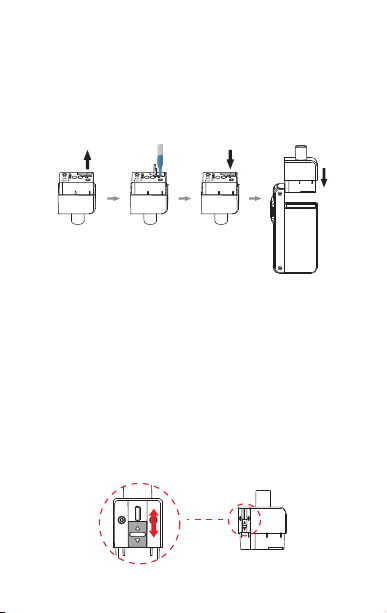

1. Pod filling
a. Pull out the filler plug on the bottom of the pod.
b. Insert the e-liquid bottle nozzle into the filling port to fill it.
c. Put the filler plug back.
d. Install the pod into the device.
Attention:
a. Insert the nozzle of the e-liquid bottle into the filling port,
and then fill the pod with e-liquid.
b. Put the filler plug on as soon as the filling is done. Push
it back securely to prevent e-liquid leakage.
c. Let the pod sit for 10 minutes after the first filling to avoid
coil burning.
d. Please make a timely refilling when the e-liquid is under
MIN level.
2. Airflow adjustment
Slide the airflow adjustment valve on the side of the pod up
and down to adjust airflow.
- 3 -

3. Pod replacement
a. Remove the used pod from the device.
b. Install a new pod into the device.
Attention:
a. Please fill in time when the e-liquid is under MIN level.
b. Please do not discard the 510 drip tip when you replace
the pod.
Device Operation Instructions
1. Turn on/off
Press the fire button 5 times continuously and quickly to
turn on/off the device. The light flashes 3 times in green to
show the power is on.
2. Ignition function Lock
Press the fire button 2 times continuously and quickly, the
light will flash in red once, and the ignition function of the
fire button will be locked.
Press the fire button 2 times continuously and quickly, the
light will flash in green once, and the ignition function of the
fire button will be unlocked.
3. Vaping
Vape by button or direct draw when the device is powered
on. Do not vape for over 8 seconds each time.
4. Power mode introduction
Press the fire button 3 times continuously and quickly to
enter the power adjustment mode, and the light will flash
three times as a hint. The device will exit this mode under
two conditions: one is drawing or pressing the button to
ignite, and another is no option in 10 seconds.
- 4 -

Turn the adjustment knob to choose 3 different power
modes through 3 different light colors.
Red light: low-power mode.
Blue light: middle-power mode.
Green light: high-power mode.
5. Light indication
Vaping light indication:
During vaping, a green light indicates the battery level is
over 60%, a blue light indicates the battery level is
30%-60%, and a red light indicates the battery level is
under 30%. A red light flashes 10 times to indicate the
battery level is too low, and the device will stop output.
Light indication of pod removal and installation:
When removing the pod from the device and installing the
pod into the device, the light will flash 8 times quickly, and
the color of the light will be different according to the
battery level.
6. Short-circuit protection
When short-circuit occurs, the light will flash 3 times in red
when vaping, and the device will stop output.
7. Low voltage protection
When the device is at low power, the light will flash 10
times in red, and the device will stop output.
8. Overtime protection
The light will flash 5 times in green to indicate an over
8-second vaping, and the device will stop output.
9. Open-circuit protection
When an open-circuit occurs, the light will flash 3 times in
blue, and the device gives no output during vaping.
- 5 -

10. Charging
The light flashes when connecting the Type-C cable, a
green light indicates the battery level is high, a blue light
indicates the battery level is medium, and a red light
indicates the battery level is low. The green light will stay on
when the charging is done.
Attention
1. Please charge with certified high-quality adaptor from
a reputable company and a USB cable with the
charging current of 5V/2A.
2. The device and adaptor may warm up when
charging, keep away from flammable and explosive
goods.
3. Please use a dry and soft cloth to clean the device.
Keep away from water or any liquids.
4. Please remove the pod cartridge and store it
separately when you are on a plane to avoid leakage
due to pressure changes.
5. Please do not put the device in your pocket with other
hard objects to avoid damages.
6. Please turn off the device when it is not in use.
7. Please charge the device at least once a month.
8. Don’t disassemble the device.
9. Avoid high temperature, low temperature and
humidity during use or storage to avoid damage to
the equipment.
10. The product parameters or pictures in this manual
are for illustration purpose only, please refer to the
actual product.
- 6 -

Safety Instruction
Please read the following safety instructions carefully
before using the product.
1. This product is only available to people who have
reached the legal age of smoking. It is strictly
forbidden for young children, pregnant women and
women during breastfeeding or for patients with heart
disease, high blood pressure, diabetes, depression
and asthma.
2. Please put the product out of reach of children and
pets to avoid injury.
3. When using this product, please keep away from
inflammable and explosive materials to avoid injury.
4. The company does not assume any responsibility for
any equipment damage or personal injury caused by
user misuse.
Warranty Details
Please keep the anti-counterfeit code and proof of
purchase after purchasing the product. The warranty
period is 180 days from the date of purchase. Our
company provides warranty service (Device and atomizer
only, exclude coil head and pod cartridge).
Please note that any of the following conditions are not
covered by the warranty:
1. Exceeding the warranty period.
2. Damage caused by the use, maintenance, and
storage that is not in accordance with the
requirements as instructed.
3. Damage caused by unauthorized repair.
4. Damage caused by the usage of non-UWELL
components.
5. Damage caused by force majeure.
- 7 -

Verification
1. Visit the UWELL official website www.myuwell.com
through a smartphone or PC.
2. Please enter the 16 digits authentic code, and the
result will be displayed in a few seconds.
3. Please feel free to contact UWELL via e-mail, phone
or website for more help.
Customer Service
We pride ourselves on manufacturing quality products and
providing excellent customer service. For any issues,
please contact us at [email protected].
* UWELL reserves the right of final interpretation in the
user manual.
- 8 -
