v.link VL2-RLINK User manual

Version 12.08.2016 VL2-RLINK
Page1
v.LiNK Video-inserter
VL2-RLINK
for Dacia Vehicles with LG Head-Unit
and Renault Vehicles
with RLink (LG) and MediaNav Head-Unit
Video-inserter with 2 video inputs + RGB + rear-view camera input
and CAN control
Product features
Video-Inserter for Factory-Head-Units
2 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, …)
Built-in audio-switch (no audio-insertion)
Rear-view camera CVBS video-input
Automatic switching to rear-view camera input by engagement of reverse gear
•Activatable parking guide lines for rear-view camera (not all vehicles)
RGB-video-input for after-market navigation
Video-in-motion (ONLY for connected video-sources)
Compatible with Factory Rear-View Camera
AV-inputs PAL/NTSC compatible

Version 12.08.2016 VL2-RLINK
Page2
Contents
1. Prior to installation
1.1. Delivery contents
1.2. Checking the Interface compatibility of vehicle and accessories
1.3. Boxes and connectors
1.3.1. Video-interface
1.3.2. CAN-bus box
1.3.2.1. Dip-switch settings
1.3.2.2. Enabling the interface’s video inputs (dip 1-3)
1.3.2.3. RGB-video input signal selection for after-market navigation (Dip 4)
1.3.2.4. Rear-view camera setting (dip 5)
1.3.2.5. Monitor Selection (dip 7-8)
2. Installation
2.1. Place of installation
2.2. Connection scheme
2.3. Connecting video-interface and CAN-box
2.4. Installation of Flex-Wires into monitor panel
2.4.1. 50Pin-Version
2.4.2. 60Pin-Version
2.5 Connection to Head-Unit
2.6 Connection to peripheral devices
2.6.1 After-Market RGB Navigation
2.6.2 Video Sources to AV1 and AV2
2.6.3. Audio-Switch and Audio-Insertion
2.6.4. After-market rear-view camera
2.6.4.1. Case 1: CAN-box detects reverse gear
2.6.4.2. Case 2: CAN-box does not detect reverse gear
2.6.4.3. Video signal connection
2.7. Connecting video-interface and keypad
2.8. Picture settings and parking guide lines
3. Interface operation
3.1. By VOL-Button
3.2. By external keypad
4. Specifications
5. Frequently asked questions
6. Technical support

Version 12.08.2016 VL2-RLINK
Page3
Legal Information
By law, watching moving pictures while driving is prohibited, the driver must not be
distracted. We do not accept any liability for material damage or personal injury resulting,
directly or indirectly, from installation or operation of this product. This product should only
be used while standing or to display fixed menus or rear-view-camera video when the
vehicle is moving, for example the MP3 menu for DVD upgrades.
Changes/updates of the vehicle’s software can cause malfunctions of the interface. We
offer free software-updates for our interfaces for one year after purchase. To receive a free
update, the interface must be sent in at own cost. Labor cost for and other expenses
involved with the software-updates will not be refunded.
1. Prior to installation
Read the manual prior to installation.
Technical knowledge is necessary for installation. The place of installation must be free of
moisture and away from heat sources.
1.1. Delivery contents

Version 12.08.2016 VL2-RLINK
Page4
Requirements
Vehicle Dacia Vehicles with LG Head-Unit
Renault Captur, Clio Model 2014, Traffic Model 2015
Head-unit/monitor R-Link (LG), MediaNav
Limitations
Video only The interface inserts ONLY video signals into the infotainment.
For audio insertion factory-audio-AUX-input or a
FM-modulator is required.
Factory rear-view camera Automatic switch to factory rear-view camera only while reverse
gear is engaged. To delay the switch reset, additional electronics
is required.
1.2. Checking the compatibility of vehicle and accessories
1.3. Boxes and connectors
1.3.1. Video-interface
The video-interface converts the connected after-market sources video signals to an LVDS
signal which is the inserted into the factory monitor by various trigger options.

Version 12.08.2016 VL2-RLINK
Page5
1.3.2. CAN-bus box
The CAN-bus box reads digital signals from the CAN-bus and converts them for the video-
interface.
1.3.2.1. Dip-switch settings
Some settings must be selected by the dip-switches on the
video-interface. Dip position down is ON and position up is OFF.
See following chapters for detailed information.
Dip
Function
ON (down)
OFF (up)
1
RGB-input
enabled
disabled
2
CVBS AV1-input
enabled
disabled
3
CVBS AV2-input
enabled
Disabled
4
RGB-input resolution
800x480
400x240 or 480x240
5
Rear-view cam type
after-market
factory or none
6
No function
-
set OFF
7
No Function
set OFF
8

Version 12.08.2016 VL2-RLINK
Page6
1.3.2.2. Enabling the interface’s video inputs (dip 1-3)
Only the enabled video inputs can be accessed when switching to the interface’s video
sources. It is recommended to enable only the required inputs for the disabled will be
skipped when switching to the video-interfaces inputs.
1.3.2.3. RGB-video input signal selection for after-market navigation (Dip 4)
If an after-market RGB navigation or other RGB video source is connected, the source’s RGB
output signal must match the interface’s RGB video input setting.
1.3.2.4. Rear-view camera setting (dip 5)
If set to OFF, the interface switches to factory LVDS picture while the reverse gear is engaged
to display factory rear-view camera or factory optical park system picture.
If set to ON, the interface switches to its rear-view camera input CAM while the reverse gear
is engaged.
1.3.2.5. Monitor selection (dip 7-8)
The dip-switches are out of function.
2. Installation
Switch off ignition and disconnect the vehicle’s battery! The interface needs a permanent
12V source. If according to factory rules disconnecting the battery is to be avoided, it is
usually sufficient to put the vehicle to “Sleep-Mode”. In case it does not succeed,
disconnect the battery with a resistor lead.
If power source is not taken directly from the battery, the connection has to be checked
for being start-up proven and permanent.
2.1. Place of installation
The interface is installed by flex-wires to the monitor panel and at the rear of head-unit. For
this purpose the housing of head-unit have to be opened.

Version 12.08.2016 VL2-RLINK
Page7

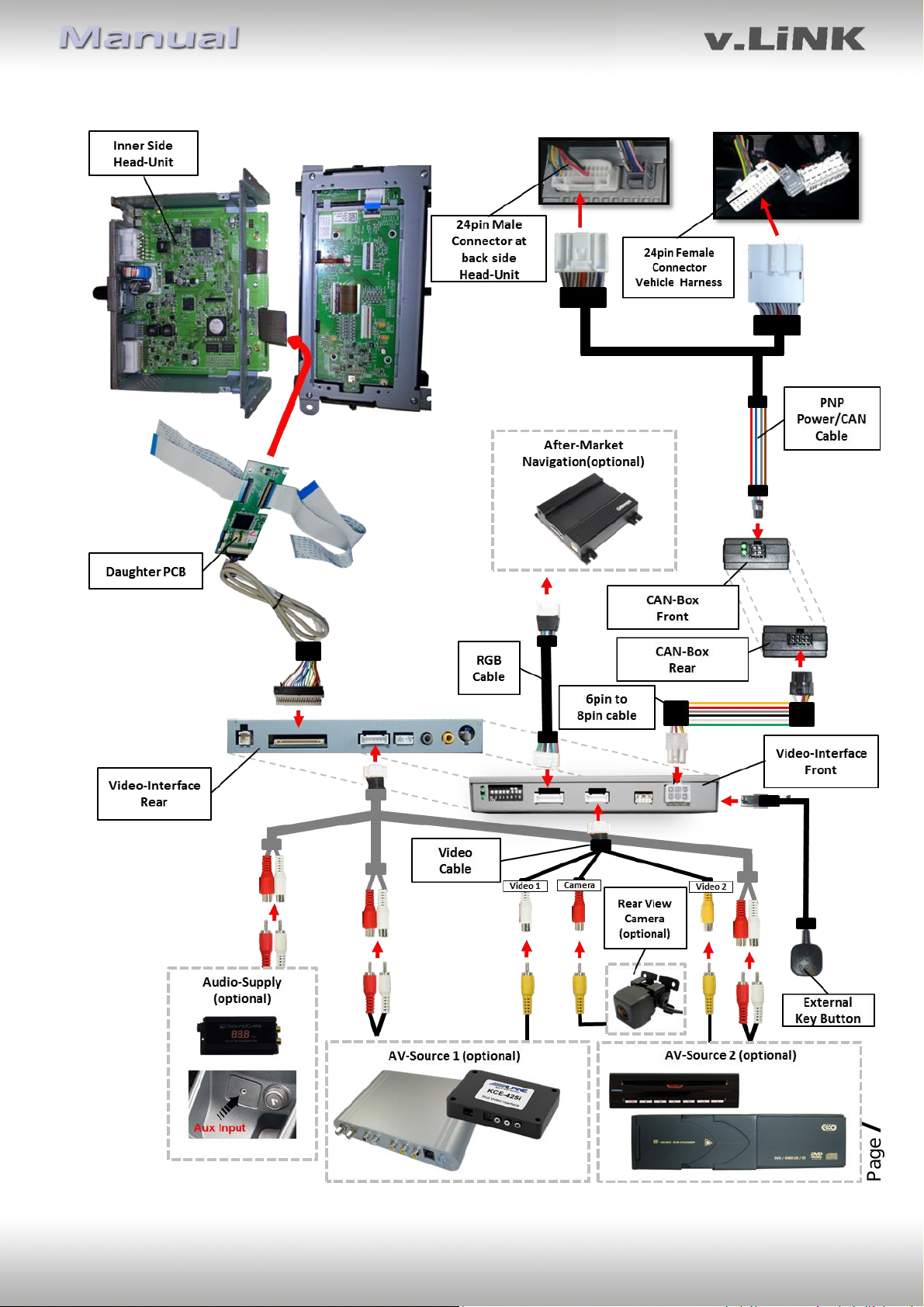

2.2. Connection Scheme

Version 12.08.2016 VL2-RLINK
Page8

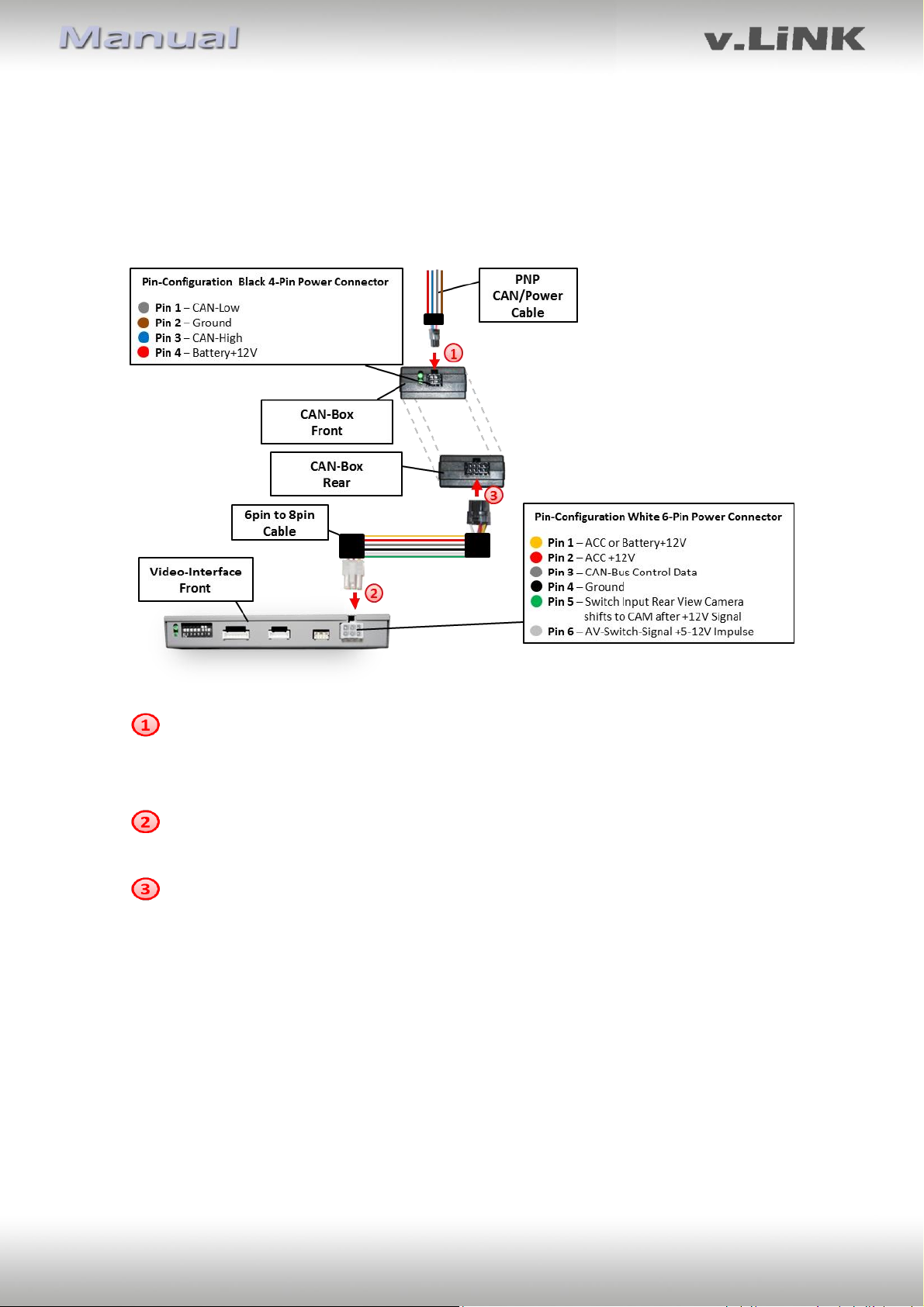

2.3. Connecting video-interface and CAN-Box
The CAN-Bus Box reads digital signals from the CAN-bus and converts them for the video-
interface. ACC +12V max. 0.5A (red of 6pin) and reverse gear +12V max. 0.5A (green of 6pin)
constant signal. Video-source switching (white of 6pin) as +12V impulse.
Connect black female 4pin Micro-Fit connector of PNP Can/Power Cable to the 4pin
Micro-Fit connector of the CAN-box.
Note: Check LEDs on CAN-box after reconnecting the battery, two must be on.
Connect white female 6pin Molex connector of the 6pin to 8pin cable to the male
6pin Molex connector of the video-interface.
Connect black female 8pin Micro-Fit connector of the 6pin to 8pin cable to male 8pin
Micro-Fit connector of the CAN-box.
Note: Check LEDs on video-interface after reconnecting the battery, one must be on.
Note: The CAN-box is not compatible to all vehicles. If the CAN-box does not deliver ACC to
pin2 of the video-interface or blocks the vehicle CAN, it is possible to install without CAN-
box. In this case see also note in chapter after-market rear-view camera, how the inteface
without CAN-Box is supposed to be connected.

Version 12.08.2016 VL2-RLINK
Page9

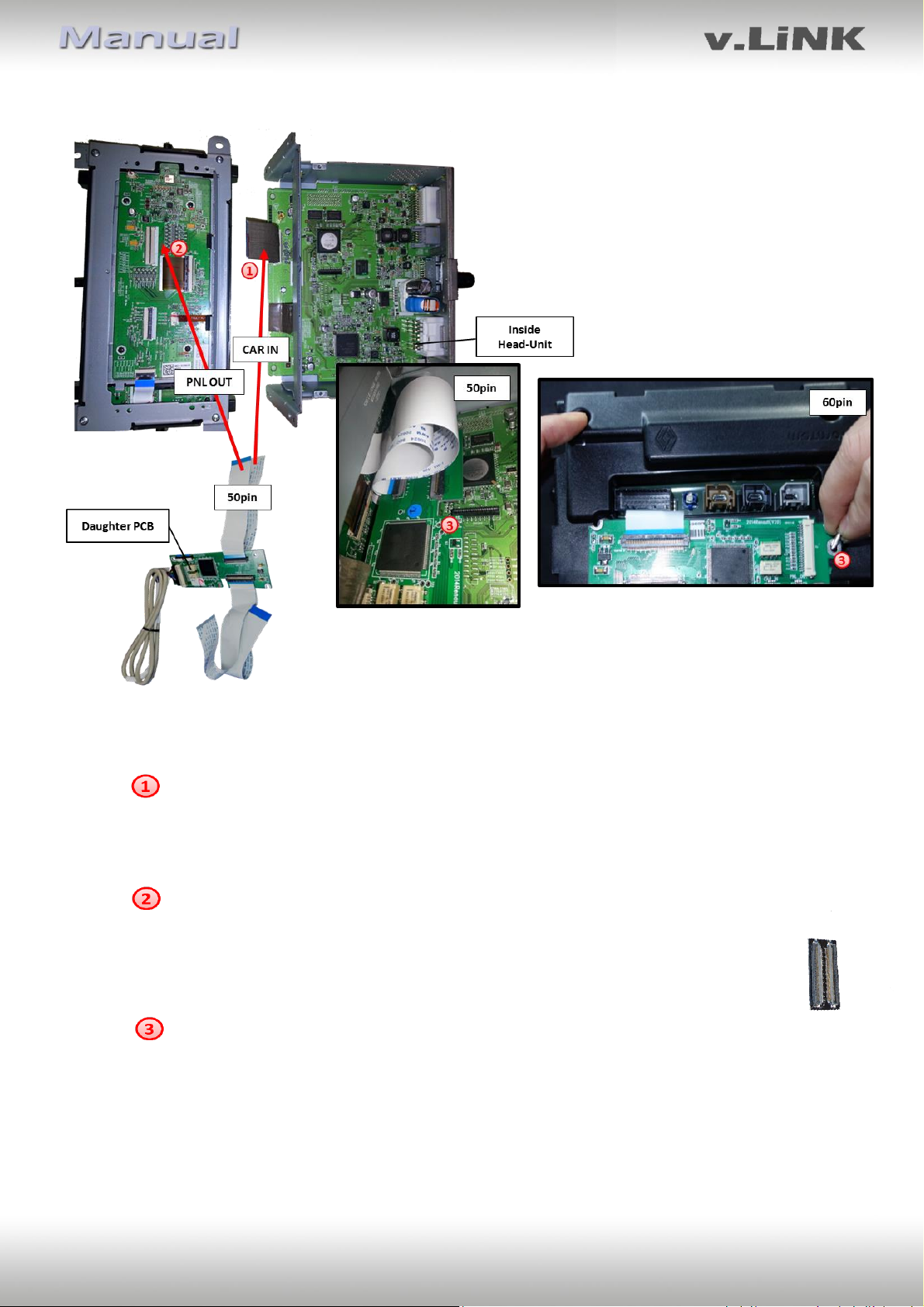

2.4. Installation of Flex-Wires into Motor Panel
Remove factory monitor and open housing. The external daughter PCB will be installed into
the optical lead between monitor panel and mainboard of head-unit.
There are two possible ways of installation:
1. By means of the two 50Pin-Flex Wires (e.g. MediaNav)
2. By means of the to 60Pin-Flex Wires (z.B. Tomtom Monitor)
Connect beige-coloured 20Pin-Connector of daughter PCB to 20Pin-Connector of
video interface

Version 12.08.2016 VL2-RLINK
Page10
Disconnect optical laeds housed between mainboard of Head-Unit and monitor-
panel. Connect flex-wire CAR-IN of daughter PCB to flex-wire base of the mainboard’s
Head-Unit. For this procedure you may either use the original flex-wire or the flex-
wire of daughter PCB.
50Pin: Connect flex-wire PNL OUT of daughter PCB to the flex-wire base of the
monitor’s platinum.
60Pin: For connection of flex-wire PNL OUT to the original flex-wire of monitor
platinum, please use the connector enclosed.
50Pin: Fix daughter PCB to mainboard of Head-Unit by means of spacers.
60Pin: Attach daughter PCB at the outer side of monitor. Please use enclosed long
screws for easier mounting.

Version 12.08.2016 VL2-RLINK
Page11
2.5 Connection to Head-Unit
Remove Head-Unit
Disconnect the 24pin Connector of Vehicle harness at the rear of Head-Unit and
connect it to the 24pin Connector of PNP Power/CAN Cable Kit.
Connect the 24pin-Connector of PNP Power/CAN Cable Kit to the 24pin-Connector
on the rear of Head Unit
2.5 Connecting peripheral devices
It is possible to connect an after-market RGB navigation (or other RGB video source), 2 after-
market AV-sources and an after-market rear-view camera to the video-interface.
Before final installation of the peripheral devices, we recommend a test-run of the
interface. Due to changes in the production of the vehicle manufacturer is always the
possibility of incompatibility.

Version 12.08.2016 VL2-RLINK
Page12
2.6.1. After-Market RGB navigation
Connect female 8pin connector of the RGB cable to the male 8pin connector of the
video-interface. The loose grey wires have no function and have to be isolated.
Connect male 6pin connector of the RGB cable to the after-Market navigation.

Version 12.08.2016 VL2-RLINK
Page13

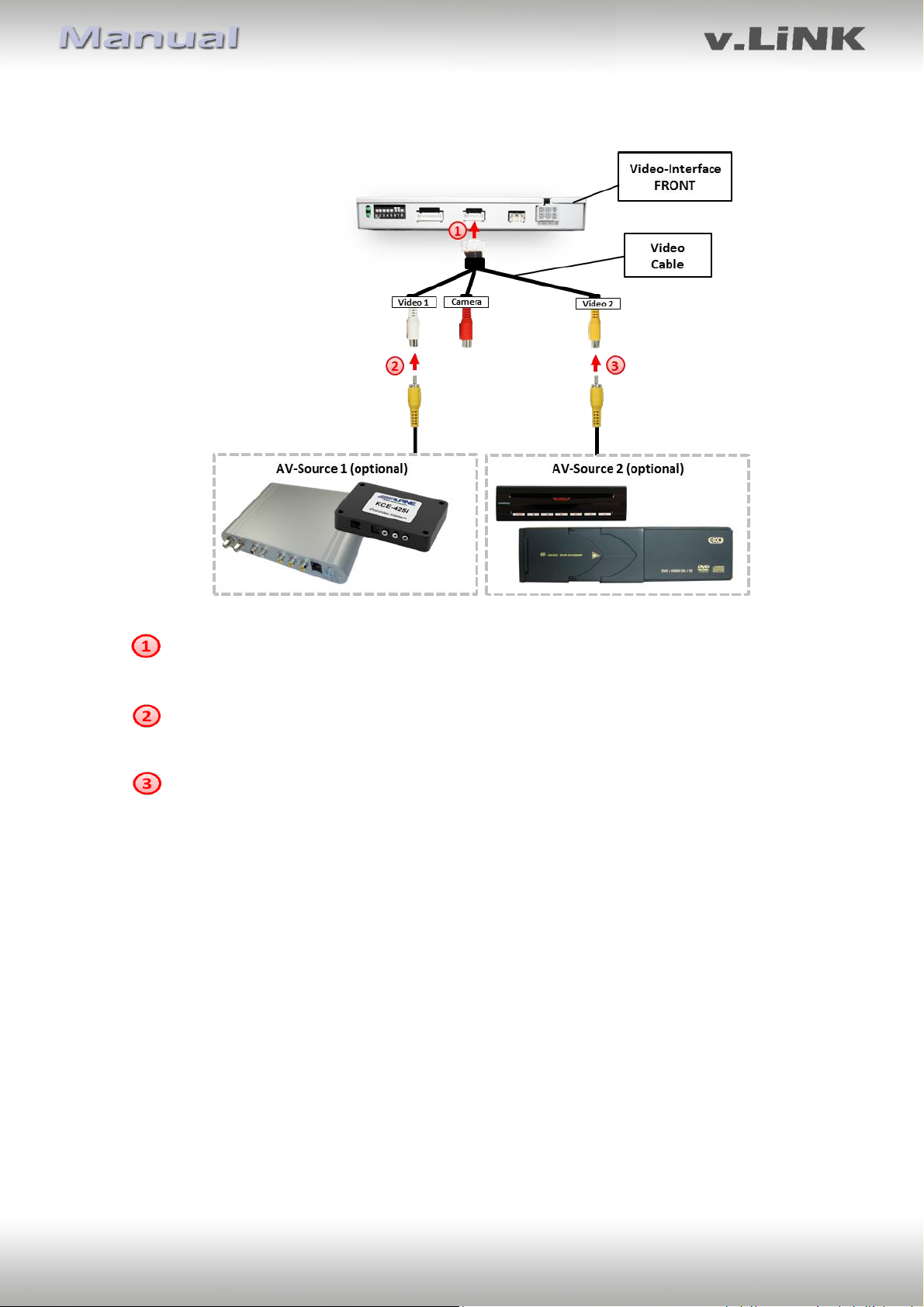

2.6.2. Video-sources to AV1 and AV2
Connect 6pin male connector of video cable to female 6pin connector of video-
interface
Connect video RCA the AV1-source to the female RCA connector AV2 of video-
interface.
Connect male video RCA of AV2 source to female RCA connector AV2 of video-
interface.

Version 12.08.2016 VL2-RLINK
Page14
2.6.3. Audio-switch and audio insertion
This interface can only insert video signals into the factory infotainment and switch audio
signals. If an AV-source is connected audio insertion must be done by factory audio AUX
input or FM-modulator to which the interface’s sound-switch output is connected. By
switching video-interface from AV1 to AV2, the audio signal is switched automatically
parallel to the corresponding video signal by the interface’s built-in audio-switch.
The inserted video-signal can be activated simoultaneously to each audio-mode of the
factory infotainment.
Audio pins
Definition
½
Audio input signal R/L of source AV2
¾
Audio input signal R/L of source AV1
5/6
Audio output signal R/L of factory audio AUX
or FM-modulator
7
Ground
Note: If only one AV-source should be connected, it is possible to connect the video output
of the AV-source to the video input AV1 of the video-interface and the audio output of the
AV-source directly to the point of audio-insertion (e.g. audio AUX input).
Connect female 7pin connector of the audio cable to male 7pin connector of the
video-interface.
Connect the audio-RCA of the possibly existing factory AUX-input or the FM-
modulator to the female RCA port AV-Out of the audio cable.
Connect the audio-RCA of the AV-source 1 to the female RCA port AV1 of the audio
cable.
Connect the audio-RCA of the AV-source 2 to the female RCA port AV2 of the audio
cable.

Version 12.08.2016 VL2-RLINK
Page15
2.6.4. After-market rear-view camera
Some vehicles have a different reverse gear code on the CAN-bus which the included CAN-
box is not compatible with. Therefore there is two different ways of installation. If the CAN-
box can detect the reverse gear in the vehicle, the green wire of the 6pin to 8pin cable
should carry +12V while the reverse gear is engaged.
Note: Do not forget to set dip5 of video-interface to ON before testing.
2.6.4.1. Case 1: CAN-box supports reverse gear
If the CAN-bus interface delivers +12V on the green wire of the 6pin to 8pin cable when
reverse gear is engaged, the video interface will automatically be switched to the rear-view
camera input CAM while reverse gear is engaged.
Additionally, the +12V (max. 500mA) power supply for the rear-view camera can be
taken from the green wire of the 6pin to 8pin cable.

Version 12.08.2016 VL2-RLINK
Page16
2.6.4.2. Case 2: CAN-box does not support reverse gear
If the CAN-bus interface does not deliver +12V on the green wire of the 6pin to 8pin cable
when reverse gear is engaged (not all vehicles are compatible) an external switching signal
from the reverse gear light is required. As the reverse gear light signal contains electronic
interference, a normally open relay (e.g AC-RW-1230 with wiring AC-RS5) or filter (e.g. AC-
PNF-RVC) is required. Below schema shows the use of a relay (normally open).
Cut the green cable of the 6pin to 8pin cable close to the at the black 8pin connector.
Isolate the short end of the green wire (CAN-box side).
Connect reverse gear light signal/power to coil (85) and ground to coil (86) of relais.
Connect rear-view camera power and green wire (video interface side) of 6pin to
8pin cable to output (87) of relay.
Connect permanent battery power to input (30) of relay.

Version 12.08.2016 VL2-RLINK
Page17
2.6.4.3. Video signal connection
Connect the video-RCA of the after-market rear-view camera to the female RCA port
of the video-interface which is labeled as CAM.
Note: Picture settings for CAM input must be done in AV2.
2.7. Connecting video-interface and keypad
Connect the female 4pin connector of the keypad to the male 4pin connector of the
video-interface.

Version 12.08.2016 VL2-RLINK
Page18
2.5. Picture settings and Guide Lines
The picture settings are adjusted by the 3 buttons on the video-interface. Press the MENU
button to open the OSD settings menu or to switch to the next menu item. Press UP and
DOWN change the selected value. The buttons are embedded in the housing to avoid
accidental changes during or after installation. Picture settings must be done separately for
RGB, AV1 and AV2 while the corresponding input is selected and visible on the monitor. AV2
and CAM share the same settings which must be adjusted in AV2.
Note: The OSD menu is only shown when a working video source is connected to the
selected video-input of the interface.
The following settings are available:
Brightness
Contrast
Saturation
Position H (horizontal)
Position V (vertical)
Guide CNTRL (ON
Note: In case the CAN-Box does not support the vehicle, guide lines cannot be used.

Version 12.08.2016 VL2-RLINK
Page19
3. Interface operation
3.1. By VOL- button
Long press LIST-button (Citroen C5)/ TRAF-button (Peugeot 508) to switch the video source.
Each repetition will switch to the next enabled input. If all inputs are enabled the order is:
Factory video  RGB-in  video IN1  video IN2  factory video  …
Inputs which are not enabled are skipped. If the audio cable is connected, when switching
from video IN1 to video IN2, also the sound will be switched.
3.2. By keypad
Alternatively or additionally to the factory-infotainment-buttons the interface’s keypad can
be used to switch the enabled inputs.
Note: The white wire of the 6pin cable can be used with a +12V pulse to switch the video-
sources alternatively.
4. Specifications
BATT/ACC range 7V ~ 25V
Stand-by power drain <10mA
Power 0.3A @12V
Power consumption .. 4.8W
Video input 0.7V~1V
Video input formats PAL/NTSC
RGB-video amplitude 0.7V with 75 Ohm impedance
Temperature range -40°C to +85°C
Weight 328g
Dimensions (box only) B x H x T 152 x 22 x 92 mm

Version 12.08.2016 VL2-RLINK
Page20
5. Frequently asked questions
For any troubles which may occur, check the following table for a solution before requesting
support from your vendor.
Symptom
Reason
Possible solution
No picture/black
picture (factory
picture).
Not all connectors have been
reconnected to factory head-
unit or monitor after
installation.
Connect missing connectors.
No power on CAN-bus box (all
LED CAN-bus box are off).
Check power supply of CAN-bus box. Check CAN-bus
connection of CAN-bus box.
CAN-bus box connected to
CAN-bus in wrong place.
Refer to the manual where to connected to the CAN-
bus. If not mentioned, try another place to connect to
the CAN-bus.
No power on video-interface
(all LED video-interface are
off).
Check whether CAN-bus box delivers +12V ACC on red
wire output of 8pin to 6pin cable. If not cut wire and
supply ACC +12V directly to video-interface.
No picture/black
picture/white picture
(inserted picture) but
factory picture is OK.
No picture from video source.
Check on other monitor whether video source is OK.
No video-source connected to
the selected interface input.
Check settings dips 1 to 3 of video interface which
inputs are activated and switch to corresponding
input(s).
LVDS cables plugged in wrong
place.
Double-check whether order of LVDS cables is exactly
connected according to manual. Plugging into head-
unit does not work when the manual says to plug into
monitor and vice versa.
Wrong monitor settings of
video-interface.
Try different combinations of dips 7 and 8 of video-
interface. Unplug 6pin power after each change.
Inserted picture totally
wrong size or position.
Inserted picture double
or 4 times on monitor.
Inserted picture
distorted, flickering or
running vertically.
Video sources output set to
AUTO or MULTI which causes
a conflict with the interfaces
auto detection.
Set video source output fixed to PAL or NTSC. It is best
to set all video sources to the same standard.
If error occurs only after
source switching: Connected
sources are not set to the
same TV standard.
Set all video sources to the same standard.
Some interfaces can only
handle NTSC input.
Check manual whether there is a limitation to NTSC
mentioned. If yes, set source fixed to NTSC output.
Inserted picture b/w.
Inserted picture qual.
bad.
Picture settings have not been
adjusted.
Use the 3 buttons and the interface's OSD to adjust the
picture settings for the corresponding video input.
Inserted picture size
slightly wrong.
Inserted picture
position wrong.
Camera input picture
flickers.
Camera is being tested under
fluorescent light which shines
directly into the camera.
Test camera under natural light outside the garage.
Camera input picture is
bluish.
Protection sticker not
removed from camera lens.
Remove protection sticker.
