V-TAC VT-11022 User manual

TECHNICAL INFORMATION
Watts: 2
Lumens: 90
Unit Color: Black
Body Type: AL+PC
LED Chip Type: SMD
Beam Angle: 120°
Color Temperature: 3000K
Dimension: 140x140x163mm
Detection Distance: 3-5 Meters
Battery Type: Lithium 3.7V 2600mAh
Charging Time: 4-6 Hours Sunlight Charging
Working Time: Min 3 Hours Max 12 Hours
No. Of Led: 50
Solar Panel: 5.5V, 3W
PILLAR LIGHT SENSOR | LED LIGHTING
V-TAC's LED Lighting range includes lighting that fulfills the needs of
various end-users and industries, offering efficient and innovative
products that provide modern solutions at an affordable price. We are
proud to also provide an extended multi-year warranty on our products,
as well as detailed support.
One brand, endless solutions..
SKU: 6805 - 2 Black
View more details
FEATURES
Zero electricity cost - Solar Powered
DC:5.5V, 3W Solar panel
Smart radar induction
Easy to change colors using switch
IP65 protection safe for outdoor use
Easy installation, Cordless to install
Suitable for gate, garden, balcony, pavilions, stairs, roof, fence, courtyard
etc
PACKAGING
Gross Weight (Kgs): 1.18
Unit CBM: 0.00476
Dimension: 140x140x163mm
MASTER BOX PACKAGING
Box Qty: 20
Qty Per Pallet: 240
Length (Box) mm: 150
Width (Box) mm: 150
Height (Box) mm: 188
LISTING DETAILS
Ean Code: 3800157691246
Moving towards Sustainability. V-TAC.EU

VTACEXPORTS.COM

TECHNICAL DATA
IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: [e-mail]
FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST
DEALERS. V-TAC EUROPE LTD. BULGARIA, PLOVDIV 4000, BUL.L.KARAVELOW 9B
SOLAR LED PILLAR LIGHT WITH SENSOR

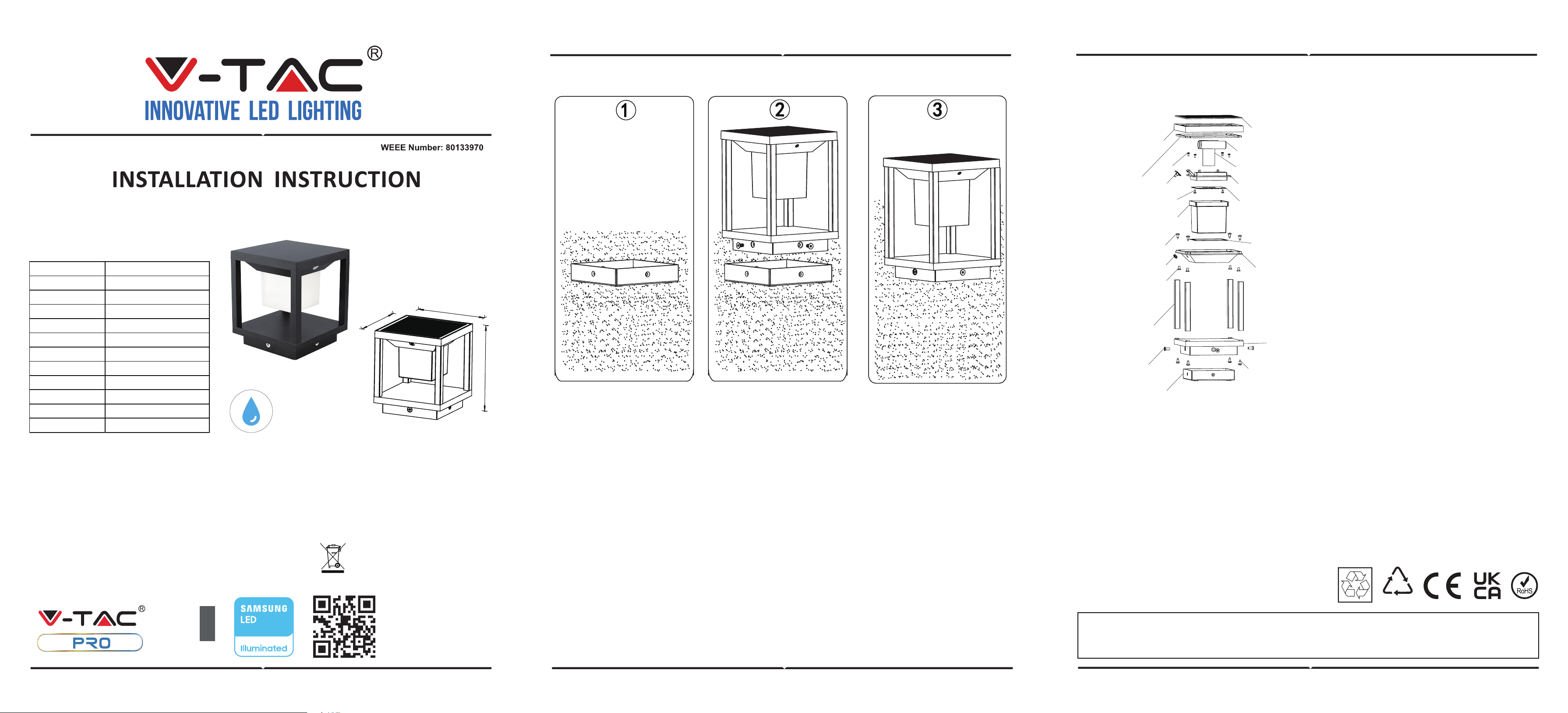

INSTALLATION DIAGRAM: STRUCTURE AND SIZE
Installation Instruction:
1. Choose the appropriate installation position and fix the installation bracket with screws. Pic 1
2. Install the lamp on the mounting bracket and tighten the screws using six-legged wrench
[not included].
Switch Function:
- Press and hold the button for 2-3 seconds to switch ON the solar light. Once switched ON it will
indicate a blue light.
- When switching on the solar light by default it will be in Mode 1.
- To enter Mode 2, press the button again.
- Pressing the button for the third time the solar light will switch OFF and the blue light will disappear.
Operating Modes:
Mode 1: Sensor Mode
- At dusk, it automatically turns to 10% brightness.
- Turns on to 100% brightness when motion is detected in the range of <5 meters
- In 30 seconds if no motion is detected the light switches to 10% brightness.
- Turns off at the dawn.
Mode 2: Constant Brightness Mode
- The sensor will be disabled
- Automatically turns on at the dusk with 100% brightness and works constantly till the battery
capacity goes to Zero. (Upto 4 hours)
NOTES
1. This production is a solar energy product.
When installing, the solar panels of the
product must be illuminated in the direction
of the sun. If not placed in the direction of
the sun the lamp will not function properly.
Resulting in the lamp to no switch ON or the
light is functions for a short period of time
only. Solar panel should be placed in the
direction of the sunlight. The performance of
the light is the best if the illumination time
of the sunlight is longer than 6 hours
resulting in the light to be turned on for its
maximum time.
2. This product is mainly installed on the
surface and is not allowed to be used in
damp or immersed places. Otherwise, it will
have a breakdown and affect its service life.
3. The product can achieve the expected
brightness and light-up time when the
battery is full of electricity. Such as overcast
and rainy days, which will cause insufficient
charging and shorten the light-uptime. If
the lighting time is not long on sunny days,
please check whether the solar panels
are exposed to the sun for a long time. Or
whether the solar panel is dirty and dusty,
ensure to keep the solar panels clean.
4. LED Solar light is designed with a
replaceable battery. It should be replaced
after 3 years of use. After removing the wire
connection from the original lithium battery,
the battery will be removed and replaced
with the new battery of the same specifica-
tions.
MULTI-LANGUAGE
MANUAL QR CODE
Please scan the QR code
to access the manual in
multiple languages.
WARNING!
1. The light source of this luminaire is not replaceable; when
the light source reaches its end of life the whole luminaire
shall be replaced.
2. Installation should be done by certified electrician.
This marking indicates that this
product should not be disposed
of with other household wastes
INTRODUCTION & WARRANTY
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these
instructions carefully before starting the installation and keep this manual handy for future reference. If
you have any another query, please contact our dealer or local vendor from whom you have purchased
the product. They are trained and ready to serve you at the best.The warranty is valid for 3 years from
the date of purchase. The warranty does not apply to damage caused by incorrect installation or abnor-
mal wear and tear. The company gives no warranty against damage to any surface due to incorrect
removal and installation of the product.
3
YEARS
WARRANTY
*
screw
screw
Mounting the base
pillar
screw
switch silicone button
switch holder
Waterproof silicone pad
screw
lampshade
screw
switch button
PCB
Battery Holder
screw
Control board
Battery
photovoltaic panel
Photovoltaic board holder
Waterproof silicone pad
Mounting brackets
20
PAP
140mm
140mm
163mm
MODEL VT-11022
LUMENS 90LM
NO. OF LED 50PCS
SOLAR PANEL WATTS 5.5V, 3W
BATTERY VOLTAGE 3.7V 2600mAh
BATTERY TYPE Lithium Ba�ery
BEAM ANGLE 120
SENSING RANGE 3-5 Meters
CHARGING TIME 4-6 Hours Sunlight Charging
OPERATION TIME 3-12 Hours
MATERIAL AL + PC
DIMENSION 140x140x163mm
IP65
RATING
