V-TAC VT-ST42 User manual

INSTALLATION INSTRUCTION
WEEE Number: 80133970
LED SOLAR STREETLIGHT
INTRODUCTION & WARRANTY
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please
read these instructions carefully before starting the installation and keep this manual handy
for future reference. If you have any another query, please contact our dealer or local
vendor from whom you have purchased the product. They are trained and ready to serve
you at the best. The warranty is valid for 3 years from the date of purchase. The warranty
does not apply to damage caused by incorrect installation or abnormal wear and tear. The
company gives no warranty against damage to any surface due to incorrect removal and
installation of the product. This product is warranted for manufacturing defects only.
WARNING
1. Please make sure to turn off the power
before starting the installation.
2. The light source of this luminaire is not
replaceable, when the light source reaches
its end of life the whole luminaire should
be replaced.
3. Installation must be performed by a
certified person.
This marking indicates that this
product should not be disposed
of with other household wastes.
TECHNICAL DATA:
3
YEARS
WARRANTY
*
Model VT-ST42
Wa�s 40W
Lumens 4800LM
LED Chip SMD2835*90PCS
Solar Panel
21W / 13.5V, Mono-crystalline silicone
material
Li-ion Ba�ery Pack 32700 / 9.6V / 12000mAh, replaceable
IP Rating IP65
Beam Angle 140 x 70°-TPIII
Detection Angle 120°
Detection Distance 8 - 12 Meters
Product Dimension 706.1 x 289.7 x 73.6mm
Installation Height 3 - 6 Meters
Package 35,000 Hours
MULTI-LANGUAGE
MANUAL QR CODE
Please scan the QR code
to access the manual in
multiple languages.

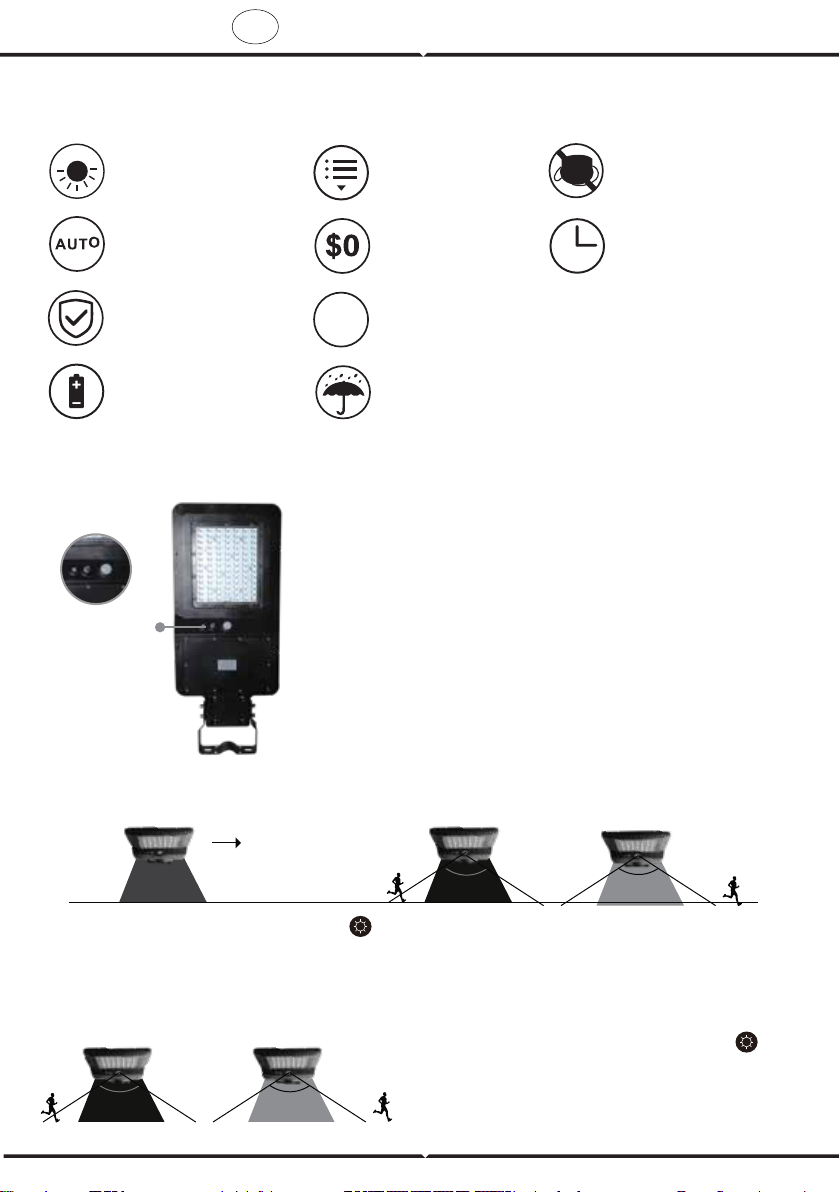

FEATURES:
WORKING MODES:
Solar Powered
Light on/off
Automatically
IP65 Waterproof
Cordless
ZERO Electricity
Cost
DIY Working
Modes
Battery
Replaceable
in Brackets
Long Lighting
Time
Multifunctional
Safe DIY
BUTTON CONTROL:
Please press the button on the lamp to select working
modes.
Press 1st time for Mode A.
Press 2nd time for Mode B.
Press 3rd time for off.
REMOTE CONTROL:
Please press the button on the lamp first in order to
activate the lamp and then use the remote control to
adjust the working modes.
Lamp Button
On/Off
MODE A: CONSTANT LIGHTING MODE
MODE B: SENSOR MODE
Press button on the lamp 1st time or on the remote control, the lamp will automatically
turn on at night and keep 60% brightness constantly for 4 hours(induction is invalid), then
it turns to Sensor Mode.
After 4 hours working
120°
120°
120°120°
Press button on the lamp 2nd time or on
the remote control, the lamp will automatically
turn on with 100% full brightness when motion
is detected in the range ≤ 12mtrs, then turns
to 30% brightness in 20 seconds of no motion.
LED SOLAR STREETLIGHT
EN

REMIND
1. Above working modes are factory default settings, user can re-set it to: press button on
the lamp 1st time for mode B and press 2nd time for mode A, meanwhile also can select
different working time or brightness by remote control, after which it will automatically
become the latest default working mode.
2. Mode A and Mode B cannot be set to the Constant Lighting Mode at the same time, nor
can they be set to the Sensor Mode at the same time.
3. The lamp has memory function. After lamp restarted, it will continue to work in the latest
default working mode.

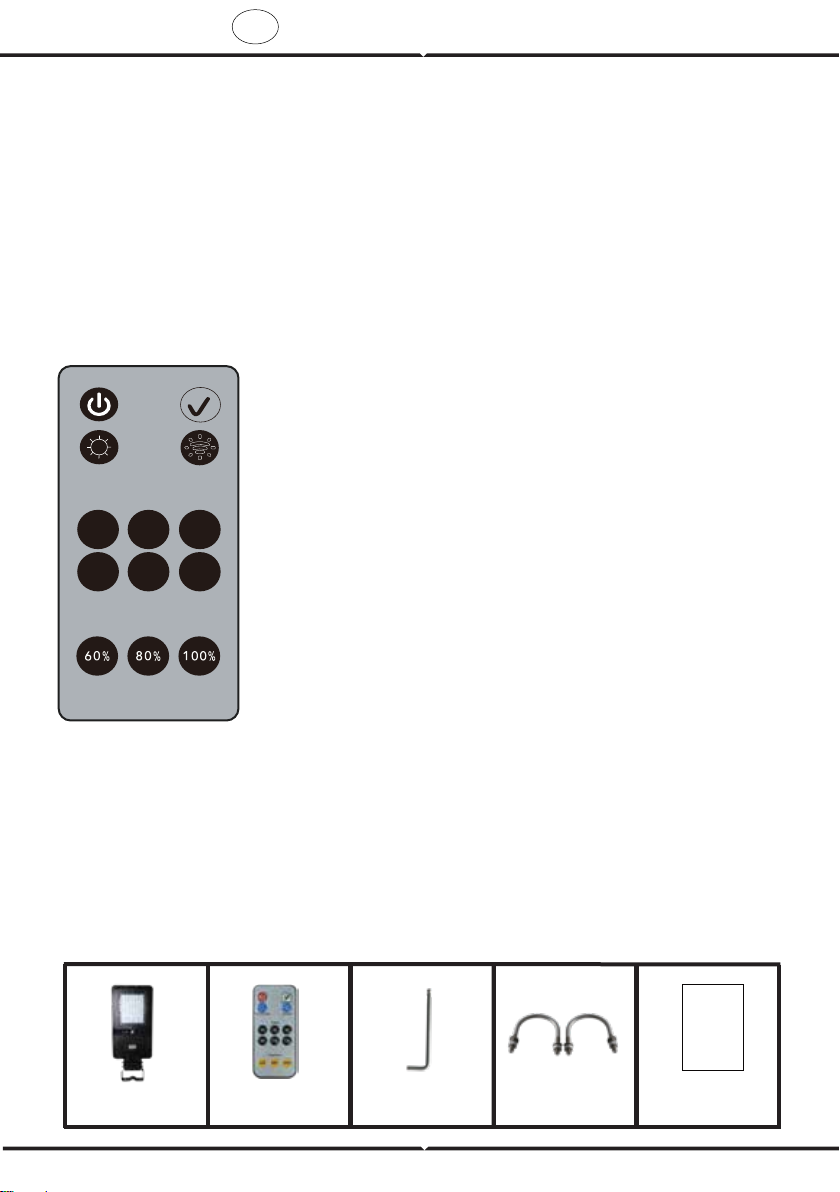

DIY WORKING TIME AND BRIGHTNESS BY REMOTE CONTROL
Remote Control Distance: 12 Meters
2H 6H4H
8H 12H10H
Time
Brightness
ON/OFF Switch Confirm
Constant Lighting Mode Sensor Mode
Mode A (Constant Lighting Mode): time and brightness are
both adjustable.
FOR EXAMPLE:
①Press button “Constant Lighting Mode”;
②Press button “Time 2H”.
③Press button “Brightness 60%”.
The lamp will flash one time after press each button above, which
indicates it’s set successfully as below: Lamp automatically turns
on at night and keep 60% brightness for 2hrs, then it turns to
Sensor Mode.
Mode B (Senor Mode): only brightness(when activated by
induction) is adjustable.
FOR EXAMPLE:
①Press button “Sensor Mode”;
②Press button “Brightness 60%”.
The lamp will flash one time after press each button above, which
indicates it’s set successfully as below: Lamp automatically turns
on with 60% brightness when motion is detected in the range ≤
12mtrs, then turns to weak brightness (30% of 60% brightness)
in 20 seconds of no motion.
PACKAGE CONTENT
NOTICE
1. The lamp button is power-off switch, lamp can get solar charged in any mode.
2. This is a solar powered lamp, please install it in a location where can get enough
sunshine.
3. Please note the lighting time depends on the sunshine duration & weather.
4. Built-in intelligent IC is with over-charge, over-discharge and over-voltage protection.
5. The lamp gets solar charged at day time, and lights up automatically at dusk.
6. The lamp is equipped with an internal battery pack, which is replaceable. If any need,
please contact seller for correct new battery pack.
7. Non-professionals please do not disassemble the lamp.
8. Please do not dispose the battery with household garbage to avoid explosion.
SOLAR PANEL REMOTE CONTROL ALLEN WRENCH U SHAPE BRACKET MANUAL
INSTRUCTION
MANUAL
LED SOLAR STREETLIGHT
EN

1
3
2
4
20°
10°
Loosen the screws
here to adjust angles.
①Before starting the installation, ensure the 4 bottom screws are tightened.
②Remove the gaskets of small U-shaped brackets, then insert them to lamp bracket
across the straight pole.
③ Tighten the screws to fix lamp onto the pole (Suitable for poles with Φ50-60mm).
④To adjust the angle of the lamp, loosen the screws from both sides of lamp (as shown
in the above image)
and adjust the lamp angle, adjustable by upwards 20° and downwards 10°. Then tighten
the screws of the lamp.
INSTALLATION A: STRAIGHT POLE
(Default installation method, accessories included)
LED SOLAR STREETLIGHT
EN

1
4
3
2
Φ50MM

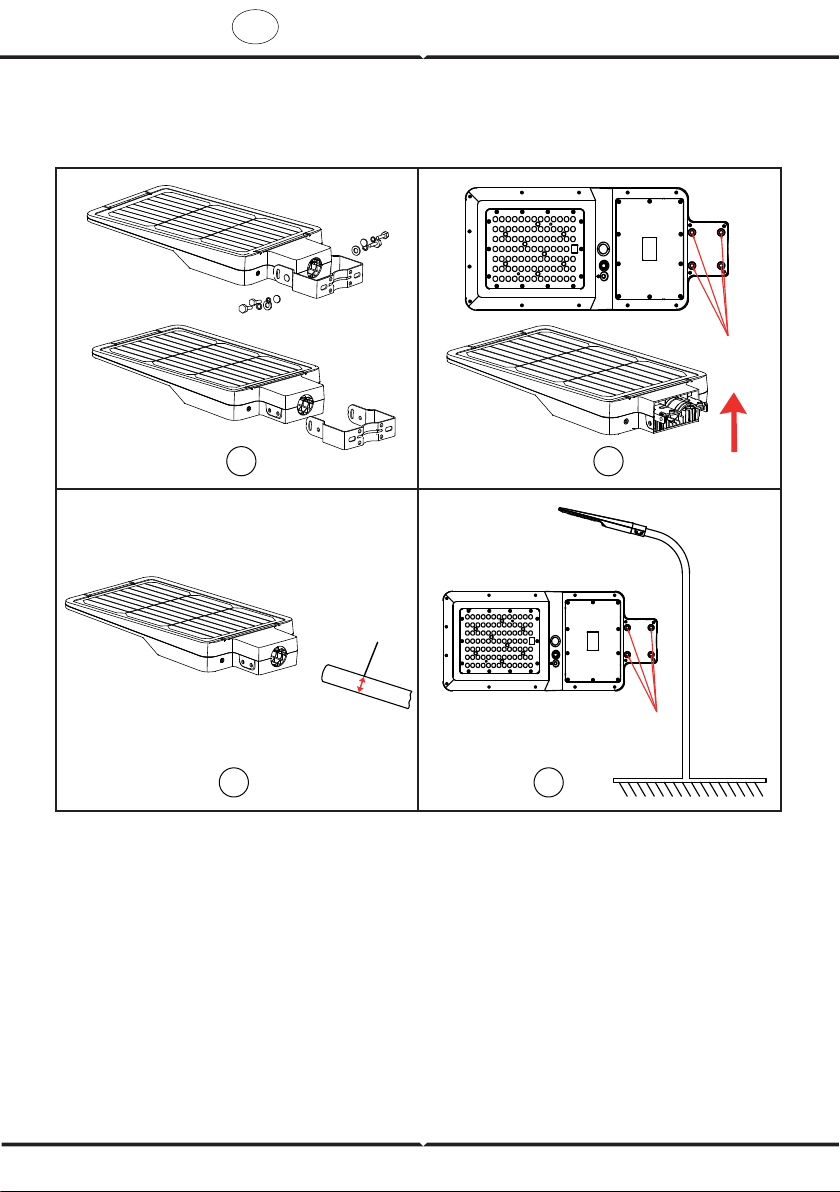

①Loosen the screws and remove the big U-shaped bracket.
②Loosen the bottom screws to match the pole.
③Install the lamp on the pole (Suitable for poles with Φ50mm).
④Adjust the lamp and balance it, tighten the four screws to lock the lamp.
INSTALLATION B: CURVED POLE
(Default installation method, accessories included)
