INSTALLATION INSTRUCTION
4CH WIRELESS SECURITY SYSTEM
No. Name Quantity No. Name Quantity
1 Wireless NVR 1 7 Quick Operation Guide 1
2 Wireless IPC 4/8 8 Screw for hard disk 1
3 IP Cable(1M) for
matching code 1 9 Screw for IPC 4/8
4 USB Mouse 1 10 Power supply for NVR 1
5
Antenna for NVR
(black) 2 11 Power supply for IPC 4/8
6 Antenna for IPC
(white)
4/8 12 IPC installation sticker 4/8
INTRODUCTION
PACKING LIST
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these
instructions carefully before starting the installing and keep this manual handy for future reference. If
you have any another query, please contact our dealer or local vendor from whom you have
purchased the product. They are trained and ready to serve you at the best.

HARDWARE
1. Statement
Thank you for using our product, please contact us if you have any question.
This guide is for Wireless NVR Kit.
Content may be modified and updated based on new function. The function of the actual products maybe a little
different from the guide, please operate it referring to actual products.
2. Attention
①Do not install the wireless NVR in humid and dusty environment.
②Put the wireless NVR in drafty environment in case of ventilation port being blocked.
③Check the power supply to avoid damage because of voltage mismatch.
④Make sure the wireless NVR working within suitable temperature and humidity environment.
⑤Please install the wireless NVR horizontally, and avoid vibration.
⑥Short circuit may occur when dust become wet on circuit board. Please clean the dust
on circuit board, connectors, and NVR case.
⑦Explosion may happen because of improper replacement of battery, do not replace it by yourself;
If you need, make sure it is the same type of battery. And do not open or repair it.
⑧Please use suitable and professional hard disk to ensure continues and stable recording.
⑨Lightning protection is needed when device is connected to communication cables.
Ethernet cable which comes form outside, connecting to the wireless NVR directly is forbidden.
3. Open and Check
Open the package when received, put the products and spare part in suitable place, check them based on packing
list. If there is anything broken or missing, please contact to us as soon as possible.
Hardware
Attention:
Please use suitable and professional hard disk; Do shut off power before installation.
Step 1:Put the NVR on table horizontally, loosen 4pcs M3*6 screws,as picture1-1 shows;
Step 2: Push the cover to the back direction , connect data cable and power supply cable to the ports on
hard disk separately, as picture 1-2 shows.
Picture1-1
3 4
1 2
Picture1-2
1.Hardware Disk Installation

Step 3: Match the hole between hard disk and NVR case, as picture 1-3 shows;
Step 4: Put NVR on table sideways, fix hard disk with 4pcs BM6#-32*6 screws, as picture 1-4 shows;
Picture1-3 Picture 1-4
Picture1-5
2.INTERFACE
①Audio output Antenna
②VGA output
③HD- output
④Network port
⑤USB interface
⑥Power supply : DC12V

Attention: The IPC should be installed on the wall with suitable thickness, which can sustain 4 times weight of IPC& spare part.
STEPS
① Hole location sticker: put the sticker on the wall, punch with 5mm drill in the marked areas, make sure the deep of hole is over
30mm at least.Then punch expansion screws in hole. As Picture 4-1 shows.
② Fixing IPC: The structure of wireless IPC is integrated, please use 3pcs PA4 screws to fix IPC on the wall. As picture 4-2 shows.
③ Bracket adjustment: loosen the screw on IPC, the range of angle for adjusting is showed on picture below,adjust the IPC to
suitable direction, then tighten the screws. As picture 4-3 shows.
3.LOG IN/LOG OUT
4.INSTALLATION OF WIRELESS PC
Please make sure the voltage of power supply is matched with wireless NVR, and ground connection work well in socket. When
power supply connected, indication lamp 【POWER】turn on, it means system runs smoothly.
Picture4-1 Picture4-2 Picture4-3
5.WIFI NVR KIT DIAGRAM

When there comes to no/stuck image because the barrier weaken the signal, user can replace the antenna with extension cable,
to bypass the obstacles, user can place it in a better signal position of NVR.
The shape of wireless NVR signal coverage is a ball, antenna is located in the center. Signal is strong around antenna, and weak in the dent area of the
2 antennas. Based on the signal spreading ways, please make the wireless IPC keeping parallel or tangent with wireless NVR, which ensure stable
signal transmission and better picture quality.
6.PLACEMENT OF WIRELESS PC
Right placement Wrong placement
6.EXTENDING SIGNAL COVERAGE RANGE BY ANTEENNA EXTENSION CABLE

SOFTWARE OPERATION
① Right-click on main interface, select【IP Camera】-【Add】-【Match Code】
② If just match one device, please connect IPC and NVR with IP cable in WAN port. For multiple matching, please connect IPC to switch, and connect
NVR to switch in WAN port.
③ Click 【Match Code】, system will match the code between IPC and NVR.
④ When finished code matching, click 【Search】, then select 【Add All】. User also can click to add it and view picture
Attention: The code has been matched before output, user no need to add the IPC again, picture will be shown automatically when power on.
For code matching, please follow the steps above, and delete the useless channels.
1. Code Matching & IPC Adding

① Check the hard disk. Right-click→【Menu】→【Disk】. Make sure hard disk is connected to NVR and run normally.
Attention : please format hard disk, it can come into using after showing capability
② Timing and alarm record: 【Menu】→【Record】→【Record Time】→ choose type→【apply】.
Attention:Wi-FiNVRsystemisdefaultsetting24hmanualrecord,andalso,【AllDay】/【Daytime】【Night】/【Custom】areforoptional
③ ManualRecord:Right-click→【ManualRecord】→chooserecordingchannel→【Save】(Actually,theWi-FiNVRsystemhavedefaultset
24threcording)
2. Record & Playback

④ Playback: Right-click →【Playback】→ choose channel and date → double click date to query→ double click timeline to check record.
Insert U disk to NVR USB port→ Right-click→【Menu】→【Record】→【Backup】→ choose time, channel and type→【Query】→
select target file →【Start Backup】(some wireless NVR will just 1 USB port, please pull out mouse and insert backup device in 45S after click
【Start Backup】.
Attention: If target file can not be searched out, please click【Empty】→【Add】. Please remove the files which is no need before backup.
Ensure insert device( like USB) in 45S, as system reserved searching time for it is 45S.
3.Backup

① Right-click→【Menu】→【Alarm】→【Motion Detect】→ choose target channel→ click 【Enable】→
Set Sensitivity & Area & Time & Alarm mode→ Choose Channels for recording when Motion Detection Alarm is
triggered→【Apply】.
② Back to【Record】interface→【Record time】→ 【Custom】→ set record period of target channel→ click
【Motion】→【Apply】. User can also set shelter and linkage alarm in the same way above.
4.Motion Detection Record

【Menu】→【WireNetwork】
InLAN,thereare2waysforwirelessNVRtoconnecttoInternet.
Manualsetting:FillinIPaddress,DNSdata,andclick【Apply】.
DHCP:openDHCP,devicewillconnecttoInternetautomatically,noneeddatasetting.
Ifuserdoesnʼtfamiliaraboutthenetworkenvironment,preferuseDHCPfirst,please.
Bridge
Bridging function: to expand the coverage area of wireless signal.
IPC in further area can connect to near IPC via Wi-Fi signal and connect to NVR finally. It could extend transmission
distance for complicated installation scenes.
① Steps: 【Menu】→【Channel】→【Bridge】
5. Internet Connection

② Add: click to add target channel/camera. If no this icon, then can’t set bridge function
③ Picturebelowshows2connecttypes
a.Onebyone:CH3→CH2→CH1→NVR
b.ConnecteddirectlytoNVR:CH4→NVR
Donʼtforgettoclick【Apply】tofinishbridgesetting.
Attention:wheninstallingcameraaftersetbridgefunction,pleaseprefertheonewhichconnectNVRandIPC,ensure
thiscameraisplacedinabettersignallocation(openarea,lessobstacle),powerit,imageshowed,thenthenextone.
Forexample,likethepicturebelow,usercaninstallcamera1,thencamera2,thencamera3.
④ Delete-
Movemouseonachannelicon→left-click→【Save】
ThecamerawhichisdeletedwillconnecttoNVRautomaticallyafter30S.

Wire connect
Wireless connect is very convenient, and wire connect is also a good supplement.
In some complicate scenes, like too much thick obstacles/metal which will weaken signal, even lead to disconnection,
then wire connect will help to solve it to ensure image clarity and stability.
Steps:

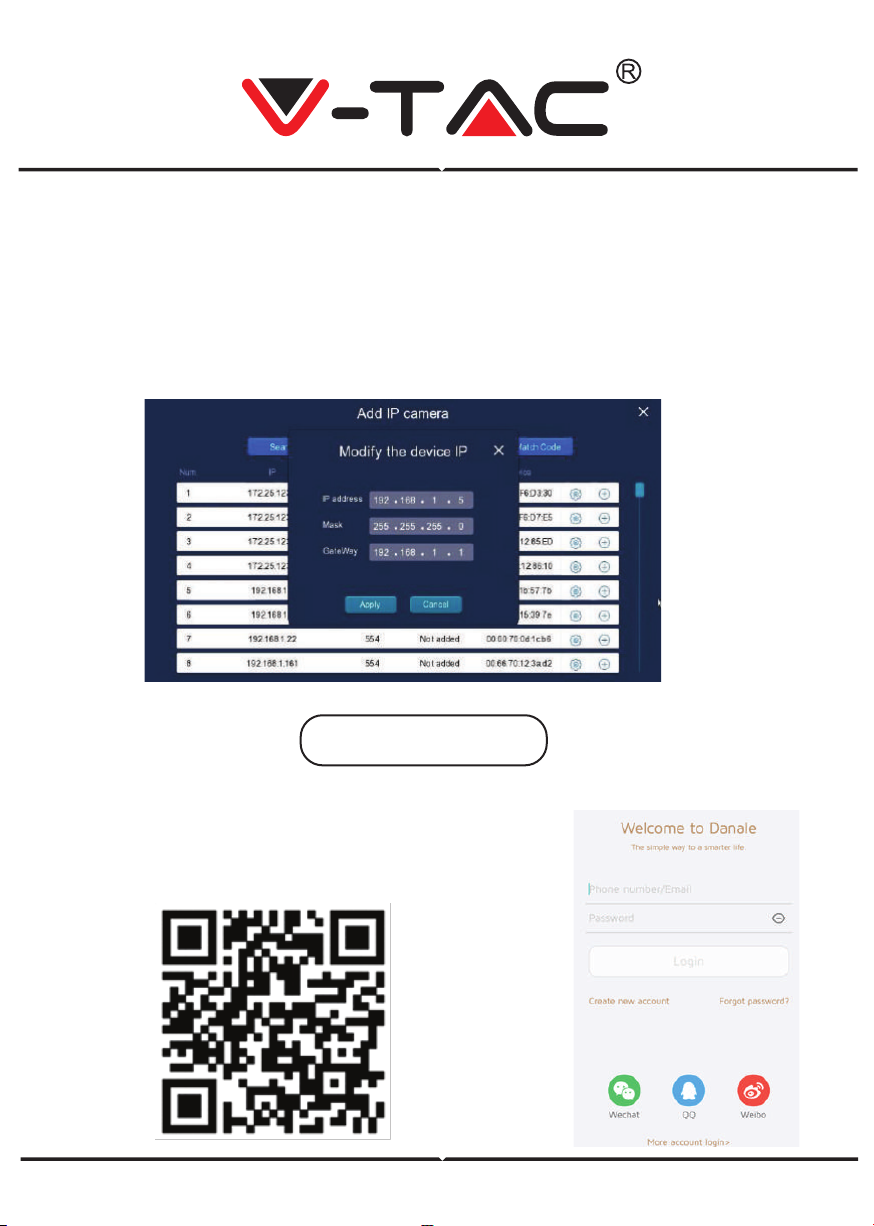

①Connect IPC and NVR with network cable directly or through switch, 【Menu】→【IP camera】→【Search】→
select target IP address(as the IP address is the same before modify)→ →【Modify the device IP】.
② Delete the channel which no need to add→ double click the target IP address to finish connection.
① Software download: user can download “Danale” on Android market/App store, website download
address is : http://www.danale.com/danale/downloadCenter.jsp ,
also, customer can scan QR code below.
② Open Danale, and sign up a personal/company account
MOBILE PHONE VIEW

③ Connect NVR with router by network cable directly to ensure it is connected to Internet and IP address on NVR is valid.
Steps: Double-click→【Wire Network】→ set IP address.
Attention: If not familiar about the LAN environment or the device is in private network, user can turn on “DHCP”, which
ensure gaining IP address automatically. If familiar about LAN, user can set it and DNS manually to connect to internet.
④ Open P2P function, as picture below:
【Menu】→【Network】→【Mobile】→【Enable】, click【Refresh】to let the status shows “online”.
If shows “Not online” more than 5 minutes, please check step to ensure NVR is connected to Internet

1) Logging in Danale, click →【Scan QR code】to add device, if the account have added camera before,
interface will be like the second picture, please choose the top right icon .
2) Scan device’s ID QR code or click ” ” to input it manually In the pop-up interface, then name the device to finish
add it as follows:
Adding Device
.

Preview:
Cick device in list to enter preview interface, select a channel to view it’s picture, click to enter full-screen,
as follow shows:
Preview: Interface Icon

Sharing With Others:
click “ ” , input account or scan account QR code to share to others. and click【Next】.
Playback:
Select “ ” on the interface, click “Hard disk video” to enter related playback interface, user can drag timeline to
playback the video in different time, and click to switch channel or to change to target channel.

PC view
① Software install: download address : http://www.cnjabsco.com/download/lists.html;
User can search tools software, choose version, download it according PC system.
NVS
② Please ensure Danale account have been signed in and added camera successfully on cellphone, open software,
input user name and password, select【Login P2P】
Attention: user won’t log in an account or find a device without a registered account/ no camera have been added on it.
User can’t view the video on cellphone and PC by the same account simultaneously
③ Danale on PC will show the added device on left list after logging in, select 4 split display, click device list to
choose a channel or right-click to connect all.
④ If don’t select 【Login P2P】, input user: admin, password: admin, customer can search and add all the
device of the LAN.

IE View
① Connect WAN port to switch with IP cable.
② Check the network wire network IP address
, put it on IE.
Attention: The segment of NVR and PC should
be the same.
①Log in IE, input the user name and password
(user name: admin, no password) , click【Login】.
Attention: please click【Download plug-in NEW】
for install plugin for the first time, and remember
to log out Internet Explore in procession
② Click and choose【Live View】, user
can view the picture and set data on the user
interface, picture as below.
In case of any query/issue with the product please reach out to us at [email protected]
