Vacron CDR-E07 User manual

i
ALL IN ONE
Vehicle Video Recorder
User Manual
2016 APR V4.0
3G / WiFi (
Option)

ii
Notice
Please test recording and play function to make sure the device is
running well. Attention, if the failure was due to device accessories
included memory card out of function to lead to any loss of video
recording function fail or unable to read the video type, our
company ,subsidiary bodies and agency all not responsible for
indemnification.
Before use the product, please sure you have read notifications
as below. And please sure the way you operating the product is
all correct.
•Please put the device in the place where child and baby not
able to touch.
•Please only use the recommend power.
•Please do not use the external (multiple plug ) automobile
cigar lighter to prevent unstable voltage crashed the device
system.
•Please make sure automobile cigar lighter and the power head
must be fitted.
•Please do not try to disassembly refit and heating the device.
•Prevent let the device full down on the ground and got heavily
strike.
•In order to prevent damage, please do not touch the bottom
of the device after it full down or damaged.
•If the device is smoking, waft peculiar smell or any abnormal
issues, please stop to operate the device.

iii
•Please do not use the organic solvent, benzene or acetone to
clean the device.
•Please do not let the device to contact water (ex. Sea water) or
others liquids.
•Please do not let any liquid or object into the device.
•Please do not put the battery nearby heating or expose to fire.
•Please do not touch the power wire when hands wet.
•Please do not plug the device in the power that over specific
voltage. Please do not use the damaged plug and wire, or
insert the plug into the socket incompletely.
•Please avoid the terminal or plug to contact any metal object
(ex. needle or key) or dirt.
•Please avoid to use or place or storage the device in the damp
or full of dirt environment.

iv
Table of Contents
A. Features...................................................................................................................... 1
B. Specification............................................................................................................... 2
C. Accessories ............................................................................................................... 5
D. Structure of Product................................................................................................. 6
E. Dimension................................................................................................................... 7
F. Installation Guide...................................................................................................... 8
G. Functions of Remote Controller........................................................................... 9
H. Start / Stop Recording...........................................................................................11
I. Software Player Instruction .................................................................................12
J. Formatting Memory Card.....................................................................................20
K. Restoring Memory Card.......................................................................................23
L. 3G Client Remote Surveillance (optional).......................................................25
M. WiFi (optional) .........................................................................................................33

1
A. Features
1. Suitable for all personal vehicle, taxi, bus, truck……
2. Built-in supercapacitor offers extensional power supply and
ensures video is well stored of critical moment and compact.
3. Small size, easy installation and dismount, it does not affect
the driver's line of sight.
4. Insert the card and power on to start recording without
additional operating.
5. Simultaneously recording interior and exterior condition.
6. Having full time, date recording and display on the screen
directly.
7. Recording driving condition, sound, G-Sensor and GPS
data.
8. Front view angle approx. 120 degrees. Back view angle
approx. 130 degrees.
9. Recording track of driving routes which can be shown on
Google Map when we play the video.
10. Micro SD memory card Class 10 or above recommend.
11. G-sensor sensitivity can be adjusted according to road
situations. When detect a strong shock, system will start
emergency recording and keep the files without being
overwritten.
12. Professional file formats, without built-in lithium battery, no
needs to afraid of heat and bursting concerns, it is the real
black box.
13. Carry on 3G dongle for remote surveillance, vehicles
operating data can be handling on time.
14. Carry on Wi-Fi dongle for on line video immediately
download and backup.

2
B. Specification
Item
Specification
Chipset
H.264 image compression chip
Sensor
Device
Forward facing lens: 720p CMOS Sensor
Backward facing lens: 720p CMOS Sensor.
View Angle
Outside vehicle approx : 120 degree
Inside vehicle approx : 130 degree
Voltage Please use 5V±5%, 1A Cigarette lighter adapter. The
machine needs 4.7v to start.
Operating
Temp
-15℃~+65℃(Inside Vehicle).
Storage
Device
Micro SD Card 8GB/Class 10 or above specification is
available.
Recording
Frame
Forward facing lens: 1280x720; Highest resolution:
30fps/25fps (NTSC/PAL)
Backward facing lens: 1280x720; Highest resolution:
15fps/15fps (NTSC/PAL)
Auto record when power up system; backward facing
lens can be closed by setting of software.
Recording
Content
Date, time, image, sound, G-sensor data, GPS data.
Recording
Format
Specific format for software player. H.264 compression
Microphone Build-in high sensitivity of single microphone for
automatic voice adjustment.
Time Setup Auto-calibrating by GPS signals. If GPS is not
available, the built-in clock will be used.
G-Sensor
Internal 3D G-Sensor.
GPS Auto Recording by driving route shown on Google
Map.
3G(Option) Available to connect 3G dongle for remote surveillance
and vehicle information status handling.
WiFi(Option) Available to connect external WiFi dongle for live view
and online download backup.

3
Out Device
(a) TV-Out (1 Vp-p composite video output, 75 ohms),
Video Output format: NTSC / PAL alternative.
(b) Force Record Button: For emergency recording.
Gleams in night time.
(c) Red light: Recording indicator. In emergency
recording, it flashes more frequently.
(d) Green light
Flashing: Searching GPS signals.
Light on : GPS positioning ready
(e) External hole to connect GPS Mouse
Remark: When IR turns on, the LED light will be
dimmer.
Description
(a) The GPS positioning speed will be influenced by
solar film of the front windshield, weather or other
environment factors.
(b) If any metal material has contained in the car
window films of front window, it could be led to GPS
unable for positioning.
(c) Starting and closing time of infra red will be subject
to light intensity, the installation location, front
windshield and other factors ...
(d) Day and night mode having delay mechanism for
about 30 seconds. Night mode will be priority when
power on.
(e) Memory card formatted by using the playback
software, windows will recognize the remaining
capacity about 80MB for copying the player software
to memory card.

4
Important
Notice
(a) The current consumption of the machine over
standard USB hole (output 500mA). When connect
with PC power supply, it's better to buy another
power cable with two holes for portable hard drive.
(b) Machine must be installed in the area that wipe can
be reached to ensure the clarity of recording video.
(c) Please do not plug the power in both micro-USB
sockets. The machine might be damaged.
(d) If not use the player to format memory card, the
machine will force to format the entire memory card
and then start recording.
(e) It's better not crossing the top of the machine and
the left side of GPS. We suggest to put the cables
via the right side of the VVR and then connect to the
ceiling to get better GPS signal.
(f) Initial screen and Live View screen may change due
to software update or revision without notice.
(g) The machine itself has a distinction between NTSC
or PAL. Video output to the monitor with
corresponding screen system.
(h) Memory card has the number of reading and life
issues, please check and use the computer to play
video regularly in order to make sure the memory
card can read and write properly.

5
C. Accessories
Standard：
(a) 5V cigarette Power adapter
(b) USB card reader
(c) 4 pings, 3.5 inch headphone jack to RCA output cable
(d) Remote control
(e) Suction cup bracket
(f) Bracket holder
(g) Product CD
(h) Quick Guide
Optional：
(a) Micro SD card (8GB/16GB/32BG/64GB)Class 10 above
(b) External GPS Mouse (4P Phone Jack Connect)
(c) Mini_USB transfers to USB AType
(d) External USB WiFi WLAN Card (Apply for D-Link(DWA-
121), ASUS USB-N10 Nano)

6

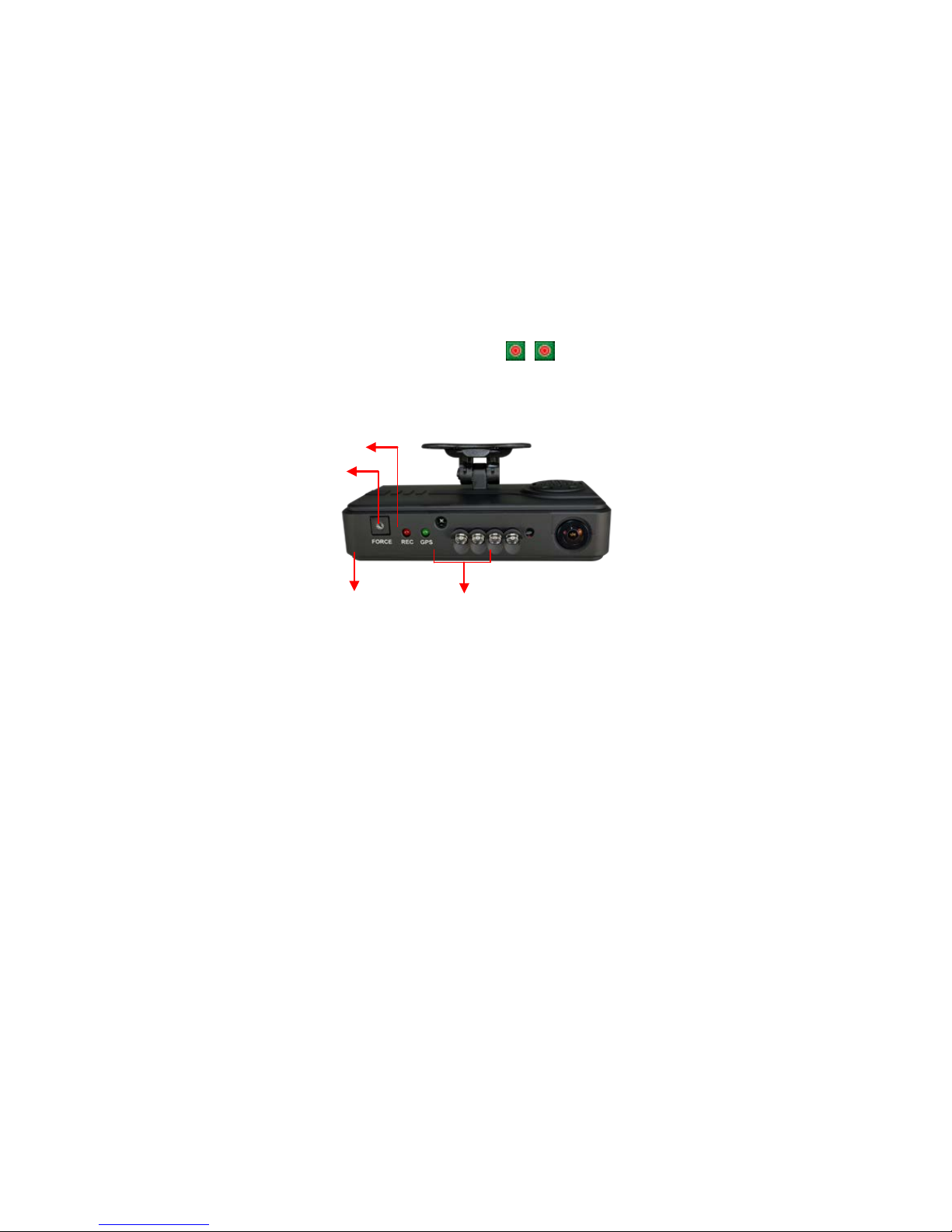

D. Structure of Product
※Please do not plug the power in both mini-USB terminals. The machine
might be damaged.
Forward Facing
DC5V(1)
Recording Indicator
GPS
Indicator
Force Recording Button
IR LED
Backward Facing Lens
Video Out
Light Sensor
Remote Control Receiver
GPS Mouse
DC5V(2)
MICRO SD Card

7
E. Dimension
UNIT：mm

8

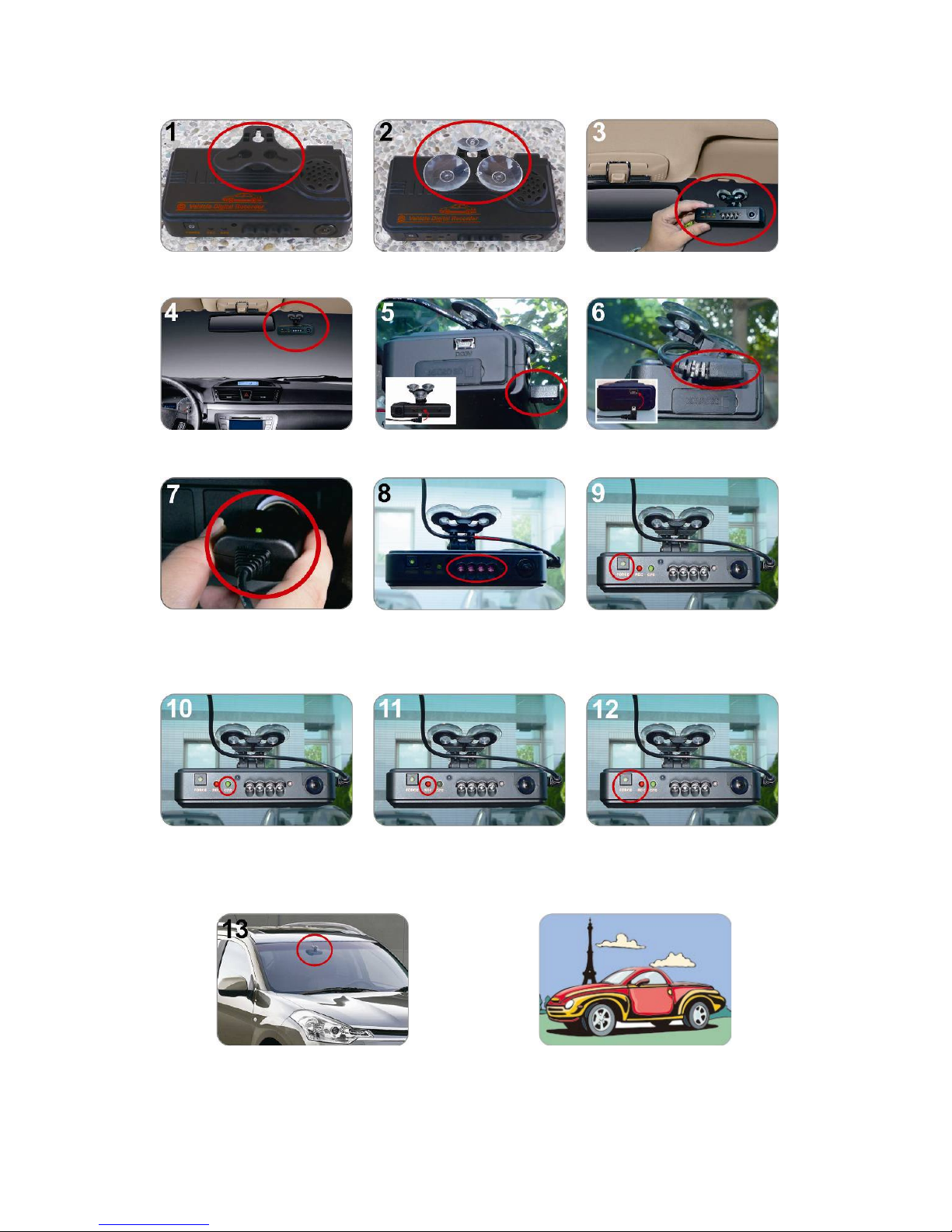

F. Installation Guide
Make the bracket facing
upward. Assemble the suction cups. Set up the machine in proper position.
Adjust the viewing angle. Plug the power cable to socket on photo No. 5 or No. 6,
please do not plug in both sockets at the same time)
Plug in the cigarette
adapter.
When the power is
successfully connected, the
IR LED will light on for 10
sec.
Force Record button: Light
on when power is
connected successfully.
Green: flashing while GPS is
positioning, Light on when
GPS is ready.
Red: flashing during
recoding, Fast flashing in
emergency mode.
Force Record Button: When
press down, the red light will
flashing rapidly. In the night
its LED will light on as
indicator.
Installation Complete!
God Speed!

9
G. Functions of Remote Controller
Button Function Description
▲Force Recording
Button
Manually establish a
recorded file which cannot
be overwritten.
Mode
Mode
Button Full screen / Half screen spilt shift
Menu Menu Button Firmware version of the
device displayed
Mute Button Voice recording On/Off

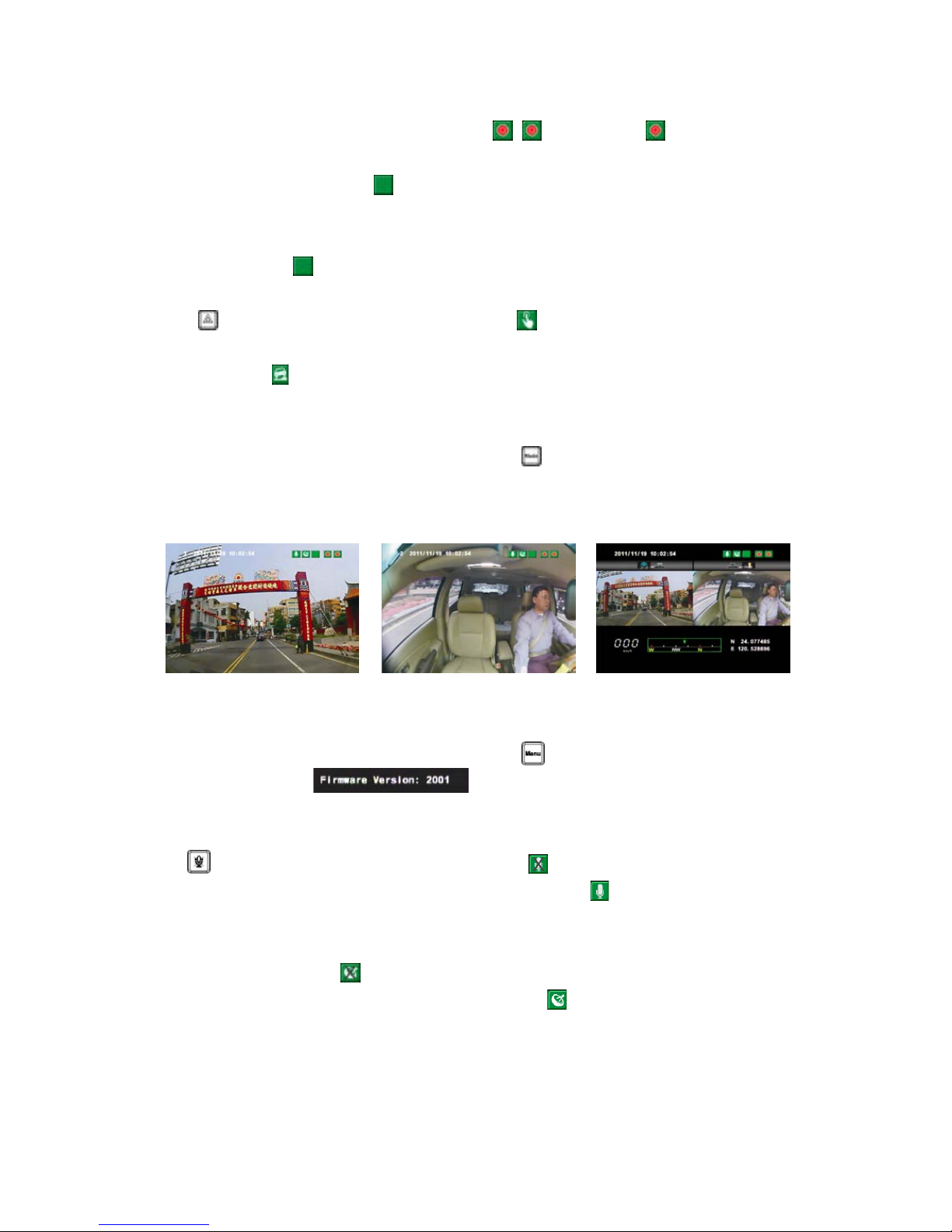

◆Introduction of OSD Interface: (Video output from connecting TV-OUT
line to the device)
Forward facing lens
(
Recording)
Backward facing lens
(
Recording)
GPS positioning
Voice recording on
G-Sensor is working well
Front view (CH1)
Inner view CH(CH2)
GPS Information

10
1. The right side of LIVE view will show , left figure is presented as
forward facing lens, the other one is backward facing lens.
When the figure becomes , the backward facing lens is turned off and the
microphone recording is muted simultaneously.
2. Event Record: Appears in the top right side of LIVE screen, it means
that G-Sensor didn't receive abnormal signal. When you press the record
button from the remote control or click this icon at the right top to
force the machine to record manually.
When the icon appears at the top right that means G-Sensor detects
abnormal vibrations and start force recording.
3. When turns to Live screen, it could click via remote control to switch
CH1(Front View) or CH2(Inner View), dual CH display with GPS information
as shown below:
Front View (CH1)
Inner View (CH2)
Dual CH Display With GPS
Information
4. When turns to Live screen, it could click via remote control to show
Firmware version.
5. In the LIVE screen you can choose whether open the recording, click the
mute button on the remote control icon will appear top right of the
screen, that means stop recording; When the icon appears in the top
right that says on the recording.
6. GPS display: When icon appears at the top right of the Live screen, it
means there is no GPS signal; when the icon appears in the top right of
the Live screen, it indicates that the GPS is working.

11
H. Start / Stop Recording
When power on the device, the screen will show a welcome message for the
device starts if connected to TV-Out. The firmware version of the device will
displayed before LIVE view of recording starts.
1.Power on / Start Recording
The device can be started completely after power on for one minute.
When the device is started on programming, the green indicator light is
flicker before GPS positioning completed. After one minute, the red
indicator light will be kept flicker until show n on right side of LIVE
view; the device starts recording now.
Definition of Indicator
●Force record button: good for using at night
●Red indicator of REC:
Stable flicker of red indicator: On recording
Fast flicker of red indicator: Force recording
●Green indicator of GPS positioning:
Flicker of green indicator: GPS 3D positioning
Steady of green indicator: GPS 3D positioning accomplished.
2.Power Off / Stop Recording
Power off and then remove the memory card to read the recording file
in computer.
Force Recording Button
IR LED
Recording Indicator
GPS Indicator

12
I. Software Player Instruction
How to read the files from Micro SD card?
Open the plastic
lid.
Remove the card
from the machine.
Insert the Micro SD
card into the card
reader (please make
sure the direction is
correct).
Connect the card
reader to the PC
and use the software
in CD to play the
files.
1. Play Video

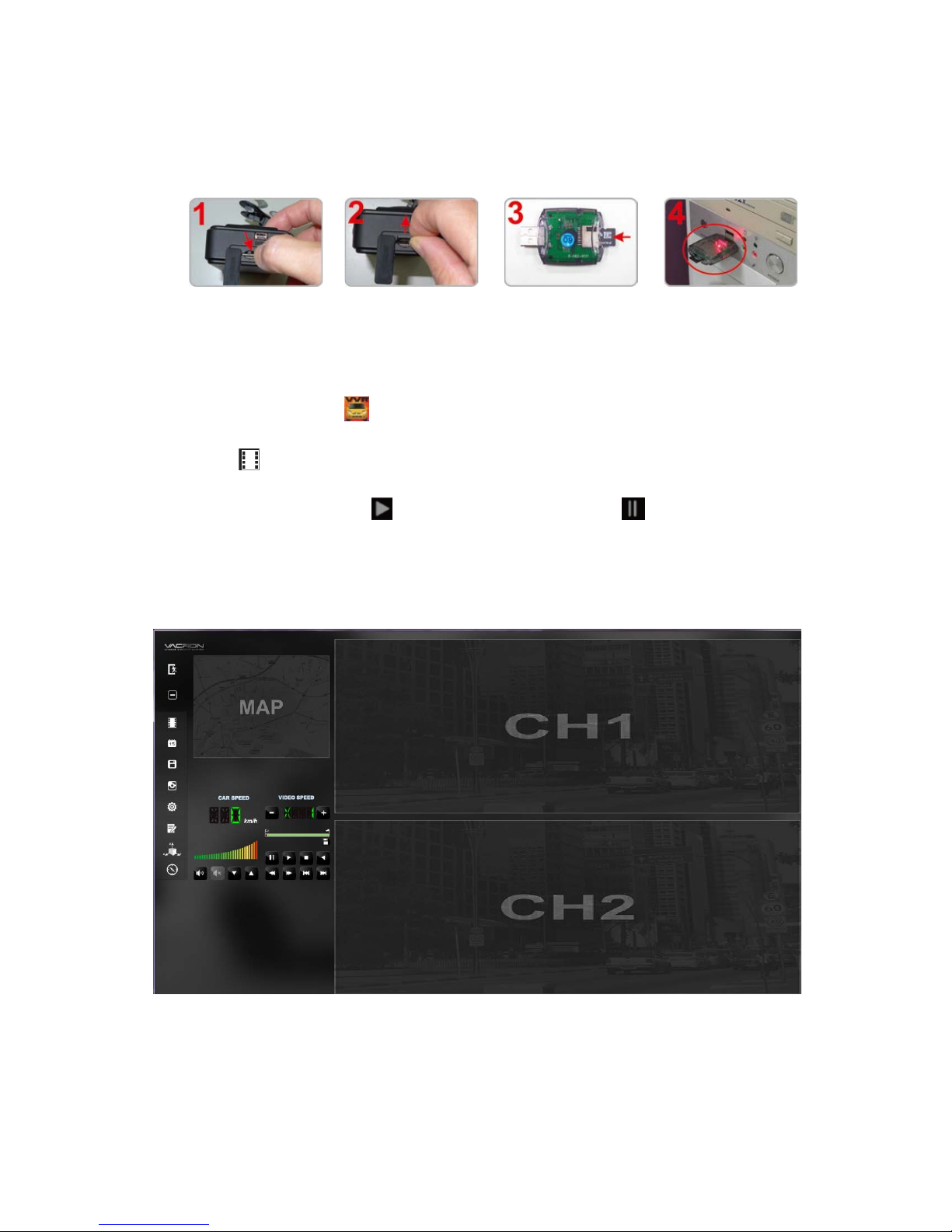

Start the program (you can locate it in the CD-R),
The main screen will be like the picture below.
Press button, and choose the memory card player list to play the
files. Direct X 9.0 above is necessary for this program.
During playback, the button would change to button and you
can click on it to pause playback.
2. Main Screen
Viewer Interface

13
a. Play & Settings Icon Instruction:
play previous frame
play backward
Pause
Stop
Play
Play next frame
Play previous file
Play next file
Close
Minimal
Playback
Calendar
Backup

14
Snapshot
Configuration
Format
G-sensor
Compass
Disk Backup
Save the recorded files to your PC. Click on the button and it
will pop up the screen as below.

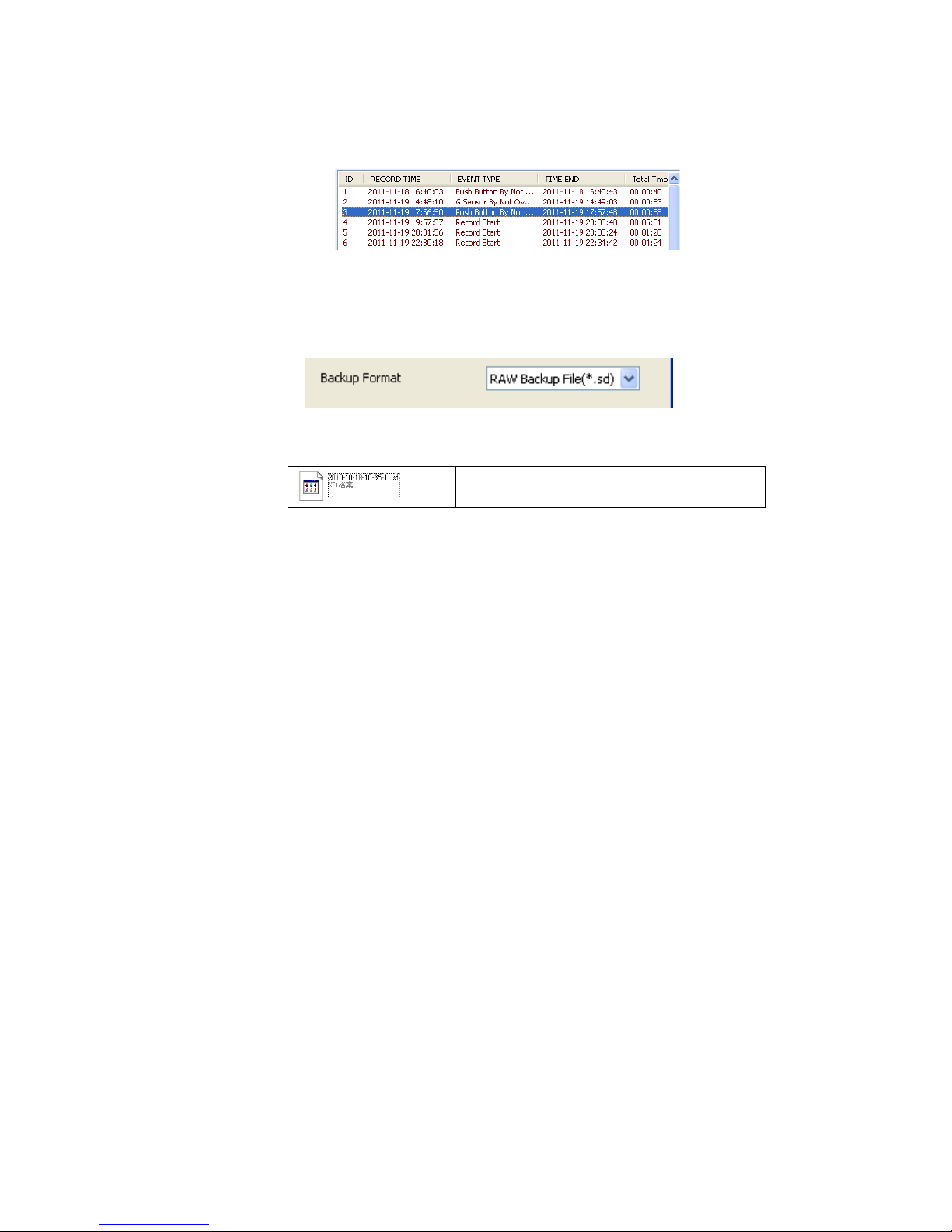

Step1: Select the origin for the Micro SD card

15
Setp2: Select the recorded file which you want to backup
Step3: Choose the backup file format
(1)Micro SD Card Backup (*.sd)
(2)AVI File Backup (*.avi)
Backup format：
(1) Micro SD card backup format
Micro SD Card File type (*.sd)

16

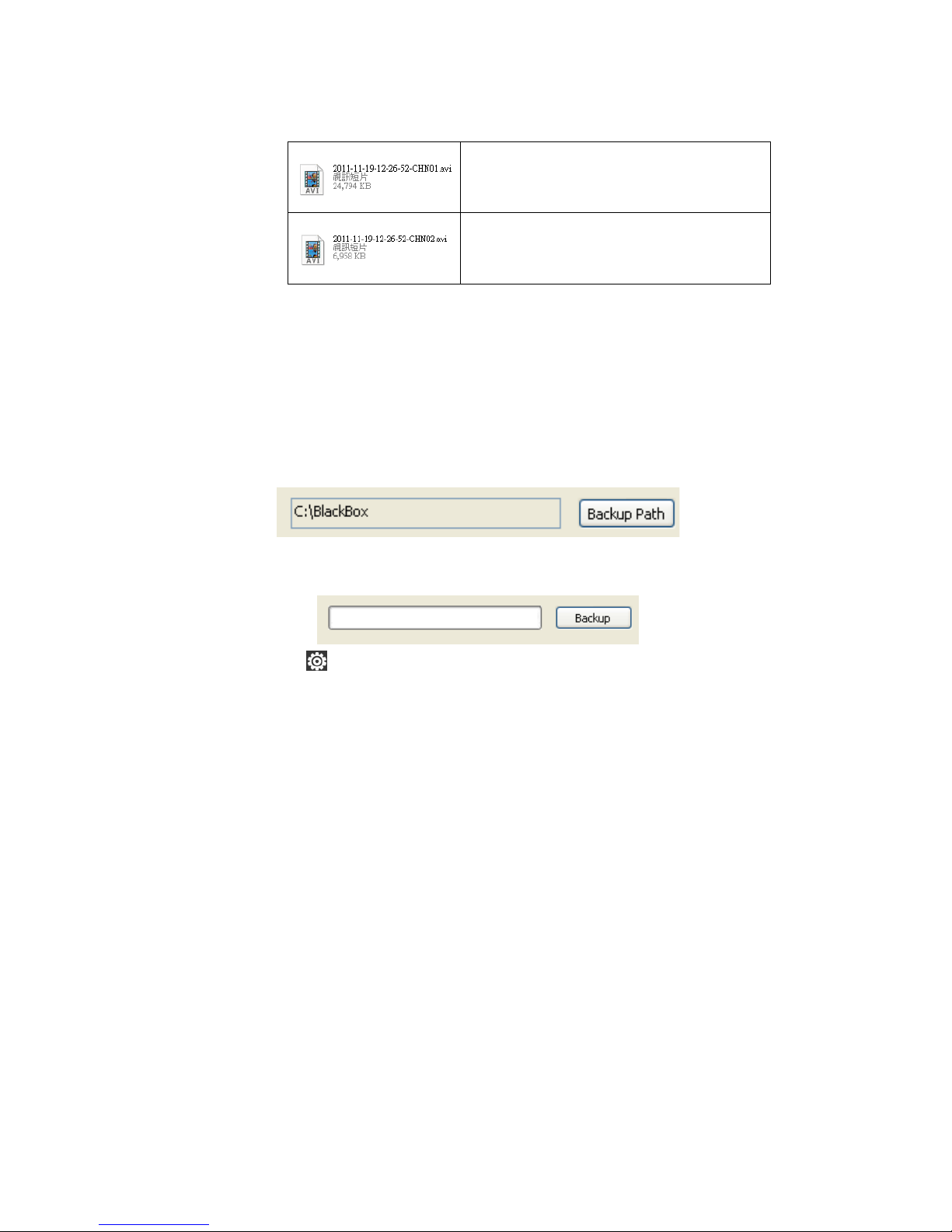

(2)AVI File Backup(*.avi)
Chn01 is the forward facing
lens record. The file name is
*.avi.
Chn02 is the backward facing
lens record. The file name is
*.avi.
★Note: If backup by original format of Micro SD card, the
file recorded with location of GPS (longitude and
latitude), speed and G-SENSOR. If backup by the
format of *.avi, the file recorded date, video and
audio. We suggest to backup by using original
format of Micro SD card.
Step4: Backup Path: Select your backup destination (e.g.: C:\blackbox)
Step5: Backup : Start backup the file to your specified destination
Setting
One side of card translator is plug into Micro SD card, the other
one is plug into USB plot before recording. Record format and
display of the device can be set by configuration of PC client.
After setting completed, the Micro SD card can plug into the
device and start recording again.
