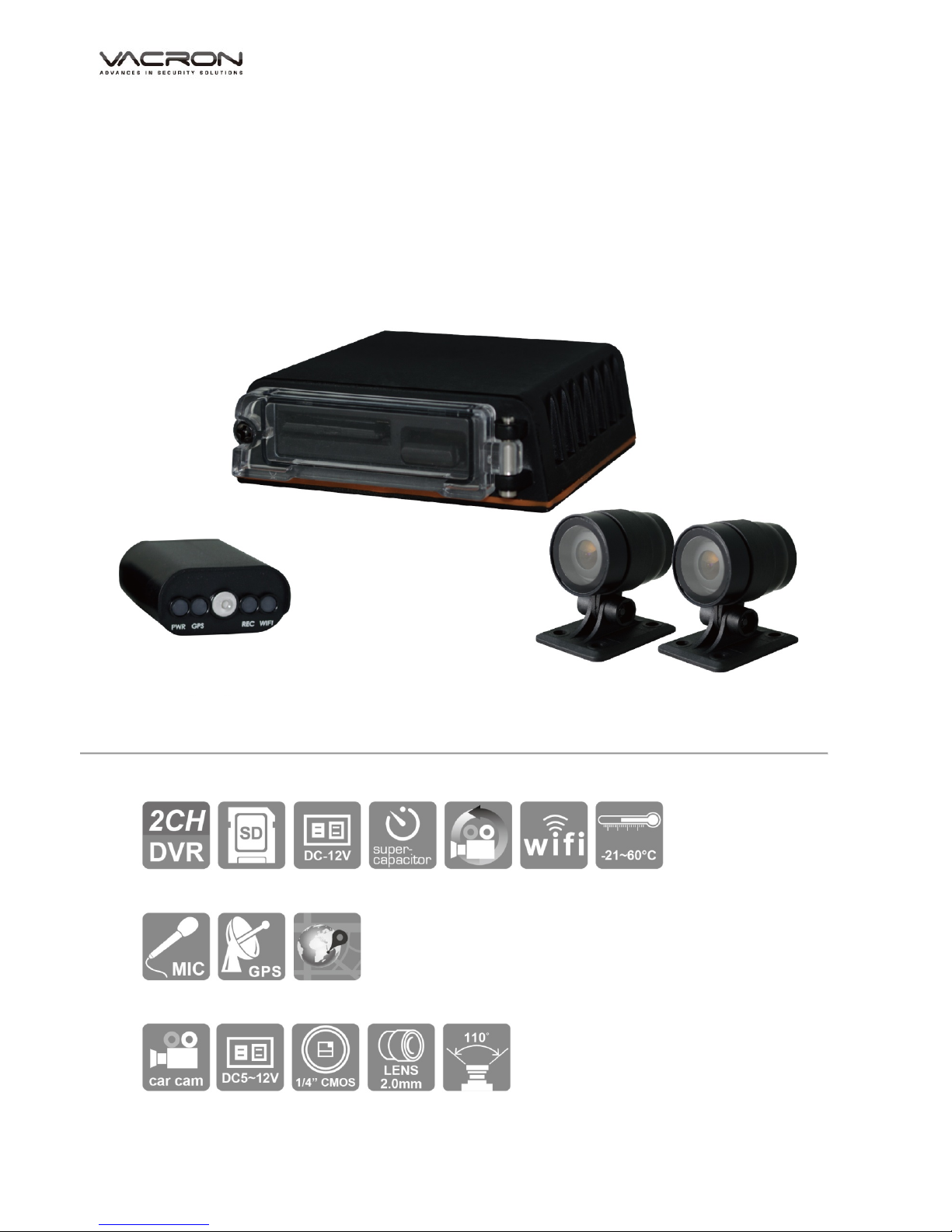

Vacron VVG-MDE08B. User manual

2CH H.264 HD
Motorbike Video Recorder
Operation Manuel
2016 OCT. V1.0
2-Channel Mobile Video Recorder
OBD(optional)
HD Camera
OBD
(Optional)
HD Camera*2
2ch DVR

2-Channel Mobile Video Recorder
User Manual
1
Menu
A. Packaging ...........................................................................................4
B. Characteristics:....................................................................................5
C. Specification Sheet.............................................................................6
D. Produt/Size .........................................................................................8
E. SD Card Installation..........................................................................10
F. Cable Installation..............................................................................12
G. Installation diagram .........................................................................14
H. Recording / Stop recording .............................................................17
I. PC player ...........................................................................................19
J. Data backup......................................................................................21
K. Configuring the Memory Disk .........................................................23
L. Google Map Map track playback ....................................................25
M. Data Playback ...................................................................................26
N. Image Snapshot................................................................................27
O. Format / Restore Memory card......................................................28
P. WiFi Connection ..............................................................................30

2-Channel Mobile Video Recorder
User Manual
2
Safety Precautions
TO Whome It May Concern
Thanks for your patronage. Please contact your local dealer for any
assistance. We will backup services via local dealers. Rights are reserved
to upgrade software and hardware without notice beforehand.
Please read this manual prior to use of this product.
Installation Precautions
Make sure power connections clear enough to you before
installation.
System installation is required professional installers and
ventilation sapc.
Please use recommended and genuine storage device.
Please contact local dealers in case of service requirement.
In Use Precautions
Please keep the inner components off any solid or liquid.
Please do not disassemble the equipment for warranty issue
Please remove the battery if remote control keeps idle for
quite a long while.
The equipment best connects with ground wire in case of
outdoor cameras connection or alarm I/O connection. This is
to keep the DVR away from static electricity damage.

2-Channel Mobile Video Recorder
User Manual
3
Surrounding
Please have the DVR under recommended temperature away
from the sun and heating source.。
Please keep this equipment away from humid surrounding.
Please keep this equipment away from smoke and dust.
Please do not drop the equipment.
Please keep this equipment in ventilation space.
Please supply rated voltage and Amp. To the equipment.
Please keep flammable objects away from the equipment.

4
2-Channel Mobile Video Recorder
User Manual
A. Packaging
Before installation, Please check all Accessories(Showed below). If there is any
missing part please contact the local dealer.
※SD card (optional)。
 Accessories:
1. DVR Host
2. HD camera *2
3. WiFi dongle
4. Camera cable 2.5meter*2
5. Power cable
 Optional Accessory:
1. OBD
2. SD card, 8/16/32G Class10 or above

5
2-Channel Mobile Video Recorder
User Manual
B. Characteristics:
1. Small independent system, 2 channels video.
2. H.264 compression format, HD video resolution.
3. Low power consumption and efficient dissipation, no build-in Lithium
battery to prevent possible danger and heat explosion.
4. Devices starts recording automatically when engine is on, file is well
formatted and saved securely with extension recording by super capacitor.
5. External USB WiFi dongle，through APP for live view /playback and video
download

6
2-Channel Mobile Video Recorder
User Manual
C. Specification Sheet
 DVR Host
Item Specification
Resolution 2CH 720P@30FPS
Display Mode 2CH Camera
Mode Record/Play
Resolution Display 1280x720
Record 1280x720
Copy/Record SD
OBD 4 LED (WIFI、REC、GPS、power) Optional
Host light REC
Signal Notice YES
SD card YES
OBD Optional
G-SENSOR YES
WIFI WIFI Dongle
System Recording automatically when engine is on
Built-In super capacitor
YES
Power Consumption DC 12V
Temperature Tolerance -21℃~60℃
Motorbike Camera
Item Specification
Power DC5V~DC12V±10% input
Power Consumption 500mA
Resolution Support NTSC/PAL @ HD 1280x720
30FPS
Image Sensor 1/4” CMOS sensor
View Angle H:110 ° / V: 55 ° / D: 130 °
Lens 2.0mm
Temperature Tolerance Operation：-20℃～60 ℃(In disclosed space)

7
2-Channel Mobile Video Recorder
User Manual
Storing temperature：-40 ℃～85 ℃
Output terminal Micro Din
Dust & Water proof IP67
Size 30x43x50mm
 OBD (Optional)
Item Specification
Light 4LED (WIFI、REC、GPS、Power)
GPS YES
Signal Notice YES
Microphone Audio input

★There will not be any notice of the different specification, thank you for your understanding
SD Card is not include!!

8
2-Channel Mobile Video Recorder
User Manual

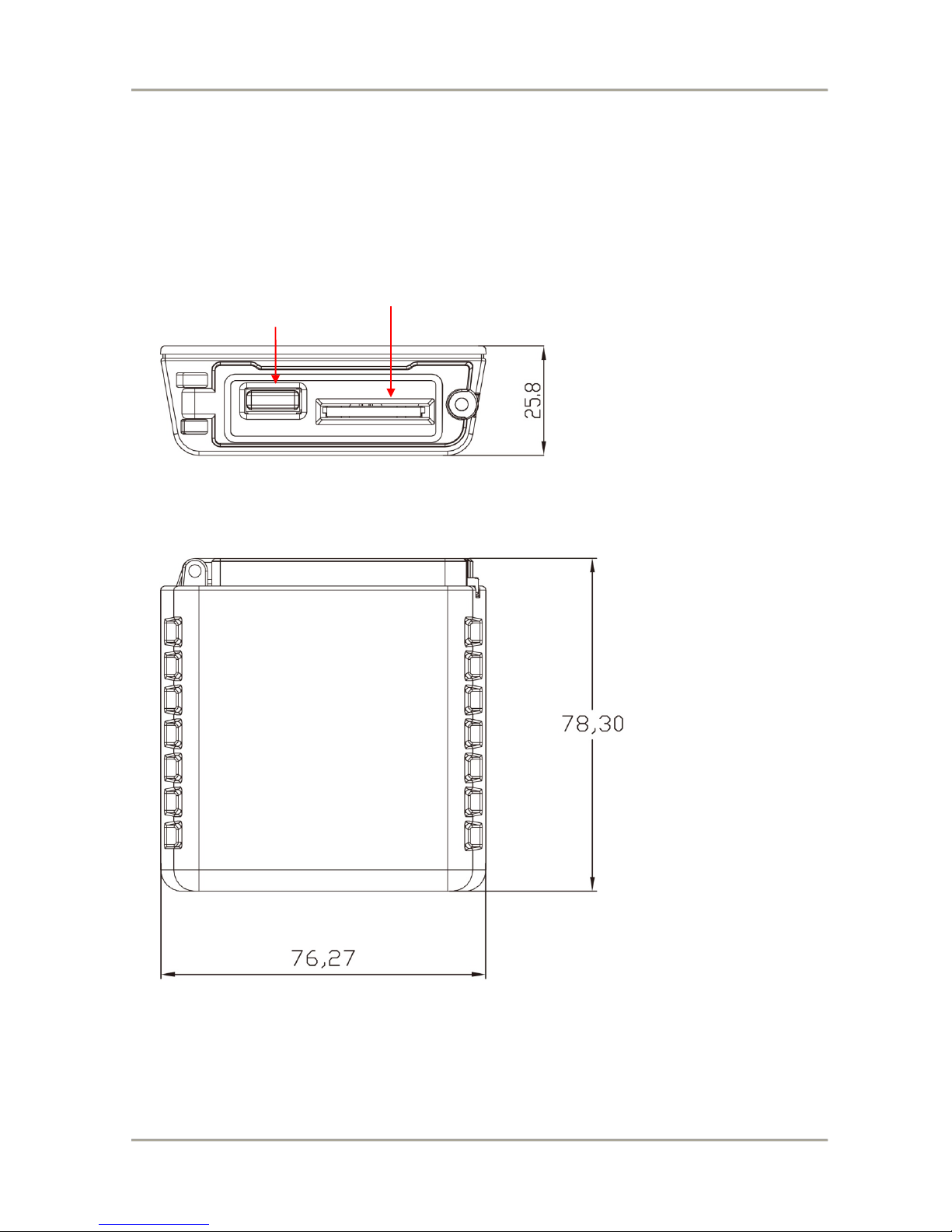

D. Produt/Size
DVR Host unit：mm
WIFI Dongle slot
SD card slot

9
2-Channel Mobile Video Recorder
User Manual

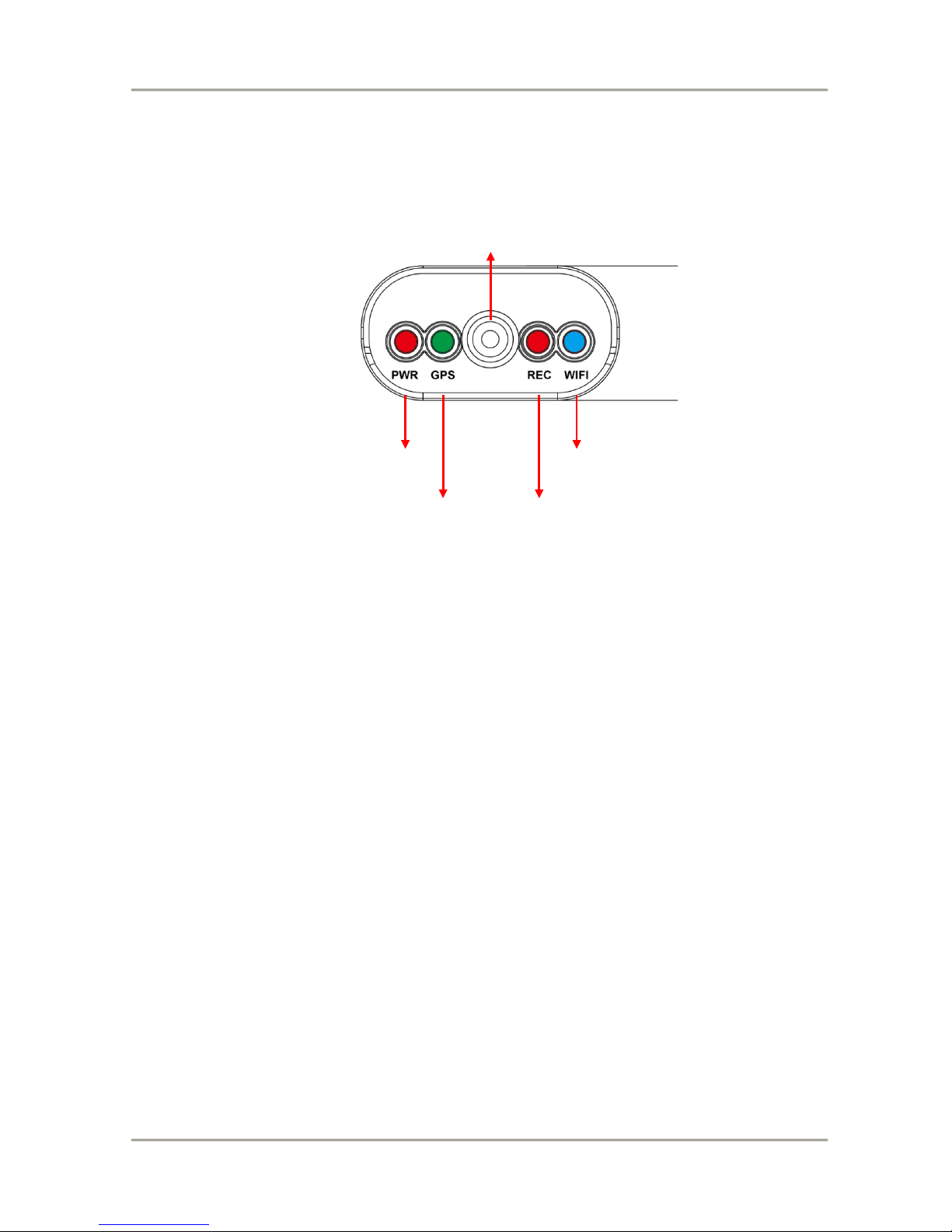

OBD(Optional) unit：mm
WIFI
REC
Microphone
GPS
Power
48mm

10
2-Channel Mobile Video Recorder
User Manual
E. SD Card Installation
(1). Counterclockwise to unscrew the screw of dustproof lid to intall/take off the
SD card.
(2). Please do SD card format/ restoration with attached player.
Attention
1. Suggest to use class 10, 8GB above.
2. Before using the memory disk, please format the disk first by using the
software player in the CD-ROM. If not, device will automatically erase
all data in the memory disk before recording.
3. To ensure recording quality, please do not use adapter card with Micro
SD card. Doing so may lead to bad connection due to shock and
vibration.
4.
All memory disks have limited lifespan. Please regularly watch videos
SD card Slot
Dust Proof screw
Dust Proof Lid

11
2-Channel Mobile Video Recorder
User Manual
on PC and check the memory disk to ensure proper functioning.
5. Collision and vibration may cause SD card defective and result
intermittent recording, please check data and bakup file periodically.
6. New SD card will be format by DVR, it will take about 2mins, before
start recoding.
7. SD card 8G、16G、32G or 64G，after format by DVR，there will be only
80.5MB can show on PC by Windows system, rest of those space can only
showed by Vacron Player. To restore SD card again, please use the Vacron
software and follow the steps.。
8. When even happened, pleas teak off the SD card and lock it, to avoid
overwrite.

12
2-Channel Mobile Video Recorder
User Manual

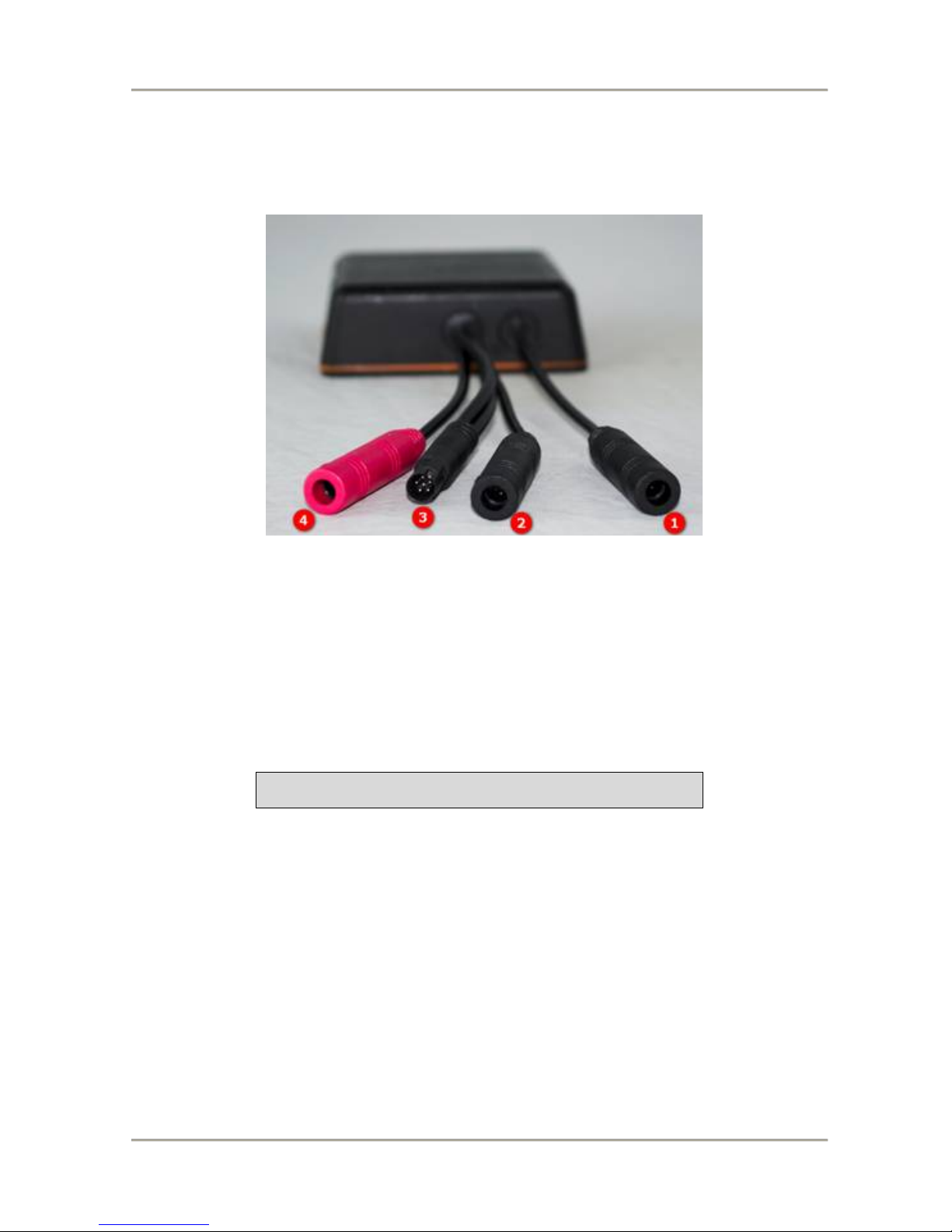

F. Cable Installation
DVR Cables
(1)Camera 1 connector
(2)Camera 2 connector
(3)Multi-functional OBD display connector
(4)Power Connector
Note：Please use 720P AHD camera

13
2-Channel Mobile Video Recorder
User Manual

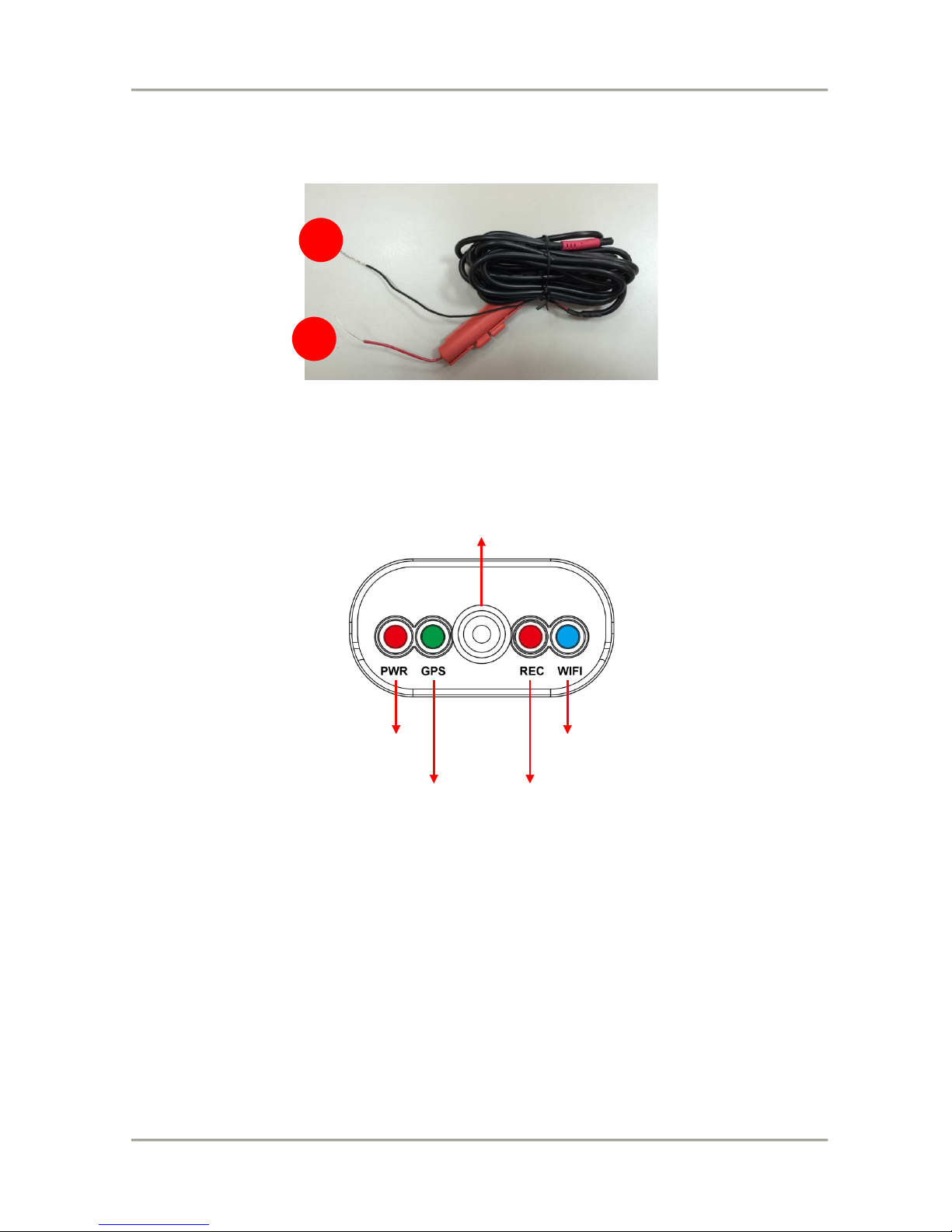

Power Cable
(a) (RED): Connect to positive electrode
(b) (Black): Connect to negative electrode
OBD(Optional)
(A) PWR(Red)：Power indication
(B) GPS(Green)：Flashing mean GPS 3D positioning searching.
Consistent green light on means 3D positioned successfully.
(C) Microphone：Audio input
(D) REC(RED)：
Recording : Light flashing once per second.
Unable to read SD card: Light flashing once every 15 seconds.
(E) WIFI(Blue)：Consistent blue means WIFI Dongle connected，flashing blue
means WIFI Dongle is not connected.
WIFI
REC
Microphone
GPS
PWR
a
b

14
2-Channel Mobile Video Recorder
User Manual
G. Installation diagram
Installation on Motorbike (Example Only)
Installation Notes
(a) Please install this device with the help of professional technician to avoid damaging
your vehicle.
(b) For installation by none-technician, please use tapes instead of boring tools to avoid
damaging the electrical and gasoline system.
(c) For safety, switch off ignition before installation, and please keep away from gasoline
pipeline and tank.
(d) Before inserting wires through holes, temporarily wrap the terminal with tape to
prevent bad connection from accumulated dirt or debris.
(e) Tightly seal all electrical connection with tape to prevent loose connection or leak
leaking to the connection.
(f) Connect the power behind the key ignition and fuse (not directly to the vehicle
battery) to avoid depleting the battery.
(g) The device should be fixed to the vehicle. Tumbling inside the storage trunk will

15
2-Channel Mobile Video Recorder
User Manual
damage the device.
(h) GPS positioning accuracy may be affected by the installation position, sun-screen or
weather condition.
Attention
(a) DVR & OBS (Optional) are waterproof, but it cannot be soaked in water. Suggest
install DVR in truck and OBD at the place where is easy to see.
(b) Some of cars might have electromagnetic interference problems, might effected
DVR ‘s recording and Video image.
(c) Wipe and clean the connector by alcohol, avoid any single error or video lost.
(d) Not all the SD card can be read by DVR, if the SD card cannot be read after format /
restore. Please change other brand’s SD card and try it again.
(e) DVR will be power consumption when standby, therefore please take off power
supply if not going to use DVR for long period. And date & time need adjustment
when it is connect again.
(f) If the SD card is not format by Vacron Player, DVR will automatically clean all
memory inside also format it.Some DVR might not recording if the SD card is not
been format.
(g) Software updates and renew, there will not be further notice.
(h) All memory disk & SD card have limited lifespan. Please regularly watch videos on
PC and check memory disk to ensure proper function.
(i) Through huge impact or shock, might damage disk or SD’s memory. Therefore
suggest backup data regularly.
(j) When even happened, pleas teak off the SD card and lock it, to avoid overwrite.
Before install the camera, for safety please make sure power switch is off

16
2-Channel Mobile Video Recorder
User Manual
 DVR Installation Diagram
x 2
1. Method：Connect to battery ，set up the
switch. Independent power supply
2.Method：Connect to Motorbike power
supply (ACC ON)，when engine is on turn on
automatically.
Motorbike ACC ON
Optional
1. Method
2. Method

17
2-Channel Mobile Video Recorder
User Manual
H. Recording / Stop recording
1.Systme initialization/Recording:
System initializes within 30 seconds when power is on. PWR red light on
when system is rebooting. System starts to recording when REC red light is
flashing.
Light Indication:
(A) PWR(Red)：Power indication
(B) GPS(Green)：Flashing mean GPS 3D positioning searching.
Consistent green light on means 3D positioned successfully.
(C) Microphone：Audio input
(D) REC(RED)：
Recording : Light flashing once per second.
Unable to read SD card: Light flashing once every 15 seconds.
(E) WIFI(Blue)：Consistent bluemeans WIFI Dongle connected，flashing blue
means WIFI Dongle is not connected.
WIFI
REC
Microphone
GPS
PWR

18
2-Channel Mobile Video Recorder
User Manual
2. Shut off / Stop recording
Device offer prolong 3 seconds recording after power off to ensure date is well
stored, user can take out the SD card when indication is off.
ATTENTION
For those who do not have OBD:
All memory disks have limited lifespan. Please regularly watch videos on PC
and check the memory disk to ensure proper functioning.
Collision and vibration may cause SD card defective and result
intermittent recording, please check data and bakup file periodically

19
2-Channel Mobile Video Recorder
User Manual
I. PC player
Run the player sofware ，(included in the CD)：
◎NOTE: The software requires Direct X version 9.0 or above.
1. Viewer Interface
1 Function control interface
2 Google Map / File list
3 Car speed
4 Volume control
5 Play speed
6 Time bar/ File mark
7 Operation control interface
8 CAM1
9 CAM2
