Vacron VVH-MDE304 User manual

4Channel
Mobile DVR
2016 JULY V1.0 (Optional : WIFI / 3G / G-MOUSE)
* We reserve the right to modify the interest in the product specification, without notice,
product display and operation screen content with a real machine-based.

4Channel Mobile DVR User Manual
ii
Safety Precautions
Take and review some testing video initially to make sure the images were
recorded correctly. Please note that manufacturer, its subsidiaries and affiliates,
and its distributors are not liable for consequential damages arising from any
malfunction of main device accessory, including memory device that results in
the failure of an image to be recorded or to be recorded in a way that is machine
readable.
Before using the product, please ensure that you read the safety precautions
described below. Always ensure that the product is used correctly.
•Please keep device away from children.
•Use only recommended power sources.
•Do not attempt to disassemble, alter or apply heat to the product.
•Avoid dropping or subjecting the product to severe impacts.
•To avoid the risk of injury, do not touch the interior of the product if it has
been dropped or otherwise damaged.
•Stop using the product immediately if it emits smoke, a strange smell, or
otherwise behaves abnormally.
•Do not use organic solvents such as alcohol, benzene, or thinner to clean the
product.
•Do not let the product come into contact with water (e.g. sea water) or other
liquids.
•Do not allow liquids or foreign objects to enter the VVR.
•Do not place the VVR near or in direct flame.
•Do not handle the power cord with wet hands.
•Do not use the equipment in a manner that exceeds the rated capacity of
the electrical outlet or wiring accessories. Do not use if the power cord or
plug are damaged, or not fully plugged into the outlet.
•Do not allow direct or metal objects (such as pins or keys) to contact the
terminals or plug.
•Avoid using, placing or storing the product in the humid or dusty areas.

4Channel Mobile DVR User Manual
iii
Before applying 3G products, please ensure that you read the safety
notifications described below.
•Company and user shall not modify certified low power radio frequency
device the frequency, increase the power and change the characteristics and
functions without permit.
•Use low power radio frequency device shall not affect flight safety and
interfere with legal communications; when there is interference happened
should be immediately suspended, and improve without interfering may
continue to use.
•Legal communication means operation of radio communication in
accordance with the provisions of the Telecommunications Act Low-power
radio frequency device must endure the interference of legal
communications, industrial, scientific and medical radiation wave
equipment.

4Channel Mobile DVR User Manual
iv
Index
A. Features............................................................................................................1
B. Specification ....................................................................................................2
C. Accessories ......................................................................................................3
D. Product Exterior...............................................................................................4
E. Power ON / Power Off.....................................................................................7
F. IR Remote Controller.......................................................................................8
G. System Interface and Operation.....................................................................9
H. CARBOX Player on PC ...................................................................................13
I. Format/Restore SD Card ...............................................................................21
J. 3G Internet Setting ........................................................................................26
K. 3G Client Remote Monitoring.......................................................................31
L. Capacity Evaluation of Continuous Recording Storage Device ..................47

4Channel Mobile DVR User Manual
1
A. Features
1. Support 8CH recording cameras at the same time to record driving
images completely.
2. Wide range of power input, suitable for any kinds of vehicles.
3. Auto recording after power supplied.
4. Provide Video output for playing-back mode and operating in
mainframe.
5. 4x I/O alarm input, 1x Alarm output,1 audio input and 1x Audio output.
6. Built-in G-sensor , automatically detect crush, trig force recording.
7. Built-in WIFI and 3G network, different selection of connecting.
8. H.264 real time compression chip, Higher compression ratio and keep
clear resolution.
9. Recording format: 720P、D1、CIF, used for different demands.
10. Complete Video Record List. Overall quick search event log.
11. Completely record driving video and sound to make sure attribution of
responsibility when accident occurred.
12. Provide AVI convert function to users playback on PC.
13. Power management function, Extended record after power off.
14. Built-in super capacitor for completing data recording under severe
impact.
15. G-Mouse optional, completely record your driving position and speed.
16. 3G module optional, control driving situation of vehicles anytime.

4Channel Mobile DVR User Manual
2
B. Specification
1. 720P cameras and D1 cameras can not be installed simultaneously.
2. No further notice for any modifications afterwards.
3.SD Card is not included; suggest to apply Class 8 or above.
ITEM DESCRIBTION
TV System NTSC/PAL
OS Embedded Linux
Video Input 4
Camera Power Output 4x 12V / 750mA
Video Output 1
Audio Input 1
Audio Output 1
ALARM IN/OUT 6/2
User Interface GUI ICON CONTROL
Languages English Trad/Simplified Chinese
Resolution 1280 x 720 / 720 x 480
Storage Dual SD Cards (8GB~128GB)
LED Indicator 3 LED (LAN、GPS、REC/Power)
G-SENSOR Yes
3G Yes Optional 3G Module Required
Wi-Fi Yes Optional Wi-Fi P23 USB Module Required
IR Remote Control Yes
System Monitoring Automatic reboot after unexpected power shutdown
Internet Yes
Power (1) DC 8V~32V (2)ACC ACC Off set via Player (3)DC12V Out
Super Capacitor Built 5F
Dimension 250mm x 174.8mm x 69.5mm
Operate temperature -20℃~65℃
Weight 1.85kg(Including bracket & SD Card Drive)

4Channel Mobile DVR User Manual
3
C. Accessories
This product contains accessories as below:
Standard:
Main Device
Power Cable
ALARM Cable
IR Extension Cord
IR Remote Control
Software Disc
User Manual
Optional
3G Module /Antenna
G-Mouse
SD Card
Camera
Microphone pad
Camera extension cable

4Channel Mobile DVR User Manual
4

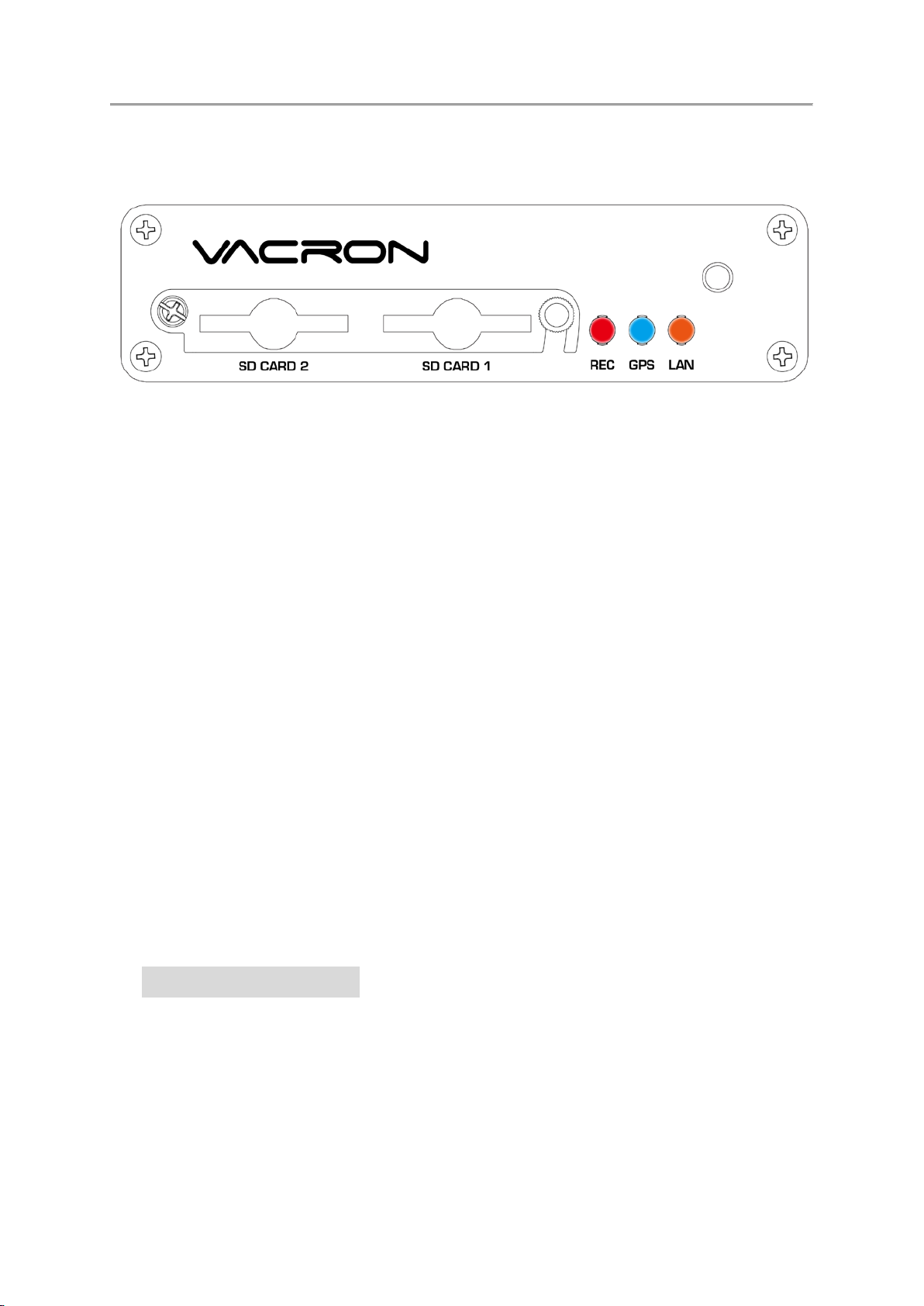

D. Product Exterior
Front Panel
IR Receiver
SD Slot 2
REC
Network
GPS
SD Slot 1
SD Slot Cover

4Channel Mobile DVR User Manual
5

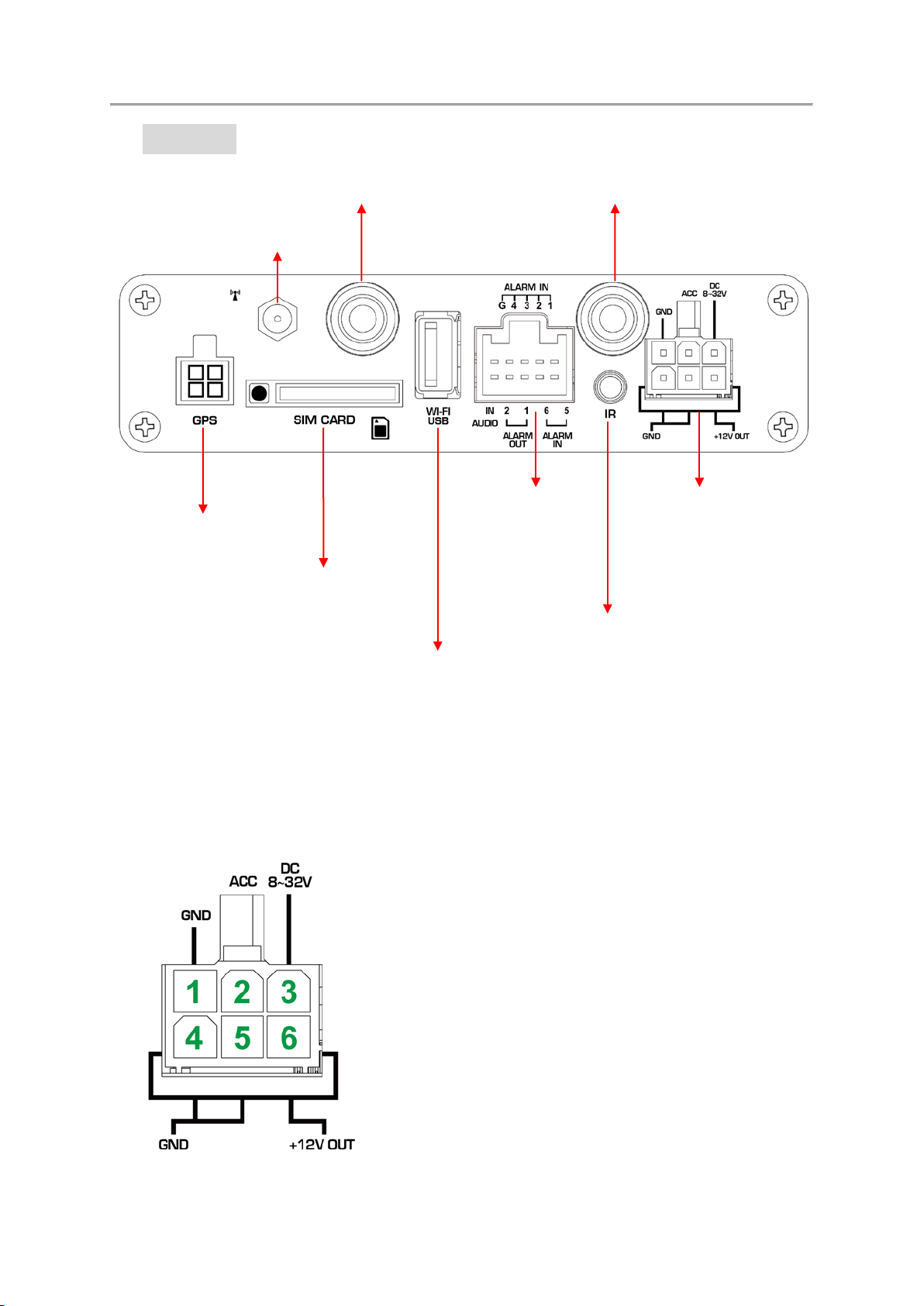

Rear Panel
※GPS / 3G / WiFi are optional
Power Connector
A. GNDP (-)
B. ACC
C. DC8~32V IN (+)
D. Signal and DC grounding
E. Signal and DC grounding
F. DC+12V Out
GPS Connector
3G Antenna
Camera 1CH / AV out
Alarm/Audio
Power
SIM Slot
Camera 2-4CH
IR Ext
WIFI USB Slot

4Channel Mobile DVR User Manual
6
Alarm/Audio Connector
ALARM IN
G 4 3 2 1
AUDIO ALARM OUT ALARM IN
AUDIO
2
(spare) 1 6 (spare)
5
(spare)

4Channel Mobile DVR User Manual
7
E. Power ON / Power Off
(1) Power On
Insert SD Card into SD slot and closet SD slot lock, then turn on the power
and it will take approximately 30 seconds. When lights start flashing as the
recording is in progress.
(2) Power Off
Turn off the power; please wait for 5 seconds until super capacitor without
electric. Then take the SD Card out out and playback the recording files in
computer.
(3) Light Indicator
Recording/Power Light(Red Light)：
Light Off- non-recording.
Light Flashing- recording.
Rapidly Flashing-Event/Trigger recording
GPS Light(Blue Light)：
Light Off-GPS is not ready.
Light On- GPS is locating position.
Network Light (Orange Light)：
Light Off-network disconnected.
Light On-network connected.
Two SD Card Mechanism
While both of the SD Cards are blank, the videos will be recorded in SD1;
When both of the SD Cards have videos; new videos will be recorded in the
SD Card with latest videos
（Remark: While using playback function in DVR, it cannot take live
recording at the same time.）

4Channel Mobile DVR User Manual
8

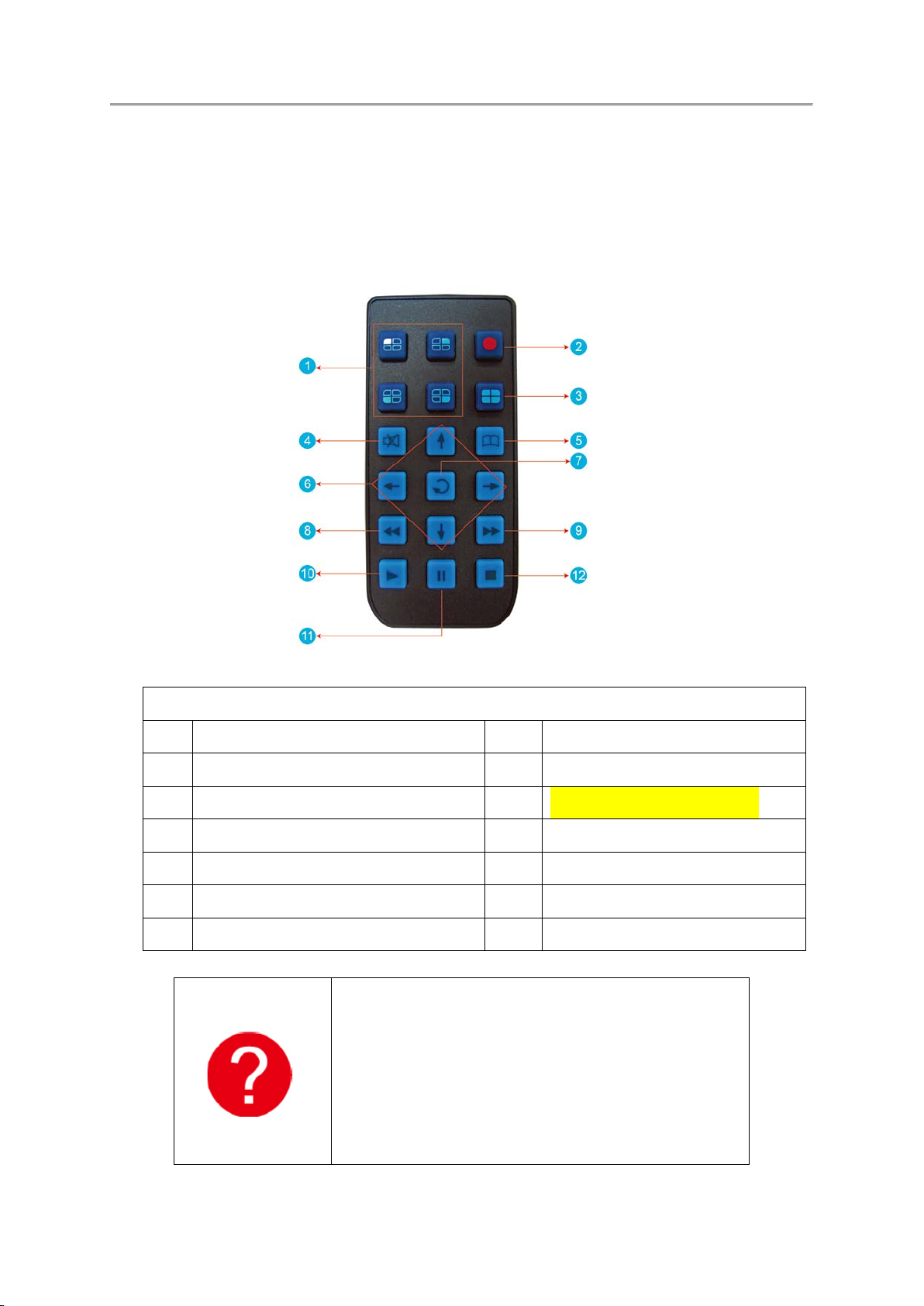

F. IR Remote Controller
Vehicle DVR can be operated through two methods: IR remote controller
and PC software application.
Through IR Remote controller instruction
Buttons Instruction
No. Function Description No. Function Description
1 1CH Screen Display 7 Confirm Button
2 Force Recording Button 8 Backward(Not Working)
3 4CH Screen Display 9 Forward
4 Mute 10 Playback、Play
5 Menu 11 Pause
6 Arrow 12 Stop、Left
Remote control inspection
Check the battery’s positive and
negative polarity.
Check the battery if run out.
Check the sensor of remote control if be
obscured.
Check if there are fluorescent lamps are
used nearby.

4Channel Mobile DVR User Manual
9
G. System Interface and Operation
Live Monitoring Mode Display
Live Monitoring Mode
-4 Split Display (1~4Ch)
(1) Display Description:
•Press Ch1~Ch4 button or select on menu for single display.
•Press quad split screen button for 4Ch display.
•Press menu button to enter menu option.
•Press play button to enter playback mode.
(2) Icon Description:
•: Recording
•: GPS Connecting
•: Voice Recording On
•: Event Recording On
•: 3G Connection On
•: Alarm Trigged

4Channel Mobile DVR User Manual
10
OSD Menu Operation and Parameters Setup Description
Recording Setting
Recording
Frame
NTSC 720P 5-30 fps
VGA 5-30 fps
PAL 720P 5-25 fps
VGA 5-25 fps
Resolution Normal Better High
Video Setting Select 1~4CH to adjust Bright, Contrast and Color
Time Setting
The time setting will be automatically calibrated by
GPS signal. If no GPS signal, time and date can be
set manually.
GPS Setting
Select show speed and speed unit setting on live
view display or Not.
Plate Number Setting Input range：A~Z and 0~9
Working Mode
1. Setup channel mode when system starts.
2. Select extensional time after ACC Off
3. Sound recording ON/OFF
Alarm Setting Setup the mode after alarm trigged.
System Protection 1. Low voltage protection(trigged at ACC mode)
2. Notice of SD CARD protecting.
3G Network 3G function ON/OFF，show setting information at
present(Optional)
G-Sensor Setting
Once the function is activated, when the car collision
happened, 『Force Recording 』
mode will be
automatically triggered,
to prevent complete
recording event not be overwritten.
Data Backup Select necessary files to backup.
Restore Default After restore default setting, machine will be
restarted and cleaned original setting.
Format SD CARD Recording data will also be formatted at same time
Firmware Update
Save the firmware update program into USB device
and use USB device to update firmware. When
update firmware please keep power supply. It will
restart automatically after finishing update.

4Channel Mobile DVR User Manual
11
Playback Mode
Live screen on the device or on PC
On the Device
(1) Click play button on the remote control during live monitoring mode,
to enter playback page.
(2) To select search type then click enter button, to enter playback list
(3) To select the playback file, then click enter button to enter the
playback video file.

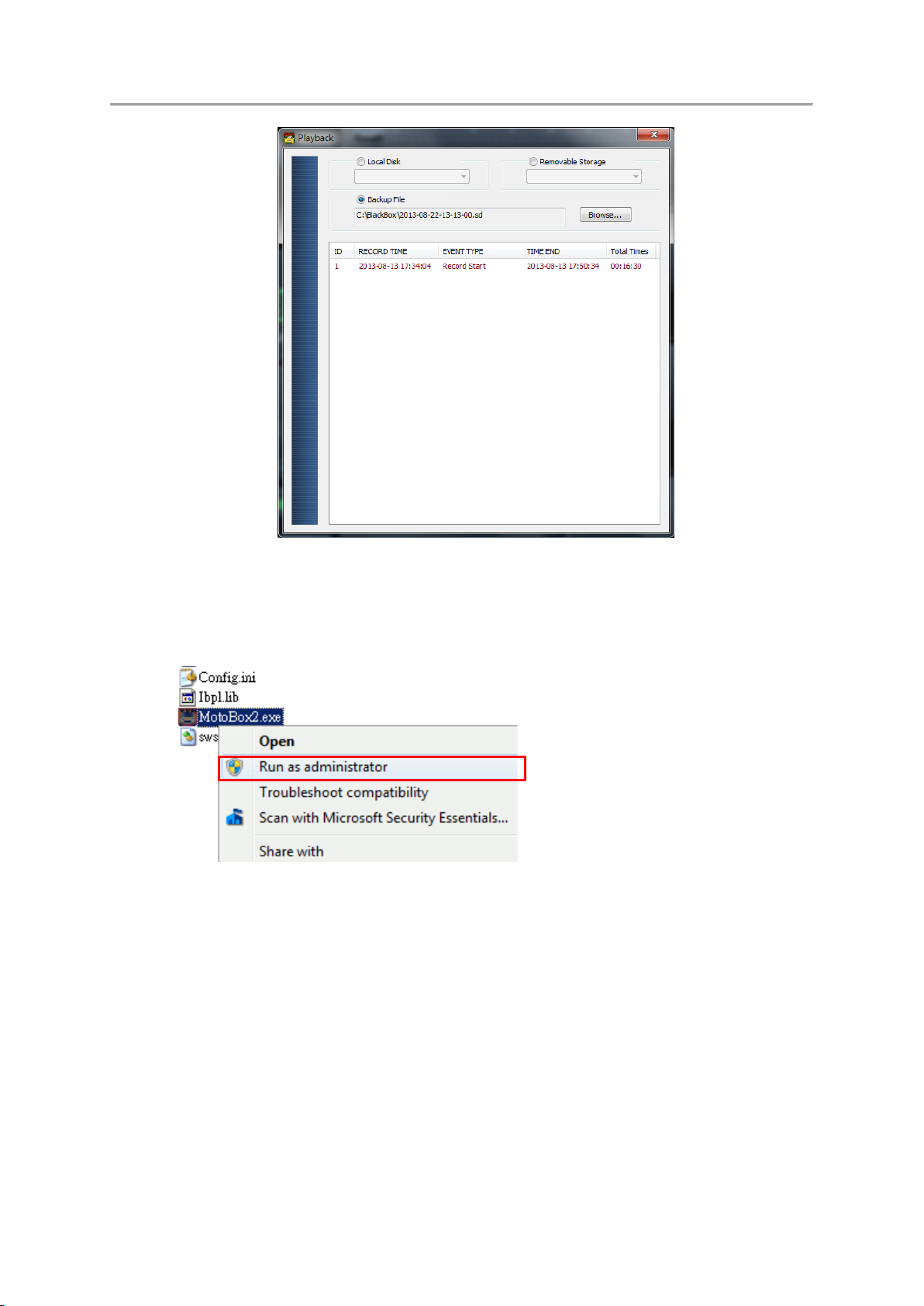

Playback on PC: To enter playback by unplug and read SD CARD
(1) To read the SD CARD with saving data on PC, then run the player
software CarBox2.exe.
(2) Click “Playback” ，to open playlist menu.
(3) Select SD CARD, the video files will be shown in the playlist, Click the
video file to play.

4Channel Mobile DVR User Manual
12
Playback List Display
(Remark:If the playback list cannot be read in Win7 system. Solution: click
right button and execute CARBOX as Administer identity. )

4Channel Mobile DVR User Manual
13
H. CARBOX Player on PC
Execute player software CarBox2.exe .
★Caution: It needs to install DirectX 9.0 or above before
running CarBox2 software.
Operating Instruction
(1). Control Panel Description
Snapshot: Capture the footage screen.
Configuration
Disk Backup: Select backup location to
save files.
Playback: Select files in SD Card or PC to
playback.
Google Map
Control Interface
G-Sensor
Play Speed
Play Bar
Volume
GPS
Direction
Speed
Playback Date Selection
GPS
Latitude & Longitude

4Channel Mobile DVR User Manual
14

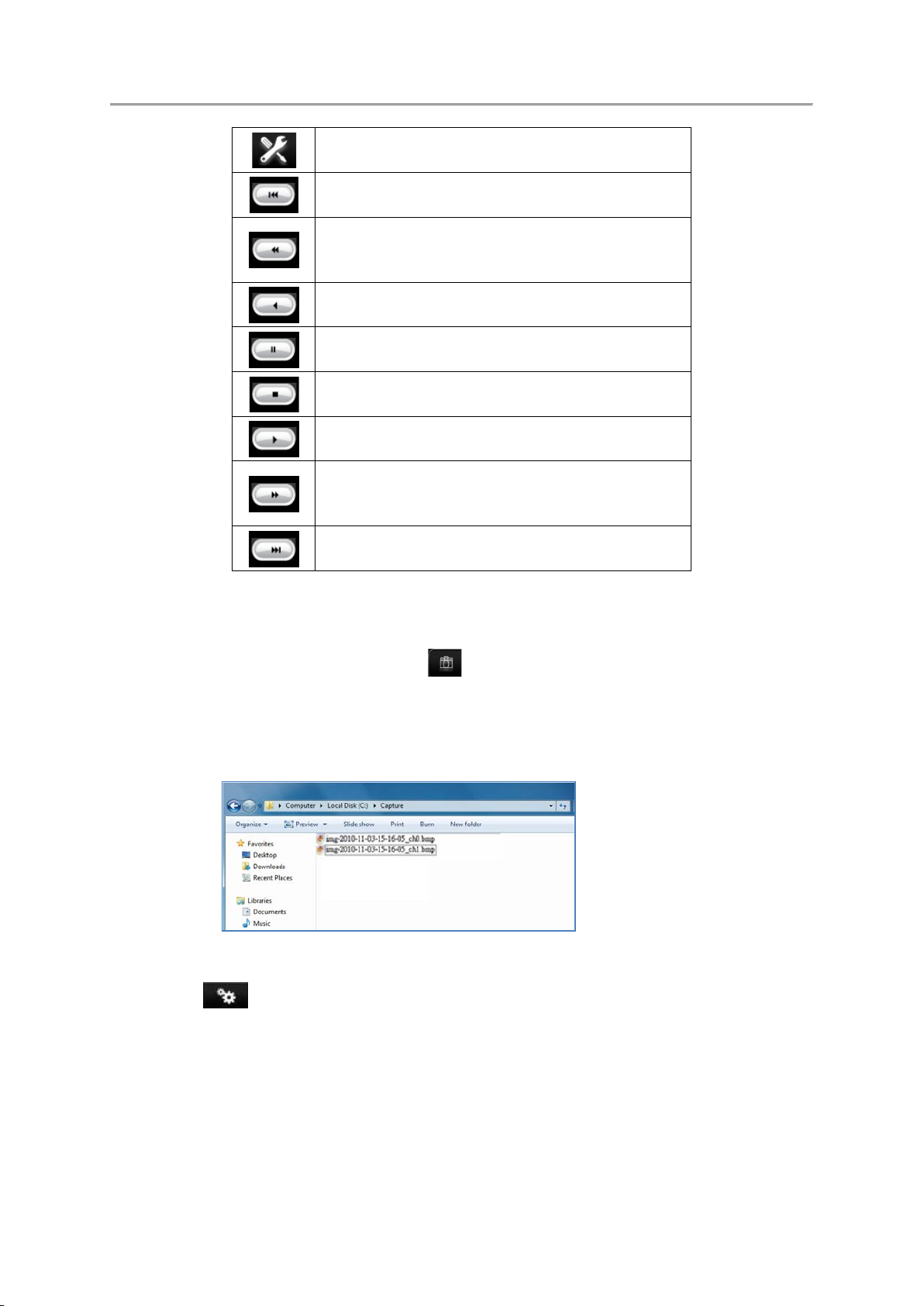

Tool, SD Card format, language setting.
Previous File: Play previous video.
Previous Frame
: Backwind previous
frame in Pause situation.
Save as SD files, Video backwind play.
Pause: Pause playing video
Stop: Stop playing video
Play: Play pause video
Next Frame: Forward next frame in pause
situation.
Next file: Play next video
Snapshot
Screen shoot: Click the icon, to capture the footage screen.
The Image will be save as .bmp file format. Player will show the
backup folder automatically. The default directory is the Snapshot
folder. (Under the Player installation folder).
Configuration
: Setup the SD Card Setting.
Before execute this function, please insert the SD Card into your
computer. When finish all setting and click 『Save』, all the setting
will save to the SD CARD device. When you insert the SD CARD
device into your DVR, the DVR will read the setting and follow the
setting to start recording.

4Channel Mobile DVR User Manual
15
Resolution 720P and VGA
Video Quality Choose the resolution: High / Normal / Low
Video Frame Rate Set the fps from 5 to 30
Car information Car License, Driver (For Company car, Taxi, or fleet)
UI Mode Setup Player Size.
Password
Encrypt the SD CARD device to prevent others who
not permitted to access the SD CARD device. String
length: 15 character. After setting the password, all
actions, like Playback footage, setting, format SD
CARD device, need the password.
★ Note：Upper character and lower is different.
Time Zone GMT setting, to adjust the time zone.
Unit of Speed
Set the speed unit
Km/hr
Mile/hr
Knot
G-sensor Sensitivity
G-sensor sensitivity setting mode
Sensitivity setting：
(Min/Low/Normal/High/Max)
Parking Mode Setup Extend Recording Time after Engine off
Parking Frame Rate Setup Extend Recording Frame after Engine off

4Channel Mobile DVR User Manual
16

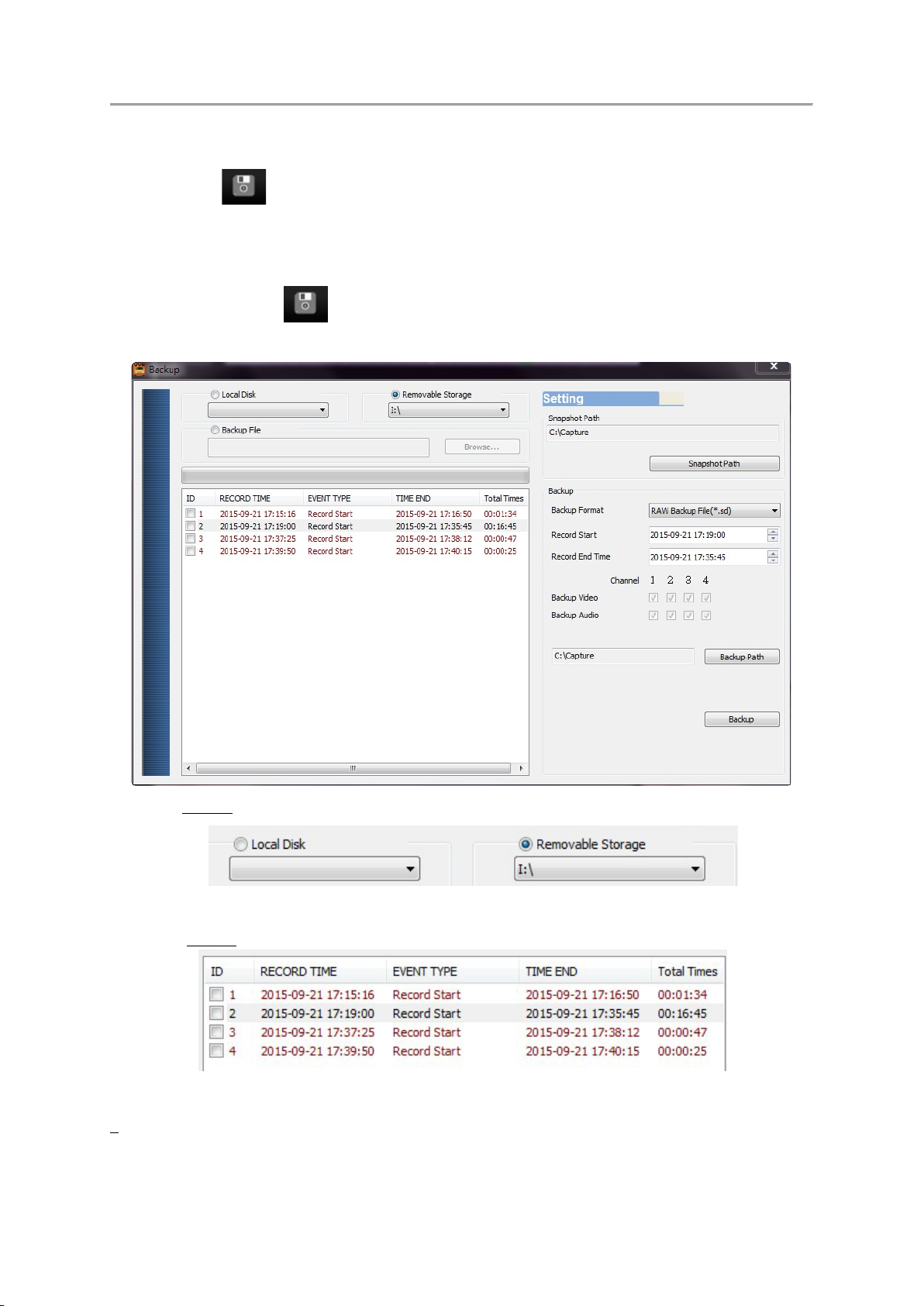

Backup
: Backup folder: Choose the folder that backup file will save.
Backup the footage on the SD CARD device to your computer for
data backup.
Select icon to start the backup function as the following :
Step1.Choose the Local Disk, Removable Storage or Backup File.
Step2.Choose the file you want to backup on the SD CARD
