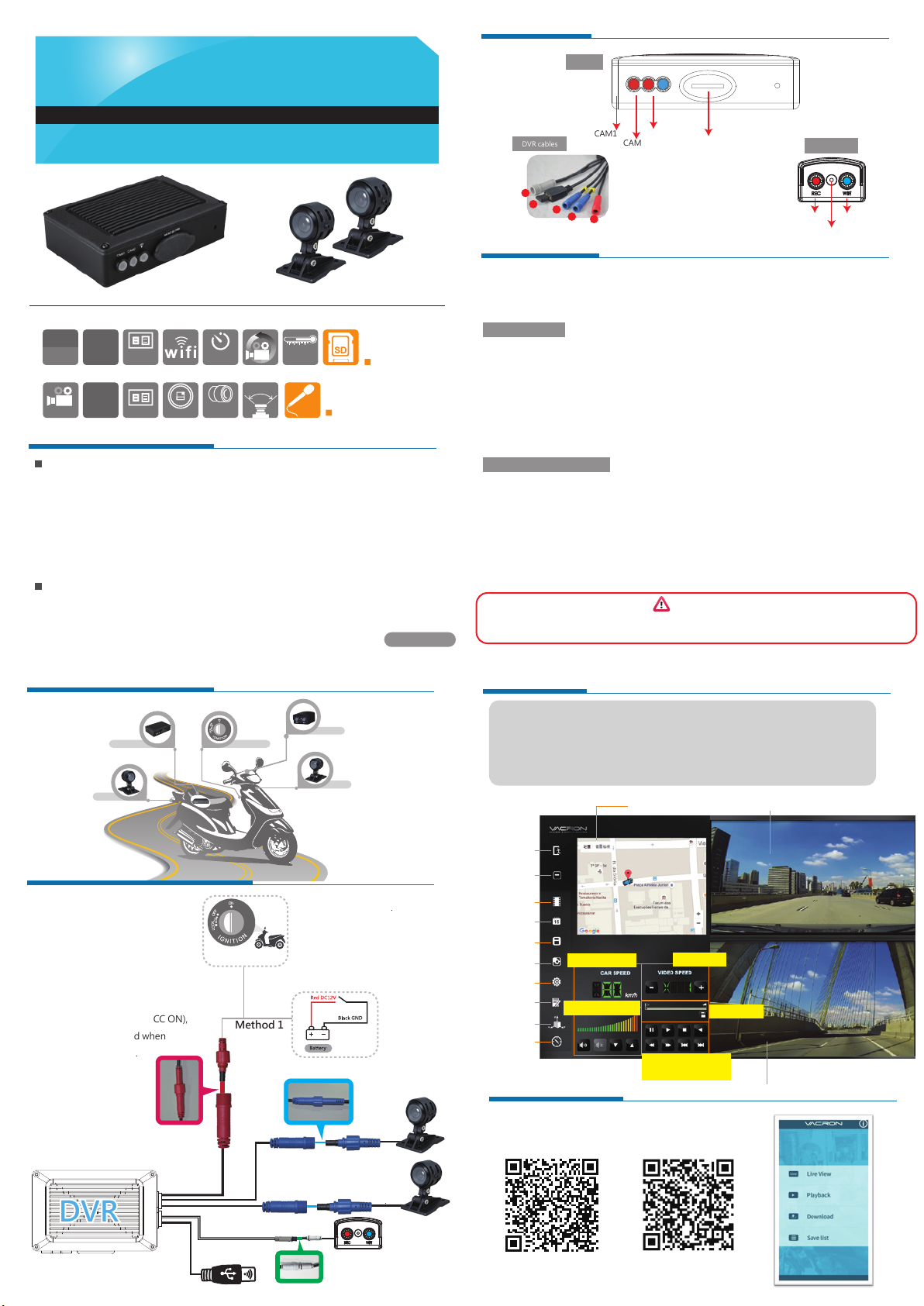

Vacron VVH-MDE58G Owner's manual

Camera
Power on/off
Vehicle DVR
Camera
Displayer
(optional)
2 Channel H.264 FULL HD 1080P
Mobile DVR for Motorcycle
Quick User Manual
Attention
H12AE58G00
● CAM1 indication light: as red light, if light off, no cameras detected.
If light in flashing, it starts recording. In rapid flashing as triggered
for recording instant events.
● CAM2 indication light: as red light, if light off, no cameras detected.
If light in flashing, it starts recording. In rapid flashing as triggered
for recording instant events.
● WiFi indication light: as blue light. Light off as no WiFi dongle detected.
Light on as connecting to WiFi.
● REC indicator: as Red light. Light off as 1 CH or 2 CH camera undetected.
In flashing as in recording. In rapid flashing, as events trigger recording.
● WiFi indicator: as blue light. Light off as WiFi dongle undetected.
Light on as connecting to WiFi.
Device boots after power on and wait approx. 20-30 sec. Red light will constantly
bright after power on, and then system starts to record when REC red light
is flashing.
For ensure recording system working correctly, please play and
check storage files on PC regularly.
Installation on motorcycle ( For example)
Appearance
Light signal
Viewer
*Notes:
(A) To do this, the software should be installed DirectX 9.0 or above.
(B) Support OS: WINDOWS 7,8,10, does not support MAC OS
(C) The recommended hardware requirements: i3 above grade 2.7GHZ,
RAM: 4G or more, more preferably independent display card
Installation diagram
DVR installation diagram
2. Shut off/Stop recording
The DVR will keep recording 3 seconds after power off, at this point, system will
write the buffer back to Micro SD card. In addition, after all light turn off, user can
remove Micro SD card and get all video files from it.
1. Boot / Recording
CAM1
CAM2
Close
Minimal
Playback
Calendar
Backup
Snapshot
Configuration
Format
G-Sensor
Compass
Google Map / File list
Speed display Play speed
Play speed
Operation control
interface
Volume control
WiFi Connection
VACRON MOTO
for IOS
VACRON MOTO
for android
Method 1: Connect DVR with
battery, and then sets ON/OFF
switch. The DVR use independent
power supply.
Method 2: DVR connect with
motorcycle power supply (ACC ON),
the DVR will be activated when
motorcycle engine is on.
Red cable： DC cable
Black cable： Ground cable
2CH
DVR
2CH DVR
Full HD Camera
DC
10V~15.6V -20~55°C
super-
capacitor
DC5V
car cam 1/2.7” CMOS
LENS
3.3 mm
110˚
Full
HD
Full
HD
OBD (On-board display unit)
MIC
optional
optional
Micro
※Memory card is excluded, please purchase it separately.
Standard Set:
1. Camera*2
2. Camera extended cable 2 meter*1pc + 1 meter*1pc
3. Power cable
4. USB WIF dongle
5. Velcro
6. Quick guide manual
Product Accessories
Optional:
1. 8/16/32G/64G/128G Class10 above Micro SD card
2. OBD (On-board Display unit)
DVR
Full HD camera
DVR host
OBD (optional)
DVR cables Micro SD card insert
Record WiFi
Microphone receiver
Host Indicator
Display signal indicator
Method 1
Method 2
ACC ON/OFF
OBD
(On-board display unit)
(optional)
WIFI
CAM2
CAM1
1
2
1
45
(1)OBD cable connector
(2)WiFi dongle connector
(3)Camera 1 cable connector
(4)Camera 2 cable connector
(5)Power cable connector

2路H.264 FULL HD 1080P
機車用監控系統
簡易操作手冊
產品配件
使用注意事項
H12AE58G00
標配:
1. 攝影機 *2
2. 攝影機延伸線 2米* 1條+1米* 1條
3. 電源線
4. USB WIF dongle
5. 魔鬼氈
6. 簡易手冊
選配:
1. 簡易型顯示器
2. 8 / 16 / 32 / 64 / 128G
Class10以上SDHC/SDXC
Micro SD Card
DVR主機
簡易型顯示器(選配)車機線材安裝
產品外觀
錄影指示燈 WiFi指示燈
麥克風接收器
燈號/功能說明
主機燈號示意
● CAM1指示燈：燈號顯示為紅色，無亮表示未偵測到攝影機，
閃爍表示錄影中，快速閃爍表示觸發事件錄影。
● CAM2指示燈：燈號顯示為紅色，無亮表示未偵測到攝影機，
閃爍表示錄影中，快速閃爍表示觸發事件錄影。
● WiFi指示燈：燈號顯示為藍色，無亮燈表示未偵測到WiFi dongle，恆亮表示連線中。
電源啟動，並等待約20~30秒後，即開機完成。記錄器開機過程中當REC紅燈會呈現
閃爍狀態，即表示開始錄影。
若無選配抬頭顯示器時，建議定期檢查與使用電腦播放影像，確保錄影系統的正常運作。
配線示意圖
安裝示意圖 Viewer 介面
注意事項:
(a) 要執行此軟體須安裝 DirectX 9.0 以上。
(b) 支援作業系統：WINDOWS 7、8、10，不支援MAC OS
(c) 建議的硬體需求: i3以上等級 2.7GHZ，RAM:4G以上、有獨立顯示卡更佳
(僅供參考)
1. 開機/錄影
2. 關機/停止錄影
電源關閉後會延遲約3秒鐘才停止錄影，此時系統將緩衝區回寫至Micro SD卡，
待指示燈熄滅後，即可取下記憶卡讀取所攝錄之檔案。
DVR主機 Full HD 攝影機
2CH
DVR
2CH DVR主機
Full HD 攝影機
DC
10V~15.6V -20~55°C
super-
capacitor
DC5V
car cam 1/2.7” CMOS
LENS
3.3 mm
110˚
Full
HD
Full
HD
簡易型顯示器(選配)
MIC
選配
Micro
※記憶卡並不隨機提供，請另外購買。
方法1：連接蓄電池，接ON/OFF開關,
行車記錄器為獨立電源。
方法2：行車記錄器連接機車鑰匙孔
(ACC ON)，機車啟動時，機器電源即
啟動。
Micro SD記憶卡卡槽
WIFI指示燈
CAM2
CAM1
顯示器燈號示意
● REC指示燈：燈號顯示為紅色，無亮表示1CH OR 2CH未偵測到攝影機，
閃爍表示錄影中，快速閃爍表示觸發事件錄影。
● WiFi指示燈：燈號顯示為藍色，無亮燈表示未偵測到WiFi dongle，恆亮表示連線中。
回放畫面
回放畫面
離開程式
畫面最小化
影片瀏覽
日期瀏覽
備份
擷圖
機器設定
格式化/語言
G-Sensor
地圖工具
Google Map 顯示 /
播放清單速覽 CAM1
CAM2
時速 播放速度
播放軸
播放控制
音量
馥鴻摩托APP
馥鴻摩托 IOS版 馥鴻摩托 ANDROID版
紅線：正電DC直流
黑線：接地線
Method 1
Method 2
ACC ON/OFF
OBD
(On-board display unit)
(optional)
Camera
Power on/off
Vehicle DVR
Camera
Displayer
(optional)
1
2
1
45
(1)簡易型顯示器連接座
(2)WiFi Dongle 連接座
(3)鏡頭1連接座
(4)鏡頭2連接座
(1)電源線連接座
