This instruction booklet covers these models:
OMI-100M, OMI-100, OMI-100E.
Version 1, 1-8-17

23
Please read these instructions carefully before starting installation and keep for future
reference.
Remove all packaging and check the product for missing parts or damage before
starting installation.
Any alterations made to this product and fittings may infringe water regulations and
will invalidate the guarantee.
The installation must comply with all Local/National Water Supply Authority
Regulations/Byelaws and Building and Plumbing Regulations.
To be installed in accordance with BS EN806.
We strongly recommend that you use a qualified and registered plumber.
General installation
This fitting is a mixing device and therefore water supplies should be reasonably
balanced.
When installed, the fitting must comply with the requirements of the Water Supply
(Water Fittings) Regulations 1999 and Scottish Byelaws 2004. Please check with your
local water undertaker if there is any uncertainty.
Before making any inlet pipe connections, all supply pipes MUST be thoroughly flushed
to remove debris. Failure to do so could result in damage or low flow from the mixer
unit. Water Supply (Water Fittings) Regulations 1999 Schedule 2 Section 13.
The fitting of isolating valves to the inlet feeds is advised for ease of maintenance.
Please take great care when installing this mixer not to damage its surface.
Please note if installing in an enclosed environment, access should be left for servicing
and maintenance. No costs relating to inadequate access can be accepted.
Operating Specifications
Operating Pressure
Minimum operating pressure - 1 bar
Maximum operating pressure 5 bar

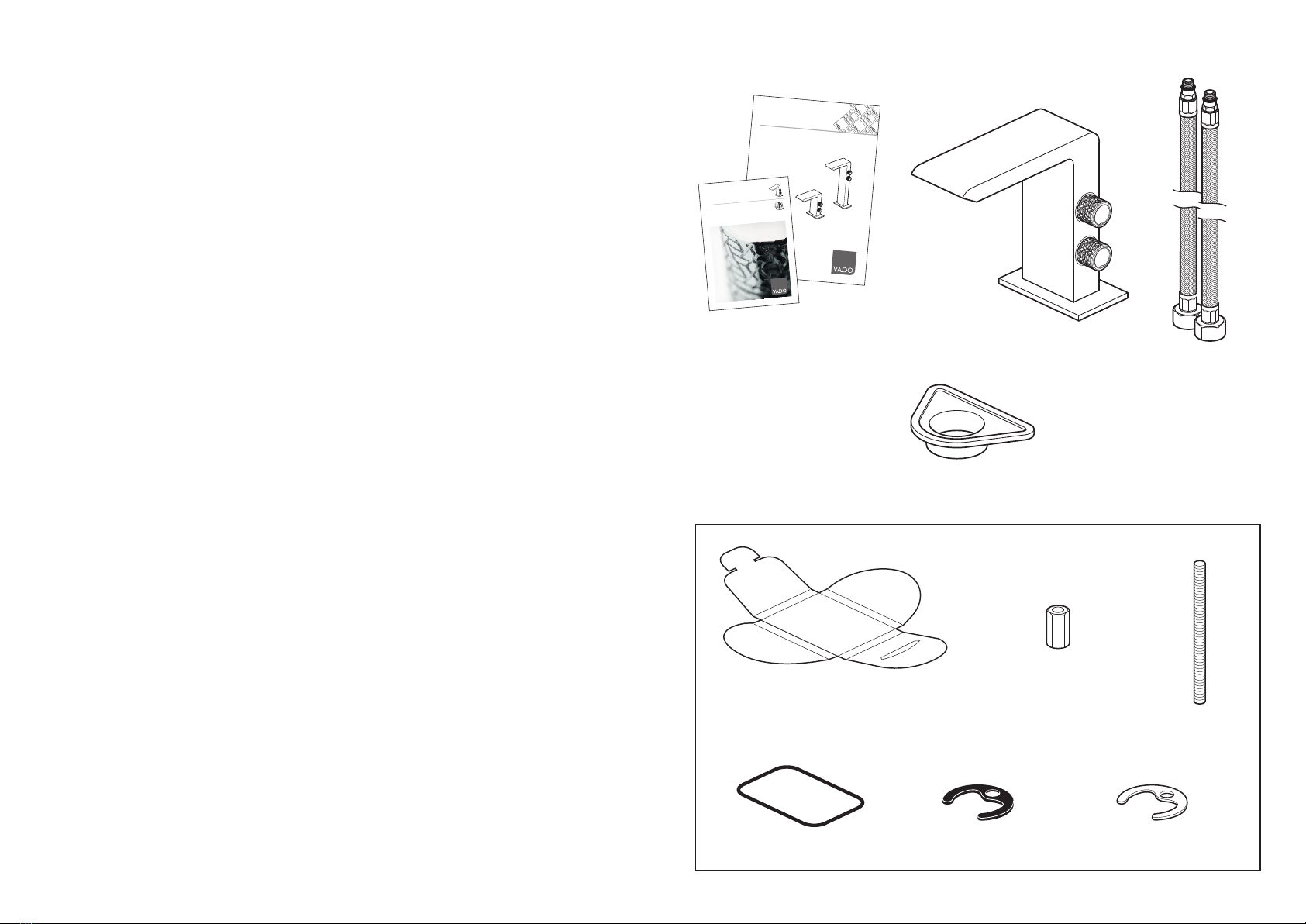

Important - please read Contents of Packaging
Valve body
Rubber washer
Spacer
(For use with thin work tops up to 7mm)
Flexible hoses
(Red for hot,
Blue for cold)
Metal washer
Threaded rod
Nut
Seal
Fixing kit box
(Nut, Threaded rod, Seal Rubber washer,
Metal washer)
FIXING KIT BOX
Mono Basin Mixers
OMIKA
Keep for future reference
Installation Guide
100M
100
100E
WHERE
INSPIRATION
FLOWS
OMIKA
Mono Basin Mixer
User Guide
Keep for fut ure reference
Installation guide &
User manual

4 5
1
2
3
Max - 5 Bar
1
2 3
4
0 5
Min - 1 Bar
1
2 3
4
0 5
<7mm
>7mm

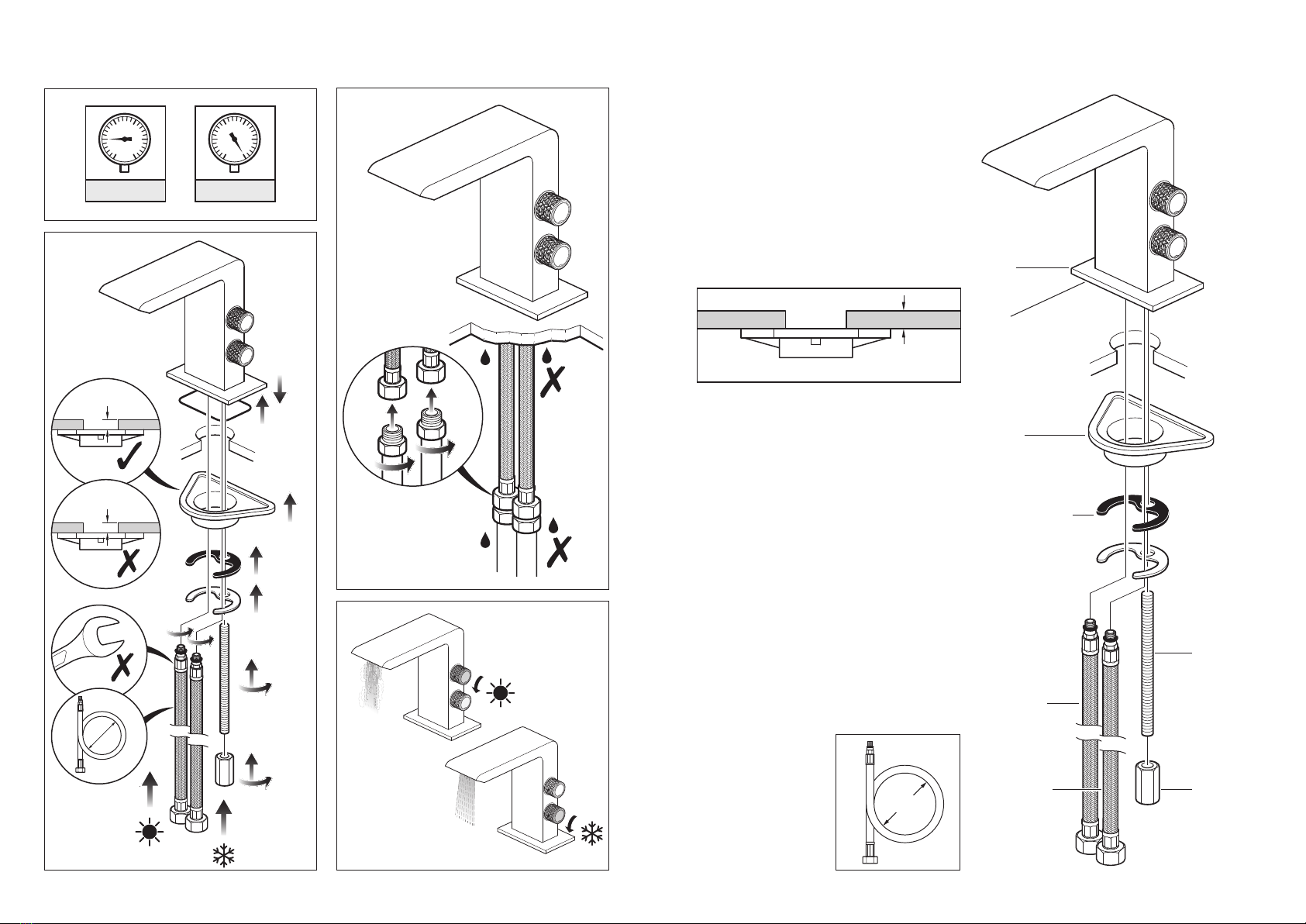

Installation - Quick guide
1
2 3
4
0 5
1
2 3
4
0 5
1
2 3
4
0 5
1
2 3
4
0 5
1
2 3
4
0 5
1
2 3
4
0 5
1
2 3
4
0 5
1
2 3
4
0 5
1
2 3
4
0 5
1
2 3
4
0 5
1
2 3
4
0 5
1
2 3
4
0 5
1
2 3
4
0 5
1
2 3
4
0 5
1
2 3
4
0 5
1
2 3
4
0 5
1
2 3
4
0 5
1
2 3
4
0 5
1
2 3
4
0 5
1
2 3
4
0 5
1
2 3
4
0 5
1
2 3
4
0 5
Installation
Base
Spacer
Rubber washer
Metal washer
Hot flexible
hose (red)
Cold flexible
hose (blue)
Nut
Threaded
rod
Seal
Before installing your new mixer, flush
through the pipe work to ensure removal
of debris, turn off the water supply.
Make sure that the seal is in position in
the base of the mixer body.
Screw the threaded rod into the back
hole in the base of the mixer body.
Position the mixer on the basin.
Note: If you have thin basins of 7mm or
less use the spacer provided.
Spacer
Basin
7mm
If you are using the spacer push the
hoses up through the basin hole. Screw
the two flexible hoses into the hot and
cold connections on the mixer body and
hand tighten only, do not over tighten.
The red hose (hot) should be connected
to the left hole and the blue hose (cold)
to the right.
Fit the rubber washer onto the threaded
rod followed by the metal washer and
then the lock nut. Tighten the lock nut to
clamp the mixer to the basin.
CAUTION: Do not over tighten the nut as
this may damage the basin.
Connect the water supply to the hoses.
The hot water should be connected to
the left hose and cold to the right.
Check for leaks.
CAUTION: When
installing the
flexible hoses do
not kink, or bend
them more than the
60mm diameter as
shown right.
60mm
60mm

6 7

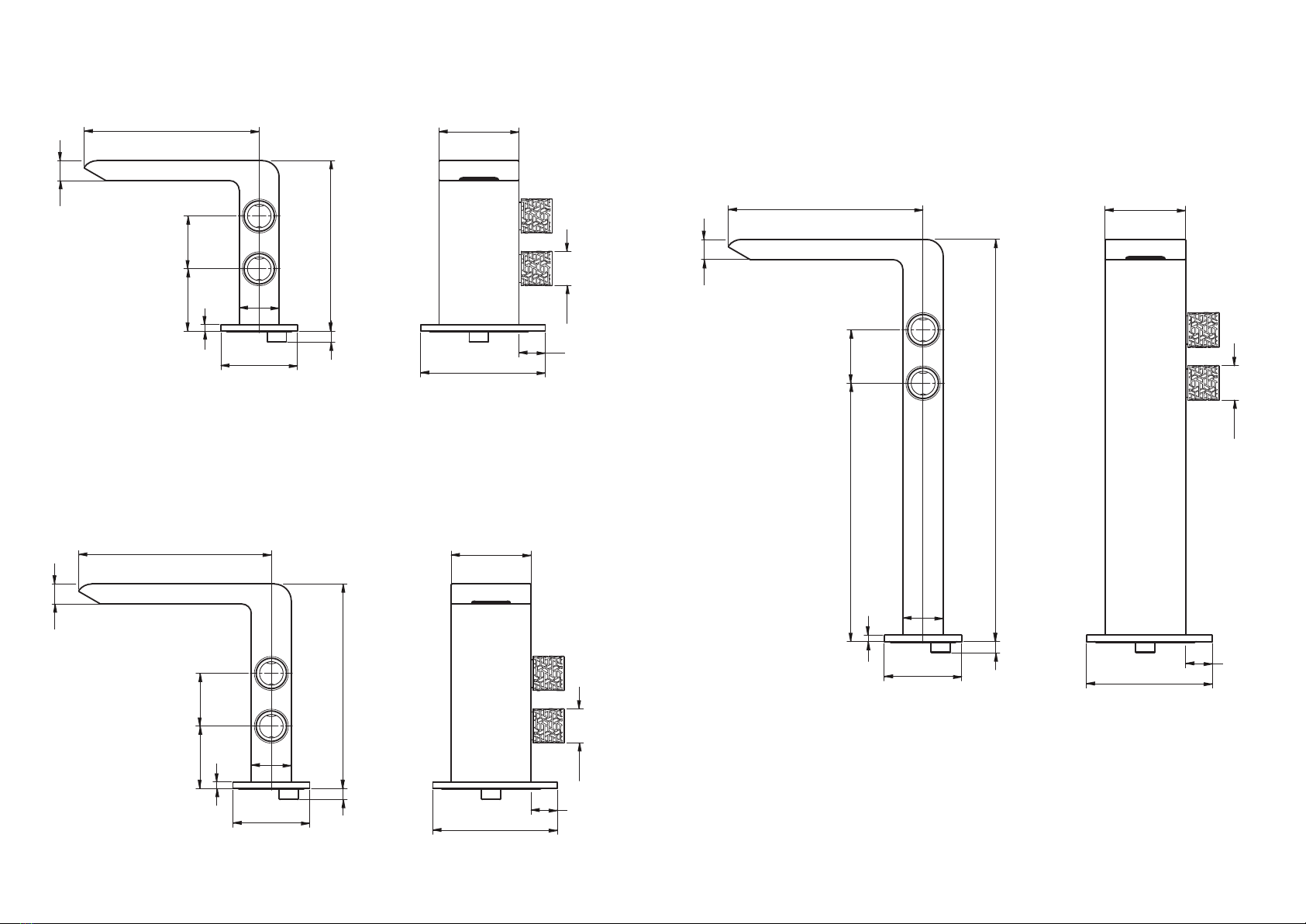

Valve dimensions - 100
Valve dimensions - 100m Valve dimensions - 100e
108mm
121mm
50mm
50mm
78mm
78mm
48mm
48mm
25mm
25mm
17mm
17mm
39mm
39mm 33mm
33mm
19mm
19mm
105mm
128mm 7mm
7mm
4mm
4mm
13mm
13mm
126mm 50mm
78mm
48mm
25mm
17mm
161mm 33mm
19mm
250mm
7mm
4mm
13mm

Guarantee
WHERE
INSPIRATION
FLOWS
OMIKA
Mono Basin Mixer
User Guide
Keep for future reference
All VADO products come with a 2 year guarantee as standard. Within this guarantee
period VADO will provide replacement parts and any labour [SEE NOTE 1] needed to
complete the product repair.
This standard guarantee may be extended by registering your product to give up to a 12
year guarantee period. Once registered:
VADO chromed brassware and stainless steel products have a 12 year guarantee
(2 years parts and labour plus 10 years parts only).
VADO digital and i-tech products have a 6 year guarantee (2 year parts and labour plus 4
years parts only).
All other VADO products have a 3 year guarantee (2 years parts and labour plus 1 year
parts only) [SEE NOTE 2].
VADO electric showers have a 2 years parts and labour guarantee.
Guarantee conditions
Our products are guaranteed against manufacturing defects from the date of purchase
until the expiry of the relevant guarantee period shown above.
The guarantee is only valid if:
• The product has been installed, used and maintained in accordance with VADO’s
instructions and subjected to normal use only.
• The defect is not due to use of an unsuitable or inadequate water or power supply.
• The defect is not due to accident, misuse, neglect or incorrect/inappropriate repair
(other than by VADO or VADO authorised agents) or damage caused by foreign objects or
substances.
• The extended guarantee is only available if you have completed the Guarantee Registration
Process. This can be done via the VADO website or via phone to our aftersales team.
Registration must be completed within 6 months from date of purchase.
Under the extended guarantee period VADO will, at its option, offer to supply any
replacement product (or component part) assessed to be defective [SEE NOTE 3].
The guarantee (whether standard or extended) is non-transferable to any subsequent owner.
All claims under the guarantee should be notified in the first instance to our Aftersales
department, contact details below, this must be done no later than the last day of the
relevant guarantee period. All claims must be accompanied by proof of purchase (sales
receipt or delivery note) from an official VADO dealer.
The guarantee does not extend to any consequential loss or damage.
After repair or replacement, the relevant guarantee period will be calculated from the
original date of purchase.
VADO operates a policy of continuous product development and therefore reserves the right
to change the product, packaging and documentation specifications without notice.
NOTES:
[1] Labour via our engineer network is only available in the UK. Attendance by a VADO
engineer or sub-contract engineer will be under our standard terms and conditions.
[2] VADO spare parts and shower hoses are under a parts only guarantee.
[3] VADO reserves the right to charge in advance for a product (or replacement part)
pending collection and investigation (at VADO expense) to confirm a defect is due to a
manufacturing issue. If a defect is found the charge will be refunded or cancelled.
This guarantee is in addition to and does not affect your statutory rights as a consumer.
Tel: [phone]
Email: [e-mail]

Operation
Turn the control forward to increase the flow of hot water
Turn the control forward to increase the flow of cold water
Hot control
Cold control
Welcome
VADO, Wedmore Road, Cheddar, Somerset, England BS27 3EB
tel [phone]. fax [phone]
[e-mail]
www.vado.com
Thank you for choosing VADO
Our products can be found in some of the most prestigious
hotel, commercial and residential developments across the
world, therefore you can expect exceptional product quality and
outstanding customer service.
This product has passed through stringent quality assurance
processes coupled with demanding lifecycle mechanical testing
to ensure it reaches the exacting standards that allow us to
offer our premium 12 year guarantee.
We work to ensure our product designs are harmonious with
all sanitaryware, so when you choose VADO, your choice of
coordinating items is unlimited.
With VADO, you can really let your inspiration flow.
For any technical or operational queries please contact our
experienced aftersales team on 01934 745163.

Cleaning instructions:
The electroplating on this product is finished to the
highest standard. Due care needs to be taken to ensure
the appearance is retained.
We recommend cleaning all products with a soft damp
cloth ONLY and advise strongly against the use of all
aggressive/corrosive cleaning products i.e. powders
and liquids. If these instructions are not followed, this
may invalidate your guarantee in the event of a problem
occurring.
Notes

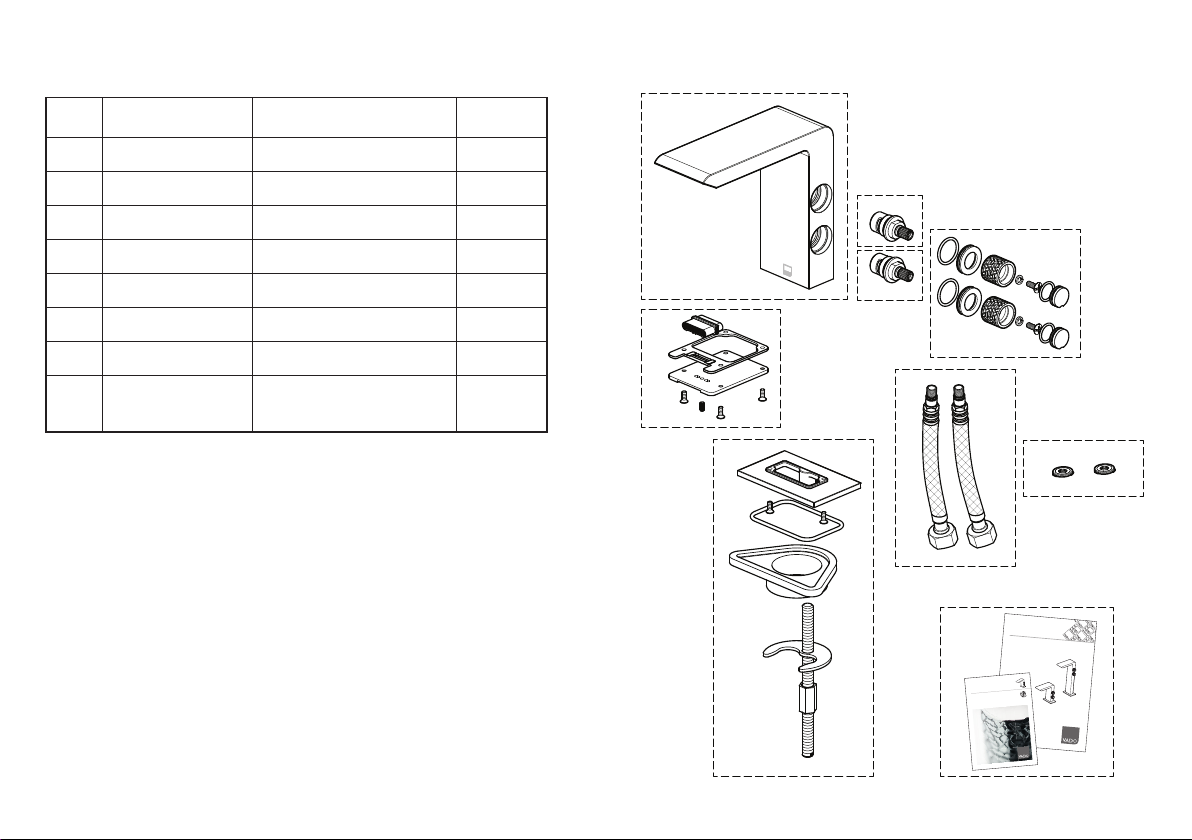

Parts list: Parts:
4
2
2
3
5
6
7
8
1
Item Description Part Code Quantity
1Body Uncoded N/A
2Headwork FL-401-RTC 1
3Handle assembly OMI-1-C/P 1 pair
4Aerator/housing OMI-AERATOR-C/P 1
5Fixing kit OMI-FIXING KIT 1
6Flexible hose T-½ x M10-400mm-FLX 1pair
7Flow regulation Uncoded N/A
8Installation guide
