For the owner and heating engineer
Operating and installation manual
timeSWITCH 130
24-hour timer
GB

2
Contents
timeSWITCH 130 24-hour timer operating and installation manual
Contents
Notes on the documentation . . . . . . 4
Other valid documents............................ 4
Symbols used............................................. 4
Storage of the documents...................... 5
Safety . . . . . . . . . . . . . . . . . . . . . . . . . 5
Operating manual. . . . . . . . . . . . . . . . 5
1 Description of the device. . . . . . 5
2 Operation. . . . . . . . . . . . . . . . . . . 8
2.1 Selecting the operating mode ...... 8
2.2 Setting the timer.............................. 8
2.3 Setting slides..................................... 9
2.4 Setting the heating program......... 9
2.5 Weekend mode ................................. 9
2.6 Summer time mode......................... 9
2.7 Power failure..................................... 10
3 Recycling and disposal. . . . . . . . 10

3timeSWITCH 130 24-hour timer operating and installation manual
Contents
GB
Installation manual . . . . . . . . . . . . . . 11
4 Information on the installation
and operation . . . . . . . . . . . . . . . 11
4.1 CE label............................................... 11
4.2 Intended use...................................... 11
5 Safety instructions and
regulations . . . . . . . . . . . . . . . . . 13
5.1 Safety instructions .......................... 13
5.2 Regulations........................................ 14
6 Installation . . . . . . . . . . . . . . . . . 14
7 Start-up. . . . . . . . . . . . . . . . . . . . 16
8 Handing over to the owner . . . . 17
9 Customer service
and warranty. . . . . . . . . . . . . . . . 18
10 Technical data. . . . . . . . . . . . . . . 18

4timeSWITCH 130 24-hour timer operating and installation manual
Notes on the documentation
Notes on the
documentation
The following information is intended to
help you throughout the entire docu-
mentation. Further documents apply in
combination with this operating and
installation manual.
We accept no liability for any damage
caused by failure to observe these
instructions.
Other valid documents
Operating and installation manuals for
all system components
Symbols used
Please observe the safety instructions in
this manual.
The symbols used in the manual are
explained below:
Caution!
Potentially dangerous situations
for the product and environment!
Note!
Useful information and instruc-
tions
• Symbol for a required task

5timeSWITCH 130 24-hour timer operating and installation manual GB
Notes on the documentation; Safety; Description of the device 1
Storage of the documents
Please pass on this operating and instal-
lation manual to the owner of the system
so that it is available whenever it is
required.
Safety
The timer must be installed by an
approved specialist, who is responsible
for the observance of the relevant stand-
ards and regulations.
Operating manual
1 Description of the device
The timeSWITCH 130 timer is a 24-hour
timer used to time control Vaillant boiler
with or without hot water supply.
The timer is installed at the front of
Vaillant ecoTEC combi boilers.

6timeSWITCH 130 24-hour timer operating manual
1 Description of the device
Overview of the device
1
5
2
3a
4
3b

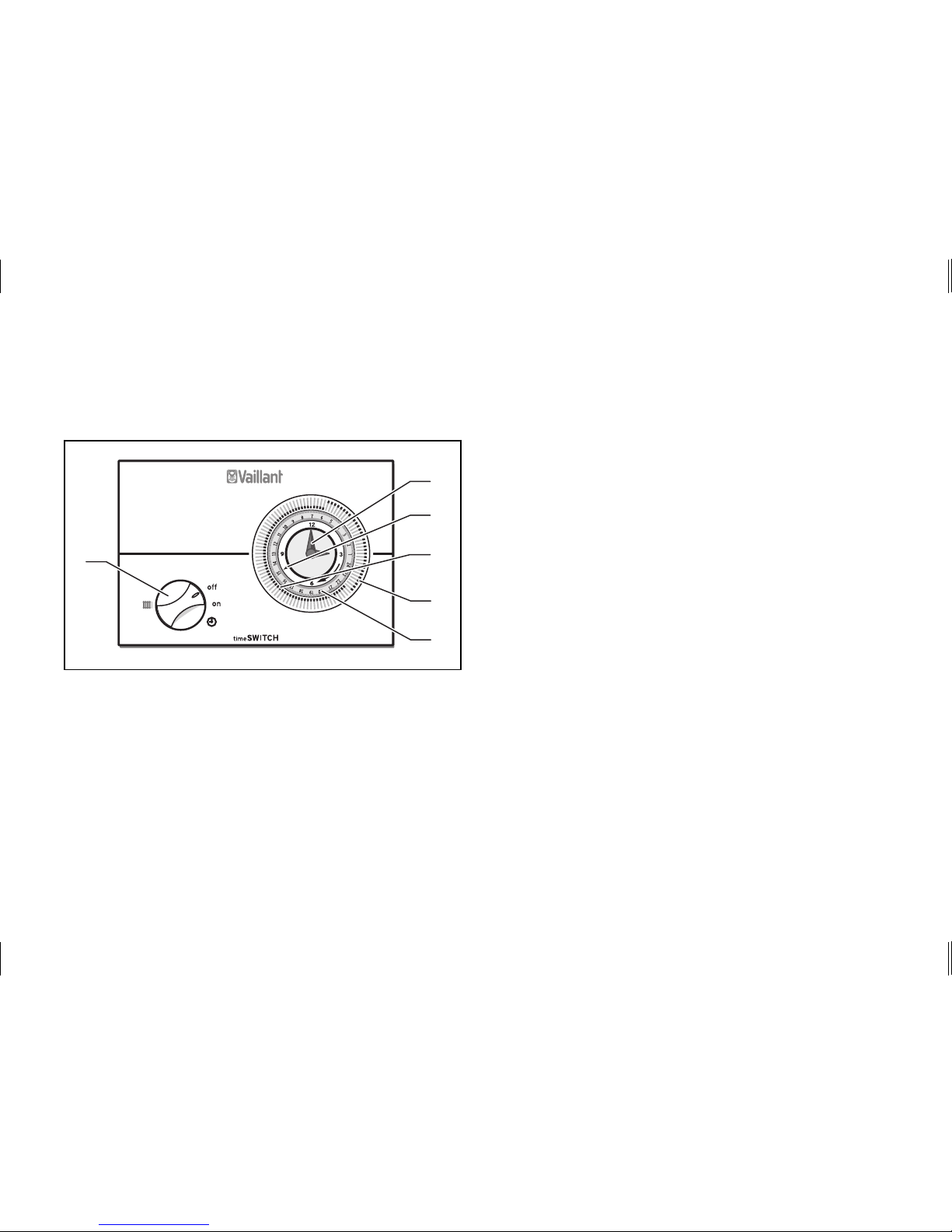

Fig. 1.1 Overview of the device
Key
1 Minute hand
2 Time mark
3a Slide pushed in (boiler on)
3b Slide pulled out (boiler off)
4 Time of day
5 Operating mode switch

7timeSWITCH 130 24-hour timer operating manual GB
Description of the device 1
Minute hand (1)
For displaying and setting the time.
Time mark (2)
The triangular time mark indicates the
time of day (e. g. 3.00 pm in Fig. 1.1).
Slide pushed in (3a)
The boiler is switched on by a pushed in
slide and remains on until the timer
arrives at a pulled out slide.
Slide pulled out (3b)
The boiler is switched off by a pulled out
slide and remains off until the timer
arrives at a pushed in slide.
Time of day (4)
The time of day is indicated by the time
mark of the movable number ring with
the time of day. The time of day is indi-
cated by a 24-hour scale.
Operating mode switch (5)
This switch is used to select the operat-
ing mode (refer to Section 2.1).

8timeSWITCH 130 24-hour timer operating manual
2 Operation
2 Operation
2.1 Selecting the operating mode
You can use the operating mode switch
(5) to change the operating mode of
your boiler as desired.
– The boiler is switched off permanently
if set to “off”.
– The boiler is switched on permanently
if set to “on”.
– The boiler is time controlled according
to the slide settings if set to “ ”.
2.2 Setting the timer
Viewing the time of day
The time of day is indicated by the
number ring on the time mark (2).
Note!
The timer has a 24-hour scale.
15:00 therefore corresponds to
3pm.
Setting the time
• Turn the minute hand (1) clockwise
until the desired time of day (4) is set
on the time mark (2) and the hand of
the clock indicates the desired time.

9timeSWITCH 130 24-hour timer operating manual GB
Operation 2
2.3 Setting slides
Set the slides as follows:
• Push the slides inwards for heating
periods (3a).
• Pull the slides outwards for periods
without heating (3b).
2.4 Setting the heating program
• Set the slides as desired and set the
operating mode switch (5) to the auto-
matic heating program “ ”.
2.5 Weekend mode
• Turn the operating mode switch to
“on” if the boiler is to be permanently
on, during the weekend for example.
• To return to the automatic heating
program, turn the operating mode
switch to “ ”.
2.6 Summer time mode
• Set the operating mode switch to “off”
to permanently switch off the boiler.

10 timeSWITCH 130 24-hour timer operating manual
2 Operation; 3 Recycling and disposal
2.7 Power failure
The timer cannot be operated with bat-
teries. The clock is switched off in the
event of a power failure. The set pro-
gram is retained however. The preset
program is resumed once the timer is
supplied with power again.
Note!
After a power failure you must
check the time of day and adjust
it if necessary (refer to Section
2.2)!
3 Recycling and disposal
Neither the timer nor any of its acces-
sories belong in the household waste.
Make sure the old device and any exist-
ing accessories are disposed of properly.

11timeSWITCH 130 24-hour timer installation manual GB
Information on the installation and operation 4
Installation manual
4 Information on the
installation and
operation
All electrical work should be carried out
by a specialist in accordance with the BS
7671 standard (IEE installation guide-
lines).
4.1 CE label
The CE label ensures the timer corre-
sponds with the basic regulations of the
low voltage directive (73/23/EEC) and, in
combination with Vaillant heating sys-
tems, with the basic regulations of the
EEC directive on electromagnetic com-
patibility (89/336/EEC).
4.2 Intended use
The timeSWITCH 130 is a state-of-the-art
24-hour timer which has been designed
in accordance with approved safety reg-
ulations. Nevertheless, there is still a risk
of injury or death to the user or third
parties or damage to the device and oth-
er property if the device is used improp-
erly.
The timeSWITCH 130 timer is a
24-hour timer used to time control Vail-
lant boilers with or without hot water
supply.

12 timeSWITCH 130 24-hour timer installation manual
4 Information on the installation and operation
The timer is installed at the front of
Vaillant ecoTEC combi boilers.
Any other use or extended use is consid-
ered to be other than intended. The
manufacturer/ supplier is not liable for
any resulting damage. The heating engi-
neer and/or the owner alone bear the
risk. Intended use includes the observ-
ance of the operating and installation
manual.
Any improper use is forbidden!
All Vaillant boilers are equipped with an
anti-freeze thermostat.
Note!
This timer is not suitable for
being used together with an
external anti-freeze thermostat.

13timeSWITCH 130 24-hour timer installation manual GB
Safety instructions and regulations 5
5 Safety instructions and
regulations
The device must be installed by an
approved company specialised in heating
engineering, which is responsible for
compliance with existing standards and
regulations. We accept no liability for
any damage caused by failure to observe
these instructions.
5.1 Safety instructions
Caution!
Risk of damage to the device by
short-circuits!
Before performing work on the
device, switch off the power sup-
ply and secure it against being
switched on again.
Only take the timer from the
base after disconnecting it from
the power supply.

14 timeSWITCH 130 24-hour timer installation manual
5 Safety instructions and regulations; 6 Installation
5.2 Regulations
All wiring must be in accordance with
Building Regulations Part P and BS 7671
(IEE Wiring Regulations), and must be
carried out by a suitably qualified per-
son.
6 Installation
The timer is connected to the boiler by
means of the pin connector on the timer.
The timer is pushed directly into the
installation recess provided for this pur-
pose, establishing an electrical connec-
tion to the boiler in the process.

15timeSWITCH 130 24-hour timer installation manual GB
Installation 6
1
2
3
Fig. 6.1 Installing the timer
Key
1 Installation recess in the switch box
2 Timer
3 Cover
4
Fig. 6.2 Rear of the timer
Key
4 Contact pins

16 timeSWITCH 130 24-hour timer installation manual
6 Installation; 7 Start-up
• Switch off the boiler.
• Disconnect the appliance from the
power supply.
• Undo the cover (3) from the switch
box.
• Align the five contact pins (4) on the
rear of the timer (2) with the contacts
in the installation recess (1).
• Push the timer carefully into the instal-
lation recess until it snaps into place.
7 Start-up
• Switch on the power supply for the
boiler.
• Put the boiler into service in accord-
ance with the operating and installa-
tion manual of the boiler.

17timeSWITCH 130 24-hour timer installation manual GB
Handing over to the owner 8
8 Handing over to the owner
You must show the owner how to handle the timer and inform the owner about its
functions. Please use this checklist:
Handover Done
Hand over any instructions intended for the owner as well as the documents of the
appliance and device.
Go through the operating manual with the owner and answer any questions.
Draw special attention to the safety instructions, which the owner must follow.
Tell the owner to keep the manuals near the boiler together with the timer.
Table 8.1 Handing over to the owner

18 timeSWITCH 130 24-hour timer installation manual
9 Customer service and warranty; 10 Technical data
9 Customer service and
warranty
Vaillant service
To ensure regular servicing, it is strongly
recommended that arrangements are
made for a Maintenance Agreement.
Please contact Vaillant Service Solutions
(0870 6060 777) for further details.
Vaillant warranty
We only grant a Vaillant manufacturers
warranty if a suitably qualified engineer
has installed the system in accordance
with Vaillant instructions. The system
owner will be granted a warranty in
accordance with the Vaillant terms and
conditions. All requests for work during
the guarantee period must be made to
Vaillant service (0870 6060 777). All
wiring must be in accordance with Build-
ing Regulations Part P and BS 7671 (IEE
Wiring Regulations), and must be carried
out by a suitably qualified person.
10 Technical data
Unit Value
Operating voltage V DC 24
Current consumption mA 35
Approx. weight g 200
Protection class IP 20
Protection class for
controller II
Table 10.1 Technical data
