Product Overview
HMP4, HMP5, HMP7, and HMP8 are humidity and temperature measurement probes with a
digital (Modbus) output. TMP1 is a temperature-only version. The probes are designed for
demanding humidity and temperature measurement applications. Each probe model has a
dierent probe head, but the same probe body and a 2 m (6.5 ft) cable between the probe
body and the probe head.
The probes are compatible with Vaisala Indigo™transmitters. They can also be connected to
Vaisala Insight software for configuration, diagnostics, and temporary online monitoring.
Probe Structure
2
1
3
4
5
6
7
8

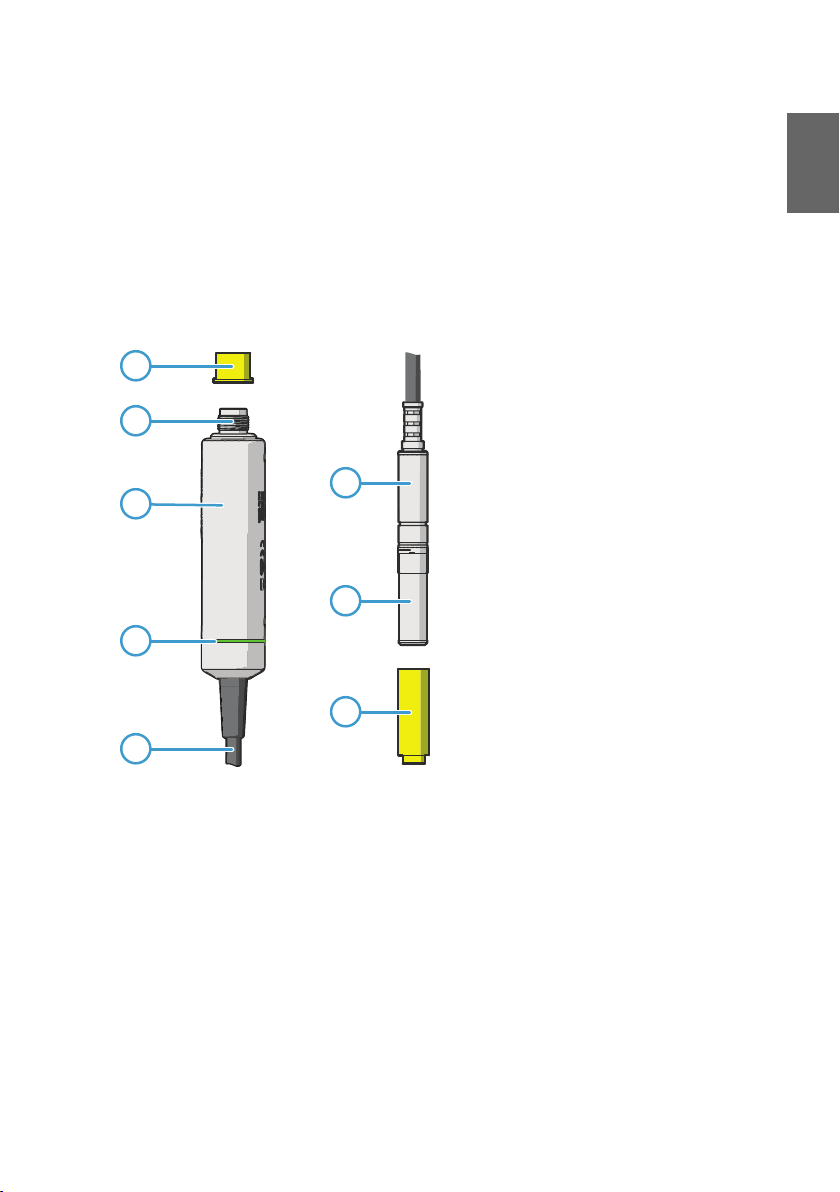

Figure 1 Probe Parts
1Protection cap (remove before use)
25-pin M12 connector
3Probe body with type label
4Status indicator:
Green Power on and probe online,
flashes when communicating
Red Error
O Power o or indicator
disabled
5Probe cable. Do not cut.
6Probe head (HMP7 model shown)
7Sensor(s) under protective filter
8Protection cap (remove before use)
More Information
For detailed instructions for installing, configuring, and maintaining the probes, see HMP4, 5, 7,
8, and TMP1 User Guide in English M212022EN available at www.vaisala.com .
5
ENGLISH

HMP4 Probe
183 [7.20]
120 [4.72]
Fitting body
M22x1.5 or NPT1/2”
41 [1.61]
Ø 12
[0.47]
32 mm 27 mm
mm
[in]

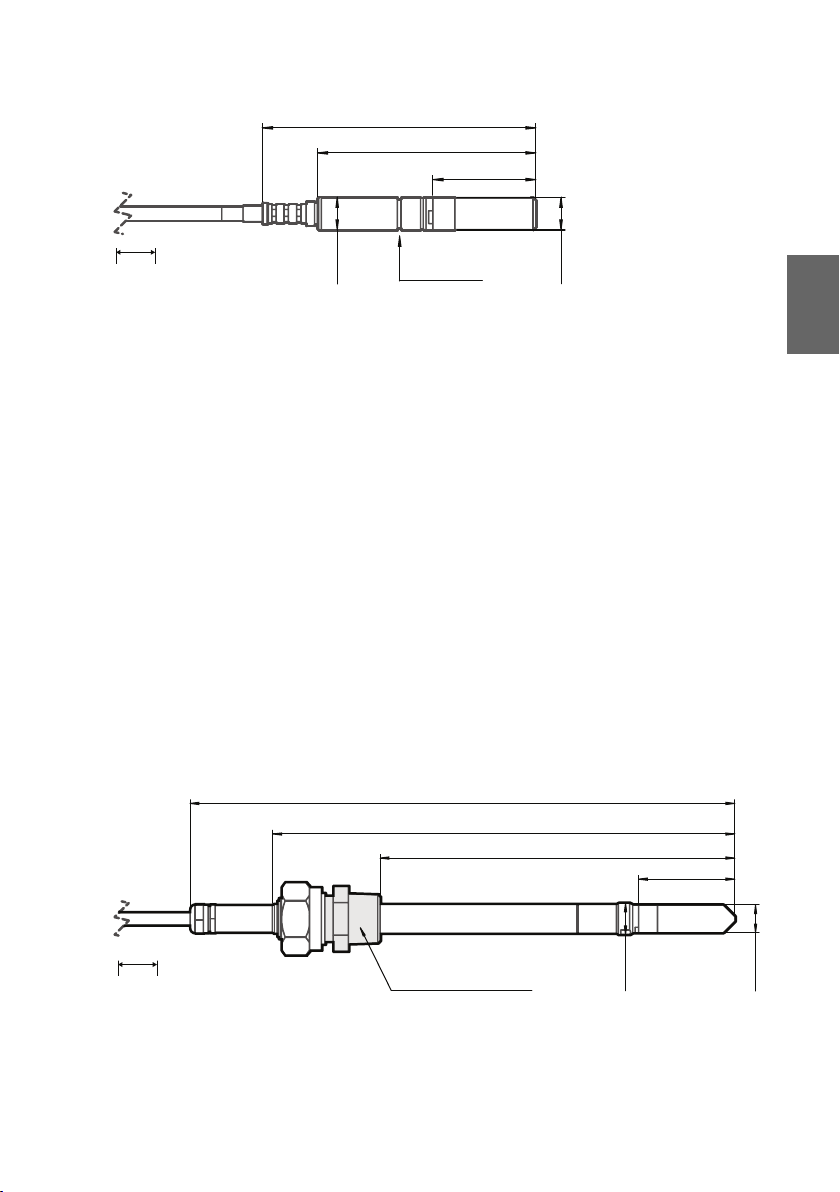

Figure 2 HMP4 Probe Head Dimensions
Vaisala HUMICAPâHumidity and Temperature Probe HMP4 is designed for high-pressure
applications such as compressed air systems in maritime, breathing air, and industrial
applications, where measurement performance and chemical tolerance are essential.
• Operating pressure 0 ... 10 MPa (0 ... 100 bar)
• M22x1.5 and NPT1/2” probe fittings included
• Sintered AISI316L filter standard in delivery
HMP5 Probe
41 [1.61]
Ø 12
[0.47]
Ø 13.5
[0.53]
253 [9.96]
243 [9.57]
mm
[in]

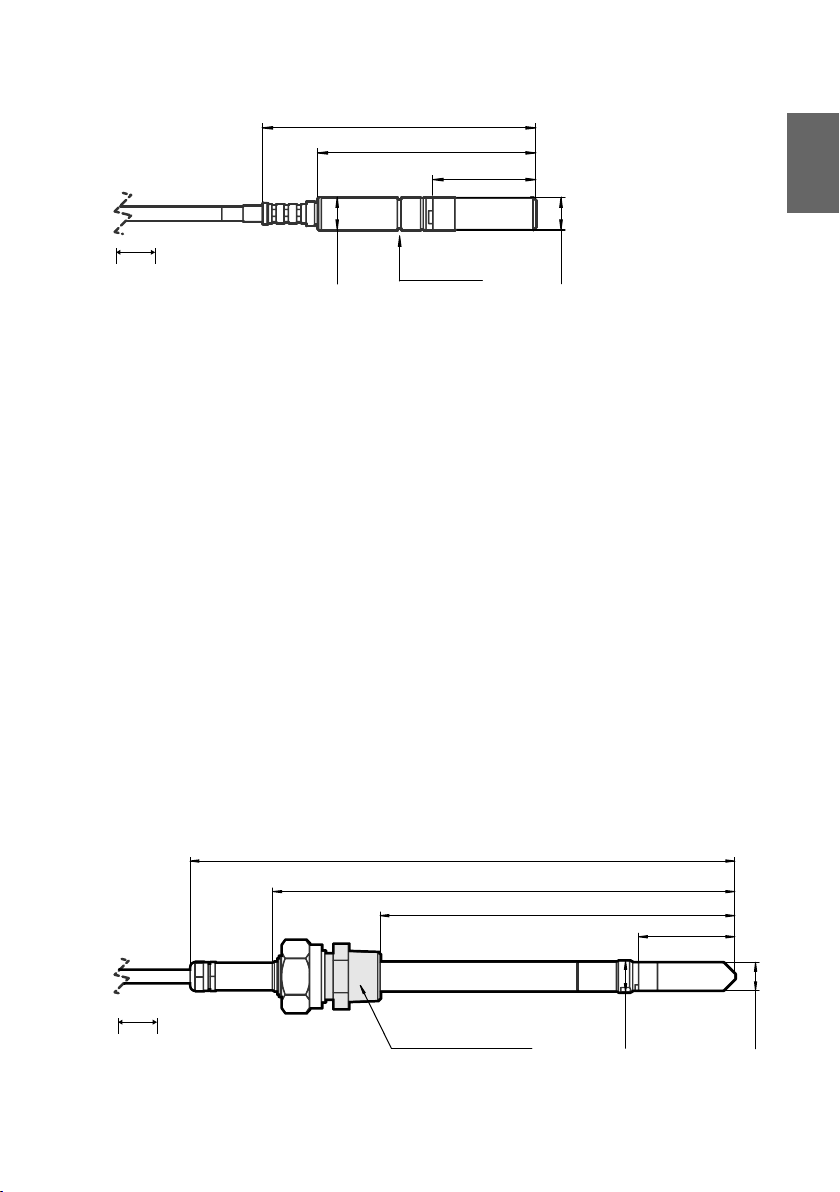

Figure 3 HMP5 Probe Head Dimensions
Vaisala HUMICAPâHumidity and Temperature Probe HMP5 is designed for high-temperature
applications such as baking ovens, pasta dryers and industrial drying kilns where measurement
performance and chemical tolerance are essential.
• Temperature measurement range -70 ... +180 °C (-94 ... +356 °F)
• 250 mm (9.84 in) probe allows easy process installation through insulation
• Sintered AISI316L filter standard in delivery
6 M211982EN-C

HMP7 Probe
99.5 [3.92]
79.5 [3.13]
37.5 [1.48]
Ø 12
[0.47]
Ø 12
[0.47]
Groove for
lock ring
mm
[in]
Figure 4 HMP7 Probe Head Dimensions
Vaisala HUMICAPâHumidity and Temperature Probe HMP7 is designed for applications which
involve constant high humidity or rapid changes in humidity such as drying and test chambers,
combustion air and other humidifiers and meteorological measurements where measurement
performance and chemical tolerance are essential.
• Probe and sensor warming functions minimize condensation on probe
• Vapor and pressure proof construction
• Stainless steel mesh filter standard in delivery
Probe Heating
HMP7 supports probe heating. Probe heating heats up not only the sensor, but the entire
probe head. When probe temperature is heated above dew point temperature, condensation
on the probe can be avoided while measuring the dew point temperature of the process.
Probe heating is disabled by default. If you enable probe heating, output parameters that are
dependent on temperature measurement (such as relative humidity) are disabled unless the
true temperature of the measured environment is updated to the temperature compensation
register of the probe from another measurement instrument (for example, the TMP1 probe).
Output parameters such as dew point temperature that can be measured or calculated
without this external temperature information are available even without the temperature
input.
HMP8 Probe
Ø 12
[0.47]
232 [9.13]
194 [7.64]
41 ... 149 [1.16 ... 5.87]
41 [1.61]
Ø 13.5
[0.53]
Fitting body
ISO1/2” or NPT1/2”
mm
[in]

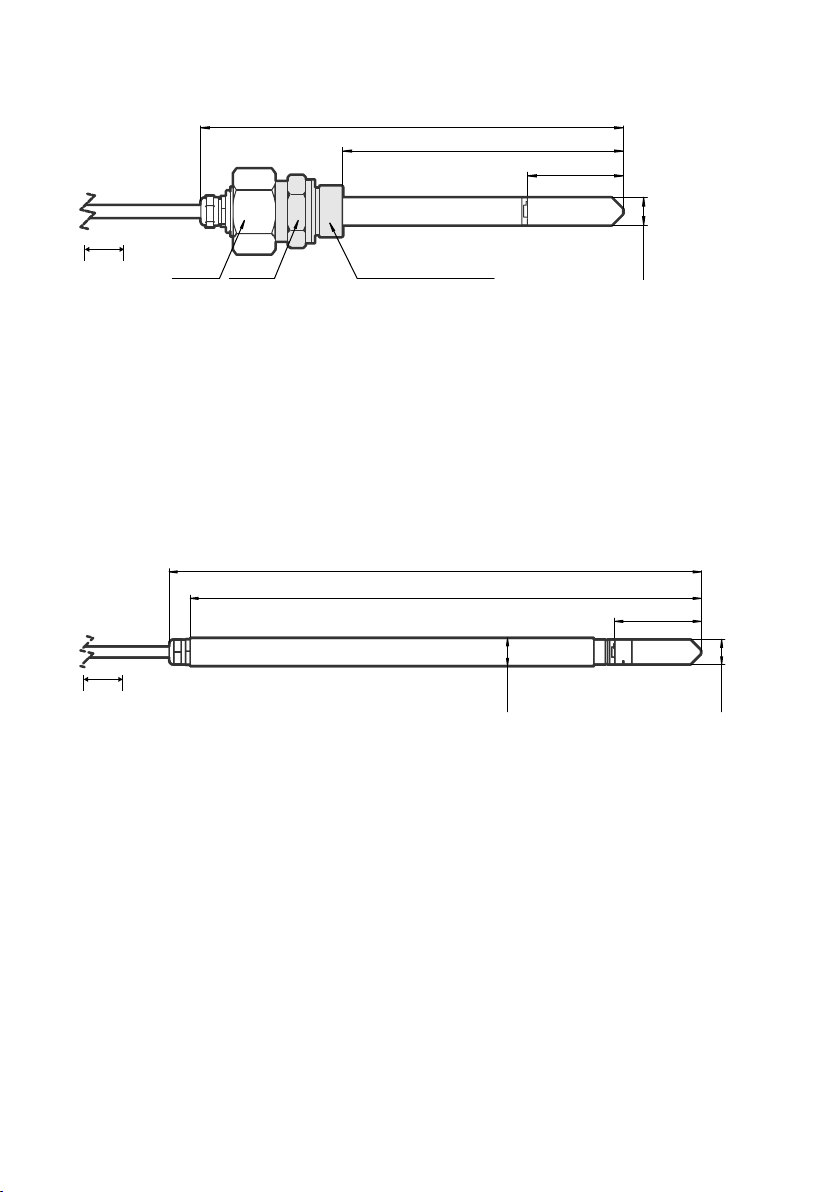

Figure 5 HMP8 Probe Head Dimensions
7
ENGLISH

Vaisala HUMICAPâHumidity and Temperature Probe HMP8 is designed for pressurized
applications in compressed air systems, refrigerant dryers, environmental chambers and other
pressurized industrial applications where easy insertion and removal of the probe and
adjustable installation depth into the pipeline are needed.
• Probe installation depth can be freely adjusted and probe can be hot-swapped from
pressurized pipelines with an installation valve
• Operating pressure 0 ... 4 MPa (0 ... 40 bar)
• ISO1/2" and NPT1/2" probe fittings and press handle included
• Sintered AISI316L filter standard in delivery
TMP1 Probe

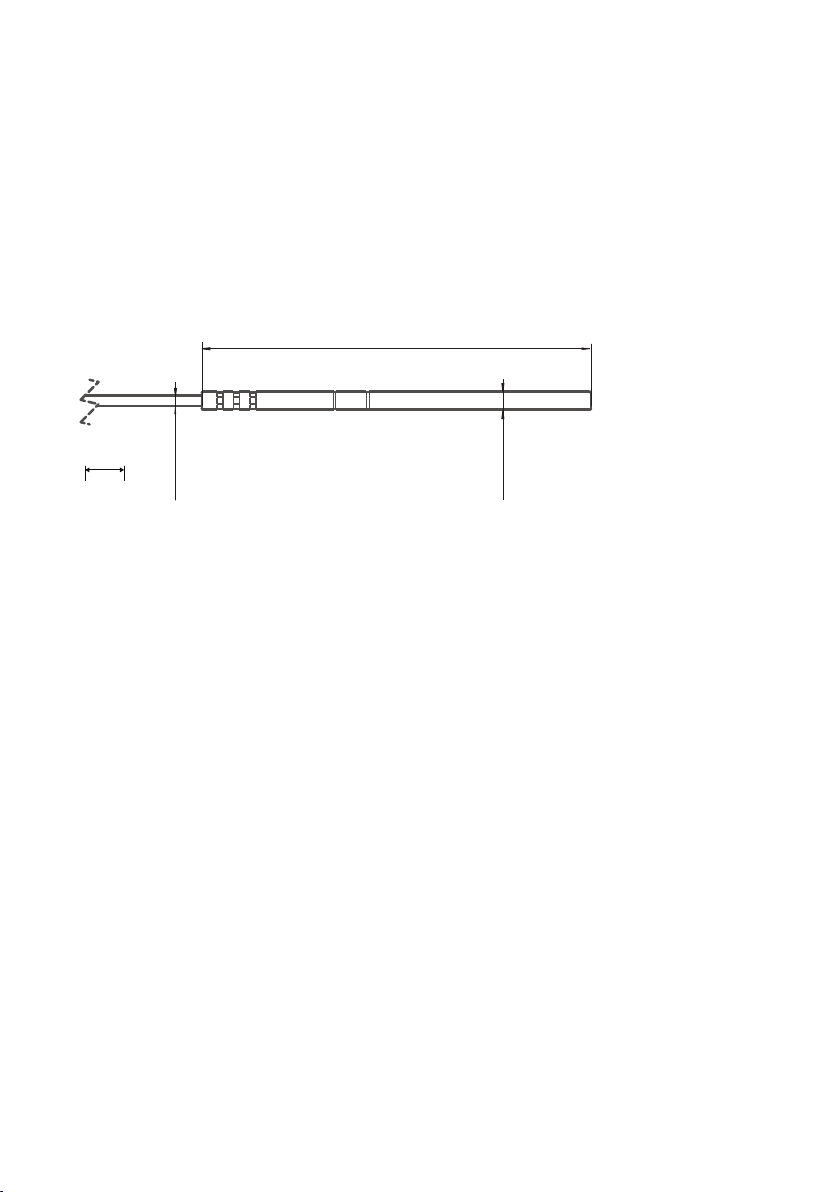

130 [5.12]
Ø 3.2 [0.13]
Ø 6 [0.24]
mm
[in]
Figure 6 TMP1 Probe Head Dimensions
Vaisala Temperature Probe TMP1 is designed for demanding temperature measurements in
industrial applications such as pharmaceutical industry and calibration laboratories, where
accuracy and robustness are essential.
• Temperature measurement range -70 ... +180 °C (-94 ... +356 °F)
• Temperature accuracy up to 0.1 °C (0.18 °F)
8 M211982EN-C

Probe Body Dimensions and Pinout
136 [5.35]
Probe cable
2000 [78.74]
Ø 25
[0.98]
M12/5
1
5
34
2
M12/5
Male Connector
mm
[in]
Figure 7 Probe Body
Pin # Function Notes Wire Colors in Vaisala
Cables
1 Power supply Supply voltage:
• HMP7: 18 ... 30 VDC
• Other models: 15 ... 30 VDC
Typical current 10 mA, max. 500 mA.
Brown
2 RS-485- White
3 Power GND Blue
4 RS-485+ Black
5 Not connected Gray
Recommended maximum length of the RS-485 line is 30 m (98 ft).
9
ENGLISH

Attaching Probes to Indigo Transmitters
Figure 8 Attaching the Probe to Indigo 200 Series
1. Insert the probe or the connection cable into the transmitter's connector. Use of
connection cable is recommended for strain relief.
2. Turn the locking wheel of the transmitter to lock the probe or cable in place.
Do not turn the probe or the cable itself, as that will damage the connectors.
3. If you are using a connection cable, connect the probe to the cable.
4. When the transmitter recognizes the connected probe, it shows a notification message on
the display.
10 M211982EN-C

Installation
-40 ... +80 °C
(-40 ... +176 °F)
-70 ... +180 °C
(-94 ... +356 °F)
12
43
Figure 9 Example Installation of HMP8 Model
1Mount the probe head horizontally to prevent any water condensing on the probe head
from running to the sensors.
2Let the cable hang loosely to prevent condensed water from running along the cable to
the probe head.
3Attach the probe body to a wall or other surface using the two mounting clips (Vaisala
item 243257SP) supplied with the probe. Each clip attaches to the installation surface with
one screw (screw hole Ø 4.2 mm).
4Cable to Modbus master or Indigo™transmitter.
If the temperature of the measured environment diers greatly from ambient
temperature, the whole probe and preferably plenty of cable must be inside the
process. This prevents measurement inaccuracy caused by heat conduction along
the cable.
11
ENGLISH

Configuration
Vaisala Insight Software
Vaisala Insight software is a configuration software for Indigo-compatible devices. The
supported operating systems are Windows 7 (64-bit), Windows 8.1 (64-bit), and Windows 10
(64-bit).
With the Insight software, you can:
• See probe information and status
• See real-time measurement
• Calibrate and adjust the probe
•Configure probe features such as measurement filtering, chemical purge, heating, and
serial communication
Download Vaisala Insight software at www.vaisala.com/insight.
The probe can be connected to Vaisala Insight software using a Vaisala USB cable (no.
242659).
Connecting to Insight Software
• Computer with Vaisala Insight software installed
• USB connection cable (no. 242659)
Figure 10 Connecting Probe to Insight
1. Open the Insight software.
2. Connect the USB cable to a free USB port on the PC.
3. Connect the probe to the USB cable.
4. Wait for Insight software to detect the probe.
12 M211982EN-C

Modbus
Serial Interface Settings
Table 1 Default Serial Interface Settings
Property Description/Value
Bit rate 19200
Parity None
Data bits 8
Stop bit 2
Flow control None
You can use up to ten probes on the same RS-485 line. You must configure each probe on the
line to have a dierent Modbus address.
Measurement Data Registers
Table 2 Modbus Measurement Data Registers (Read-Only)
Register
Number
(Decimal)
Address
(Hexadecimal)
Register Description Data Format Metric Unit
Floating Point Values
1 0000hex Relative humidity 32-bit float %RH
3 0002hex Temperature 32-bit float °C
7 0006hex Dew point temperature 32-bit float °C
9 0008hex Dew/frost point
temperature
32-bit float °C
11 000Ahex Dew/frost point
temperature at 1 atm
32-bit float °C
13 000Chex Dew point temperature
at 1 atm
32-bit float °C
14 000Ehex Absolute humidity 32-bit float g/m3
16 0010hex Mixing ratio 32-bit float g/kg
19 0012hex Wet-bulb temperature 32-bit float °C
21 0014hex Water vapor
concentration
32-bit float ppmv
23 0016hex Water vapor pressure 32-bit float hPa
13
ENGLISH

Register
Number
(Decimal)
Address
(Hexadecimal)
Register Description Data Format Metric Unit
Floating Point Values
25 0018hexWater vapor saturation
pressure
32-bit float hPa
27 001Ahex Enthalpy 32-bit float kJ/kg
31 001EhexDew point temperature
dierence
32-bit float °C
33 0020hex Absolute humidity at
NTP
32-bit float g/m3
65 0040hexWater vapor mass
fraction
32-bit float ppmw
Configuration Registers
Table 3 Modbus Configuration Data Registers (Writable)
Register
Number
(Decimal)
Register
Address
(Hexadecim
al)
Register Description Data
Format
Unit / Valid Range
General
1289 0508hex Probe heating on/o.
Available on HMP7 model
only.
When on, relative humidity
measurement is disabled
unless temperature is
written to register 0334hex
from an external source.
16-bit
boolean
0 = o (default)
1 = on
Compensation Setpoints
769 0300hexPressure compensation
setpoint
32-bit float Unit: hPA
Default: 1013.25 hPa
14 M211982EN-C

Compensation Setpoints
821 0334hex Temperature
compensation setpoint. If
a value is written to this
register, probe uses it
when calculating relative
humidity instead of its
own measurement.
When probe heating is in
use, temperature must be
written to this register to
enable relative humidity
measurement.
32-bit float Unit: °C
Communication
1537 0600hex Modbus address 16-bit
integer
1 ... 247
Default: 240
15
ENGLISH

16 M211982EN-C

製品概要
HMP4、HMP5、HMP7、HMP8 は、デジタル（Modbus）出力の湿度・温度計測プローブで
す。TMP1 は、温度のみを計測できるバージョンです。これらのプローブは厳しい環境下に
おける湿度と温度の計測用に設計されています。プローブモデルごとにプローブヘッドは
異なりますが、プローブ本体や、プローブ本体とプローブヘッド間の 2 m（6.5 ft）ケーブ
ルは同じです。
これらのプローブは、ヴァイサラ Indigo™ 変換器と互換性があります。また、Vaisala
Insight ソフトウェアに接続して、設定、診断、および一時オンラインモニタリングを行え
ます。
プローブ構造
2
1
3
4
5
6
7
8
図 11 プローブの部品
1保護キャップ（使用前に取り外す）
25 ピン M12 コネクター
3プローブ本体（タイプラベル付き）
4状態インジケーター：
緑電源がオンでプローブがオン
ライン、通信時は点滅
赤エラー
オフ 電源がオフ、またはインジ
ケーターが無効
5プローブケーブル 。切断しないでく
ださい。
6プローブヘッド（図は HMP7 モデル）
7保護フィルター下のセンサ
8保護キャップ（使用前に取り外す）
詳細
プローブの取り付け、設定、およびメンテナンスの詳細については、www.vaisala.com で
入手可能な『HMP4、5、7、8、および TMP1 取扱説明書（英語版 M212022EN）』を参照し
てください。
17
日本語

HMP4 プローブ
183 [7.20]
120 [4.72]
ࣇ࢕ࢵࢸ࢕ࣥࢢᮏయM22x1.5 ࡲࡓࡣNPT1/2”
41 [1.61]
Ø 12
[0.47]
32 mm 27 mm
mm
[in]
図 12 HMP4 プローブヘッドの寸法
ヴァイサラ HUMICAPâ 湿度・温度プローブ HMP4 は、計測性能と耐化学薬品性が非常に重
要となる、海洋、呼吸用空気、工業利用における圧縮空気システムなどの高圧用途向けに
設計されています。
• 動作圧力：0 ～ 10 MPa（0 ～ 100 bar）
• M22x1.5 および NPT1/2” プローブフィッティング 付属
•焼結 AISI316L フィルタは標準付属品
HMP5 プローブ
41 [1.61]
Ø 12
[0.47]
Ø 13.5
[0.53]
253 [9.96]
243 [9.57]
mm
[in]
図 13 HMP5 プローブヘッド寸法
ヴァイサラ HUMICAPâ 湿度・温度プローブ HMP5 は、計測性能と耐化学薬品性が非常に重
要となる、ベーキングオーブン、パスタ乾燥機、工業用乾燥炉などの高温用途向けに設計
されています。
• 温度計測範囲：-70 ～ +180 °C（-94 ～ +356 °F）
• 250 mm（9.84 in）プローブにより、絶縁体を通したプロセス環境への取り付けが容易
• 焼結 AISI316L フィルタは標準付属品
18 M211982EN-C

HMP7 プローブ
99.5 [3.92]
79.5 [3.13]
37.5 [1.48]
Ø 12
[0.47]
Ø 12
[0.47]
ࣟࢵࢡࣜࣥࢢࡢ⁁mm
[in]
図 14 HMP7 プローブヘッド寸法
ヴァイサラ HUMICAPâ 湿度・温度プローブ HMP7 は、計測性能と耐化学薬品性が非常に重
要となる、乾燥チャンバーやテストチャンバー、燃焼用空気、その他の加湿器や気象計測
器などの常時高湿度または急速な湿度変化が伴う用途向けに設計されています。
• プローブでの結露を最小限に抑えるプローブおよびセンサ加温機能
• 耐蒸気および耐圧力構造
• ステンレス製メッシュフィルタは標準付属品
プローブ加温
HMP7 はプローブ加温をサポートしています。プローブ加温では、センサだけでなく、プ
ローブヘッド全体が加温されます。加温されたプローブの温度が露点温度を上回ると、プ
ロセスの露点温度の計測時にプローブでの結露を回避できます。
初期設定では、プローブ加温はオフになっています。プローブ加温がオンであれば、計測
環境の実際の温度が別の計測機器（TMP1 プローブなど）からプローブの温度補正レジス
ターに更新される場合を除き、温度計測に依存する出力パラメーター（相対湿度など）は
無効になります。この外部温度情報なしで計測または計算できる、露点温度などの出力パ
ラメーターは、温度入力がなくても利用できます。
HMP8 プローブ
Ø 12
[0.47]
232 [9.13]
194 [7.64]
41 〜149 [1.16 〜5.87]
41 [1.61]
Ø 13.5
[0.53]
ࣇ࢕ࢵࢸ࢕ࣥࢢᮏయISO1/2” ࡲࡓࡣNPT1/2”
mm
[in]
図 15 HMP8 プローブヘッドの寸法
19
日本語

ヴァイサラ HUMICAPâ 湿度・温度プローブ HMP8 は、プローブの挿入と取り出しが容易で
あり、パイプラインへの取り付けの深さを調整できる必要がある、圧縮空気システム、冷
却式ドライヤ、環境チャンバー、その他の加圧工業利用における加圧用途向けに設計され
ています。
• プローブは、取り付けの深さを自由に調整でき、取り付けバルブを使用して圧力下パ
イプラインからホットスワップ可能
• 動作圧力：0 ～ 4 MPa（0 ～40 bar）
•ISO1/2" および NPT1/2" プローブフィッティングとプレスハンドル 付属
• 焼結 AISI316L フィルタは標準付属品
TMP1 プローブ
130 [5.12]
Ø 3.2 [0.13]
Ø 6 [0.24]
mm
[in]
図 16 TMP1 プローブヘッドの寸法
ヴァイサラ温度プローブ TMP1 は、幅広い範囲での精度が非常に重要となる、製薬工業や
校正試験所などの工業用途向けに設計されています。
• 温度計測範囲：-70 ～ +180 °C（-94 ～ +356 °F）
• 温度精度：最大 0.1 °C（0.18 °F）
20 M211982EN-C
