Vaisala CARBOCAP GM70 User manual

M010139EN-H
User Guide
Vaisala CARBOCAP® Handheld Carbon Dioxide
Meter
GM70

PUBLISHED BY
Vaisala Oyj
Vanha Nurmijärventie 21, FI-01670 Vantaa, Finland
P.O. Box 26, FI-00421 Helsinki, Finland
[phone]
Visit our Internet pages at www.vaisala.com.
© Vaisala 2021
No part of this document may be
reproduced, published or publicly
displayed in any form or by any means,
electronic or mechanical (including
photocopying), nor may its contents be
modified, translated, adapted, sold or
disclosed to a third party without prior
written permission of the copyright holder.
Translated documents and translated
portions of multilingual documents are
based on the original English versions. In
ambiguous cases, the English versions are
applicable, not the translations.
The contents of this document are subject
to change without prior notice.
Local rules and regulations may vary and
they shall take precedence over the
information contained in this document.
Vaisala makes no representations on this
document’s compliance with the local
rules and regulations applicable at any
given time, and hereby disclaims any and
all responsibilities related thereto.
This document does not create any legally
binding obligations for Vaisala towards
customers or end users. All legally binding
obligations and agreements are included
exclusively in the applicable supply
contract or the General Conditions of Sale
and General Conditions of Service of
Vaisala.
This product contains software developed
by Vaisala or third parties. Use of the
software is governed by license terms and
conditions included in the applicable
supply contract or, in the absence of
separate license terms and conditions, by
the General License Conditions of Vaisala
Group.

Table of contents
1. About this document.....................................................................................7
1.1 Version information.......................................................................................... 7
1.2 Related manuals................................................................................................7
1.3 Documentation conventions........................................................................... 8
1.4 Trademarks........................................................................................................ 8
2. Product overview............................................................................................ 9
2.1 Introduction to GM70....................................................................................... 9
2.1.1 Basic features of GM70............................................................................. 9
2.1.2 Interchangeable probes............................................................................9
2.2 Parts description............................................................................................. 10
2.3 Probes................................................................................................................ 11
2.4 GM70PUMP for aspirated sampling............................................................... 11
2.5 Safety................................................................................................................ 12
2.5.1 ESD protection..........................................................................................12
3. MI70 indicator................................................................................................. 13
3.1 MI70 indicator parts........................................................................................ 13
3.2 Installing and recharging MI70 batteries......................................................13
3.2.1 MI70 battery status information............................................................ 14
3.3 MI70 first start-up settings.............................................................................15
3.4 Changing the rechargeable battery pack.....................................................15
4. Measuring carbon dioxide..........................................................................17
4.1 Overview...........................................................................................................17
4.2 Taking measurements (diusion sampling with GMH70 handle)..............17
4.3 Taking measurements (pump-aspirated sampling with GM70PUMP) .....18
4.4 Measuring multiple parameters simultaneously..........................................19
5. Displays and menus...................................................................................... 21
5.1 Basic display.....................................................................................................21
5.2 Graphical display............................................................................................. 21
5.3 Main menu....................................................................................................... 22
5.4 MI70 status icons............................................................................................24
6. Settings.............................................................................................................26
6.1 Setting actual pressure value and unit........................................................ 26
6.2 Setting actual temperature value and unit..................................................26
6.3 Display settings...............................................................................................27
6.3.1 Selecting parameters and units............................................................. 27
6.3.2 Rounding..................................................................................................28
6.3.3 Holding and saving the display............................................................. 28
Table of contents
1

6.4 User interface settings...................................................................................29
6.4.1 Selecting language................................................................................. 29
6.4.2 Correcting language selection.............................................................. 30
6.4.3 Configuring automatic power o......................................................... 30
6.4.4 Programming shortcut keys.................................................................. 30
6.4.5 Configuring button tones and backlight............................................... 31
6.5 Date and time...................................................................................................31
6.6 Setting calibration reminder......................................................................... 32
6.7 Device information......................................................................................... 33
6.8 Factory settings.............................................................................................. 33
6.9 Other functions...............................................................................................34
6.9.1 Setting an alarm...................................................................................... 34
6.9.2 Selecting and scaling analog output.................................................... 35
6.10 Recording and viewing data......................................................................... 36
6.10.1 Recording data........................................................................................ 36
6.10.2 Viewing recorded data........................................................................... 36
6.10.3 Checking MI70 memory status.............................................................. 37
6.10.4 Clearing data memory............................................................................ 37
6.10.5 Transferring recorded data to PC with MI70 Link................................37
7. Field checking fixed transmitters.......................................................... 39
7.1 Field checking GMD20 series transmitters (diusion sampling)............. 39
7.2 Field checking GMD20 series transmitters (pump-aspirated
sampling).........................................................................................................39
8. Calibration and adjustment of GMP220 series probes..................41
8.1 Calibration overview....................................................................................... 41
8.1.1 Calibration interval...................................................................................41
8.1.2 Factory calibration and adjustment.......................................................41
8.2 Calibration and adjustment by user..............................................................41
8.2.1 Adjustment with reference gases......................................................... 42
8.2.2 Making a 2-point adjustment.................................................................43
8.2.3 Making a 1-point adjustment................................................................. 45
8.2.4 Making an adjustment with 2 probes................................................... 46
9. Maintenance....................................................................................................47
9.1 Changing the probe....................................................................................... 47
9.2 Changing the probe filter.............................................................................. 47
9.3 Cleaning...........................................................................................................48
9.4 Error messages...............................................................................................48
10. Technical specifications.............................................................................50
10.1 GM70 specifications.......................................................................................50
10.2 MI70 specifications..........................................................................................51
10.3 Dimensions......................................................................................................54
10.4 Spare parts and accessories..........................................................................55
Maintenance and calibration services.........................................................57
GM70 User Guide M010139EN-H
2

Technical support............................................................................................ 57
Warranty............................................................................................................ 57
Recycling........................................................................................................... 57
Table of contents
3

List of figures
Figure 1 GM70 parts........................................................................................................10
Figure 2 MI70 indicator parts........................................................................................ 13
Figure 3 Correct connection of GM70PUMP............................................................. 19
Figure 4 Display example with carbon dioxide and temperature
and humidity probes connected simultaneously...................................20
Figure 5 GM70 basic display..........................................................................................21
Figure 6 GM70 menus.....................................................................................................23
Figure 7 Environment menu......................................................................................... 26
Figure 8 Display setting menus....................................................................................27
Figure 9 User interface settings menus.....................................................................29
Figure 10 Hold/Save replaced by Pressure (P) shortcut..........................................31
Figure 11 Calibration reminder menu...........................................................................32
Figure 12 Device information menu..............................................................................33
Figure 13 Indicator and probe information.................................................................33
Figure 14 Other settings menu...................................................................................... 34
Figure 15 Selecting analog output................................................................................35
Figure 16 Recording/Viewing menu.............................................................................36
Figure 17 Location of adjustment button................................................................... 42
Figure 18 Field check adapter........................................................................................43
Figure 19 Detaching the probe...................................................................................... 47
Figure 20 GM70 dimensions in mm (in)...................................................................... 54
GM70 User Guide M010139EN-H
4

List of tables
Table 1 Document versions (English)............................................................................ 7
Table 2 Related manuals................................................................................................... 7
Table 3 GMP221 and GMP222 measuring ranges.......................................................11
Table 4 MI70 battery status indicator.......................................................................... 14
Table 5 MI70 status icons................................................................................................24
Table 6 GM70 error messages.......................................................................................48
Table 7 GMP220 probe measurement performance.............................................. 50
Table 8 GMP220, GMH70, and GM70PUMP mechanical specifications..............51
Table 9 GM70 compliance............................................................................................... 51
Table 10 MI70 measurement indicator...........................................................................51
Table 11 MI70 battery operation time...........................................................................53
Table 12 GM70 spare parts and accessories................................................................55
List of tables
5

GM70 User Guide M010139EN-H
6

1. About this document
1.1 Version information

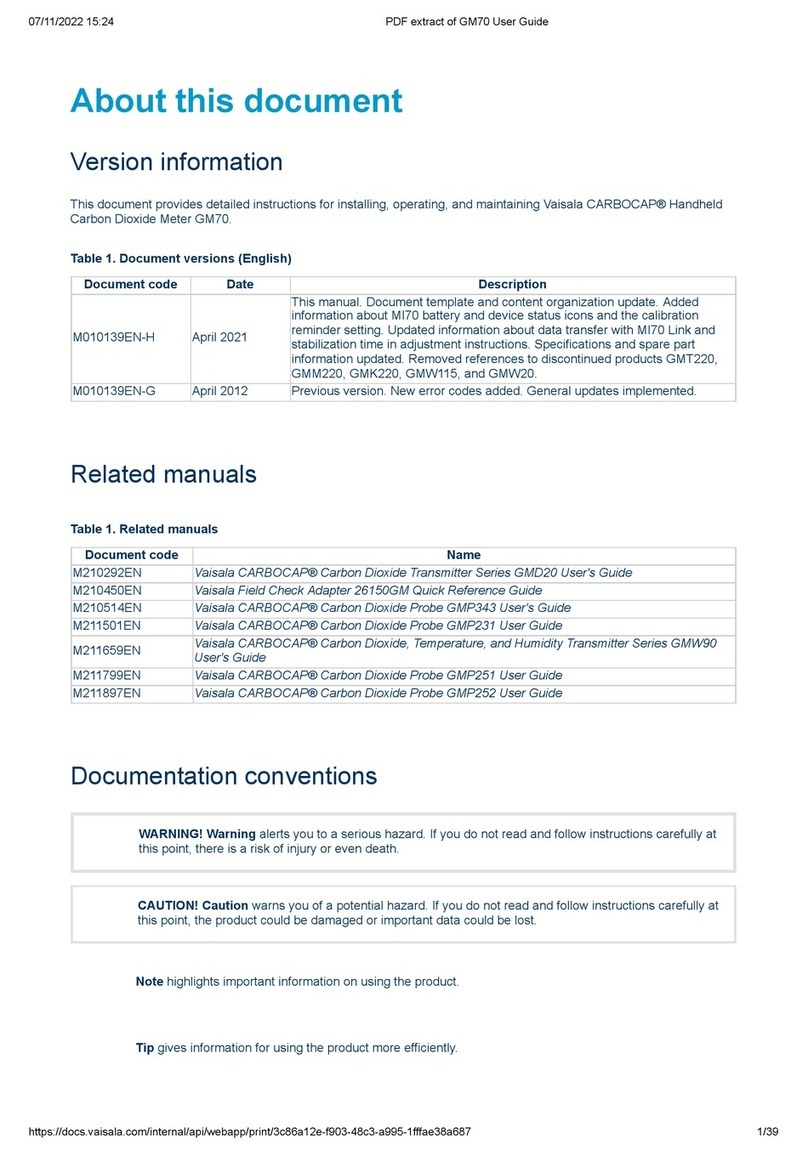

This document provides detailed instructions for installing, operating, and maintaining Vaisala
CARBOCAPâHandheld Carbon Dioxide Meter GM70.
Table 1 Document versions (English)
Document code Date Description
M010139EN-H April 2021 This manual. Document template and content organization
update. Added information about MI70 battery and device status
icons and the calibration reminder setting. Updated information
about data transfer with MI70 Link and stabilization time in
adjustment instructions. Specifications and spare part
information updated. Removed references to discontinued
products GMT220, GMM220, GMK220, GMW115, and GMW20.
M010139EN-G April 2012 Previous version. New error codes added. General updates
implemented.
1.2 Related manuals
Table 2 Related manuals
Document code Name
M210292EN Vaisala CARBOCAP â Carbon Dioxide Transmitter Series GMD20 User's Guide
M210450EN Vaisala Field Check Adapter 26150GM Quick Reference Guide
M210514EN Vaisala CARBOCAP â Carbon Dioxide Probe GMP343 User's Guide
M211501EN Vaisala CARBOCAP â Carbon Dioxide Probe GMP231 User Guide
M211659EN Vaisala CARBOCAP â Carbon Dioxide, Temperature, and Humidity Transmitter
Series GMW90 User's Guide
M211799EN Vaisala CARBOCAP â Carbon Dioxide Probe GMP251 User Guide
M211897EN Vaisala CARBOCAP â Carbon Dioxide Probe GMP252 User Guide
Chapter 1 – About this document
7

1.3 Documentation conventions
Warning alerts you to a serious hazard. If you do not read and
follow instructions carefully at this point, there is a risk of injury or even death.
WARNING!
Caution warns you of a potential hazard. If you do not read and
follow instructions carefully at this point, the product could be damaged or
important data could be lost.
CAUTION!
Note highlights important information on using the product.
Tip gives information for using the product more eciently.
Lists tools needed to perform the task.
Indicates that you need to take some notes during the task.
1.4 Trademarks
Vaisalaâand CARBOCAPâare registered trademarks of Vaisala Oyj.
Windowsâis either a registered trademark or trademark of Microsoft Corporation in the
United States and other countries.
All other product or company names that may be mentioned in this publication are trade
names, trademarks, or registered trademarks of their respective owners.
GM70 User Guide M010139EN-H
8

2. Product overview
2.1 Introduction to GM70
Vaisala CARBOCAPâHandheld Carbon Dioxide Meter GM70 measures volume concentration
of CO2gas and displays the result in the units of ppm or %. The exceptional stability and
reliability performance of GM70 comes from the advanced silicon based Vaisala CARBOCAPâ
sensor.
2.1.1 Basic features of GM70
• Numerical and graphical multilingual displays
• Data logging possibility
• A tool for checking the reading of fixed CO2transmitters
• A tool for adjusting Vaisala GMP220 series probes
• Possibility for an analog output (voltage signal 0 … 1 V)
• Sampling methods: diusion sampling (GMH70 handle) or pump-aspirated sampling
(GM70PUMP), alternatively
• Multiprobe operation; any combination of 2 Vaisala DM70, GM70, HM70, and MM70 series
probes can be used, for example, for simultaneous CO2and dew point measurements
• The optional, ready-to-use MI70 Link Microsoft Windowsâsoftware, which allows an easy
way to handle measurement data using a USB instrument cable or an RS-232 serial
communication cable.
Using GM70 with Vaisala carbon dioxide probes and transmitters is discussed in the respective
User Guides, available at www.vaisala.com.
More information
‣Related manuals (page 7)
2.1.2 Interchangeable probes
By selecting the right GMP220 series probe you can choose the measuring range that best fits
your application. The measuring ranges vary from 0 … 10 000 ppm to 0 … 20 % concentrations
of CO2. To change the measuring range, you only have to change the probe.
More information
‣Probes (page 11)
‣GM70 specifications (page 50)
Chapter 2 – Product overview
9

2.2 Parts description
11
12
13
9
1 2
7
6
5
4
14
3
810
Figure 1 GM70 parts
GM70 User Guide M010139EN-H
10

1MI70 indicator
2Charger socket
3Connector ports I and II for probes and cables
4Probe GMP221 or GMP222
5Probe fastener
6Handle GMH70
7Adjustment button
8Gas outlet
9ON/OFF switch
10 Gas inlet
11 Measuring chamber
12 Probe GMP221 or GMP222
13 Probe connector
14 Connector to the MI70 indicator
2.3 Probes
The GMP220 series probes can be used with GM70. The table below lists the measuring ranges
that can be selected for the probes.
Table 3 GMP221 and GMP222 measuring ranges
Probe CO2measuring ranges
GMP221 • 0 … 2 %
• 0 … 30 %
• 0 … 5 %
• 0 … 10 %
• 0 … 20 %
GMP222 • 0 … 2000 ppm
• 0 … 3000 ppm
• 0 … 5000 ppm
• 0 … 7000 ppm
• 0 … 10000 ppm
To obtain the best possible performance, it is recommended that the measurement range is
chosen so that the actual concentrations to be measured are roughly in the middle of the
measuring range.
2.4 GM70PUMP for aspirated sampling
The GM70 aspiration pump consists of a pump and a measurement chamber for CO2
measurements. GM70PUMP is designed for checking of fixed CO2transmitters and for
sampling from locations dicult to access. GM70PUMP is connected to an MI70 indicator
which displays the measurement result. The pump system is powered through the MI70
indicator.
Chapter 2 – Product overview
11

2.5 Safety
The Vaisala CARBOCAPâHandheld Carbon Dioxide Meter GM70 delivered to you has been
tested for safety and approved as shipped from the factory. Note the following precaution:
Do not modify the unit or use it in ways not described in the
documentation. Improper modification or use may lead to safety hazards,
equipment damage, failure to perform according to specification, or decreased
equipment lifetime.
CAUTION!
2.5.1 ESD protection
Electrostatic Discharge (ESD) can damage electronic circuits. Vaisala products are adequately
protected against ESD for their intended use. However, it is possible to damage the product by
delivering electrostatic discharges when touching, removing, or inserting any objects in the
equipment housing.
To avoid delivering high static voltages to the product:
• Handle ESD‑sensitive components on a properly grounded and protected ESD workbench
or by grounding yourself to the equipment chassis with a wrist strap and a resistive
connection cord.
• If you are unable to take either precaution, touch a conductive part of the equipment
chassis with your other hand before touching ESD‑sensitive components.
• Hold component boards by the edges and avoid touching component contacts.
GM70 User Guide M010139EN-H
12

3. MI70 indicator
3.1 MI70 indicator parts
6
5
4
3
2
1
Figure 2 MI70 indicator parts
1Charger socket
2Function key shortcut buttons . The
functions change according to what
you are doing with the indicator.
3Arrow buttons:
Move up in a menu
Move down in a menu
Enter a sub-menu
Return to previous menu level
4Power On/O button
5Battery compartment at the back of
the indicator
62 ports with M12 4-pin female
connectors for connecting probes and
instruments. The ports are labeled I
and II.
To open menus, press an arrow button and then press the shortcut buttons. To activate a
function shown above the shortcut button, press the shortcut button. To navigate in the
menus, press the arrow buttons.
3.2 Installing and recharging MI70 batteries
Vaisala recommends using the rechargeable battery pack (item code 26755) with
GM70, instead of alkaline batteries.
If you are using alkaline batteries, unscrew the back plate of the indicator and insert the
batteries. Do not attempt to recharge standard alkaline batteries.
If you ordered MI70 with a rechargeable battery, it is already in place as shipped from the
factory. The delivered batteries have been pre-charged.
To recharge the rechargeable battery:
1. Plug in the charger connector to the MI70 indicator. The socket is located at the top of the
indicator, covered by a rubber seal.
Chapter 3 – MI70 indicator
13

2. Connect the charger to a wall socket. An animated battery icon in the left corner of the
display indicates that the battery is charging. The recharge duration (typically 4 … 5 h)
depends on the charge level of the battery.
A new battery takes approximately 3 charging cycles to reach its maximum
capacity.
Do not store the batteries empty. Empty batteries may not charge after an
extended storage period.
3.2.1 MI70 battery status information
The status of the MI70 battery is shown by the battery icon in the upper left corner of the
display. Possible statuses are listed in the following table.
Table 4 MI70 battery status indicator
Battery status indicator
graphic
Description
Battery status icon. The icon can show the following info:
• 0 … 8 bars, no animation:
• batteries are in use, a charger is not connected
• if a charger is connected: non-rechargeable batteries installed
• if a charger is connected: waiting for the battery temperature to
settle between 0 … +40 °C (+32 … +104 °F)
• if a charger is connected and the icon remains at 8/8 bars: the
battery is full
• Animated battery status icon: battery is charging (or recovering
after emptying out completely). The charging animation is shown
also when the indicator is powered o.
• Battery icon not present: batteries are not installed
An empty battery icon with an X over it means that the battery
cannot be recharged and must be replaced. If the indicator is
powered on, a notification about not being able to charge the
battery is shown on the MI70 screen.
You can order replacement batteries from Vaisala (item code 26755).
To keep the rechargeable MI70 battery in good working condition, recharge MI70
monthly if the indicator is not in use.
GM70 User Guide M010139EN-H
14

3.3 MI70 first start-up settings
When taking MI70 into use for the first time, configure the basic settings (language, date, and
time) as instructed below.
1. Press the Power On/O button in MI70 to switch the indicator on.
2. Press any of the arrow buttons and open the menu by pressing Open.
3. Select Settings using the buttons and press .
4. Select User interface and press .
5. Select Language and press Set.
6. Select the language using the buttons. Confirm the selection by pressing Select.
The language selection can be changed later in the user interface settings of MI70.
7. To set the date, return to the Settings menu by pressing .
8. Select Date and press Set. Change the date using the buttons. To confirm the
selection, press Select.
To select an alternative date format, select Date format and press Set. You can select from
3 alternative formats. Press Select to confirm the selection.
9. To set the time, return to the Settings menu by pressing
10. Select Time and press Set. Change the time by using the arrow buttons. Confirm the
selection by pressing OK. As a default, the time format is based on the 24-hour clock.
If you want to use the 12-hour clock, select 12-hour clock and press On.
11. To ensure the best possible accuracy, set the actual pressure and temperature values to
GM70 as follows:
• Select the pressure setting (P: 1013 hPa, default), press Unit to select unit
(hPa or bar), press Set, set the pressure value by using the arrow buttons. Press
OK to save the value.
• Select the temperature setting (T: 25.0 °C, default), press Unit to select unit
(°C or °F), press Set, set the temperature value by using the arrow buttons. Press
+/- to change the sign of the value. Press OK to save the value.
12. To return to the basic display, press Exit.
3.4 Changing the rechargeable battery pack
• New rechargeable battery pack
• Medium-sized flat head screwdriver
Chapter 3 – MI70 indicator
15

In case you are installing a rechargeable battery pack in the MI70 indicator and you have a
device with alkaline batteries, remove the metal contact from the probe port end of the
battery compartment before installing the battery pack.
1. Open the back plate of the indicator by opening the screw of the back plate.
2. Remove the old battery pack. Detach the black connector by carefully pulling it up from
the wires.
3. Connect the black connector of the new battery pack. Make sure the position of the
connector is as shown in the following figure (red and black wires are on the upper edge
of the connector). Do not push the connector with conducting material.
4. Place the battery pack in the compartment.
5. Close the back plate and tighten the screw.
6. Recharge the indicator before use.
GM70 User Guide M010139EN-H
16

4. Measuring carbon dioxide
4.1 Overview
This chapter consists of instructions on how to carry out carbon dioxide measurements.
The results of carbon dioxide measurements are aected by the air pressure and the
temperature of the measurement conditions. For achieving the most accurate measurements
in high altitudes where the barometric pressure is clearly lower than in the sea level, the actual
atmospheric pressure value should be set to GM70. The acceptable pressure value range is
700 … 1300 hPa.
Before measurements ensure that the air pressure and temperature settings are
correct. Set the correct settings as instructed in Setting actual pressure value and
unit (page 26).
4.2 Taking measurements (diusion sampling with
GMH70 handle)
When using the MI70 indicator for the first time, see MI70 first start-up settings
(page 15) before proceeding to take measurements.
To take measurements using the GMH70 handle:
1. Connect the probe cable to the MI70 indicator's connector port.
2. Switch MI70 on by pressing the Power ON/OFF button.
3. Wait for about 15 seconds to get the reading. For the most accurate readings wait for 15
minutes to reach the full operating state of GM70.
4. Install the probe to the measuring position. Avoid exhaling near the probe as this
increases the CO2concentration.
5. The MI70 basic display opens. Allow the reading to stabilize.
Handle the probe carefully. Strong impact or falling may
damage the probe.
If you need to disconnect the probe, first press the Power ON/OFF button
to switch the MI70 indicator o. This ensures that all settings and data are
saved properly.
CAUTION!
Chapter 4 – Measuring carbon dioxide
17

4.3 Taking measurements (pump-aspirated
sampling with GM70PUMP)
When using the pump-aspirated system it is recommended to power the system
by using the charger socket connected to a wall socket.
Only one pump-aspirated system can be connected to MI70 at a time.
To use GM70PUMP for pump-aspirated sampling:
1. Connect one end of the sampling tube to the gas inlet (marked with IN), if using a tube.
2. Connect the black cable of GM70PUMP to the MI70 indicator's connector port.
3. Plug in the charger socket of MI70 and connect the charger socket to a wall socket.
4. Connect the GMP220 series probe to the probe connector of GM70PUMP.
5. Insert the probe in the measuring chamber. Note that to have a tight installation, the 2
O‑rings on the opening of the measuring chamber should not match together with the
filter edge or the tapes on the probe (see Figure 3 (page 19)). When operating the pump,
especially when taking a sample from hot and humid conditions into room temperature,
take care that no condensation forms on the probe.
6. Install the other end of the sampling tube to the sampling location.
7. Switch on the MI70 indicator.
8. Switch on GM70PUMP.
GM70 User Guide M010139EN-H
18
