VALBERG UF 242 E W742C User manual

EN
WARRANTY CONDITION
This product is guaranteed for a period of 2 years from the date of purchase* against any failure
resulting from a manufacturing or material defect. This warranty does not cover defects or
damage resulting from incorrect installation, improper use or abnormal wear of the product.
*as shown on the sales receipt.
FR
CONDITION DE GARANTIE
Ce produit est garanti pour une période de 2 ans à partir de la date d’achat*, contre toute
défaillance résultant d’un vice de fabrication ou de matériau. Cette garantie ne couvre pas les
vices ou les dommages résultant d’une mauvaise installation, d’une utilisation incorrecte ou
de l’usure anormale du produit.
*sur présentation du ticket de caisse.
NL
GARANTIEVOORWAARDEN
Dit product wordt gegarandeerd voor een periode van 2 jaar vanaf de aankoopdatum*, voor
elke storing die het gevolg is van een fabricagefout of het materiaal. Gebreken of schade door
slechte installatie, onjuist gebruik of abnormale slijtage van het product worden niet gedekt
door deze garantie.
*op vertoon van kassabon.
ES
CONDICIONES DE GARANTÍA
El certificado de garantía de este producto tiene una duración de 2 años a partir de la fecha de
compra* que se limita a los defectos de fabricación y averías del material. Se excluyen de la
garantía deficiencias o daños originados por una mala instalación, errores en la manipulación
o por un uso inadecuado.
*previa presentación del comprobante de compra.
MADE IN PRC
ELECTRO DEPOT
1 route de Vendeville
59155 FACHES-THUMESNIL
FRANCE

02/2023-V2
977496 - UF 242 E W742C
Freezer
Congélateur
Diepvries
Congelador
INSTRUCTIONS FOR USE ....................02
CONSIGNES D'UTILISATION ....................14
GEBRUIKSAANWIJZINGEN ....................26
INSTRUCCIONES DE USO ....................38
2/2

2 FR
A
2 EN
Thanks!
Thank you for choosing this VALBERG product.
Chosen, tested and recommended by ELECTRO DEPOT,
VALBERG branded products are easy to use, reliable,
and of an impeccable standard.
Thanks to this appliance, you can be sure that each
use will bring you satisfaction.
Welcome to ELECTRO DEPOT.
Visit our website: www.electrodepot.fr
www.electrodepot.be

3 FR
Aperçu de l’appareil
A
3 EN
Table of contents
AOverview of the
appliance
CUseful information
BUsing the appliance Upside down door
Installation
Initial use
Daily use
Useful advice and tips
Cleaning and maintenance
Troubleshooting
Recommended ambient temperature
Temperature control adjustment
Components

4 FR
Aperçu de l’appareil
A
4 EN
Overview of the appliance
A
Recommended ambient temperature range
Respect the climatic classes indicated in the product information on the appliance's name-
plate. You can use this to check the recommended temperature range of the room where the
appliance is located:
- SN:Between 10 and 32°C
- N:Between 16 and 32°C
- ST:Between 16 and 38°C
- T:Between 16 and 43°C
A multi-class appliance can handle the lowest and highest temperature of all classes covered.
Using the appliance outside the recommended temperature range will lead to inferior performance
and premature ageing.
Temperature control adjustment
For optimal use and to save energy, adjust the temperature control(s) of the appliance according
to the ambient temperature of the room, in which it is being used, and respect the climate class.
Refer to the product sheet to find out the climatic class associated with the minimum and
maximum recommended ambient temperatures for the appliance as well as the temperature
setting recommended for storing food under optimal conditions.
The ambient temperatures in °C are given as a rough guide.
The set positions can be affected by the location of the appliance in the room, how often the
door is opened or the load of food inside.
The temperature control may need to be changed to compensate for these factors.
Examples of locations:
- Unheated room in winter like a garage in a cold region.
- Kitchen/lounge area with normal heating.
- Room that is not air-conditioned in summer in a hot region.
Thermostat setting for ambient T°C : NORMAL ≈ +24°C (± 4°C) Normal
Thermostat setting for ambient T°C : COLD ≈ +16°C (± 4°C) Normal
Thermostat setting for ambient T°C : HOT ≈ +32°C (± 4°C) Normal

5 FR
Aperçu de l’appareil
A
5 EN
Overview of the appliance
A
Components
1Freezer drawers 3Levelling the feet
2Thermostat
• All images in this manual are for your information purposes only and actual product may
vary ; Please refer to the different elements of your appliance for further details.

6 FR
Utilisation de l’appareil
B
6 EN
Using the appliance
BB Using the appliance

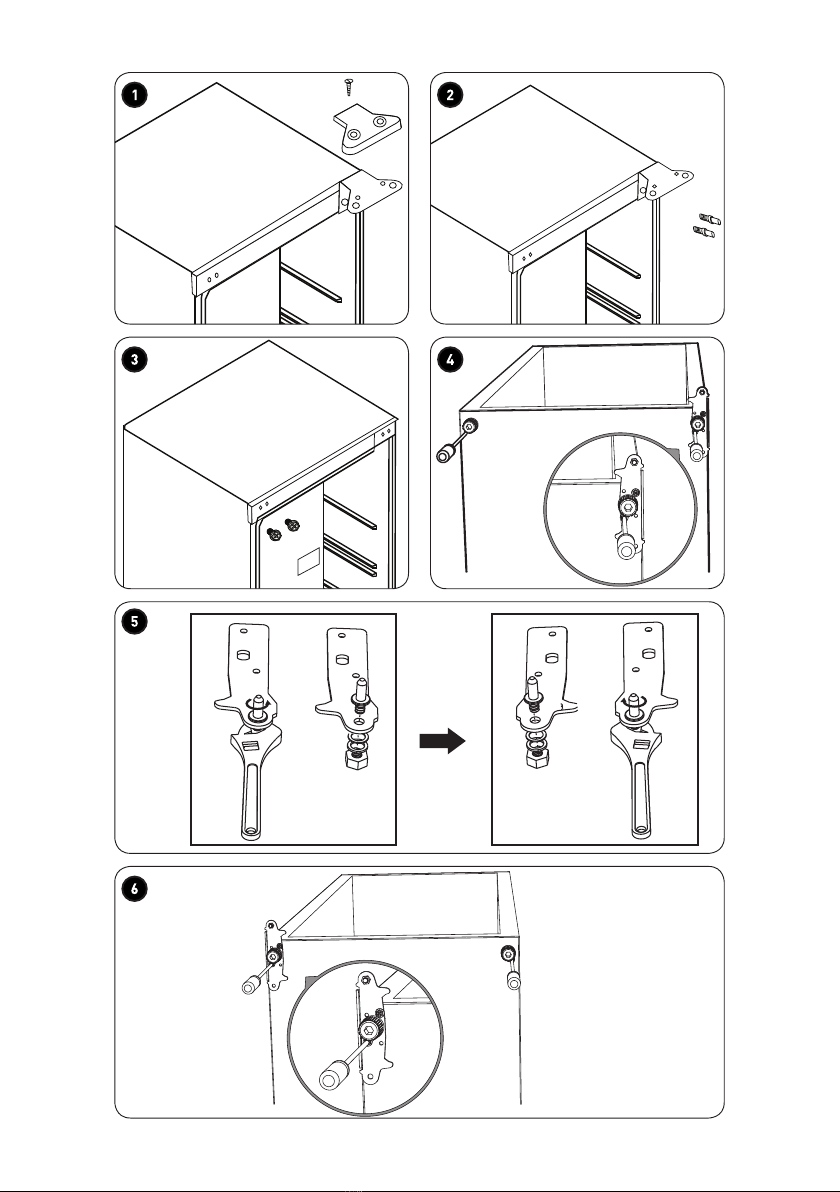

Reversed door
Tools required:
• Phillips screwdriver,
• flat screwdriver,
• hexagon key
• Make sure that the appliance is unplugged and empty.
• To remove the door, you need to tilt the appliance backwards. You need to position the
appliance on something solid so that it does not slip whilst you are positioning the door the
other way round.
• All the parts that have been removed must be kept in a safe place so that the door can be replaced.
• Do not lie the appliance flat as this could damage the cooling circuit.
Unscrew the hinge cover.
•It is better for 2 people to handle the appliance during assembly.
Open the door and unscrew the upper hinge. Then remove the door from the unit and place
it on some soft padding to prevent damage.
Remove the cover and the screws on the left-hand side and then attach them on the right.

Carefully position the back of the unit flat on some soft padding. Start by removing the 2
levelling feet. Then unscrew the door hinge and the adjustable foot on the left.
Caution ! If there is a screw in the front left-hand corner, remove it before installing the hinge.
Unscrew and remove the pin from the lower hinge. Turn the support over and reposition.
Install the hinge on the left-hand side and the adjustable foot on the right. Then screw the
2 levelling feet onto their initial parts
Unscrew the pin in the upper hinge and insert it into the hole on the left.
Return the appliance to its vertical position and place the door on the lower hinge. Make sure
that the centre of the lower hinge is inserted in the hole in the door.
Then attach the upper hinge to the door. Before fixing the upper hinge firmly in place, try to open
the door to check that the unit is properly sealed. Then screw the hinge cover onto the hinge.





7 FR
Utilisation de l’appareil
B
7 EN
Using the appliance
BB Using the appliance
Installation
Installing the door handle
Rear spacer
Screw the spacers onto the rear of the element.
Space required
Make sure that there is enough space to open the door.
Maintain at least 50 mm on both sides.
Levelling the appliance
To complete this step, adjust both feet on the element.
If the appliance is not level, the door will not be properly aligned and the magnetised seals
will not be properly covered.
Positioning
• Install this appliance in a place where the room temperature corresponds to the climatic
class indicated on the appliance's nameplate.


Location
• The appliance should be installed far from heat sources such as radiators, boilers, direct
sunlight, etc. Make sure that air can circulate freely around the back of the element.
• To guarantee optimum performance, appliances which are positioned below an overhanging
element should be at a minimum distance of at least 100 mm between the top of the appliance
and the wall element. Ideally the appliance should not be positioned underneath wall elements.
• Precise levelling is guaranteed using en or more adjustable feet positioned on the base of
the appliance.
11
12
WARNING !
It must be possible to disconnect the appliance from the
electricity supply; The plug must be easily accessible after
installation.

8 FR
Utilisation de l’appareil
B
8 EN
Using the appliance
BB Using the appliance
Electrical connection
• Before connecting the appliance, make sure that the voltage and frequency indicated on the
nameplate correspond to your domestic power supply.
• This appliance must be earthed. There is a contact in the plug for this purpose.
• If the domestic power supply is not earthed, contact a qualified electrician to connect the
appliance to a separate earthing point according to the statutory requirements for electricity
supplies.
• The manufacturer accepts no liability if the above-mentioned safety measures are not
respected.
• The appliance is compliant with European directives
Initial use
Cleaning the interior
• Before using the appliance for the first time, wash the interior and all internal accessories
with lukewarm water and a neutral soap to remove the characteristic odour of new products.
Dry thoroughly.
CAUTION
Do not use abrasive powders or detergents as they will
damage the finish.
Temperature setting
• Switch on your appliance.
The interior temperature is controlled by a thermostat
• There are 3 adjustments: MIN, NORMAL andMAX.
• MIN corresponds to the warmest adjustment.
• MAX corresponds to the coldest adjustment.
-Thermostat setting for ambient T°C : NORMAL ≈ +24°C (± 4°C) : NORMAL
- Thermostat setting for ambient T°C : COLD ≈ +16°C (± 4°C) : NORMAL
- Thermostat setting for ambient T°C : HOT ≈ +32°C (± 4°C) : NORMAL
• The appliance may not run at the correct temperature if it is located in a particularly warm
area or if you open the door frequently.

9 FR
Utilisation de l’appareil
B
9 EN
Using the appliance
BB Using the appliance
Daily use
Freezing fresh food
• The freezing compartment is used to freeze fresh food and to keep food frozen and deep-
frozen for a long period of time.
• Place the fresh food that you wish to freeze in the lower compartment.
• The maximum quantity of food that can be frozen in 24 hours is indicated on the nameplate.
• The freezing process takes 24 hours; do not add any other food to be frozen during this
period.
Storing deep-frozen food
• When you use the appliance for the first time or after a period of disuse, leave the appliance
to run for at least 2 hours on the highest settings before placing food in the compartment.
• Important ! In case of accidental defrosting (e.g. if the power has been cut for a period longer
than the one indicated in the “Technical Characteristics” table in the “Autonomy” section),
defrosted food must be consumed quickly or cooked immediately and then refrozen (after
cooking).
Defrosting
• Frozen or deep-frozen food can be defrosted in the refrigeration compartment or at room
temperature, depending on the time available, before they are used.
• Small amounts or pieces of food can be cooked from frozen as soon as they are taken out
of the freezer. In this case, they will take longer to cook.
Ice cubes
• This appliance may come with one or more ice trays.

10 FR
Utilisation de l’appareil
B
10 EN
Using the appliance
BB Using the appliance
Useful advice and tips
Advice for freezing
Here is some important advice to help you to optimise the freezing process:
• The maximum quantity of food that can be frozen in 24 hours is indicated on the nameplate.
• The freezing process takes 24 hours. Additional food products should not be added during
this period.
• You should only freeze fresh, perfectly clean, high-quality food products.
• Prepare small portions so that they can freeze through quickly; this give you the option of
only defrosting the quantity that you need.
• Wrap food in aluminium foil or polythene and make sure that the parcels are airtight.
• To avoid increasing the temperature of frozen products, do not allow fresh food to come into
contact with food which is already frozen.
• Food which is low in fat and lean meat keeps better and for longer periods than fatty foods.
Salt reduces the storage time of food.
• Sorbets can sometimes cause burns to the skin and tongue if consumed straight from the
freezer compartment.
• The labelling of packages is important. Take note of the date of freezing indicated on the
product and its packaging and respect the storage period indicated by the manufacturer.
Advice for storage of frozen food
To optimise the performance of this appliance, you should:
• make sure that the deep-frozen product has been stored appropriately by the seller;
• be sure that the frozen product was transferred from the store to the freezer within the
shortest possible period of time;
• Do not open the door too often and do not leave it open for longer than necessary.
• Defrosted food products quickly deteriorate and should not be refrozen.
• Do not exceed the storage period indicated by the manufacturer.
• For hygiene reasons, the interior of the appliance including interior accessories should be
cleaned regularly.

11 FR
Nettoyage et entretien
C
11 EN
Cleaning and maintenance
C
Cleaning and maintenance
WARNING !
• Risk of electrocution ! Before cleaning, switch off the
appliance and disconnect the plug from the socket or stop
the appliance and remove the circuit breaker or fuse.
• Never clean the appliance with a steam cleaner. Moisture
may accumulate in the electrical components. Risk of
electric shock! Warm vapours can cause damage to plastic
parts.
• The appliance must be dry before it is switched on again.
• Essential oils and organic solvents can attack plastic parts.
• Make sure that these substances (e.g. lemon juice, orange rind, butyric acid, products
containing acetic acid) do not come into contact with appliance parts.
• Do not use abrasive cleaning products.
• Remove food from the freezer. Cover and store in a cool place.
• Clean the appliance and interior accessories with a cloth and lukewarm water. After washing,
rinse with fresh water and wipe down until completely dry.
• The accumulation of dust on the condenser increases energy consumption. You should
therefore clean the condenser at the back of the appliance carefully once a year with a soft
brush or vacuum cleaner.
• Switch the machine back on when all the parts are dry.

12 FR
Nettoyage et entretien
C
12 EN
Cleaning and maintenance
C
Defrosting the freezer
• The freezer compartment will gradually get covered with ice. The ice must be removed.
• Never use pointed metallic tools to scratch the ice off the evaporator as you could damage
it.
• However, if the ice becomes very thick on the interior element, the appliance should be
completely defrosted following the instructions below:
− disconnect the plug from the socket;
− remove all the food, wrap it in several layers of newspaper and store in a cool place;
− hold the door open and place a container underneath the appliance to collect the defrosting
water;
− dry the interior thoroughly when defrosting is complete;
− insert the plug in the power supply to restart the appliance
WARNING !
• Disconnect the power supply before carrying out any repair
work.
• This appliance must be repaired by an approved after
sales service. Only original spare parts may be used.
• Important ! Certain noises can be heard during normal use (compressor, cooling circuit).

13 FR
Nettoyage et entretien
C
13 EN
Cleaning and maintenance
C
PROBLEM POSSIBLE CAUSES SOLUTION
The device does not
work
The electric plug is not
connected or is loose. The fuse
has blown or is faulty. The
plug is defective.
Insert the electric plug.
Check the fuse.
Replace if necessary.
Operating faults must be
repaired by an electrician.
The appliance freezes
too much.
The temperature adjustment
is too cold or the appliance is
operating on the MAX. setting.
Turn the temperature
regulator temporarily to a
warmer setting.
The food is not
sufficiently frozen.
The temperature is not
properly adjusted. The door
has been left open for an
extended period.
A large amount of warm
food has been placed in the
appliance during the past 24
hours. The appliance is near a
heat source.
Please consult the
Adjusting
the initial temperature section.
Only open the door for as long
as is necessary.
Turn the temperature
regulator temporarily to a
colder setting.
Please consult the
Installation
position.
Significant
accumulation of ice on
the door seals.
The door seal is not airtight. Carefully heat the unstuck
sections of the door seal with
a hair-dryer (on a cold setting).
At the same time, shape the
heated door seal in your hand
so that it can be correctly
positioned.
Uncommon noises. The appliance is not level.
The appliance is touching the
wall or other items.
Readjust the feet.
Move the appliance slightly.
The side panels are
warm.
This is a normal phenomenon. The heat exchanger parts are
located underneath the side panels.
