Thank you for choosing Valley Acrylic Products. This installation manual provides general information on the
installation of our products.
• Prior to installation, examine all boxes and packages for shipping damage and compare the piece count with your
packing slip. After opening all boxes and packages read this instruction carefully. Check that all of the needed parts are
included in the package by checking o the components on the “Detailed Diagram of Shower Enclosure Components”.
If the unit has been damage, has a nishing defect, or has missing parts, Please contact us for replacements within
3 business days. Please note that we will not replace any damage product or missing parts free of charge after 3
business days or if the product has been installed.
• Prior to installation, please ensure that the surface is level and solid and will be able to support the total weight of
the unit. Also make sure that the walls are plumb. Depending on the type of unit you are installing, some adjustments
in leveling may be possible. However, irregular installation surface level or out-of-square conditions can result in
serious problems for your installation. Please note that some adjustments and drilling may be necessary. Please
protect all primary surfaces of the product during installation.
BEFORE YOU BEGIN

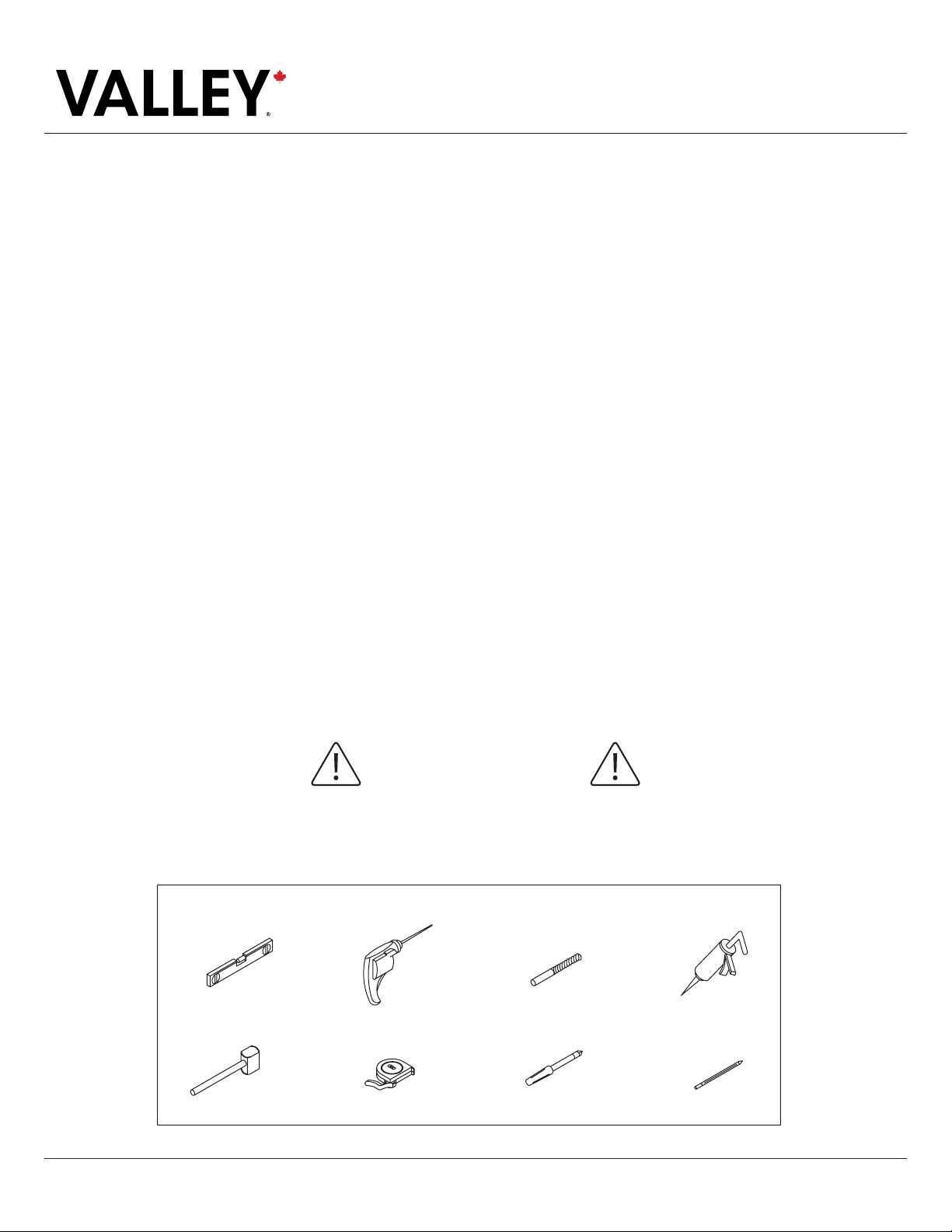

REQUIRED TOOLS
Level
Rubber Hammer
Cordless Drill
Tape Measure
1/4” Drill Bit
Phillips screwdriver
Silicone Gun
Pencil
ALL SHOWER DOORS NEED TO BE DRY-FITTED
BEFORE DRILLING ANY HOLE
IMPORTANT INFORMATION

website: www.valleyacrylic.com • E-mail: [email protected] • customer service call Toll Free: 1.877.398.8827 • Fax: [phone]
SD016
BI-FOLD SHOWER DOOR
INSTALLATION GUIDE
3
01
02
Position the wall proles on
the threshold. Ensure that the
wall prole is level. Mark the
screw location & Mark the screw
position on both walls as shown.
3/8” / 10mm
2.1 Drill the screw holes on each
location over a stud
2.2 Insert the wall anchors
into place
2.3 Tighten the wall anchors
with a screwdriver
3/8” / 10mm

website: www.valleyacrylic.com • E-mail: [email protected] • customer service call Toll Free: 1.877.398.8827 • Fax: [phone]
SD016
BI-FOLD SHOWER DOOR
INSTALLATION GUIDE
4
03
04
3.1 Place the wall prole on
the wall
4.1 Place the xed panels on
the wall proles.
TOP VIEW
WALL
PROFILE
FIXED
PANEL
3.2 Insert the screws to the
wall prole
3.3 With the screwdriver,
install the wall proles into
place

website: www.valleyacrylic.com • E-mail: [email protected] • customer service call Toll Free: 1.877.398.8827 • Fax: [phone]
SD016
BI-FOLD SHOWER DOOR
INSTALLATION GUIDE
5
05
06
5.1 Pre-drill the screw holes
Thoroughly clean the edges of the xed
panels.
Install the Anti-water strips (H-shape gasket)
onto the xed panels.
5.3 Tighten the screws with a
screwdriver
5.2 Insert the screws to the wall
prole
5.4 Cover the screw holes
with the cover cap
6.1 6.2
Ensure that the xes glass panel is level.
IMPORTANT INFORMATION

website: www.valleyacrylic.com • E-mail: [email protected] • customer service call Toll Free: 1.877.398.8827 • Fax: [phone]
SD016
BI-FOLD SHOWER DOOR
INSTALLATION GUIDE
6
07
08
7.1 Connect the xed panel and door
panel with hinges as shown
7.2 Tighten the hinges with an Allen key
8.1 8.2
Thoroughly clean the edges of the door
panels.
Install the Magnetic gaskets onto the door
panels, as shown.

website: www.valleyacrylic.com • E-mail: [email protected] • customer service call Toll Free: 1.877.398.8827 • Fax: [phone]
SD016
BI-FOLD SHOWER DOOR
INSTALLATION GUIDE
7
09
10
9.1 9.2
Thoroughly clean the edges of the door
panels.
Install the bottom gaskets into the door
panels, as shown.
Install the Anti-splash threshold & cover caps
SIDE VIEW
10.1 Apply silicone to the bottom of
the Anti-splash threshold as shown
Place the Anti-splash
threshold into place
Install the cover caps
10.2 10.3 10.4

website: www.valleyacrylic.com • E-mail: [email protected] • customer service call Toll Free: 1.877.398.8827 • Fax: [phone]
SD016
BI-FOLD SHOWER DOOR
INSTALLATION GUIDE
8
11
12
Install the Handles
11.1 11.2
Install the wall prole cover caps as shown
12.1 12.2

website: www.valleyacrylic.com • E-mail: [email protected] • customer service call Toll Free: 1.877.398.8827 • Fax: [phone]
SD016
BI-FOLD SHOWER DOOR
INSTALLATION GUIDE
9
13
Apply silicone between the bottom of the xed
panel and the threshold of the base. Silicone
application along the length of the threshold is
also suggested. In both cases, it is done from
the outside of the shower area.
PLEASE ALLOW 24 HOURS FOR THE SILICONE
TO FULLY CURE BEFORE USING THE SHOWER.
24
HRS

website: www.valleyacrylic.com • E-mail: [email protected] • customer service call Toll Free: 1.877.398.8827 • Fax: [phone]
SD016
BI-FOLD SHOWER DOOR
INSTALLATION GUIDE
10
• Avoid polishing powder, cleaning powder and any kind of detergent.
• To clean your Valley Shower Door , wash with a wet nonabrasive soapy cloth. Then wipe dry with
a soft towel or cloth. We recommend this be done on a regular basis.
CARE AND MAINTENANCE
www.valleyacrylic.com
Congratulations! You are now a part of the Valley Acrylic family.
