Thank you for choosing Valley Products. This installation manual provides general information on the
installation of our products.
• Prior to installation, examine all boxes and packages for shipping damage and compare the piece count with your
packing slip. After opening all boxes and packages read this instruction carefully. Check that all of the needed parts are
included in the package by checking o the components on the “Detailed Diagram of Shower Enclosure Components”.
If the unit has been damage, has a nishing defect, or has missing parts, Please contact us for replacements within
3 business days. Please note that we will not replace any damage product or missing parts free of charge after 3
business days or if the product has been installed.
• Prior to installation, please ensure that the surface is level and solid and will be able to support the total weight of
the unit. Also make sure that the walls are plumb. Depending on the type of unit you are installing, some adjustments
in leveling may be possible. However, irregular installation surface level or out-of-square conditions can result in
serious problems for your installation. Please note that some adjustments and drilling may be necessary. Please
protect all primary surfaces of the product during installation.
• NOTE: This door is reversible for right or left-hand door installation. The right-hand door installation is shown as an
example throughout this manual. For left-hand door installation, simply begin on the opposite wall and reverse the
orientation of the steps shown.
BEFORE YOU BEGIN
ALL SHOWER DOORS NEED TO BE DRY-FITTED
BEFORE DRILLING ANY HOLE
REQUIRED TOOLS
Level
Rubber Hammer
Cordless Drill
Tape Measure
1/4” Drill Bit
Phillips screwdriver
Silicone Gun
Pencil
IMPORTANT INFORMATION

website: www.valleyacrylic.com • E-mail: [email protected] • customer service call Toll Free: 1.877.398.8827 • Fax: [phone]
SD10N-90
SHOWER DOOR
INSTALLATION GUIDE
3
01
03
04
06
07
09
12
13
14
14
02
05
08L
08R
08R
10
11
01
02
03
04
05
06
07
08
09
10
11
12
13
14
No. No.
Wall prole
Wall prole
Fixed Panel
Pull Rod
Magnetic Strip
Door Panel
Handle
Glass Clips (Left & Right)
Water Retainer Strip
Bottom Gasket (Door Panel)
Gasket (Door Panel)
Hinges
Fixed Panel
Fixed Panel Hinges
DESCRIPTION DESCRIPTION
1
1
1
2
1
1
1
2
1
1
1
2
1
2
QTY QTY
PARTS BREAKDOWN

website: www.valleyacrylic.com • E-mail: [email protected] • customer service call Toll Free: 1.877.398.8827 • Fax: [phone]
SD10N-90
SHOWER DOOR
INSTALLATION GUIDE
4
01 Install the glass support onto the hinge xed panels.
Make sure to have a gasket in either side of the glass
door, to make sure the metal is not touching the
tempered glass.

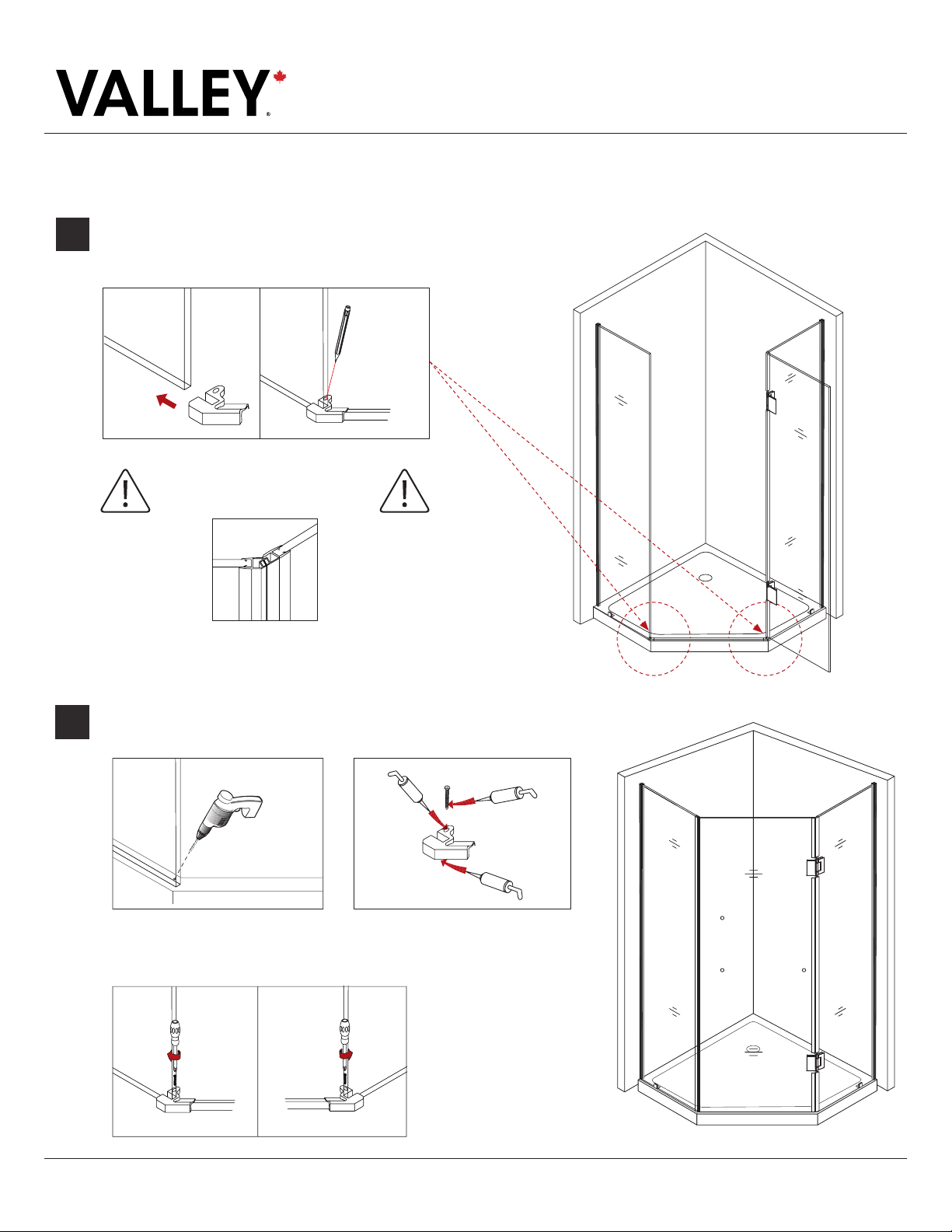

02 Position the wall prole on threshold, set back 1/4”
back from the front of the threshold base. Ensure
that the wall prole is level. Mark the screw
location & Mark the screw position.
0.25” / 6mm

website: www.valleyacrylic.com • E-mail: [email protected] • customer service call Toll Free: 1.877.398.8827 • Fax: [phone]
SD10N-90
SHOWER DOOR
INSTALLATION GUIDE
5
04
03 3.3 - Install the wall prole
into place

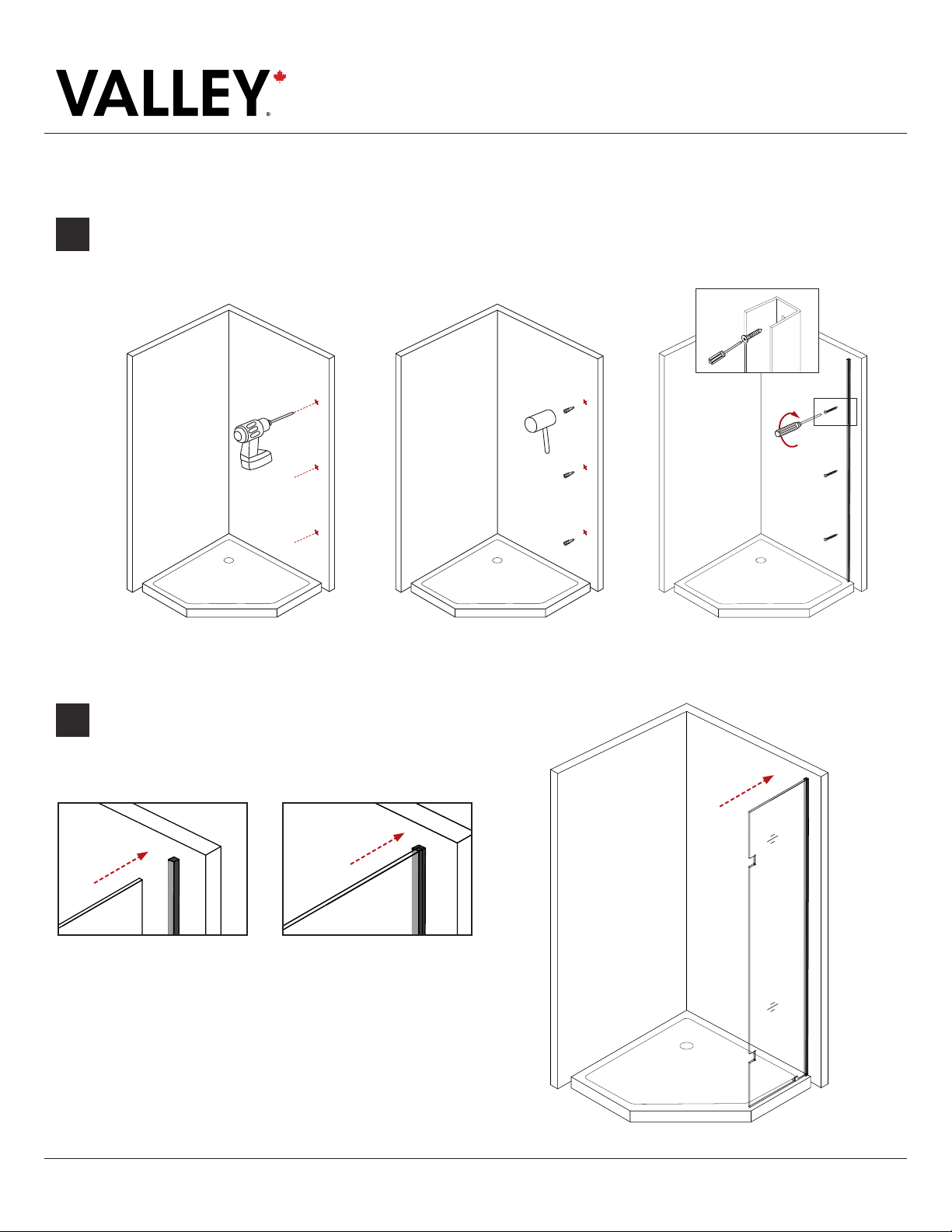

3.1 - Drill the screw holes on
wall.
3.2 - Tighten the wall anchor
on wall.
Place the xed panel on the wall prole.

website: www.valleyacrylic.com • E-mail: [email protected] • customer service call Toll Free: 1.877.398.8827 • Fax: [phone]
SD10N-90
SHOWER DOOR
INSTALLATION GUIDE
6
05 Thoughly clean the edge of the hinge xed panel.
Install the U-Gasket on the hinge xed panel.
Cut the gasket in 3 pieces accordingly around the
hinges

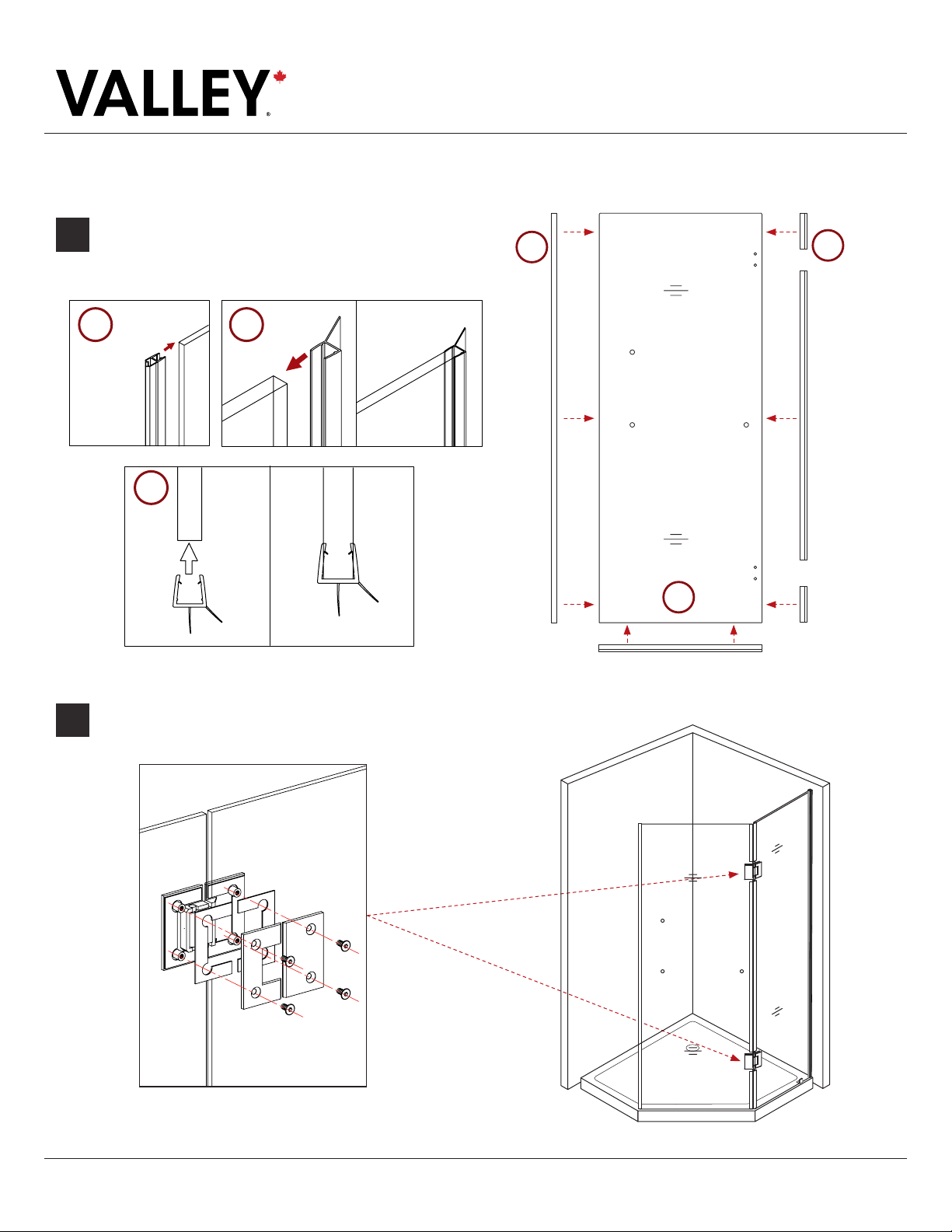

06 Install the hinges into the hinge xed panel.
PLEASE MAKE SURE TO NOT LEAVE ANY GAP
BETWEEN GASKETS AND HINGES

website: www.valleyacrylic.com • E-mail: [email protected] • customer service call Toll Free: 1.877.398.8827 • Fax: [phone]
SD10N-90
SHOWER DOOR
INSTALLATION GUIDE
7

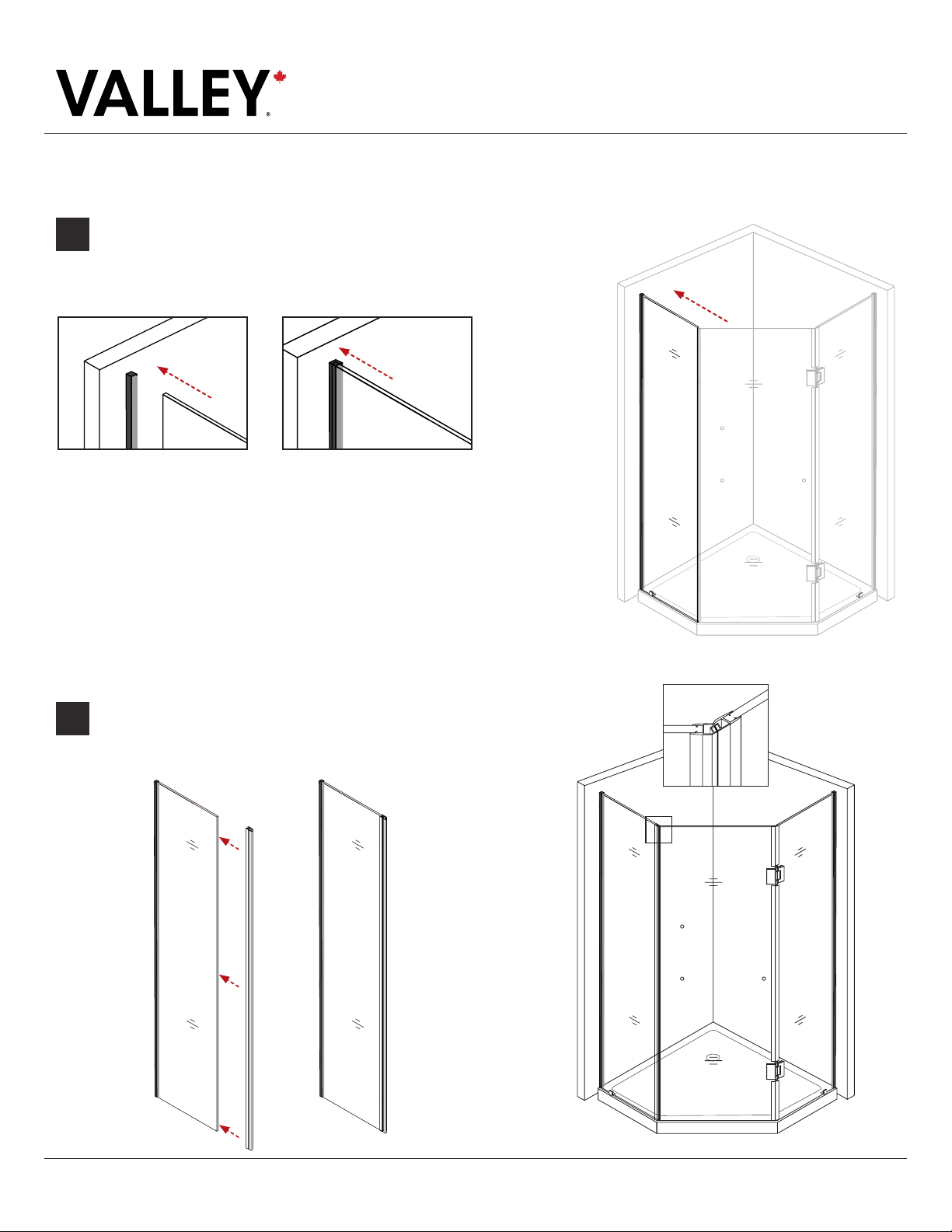

07 Thoughly clean the edges of the swinging door panel.
Install the Magnetic-Gasket and the Anti-water strips
(H-shape gasket) onto the swinging door panel. MAGNETIC
GASKET
H-SHAPE
GASKET
S-GASKET
AB
C
A B
C
08 Install the swinging door panel into place.

website: www.valleyacrylic.com • E-mail: [email protected] • customer service call Toll Free: 1.877.398.8827 • Fax: [phone]
SD10N-90
SHOWER DOOR
INSTALLATION GUIDE
8
09 Position the wall prole on threshold, set back 1/4”
back from the front of the threshold base. Ensure
that the wall prole is level. Mark the screw
location & Mark the screw position.
0.25” / 6mm
10 10.3 - Install the wall prole
into place
10.1 - Drill the screw holes on
wall.
10.2 - Tighten the wall anchor
on wall.

website: www.valleyacrylic.com • E-mail: [email protected] • customer service call Toll Free: 1.877.398.8827 • Fax: [phone]
SD10N-90
SHOWER DOOR
INSTALLATION GUIDE
9
11 Place the xed panel on the wall prole.
12 Thoughly clean the edge of the xed panel.
Install the Magnetic-Gasket on the xed panel.
MAGNETIC
GASKET

website: www.valleyacrylic.com • E-mail: [email protected] • customer service call Toll Free: 1.877.398.8827 • Fax: [phone]
SD10N-90
SHOWER DOOR
INSTALLATION GUIDE
10
13 Position the bottom guides on the threshold.
Mark the bottom guide screw locations.
Make sure to align the glass panels properly
before marking the screw locations.
IMPORTANT INFORMATION
14.3 - Install the wall prole
into place
14.1 - Drill the screw holes on
screw location
14.2 - Apply silicone to the
bottom guides and screws
14

website: www.valleyacrylic.com • E-mail: [email protected] • customer service call Toll Free: 1.877.398.8827 • Fax: [phone]
SD10N-90
SHOWER DOOR
INSTALLATION GUIDE
11
15 Position the structural arm into place. Mark the
structural panel support screw locations.
17.B
16.A Remove the structural arms. Drill the screw holes.
Tighten the wall anchor.
Install the structural arms into place.

website: www.valleyacrylic.com • E-mail: [email protected] • customer service call Toll Free: 1.877.398.8827 • Fax: [phone]
SD10N-90
SHOWER DOOR
INSTALLATION GUIDE
12

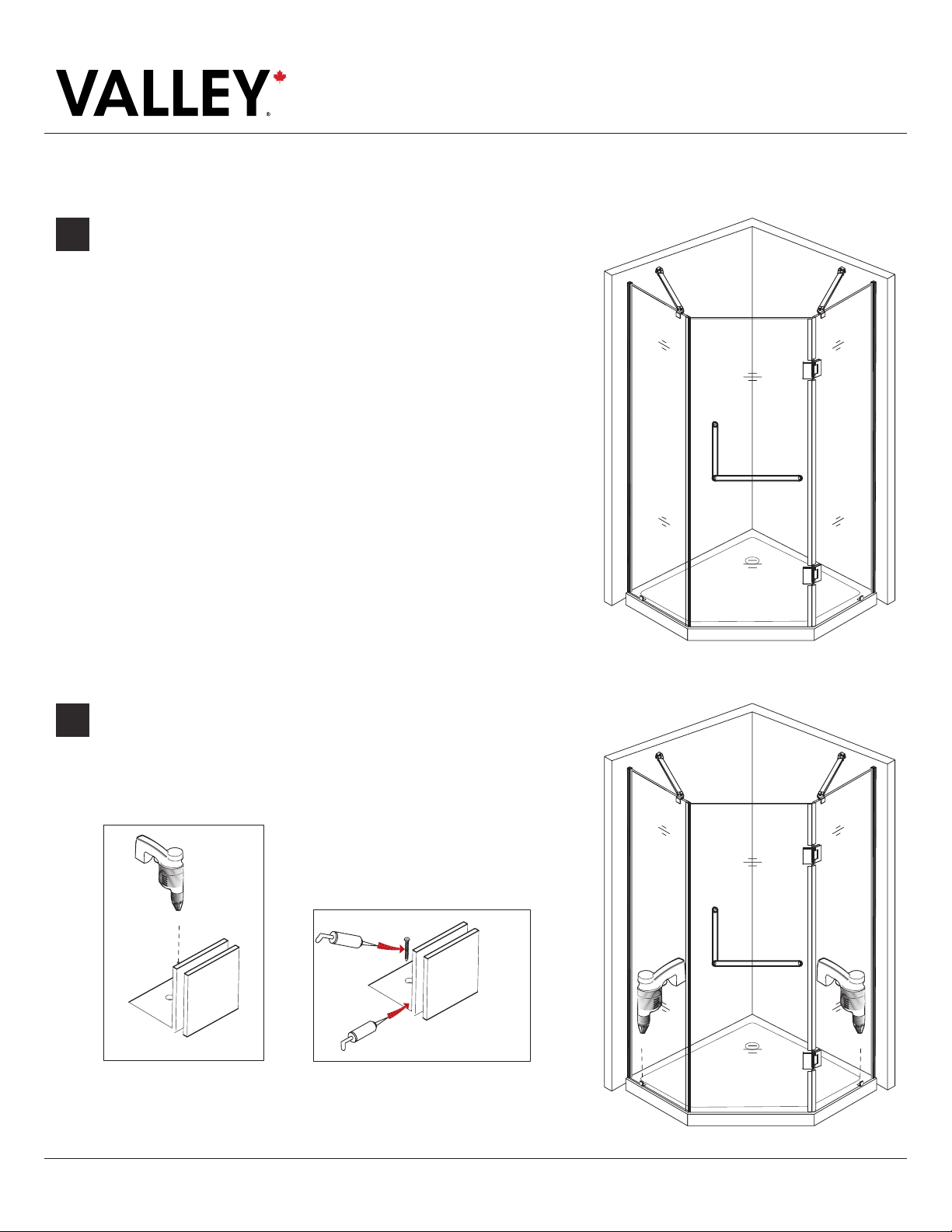

18
19.A
Handle Installation.
Make sure to have a gasket in either side of the
glass door, to make sure the metal is not touching
the tempered glass.
FIx the hinges to shower base.
19.2 - Apply silicone to the
hinges and screws
19.1 - Pre-drill the screw hole
location

website: www.valleyacrylic.com • E-mail: [email protected] • customer service call Toll Free: 1.877.398.8827 • Fax: [phone]
SD10N-90
SHOWER DOOR
INSTALLATION GUIDE
13
19.B FIx the hinges to shower base.
19.3 - Hand tighten the hinge to
the base
20 Apply silicone between the bottom of the xed
panels and the threshold of the base. Silicone
application along the length of the threshold is
also suggested. In both cases, it is done from
the outside of the shower area.
• Avoid polishing powder, cleaning powder and any
kind of detergent.
• To clean your Valley Shower Door , wash with a
wet nonabrasive soapy cloth. Then wipe dry with a
soft towel or cloth. We recommend this be done on
a regular basis.
PLEASE ALLOW 24 HOURS FOR THE SILICONE
TO FULLY CURE BEFORE USING THE SHOWER.
24 HOURS

website: www.valleyacrylic.com • E-mail: [email protected] • customer service call Toll Free: 1.877.398.8827 • Fax: [phone]
SD10N-90
SHOWER DOOR
INSTALLATION GUIDE
14
Congratulations! You are now a part of the Valley Acrylic family.
