Please read all of the instructions below before beginning your installation. We recommend that you have your unit
installed by an experienced 12 volt electronics installer.
Features
• Single DIN size, all-in-one integrated entertainment system.

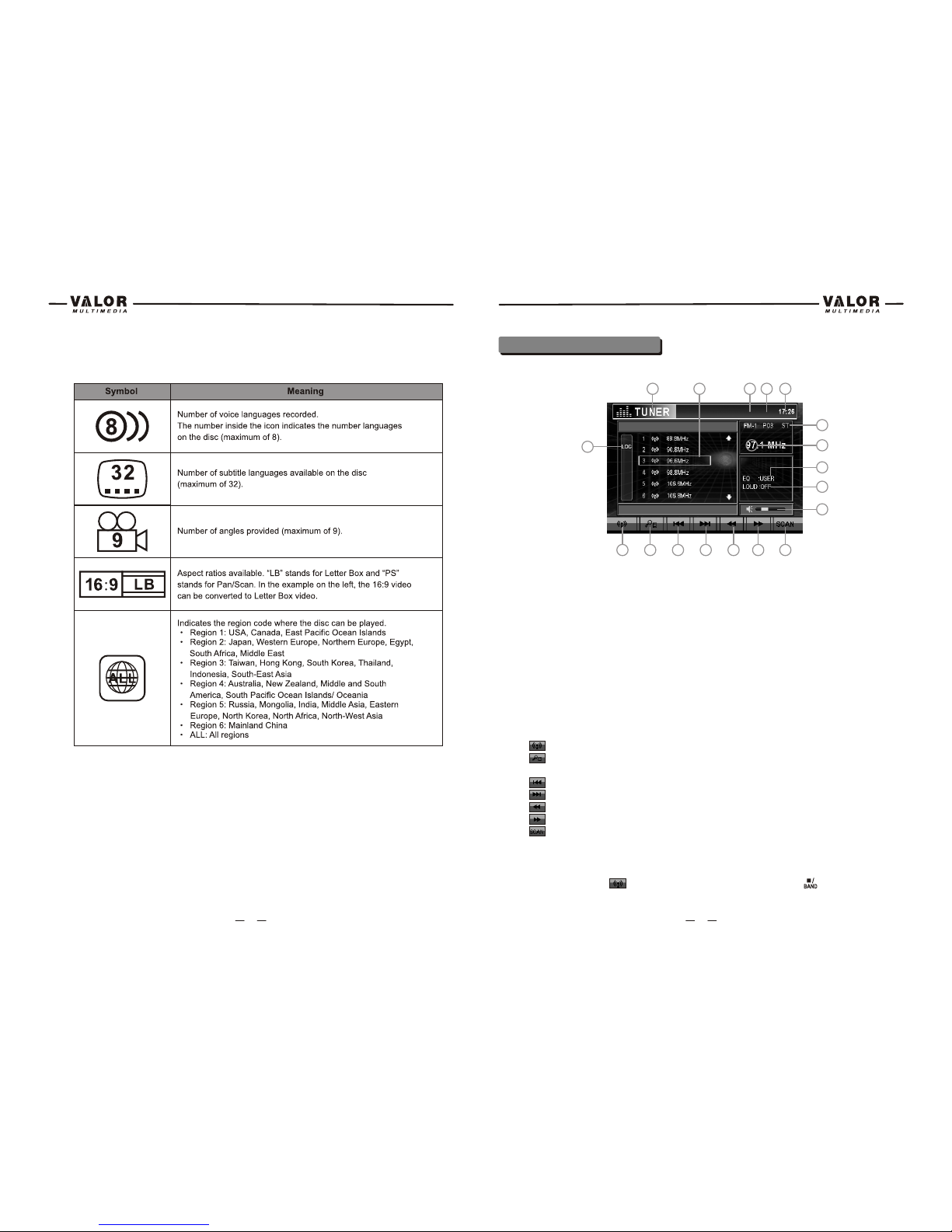

• Built-in DVD Player, Car specification slot-in mechanism.
• Built-in ISS FM/AM Tuner,

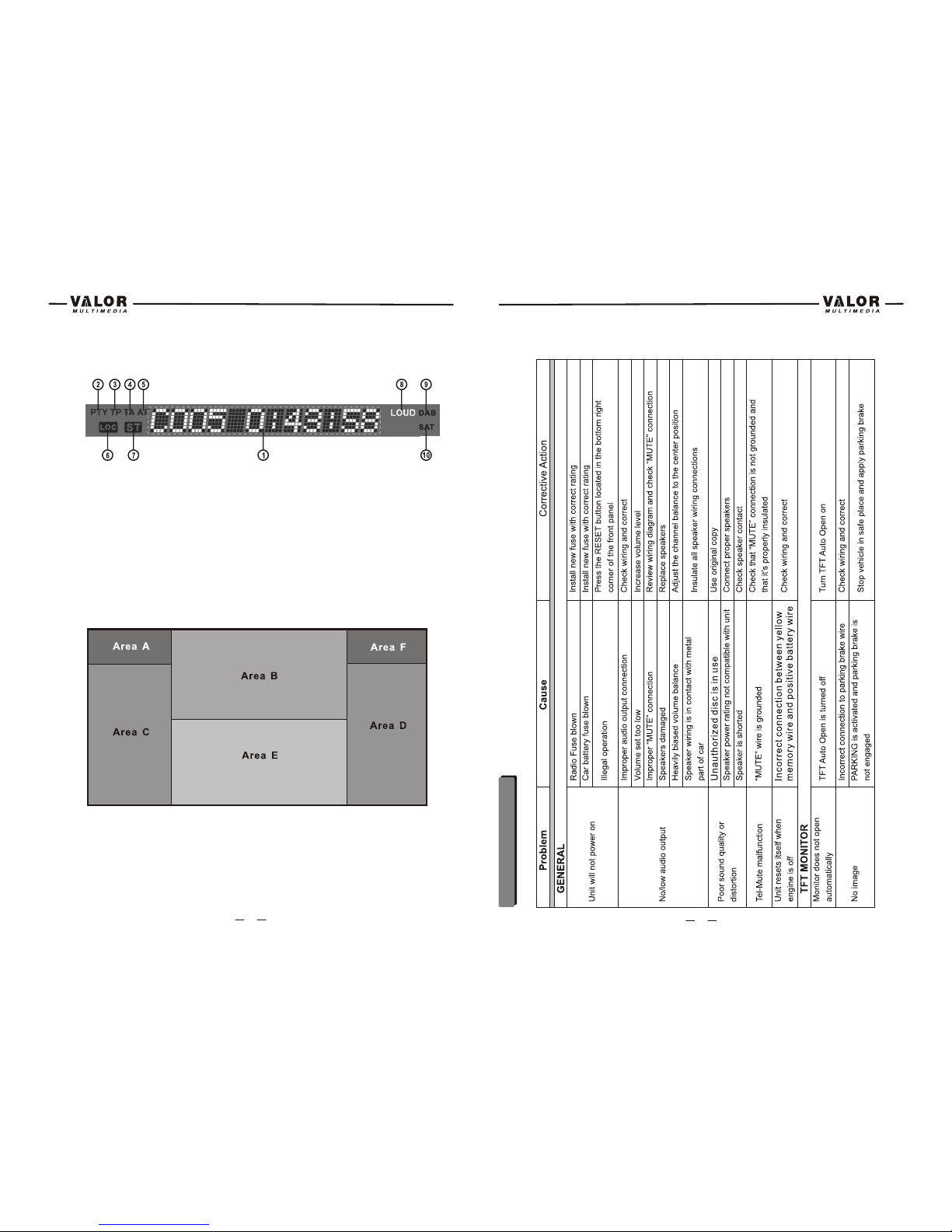

• High resolution 7” (16:9) TFT color monitor, contrast and brightness adjustment, with LCD dot
matrix display.
• Built-in 35W X 4 amplifier, 4.1 channel surround sound output.
• Smart Touch-screen operation.

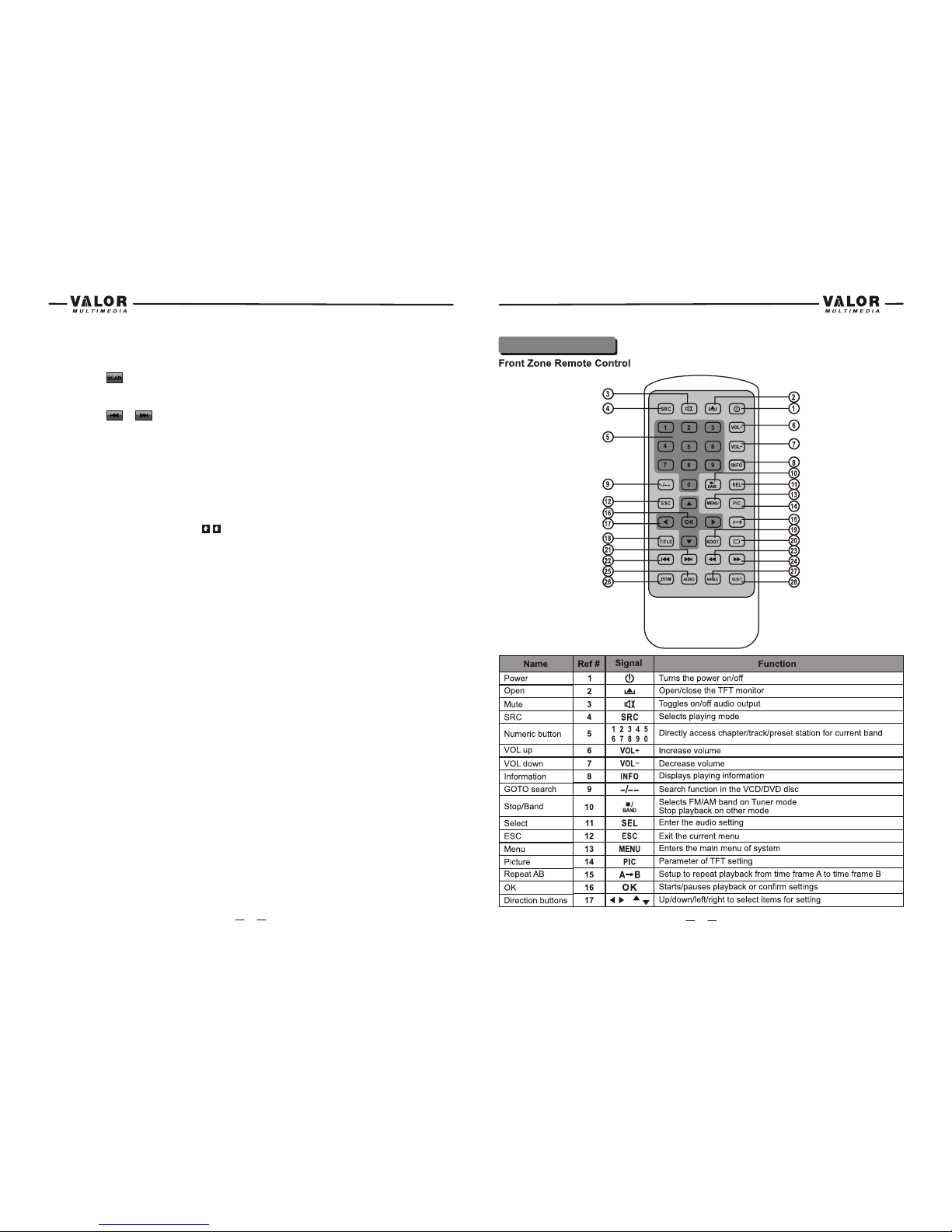

• All functions can be operated by the included remote controls.
Built-in Satellite Radio Control, Built-in iPod Control.

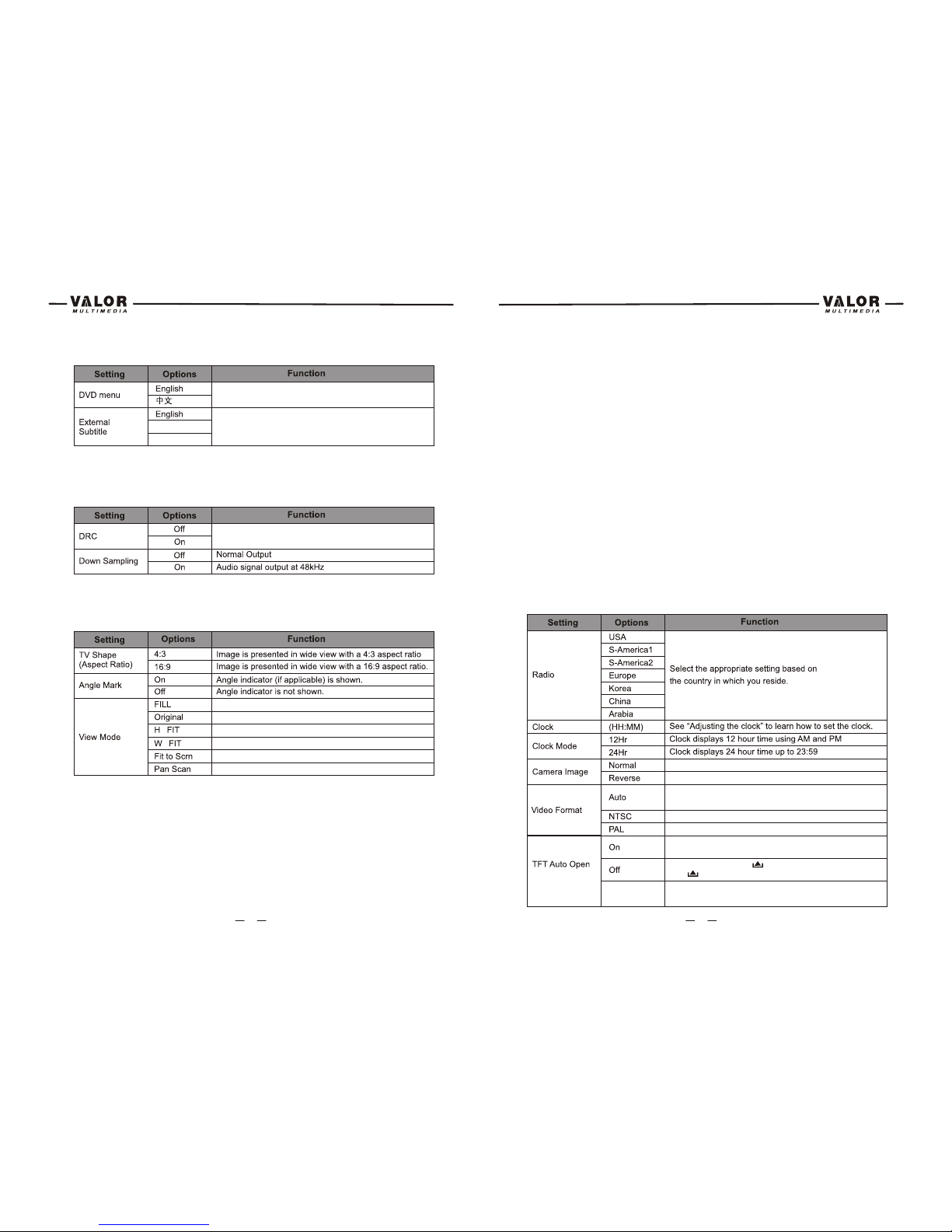

• Powerful Graphic User Interface and software update ability.
Tools and Supplies
You will need these tools and supplies to install the unit.
• Torx type, flat-head and Philips screwdrivers
• Wire cutters and strippers
• Tools to remove existing radio (screwdriver, socket wrench set or other tools)
• Electrical tape
• Crimping tool
• Volt meter/test light
• Crimp connections
• 18 gauge wire for power connections
• 16 – 18 gauge speaker wire
WARNING!!
1. Only connect the unit to a 12-volt negative ground system.
2. Never install this unit where operation and viewing could interfere with safe driving
conditions.
3. To reduce the risk of a traffic accident (except when using for rear view video camera) never
use the video display function while driving the vehicle.
4. To reduce the risk of a traffic accident, never driving with the sound at a level that prevents
5. Never disassemble or adjust the unit without the assistance of a professional. For details,
please consult your local car stereo specialty shop.
6. To prevent injury from shock or fire, never expose this unit to moisture or water.
7. Never use irregular discs.
8. To prevent damage to the mechanism inside this unit, avoid impact to the TFT monitor.
9. Do not change the fuse on the power wire without professional guidance. Using an improper
fuse may cause damage to the unit and result in a fire.
10. The monitor employs an automatic motorized mechanism. To prevent damage to the core
mechanism, please do not push, pull or swivel the monitor manually.
•
you from hearing sounds outside around the vehicle.
PREPARATION
1
Insert the battery holder
NOTE: Use only one CR2025(3V) lithium battery.
Danger of explosion if battery is incorrectly replaced. Replace only with the same or
equivalent type.
Do not recharge, disassemble, heat or dispose of the battery in fire.
Keep batteries away from children to avoid the risk of accident.

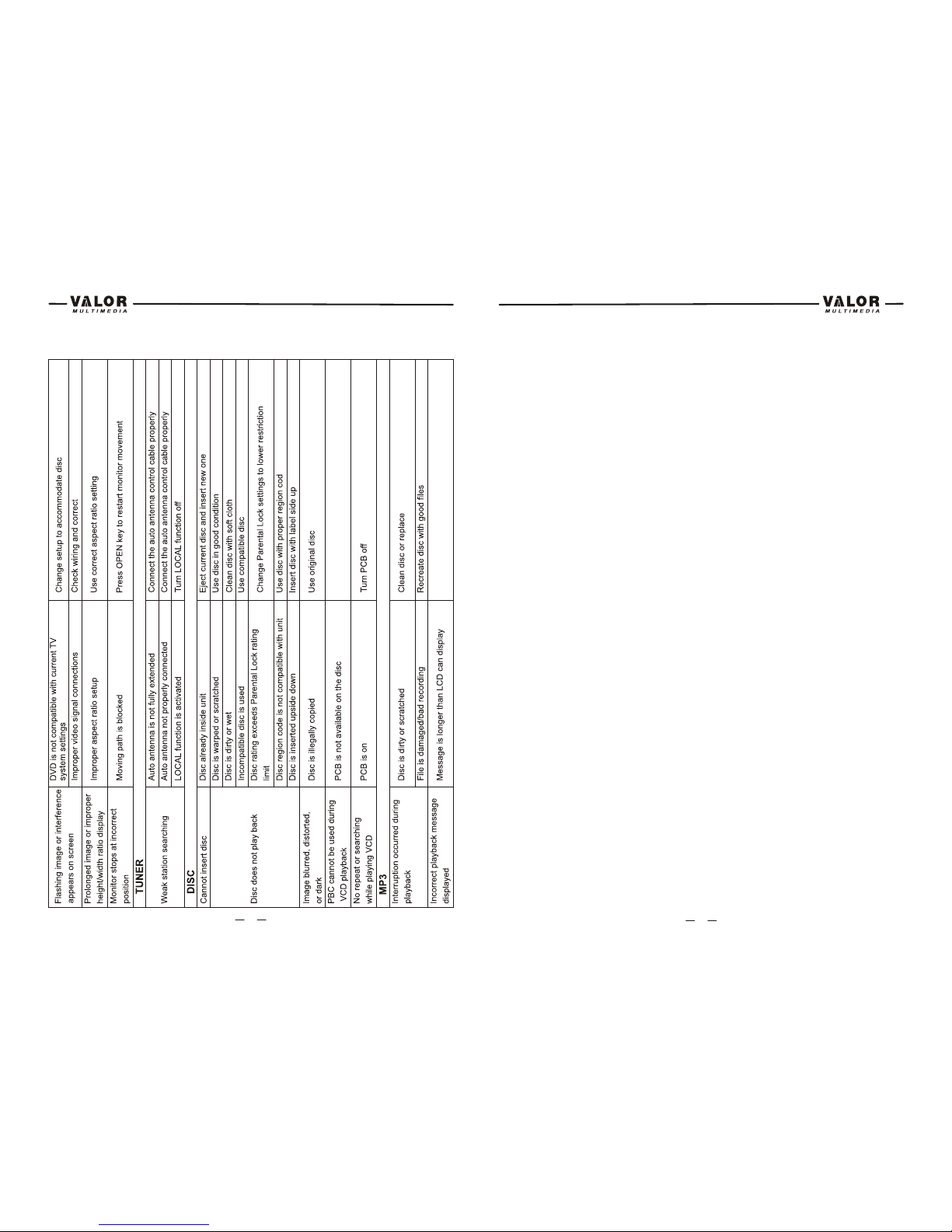

Suggestions
1. Only use a piece of clean silicone cloth and neutral detergent to clean the front panel or
monitor. A rough cloth and non neutral detergent (such as alcohol) may result in scratching or
discoloration.
2. Keep off water and other liquid things.
3. If the temperature inside the player gets too high, a protective circuit automatically stops
playing the disc. And then, please wait for the unit to cool down before operating the player
again.
4. Never insert anything other than a 5” (12 cm) compact disc into the player as the mechanism
can be damaged by foreign objects.
5. Do not attempt to use a 3” (8 cm) CD-Single disc in this unit, either with or without an adaptor,
as it will damage the player and disc. Such damages are not covered by the Warranty on this
product.
6. When the vehicle warms up during cold weather or under damp conditions, condensation may
appear on the LCD panel. If this occurs, the screen will not operate properly until the moisture
has evaporated.
7. We suggest that you should clean the discs used in this unit more frequently than used in your
home, because of the environmental conditions of the vehicle.
