Vantron VT-M2M-G335 User manual

VT-M2M-G335
All Rights Reserved
VT-M2M-G335
User’s Manual
Vantron Technology
www.vantrontech.com

VT-M2M-G335
All Rights Reserved
Revision History:
No. Version Description Date
1 V1.1 Second release 15.12.2017

VT-M2M-G335
All Rights Reserved
Table of Contents
1 Foreword.............................................................................................................................4
1.1 Copyright Notice..........................................................................................................................4
1.2 Notes.............................................................................................................................................4
1.3 Statement.....................................................................................................................................4
1.4 Disclaimer.....................................................................................................................................4
1.5 Limitation of Liability/Non-warranty..........................................................................................5
1.6 Safety Instructions.......................................................................................................................5
1.7 Precautions ..................................................................................................................................5
1.8 Safety Instructions for Power Cables and Accessories..............................................................5
2 Overview .............................................................................................................................7
2.1 Introduction .................................................................................................................................7
3 VT-M2M-G335 Hardware Instructions .....................................................................................8
3.1 Product Appearance....................................................................................................................8
3.2 Specifications.................................................................................................................................9
3.3 Dimension ..................................................................................................................................11
3.4 Interface Description......................................................................................................................12
3.4.1 DB9 ..............................................................................................................................13
3.4.2 User Interface(RS485 Optional) ................................................................................13
3.4.3 3.5mm Debug Port(AM3352).....................................................................................13
Tips 14

VT-M2M-G335
All Rights Reserved
1 Foreword
1.1 Copyright Notice
While all information contained herein have been carefully checked to assure its
accuracy in technical details and printing, Vantron assumes no responsibility
resulting from any error or features of this manual, or from improper uses of this
manual or the software. Please contact our technical department for relevant
operation solutions if there is any problem that cannot be solved according to this
manual.
Vantron reserves all rights of this manual, including the right to change the
content, form, product features, and specifications contained herein at any time
without prior notice. The latest version of this manual is at
www.vantrontech.com.cn. Please contact Vantron for further information:
Vantron Technology（Vantron）
E-mail: [e-mail]
The trademarks and registered trademarks in this manual are properties of their
respective owners. No part of this manual may be copied, reproduced, translated or
sold. No changes or other purposes are permitted without the prior written consent
of Vantron.
Vantron reserves the right of all publicly-released copies of this manual.
1.2 Notes
Applicable notes are listed in the following table:
Sign Notice Type Description
Notice Important information and regulations
Caution Caution for latent damage to system or harm to personnel
1.3 Statement
It is recommended to read and comply with this manual before operating
VT-M2M-G335 which provides important guidance and helps decreasing the danger
of injury, electric shock, fire, or any damage to the device.
1.4 Disclaimer
Vantron assumes no legal liability of accidents resulting from failure of

VT-M2M-G335
All Rights Reserved
conforming to the safety instructions.
1.5 Limitation of Liability/Non-warranty
For direct or indirect damage to this device or other devices of Vantron caused by
failure of conforming to this manual or the safety instructions on device label,
Vantron assumes neither warranty nor legal liability even if the device is still under
warranty.
The VT-M2M-G335 should be installed, debugged and maintained by professional
people.
The outside antennas are not permitted to be installed or to be changed by
non-professional people. To run the device normally, only specify antennas are
approved to be assembled together by professional people.
Unit shall be used with indoor-use antenna only. No antenna for this unit can be
installed outdoor.
1.6 Safety Instructions
Keep and comply with all operation instructions, warnings, and information.
Pay attention to warnings on this device.
Read the following precautions so as to decrease the danger of injury, electric
shock, fire, or any damage to the device.
1.7 Precautions
Pay attention to the product labels/safety instructions printed on silk screens.
Do not try repairing this product unless declared in this manual.
Keep away from heat source, such as heater, heat dissipater, or engine casing.
Do not insert other items into the slot (if any) of this device.
• Keep the ventilation slot ventilated for cooling.
•System fault may arise if other items are inserted into this device.
Installation: ensure correct installation according to instructions from the
manufacturer with recommended installation tools.
Ensure ventilation and smoothness according to relevant ventilation standard.
1.8 Safety Instructions for Power Cables and Accessories
Proper power source only
Start only with power source that satisfies voltage label and the voltage necessary
according to this manual. Please contact technical support personnel of Vantron for
any uncertainty about the requirements of necessary power source.

VT-M2M-G335
All Rights Reserved
Use tested power source
This product still contains a button lithium battery as a real-time clock after its
external power source is removed and therefore should not be short-circuited
during transportation or placed under high temperature.
Place cables properly:
Do not place cables at any place with extrusion danger.
Cleaning Instructions
Please power off before cleaning the device.
Do not use spray detergent.
Clean with a damp cloth.
Do not try cleaning exposed electronic components unless with a dust collector.
Support for special fault: Power off and contact technical support personnel of
Vantron in case of the following faults:
The device is damaged.
The temperature is excessively high.
Fault is still not solved after the operation according to the manual.

VT-M2M-G335
All Rights Reserved
2 Overview
2.1 Introduction
Thank you for choosing Vantron. It is our commitment to provide our valued
customers with the embedded devices equipped with the state-of-the-art
technology and the best product services.
Vantron’s M2M products are based on the most advanced ARM and Intel Atom
processors and have low-power consumption and high integration. The products
are designed for applications of M2M in industrials, medicals, financial, retail,
vehicle, and transportations etc.

VT-M2M-G335
All Rights Reserved
3 VT-M2M-G335 Hardware Instructions
3.1 Product Appearance
Front View
Back View
Side View

VT-M2M-G335
All Rights Reserved
3.2 Specifications
Features
■CPU: TI, AM335x Series, ARM Cortex-A8, 32‑Bit RISC Microprocessor,
Support wide operating frequency range from 275MHz to 1GHz
■DDR3L 400MHz, 512MB ( up to 1GB), EMMC 4.5,16GB
■1xMicro SD Card
■1x1000-BaseT Ethernet,1x1000-BaseT Ethernet with POE(Option POE)
■WLAN2.4G/5G, 4G Module with SIM slot,(or 3G Module with SIM slot)
GPS, Blueteeth4.0 and LORA (or ZigBee).
■1xRS232/RS422/RS485,1xRS232/RS485
■GPIO: 2xIn, 2xOut
■1XCAN 2.0b
■WinCE, or Linux
■Rugged Design
■Power Input, Wide Range (6-36V), Terminal
Specifications
CPU
Processor
TI, AM3358, ARM Cortex-A8, 32-Bit, 1GHz
Low Power Processor
Optional AM3352, 3354 and others CPU frequency.
Memory
On Board RAM DDR3L 400MHz, 512MB ( up to 1GB)
EMMC4.5 16GB
Wireless
Communication
WLAN WLAN Module, 802.11 b/g/n, 2.4GHz/5G, external Antenna
4G Module
1x PCIe Slot for 4G(or 3G) Broad Band Module with SIM slot
(USB Interface Indeed) Option for UART Interface
Option for GPRS module internal in UART interface.
LORA(Or
ZigBee ) On Board LORA(Or ZigBee ) module (Optional)
GPS GPS module (Optional)
Peripheral
Ethernet 2x1000M,1XPOE( Optional)
SD card 1x Micro SD card

VT-M2M-G335
All Rights Reserved
Interfaces
COM Port
1XSoftuart,for 4G Module,
1XSoftuart,for GPS Module,
1xSoftSPI,for LORA Module,
1x RS232(UART0), for Debug
1xSoftuart,RS232 or RS485
1xUART, RS232 or RS485 or RS422
USB 1xUSB
CAN 1xCAN 2.0b (optional on Terminal)
GPIO Optional: 2xInput, 2xOutput, isolated.
Alarm Buzzer Out (OPT)
RTC Supported, separately RTC chip
Control Button of Restored to Default setting, Reset Button
Software
OS WinCE or Linux
Applications Provide SDK
Power
Input Wide Range (6-36V), 3x3.81mm Green Terminal
Consumption 1.8W Average (without 4G,GPS,LORA,WLAN,BT)
Mechanical
Dimensions 155x105x50mm (Box)
Install Brackets 177x105x50mm
Weight 0.95Kg (1.3Kg package Kit)
Enclosure Sheet Metal with Black Color
Environment
Condition
Temperature
Operating:-40°C ~ +85°C
Storage: -40°C ~ +105°C
Humidity 5-95%RH at 25-35 (Non-Condensation)
Approvals RoHS Compliance
UL, FCC Class B, and CE in processing.

VT-M2M-G335
All Rights Reserved
3.3 Dimension

VT-M2M-G335
All Rights Reserved

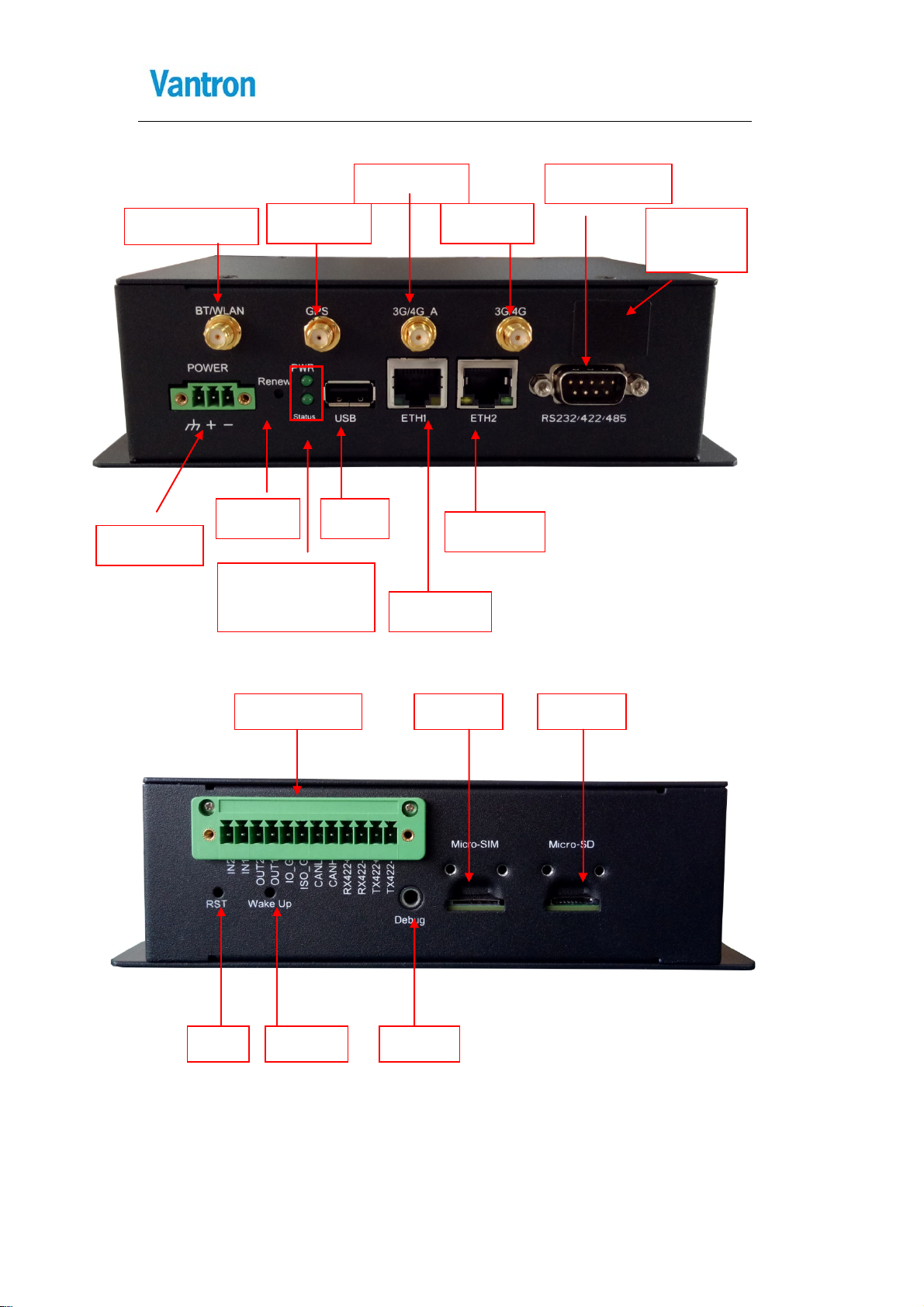

3.4 Interface Description
`
WIFI&BT Antenna
4G Antenna
Reset Debug
Ethernet2
GPS Antenna
LED:PWR
LED:Status Ethernet1
POWER-IN
RS232/RS485
User Interface
USBRenew
4G Antenna-A
Wake up
SIM Card SD Card
Lora/Zigbee
Antenna

VT-M2M-G335
All Rights Reserved
3.4.1 DB9
PIN1 PIN2 PIN3 PIN4 PIN5 PIN6 PIN7 PIN8 PIN9
RS485-A RS485-B
RS232RXD RS232TXD NC GND NC NC NC NC
3.4.2 User Interface(RS485 Optional)
PIN1 PIN2 PIN3 PIN4 PIN5 PIN6 PIN7 PIN8 PIN9 PIN10 PIN11 PIN12
TX422- TX422+
RX422-
485-B
232-RXD
RX422+
485-A
232-TXD
CANH CANL ISO-GND IO-GND OUT1 OUT2 IN1 IN2
3.4.3 3.5mm Debug Port(AM3352)
Pin
Description
1 GND
2
TXD(232)
3 RXD(232)

VT-M2M-G335
All Rights Reserved
Tips
Waste Disposal
It is recommended to disassemble the device before abandoning it in conformity
with local regulations. Please ensure that the abandoned batteries are disposed
according to local regulations on waste disposal. Do not throw batteries into fire
(explosive) or put in common waste canister. Products or product packages with
the sign of “explosive” should not be disposed like household waste but delivered
to specialized electrical ＆electronic waste recycling/disposal center. Proper
disposal of this sort of waste helps avoiding harm and adverse effect upon
surroundings and people’s health. Please contact local organizations or
recycling/disposal center for more recycling/disposal methods of related products.
Comply with the following safety tips:
Do not use in combustible and explosive environment
Keep away from combustible and explosive environment for fear of danger.
Keep away from all energized circuits.
Operators should not remove enclosure from the device. Only the group or
person with factory certification is permitted to open the enclosure to adjust and
replace the structure and components of the device. Do not change components
unless the power cord is removed. In some cases, the device may still have residual
voltage even if the power cord is removed. Therefore, it is a must to remove and
fully discharge the device before contact so as to avoid injury.
Unauthorized changes to this product or its components are prohibited.
In the aim of avoiding accidents as far as possible, it is not allowed to replace the
system or change components unless with permission and certification. Please
contact the technical department of Vantron or local branches for help.
Pay attention to caution signs.
Caution signs in this manual remind of possible danger. Please comply with
relevant safety tips below each sign. Meanwhile, you should strictly conform to all
safety tips for operation environment.
Notice
Considering that reasonable efforts have been made to assure accuracy of this
manual, Vantron assumes no responsibility of possible missing contents and
information, errors in contents, citations, examples, and source programs.
Vantron reserves the right to make necessary changes to this manual without prior

VT-M2M-G335
All Rights Reserved
notice. No part of this manual may be reprinted or publicly released in for
US Office: Vantron Technology, Inc.
Address:440 Boulder Court, Suite 300
Pleasanton, CA94566
Tel: [phone]
Email: [e-mail]
China Office: Chengdu Vantron Technology, Ltd
Address: 6th floor, 1st building, No.9, 3rd WuKe East Street, WuHou District,
Chengdu, P.R. China 610045
Tel: [phone]/3931, 8515-7572/6320
Email: [e-mail]
