Varian archon User manual

Varian Analytical Instruments
2700 Mitchell Drive
Walnut Creek, CA94598-1675/USA
©Varian, Inc. 1999 Printed in U.S.A. 03-914642-00:6
Purge and Trap AutoSampler System
Operator’s Manual

03-914642-00:6 i
Contents
1 Introduction 1-1
1.1 Product Description 1-1
1.2 Design Features 1-2
1.3 Specifications 1-3
1.4 Component Description 1-3
1.4.1 Front Panel 1-3
1.4.2 Rear Panel 1-4
1.4.3 Interior 1-5
1.5 Vial Types 1-6
2 Site Preparation / Installation 2-1
2.1 Materials Needed 2-1
2.2 Unpacking the Archon 2-1
2.3 Parts and Materials Included in the Accessory Kit (DY-505224-90) 2-2
2.4 Lab and Bench Space Requirements 2-2
2.5 Gas Connections 2-3
2.6 Electrical Connections 2-4
2.7 Electronic I/O Signal Connections 2-4
2.7.1 Purge and Trap Sync Cable Connector 2-4
2.7.2 Personal Computer Connection 2-4
2.8 Water and Waste Lines Setup 2-4
2.8.1 Blank / Wash Bottle Setup 2-4
2.8.2 Waste Lines Setup 2-6
2.9 Sample Tray Setup 2-6
2.10 Sample Tray Coolant Setup (Optional) 2-7
2.11 Archon Soil Transfer Line Installation 2-7
2.11.1 Archon to Tekmar 3000 2-8
2.11.2 Archon to Tekmar 2000 2-14
2.11.3 Archon to OI 4560 2-18
2.12 Soil Helium Purge Gas Flow Adjustment 2-22
2.13 Loop Calibration for Internal Standard 2-23
2.14 Installation Checklist 2-23

ii
3 Keypad Definition & Layout / Screen Display 3-1
3.1 General 3-1
4 Operation Keys 4-1
4.1 Auto Key 4-1
4.2 Manual / Priority Sample Key 4-2
4.2.1 Running a Priority Sample During an AutoRun. 4-2
4.3 Flush Key 4-3
4.3.1 Drain Sparge Tube 4-4
4.3.2 Flush Syringe 4-4
4.3.3 Rinse Sparge Tube 4-4
4.3.4 Backflush Water Probe 4-5
4.4 Pause / Stop Key 4-5
4.5 System Hold 4-5
5 Method Setup 5-1
5.1 Method Editing 5-1
5.2 Sample Method Parameters 5-1
5.3 Blanks After Vial Editing 5-5
5.4 Method Programming Guidelines 5-6
5.4.1 Water Method Program 5-6
5.4.2 Soil Method Program 5-6
5.4.3 Blank Method Program 5-7
5.5 Equilibrium Count and Equilibrium Time 5-7
5.6 Operating Sequence Steps 5-8
5.6.1 Water Sample Sequence 5-8
5.6.2 Soil Sample Sequence 5-10
5.6.3 Blank Sample Sequence 5-11
6 System Setup 6-1
6.1 Front Park 6-1
6.2 System Status 6-1
6.3 Maintenance 6-2
6.3.1 Standard Control 6-2
6.3.2 Adjust Counters 6-3
6.3.3 Shipping Position 6-3
6.3.4 Clean Syringe 6-4
6.3.5 Elevator up/down 6-4
6.4 System Calibration 6-4
6.4.1 Calibration Test 6-4
6.4.2 Auto Calibrate 6-5
6.4.3 Vial 22 Position 6-8
6.4.4 Water Probe Vial Position 6-8

03-914642-00:6 iii
6.4.5 Equilibrium Block 6-9
6.4.6 Knockoff Clearance 6-9
6.4.7 Standard Clearance 6-10
6.4.8 Manual Calibration: Coordinate Settings Menu Items 6-11
6.5 System Diagnostics 6-12
6.6 System Settings 6-14
6.7 System Options 6-16
7 Maintenance 7-1
7.1 Removal and Replacement of the Needle Sparge or SoilVial Probe 7-1
7.2 Removal and Replacement of the Water Probe 7-3
7.3 Cleaning the Soil Transfer Line Frit (PN DY-505599-00) 7-4
7.4 Replacement of the Water Line Screen (P/N DY-505598-00). 7-4
7.5 Replacement of the Soil Transfer Line (Nickel Line Only) (DY-505745-00) 7-4
7.6 Replacement of the Soil Purge Gas Needle (DY-505463-00) 7-5
7.7 Cleaning the Vial Gripper 7-5
7.8 Leak Check Helium Purge Gas Flow 7-5
7.9 Replacement of the Heated Upper Soil Valve 7-6
7.10 Sample Stir Motor Speed Adjustment 7-7
7.11 Drip Pan Cleaning 7-8
7.12 Cleaning or Replacing the Syringe Plunger O-ring 7-8
7.13 Cleaning the Internal Standard Valve and Lines 7-10
7.14 Installation of the Internal Standard Vials 7-11
7.15 Shipping Instructions 7-12
8 Remote I/O Cable Hookup Instructions 8-1
8.1 Archon to Tekmar LSC-2000 and 3000,P/N DY-505872-00 8-2
8.2 Archon to Tekmar 3000 with HP 5890, P/N DY-505869-00 8-3
8.3 Archon to Tekmar LSC 2000/3000 with Varian 3400/3600 8-4
8.3.1 Varian GC Motherboard Attachments – J16 and J32 8-5
8.3.2 J-16 Splitter DY-700030-00 8-5
8.3.3 J-23 Splitter DY-700031-00 8-5
8.4 Archon to Tekmar LSC 2000 / 3000 with HP 5895/96/85/87/88/92 8-7
8.5 Archon to Tekmar LSC 2000 / 3000 with HP 5890 w/5970/71/72 8-9
8.6 Archon to Tekmar LSC 2000 / 3000 to HP 6890, P/N DY-505873-00 8-10
8.7 Archon to OI 4460/4560 with HP 5890, P/N DY-505871-00 8-11
8.8 Archon to OI 4460 / 4560 with Varian 3400/3600, P/N DY-505870-00 8-12
8.9 Archon to OI 4460 / 4560 to HP 5890, RTE HP 1000 GC / MS Software 8-13
8.10 Archon to Tekmar 2000/3000 with Varian 3800, PN 03-925673-01 8-14

iv
9 Error Code Screen Messages 9-1
10 Spare Parts and Service Information 10-1
11 Technical Assemblies 11-1
11.1 Front Panel 11-1
11.2 Syringe Plate 11-2
11.2.1 Internal Standard Valve Assembly 11-3
11.2.2 Mixing Solenoids / 26 mL Syringe Assembly 11-4
11.2.3 Probe Section 11-5
11.2.4 Vial Sample Stations 11-6
11.3 Interface / Transfer Line, Purge Gas Solenoid 11-7
11.4 Rear Panel 11-8
11.5 Robotic Arm 11-9
11.6 Interconnect Diagram 11-10
12 Flow Diagrams 12-1

03-914642-00:6 1-1
1 Introduction
1.1
Product Description
The Archon Purge and Trap AutoSampler is designed to automate the tedious
sample handling procedures associated with purge and trap analysis for volatile
organic compounds (VOC's) under current EPA methods. The Archon can be
used for drinking water, waste water, soil analysis, and solids. The Archon is
designed as a stand-alone unit for retrofit to purge and trap instruments.
The Archon is a state-of-the art robotic, X-Y-Z axis autosampler. The
AutoSampler utilizes a 51 position sample tray that allows water or soil samples
to be run. The tray can be cooled if an optional chiller kit is installed. The Archon
has a unique "gripper" arm which moves the sample vial to different positions that
will bar code read (optional), identify the vial type, stir the sample, equilibrate to
room temperature, and transfer the sample to the water or soil probe position.
When running soil samples, the Archon automates heated purge and trap. The
soil sample may be placed in the patented SoilVial, or if the Archon is setup for
needle sparging, a standard 40 mL VOC vial. A stirring bar (optional) is added,
the cap with a low bleed septum is replaced, and the entire vial placed in the
sample tray. The robotic arm transfers the vial to the vial identification step, and
then lifts the vial into the heated chamber where water is added, with one or both
standards, the sample is then purged directly onto the trap of the concentrator.
If a water sample is to be run, the sample is placed in a 40 mL VOC vial and a stir
bar (optional) is placed in the vial and the vial is placed in the tray. The Archon
robotic arm moves the vial to the vial ID station and then to the probe location
where it is lifted onto the sample probe, and a programmed volume of water is
transferred to the purge vessel. It is during the transfer that one or both of the
standards are added to the sample. It will also drain and clean the needle, sparge
tube, and transfer lines.
The operating modes of the Archon are the Automatic, Manual, and Flush
modes. Automatic mode allows for complete unattended operation. Manual mode
operation allows for single sample operation of the unit, priority sampling, and
running blanks. The Flush mode performs the flushing with hot water and helium
for the cleanup of the system. All modes perform per their programmed method.
The Archon is easily programmed through its own color-coded keypad.
Programming is menu driven and displayed on an LCD screen. Parameters can
be read and altered and the screen displays the function in progress during the
run.
The Archon interfaces directly with the Tekmar LSC 2000, 3000, OI 4460A, 4560
and other purge and trap units.

1-2
1.2 Design Features
 Large 51 position removable sample tray for water or soil samples.
 Runs blanks from its own blank/wash water reservoir.
 Programmable sample dilution using blank H2O from reservoir, e.g., 0, 2, 5, 10, and 20,
directly from the 40 mL vial.
 Water sample volumes programmable in 1-25 mL increments.
 Programmable mechanical stirring of water samples containing sediment prior to
sampling.
 All sample pathways are chemically inert, manufactured from PEEK®, Stainless Steel,
glass, or electroformed nickel.
 Programmable dual standards allow for 1 or 2 different standards to be injected with the
sample, prior to purging.
 Soil samples may be purged via needle sparge option utilizing disposable 40 mL vials or
by the patented SoilVial®.
 The heated soil chamber can accept matrices consisting of solids, sludges, and liquids
from SoilVials or 40 mL EPA VOC vials.
 Optional sample tray cooling capability. Optional refrigerated chiller is required.
 Priority Sample feature allows the current analysis to be interrupted for RUSH samples.
 Easily readable back lit LCD display.
 Fast easy programming from the touchpad keyboard.
 30 programmable methods may be stored for various method configurations.
 A sample may be run from any position in the tray.
 Easy hook up and installation to all purge and trap systems.
 Back flushes the VOC soil probe pathway with line pressure helium.
 Hot water rinse utilizes a cartridge heater to heat blank water to 90  C prior to flushing
sample pathways and the purge vessel.
 Intelligently determines if a temperature zone exceeds its set point.
 Archon utilizes a 5-position temperature equilibrium chamber that ensures samples are
equilibrated at room temperature prior to sampling.
 Positively identifies programmed SoilVials and water vials prior to placement into
sampling positions.
 A heated upper soil valve to eliminate cold spots in the sample pathway of samples
purged in the soil chamber.

Introduction
03-914642-00:6 1-3
1.3 Specifications
Tray Capacity: 51 sample vials. 40 mL EPA VOC or SoilVials
Sample Volume: 0-25 mL
Flush Volume: 0-25 mL
Indoor Use
Altitude: Up to 2000 m
Operating Temperature: 15
 C to 35  C; Storage Temperature 5  C to 85  C
Relative Humidity: 10 to 90%
Line Voltage: 115 Vac
 15%, 230 Vac  15%, 50/60 Hz  3 Hz
Fuse: 6A, 250 Vac, SB (115V); 3.15A, 250 Vac, T-Type (230V)
Installation Category: II
Pollution Degree: 2
Heat Dissipation: 2500 BTU/Hr. Max. Worst Case
Weight: Approximately 80 lbs; 36.5 Kilograms
Size: 21.5W x 17H x 20D inches
54.6W x 43.2H x 53.3D centimeters
Gas Requirements: Helium 60-90 PSI 99.999% GC/MS grade purity
1.4 Component Description
The Archon consists of a base unit with a 51 position sample tray. The sample
tray is removable from the front. A description of components follows.
1.4.1 Front Panel
Keypad & Screen: Keypad with LCD
screen. The keypad allows for
entering or editing all information. The
LCD screen displays the information.
Figure 1-1

1-4
1. Regulator: A regulator is provided for accurate
adjustment of the soil purge gas pressure and for
pressurizing the 40 mL vial during a water sample.
2. Pressure Gauge: A pressure gauge is located
above the regulator to monitor the purge gas and
to pressurize gas pressure.
3. Flow Controller: A flow controller is mounted on
the front panel to adjust the flow of purge gas
during the soil purge process.
4. Sample Tray Cover/ Door: The tray access cover
lifts up and locks to access the sample tray and
interior. The cover has a sensor mounted on the
right allowing the Archon to detect if the cover is
open. Additionally, there is a door at the bottom of
the Archon which allows the sample tray to be
removed / installed. Press the latch button and the
door will drop down.
PURGE GAS
PRESSURE
PURGE GAS FLOW
+
_
+
Figure 1-2
1.4.2 Rear Panel
Power Module: The power access module has a detachable power cord and
contains the incoming line fuse, power selector and voltage selector card.
Gas Input: A 1/8" Swagelok® bulkhead is used for He gas input ranged for 60-90
PSI.
Drain Line: The drain line is provided to attach to a waste bottle or a sink drain.
Remote I/O: All communication to the purge and trap and GC are made via the
25 pin, "D" connector. Custom built cables are designed for each purge and trap
system to ensure correct handshaking.
Remote RS-232: A 9 pin, RS-232 "D" Connector will allow for operation via a
computer with a Windows® compatible program.
Water Connections: A water input connection is provided for supplying blank
runs, flush rinses and dilutions. A gas connection pressures the water reservior
to aid in water delivery and to ensure water cleanliness.
PAT Purge Cut Off Valve: The Archon uses a valve to shut off the purge gas
supplied from the purge and trap concentrator during the soil purge. In this
mode, the Archon supplies the purge gas.
Sample Tray Coolant: The Archon will allow the sample tray to be cooled. An
optional recirculating bath (P/N DY-505627-00) must be purchased. Plumbing
connections for the bath are located on the lower, right rear side of the cabinet in
units shipped before March 1,1999. After that date, the plumbing kit
(DY-700085-90) must be purchased if a chiller option is installed. The liquid
coolant specifications are as follows: 10 PSI maximum pressure; temperature
range, -10  to 60  C; Coolant liquid, 50/50% mix Ethylene Glycol / water, or 100%
water.
2
1
3

Introduction
03-914642-00:6 1-5
1.4.3 Interior
Refer to Figure 1-3.
Sample Tray (not shown): A 51 position, all aluminum, sample tray is provided
to hold sample vials. The tray is removable, and when installed, rests on top of
the aluminum tray cooler for cooling the samples.
1. Robotic Arm: The robotic arm is used to move the sample vials. A vial
gripper is used to remove the vials from the tray and place them in the
appropriate sampling positions.
2. Water Probe: The water probe is a patented concentric needle to puncture
water vials, pressurize, and displace water samples to the syringe. After
sampling, the probe is rinsed in a chamber that prevents sample from
spraying onto the instrument components.
3. Soil Probe: The patented soil probe and the Needle Sparge probes
incorporate a "T" fitting design for attachment of water and heated transfer
line. The probe is installed in a heated oven and easily removable for
cleaning or replacement.
4. 26 mL Syringe: A 26 mL syringe is used to move sample, blank, flush and
waste water. The syringe is mounted upright, directly into the valve manifold.
Figure 1-3
5. Standard Valve: The standard injection station uses a 6 port valve with a 1
µL internal loop. The internal standard groove is filled by pressurizing the
standard reservoir and rotating the valve to positions 1 & 2, (Std. 1, Std.
2).Water samples or dilution water passes through the loop to deliver the
2
3
1
4
5
6
7
89

1-6
standard. Approximately 15 µL of standard solution is flushed during each
cycle.
6. Equilibrium Zone: The Archon utilizes a 5 position temperature Equilibrium
station. If a sample has been cooled or heated, it can be cycled for an
equilibrium time in minutes, prior to analysis.
7. Vial Identification: The equilibrium station also contains the positive vial
identification sensor located in the first position from the left. This sensor
distinguishes between a SoilVial and a standard 40 mL water vial. The
second position contains the optional bar code reader used for sample
tracking.
8. Sample Stir Motor: The Archon allows the sample (both water and solid) to
be stirred. The motor is located below the vial sample stations. The motor
rotates a magnet which will spin a magnetic spin bar placed in the vial. See
Section 7.11 for motor speed adjustment instructions.
9. Overflow Drip Pan: The Archon has a drip pan to collect water in the event
of spillage. The pan has a fitting on the bottom to attach a 1/4" ID hose. Lift
the edge of the Archon and slide the 1/4" ID hose over the fitting. Route the
other end to a drain.
1.5
Vial Types
The Archon may use two different types of sample vials, depending on the
sampling type option installed. The two types of vials are shown below.
Patented SoilVial®
This vial is used if the Archon is purchased with the
SoilVial Option installed. This double-ended vial
contains a frit at the bottom end and vial complies
with USEPA Method 5035.
This vial requires the
use of the low bleed septum (P/N DY-504104-00)
on both ends.
StanStandard 40 mL VOC vial
This is the standard USEPA approved glass vial. It
is used for water samples and for purging soil or
solid samples if the Archon is purchased with the
Needle Sparge option. When this vial is used for
purging a soil or solid sample, you
must
use a
low
bleed septum (P/N DY-504104-00). Figure 1-4
CAUTION
Vial types are NOT interchangeable. NEVER place a SoilVial in a
water vial location and NEVER use a SoilVial if the Archon is
configured with the Needle Sparge Option! Additionally,
permanent markers are recommended for labeling vials. If paper
labels are used, no more than two labels should be applied to
vials for reliable operation.
Patented Standard
SoilVial 40 mL VOC

03-914642-00:6 2-1
2 Site Preparation / Installation
Please read this section carefully before you begin to assemble the Archon.
2.1
Materials Needed

Regulator, single, two-stage with stainless steel diaphragm

In line on/off valve

Gas supply line tubing, minimum 1/8" diameter

Helium gas, 99.999% purity

Tools, 1/4", 1/16" open end wrenches; 3/16" blade screwdriver, Phillips screwdriver

Remote I/O Cable for communication to concentrator, see Section 8.
2.2
Unpacking the Archon
Each Archon is shipped in two cartons. The sample tray, accessory kit and
installation kit, with any optional spare parts, are shipped in a separate carton
from the Archon.
WARNING
Avoid back strain or injury by following all safety precautions
when lifting heavy objects.

Carefully open the shipping cartons. Lifting from the bottom remove the
Archon from its carton (the largest box). Place it on the bench to the left side
of the concentrator.

Remove the sample tray, interface kit, interface cable, and any accessory or
spare items from the second carton.

Inspect for possible shipping damage or shortages. If damage is discovered,
immediately notify the carrier and Varian.
Varian Analytical Instruments
2700 Mitchell Drive
Walnut Creek, California 94598-1675
Attention: Manager of Customer Service
925-939-2400
Outside the U.S.A., notify the nearest Varian office.

Store the shipping cartons and all packing material for possible future use.

Inspect the contents against the packing list to determine if all items ordered
were received.

Locate the shipping, locking screw with spacer, on the left side of the cabinet.
This screw and spacer must be removed prior to turning the Archon on. Use a
small screwdriver to remove the screw. Save the screw and spacer for
possible future use.

2-2
CAUTION
If the Archon is to be shipped for any reason, the shipping screw
and spacer must be installed or serious damage will occur! See
Section 7.15
 Before turning the instrument on: Check the eight blue reverse ferrule
fittings located in the sample area behind the rear panel (Section 11,
para. 11.2 and 11.4). Unscrew each fitting. Verify that the ferrule is
pushed over the tubing until the end of the tubing can be seen.
Replace and snugly tighten the nut.
 Remove back panel. Locate the waste lines. Route lines through slot.
2.3
Parts and Materials Included in the Accessory Kit (DY-505224-90)
The following items are included with the Archon Accessory Kit. Note: Remote I/O
cables are not included with the Archon, they must be purchased separately. See
Section 10 for a list of cables and kits.
 Operator's Manual
 Blue aluminum nut
 Tefzel® flange-free, ferrule, 1/16”
 6 x 15 mm stir bars, pkg. of 6
 1 ea. 80 oz. safety coated bottle
 22 mm low-bleed septa, pkg. of 60
 EPA 40 ml water vials and caps, pkg. of 12
 51 position sample tray (note this is shipped in a separate box)
 Composite warning labels
 Water Transfer Line, SS, 1/16” x 5’ long
 Stir bars (soil), pkg. of 6 (supplied with SoilVial® version only)
 2 ea. SoilVial® (supplied with the SoilVial version only)
 2 ea. Standard reservoir
2.4
Lab and Bench Space Requirements
The Archon requires bench space behind the instrument for the electrical and
helium gas connections. An additional 17” overhead clearance is required to allow
the cover to be opened.
From the rear of the Archon extend flexible tubing (approximately 60”/1.5M) to be
connected to a blank water reservoir (80 oz./2L bottle) and to a user-supplied
waste receptacle(s). The waste receptacles must be located at or below the
height of the Archon base for proper drainage. Typically, both the blank water
reservoir and waste receptacle are placed on the floor behind the laboratory
bench.

Site Preparation / Installation
03-914642-00:6 2-3
The Archon dimensions are: 21.5W x 17H x 21D inches; 54.6W x 43.2H x 53.3D
centimeters (see Figure 2-1), and weighs approximately 80 lbs./36.5 kilograms.
Figure 2-1
2.5 Gas Connections
Ultra high purity helium (99.999% GC/MS grade) is required for purging soil
samples and operation of the vial gripper arm. The input supply pressure must be
60-90 PSI.
The helium gas line must be connected to the bulkhead fitting labeled “Helium
Input.” Gas line must be 1/8” diameter copper tubing and fittings must be 1/8"
Swagelok®. Use a single, two-stage, high quality pressure regulator with a
stainless steel diaphragm. Consult your supplier for the proper type and size of
cylinder valves. An on-off, shut off valve, should be installed in the line to facilitate
installation. Gas line tubing should be generous. Allow enough length, in a coil, to
be able to move the Archon around to access the rear panel. Tighten and leak
test all connections using propanol and water.
Avoid any pipe thread connections in the supply line. If any fitting requires a
sealant, use an instrument-grade Teflon tape.
21”D 21.5”W
17”H

2-4
2.6 Electrical Connections
The Archon uses a grounded, three-pronged receptacle. Make certain the
electrical voltage is a constant source with no severe drops or spikes in the
voltage. If the power source is not certain, install a power conditioner on the
electrical line. Verify the correct fuse value and voltage selection for the line
voltage to be used.
Attach the power cord to the power receptacle on the rear panel. Check the
power switch located next to the receptacle to be certain it is OFF, plug the power
cord into a three-prong grounded outlet.
2.7 Electronic I/O Signal Connections
2.7.1 Purge and Trap Sync Cable Connector
The Archon communicates with the purge and trap concentrator and GC via a
cable specific to each make and model purge and trap and GC. Section 8 details
the Archon to purge and trap connections. The cable plugs into the 25-pin D
connector located on the rear of the Archon, labeled Remote IO. The other ends
of the cable attach to the purge and trap and the GC. See Section 8 for
installation instructions.
I/O signals vary; some GCs and purge and traps use normally-close contact
closures of active-high TTL logic; others use normally-open contact closures or
active-low TTL logic. Refer to the operator's manual for each system for signal
information.
The Archon signal input configuration must be established to properly receive the
purge and trap's output signals for Standby, Desorb and Stop. “System Settings”
details the parameter configurations for each of the signals. The factory default
setting for each signal is CLOSED.
2.7.2 Personal Computer Connection
The Remote RS-232 port on the Archon rear panel allows connection to external
computing devices. Specific software and cables are required for these
connections. Contact your sales representative for these products.
2.8 Water and Waste Lines Setup
2.8.1 Blank / Wash Bottle Setup
The Archon is supplied with an 80 oz. bottle and lines for the blank, wash, and
dilution water. Remove the bottle from the accessory kit box. The clear line will
attach to the barbed fitting labeled “Helium” and the PEEK line will attach to the
fitting labeled “Water.” See Figure 2-2, The Archon should be supplied with the
same high purity water (free of volatile organic compounds) that is used with the
purge and trap system. Rinse the bottle with purge and trap quality water then fill
it about 2/3 full with DI water. The bottle can be placed either on the bench top or
on the floor behind the Archon.

Site Preparation / Installation
03-914642-00:6 2-5
Figure 2-2
Insert the cap, with the PEEK pickup line, into the bottle, screw the cap onto the
bottle.
NOTE: DO NOT OVERTIGHTEN THE CAP. SLOWLY TURN THE CAP
ONLY UNTIL SNUG. OVERTIGHTENING WILL SPILT THE CAP.
Verify the helium is turned on at the source. Turn the toggle valve for blank water
reservoir and standard helium to the ON position. The valve is located inside the
cabinet on the right rear wall, see Figure 2-3.
To test for a pressurized bottle, depress the vent button located on the blank
waste bottle plug. You should hear the release of pressure. To refill the bottle,
turn the toggle switch OFF and vent the bottle by depressing the chrome button.
When the pressure is completely vented, remove the cap. Fill the bottle as
described above.

2-6

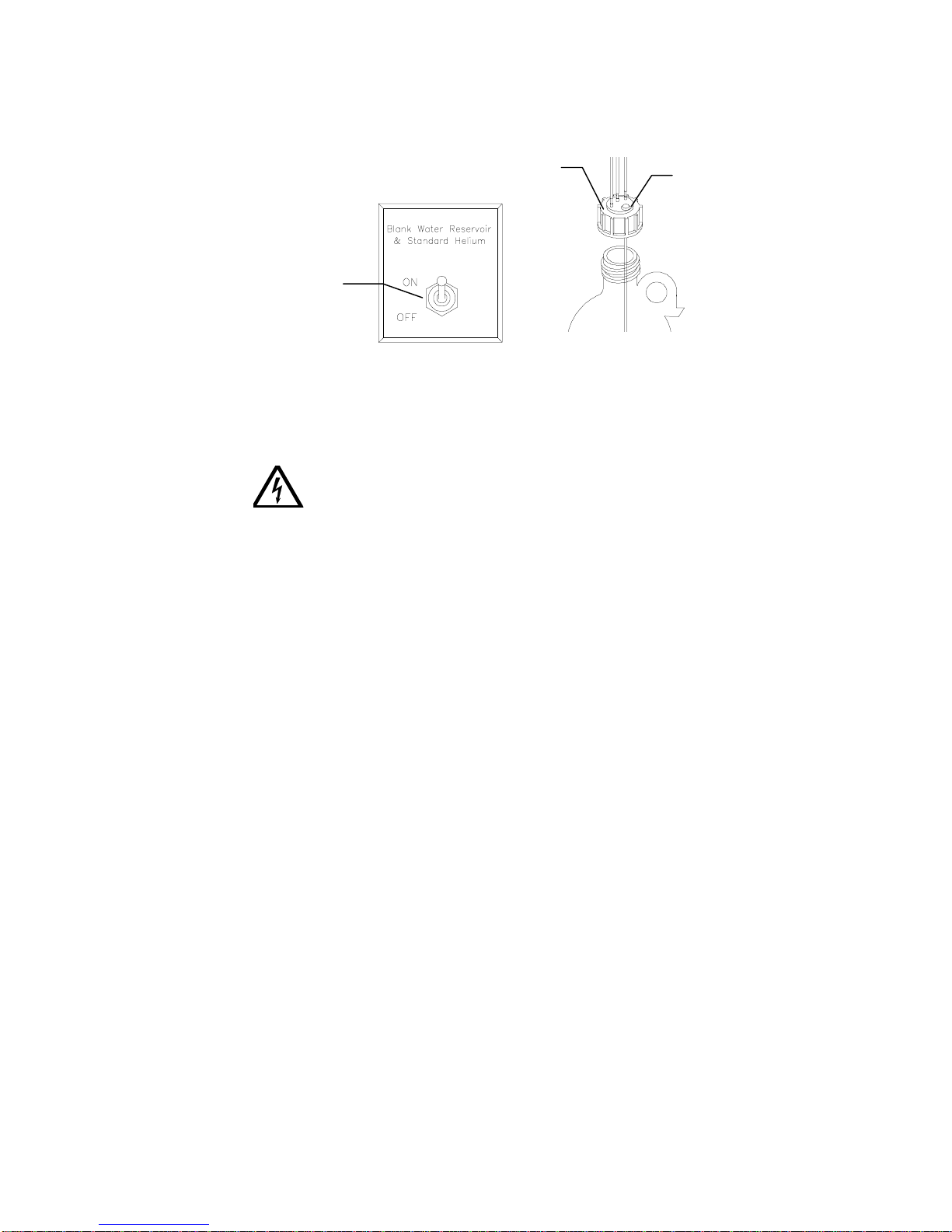

Figure 2-3
2.8.2 Waste Lines Setup
WARNING:
SHOCK HAZARD
Dangerous voltages exposed when covers
are removed. Unplug power cord.
Remove the rear panel of the Archon and route the bundle of four plastic lines
through the slot in the chassis labeled “Waste Lines.” These waste lines should
empty into the user-supplied receptacles that are placed at a height equal to or
lower than the base of the Archon to provide proper drainage. Note that the
colored waste lines expel excess standard solutions while the clear lines empty
waste water. The user may want to use separate waste containers for the colored
versus clear lines to allow different disposals.
Note: Instructions for two PEEK lines are found on page 2-12.
2.9
Sample Tray Setup
Remove the tray from its shipping carton. The tray is installed in the Archon
behind the lower door. Notice the tray has 51 positions and each location is
numbered. Raise the large tray cover and secure the arm lock by gently pushing
it in the center and then lowering the cover. Press the latch button on the top
edge of the lower door and pull the door down.
Grasp the handles on the tray and insert the tray into the Archon with the number
1 position to the front left. The tray will rest on rollers as it is being inserted. Once
the tray is all the way in, it will “lock down” onto four posts. This will align the tray.
Note: The tray must be pushed all the way to the rear most position in the
cabinet.
To remove the tray, lift the front of the tray, then slide the tray out the front on the
rollers.
The tray should be loaded by grouping the vials per the sample method chosen in
Section 5, e.g., water sample vials grouped together and soil sample vials
Toggle Switch
Cap Chrome Vent
Button

Site Preparation / Installation
03-914642-00:6 2-7
grouped together. The method parameters, “First Vial - Last Vial”, will determine
what vial numbers are run together.
The Archon vial gripper calibration coordinate settings must now be checked as
factory settings may have changed during shipping, therefore run the
“Calibration Test” procedure as described in Section 6.4.
Note: If any error messages appear while runing the Calibration Test, refer to
Section 9-1. Refer to Section 6.4 for detailed calibration instructions.

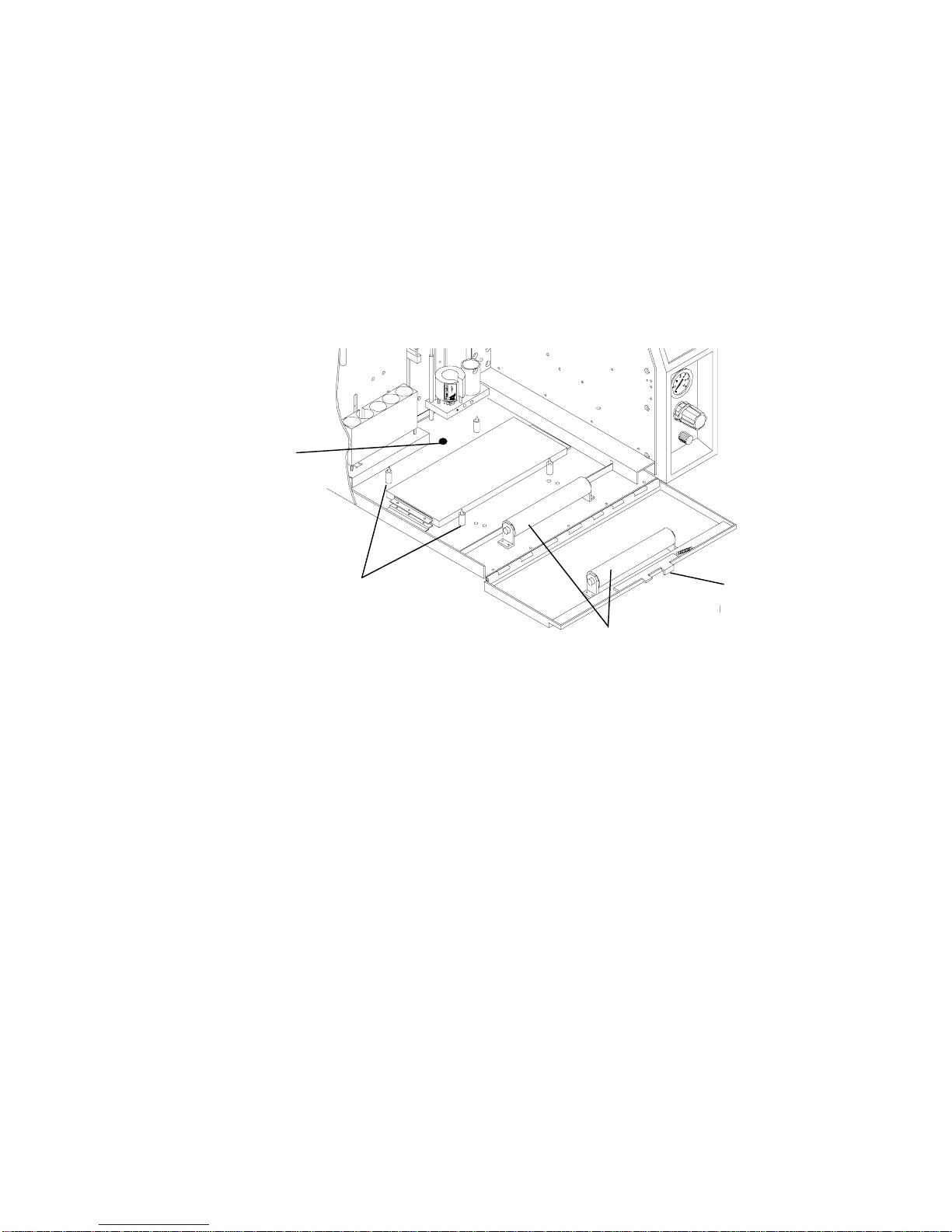

Figure 2-4
2.10
Sample Tray Coolant Setup (Optional)
The Archon sample tray can be cooled by an optional, refrigerated chiller bath
(P/N DY-505627-00), and plumbing kit (DY-700085-90) that can be attached to
the coolant coil. It is located inside the cabinet under the tray. The tray rests on
top of the coil allowing conductive transfer of temperatures. See Figure 2-4. The
coolant connections are located on the rear panel at the lower right corner and
are labeled “Tray Coolant, IN - OUT.” The tubing is 3/8" Duro. Refer to the
instructions included with the coolant and plumbing installation kit.
When the sample tray cooler is used, the drip pan drain MUST have a 1/4" ID
hose attached and be routed to a suitable drain. See Section 7.12 for cleaning the
drip pan.
2.11
Archon Soil Transfer Line Installation
This section will discuss the installation of the Archon sample transfer lines and
purge gas cut off solenoid valve lines to the purge and trap. This section will
explain the installation to the Tekmar 3000, 2000, and OI 4560.
Tray Posts
Tray Rollers
Door Latch
Drip Pan Drain

2-8
Tools required are: 1/4", 2 ea. 5/16" open end wrenches, small flat blade
screwdriver, 9/64" and 3/32" Allen wrenches, and small needle nose pliers.
The installation of the Archon involves four primary steps. Note: All steps do not
apply to every purge and trap. Installation to each instrument is explained in detail
in later sections.
1. Installation of the four way “cross” fitting in the 2000 and 3000 valve oven.
2. Installation of the Archon heated soil transfer line.
3. Installation of the PEEK tubing for purge gas cut off.
4. Installation of the water transfer line.
The Archon installation kit contains various nuts, ferrules, and fittings shipped in
the smaller carton with the Archon. Examine the contents of the carton to confirm
that all items are correct. Refer to Sections 2.1 through 2.3 for unpacking and
component details.
The installation of the Archon will require the use of two different types of nuts
and ferrules. See Figure 2-5.
Figure 2-5
2.11.1 Archon to Tekmar 3000
WARNING:
SHOCK HAZARD
Dangerous voltages exposed when covers
are removed. Unplug power cord.
Note: The Tekmar 3000 valve oven may be configured with one of two different
“tee” fittings. A 3-port on Serial Number units < 95073002 and a 4-port on units >
95073002. A 4-port cross fitting, P/N DY-505716-00 is supplied in the Tekmar
installation kit.
Replacing the 3-Port Fitting with the 4-Port Cross Fitting
in the Tekmar 3000 Valve Oven
Refer to Figure 2-6. The early Tekmar 3000 instruments (Serial numbers <
95073002) were shipped with 3-port fittings within the valve oven; consequently,
1/8 “brass compression
nut with two piece ferrule.
Valco nut with
one piece ferrule
28-694029-00
28-694028-01
28-694027-01

Site Preparation / Installation
03-914642-00:6 2-9
this does not allow the Archon to be installed. Therefore, the 3-port fitting must be
replaced with a 4-port cross fitting.
1. Remove the top, left side and valve oven covers from the Tekmar 3000.
2. Using a screwdriver, loosen the screw which secures the thermocouple and
the clamp on the three-port fitting to the cabinet.
3. Using a 1/4" open end wrench, loosen the nuts in all three ports.
4. Loosen the two screws, which secure the sparge tube mount to the cabinet.
5. Pull the sparge tube mount and tubing, out of the 3- port fitting and off the
instrument.
6. Pull each of the other two lines out.
7. Replace the original fitting with the new 4-port cross fitting.
8. Attach all of the lines into the new fitting. Replace the sparge tube, with
mount, back on the cabinet.
Refer to Figure 2-6 for correct line placement in the new fitting.
