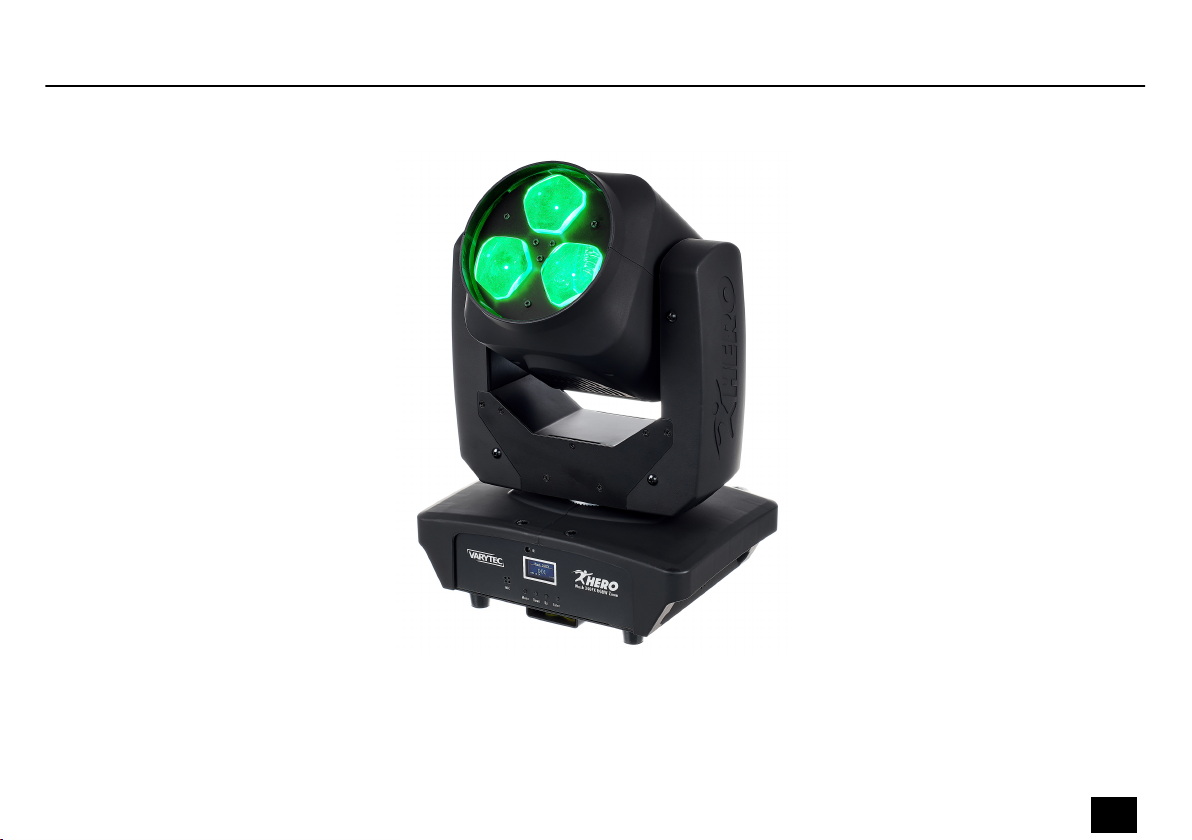

Varytec Hero Wash 340FX RGBW Zoom User manual

Hero Wash
340FX RGBW Zoom
moving head
User manual

Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
Internet: www.thomann.de
24.03.2022, ID: 449223 (V3)

Table of contents
1 General information................................................................................................................................. 6
1.1 Further information........................................................................................................................... 7
1.2 Notational conventions.................................................................................................................... 8
1.3 Symbols and signal words............................................................................................................... 9
2 Safety instructions.................................................................................................................................. 11
3 Features....................................................................................................................................................... 16
4 Installation.................................................................................................................................................. 17
5 Starting up.................................................................................................................................................. 24
6 Connections and controls................................................................................................................... 27
7 Operating.................................................................................................................................................... 33
7.1 Starting the device........................................................................................................................... 33
7.2 Main menu.......................................................................................................................................... 34
7.3 Functions in 8-channel DMX mode........................................................................................... 43
7.4 Functions in 16-channel DMX mode........................................................................................ 47
8 Technical specications....................................................................................................................... 52
Table of contents
Hero Wash 340FX RGBW Zoom 3
moving head

9 Plug and connection assignments.................................................................................................. 55
10 Troubleshooting...................................................................................................................................... 56
11 Cleaning....................................................................................................................................................... 58
12 Protecting the environment.............................................................................................................. 59
Table of contents
4Hero Wash 340FX RGBW Zoom
moving head

Hero Wash 340FX RGBW Zoom 5
moving head

1 General information
This user manual contains important information on the safe operation of the device. Read and
follow all safety notes and all instructions. Save this manual for future reference. Make sure
that it is available to all persons using this device. If you sell the device to another user, be sure
that they also receive this manual.
Our products and user manuals are subject to a process of continuous development. We there‐
fore reserve the right to make changes without notice. Please refer to the latest version of the
user manual which is ready for download under www.thomann.de.
General information
6Hero Wash 340FX RGBW Zoom
moving head

1.1 Further information
On our website (www.thomann.de) you will nd lots of further information and details on the
following points:
Download This manual is also available as PDF le for you to download.
Keyword search Use the search function in the electronic version to nd the topics of
interest for you quickly.
Online guides Our online guides provide detailed information on technical basics
and terms.
Personal consultation For personal consultation please contact our technical hotline.
Service If you have any problems with the device the customer service will
gladly assist you.
General information
Hero Wash 340FX RGBW Zoom 7
moving head

1.2 Notational conventions
This manual uses the following notational conventions:
The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
Texts and values displayed on the device are marked by quotation marks and italics.
Examples: ‘24ch’ , ‘OFF’ .
References to other locations in this manual are identied by an arrow and the specied page
number. In the electronic version of the manual, you can click the cross-reference to jump to
the specied location.
Example: See Ä ‘Cross-references’ on page 8.
Letterings
Displays
Cross-references
General information
8Hero Wash 340FX RGBW Zoom
moving head

1.3 Symbols and signal words
In this section you will nd an overview of the meaning of symbols and signal words that are
used in this manual.
Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
WARNING! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in death or serious
injury if it is not avoided.
CAUTION! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in minor injury if it
is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
General information
Hero Wash 340FX RGBW Zoom 9
moving head

Warning signs Type of danger
Warning – high-voltage.
Warning – dangerous optical radiation.
Warning – suspended load.
Warning – danger zone.
General information
10 Hero Wash 340FX RGBW Zoom
moving head

2 Safety instructions
This device is intended for use as a freely moving multifunctional spotlight. The device is
designed for professional use and is not suitable for use in households. Use the device only as
described in this user manual. Any other use or use under other operating conditions is consid‐
ered to be improper and may result in personal injury or property damage. No liability will be
assumed for damages resulting from improper use.
This device may be used only by persons with sucient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
Extend the operating life of the device by regular breaks and by avoiding frequent
switching on and o. The device is not suitable for continuous operation.
Intended use
Safety instructions
Hero Wash 340FX RGBW Zoom 11
moving head

Safety
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking
hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and
choke! Never let children unattended use electrical devices.
DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts
inside. Do not use the device if covers, protectors or optical components are missing or damaged.
DANGER!
Electric shock caused by short-circuit
Always use proper ready-made insulated mains cabling (power cord) with a protective contact plug. Do not modify the mains cable
or the plug. Failure to do so could result in electric shock/death or re. If in doubt, seek advice from a registered electrician.
WARNING!
Eye damage caused by high light intensity
Never look directly into the light source.
Safety instructions
12 Hero Wash 340FX RGBW Zoom
moving head

WARNING!
Risk of epileptic shock
Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons should avoid looking at strobe lights.
WARNING!
Risk of injury caused by falling objects
Make sure that the installation complies with the standards and rules that apply in your country. Always secure the device with a
secondary safety attachment, such as a safety cable or a safety chain. The load capacity of trusses or other xtures must be sucient
for the intended number of devices. Not that the movement of the head places additional loads on the load-bearing parts.
CAUTION!
Risk of injury due to movements of the device
The head of the device can move quickly (pan, tilt) and can produce very bright light. This is also valid immediately after you turn on
the device, when the device operates in automatic mode or under remote control and when you turn o a DMX controller that is
connected to the device. Persons staying near the device could be injured or frightened. Before you turn on the device and during
the operation, always ensure that nobody stays close to the device. If work has to be performed in the area of movement or in the
near vicinity of the device, it must remain turned o.
NOTICE!
Risk of re
Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked ames.
Safety instructions
Hero Wash 340FX RGBW Zoom 13
moving head

NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid
direct sunlight, heavy dirt, and strong vibrations. Only operate the device within the ambient conditions specied in the chapter
‘Technical specications’ of this user manual. Avoid heavy temperature uctuations and do not switch the device on immediately
after it was exposed to temperature uctuations (for example after transport at low outside temperatures). Dust and dirt inside can
damage the unit. When operated in harmful ambient conditions (dust, smoke, nicotine, fog, etc.), the unit should be maintained by
qualied service personnel at regular intervals to prevent overheating and other malfunction. The device must not be moved during
use.
NOTICE!
Power supply
Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC
outlet is protected by a residual current circuit breaker. Failure to do so could result in damage to the device and possibly injure the
user. Unplug the device before electrical storms occur and when it is unused for long periods of time to reduce the risk of electric
shock or re.
NOTICE!
Fire hazard due to exceedance of the maximum current
The device can power other devices of identical construction. The current consumption of all other devices connected in series must
not exceed the values indicated in the technical specications. Otherwise you risk injuries and irreparable damages to the device.
Only connect so many identical devices that the maximum current consumption is not exceeded. Ensure the sucient dimensioning
(wire cross section) of the power cables used for all devices connected in series.
Safety instructions
14 Hero Wash 340FX RGBW Zoom
moving head

NOTICE!
Possible staining
The plasticiser contained in the rubber feet of this product may possibly react with the coating of your surface and after some time
cause permanent dark stains. In case of doubt, do not put the rubber feet directly on the surface and use a suitable underlay if neces‐
sary, i.e. felt-pad oor protectors or similar.
NOTICE!
Risk of overheating
The distance between light output and the illuminated surface must be more than 1.5 m (19.7in). Provide sucient ventilation. The
ambient temperature must always be below 40 °C (104 °F).
NOTICE!
Possible damage due to installation of a wrong fuse
The use of dierent types of fuses can cause serious damage to the unit. Fire hazard! Only fuses of the same type may be used.
Safety instructions
Hero Wash 340FX RGBW Zoom 15
moving head

3 Features
Special features of the device:
n3 four-colour LEDs 4in1 (RGBW, each 40 W)
nAdjustable beam angle from 4° to 45° with motorised zoom
nContinuous FX rotation
nControl via DMX (8 or 16 channels), via buttons and display on the unit or via IR remote
control (item no. 451696, optional)
nBuilt-in automatic show programmes
nSound control
nMaster / Slave mode
nStrobe eect
nElectronic dimmer
nRobust metal and plastic housing
For technological reasons, the light output of LEDs decreases over their lifetime. This eect
increases with higher operating temperature. You can extend the service life of the illuminants
by providing adequate ventilation and operating the LEDs with the lowest possible brightness.
Features
16 Hero Wash 340FX RGBW Zoom
moving head

4 Installation
Unpack and check carefully there is no transportation damage before using the unit. Keep the
equipment packaging. To fully protect the product against vibration, dust and moisture during
transportation or storage use the original packaging or your own packaging material suitable
for transport or storage, respectively.
Lift the device only at the base. When lifted at the rotatable mounting, the device may be dam‐
aged.
You can install the device standing or hanging. When in use, the device must be mounted at a
solid surface or clamped to an approved truss.
Work from a stable platform whenever you install or move the device or when you perform
any kind of maintenance. Block access under the work area.
Installation
Hero Wash 340FX RGBW Zoom 17
moving head

WARNING!
Risk of injury caused by falling objects
Make sure that the installation complies with the standards and rules that apply
in your country. Always secure the device with a secondary safety attachment,
such as a safety cable or a safety chain.
The load capacity of trusses or other xtures must be sucient for the intended
number of devices. Not that the movement of the head places additional loads on
the load-bearing parts.
NOTICE!
Risk of overheating
The distance between light output and the illuminated surface must be more
than 1.5 m (19.7in).
Provide sucient ventilation.
The ambient temperature must always be below 40 °C (104 °F).
Installation
18 Hero Wash 340FX RGBW Zoom
moving head

NOTICE!
Possible data transmission errors
For error-free operation make use of dedicated DMX cables and do not use ordi‐
nary microphone cables.
Never connect the DMX input or output to audio devices such as mixers or ampli‐
ers.
Installation
Hero Wash 340FX RGBW Zoom 19
moving head

A
AB

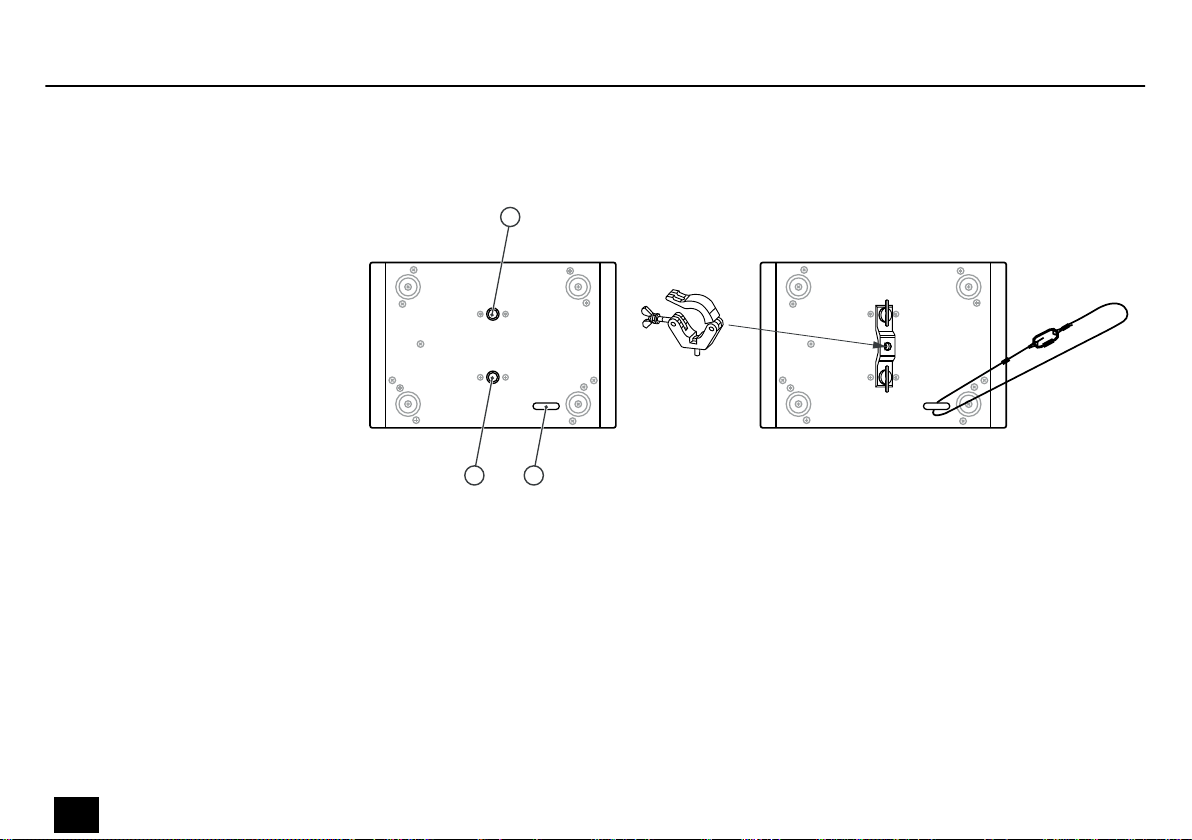

The threads on the bottom side of the housing (A) allow the secure attachment of the included
mounting bracket. There, you can fasten adapters such as half couplers, trigger clamps, c-
hooks etc. Safety cables are being threaded through the eyelet (B) on the bottom side of the
housing.
Mounting options
Installation
20 Hero Wash 340FX RGBW Zoom
moving head
