For the European region
Version 1.0
User Manual

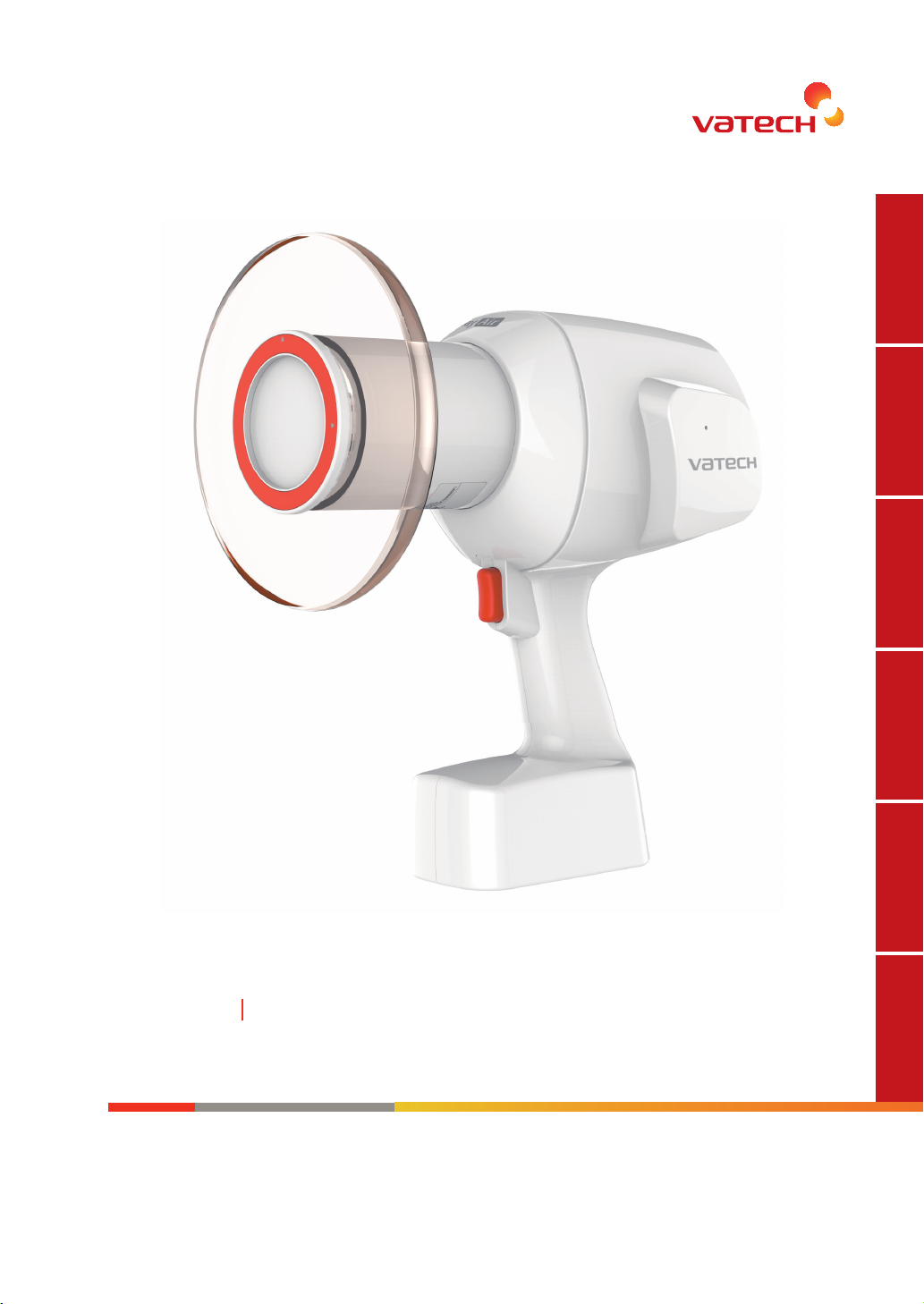

(Model: VEX-P300)EzRay Air

ENGLISH
Notice.....................................................................................................v
Conventions Used in this Manual......................................................vi
1. System Overview.....................................................................1
1.1 Indications for Use...........................................................1
1.2 Principles of Operation .................................................... 1
1.3 Components ....................................................................1
1.4 General View of the Equipment.......................................2
2. Safety Instructions ..................................................................7
2.1 General Safety Guidelines...............................................7
2.2 Warnings and Safety Instructions....................................8
3. Operation................................................................................ 11
3.1 Power On/Off ................................................................. 11
3.2 Operation Mode.............................................................12
3.3 Positioning .....................................................................17
3.4 Exposure........................................................................29
3.5 Using the Battery ...........................................................31
4. Cleaning and Maintenance...................................................39
4.1 Cleaning.........................................................................39
4.2 Maintenance ..................................................................40

Notice
EzRay Air (Model: VEX-P300) User Manual v
ENGLISH
Notice
The VEX-P300 is a portable dental X-ray system.
This manual contains descriptions, operational instructions, imaging procedures for the
VEX-P300 dental X-ray system. Itis recommended that you thoroughly familiarize
yourself with this manual in order to make the most effective use of this equipment.
Observe all cautions, safety messages and warnings that appear in this manual.
Keep this manual with the equipment at all times, and review the operation procedures
and safety instructions ifneeded.
The illustrations/photos of the equipment in this manual are only for illustration
purposes.Actual equipment may differ.
Due to continuous technological improvements, the manual may not contain the most
updated information. For further information not covered in this manual, please contact
us at:
VATECH Co., Ltd.
Phone: [phone]
E-mail: [e-mail]
This document is originally written in English.
The VEX-P300 is referred to as Equipment in this manual.
Manual Name: EzRay Air (Model: VEX-P300) User Manual
Version: 1.0
Publication Date: 2016-10

Conventions Used in this Manual
vi EzRay Air (Model: VEX-P300) User Manual
Conventions Used in this Manual
The following symbols are used throughout this manual. Make sure that you fully
understand each symbol and follow the instructions which accompany it.
To prevent personal injury and/or damage to the equipment, please observe all
warnings and safety information included in this document.
WARNING
Indicates that a specific hazard is known to exist
which through inappropriate conditions or actions
may cause:
Severe personal injury (to the operator and/or
patient)
Substantial property damage.
CAUTION
Indicates that a potential hazard may exist which
through inappropriate conditions or actions will or
can cause:
Minor injury
Property damage.
IMPORTANT
Indicates that a potential problem may exist which
through inappropriate conditions or actions can
cause:
Property damage.
NOTE
Indicates precautions or recommendations that
should be used in the operation of the system,
specifically:
Using this Manual
Notes to emphasize or clarify a point.

1. System Overview
EzRay Air (Model: VEX-P300) User Manual 1
ENGLISH
1. System Overview
The VEX-P300, a portable dental X-ray system, operates on 22.2 V d.c. supplied by a
rechargeable Li-ion polymer battery pack. The portable X-ray system is an X-ray
generating device which is mainly designed for dental examination (teeth and jaw).
The portable X-ray system is composed of an X-ray generating part with an X-ray tube
including a device controller, a power controller, a user interface, a beam limiting part,
a backscatter shield, and an optional Remote Exposure Switch. The VEX-P300 is
designed to diagnose teeth and jaw through X-ray exposure using intra-oral image
receptors.
1.1 Indications for Use
The VEX-P300 is a portable dental X-ray system intended for use by a trained and
qualified dentist or dental technician for both adult and pediatric subjects for producing
diagnostic dental radiographs for treatment of diseases of the teeth, jaw, and other oral
structures using intra-oral image receptors.
1.2 Principles of Operation
X-rays are emitted when high voltage is supplied to the X-ray tube assembly which
frees electrons from cathode. They hit anode to produce X-rays. The equipment
acquires images by emitting X-rays continuously on human tooth.
1.3 Components
No. Item Standard Option Qt y.
1 VEX-P300 Main Body ●1
2 Battery Charger (power cord
included) ●1
3 User Manual ●1
4 Backscatter Shield ●1
5 Round Cover ●1
6 Cradle ●1
7 Rectangular Cover (2x3) ●1
8 Rectangular Cover (4x3) ●1
9 Remote Exposure Switch ●1
10 Base Holder ●1
11 Hand/Neck Strap ●1

1. System Overview
2 EzRay Air (Model: VEX-P300) User Manual
1.4 General View of the Equipment
Main Body
No. Item Description
1 Backscatter Shield Shields from the back scattering radiation.
2 X-ray Beam Limiting
Device
Limits the X-ray exposure area.
Default type: Round Cone + Round Cover (FOV: Ø 6
cm)
3 X-ray Exposure Button Press the button for X-ray exposure.
4 Handle Grip the handle securely when using the system.
5 Power Button Power On/Off button
6 Battery Rechargeable Lithium ion battery
7 Adaptor Connector Connect the charging adaptor.
8 Remote X-ray
Exposure Switch Port
Connect the X-ray exposure cable switch.
Or can be used as a service port
9 Strap Loop Connect the strap.
10 Control Panel Display for the X-ray exposure settings and
operation conditions
11 X-ray Generator Includes the X-ray tube and the high-voltage
generator.

1. System Overview
EzRay Air (Model: VEX-P300) User Manual 3
ENGLISH
Control Panel
No. Item Description
1
Tube
Voltage/Current
Indicator
Indicates the tube voltage and tube
current of the system.
2
Angle/Time
Display
Displays the X-ray exposure time, error
code, cooling time and exposure angle.
3
Adult/Child
Selection Indicates a patient type (adult or child).
4
Remaining
Battery
Indicator
Indicates remaining battery level.
Battery
Charging
Indicator
1) Indicates the battery charger is
connected to the device.
2) Indicates the battery needs to be
charged when it flickers.
5 SET Button Resets the X-ray exposure angle.
6 Speaker Sound alarm for the X-ray exposure
7
Tooth Type
Selection Selects the tooth type.
1
2
3
4
5
6
7
8
9
10

1. System Overview
4 EzRay Air (Model: VEX-P300) User Manual
No. Item Description
8
X-ray Exposure
Indicator
Indicates the X-ray exposure status.
(Green: Ready / Yellow: X-ray On)
9 Jog Dial
Turn the jog dial left (-) or right (+) to
select an X-ray exposure setting, press
the jog dial to confirm the operating
setting.
10 AUTO Button
Selects a tooth and exposure time
automatically based on the X-ray
exposure angle.

1. System Overview
EzRay Air (Model: VEX-P300) User Manual 5
ENGLISH
Available Option Items
No. Figure Option name
1 Cradle
2
Rectangular Cover 2x3 (3x2)
FOV: 2x3 cm, 3x2
cm
(This cover can be used as both
2x3 and 3x2.)
3
Rectangular Cover 4x3 (3x4)
FOV: 4x3 cm, 3x4 cm
(This cover can be used as both
4x3 and 3x4.)
4 Remote Exposure Switch
5
Base Holder*
6 Hand/Neck Strap
* In case a tripod is used with the Base Holder, refer to the specifications below.
Fixing bolt size: 3/8 inch
Maximum supportable weight: about 5 kg
Minimum height: > 130 cm
More than 3 columns are required.
When using a tripod with 3 columns, make sure to have space of at least 1 m in width on
the bottom.

1. System Overview
6 EzRay Air (Model: VEX-P300) User Manual
This page intentionally left blank.

2. Safety Instructions
EzRay Air (Model: VEX-P300) User Manual 7
ENGLISH
2. Safety Instructions
2.1 General Safety Guidelines
Mode of operation: Continuous operation with intermittent loading 30 times the
exposure time wait before next exposure can begin.
This equipment is designed and manufactured to ensure maximum safety of
operation. Operate and maintain it in strict compliance with the safety precautions
and operating instructions contained in this manual.
This equipment must only be operated by legally qualified persons.
Observe all local fire regulations. Always keep a fire extinguisher near the
equipment.
The equipment must be installed, maintained, and serviced by qualified service
personnel according to the procedures and preventive maintenance schedules.
Only battery replacement can be performed by users.
Ensure that the on/off switch is set to off when the equipment is not in use.
Always disconnect the power supply before cleaning the equipment.
DO NOT keep the equipment or its parts in a humid place or a liquid substance.
Avoid placing the equipment near chemical storage and gas-filled storage
facilities.
This equipment is shipped with the backscatter shield attached (firmly fixed), so
the backscatter shield cannot be replaced by users. If it is damaged or defective,
contact your Service Representative for replacement.
The backscatter shield protects users from backscatter radiation that they might
be exposed during X-ray exposure. Operating the equipment with the backscatter
shield allows the users to be exposed to less radiation compared to when
operating without.

2. Safety Instructions
8 EzRay Air (Model: VEX-P300) User Manual
2.2 Warnings and Safety Instructions
This X-ray unit may be dangerous to patient and operator unless safe
exposure factors, operating instructions and maintenance schedules are
observed.
It is important to read this user manual carefully and strictly abide by all
warnings and cautions stated within it.
To avoid risk of electric shock, this equipment must only be connected
to a supply mains with protective earth.
Since rules and regulations concerning radiation safety differ between
countries, it is the responsibility of the owner and/or operator of this
equipment to comply with all applicable rules and regulations
concerning radiation safety and protection in their area.
DO NOT open or remove the cover panels on this equipment.
Never expose this equipment to liquids, mists or sprays. Exposing this equipment
to liquids may cause an electrical shock or otherwise damage the system.
DO NOT use spray cleaners on this equipment, as this could cause a fire.
Never use this equipment in an environment that is susceptible to explosion.
DO NOT place flammable materials near this equipment.
Never touch the patient while also touching the SIP/SOP connectors.
Never try to modify this equipment, including the wires or cables. Modifying this
equipment may damage it beyond repair.
We recommend that the patient and the operator wear protective lead-lined
aprons, unless other Radiation Protection Protocols apply locally.
Children and pregnant women must consult with a doctor before X-ray exposure.
Serious dangers may occur from electromagnetic interference (i.e. noise)
between other equipment in the area during specific examinations or medical
treatment.
Battery chargers must be located in the accessible area where they can be easily
unplugged from the power source.

2. Safety Instructions
EzRay Air (Model: VEX-P300) User Manual 9
ENGLISH
Battery Use
Make sure to charge the battery in the external environment from the patient.
Make sure to use the battery only provided or approved by VATECH. If non-
standard or damaged batteries are used, there is risk of fire and explosion.
Make sure to use the battery charger only provided or approved by VATECH.
Using an unauthorized charger may result in battery damage.
DO NOT expose batteries to heat or fire. Avoid storage in direct sunlight.
DO NOT short-circuit, crush, puncture, mutilate, or disassemble the battery.
DO NOT store batteries haphazardly in a box or drawer where they may short-
circuit each other or be short-circuited by other metal objects.
Observe the plus (+) and minus (-) marks on the battery and equipment and
ensure correct use.
DO NOT remove a battery from its original packaging until required for use.
DO NOT subject batteries to mechanical shock.
In the event of a cell leaking, do not allow the liquid to come in contact with the
skin or eyes. If contact has been made, wash the affected area with copious
amounts of water and seek medical advice.
DO NOT make the battery wet or let it be in water. Keep batteries clean and dry.
Keep the battery away from children and pets.
Seek medical advice immediately if a battery has been swallowed.
DO NOT dispose of batteries with ordinary trash. Turn in discharged batteries to
local supply or discard or recycle batteries according to your local government
regulations.
Batteries can be replaced by users.
Make sure to turn off the device before replacing the battery.
When charging the battery, the exposure function is locked.
DO NOT leave a battery on prolonged charge when not in use.
If the equipment has not been used for long periods of time, it is recommended to
charge the battery before use.
After extended periods of storage, it may be necessary to charge and discharge
the cells or batteries several times to obtain maximum performance.
Be sure to turn off the equipment when not in use. This helps to ensure the life of
the battery.

2. Safety Instructions
10 EzRay Air (Model: VEX-P300) User Manual
Be sure to charge the battery frequently. This helps to ensure the life of the
battery.
If the equipment not in use has been turned on for long periods of time, the
battery may be fully discharged.
- Depending upon the battery discharge status, it takes about 1 day for charging
the battery. If the device is not turned on after charging the battery for about 1
day, it indicates that the battery has been fully discharged. Contact your Service
Representative for battery replacement.
- DO NOT charge a fully discharged battery, as this may cause fire or explosion.
Be sure to replace the battery (provided by VATECH).
Radiation Safety
When using the equipment, it is recommended that all users comply
with the following radiation safety guidance for the safety of the users
and the patients.
This equipment should be operated by a trained and qualified dentist or a dental
technician in a controlled environment.
All users and patients should wear protective equipment, such as a lead apron,
thyroid collar, etc.
This equipment should be operated in the area that is more than 6 feet away from
other personnel, such as assistants or other patients. If they should stay closer
than 6 feet, it is recommended that they wear a lead apron, thyroid collar, or stay
behind a lead shield.
Pregnant women should not be exposed to X-rays unless it is strictly necessary.
All users should comply with the Radiation Protection Policies established by the
government.
When selecting a Position Indicating Device, it should be considered if the PID
can be used with the back scatter shield attached at the outer end of the cone for
maximum operator protection.
