Vaxcel T0274 Instruction manual

Page 1 / 10
Important to Know:
1. If you are not familiar with state and local electrical
codes, it is recommended that you consult with a
qualified electrician.
2. This fixture requires a 120 VAC, 60 Hz power
source.
3. For general safety and to avoid any possible
damage to the sensor, be sure the power is
switched "off" before adjustment.
Maximum Wattage: 29 W
Working Temperature Range: -40F ~ 1130F
ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
T0274 / T0275
Features:
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
Note: Fixture can be wall mounted or eave mounted.
Wall Mounted Eave Mounted
Read notes section on page 4 for additional information about mounting location of fixture.
Light fixture and sensor should be mounted as shown above when installed (depending upon type of installation)
Before installing the light fixture under an eave, the sensor head must be rotated as shown in the next two steps for
proper operation and to avoid the risk of electrical shock.
For eave mounted only:
Swing the sensor head towards the mounting bracket. Rotate the sensor head clockwise 180˚ so the controls face down.
Controls
Mounting Bracket
Controls
Controls
1. Energy saving LED fixture.
2. Motion sensor: turns light ON automatically when
motion is detected and turns light OFF automatically
when motion stops.
3. Photocell keeps the light OFF during daylight hours.
Hardware Package (included):
Mounting Screw X2
#8/32X1/2 in Mounting Bracket Screw Fixture Mounting Screw
Mounting Strap
Mounting Screw X2
#6/32 X1/2 in
Mounting Screw X2
#10/24 X1/4 in Decorative cover
160826

Page 2 / 10
Installation Steps
1. The fixture mounting bracket is pre-assembled on the light fixture. Unscrew
both the decorative cover and the fixture mounting screw in order to remove
the mounting bracket.
2. Install the mounting strap to the outlet box with the stamped word “FRONT”
facing away from the outlet box, using two mounting screws that best fit the
outlet box. Mounting bracket should sit flush against wall surface when
secured.(Choose one matching pair of suitable mounting screws from the
3 pairs provided)
3. Pull out the source wires from the outlet box.Unscrew the screws from the
terminal station. And connect the black wire from the outlet box to the “L”
interface of the terminal station on the mounting bracket. Connect the white
wire from the outlet box to the “N” interface of the terminal station on the mounting bracket. Then tighten the screws
back to screw the wires in place.
Carefully tuck the wires back into the outlet box.
4. Place mounting bracket against the outlet box, insert the mounting bracket screw through the mounting bracket hole,
thread mounting bracket screw into the center hole of the mounting strap. Tighten the mounting bracket screw securely.
▲ When mounting to a wall, the “UP” arrow must point upward. (See Fig. 1)
▲ When mounting to an eave, the “UP” arrow must point toward the building.
5. Attach the back plate of the light fixture to the mounting bracket, secure it with the fixture mounting screw.
6. Push the decorative cover firmly into the fixture mounting screw hole on the light fixture.
7. With silicone caulking compound, caulk completely around where the mounting bracket meets the wall surface.
CAUTION: Be sure to caulk completely where the mounting bracket meets the wall surface to prevent water
from seeping into the outlet box.
Sensor
Mounting Strap
Mounting Bracket
Outlet Box
Back Plate
Mounting Screw
Light Head
sensor
Adjusting the Sensor Head:
1. Aim sensor head toward desired detection area, maintaining a
5° - 40° downward angle to allow moisture to drain.
Note: Make sure sensor head is positioned with control knob facing
towards the ground.
Turn off the power at fuse or circuit box.
Turn on the power at fuse or circuit box.
Fig. 2
Fixture Mounting
Screw
Mounting Bracket Screw
Fig. 1
FRONT
Decorative cover
160826
NL

Page 3 / 10
Function and Operation
Choose a mode by sliding the switch on the bottom of the sensor. (See Fig.6)
Note: When power is first applied, the light will turn on to 100% brightness. The sensor will take 30 seconds
to warm up.
1. Test mode (daytime or nighttime operation )
● Slide the switch on the left side of the sensor to the “TEST” position.
(See Fig.6)
● With the power on, the light turns to low-level brightness
automatically.
● The light turns to high-level brightness when motion is detected,
and stays on as long as the motion continues. Then it reverts back
to low-level brightness about 5 seconds after motion is no longer
detected.
Note: You can adjust the low-level (0~50%) and high-level (50~100%)
brightness by using the brightness switch on the back plate.
(See Fig. 7)
2. AUTO MODE (nighttime operation only)
● To shift to “AUTO” mode, slide Time Delay switch to the desired
time setting (between 5 seconds and 5 minutes). At dusk, the light
turns on to pre-selected low-level brightness. When motion is
detected, the light turns to pre-selected high-level brightness and
stays on as long as motion continues. When the motion is no longer
detected, the light at high-level brightness remains on for the
predetermined time you set (5s ~ 5min), and then switches back to
low level automatically.
● The light turns off automatically at dawn.
Note: You can adjust the low-level (0~50%) and high-level (50~100%)
brightness by using the brightness switch on the back plate.
(See Fig. 7)
Adjustment Sensor Lower For Short Coverage
Adjustment Sensor Higher For Long Coverage
Fig. 5

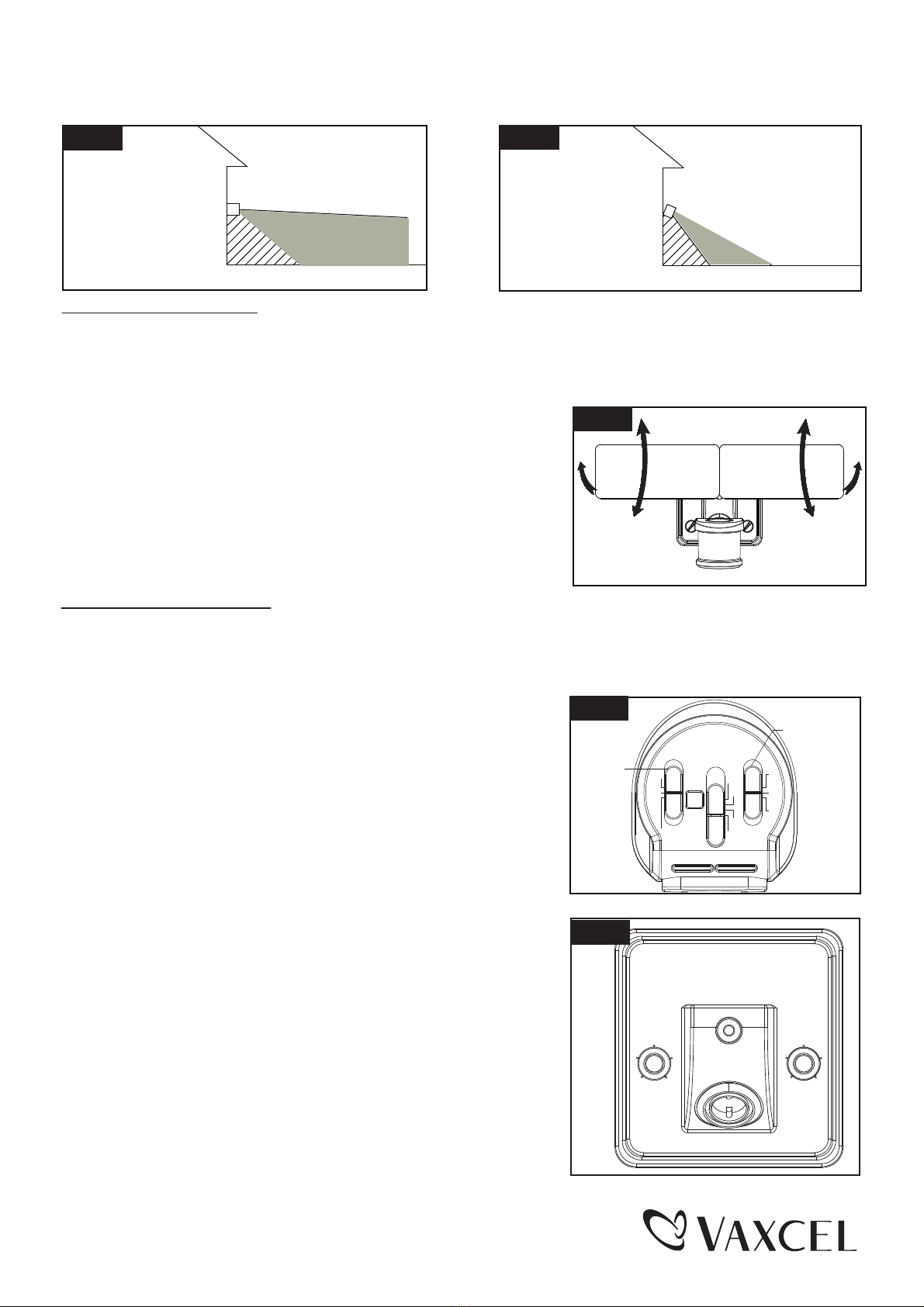

1. Gently grasp the light heads and tilt them up or down, left or right to
adjust the light coverage area. Keep the light heads at least 1˝ (25mm)
away from the sensor.(See Fig. 5)
2. Keep the light heads 30˚ below horizontal to avoid water damage and
electrical shock.
Fig. 3 Fig. 4
Adjusting the Light Head:
Fig. 6
Fig. 7
Sensitivity of Motion Sensor
● You can adjust the sensitivity of the motion sensor by using the “SENSITIVITY” selector located on the right side
of the bottom surface of the sensor. (See Fig. 6)
● Adjust motion sensor sensitivity to HIGH (H), MEDIUM (M), or LOW (L) to achieve desired performance.
● Approximate range for each setting: 25 ft. (L), 45 ft. (M), 70 ft. (H).
2. You can rotate the sensor head up and down to change the coverage area (See Fig. 2). Walk through the detection
zone at the farthest distance you wish to detect motion.
Note: Range set too high may increase false triggering. (See Fig. 3 and Fig. 4)
160826
Mode
Mode
HIGH LEVEL
75% 25%
100%
50% 50%
0
LOW LEVEL
TEST
AUTO
RESET
3MIN
1MIN
5S
5MIN
L
M
H
CUSTOM
SETTINGS
SENSITIVITY
Sensitivity

Page 4 / 10
3. CUSTOM SETTINGS MODE (nighttime operation only)
● Set motion-sensor operation to go on at a specified time, turn the wall switch “OFF” and then
turn it “ON” within 3 seconds at that time. The light will go into motion-sensor operation at the
specified time every night. The light turns off automatically at dawn.
● For example, a homeowner wants to have the light stay on high-level brightness from dusk to
8pm. At 8pm, the homeowner would like the light to go into motion sensor mode. To achieve
this, the homeowner will, at 8pm, turn wall switch on and off within 3 seconds. This sets the light
such that every day, the light will behave the same way.
●To revert back to Default, turn the wall switch “OFF” and then turn it “ON” over 5 seconds again.
Note: You can adjust the low-level (0~50%) and high-level (50~100%) brightness by using the brightness
switch on the back plate. (See Fig. 7)
Notes:
1. The sensitivity of the motion sensor will increase as the
environmental temperature gets cooler. You may wish to
make adjustments when the season changes.
For best performance, gently clean the lens with a soft
cloth every 1 or 2 months to assure maximum sensitivity.
2. For best performance, install fixture at least 8 feet above
the ground. At such a height, the fixture will provide a
detection distance of up to 70 feet at 77 degrees
Fahrenheit. (See Fig.8)
3. The sensor detects movement across a detection range
of 240 degrees. (See Fig.9)
4. The sensor will be more sensitive to motion across its
detection path than motion directly towards it. (See Fig.10)
5. To reduce possible nuisances, do not mount the fixture
near a heat source like an air conditioner, vent or furnace
exhaust, or in a direction facing any reflecting object or
other light source.
25'
8.0'
12.0'
70'
Where you install your fixture is important:
Be sure the light is mounted straight on the wall
or eave; otherwise, the detection distance may
be limited.
Fig. 8 Fig. 9
Motion
Least sensitive
Motion
Most sensitive
Sensor
Fig. 10
160826
240'

Page 5 / 10
160826
User Guide
Setting for single light through mobile device (Take iOS for example as below.
Android will be slightly different).
Before you start
Fig.1
2. Start the APP.
Add a light
Fig.2
9:41 AM 100%
Bluetooth security light
Fig.3 Fig.3-1
My Dualux Lights
9:41 AM 100%
Search for Lights
Searching. Please wait.
Light List
9:41 AM 100%
Search for Lights
No light found.
- Please make sure Bluetooth on your
device is turned on.
- Please make sure the light is turned
on.
3. Click “Search for Lights” to search for existing lights.
4.If there is a light in the
bluetooth cover range, the
new light will be shown in
light list. Click the “Light 1”, it
will go to the step 5 for
choosing mode. And click
“ ” icon, it will go to the
step 8 .
Fig.4
Search for Lights
Light List
Light 1
9:41 AM 100%
5. Select “Test” in Manual
override and adjust “Detection
Distance” and “Brightness”
as desired. Then click “Save”.
Use light in “Test” mode
Fig.5
9:41 AM 100%
SaveBack
Detection Distance
70ft5ft
70ft
Motion Delay Time
5s 5min
5s
High Level
Low Level
Brightness
50% 100%
100%
0 50%
20%
Test
Auto
Custom Settings
Manual override
6. Select “Auto” in Manual
override and adjust “Motion
Delay Time”, “Detection
Distance” and “Brightness” as
desired. Then click “Save”.
Fig.6
Use light in “Auto” mode
9:41 AM 100%
SaveBack
Test
Auto
Custom Settings
Manual override
Detection Distance
70ft5ft
70ft
Motion Delay Time
5s 5min
5s
Low Level
Brightness
0 50%
20%
High Level
50% 100%
100%
1. Search “Dualux BT” at Apple
store or Android Google
Play. Download the “Dualux
BT” APP onto the device.
●Turn on bluetooth on mobile
device.
● Turn light switch controlling
the light to “ON”.

Page 6 / 10
160826
TROUBLESHOOTING
7. Select “Custom Settings” in
Manual Override for
Customize Early Evening
Mode setting, and choose
option between “Duration” or
“Clock Time (End Time)” to
set the continuous bright light
illumination duration. Within
“Duration”, you may set from
0 to 12 hours for continuous
bright light once lamp is
activated at night. In “Clock
Time (End Time)”, is the time
you set to deactivate the
continuous bright light
according to the actual hour
in the mobile device after the
lamp is activated. Both option
settings will return to motion-sensor operation after the
continuous bright light is deactivate. 9:00 P.M. is the
default in “Clock Time(End Time)”.
Note: "Duration" setting will only work once per setting,
it automatically go into “Clock Time (End Time) on the
next day. Also if you do not click save for either option,
then the settings will follow according to the switch
control on the actual lamp.
Fig.7
Use light in “Custom
settings” mode
8. Click Fig.4“ ” icon,
select “Functions”, you can
choose “Test”, “Auto”, or
“Custom Setting” , which are
the same as the step 5,6,7.
Fig. 8
Choose mode
Functions
Change image
Rename light
Password
Restore factory defaults
9:41 AM 100%
Setting
Back
9. Click Fig.8 “Change image”.
And click “take photo” to take
a photo .
Fig.9
Set picture for light
9:41 AM 100%
Back
Take photo
Choose existing photo
Cancel
9.1 Android:Click “ ” to grasp a your desired view.
iOS:Click “ ” to grasp a your desired view.
iOS Android
9.2 Android:Click “ ” to take
a photo. The iOs system
does not have this step.
Fig.9-1
Fig.9-2
Fig.9-1
Cancel

Page 7 / 10
160826
iOS Android
9.3. Android:Adjust the photo to trim the photo’s desired
size. Then click “ ” .
iOS: Click“Done” to take a photo.
Fig.9-3
Fig.9-3
Crop picture
11. Click fig.8 “Rename light” to
enter a name for the light,
then click “Save”.
10. Click fig.9 “Change existing
photo” to choose a desired
image on your device. Then
click “Cancel” back to
“Setting” menu list.
Fig.10
Fig.11-1
9.5. Go back to “Light list”, the
photo will show on the left
of “Light 1”.
9.4. It will turn to “change image”
The photo will show on it.
(Android will be slightly
different from the iOS
system)
Fig.9-5
Fig.9-4
Fig. 11
Set name for light
9:41 AM 100%
Back
Take photo
Choose existing photo
Cancel
Functions
Change image
Rename light
Password
Restore factory defaults
9:41 AM 100%
Setting
Back
Save
Enter a name for the light
9:41 AM 100%
Back
Cancel

Page 8 / 10
160826
12. Click fig.8 “Password” to set
a password for bluetooth
device so that others need
password to connect this
lamp.
Fig. 12
Set password for light
Functions
Change image
Rename light
Password
Restore factory defaults
9:41 AM 100%
Setting
Back
12. 1 The password must be 4
to 6 alpha-numberic
characters. Enter new
password and verify it
then press “Save”.
13. Click fig.8 “Restore factory
defaults” to restore your
settings (only the light name
and password) to the
original conditions.
13.1 Keep pressing the “reset”
button on the light for 5
seconds, the light will flash
three times. Then
press “Back” button.
Note: The photo’s settings
can’t be restored by
using this function.
Note: 1. Manual control and App control
independently.
2. The function which is executed is the lastest
settings.
3. After a power cut or power outage, the
function of the light will revert back to the
actual settings of the switches on the fixture.
App settings will also revert back to the factory
default.
4. For achieving the best performance,make
sure the wall switch is in “ON” state (daytime
and nighttime).
9:41 AM 100%
Enter new password
Verify password
(Must be 4 to 6 alpha-numberic characters)
Back
Save
Fig. 13
Fig. 13-1
Fig. 12-1
Restore factory defaults
Functions
Change image
Rename light
Password
Restore factory defaults
9:41 AM 100%
Setting
Back
Restore factory defaults
Please press the reset button on the bottom
of sensor head for 5 seconds.
9:41 AM 100%
Back

Page 9 / 10
Spare Parts List:
The light will not come
on.
Turn the light switch on.
Replace the fuse or turn the circuit
breaker on.
Recheck after dark.
Re-aim the motion sensor to cover the
desired area.
Increase the “Sensitivity” setting.
The light fixture is operating normally
under these circumstances.
Verify the wiring is correct.
The light switch is turned off.
The fuse is blown or the circuit breaker is
turned off.
Daylight turn-off (photocell) is in effect.
The motion sensor is aimed in the wrong
direction.
The outside air temperature is close to the
same as a person’s body heat.
The circuit wiring is incorrect (if this is a new
installation).
The motion sensor may be installed in a
relatively dark location.
Problem Possible Cause Solution
The light comes on during
the day.
Mounting Screw X2
#8/32X1/2 in Mounting Bracket Screw Fixture Mounting Screw
Mounting Strap
Mounting Screw X2
#6/32 X1/2 in
Mounting Screw X2
#10/24 X1/4 in Decorative cover
Troubleshooting
The following parts are available for re-order if damaged or missing.
160826
Assembly Kit
5569MM (1 SET) for T0274
5570MM (1 SET) for T0275
Range Up to 70ft. (Varies with surrounding
temperature)
Up to 240º
29W
2600lm
120 VAC, 60Hz
Test, Auto, Custom setting
5s, 1min, 3min, 5min
Iphone 4S or newer running IOS 8.0 x or later.
Android v4.4 or later
Phone must also have Bluetooth version 4.0 or later
Sensing angle
Electrical load - LED
Lumens
Power requirements
Operating modes
Time delay
Mobile device requirements

Page 10 / 10
FCC Statement
Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment .
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
160826
5-YEAR LIMITED WARRANTY:
All products are warranted to be free of defects in material and workmanship for five (5) years from date of purchase.
This warranty is limited to the correction of any such defect, or the replacement of any such defective item(s), provided
that: (a) we are properly notified and consent to return of the item(s) in question:(b) the item(s) is / are returned with proof
of purchase date; and (c) it is found upon inspection by us that the item(s) is / are defective as noted above. This warranty
does not cover labor costs, consequential damages, nor does it apply to any item(s) that have been improperly installed,
overloaded, altered, or otherwise abused by the customer, its agent(s) or employee(s). Finishes are specially excluded
from the terms of this warranty since they are subject to environmental maintenance deemed beyond our control. Other
than the described obligation, we assume no further liability with respect to the sale or use of our products.We make no
warranty, express or implied, and disclaim any warranty of merchantability or fitness for a particular purpose.
A: 13”
B: 6-1/2”
C: 5-3/4”
A
B
C
